Premium 3-Camera 4K HDMI Production Bundle with AI Auto-Tracking PTZ Cameras, 4K Video Switcher, Advanced PTZ Control & Accessories
Overview
BZBGEAR Studio Elite is the flagship of our studio bundles. It is a true 4K UHD end-to-end production system built around the BG-ADAMO-4K25X, BZBGEAR's most decorated PTZ camera. Three of these cameras anchor the kit, each capturing pristine 4K@60Hz video through a Sony CMOS sensor and delivering it over HDMI 2.0, 12G-SDI, USB 2.0/3.0 and LAN with full IP streaming support (RTSP, RTMP, SRT). 25X optical zoom gives serious reach in large venues including auditoriums, stages, sanctuaries and sports halls, all without sacrificing image quality.
AI auto-tracking with both Presenter and Zone modes locks onto a subject's head and shoulders (not face), so coverage stays intact even when speakers turn away from the camera. Built-in tally lights, a 1 TB microSDXC slot for on-camera recording, Crestron driver support and IRIS cloud-based camera management make the BG-ADAMO-4K25X equally at home in unattended remote-production setups and large in-house studios. The series has earned NAB Show Product of the Year, IBC Best of Show, Best of NAB by Videomaker and other awards, and the rest of the kit is matched to that level.
Camera control is centralized through the BG-Commander-Pro, the flagship joystick controller in the Commander lineup. It features a 7" Android-based touchscreen, live RTSP previews of up to nine cameras, on-controller 2×2/3×3 video walls, four RS-422/RS-485 ports, and the ability to manage up to 2048 devices via single IP multi-channel acquisition. Production switching is handled by the BG-QuadFusion-4K, a true 4K UHD 4-channel HDMI/DisplayPort switcher with PIP/POP, CHROMA/LUMA key, multi-output PGM, USB 3.0 capture, and full mixing for cameras, computers and media playback.
Studio Elite is delivered as a complete plug-and-play system. A NET-5DP433 PoE network switch, six BG-CAB-H21C3 8K-rated HDMI 2.1 cables, and three sets of BG-UWM wall mounts and BG-UCM ceiling mounts ship in the box, so the entire 4K production chain (capture, control, switching, networking, mounting) is handled with a single SKU. Available in black (BG-STUDIO-ELITE-B) and white (BG-STUDIO-ELITE-W).
BG-ADAMO-4K25X
More about the camera
The BG-ADAMO-4K25X is the flagship 4K UHD AI auto-tracking PTZ camera in the ADAMO series, a multi-award-winning design recognized with NAB Show Product of the Year, IBC Best of Show, Best of NAB by Videomaker and more. It captures pristine 4K@60Hz video with 25X optical zoom, providing exceptional reach without compromising image quality. AI auto-tracking with Presenter and Zone modes uses head-and-shoulders detection (not face recognition), so the camera holds onto its subject even when they turn away.
Connectivity is uncompromising: HDMI 2.0, 12G-SDI for long 4K cable runs, USB 2.0, USB 3.0 (dual-stream main + sub) and LAN with RTSP, RTMP and SRT. A microSDXC slot supports up to 1 TB of on-camera recording, while integrated 360° tally lights keep talent and crew in sync. Control options span RS-232, RS-422, IR remote, web GUI, Crestron drivers, the free BG-CONTROL app and IRIS cloud-based camera management, with up to 255 programmable presets. Available in black or white, the BG-ADAMO-4K25X is engineered for elite-tier productions where 4K reach, AI automation and professional reliability are non-negotiable.

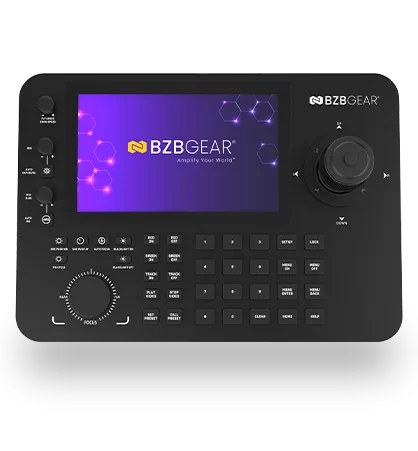

BG-Commander-Pro
More about the PTZ joystick controller
The BG-Commander-Pro is the flagship joystick controller in the lineup, built around a 7-inch 1024×600 touchscreen and an Android 11 platform with H.265/H.264 decoding. Operators can monitor live RTSP previews from up to nine connected cameras simultaneously and even arrange them as a 2×2 or 3×3 video wall directly on the controller, all while retaining total PTZ control of presets, focus, zoom, and exposure.
Designed for large-scale productions, the BG-Commander-Pro is fully NDI-compatible and uses advanced network scanning to auto-discover IP and NDI cameras with no manual configuration. Single IP multi-channel acquisition and ONVIF support allow up to 2048 devices to be managed from a single unit. Four RS-422/RS-485 ports plus an RS-232 port handle serial control, while a Micro-SD slot enables on-the-fly RTSP recording and screenshot capture. A USB flash-drive upgrade path and external mouse/keyboard support keep maintenance and complex configuration simple.

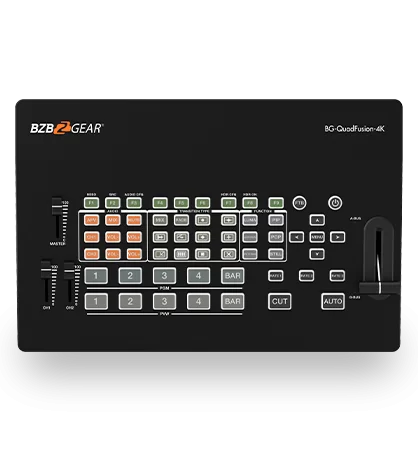

BG-QuadFusion-4K
More about the production switcher
The BG-QuadFusion-4K is a feature-packed 4K UHD 4-channel video production switcher built for professional broadcast, studio and live-event workflows. It supports up to four HDMI/DisplayPort inputs at 4K@60Hz with built-in format conversion, allowing 4K cameras, laptops and media players to be mixed seamlessly. Four HDMI outputs (including PGM and multiview) and a USB 3.0 capture port (H.26x encoded, 1080p60 stream) make it easy to feed local displays, recorders and streaming PCs at the same time.
On the production side the BG-QuadFusion-4K offers a full toolkit of MIX, FADE and wipe transitions plus PIP/POP, CHROMA key and LUMA key for graphics, subtitles and virtual backgrounds. Audio is handled with 3.5 mm stereo line in/out and two microphone inputs for direct embedding into the program output, with a dedicated audio mixing section on the panel. DCB control, Tally/GPI, and a network port enable cascading, third-party control and PC-based remote operation. Housed in a slim aluminum-alloy chassis, the unit is equally at home in mobile production, sports broadcasts, concerts and studio environments where 4K end-to-end is essential.
What else is in the box
To make installation as simple as possible, every bundle ships with all the supporting hardware needed to get the system on-air. This includes the NET-5DP433 Netgear 8-port Gigabit Ethernet PoE/PoE+ unmanaged switch (60W PoE budget, FlexPoE-expandable to 90W or 130W) for powering and networking the cameras and controller over a single CAT cable per device, six BG-CAB-H21C3 8K-rated HDMI 2.1 cables for clean signal runs from the cameras and sources to the switcher, and a complete set of BG-UWM and BG-UCM universal wall and ceiling mounts (one of each per camera) so installers can place each unit exactly where the production needs it.
Camera Features
-
![bi_badge-4k]()
High ResolutionOutput up to 4K@60Hz over HDMI or 12G-SDI and 4K@30Hz over USB 2.0 cabling -
![lights]()
Tally LightsIntegrated red/green LED tally lights -
![bi_sd-card]()
MicroSDRecord and store up to 1 TB of 4K video -
![zoomfeatures]()
ZoomAvailable with 12x/25x optical zoom lens -
![material-symbols_settings-input-component]()
Multiple Video OutputsChoose from SDI, HDMI, USB 3.0, USB 2.0, or IP Streaming -
![Power over Ethernet (PoE)]()
PoEData, power, and control over a single category cable (PoE+ Recommended)
Easy-to-See Tally-Lights
Stay in control at all times with vibrant red and green lights. Green signals readiness, while red indicates active recording or streaming. Enjoy the convenience of automatic detection or take charge with manual control!
Powerful 12X/25X Optical Zoom
Capture stunning close-up shots with our 12X/25X optical zoom lens. Precision control over zoom speeds and focus settings ensures clean and clear imagery for your content.
Multiple Video Output Options
Experience flexibility with simultaneous video output options – HDMI, 12G SDI, USB 2.0, and 3.0. Choose the connectivity that suits your needs and elevate your production quality.
Power Over Ethernet
for Effortless Setup
Simplify your setup with a single Cat 5/6/7 Ethernet cable providing both power and network connection. The BG-ADAMO makes installation a breeze, ensuring a seamless experience.
Record and Store 4K Videos Effortlessly
With a micro SD slot, the BG-ADAMO allows you to record and store up to 1TB of 4K video content on the go. Never miss a moment with this convenient feature.
Download our app now and effortlessly manage multiple cameras wirelessly!
Videos
From our popular IP and serial joystick controllers to our free downloadable PTZ control software, we make sure
Mounting Ideas
Tech Specifications
| Camera Parameters | |
| Optical Zoom | 25X |
| Focal Length Range | f=6.91 mm ~ 214.64 mm ±5% |
| View Angle | H: 1.98°(tele) ~ 59°(wide) V: 1.12°(tele) ~ 34.14°(wide) |
| AV | F1.35 ~ F4.6±5% |
| Sensor | 1/1.8 inch SONY CMOS sensor |
| Effective Pixels | 8.51 Megapixels 16:9 |
| Video Format | HDMI: 3840*2160p@60/50/30/25/59.94/29.97Hz/24Hz/23.98hz; 1080p@60/50/30/25/59.94/29.97Hz/24Hz/23.98Hz; 1080i@60/50,30/59.94Hz; 720p@60/50/59.94Hz; 12G-SDI: 3840*2160p@60/50/30/25/59.94/29.97Hz/24hz/23.98Hz; 1080p@60/50/30/25/59.94/29.97Hz/24Hz/23.98Hz; 1080i@60/50/59.94Hz; 720p@60/50/59.94Hz; USB2.0: MJPG: 3840*2160 /1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240p@30Hz; H264: 3840*2160 /1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240p@30Hz; YUY2: 800*448 /720*480p@25; 640*360 /432*240p@30Hz NV12: 800*448p@25; 640*480 /640*360 /432*240p@30Hz USB3.0: YUY2: 1920*1080 /1280*720p@60/50/30/25Hz; 960*540 /800*600p@30Hz; 720*576p@50Hz; 720*480p@60Hz; 640*480p@30Hz; |
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) |
| DNR | 3D DNR |
| White Balance | Auto / Manual / One Push / Specified Color Temperature |
| Focus | Auto / Manual / One Key Focus |
| Exposure Mode | Auto, Manual / Shutter Priority / Aperture Priority / Brightness Priority |
| Aperture Parameters | F1.8 ~ F11, CLOSE |
| Shutter Speed | 1/25 ~ 1/10000 |
| BLC | Off/On |
| Dynamic range | OFF / Dynamic Level Adjustment |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR | ≥50dB |
| Interface Features | |
| Interfaces | HDMI, 12G-SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro SD (FAT32), RS232-IN, RS232-OUT, RS422 (Compatible with RS485), Dial switch, DC12V, Power Switch |
| Video Compression | LAN: H.264, H.265 USB 2.0: MJPG, H264, H265, YUY2, NV12 USB 3.0: YUY2 |
| Audio-in Interface | Double track 3.5mm linear Input |
| Audio-out Interface | HDMI, SDI, LAN |
| Audio Compression | AAC, G.711A |
| Sampling frequency | 32000, 44100, 48000 |
| LAN | 10M/100M/1000M adaptive Ethernet port, support POE and audio/video output |
| Network Protocol | RTSP, RTMP, RTMPS, ONVIF, SRT, GB/T28181; VISCA Control Protocols |
| Control Interface | RS232-IN, RS232-OUT, RS422 compatible with RS485, LAN |
| Serial Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400 |
| USB Communication Protocol | UVC (video) |
| Power Interface | HEC3800 outlet (DC12V), PoE |
| Power Adapter | In: AC110V-AC220V; Out: DC12V/2.5A |
| Input Voltage | DC12V±10% |
| Input Current | <1.5A |
| Power Consumption | <12W |
| PTZ Parameters | |
| Pan Rotation | -170° ~ +170° |
| Tilt Rotation | -30° ~ +90° |
| Pan Control Speed | 0.1°/s ~ 100°/s |
| Tilt Control Speed | 0.1°/s ~ 70°/s |
| Preset Speed | Pan: 78.8°/s, Tilt: 31.7°/s |
| Preset Number | 255 presets via Web GUI (10 presets using remote control) |
| Other Parameters | |
| Stored Temperature | 14°F ~ 140°F / -10°C ~ +60°C |
| Storage Humidity | 20% ~ 95% |
| Working Temperature | 14°F ~ 122°F / -10°C ~ +50°C |
| Working Humidity | 20% ~ 80% |
| Dimension | 8.7in(L) x 5.9in(W) x 7in(H) [220mm(L) x 150.2mm(W) x 177.5mm(H)] |
| Weight | ~4 Lbs [~1.8kg] |
| Working Environment | Indoor Only |
BG-Commander-Pro: See Technical Specifications Here
BG-QuadFusion-4K: See Technical Specifications Here
NET-5DP433: See Technical Specifications Here

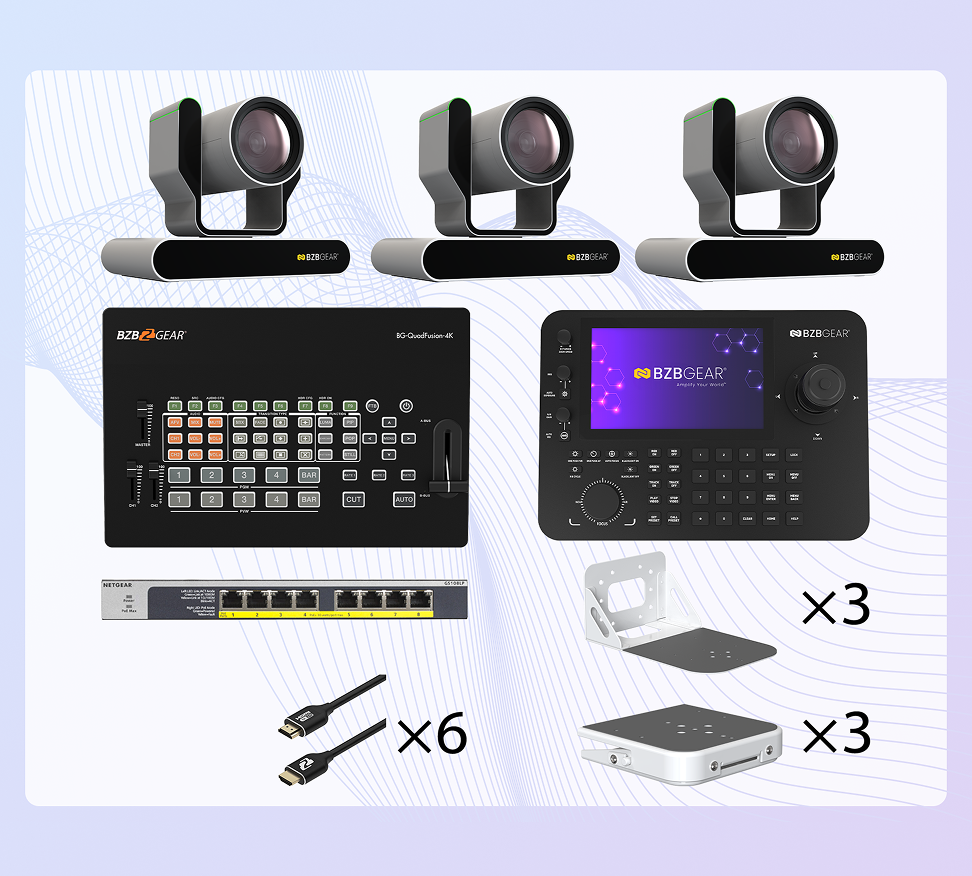

PACKAGE CONTENTS
- 3x BG-ADAMO-4K25X (4K UHD AI Auto-Tracking PTZ Camera, 25X)
- 1x BG-Commander-Pro (Flagship Joystick Controller, 7" Touchscreen)
- 1x BG-QuadFusion-4K (4-Channel 4K UHD Production Switcher)
- 1x NET-5DP433 (Netgear 8-port Gigabit PoE/PoE+ Network Switch)
- 6x BG-CAB-H21C3 (8K UHD HDMI 2.1 Cable)
- 3x BG-UWM (Universal PTZ Camera Wall Mount)
- 3x BG-UCM (Universal PTZ Camera Ceiling Mount)
Interfaces
- USB 3.0: Connect USB 3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080p@60Hz.
- USB 2.0: Connect USB 2.0 type A cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 4K@60Hz.
- SDI: Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 12G (4K@60Hz) over SDI cabling.
- HDMI: Connect to an HDMI device such as a video production switcher or a video display up to 4K@60Hz.
- MicroSD: Record up to 1 TB of 4K video (FAT32).
- Audio In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
- RS-232, RS-422/485: Connect cascading RS-232 or RS-422/485 to control the camera(s) with a joystick controller or control software.
- LAN: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
- Power: Connect supplied 12V power adapter.
BG-Commander-Pro: See Interface Description Here
BG-QuadFusion-4K: See Interface Description Here
