Essential 3-Camera NDI|HX Live Production Studio Bundle with PTZ Cameras, PTZ Controller, Network Switch & Accessories
Overview
BZBGEAR Studio Core-N is the NDI|HX2 version of our Studio Core kit, built for teams that have committed to a network-based, software-driven production workflow. The bundle pairs three BG-UPTZ-ND20X Universal Full HD PTZ cameras (1080p@60Hz, 20X optical zoom, 1/2.8" Sony CMOS) with native NDI|HX2 over a single Ethernet cable. Each camera can be discovered and routed by any NDI-aware tool, including vMix, OBS Studio, NDI Studio Monitor, TriCaster and dozens more, without any additional capture or conversion hardware.
Even though the cameras are NDI-first, they remain fully universal. HDMI, 3G-SDI and USB 3.0 outputs are all simultaneously active, so the same kit also drops into hybrid productions that mix NDI with traditional baseband signal flows. ONVIF, RTSP, RTMP and SRT are all supported alongside NDI|HX2, and up to 255 presets can be programmed per camera for repeatable shots.
Camera operation is handled by the BG-Commander-Jr joystick controller, which speaks IP VISCA, VISCA over IP, ONVIF and PELCO-P/D, so it can drive the cameras directly over the network with no separate control wiring. Because Studio Core-N is designed for software-based switching (in vMix, OBS, etc.), the bundle does not include a hardware production switcher. The user's preferred NDI-aware production software takes that role.

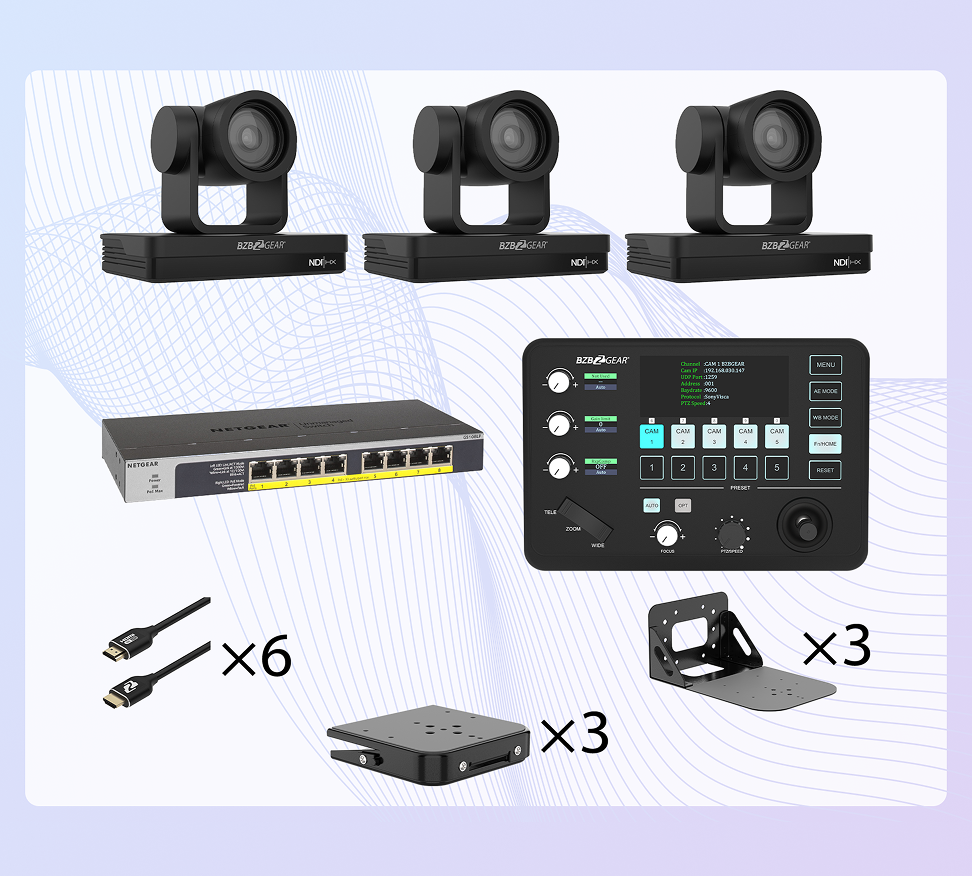

All supporting hardware is included: a NET-5DP433 PoE network switch to power and connect every camera and the controller over a single CAT cable each, six BG-CAB-H21C3 HDMI 2.1 cables for any baseband connections you do want to make, and three BG-UWM wall mounts plus three BG-UCM ceiling mounts. Available in black (BG-STUDIO-CORE-N-B) and white (BG-STUDIO-CORE-N-W).
BG-UPTZ-ND20X
More about the camera
The BG-UPTZ-ND20X is the NDI|HX2 version of the Universal Full HD PTZ series, pairing a 1/2.8" Sony CMOS sensor and 20X optical zoom with native NDI|HX2 video over IP. With a single Ethernet cable, the camera delivers high-quality, low-latency video and audio onto the network, ready for use in vMix, OBS, NDI Studio Monitor and any other NDI-enabled production tool, while still providing simultaneous HDMI, 3G-SDI and USB 3.0 outputs for hybrid hardware/software workflows.
In addition to NDI|HX2, the BG-UPTZ-ND20X supports ONVIF, RTSP, RTMP and SRT, plus IR remote, browser web GUI, IP VISCA and serial RS-232/RS-485 control via VISCA, PELCO-D and PELCO-P. Up to 255 presets, a 3.5 mm audio input for direct audio embedding, and an onboard resolution-lock dial keep complex multi-camera productions stable and predictable. Available in black or white, this camera is an ideal choice for teams committed to an NDI-first IP video workflow without sacrificing traditional connectivity.
BG-Commander-Jr
More about the PTZ joystick controller

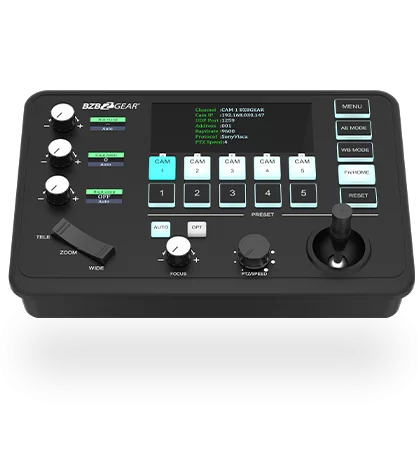

The BG-Commander-Jr is a compact yet powerful professional-grade joystick controller designed for precise camera operation. Its 2-axis joystick and zoom rocker provide refined PTZ control, while a 7-level PTZ speed setting with a visual indicator gives operators full command over camera movement. Knob-style controls with dedicated mini displays make adjusting exposure, gain, white balance and focus fast and intuitive.
Connectivity covers both IP and serial workflows: a LAN port (with PoE for single-cable installation), RS-232 over DB9, and RS-422/RS-485 over a Phoenix terminal. The controller supports VISCA, VISCA over IP, ONVIF, and PELCO-P/D protocols, and can manage up to five cameras with real-time preset set, call, and reset directly from the main display. Backlit silicone buttons, a 4-color LED status display and a built-in web interface make the BG-Commander-Jr equally at home in broadcast, education, telemedicine and house-of-worship setups.
What else is in the box
To make installation as simple as possible, every bundle ships with all the supporting hardware needed to get the system on-air. This includes the NET-5DP433 Netgear 8-port Gigabit Ethernet PoE/PoE+ unmanaged switch (60W PoE budget, FlexPoE-expandable to 90W or 130W) for powering and networking the cameras and controller over a single CAT cable per device, six BG-CAB-H21C3 8K-rated HDMI 2.1 cables for clean signal runs from the cameras and sources to the switcher, and a complete set of BG-UWM and BG-UCM universal wall and ceiling mounts (one of each per camera) so installers can place each unit exactly where the production needs it.
Camera Features
-
![zoomfeatures]()
ZoomAvailable in 12x/20x/30x optical zoom
+10x digital -
![fluent_zoom-fit-24-filled]()
ControlIP, IR, and cascadable RS232/485 (VICSA/Pelco) + 255 preset positions, BZBGEAR PTZ Control App -
![material-symbols_settings-input-component]()
Multiple Video OutputsHDMI, 3G-SDI, USB 3.0, and IP-streaming working simultaneously -
![solar_play-stream-bold]()
Latest Streaming TechSupports H.264/H.265 video compression and RTMP(S) -
![ph_cube-focus-fill]()
Superb Auto FocusAuto focusing algorithms resulting in quick, accurate, and stable focus -
![Power over Ethernet (PoE)]()
Power over EthernetDelivers power directly over an ethernet cable
Enhanced Optical Zoom Capability
Experience exceptional clarity and precision with our versatile optical zoom lens, offering magnification options of 12X, 20X, and 30X. Whether capturing mid-range scenes or close-up details, achieve stunning shots with ease.
Flexible Video Output
Select from a range of output options including HDMI, USB 3.0, or SDI, or harness the power of all three simultaneously to suit your streaming needs perfectly.
Seamless Audio Integration
Effortlessly embed audio into your streams using the convenient line-in port situated on the camera's rear, ensuring crisp sound accompanies your high-quality visuals.
Cutting-Edge NDI|HX2 Technology
Revolutionize your video production workflow with NDI|HX2 technology, delivering superior output quality, low bandwidth consumption, and moderate latency, ensuring smooth and efficient streaming experiences.
Versatile Mounting Options
Easily mount the camera onto a tripod, wall, or ceiling with the secure mounting panel located on the bottom, providing stability and flexibility for diverse filming setups.
Download our app now and effortlessly manage multiple cameras wirelessly!
Videos
Mounting Ideas
Tech Specifications
| BG-UPTZ-ND20X | |||
| Lens | 20X Optical zoom | ||
| Horizontal View Angle | 54.7°(W)~3.3°(T) | ||
| Image Sensor | 1/2.8" Progressive CMOS | ||
| Effective Pixels | 2.07 Megapixels (16:9) | ||
| Resolution | 1080p @ 60/50, 1080i @ 60/50, 1080p @ 30/25, 720p @ 60/50 | ||
| Interface | USB 3.0, HDMI, 3G-SDI, NDI/LAN(POE), RS232/485, LINE IN | ||
| Pan Rotation | 340° (max. speed: 80°/s) | ||
| Tilt Rotation | -30° to +90° (max. speed: 60°/s) | ||
| Focus System | Auto/Manual | ||
| S/N Ratio | ≥50db | ||
| Preset Position | 9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC | ||
| Minimum Illumination | 0.5 Lux (F1.8, AGC ON) | ||
| Exposure Control | Auto/Manual/Priority AE/Exposure Compensation/Bright | ||
| Shutter Speed | 1/1~1/10,000s | ||
| Gain | Auto/Manual | ||
| White Balance | Auto/Manual/ATW/One-click/Indoor/Outdoor | ||
| Image Effect | Full color/black and white/Electronic flip | ||
| Video Output HD | HDMI, 3G-SDI, IP, USB 3.0 | ||
| Control Protocol | RTSP, RTMP, ONVIF, GB/T28181 | ||
| Power | 12V DC | ||
| Power Consumption | Max. 30W(DC 12V) | ||
| Operating Temperature | 32°F ~ 104°F / 0°C ~ +40°C | ||
| Storage Temperature | -4°F ~ 140°F / -20°C ~ +60°C | ||
| Camera Dimensions | (L)7 x (W)4.5 x (H)5.9in [(L)178 x (W)115.5 x (H)150.9mm] | ||
| Weight | 3 lbs [1.38KG] | ||
| Color | Black, White | ||
| Working Environment | Indoor Only | ||
BG-Commander-Jr: See Technical Specifications Here
NET-5DP433: See Technical Specifications Here
PACKAGE CONTENTS
- 3x BG-UPTZ-ND20X (Universal 1080p PTZ Camera with NDI|HX2, 20X)
- 1x BG-Commander-Jr (Compact Serial & IP PTZ Joystick Controller)
- 1x NET-5DP433 (Netgear 8-port Gigabit PoE/PoE+ Network Switch)
- 6x BG-CAB-H21C3 (8K UHD HDMI 2.1 Cable)
- 3x BG-UWM (Universal PTZ Camera Wall Mount)
- 3x BG-UCM (Universal PTZ Camera Ceiling Mount)
Interfaces
- HDMI: Connect to an HDMI device such as a video production switcher or a video display up to 1080@60Hz.
- USB: Connect USB3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080@60Hz.
- SDI: Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) over SDI cabling.
- Line-In: Stereo audio input for connecting mics and embedding local audio into all video output interfaces.
- System Select: Turn this dial to set desired output resolution. See manual for resolution options.
- RS-232, RS-422/485: Connect cascading RS-232 or RS-422/485 to control the camera(s) with a joystick controller or control software.
- NDI: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream (NDI|HX2).
- Power: Connect supplied 12V power adapter.
BG-Commander-Jr: See Interface Description Here
