Overview
BZBGEAR Studio Elite-N is the top of our studio lineup for teams running NDI-first 4K production. It combines the award-winning ADAMO-4K platform with NDI|HX3, the latest generation of NDI's high-efficiency, low-latency video-over-IP standard. The bundle includes three BG-ADAMO-4KND25X cameras: 4K@60Hz capture, 25X optical zoom, AI auto-tracking with Presenter and Zone modes, integrated tally lights, and a 1 TB microSDXC slot for on-camera recording. All of this is delivered over a single Ethernet cable into any NDI-aware production environment.
NDI|HX3 brings substantially higher image quality and lower latency than NDI|HX2 over the same network (≈80 Mbps at 1080p60, ≈95 Mbps at 4K30, ≈120 Mbps at 4K60) and works with the full NDI 5.5 toolkit. The cameras still provide HDMI 2.0, 12G-SDI for long 4K cable runs, USB 2.0/3.0 dual-stream output and standard RTSP/RTMP/SRT streams, so any hybrid or fallback path you need is already in place. Crestron drivers and IRIS cloud-based control add enterprise-grade integration and remote-management options.
Camera operation is handled by the BG-Commander-Pro, which is fully NDI-compatible and uses advanced network scanning to auto-discover NDI cameras on the network. Its 7" touchscreen, multi-camera RTSP previews, on-controller 2×2/3×3 video walls and support for up to 2048 devices give large NDI productions the operational headroom they need. Because Studio Elite-N is engineered for software-defined production (vMix, OBS Studio, TriCaster, etc.), the bundle does not include a hardware production switcher; switching is handled by the user's chosen NDI-aware software.

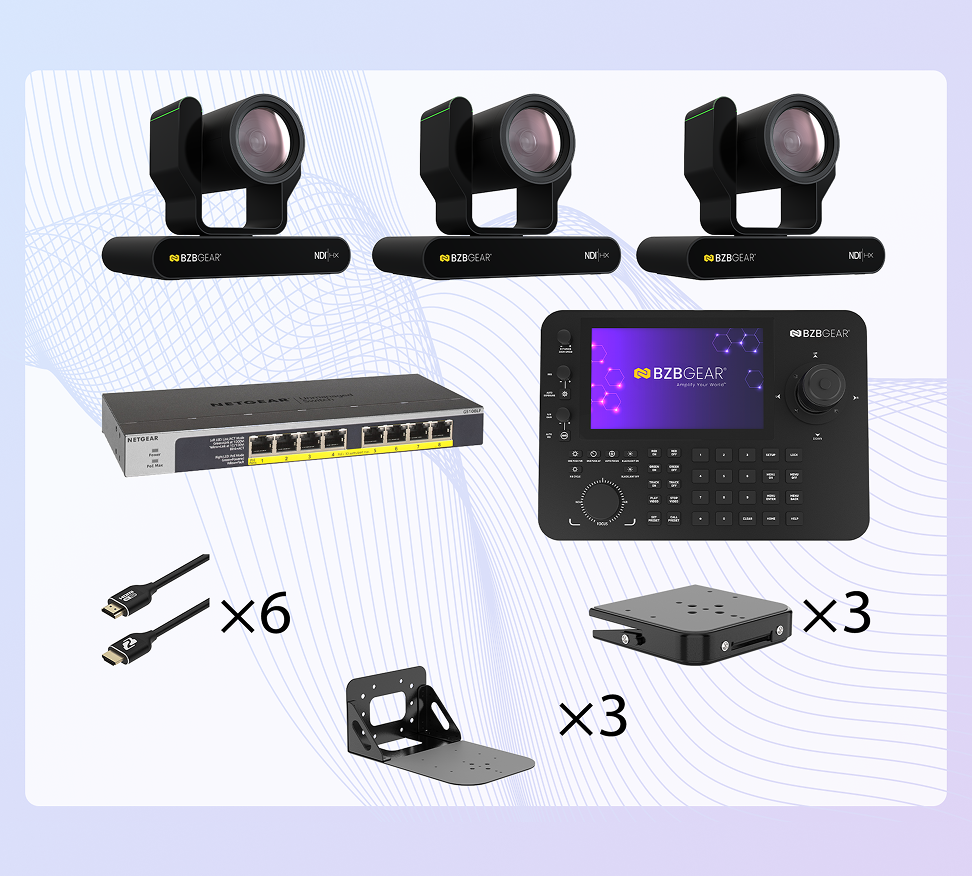

Every supporting component to run the system is included: a NET-5DP433 PoE network switch as the NDI backbone, six BG-CAB-H21C3 HDMI 2.1 cables for any baseband connections, and three BG-UWM wall mounts plus three BG-UCM ceiling mounts. Available in black (BG-STUDIO-ELITE-N-B) and white (BG-STUDIO-ELITE-N-W).
BG-ADAMO-4KND25X
More about the camera

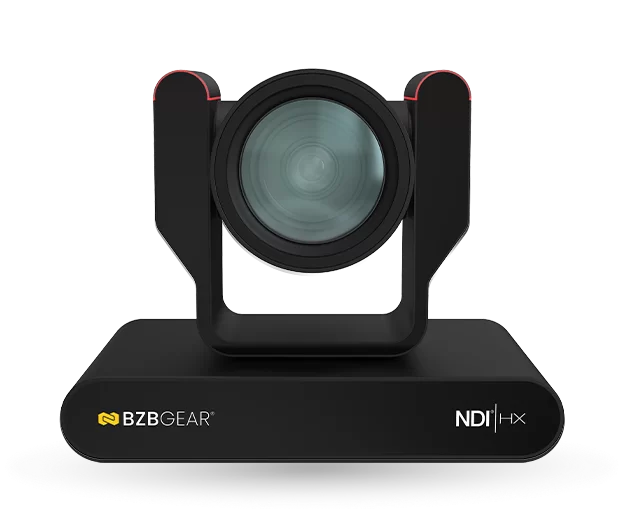

The BG-ADAMO-4KND25X combines the elite-tier 4K UHD performance of the ADAMO-4K platform with NDI|HX3, the latest generation of NDI's high-efficiency video-over-IP standard. The camera captures 4K@60Hz through a Sony CMOS sensor with 25X optical zoom and pairs it with AI auto-tracking in Presenter and Zone modes, integrated 360° tally lights, and onboard recording to a microSDXC card up to 1 TB, all delivered as broadcast-quality video over a single Ethernet cable.
NDI|HX3 brings improved image quality and significantly lower latency than NDI|HX2 (roughly 80 Mbps at 1080p60, 95 Mbps at 4K30, 120 Mbps at 4K60) and works with the full NDI 5.5 toolkit. In parallel, the camera offers HDMI 2.0, 12G-SDI, USB 2.0, USB 3.0 and standard IP streaming via RTSP, RTMP and SRT for any non-NDI destinations. Control options include RS-232, RS-422, IR remote, web GUI, Crestron drivers, the free BG-CONTROL app and IRIS cloud-based management, with up to 255 presets. Available in black or white, this is the model of choice for elite NDI-based productions that demand 4K image quality with effortless multi-camera IP routing.
BG-Commander-Pro
More about the PTZ joystick controller
The BG-Commander-Pro is the flagship joystick controller in the lineup, built around a 7-inch 1024×600 touchscreen and an Android 11 platform with H.265/H.264 decoding. Operators can monitor live RTSP previews from up to nine connected cameras simultaneously and even arrange them as a 2×2 or 3×3 video wall directly on the controller, all while retaining total PTZ control of presets, focus, zoom, and exposure.
Designed for large-scale productions, the BG-Commander-Pro is fully NDI-compatible and uses advanced network scanning to auto-discover IP and NDI cameras with no manual configuration. Single IP multi-channel acquisition and ONVIF support allow up to 2048 devices to be managed from a single unit. Four RS-422/RS-485 ports plus an RS-232 port handle serial control, while a Micro-SD slot enables on-the-fly RTSP recording and screenshot capture. A USB flash-drive upgrade path and external mouse/keyboard support keep maintenance and complex configuration simple.
What else is in the box
To make installation as simple as possible, every bundle ships with all the supporting hardware needed to get the system on-air. This includes the NET-5DP433 Netgear 8-port Gigabit Ethernet PoE/PoE+ unmanaged switch (60W PoE budget, FlexPoE-expandable to 90W or 130W) for powering and networking the cameras and controller over a single CAT cable per device, six BG-CAB-H21C3 8K-rated HDMI 2.1 cables for clean signal runs from the cameras and sources to the switcher, and a complete set of BG-UWM and BG-UCM universal wall and ceiling mounts (one of each per camera) so installers can place each unit exactly where the production needs it.
Camera Features
-
![bi_badge-4k]()
High ResolutionOutput up to 4K@60Hz over HDMI or 12G-SDI and 4K@30Hz over USB 2.0 cabling -
![lights]()
Tally LightsIntegrated red/green LED tally lights -
![bi_sd-card]()
MicroSDRecord and store up to 1 TB of 4K video -
![ndi 1]()
NDI|HX3Compatible with NDI® 5.5 from NewTek -
![material-symbols_settings-input-component]()
Multiple Video OutputsChoose from SDI, HDMI, USB 3.0, USB 2.0, or IP Streaming -
![Power over Ethernet (PoE)]()
PoEData, power, and control over a single category cable (PoE+ Recommended)
Easy-to-See Tally-Lights
Stay in control at all times with vibrant red and green lights. Green signals readiness, while red indicates active recording or streaming. Enjoy the convenience of automatic detection or take charge with manual control!
Powerful 12X/25X Optical Zoom
Capture stunning close-up shots with our 12X/25X optical zoom lens. Precision control over zoom speeds and focus settings ensures clean and clear imagery for your content.
Multiple Video Output Options
Experience flexibility with simultaneous video output options – HDMI, 12G SDI, USB 2.0, and 3.0. Choose the connectivity that suits your needs and elevate your production quality.
NDI|HX3 Technology
NDI|HX3 technology revolutionizes media production by enabling high-quality video transmission with minimal bandwidth and latency.
Record and Store 4K Videos Effortlessly
With a micro SD slot, the BG-ADAMO allows you to record and store up to 1TB of 4K video content on the go. Never miss a moment with this convenient feature.
Download our app now and effortlessly manage multiple cameras wirelessly!
Videos
From our popular IP and serial joystick controllers to our free downloadable PTZ control software, we make sure
Mounting Ideas
Tech Specifications
| Camera Parameters | |
| Optical Zoom | 25X |
| Focal Length Range | f=6.91 mm ~ 214.64 mm ±5% |
| View Angle | H: 1.98°(tele) ~ 59°(wide) V: 1.12°(tele) ~ 34.14°(wide) |
| AV | F1.35 ~ F4.6±5% |
| Sensor | 1/1.8 inch SONY CMOS sensor |
| Effective Pixels | 8.51 Megapixels 16:9 |
| Video Format | HDMI: 3840*2160p@60/50/30/25/59.94/29.97Hz/24Hz/23.98hz; 1080p@60/50/30/25/59.94/29.97Hz/24Hz/23.98Hz; 1080i@60/50,30/59.94Hz; 720p@60/50/59.94Hz; 12G-SDI: 3840*2160p@60/50/30/25/59.94/29.97Hz/24hz/23.98Hz; 1080p@60/50/30/25/59.94/29.97Hz/24Hz/23.98Hz; 1080i@60/50/59.94Hz; 720p@60/50/59.94Hz; USB2.0: MJPG: 3840*2160 /1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240p@30Hz; H264: 3840*2160 /1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240p@30Hz; YUY2: 800*448 /720*480p@25; 640*360 /432*240p@30Hz NV12: 800*448p@25; 640*480 /640*360 /432*240p@30Hz USB3.0: YUY2: 1920*1080 /1280*720p@60/50/30/25Hz; 960*540 /800*600p@30Hz; 720*576p@50Hz; 720*480p@60Hz; 640*480p@30Hz; |
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) |
| DNR | 3D DNR |
| White Balance | Auto / Manual / One Push / Specified Color Temperature |
| Focus | Auto / Manual / One Key Focus |
| Exposure Mode | Auto, Manual / Shutter Priority / Aperture Priority / Brightness Priority |
| Aperture Parameters | F1.8 ~ F11, CLOSE |
| Shutter Speed | 1/25 ~ 1/10000 |
| BLC | Off/On |
| Dynamic range | OFF / Dynamic Level Adjustment |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR | ≥50dB |
| Interface Features | |
| Interfaces | HDMI, 12G-SDI, LAN/NDI (support POE), USB 2.0, A-IN, USB 3.0, Micro SD (FAT32), RS232-IN, RS232-OUT, RS422 (Compatible with RS485), Dial switch, DC12V, Power Switch, NDI|HX3 |
| Video Compression | LAN: H.264, H.265 USB 2.0: MJPG, H264, H265, YUY2, NV12 USB 3.0: YUY2 |
| Audio-in Interface | Double track 3.5mm linear Input |
| Audio-out Interface | HDMI, SDI, LAN |
| Audio Compression | AAC, G.711A |
| Sampling frequency | 32000, 44100, 48000 |
| LAN | 10M/100M/1000M adaptive Ethernet port, support POE and audio/video output |
| Network Protocol | RTSP, RTMP, RTMPS, ONVIF, SRT, GB/T28181; VISCA Control Protocols |
| Control Interface | RS232-IN, RS232-OUT, RS422 compatible with RS485, LAN |
| Serial Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400 |
| USB Communication Protocol | UVC (video) |
| Power Interface | HEC3800 outlet (DC12V), PoE |
| Power Adapter | In: AC110V-AC220V; Out: DC12V/2.5A |
| Input Voltage | DC12V±10% |
| Input Current | <1.5A |
| Power Consumption | <12W |
| PTZ Parameters | |
| Pan Rotation | -170° ~ +170° |
| Tilt Rotation | -30° ~ +90° |
| Pan Control Speed | 0.1°/s ~ 100°/s |
| Tilt Control Speed | 0.1°/s ~ 70°/s |
| Preset Speed | Pan: 78.8°/s, Tilt: 31.7°/s |
| Preset Number | 255 presets via Web GUI (10 presets using remote control) |
| Other Parameters | |
| Stored Temperature | 14°F ~ 140°F / -10°C ~ +60°C |
| Storage Humidity | 20% ~ 95% |
| Working Temperature | 14°F ~ 122°F / -10°C ~ +50°C |
| Working Humidity | 20% ~ 80% |
| Dimension | 8.7in(L) x 5.9in(W) x 7in(H) [220mm(L) x 150.2mm(W) x 177.5mm(H)] |
| Weight | ~4 Lbs [~1.8kg] |
| Working Environment | Indoor Only |
BG-Commander-Pro: See Technical Specifications Here
NET-5DP433: See Technical Specifications Here
PACKAGE CONTENTS
- 3x BG-ADAMO-4K25X (4K UHD AI Auto-Tracking PTZ Camera, 25X)
- 1x BG-Commander-Pro (Flagship Joystick Controller, 7" Touchscreen)
- 1x NET-5DP433 (Netgear 8-port Gigabit PoE/PoE+ Network Switch)
- 6x BG-CAB-H21C3 (8K UHD HDMI 2.1 Cable)
- 3x BG-UWM (Universal PTZ Camera Wall Mount)
- 3x BG-UCM (Universal PTZ Camera Ceiling Mount)

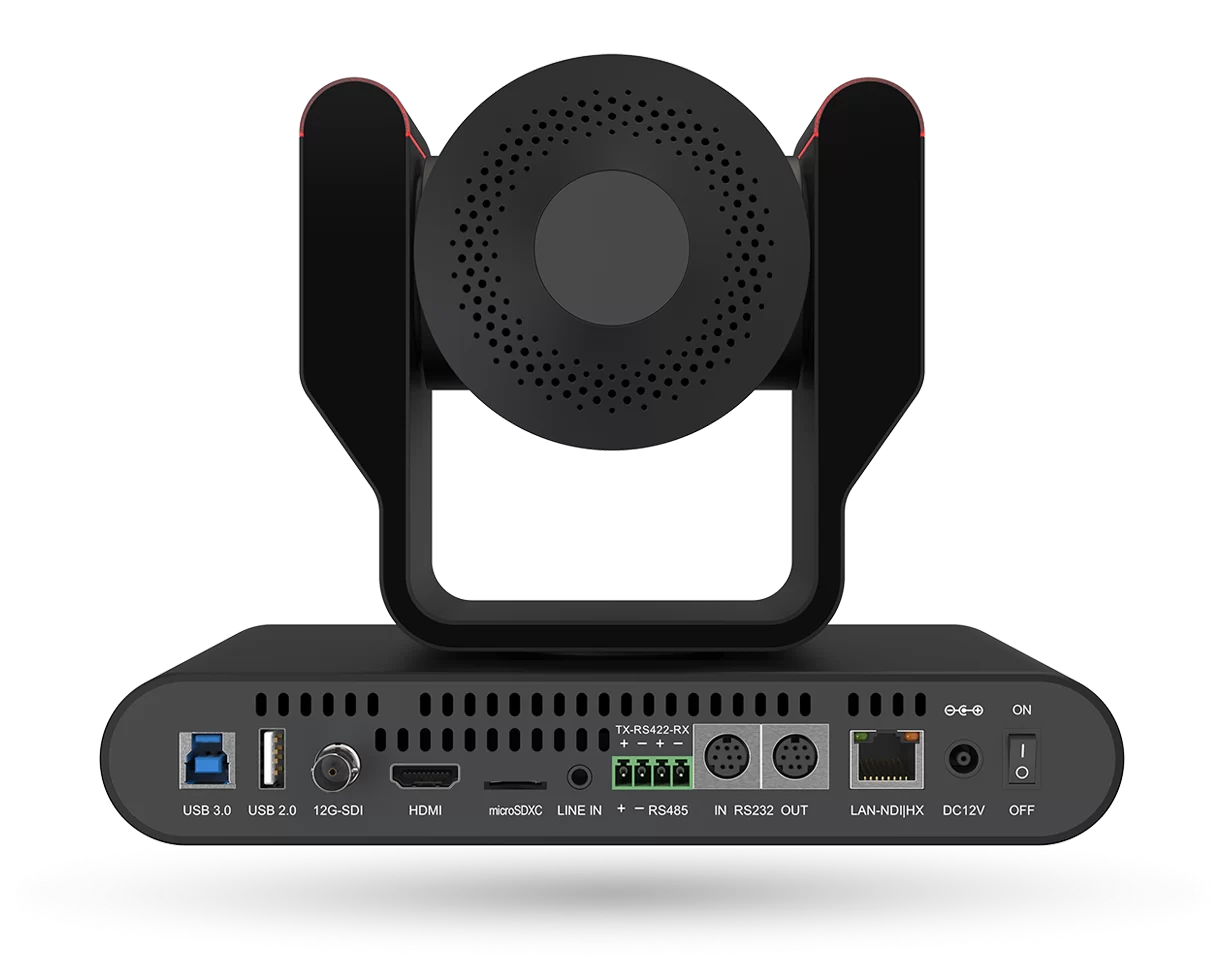

Interfaces
- USB 3.0: Connect USB 3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080p@60Hz.
- USB 2.0: Connect USB 2.0 type A cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 4K@60Hz.
- SDI: Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 12G (4K@60Hz) over SDI cabling.
- HDMI: Connect to an HDMI device such as a video production switcher or a video display up to 4K@60Hz.
- MicroSD: Record up to 1 TB of 4K video (FAT32).
- Audio In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
- RS-232, RS-422/485: Connect cascading RS-232 or RS-422/485 to control the camera(s) with a joystick controller or control software.
- LAN-ND|HX: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream (NDI|HX).
- Power: Connect supplied 12V power adapter.
BG-Commander-Pro: See Interface Description Here
