Essential 3-Camera HDMI Live Production Studio Bundle with PTZ Cameras, Video Switcher, PTZ Controller & Accessories
Overview
BZBGEAR Studio Core is a complete, ready-to-go three-camera live production kit built around the BG-UPTZ-20XHSU Universal Full HD PTZ camera. Three of these 1/2.8" Sony CMOS-based cameras deliver crisp 1080p@60Hz video with 20X optical zoom, making the bundle equally well suited to medium-sized studios, classrooms, conference rooms, auditoriums and houses of worship that need professional multi-angle coverage without stepping up to 4K.
The BG-UPTZ-20XHSU is a true universal camera. Simultaneous HDMI, 3G-SDI and USB 3.0 outputs let it slot into traditional broadcast switchers, USB-based conferencing platforms (Zoom, Teams, Meet) and IP streaming workflows (ONVIF, RTSP, RTMP, SRT) all at once. Up to 255 presets, an onboard resolution-lock dial, and a 3.5 mm audio input for direct embedding keep multi-camera productions consistent shot after shot.
Operation is centralized through the BG-Commander-Jr joystick controller, which gives camera operators precise PTZ control, real-time preset management, and intuitive image adjustments through dedicated knobs and a 4-color LED display. The BG-QuadFusion-Jr 4-channel 1080p production switcher then handles all live mixing, blending three camera feeds plus an extra HDMI/DP input from a laptop or media player, with PIP, chroma/luma key, USB 3.0 capture for OBS/vMix/Zoom and direct RTMP streaming to YouTube, Facebook and other platforms.
Everything else needed to deploy the system is included in the bundle: a NET-5DP433 PoE network switch, six 8K-rated BG-CAB-H21C3 HDMI 2.1 cables, and three sets of universal wall and ceiling mounts (BG-UWM and BG-UCM). The kit ships as a single SKU you can install end-to-end without sourcing additional accessories. Available in black (BG-STUDIO-CORE-B) and white (BG-STUDIO-CORE-W) to match any room aesthetic.
BG-UPTZ-20XHSU
More about the camera

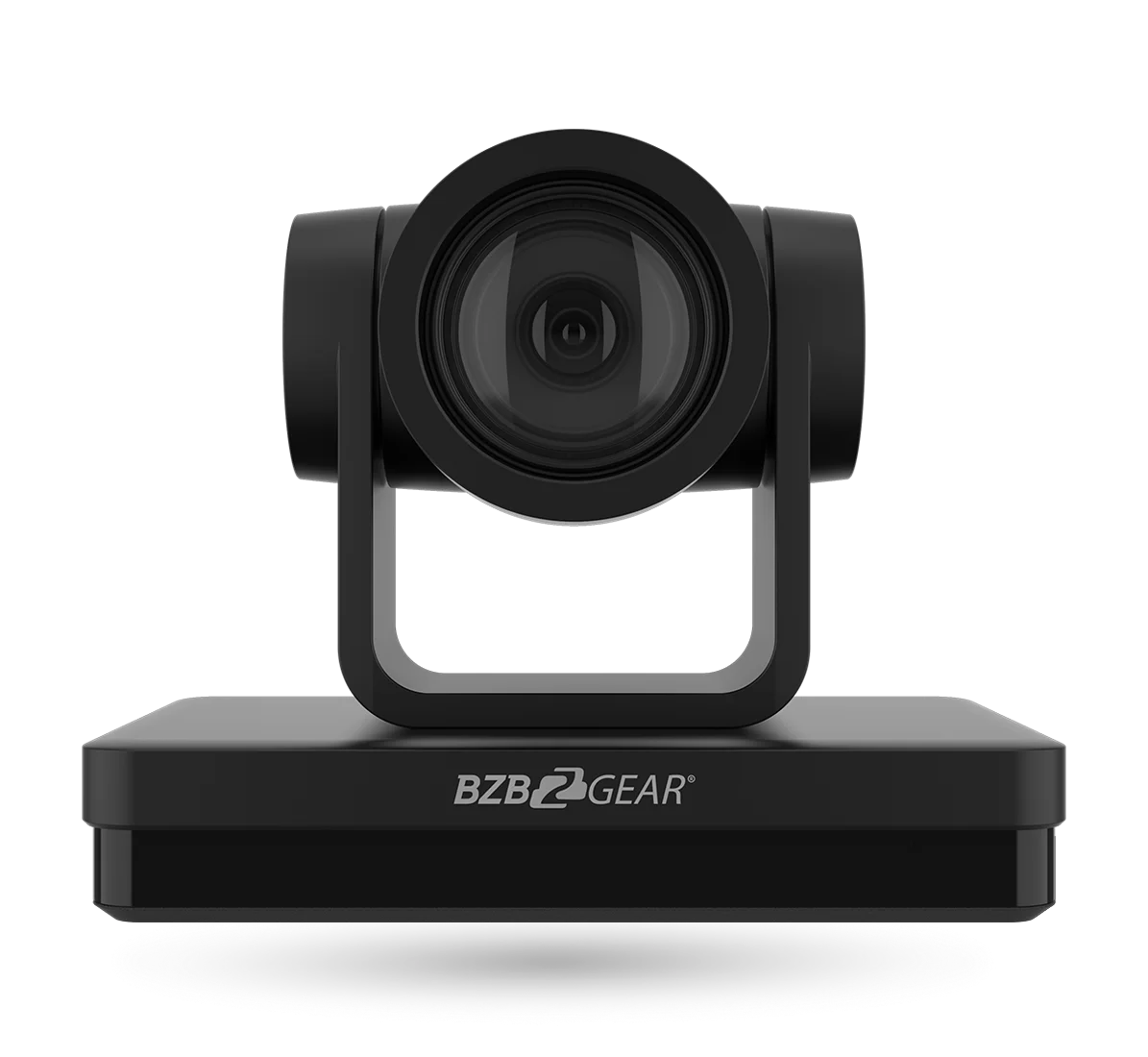

The BG-UPTZ-20XHSU is a Universal Full HD PTZ live streaming camera built around a 1/2.8" Sony CMOS sensor, capturing crisp 1080p@60Hz video with 20X optical zoom. This is a sweet spot for medium-to-large rooms, auditoriums, classrooms and houses of worship. Simultaneous HDMI, 3G-SDI and USB 3.0 outputs let it integrate equally well with hardware switchers, capture cards and conference platforms like Zoom, Teams and Google Meet.
Streaming and control options are extensive: ONVIF, RTSP, RTMP and SRT for reliable internet streaming; IR remote, IP control (IP VISCA, ONVIF) and a browser-based web GUI for daily operation; and RS-232/RS-485 serial connections supporting VISCA, PELCO-D and PELCO-P for integrators. Up to 255 camera presets, a 3.5 mm audio input for direct audio embedding, and an onboard dial that locks output resolution help keep professional productions consistent. Available in black or white, the BG-UPTZ-20XHSU is a versatile, dependable workhorse for any modern streaming or recording setup.
BG-Commander-Jr
More about the PTZ joystick controller
The BG-Commander-Jr is a compact yet powerful professional-grade joystick controller designed for precise camera operation. Its 2-axis joystick and zoom rocker provide refined PTZ control, while a 7-level PTZ speed setting with a visual indicator gives operators full command over camera movement. Knob-style controls with dedicated mini displays make adjusting exposure, gain, white balance and focus fast and intuitive.
Connectivity covers both IP and serial workflows: a LAN port (with PoE for single-cable installation), RS-232 over DB9, and RS-422/RS-485 over a Phoenix terminal. The controller supports VISCA, VISCA over IP, ONVIF, and PELCO-P/D protocols, and can manage up to five cameras with real-time preset set, call, and reset directly from the main display. Backlit silicone buttons, a 4-color LED status display and a built-in web interface make the BG-Commander-Jr equally at home in broadcast, education, telemedicine and house-of-worship setups.
BG-QuadFusion-Jr
More about the production switcher
The BG-QuadFusion-Jr is a compact 4-channel 1080p FHD live streaming switcher mixer with three dedicated HDMI inputs and one dual HDMI/DisplayPort input, giving full flexibility to mix cameras, laptops and other sources. Built-in USB 3.0 capture outputs a 1080p60 PGM stream directly to a PC for use with OBS, vMix, Zoom or any UVC-compatible application, while a Micro SDXC slot enables direct PGM recording without an external recorder.
Production capability goes well beyond simple switching: the BG-QuadFusion-Jr offers PIP/POP, MIX, FADE and a full set of wipe transitions, plus LUMA key and CHROMA key for graphics overlays and green-screen workflows. HDMI multiview output displays all four inputs and the device menu on a single monitor for clean, professional monitoring. Audio is handled with a 3.5 mm line in/out plus two 3.5 mm microphone inputs for direct audio embedding, while a built-in RJ45 LAN connector enables network control and direct RTMP streaming. Housed in a high-strength aluminum-alloy chassis, the unit is portable enough for field work and durable enough for daily studio use.
What else is in the box
To make installation as simple as possible, every bundle ships with all the supporting hardware needed to get the system on-air. This includes the NET-5DP433 Netgear 8-port Gigabit Ethernet PoE/PoE+ unmanaged switch (60W PoE budget, FlexPoE-expandable to 90W or 130W) for powering and networking the cameras and controller over a single CAT cable per device, six BG-CAB-H21C3 8K-rated HDMI 2.1 cables for clean signal runs from the cameras and sources to the switcher, and a complete set of BG-UWM and BG-UCM universal wall and ceiling mounts (one of each per camera) so installers can place each unit exactly where the production needs it.
Camera Features
-
![zoomfeatures]()
ZoomAvailable in 12x/20x/30x optical zoom
+10x digital -
![fluent_zoom-fit-24-filled]()
ControlIP, IR, and cascadable RS232/485 (VICSA/Pelco) + 255 preset positions, BZBGEAR PTZ Control App -
![material-symbols_settings-input-component]()
Multiple Video OutputsHDMI, 3G-SDI, USB 3.0, and IP-streaming working simultaneously -
![solar_play-stream-bold]()
Latest Streaming TechSupports H.264/H.265 video compression and RTMP(S) -
![ph_cube-focus-fill]()
Superb Auto FocusAuto focusing algorithms resulting in quick, accurate, and stable focus -
![Power over Ethernet (PoE)]()
Power over EthernetDelivers power directly over an ethernet cable
Enhanced Optical Zoom Capability
Experience exceptional clarity and precision with our versatile optical zoom lens, offering magnification options of 12X, 20X, and 30X. Whether capturing mid-range scenes or close-up details, achieve stunning shots with ease.
Flexible Video Output
Select from a range of output options including HDMI, USB 3.0, or SDI, or harness the power of all three simultaneously to suit your streaming needs perfectly.
Seamless Audio Integration
Effortlessly embed audio into your streams using the convenient line-in port situated on the camera's rear, ensuring crisp sound accompanies your high-quality visuals.
Efficient Power and Connectivity
Utilize Power Over Ethernet (PoE) to supply both power and network connectivity via a single Ethernet cable, simplifying setup and eliminating cable clutter for a streamlined operation.
Versatile Mounting Options
Easily mount the camera onto a tripod, wall, or ceiling with the secure mounting panel located on the bottom, providing stability and flexibility for diverse filming setups.
Download our app now and effortlessly manage multiple cameras wirelessly!
Videos
Mounting Ideas
Tech Specifications
| BG-UPTZ-20XHSU | |
| Lens | 20X Optical zoom |
| Horizontal View Angle | 54.7°(W)~3.3°(T) |
| Image Sensor | 1/2.8" Progressive CMOS |
| Effective Pixels | 2.07 Megapixels (16:9) |
| Resolution | 1080p@60/50, 1080i@60/50, 1080p@30/25, 720p@60/50 |
| Interface | USB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN |
| Pan Rotation | 340°(max. speed: 80°/s) |
| Tilt Rotation | -30° to +90° (max. speed: 60°/s) |
| Focus System | Auto/Manual |
| S/N Ratio | ≥50db |
| Preset Position | 9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC |
| Minimum Illumination | 0.5 Lux (F1.8, AGC ON) |
| Exposure Control | Auto/Manual/Priority AE/Exposure Compensation/Bright |
| Shutter Speed | 1/1~1/10,000s |
| Gain | Auto/Manual |
| White Balance | Auto/Manual/ATW/One-click/Indoor/Outdoor |
| Image Effect | Full color/black and white/Electronic flip |
| Video Output HD | HDMI, 3G-SDI, IP, USB 3.0 |
| Control Protocol | RTSP, RTMP, ONVIF, GB/T28181 |
| Power | 12V DC |
| Power Consumption | Max. 30W (DC 12V) |
| Operating Temperature | 32°F ~ 104°F / 0°C ~ +40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ +60°C |
| Camera Dimensions | (L)7 x (W)4.5 x (H)5.9in [(L)178 x (W)115.5 x (H)150.9mm] |
| Weight | 3 lbs [1.38KG] |
| Color | Black, White |
| Working Environment | Indoor Only |
BG-Commander-Jr: See Technical Specifications Here
BG-QuadFusion-Jr: See Technical Specifications Here
NET-5DP433: See Technical Specifications Here

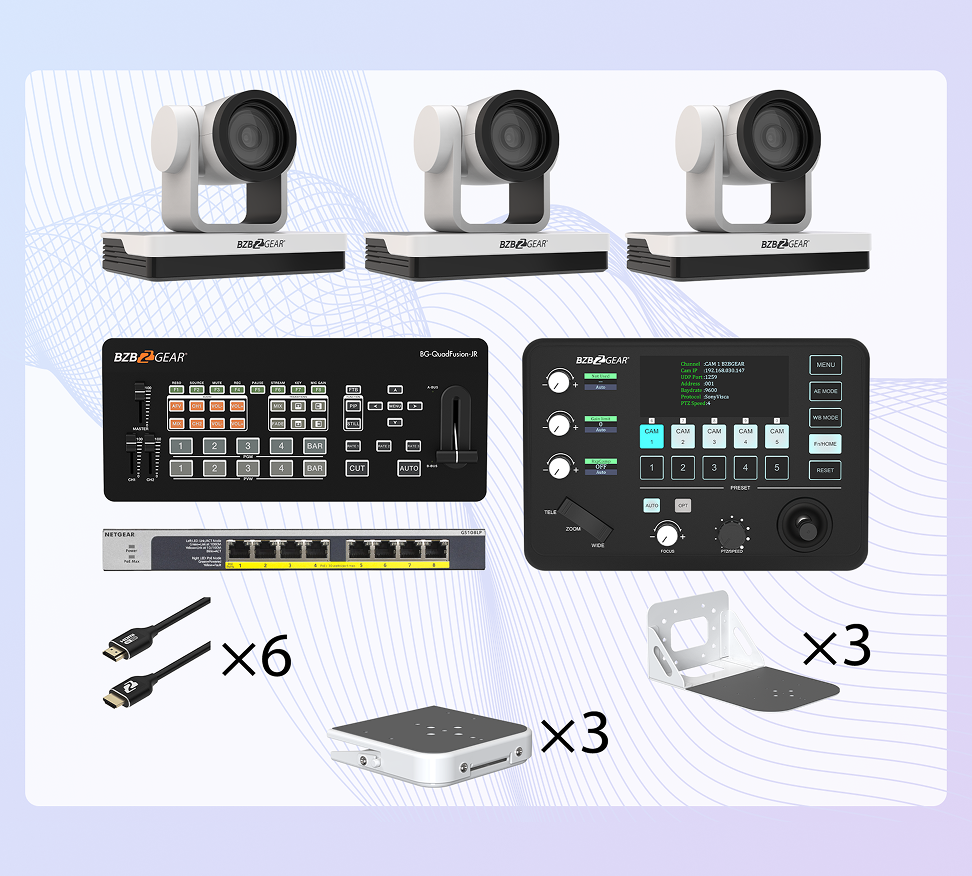

PACKAGE CONTENTS
- 3x BG-UPTZ-20XHSU (Universal 1080p PTZ Camera, 20X)
- 1x BG-Commander-Jr (Compact Serial & IP PTZ Joystick Controller)
- 1x BG-QuadFusion-Jr (4-Channel 1080p FHD Production Switcher)
- 1x NET-5DP433 (Netgear 8-port Gigabit PoE/PoE+ Network Switch)
- 6x BG-CAB-H21C3 (8K UHD HDMI 2.1 Cable)
- 3x BG-UWM (Universal PTZ Camera Wall Mount)
- 3x BG-UCM (Universal PTZ Camera Ceiling Mount)
Interfaces
- HDMI: Connect to an HDMI device such as a video production switcher or a video display up to 1080@60Hz.
- USB: Connect USB3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080@60Hz.
- SDI: Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) over SDI cabling.
- Line-In: Stereo audio input for connecting mics and embedding local audio into all video output interfaces.
- System Select: Turn this dial to set desired output resolution. See manual for resolution options.
- RS-232, RS-422/485: Connect cascading RS-232 or RS-422/485 to control the camera(s) with a joystick controller or control software.
- LAN: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
- Power: Connect supplied 12V power adapter.
BG-Commander-Jr: See Interface Description Here
BG-QuadFusion-Jr: See Interface Description Here
