Professional 3-Camera HDMI Broadcast Production Bundle with AI Auto-Tracking PTZ Cameras, Advanced PTZ Controller, Video Switcher & Accessories
Overview
BZBGEAR Studio Pro is a serious step up from the Studio Core kit. It is a complete three-camera production system built around the multi-award-winning BG-ADAMO-JR20X 1080p Full HD AI auto-tracking PTZ camera. Three of these cameras give a production team something traditional PTZ kits simply can't match: hands-free coverage. The ADAMO-JR's two-mode AI auto-tracking (Presenter and Zone) follows speakers, performers and presenters automatically, freeing operators to focus on directing, audio and graphics rather than chasing PTZ joysticks.
Each BG-ADAMO-JR20X delivers 1080p@60Hz video with 20X optical zoom, integrated 360°-visible tally lights, an internal microSD slot supporting up to 1 TB of on-camera recording, and a complete output suite (HDMI, 3G-SDI, USB 2.0, USB 3.0, LAN with RTSP/RTMP/ONVIF). Crestron driver support and compatibility with IRIS cloud-based camera management make it equally easy to drop into integrated AV systems and remote-production workflows.
Camera control is centralized through the BG-Commander-G2, the second-generation Commander with a 5" full-color touch LCD, three-axis joystick, seven dedicated camera hot keys and support for over 250 cameras. Production switching is handled by the BG-QuadFusion-Jr, a 4-channel 1080p FHD HDMI/DP switcher with PIP, CHROMA/LUMA keying, USB 3.0 capture for OBS/vMix/Zoom, MicroSDXC recording and direct RTMP streaming.
Studio Pro ships ready to install. A NET-5DP433 PoE network switch, six 8K-rated BG-CAB-H21C3 HDMI 2.1 cables, and three sets of BG-UWM wall mounts and BG-UCM ceiling mounts are all included. Available in black (BG-STUDIO-PRO-B) and white (BG-STUDIO-PRO-W) to match any production environment.
BG-ADAMO-JR20X
More about the camera
The BG-ADAMO-JR20X is a 1080p Full HD AI auto-tracking PTZ camera with 20X optical zoom, built around a 1/2.8" Sony CMOS sensor with advanced 3D noise reduction for clean images even in challenging light. Its standout feature is two-mode AI auto-tracking: Presenter mode locks onto a subject's head and shoulders and follows them anywhere in the room, while Zone mode holds the frame in predefined areas and switches only when the subject crosses zones. Built-in tally lights with 360° visibility provide clear on-air status to talent and crew.
Connectivity is purpose-built for serious productions: simultaneous HDMI, 3G-SDI, USB 2.0, USB 3.0 and LAN with IP streaming (RTSP, RTMP, ONVIF), plus an internal microSD slot for up to 1 TB of on-camera recording. Control is equally flexible with RS-232, RS-422 (RS-485 compatible), IR remote, web GUI and the free BG-CONTROL app for Windows, Mac, iOS and Android. Up to 255 presets, support for Crestron drivers and IRIS cloud-based control round out a feature set that has earned the ADAMO series multiple Best-of-Show awards. Available in black or white.
BG-Commander-G2
More about the PTZ joystick controller
The BG-Commander-G2 is the second-generation Commander joystick controller, delivering precise control for both IP and serial PTZ cameras through a bright 5-inch full-color touch LCD. The combination of touch screen, three-axis joystick, and seven dedicated camera hot keys provides fast access to favorite cameras while still allowing the controller to manage well over 250 devices in larger productions.
Built into a solid metal chassis with high-quality backlit buttons, the BG-Commander-G2 is engineered for years of heavy daily use. It connects via LAN (PoE) or RS-232/RS-422/RS-485 and supports IP VISCA, ONVIF, VISCA, PELCO-D and PELCO-P protocols. Built-in network scanning automatically discovers cameras on the network, while a real-time RTSP preview, on-controller image adjustments, and a simple web GUI make setup, operation and maintenance straightforward. It is a strong fit for live events, houses of worship and broadcast settings.

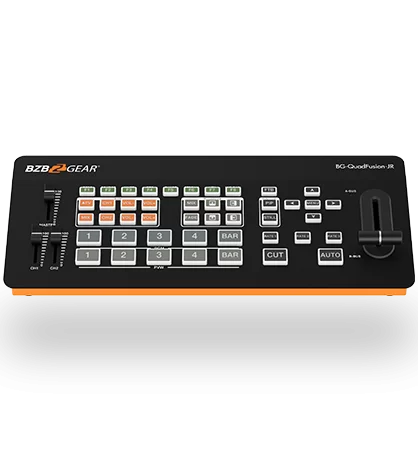

BG-QuadFusion-Jr
More about the production switcher
The BG-QuadFusion-Jr is a compact 4-channel 1080p FHD live streaming switcher mixer with three dedicated HDMI inputs and one dual HDMI/DisplayPort input, giving full flexibility to mix cameras, laptops and other sources. Built-in USB 3.0 capture outputs a 1080p60 PGM stream directly to a PC for use with OBS, vMix, Zoom or any UVC-compatible application, while a Micro SDXC slot enables direct PGM recording without an external recorder.
Production capability goes well beyond simple switching: the BG-QuadFusion-Jr offers PIP/POP, MIX, FADE and a full set of wipe transitions, plus LUMA key and CHROMA key for graphics overlays and green-screen workflows. HDMI multiview output displays all four inputs and the device menu on a single monitor for clean, professional monitoring. Audio is handled with a 3.5 mm line in/out plus two 3.5 mm microphone inputs for direct audio embedding, while a built-in RJ45 LAN connector enables network control and direct RTMP streaming. Housed in a high-strength aluminum-alloy chassis, the unit is portable enough for field work and durable enough for daily studio use.
What else is in the box
To make installation as simple as possible, every bundle ships with all the supporting hardware needed to get the system on-air. This includes the NET-5DP433 Netgear 8-port Gigabit Ethernet PoE/PoE+ unmanaged switch (60W PoE budget, FlexPoE-expandable to 90W or 130W) for powering and networking the cameras and controller over a single CAT cable per device, six BG-CAB-H21C3 8K-rated HDMI 2.1 cables for clean signal runs from the cameras and sources to the switcher, and a complete set of BG-UWM and BG-UCM universal wall and ceiling mounts (one of each per camera) so installers can place each unit exactly where the production needs it.
Camera Features
-
![badge-Full-hd | 1080P HD]()
1080pOutput up to 1080p@60Hz resolution -
![lights]()
Tally LightsIntegrated red/green LED tally lights -
![bi_sd-card]()
MicroSDRecord and store up to 1 TB -
![zoomfeatures]()
ZoomAvailable with 12x/20x/30x optical zoom lens -
![material-symbols_settings-input-component]()
Multiple Video OutputsChoose from SDI, HDMI, USB 3.0, USB 2.0, or IP Streaming -
![Power over Ethernet (PoE)]()
PoEData, power, and control over a single category cable (PoE+ Recommended)
Easy-to-See Tally-Lights
Stay in control at all times with vibrant red and green lights. Green signals readiness, while red indicates active recording or streaming. Enjoy the convenience of automatic detection or take charge with manual control!
Powerful 10X/20X/30X Optical Zoom
Capture stunning close-up shots with our 10X/20X/30X optical zoom lens. Precision control over zoom speeds and focus settings ensures clean and clear imagery for your content
Multiple Video Output Options
Experience flexibility with simultaneous video output options – HDMI, 3G SDI, USB 2.0, and 3.0. Choose the connectivity that suits your needs and elevate your production quality.
Record and Store 1080P Videos Effortlessly
With a micro SD slot, the BG-ADAMO-JR allows you to record and store up to 1TB of 1080P video content on the go. Never miss a moment with this convenient feature.
Power Over Ethernet
for Effortless Setup
Simplify your setup with a single Cat 5/6/7 Ethernet cable providing both power and network connection. The BG-ADAMO-JR makes installation a breeze, ensuring a seamless experience.
Download our app now and effortlessly manage multiple cameras wirelessly!
Videos
Mounting Ideas
Tech Specifications
| Camera/Lens | |
| Optical zoom | 20X |
| Focus Range | f=5.05 mm ~ 91.49 mm ±5% |
| FOV | Horizontal (H): 3.45°(tele) ~ 60.04°(wide) Vertical (V): 1.97°(tele) ~ 35.31°(wide) |
| Iris Value | F1.8 ~ F2.9±5% |
| Image Sensor | 1/2.8 inch SONY CMOS sensor |
| Effective Pixels | 2.07 Megapixels 16:9 |
| Video Signal | HDMI: 1080P60/59.94/50/30/29.97/25/24/23.98; 1080I60/50/59.94; 720P60/50/59.94; SDI: 1080P60/59.94/50/30/29.97/25/24/23.98; 1080I60/50/59.94; 720P60/50/59.94 USB2.0: MJPG: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30; H264: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30; YUY2: 800*448 /720*480P25; 640*360 /432*240P30 NV12: 800*448P25; 640*480 /640*360 /432*240P30 USB3.0: YUY2: 1920*1080P30/25; 1280*720P60/50/30/25; 960*540 /800*600P30; 720*576P50; 720*480P60; 640*480P30; |
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) |
| DNR | 3D |
| White Balance | Auto / Manual / One-Push / Specified Color Temperature |
| Focus Mode | Auto / Manual / One-Push |
| Exposure Mode | Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority |
| Iris Value | F1.8 ~ F11, CLOSE |
| Shutter Speed | 1/25 ~ 1/10000 |
| BLC | On/Off |
| Dynamic Range | Off / Dynamic Level Adjustment |
| Video Adjustment | Brightness, Hue, Saturation, Contrast, Sharpness, WB Mode |
| SNR | ≥50dB |
| Interface Parameters | |
| Interface | HDMI, SDI, LAN (supports PoE+), USB 2.0, A-IN, USB 3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Power Switch |
| Video Compression Format | LAN: H.264, H.265 USB 2.0: MJPG, H264, H265, YUY2, NV12 USB 3.0: YUY2 |
| Audio Input | Dual channel 3.5mm line input |
| Audio Output | HDMI, LAN, 3G-SDI, USB 2.0, USB 3.0 |
| Audio Compression Format | AAC |
| Network Interface | 10M/100M/1000M adaptive Ethernet port, PoE Plus power supply, audio and video output |
| Network Protocols | RTSP, RTMP, RTMPS, ONVIF, GB/T28181; support network VISCA control protocol |
| Control Interface | 5 pin Phoenix terminal (compatible with RS232 and RS485), LAN |
| Serial Communication Port | VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/38400/9600/4800/2400 |
| USB Communication Protocol | UVC (Video Communication Protocols) |
| Power Supply | HEC3800 Power Outlet (DC12V), PoE+ |
| Power Adapter | Input: AC110V-AC220V; Output: DC12V/1.5A |
| Input Voltage | DC12V±10% |
| Input Current | <1.5A |
| Power Consumption | <12W |
| PTZ Parameters | |
| Pan | -170° ~ +170° |
| Tilt | -30° ~ +90° |
| Pan Speed | 1.4°/s ~ 100°/s |
| Tilt Speed | 2.9°/s ~ 30°/s |
| Preset Speed | Pan (H): 78.8°/s, Tilt (V): 31.7°/s |
| Preset Quantity | 255 presets via Web GUI (10 presets using remote control) |
| Other Parameters | |
| Stored Temperature | 14°F ~ 140°F / -10°C ~ +60°C |
| Storage Humidity | 20% ~ 95% |
| Working Temperature | 14°F ~ 122°F / -10°C ~ +50°C |
| Working Humidity | 20% ~ 80% |
| Dimension (L x W x H) | 7.88" x 6.13" x 5.2" [200.2mm x 155.7mm x 132.1mm] |
| Weight | 3.5 lbs [1.59kg] |
| Working Environment | Indoor Only |
BG-Commander-G2: See Technical Specifications Here
BG-QuadFusion-Jr: See Technical Specifications Here
NET-5DP433: See Technical Specifications Here

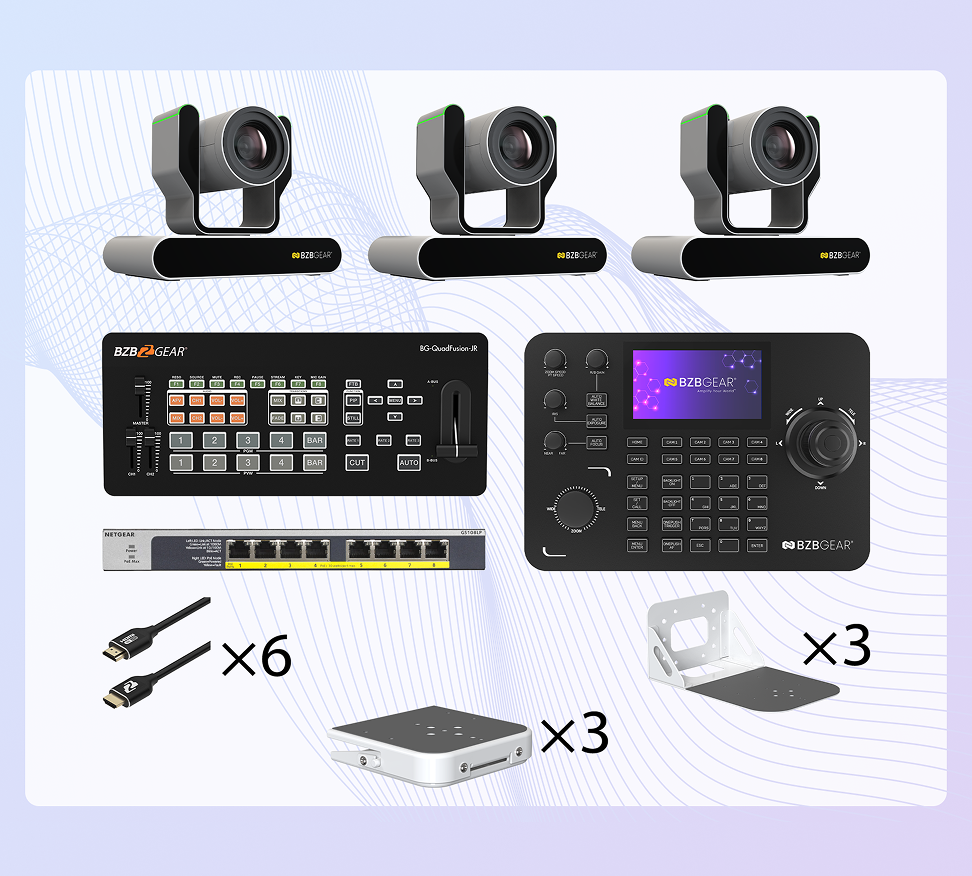

PACKAGE CONTENTS
- 3x BG-ADAMO-JR20X (1080p FHD AI Auto-Tracking PTZ Camera, 20X)
- 1x BG-Commander-G2 (Universal Advanced Serial & IP PTZ Joystick Controller, 5" Touch LCD)
- 1x BG-QuadFusion-Jr (4-Channel 1080p FHD Production Switcher)
- 1x NET-5DP433 (Netgear 8-port Gigabit PoE/PoE+ Network Switch)
- 6x BG-CAB-H21C3 (8K UHD HDMI 2.1 Cable)
- 3x BG-UWM (Universal PTZ Camera Wall Mount)
- 3x BG-UCM (Universal PTZ Camera Ceiling Mount)
Interfaces
- USB 3.0: Connect USB 3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080p@60Hz.
- USB 2.0: Connect USB 2.0 type A cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080p@60Hz.
- 3G-SDI: Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 1080p@60Hz over SDI cabling.
- HDMI: Connect to an HDMI device such as a video production switcher or a video display up to 1080p@60Hz.
- MicroSD: Record up to 1 TB.
- Audio In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
- RS-232, RS-485: Connect cascading RS-232 or RS-485 to control the camera(s) with a joystick controller or control software.
- LAN: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
- Power: Connect supplied 12V power adapter.
BG-Commander-G2: See Interface Description Here
BG-QuadFusion-Jr: See Interface Description Here
