Video Wall Processors

Video Wall Processors

Showing all 10 results





Comparison Table
Title
Configurations
Max Resolution
Control
Supported Connections
Audio Support
Scaler
Matrixing
HDCP Compliance
BG-UHD-VWP-1X4
1X3/1X4/2X2
/4X1/etc
[email protected]
4:4:4
IR remote control/Ethernet
/USB (virtual)/Front Panel/Cloud Control
HDMI
yes
yes
×
2.2
BG-UHD-VW2X2
1x1/2x2/1x2
(H)/1x3(H)/1x4 (H)/2x1(V)/3x1
(V)/4x1(V)/etc
[email protected]
4:4:4
IR remote control/front panel buttons/RS-232
HDMI
yes
×
×
2.2
BG-UHD-VW24
2X2/2X1/etc
[email protected]
4:4:4
IP/RS232/TCP/IP/
RS-232/HDMI CEC/PC Software
HDMI
yes
×
×
2.2
BG-UHD-VW29
3X3/2X2/1X3
/3X1/etc
[email protected]
4:4:4
IP/RS232/TCP/IP
/RS-232/HDMI CEC/PC Software
HDMI
yes
×
×
2.2
BZ-MVS4X4-4K
4X4/2x2/1x4/
1x2/2x1/4x1/etc
[email protected]
4:4:4
IP/RS232/TCP/IP
/RS-232/HDMI CEC/PC Software
HDMI
yes
yes
yes
2.2
BZ-MVS8X8-4K
8X8/1X2/2X2
/3X2/etc
[email protected]
4:4:4
Physical buttons/RS232/Bi-Directional IR/Web interface
HDMI
yes
yes
yes
2.2
What is a video wall?
A video wall is a display made up of multiple screens that are positioned to appear as one large screen. Video walls can be configured to display different images on each individual screen or the individual screens can all be used to display a single image. Video walls also provide a greater screen area per unit cost and provide a greater pixel density per unit cost. This is due to the economics of manufacturing single screens which are unusual in size, shape and resolution.
From Big Screen to Bigger Screen
BZBGEAR’s Video wall processors let you create large-scale video wall arrangements. Large format displays can be expensive. Combining several smaller displays with a video wall processor can create an even larger display for less! Our video wall processor will also provide a greater pixel density per unit cost. That way, you can also get a higher quality image than you would with a large format display.
Video Wall Solutions
Create attention-grabbing displays with a video wall processor. With a video wall processor you can create captivating displays for venues such as live events, restaurants and sports bars. For those who work in the houses of worship industry, video wall processors are more than capable of creating video walls for churches. Video wall processors are also perfect for advertising products and services in retail spaces, or creating impressive demonstrations at trade shows. Overall, video walls will help set you apart from the competition!
Ultra HD for Less
BZBGEAR video wall processors can output resolutions up to [email protected], allowing you to produce sharp images with realistic details on a large-scale display. Did you know that combining four 1080P displays in a 2x2 configuration creates a 4K UHD video wall?
Comprehensive Control
Our dedicated software will give you access to important settings like display grouping, layouts, and bezel correction. RS-232 control allows third-party systems to easily control settings such as power and source selection. Additionally, audio de-embedding options give users the ability to connect external audio systems.
The BZBGEAR Difference
There is a reason our customers return to us time and again for advice, add-ons, system expansion. Our belief in our products is demonstrated in our 3-year Warranty, and our pride in customer service is backed by a team of highly trained sales and technical support engineers. Our ever-expanding Knowledge Base features step by step guides for setup and integration, and our YouTube channel features in depth dives into the setup, configuration, and features of our diverse family of products.


Features
Software Controllable
Certain models include a PC utility for configuration and control.
UItra-HD
Resolutions up to [email protected] HDR supported
HDMI
HDMI 2.0a compliant, HDCP 2.2 compliant
Scalable
Video wall sizes up to 3x3 are supported with certain models
Audio De-embedding
Audio signals can be extracted from an HDMI source to connect external audio systems
Plug and Play
The BG-UHD-VW2X2 requires zero setup!
Image Rotation
Certain models support image rotation for enhanced display compatibility.
3 Year Warranty
Parts & Labor covered for 3 years
The Best Video Wall Processors for Any TV 2022
How to Set Up a Video Wall for Home, Business, Sports Bars, and Live Events using BZBGEAR Equipment!
Video wall creation just got easier! The BG-UHD-VW2X2 video wall processor supports [email protected] 4:4:4 input resolutions and features four [email protected] HDMI video wall outputs. This unit requires almost no configuration. Connect your devices, select your layout, and adjust for bezel correction in three simple button presses.
BZBGEAR HDMI Matrix Video Wall Combo for Sports Bar, Home Cinema, & eSports Environments
Another amazing video from 'The Fox'! Nathan guides us through another solution we get many questions about. How to do you set up a video wall with matrix switch functionality? In this video, Nathan connects the BZBGEAR BG-UHD-44M matrix switcher to the BG-UHD-VW2X2 video wall processor to produce a 2x2 video wall with matrix switching capabilities.
Contemporary Video Wall System Enhances Any Atmosphere | BG-UHD-VWP-1x4
BZBGEAR's new video wall processor, the BG-UHD-VWP-1x4 can easily create and display high-quality resolutions from video sources delivering [email protected] (4:4:4) in a single 1x1 image or divide the images into an array of layout including 2x2, 1x3 and 1x4 with individual propagation and rotation capabilities.

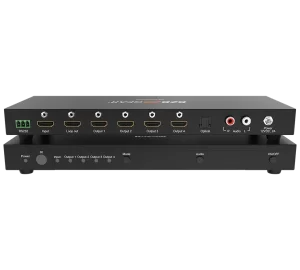

How to Create a 2x2 Video Wall Mirror, Flip, Rotate with Any TV Bezel
A video wall for any TV, the BZBGEAR BG-UHD-VW2x2 can configure multiple layout positions without needing a confusing Software program or WEBGUI interface. Flip or invert the images to accommodate any TV, whether you own a consumer-based TV with bezel obstructions or displays for video walls and digital signage.

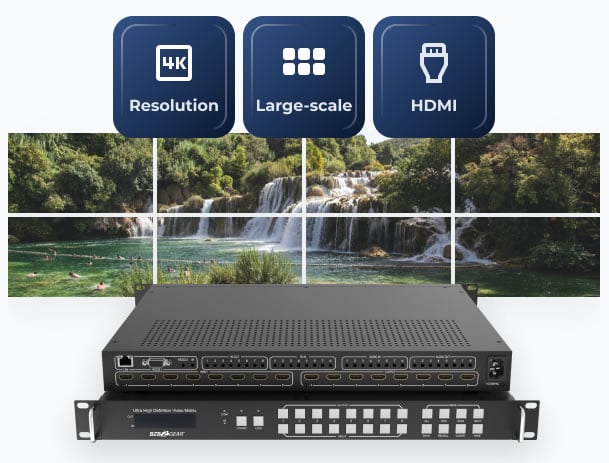

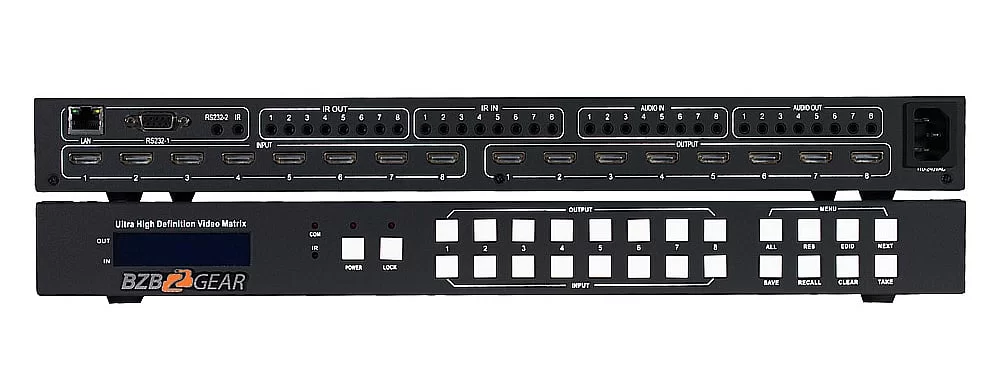

Seamless 4K HDR HDMI Video Wall Matrix Switcher Astounds | BZB Gear BZ-MVS8x8-4K
The BZB Gear BZ-MVS8x8-4K is a high performance commercial grade 4K HDR Matrix Switch & Video Wall has 8-HDMI Inputs and 8-HDMI Outputs with LR Audio De-Embedding and Audio Insertion on HDMI streams.

Any device equipped with an HDMI output can be displayed on a video wall. They are commonly employed for eye-catching digital signage, as well as places like sports bars and restaurants.

No, any TV with an HDMI input can be used. The main drawback to using standard TVs is the size of the bezel (frame). Purpose-built video wall displays have very thin bezels in order to produce a seamless effect. Consumer displays with thick bezels can spoil this effect.

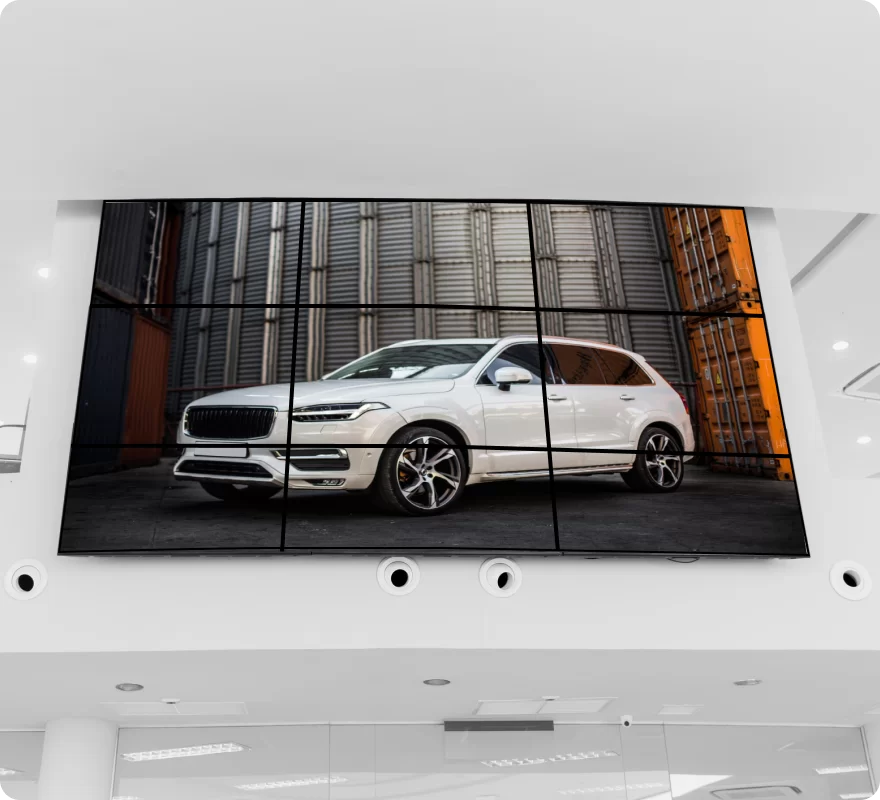

The BG-UHD-VW29 can produce a 3x3 video wall. If you need a larger video wall our AV over IP system supports up to 25 displays arranged in a 5x5 layout.


Video walls were developed to help bridge the gap between a large television display and a projector screen. Displays exceeding 75–85 inches in size become very expensive, typically blowing out the budget for most customers. Projectors are inconvenient and susceptible to bright light washout from spaces with sunlight or strong lights. Video walls can add great value, easily exceeding 75-inch displays while offering a crisp HD or 4K image. The only downside is the bezels that hold the TVs together; the smaller the bezel the better the viewing experience by eliminating the lines between the displays.

Deliver brilliant content with BZBGEAR Video Wall Processors offering a multitude of layouts and configurations including 1x1, 1x2, 1x3, 1x4, 2x1, 2x2, 3x1, and 4x1. Select the BG-UHD-VW2x2 Video Wall Processor for plug and play functionality, requiring only an IR remote to change layouts and flip images ideal for consumer-based TVs with bezel impediments. For those seeking a professional Video Wall Processor that is software interfaced based with numerous settings and layouts, choose the BG-UHD-VW1x4 or the BG-UHD-VW29 for a 3x3 video wall layout.

If the application requires a video wall exceeding the standard 2x2 or 3x3 layout, then be sure to check out our BZBGEAR AVoIP technology capable of 16x16 video walls.



Video Walls are an ideal fit for:

Auditoriums

Create impressively large displays

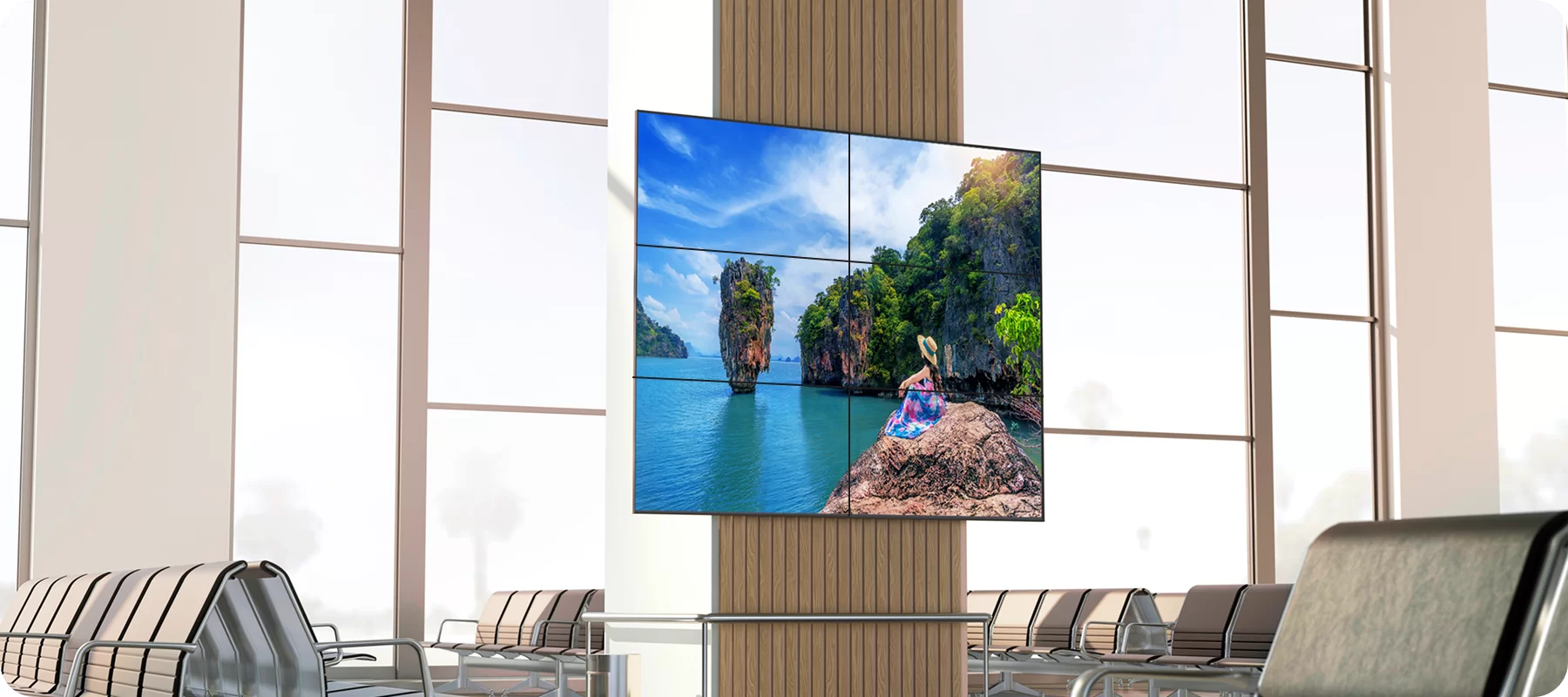

Digital Signage

Capture attention with unique and innovative displays

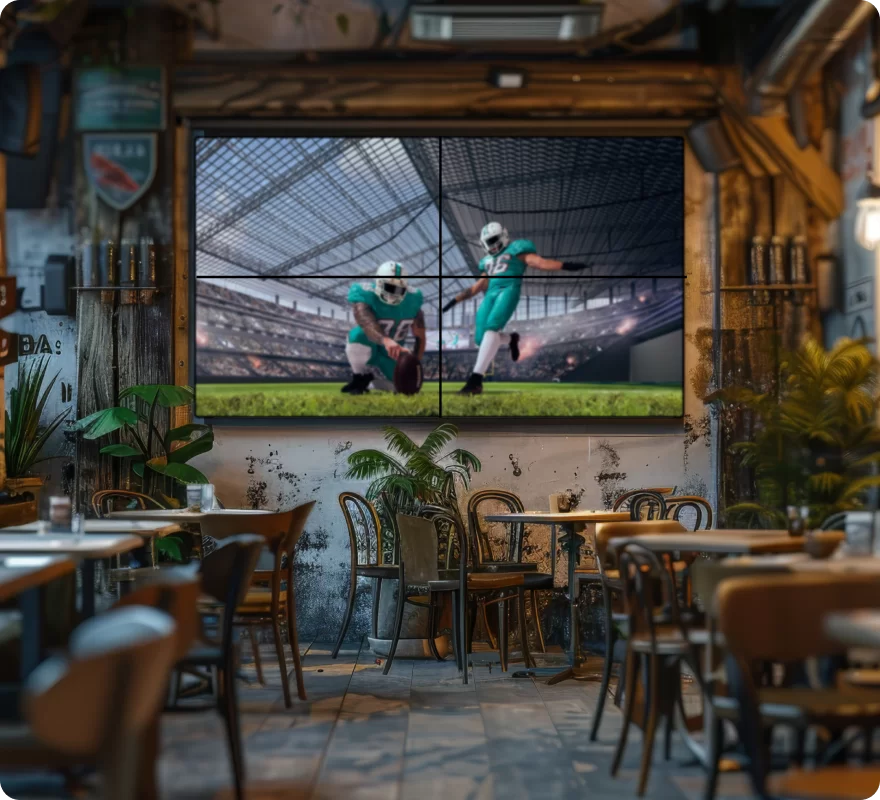

Bars and Restaurants

Make sure the big game is bigger than ever!

BZBGEAR Solutions

BZBGEAR's new video wall processor, the BG-UHD-VWP-1x4 can easily create and display high-quality resolutions from video sources delivering [email protected] (4:4:4) in a single 1x1 image or divide the images into an array of layout including 2x2, 1x3 and 1x4 with individual propagation and rotation capabilities.
A video wall for any TV, the BZBGEAR BG-UHD-VW2x2 can configure multiple layout positions without needing a confusing Software program or WEBGUI interface. Flip or invert the images to accommodate any TV, whether you own a consumer-based TV with bezel obstructions or displays for video walls and digital signage.
The BZB Gear BZ-MVS8x8-4K is a high performance commercial grade 4K HDR Matrix Switch & Video Wall has 8-HDMI Inputs and 8-HDMI Outputs with LR Audio De-Embedding and Audio Insertion on HDMI streams.
