Professional 3-Camera NDI|HX3 Broadcast Production Bundle with AI Auto-Tracking PTZ Cameras, Advanced PTZ Controller & Network-Based Video Production
Overview
BZBGEAR Studio Pro-N is the NDI|HX3 version of our Studio Pro kit, engineered for teams running a fully software-defined, IP-first production workflow on top of award-winning AI auto-tracking cameras. The bundle includes three BG-ADAMO-JRND20X 1080p Full HD PTZ cameras with 20X optical zoom, integrated tally lights, microSDXC recording up to 1 TB, and AI auto-tracking with both Presenter and Zone modes. All of this is delivered over a single Ethernet cable using NDI|HX3, the latest generation of NDI's high-efficiency, low-latency video-over-IP standard.
Compared with NDI|HX2, NDI|HX3 brings noticeably higher image quality at similar bit rates and lower latency, and unlocks the full NDI 5.5 toolkit. At the same time, the cameras still output HDMI, 3G-SDI, USB 2.0/3.0 and standard RTSP/RTMP/ONVIF streams in parallel, so any hybrid production needs are covered. Crestron drivers and IRIS cloud-based control round out an exceptionally flexible feature set.
Camera control is handled by the BG-Commander-G2, which speaks IP VISCA, ONVIF, VISCA, PELCO-D and PELCO-P over its LAN port and dedicated camera hot keys. This makes it perfect for managing a tracking-enabled IP camera fleet. Because Studio Pro-N is built for software-based switching in vMix, OBS, TriCaster or similar NDI-aware tools, the bundle does not include a hardware production switcher; that role is filled by the user's chosen production software.
As with every BZBGEAR studio bundle, all installation hardware is included: a NET-5DP433 PoE network switch (the NDI backbone of the system), six BG-CAB-H21C3 HDMI 2.1 cables, and three BG-UWM wall mounts plus three BG-UCM ceiling mounts. Available in black (BG-STUDIO-PRO-N-B) and white (BG-STUDIO-PRO-N-W).
BG-ADAMO-JRND20X
More about the camera

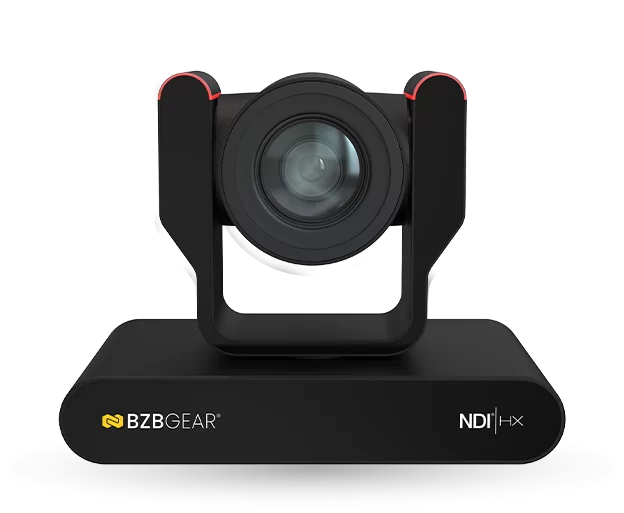

The BG-ADAMO-JRND20X delivers everything the ADAMO-JR is known for, including 1080p Full HD video, 20X optical zoom, AI auto-tracking with Presenter and Zone modes, integrated tally lights and a 1 TB microSD recorder, with the addition of NDI|HX3, the latest generation of NDI's high-efficiency IP video standard. NDI|HX3 brings improved image quality and lower latency than NDI|HX2 over the same Ethernet network, making the camera a strong choice for teams already invested in an NDI workflow.
Beyond NDI|HX3, the camera offers HDMI, 3G-SDI, USB 2.0, USB 3.0 and LAN with RTSP, RTMP and ONVIF streaming, ensuring it slots into nearly any production environment. Control options include RS-232, RS-422, IR remote, web GUI and the BG-CONTROL app for Windows, Mac, iOS and Android, with up to 255 presets, Crestron driver support and IRIS cloud-control compatibility. Available in black or white, the BG-ADAMO-JRND20X is built for studios, schools and worship spaces that want auto-tracking convenience and an IP-first delivery path in a single package.
BG-Commander-G2
More about the PTZ joystick controller

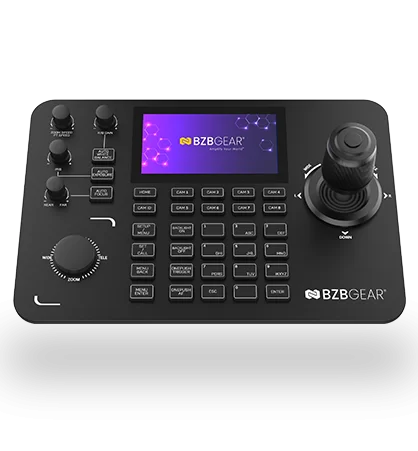

The BG-Commander-G2 is the second-generation Commander joystick controller, delivering precise control for both IP and serial PTZ cameras through a bright 5-inch full-color touch LCD. The combination of touch screen, three-axis joystick, and seven dedicated camera hot keys provides fast access to favorite cameras while still allowing the controller to manage well over 250 devices in larger productions.
Built into a solid metal chassis with high-quality backlit buttons, the BG-Commander-G2 is engineered for years of heavy daily use. It connects via LAN (PoE) or RS-232/RS-422/RS-485 and supports IP VISCA, ONVIF, VISCA, PELCO-D and PELCO-P protocols. Built-in network scanning automatically discovers cameras on the network, while a real-time RTSP preview, on-controller image adjustments, and a simple web GUI make setup, operation and maintenance straightforward. It is a strong fit for live events, houses of worship and broadcast settings.
What else is in the box
To make installation as simple as possible, every bundle ships with all the supporting hardware needed to get the system on-air. This includes the NET-5DP433 Netgear 8-port Gigabit Ethernet PoE/PoE+ unmanaged switch (60W PoE budget, FlexPoE-expandable to 90W or 130W) for powering and networking the cameras and controller over a single CAT cable per device, six BG-CAB-H21C3 8K-rated HDMI 2.1 cables for clean signal runs from the cameras and sources to the switcher, and a complete set of BG-UWM and BG-UCM universal wall and ceiling mounts (one of each per camera) so installers can place each unit exactly where the production needs it.
Camera Features
-
![badge-Full-hd | 1080P HD]()
1080pOutput up to 1080p@60Hz resolution -
![lights]()
Tally LightsIntegrated red/green LED tally lights -
![bi_sd-card]()
MicroSDRecord and store up to 1 TB -
![ndi 1]()
NDI|HX3Compatible with NDI® 5.5 from NewTek -
![material-symbols_settings-input-component]()
Multiple Video OutputsChoose from SDI, HDMI, USB 3.0, USB 2.0, or IP Streaming -
![Power over Ethernet (PoE)]()
PoEData, power, and control over a single category cable (PoE+ Recommended)
Easy-to-See Tally-Lights
Stay in control at all times with vibrant red and green lights. Green signals readiness, while red indicates active recording or streaming. Enjoy the convenience of automatic detection or take charge with manual control!
Powerful 10X/20X/30X Optical Zoom
Capture stunning close-up shots with our 10X/20X/30X optical zoom lens. Precision control over zoom speeds and focus settings ensures clean and clear imagery for your content
Multiple Video Output Options
Experience flexibility with simultaneous video output options – HDMI, 3G SDI, USB 2.0, and 3.0. Choose the connectivity that suits your needs and elevate your production quality.
Record and Store 1080P Videos Effortlessly
With a micro SD slot, the BG-ADAMO-JR allows you to record and store up to 1TB of 1080P video content on the go. Never miss a moment with this convenient feature.
NDI|HX3 Technology
NDI|HX3 technology revolutionizes media production by enabling high-quality video transmission with minimal bandwidth and latency.
Download our app now and effortlessly manage multiple cameras wirelessly!
Videos
Mounting Ideas
Tech Specifications
| Camera/Lens | |
| Optical zoom | 20X |
| Focus Range | f=5.05 mm ~ 91.49 mm ±5% |
| FOV | Horizontal (H): 3.45°(tele) ~ 60.04°(wide) Vertical (V): 1.97°(tele) ~ 35.31°(wide) |
| Iris Value | F1.8 ~ F2.9±5% |
| Image Sensor | 1/2.8 inch SONY CMOS sensor |
| Effective Pixels | 2.07 Megapixels 16:9 |
| Video Signal | HDMI: 1080P60/59.94/50/30/29.97/25/24/23.98; 1080I60/50/59.94; 720P60/50/59.94; SDI: 1080P60/59.94/50/30/29.97/25/24/23.98; 1080I60/50/59.94; 720P60/50/59.94 USB2.0: MJPG: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30; H264: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30; YUY2: 800*448 /720*480P25; 640*360 /432*240P30 NV12: 800*448P25; 640*480 /640*360 /432*240P30 USB3.0: YUY2: 1920*1080P30/25; 1280*720P60/50/30/25; 960*540 /800*600P30; 720*576P50; 720*480P60; 640*480P30; |
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) |
| DNR | 3D |
| White Balance | Auto / Manual / One-Push / Specified Color Temperature |
| Focus Mode | Auto / Manual / One-Push |
| Exposure Mode | Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority |
| Iris Value | F1.8 ~ F11, CLOSE |
| Shutter Speed | 1/25 ~ 1/10000 |
| BLC | On/Off |
| Dynamic Range | Off / Dynamic Level Adjustment |
| Video Adjustment | Brightness, Hue, Saturation, Contrast, Sharpness, WB Mode |
| SNR | ≥50dB |
| Interface Parameters | |
| Interface | HDMI, SDI, LAN (supports PoE+), USB 2.0, A-IN, USB 3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Power Switch, NDI|HX3 |
| Video Compression Format | LAN: H.264, H.265 USB 2.0: MJPG, H264, H265, YUY2, NV12 USB 3.0: YUY2 |
| Audio Input | Dual channel 3.5mm line input |
| Audio Output | HDMI, LAN, 3G-SDI, USB 2.0, USB 3.0 |
| Audio Compression Format | AAC |
| Network Interface | 10M/100M/1000M adaptive Ethernet port, PoE Plus power supply, audio and video output |
| Network Protocols | RTSP, RTMP, RTMPS, ONVIF, GB/T28181; support network VISCA control protocol |
| Control Interface | 5 pin Phoenix terminal (compatible with RS232 and RS485), LAN |
| Serial Communication Port | VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/38400/9600/4800/2400 |
| USB Communication Protocol | UVC (Video Communication Protocols) |
| Power Supply | HEC3800 Power Outlet (DC12V), PoE+ |
| Power Adapter | Input: AC110V-AC220V; Output: DC12V/1.5A |
| Input Voltage | DC12V±10% |
| Input Current | <1.5A |
| Power Consumption | <12W |
| PTZ Parameters | |
| Pan | -170° ~ +170° |
| Tilt | -30° ~ +90° |
| Pan Speed | 1.4°/s ~ 100°/s |
| Tilt Speed | 2.9°/s ~ 30°/s |
| Preset Speed | Pan (H): 78.8°/s, Tilt (V): 31.7°/s |
| Preset Quantity | 255 presets via Web GUI (10 presets using remote control) |
| Other Parameters | |
| Stored Temperature | 14°F ~ 140°F / -10°C ~ +60°C |
| Storage Humidity | 20% ~ 95% |
| Working Temperature | 14°F ~ 122°F / -10°C ~ +50°C |
| Working Humidity | 20% ~ 80% |
| Dimension (L x W x H) | 7.88" x 6.13" x 5.2" [200.2mm x 155.7mm x 132.1mm] |
| Weight | 3.5 lbs [1.59kg] |
| Working Environment | Indoor Only |
BG-Commander-G2: See Technical Specifications Here
NET-5DP433: See Technical Specifications Here

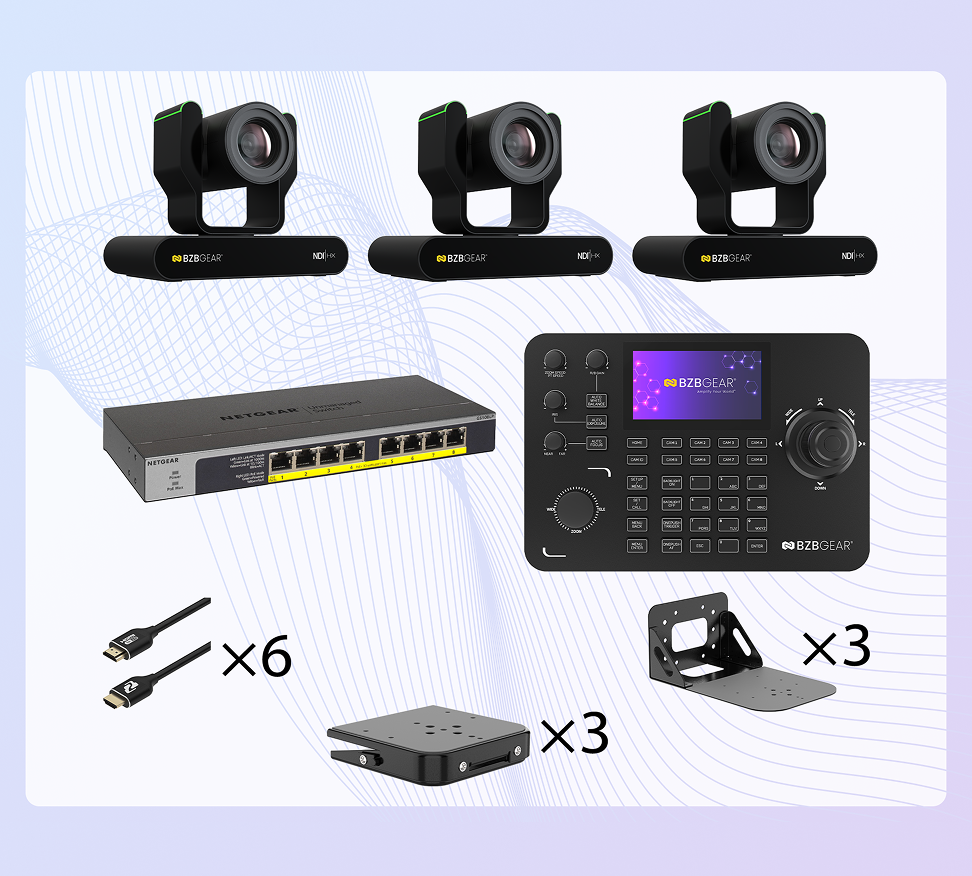

PACKAGE CONTENTS
- 3x BG-ADAMO-JRND20X (1080p FHD AI Auto-Tracking PTZ Camera with NDI|HX3, 20X)
- 1x BG-Commander-G2 (Universal Advanced Serial & IP PTZ Joystick Controller, 5" Touch LCD)
- 1x NET-5DP433 (Netgear 8-port Gigabit PoE/PoE+ Network Switch)
- 6x BG-CAB-H21C3 (8K UHD HDMI 2.1 Cable)
- 3x BG-UWM (Universal PTZ Camera Wall Mount)
- 3x BG-UCM (Universal PTZ Camera Ceiling Mount)

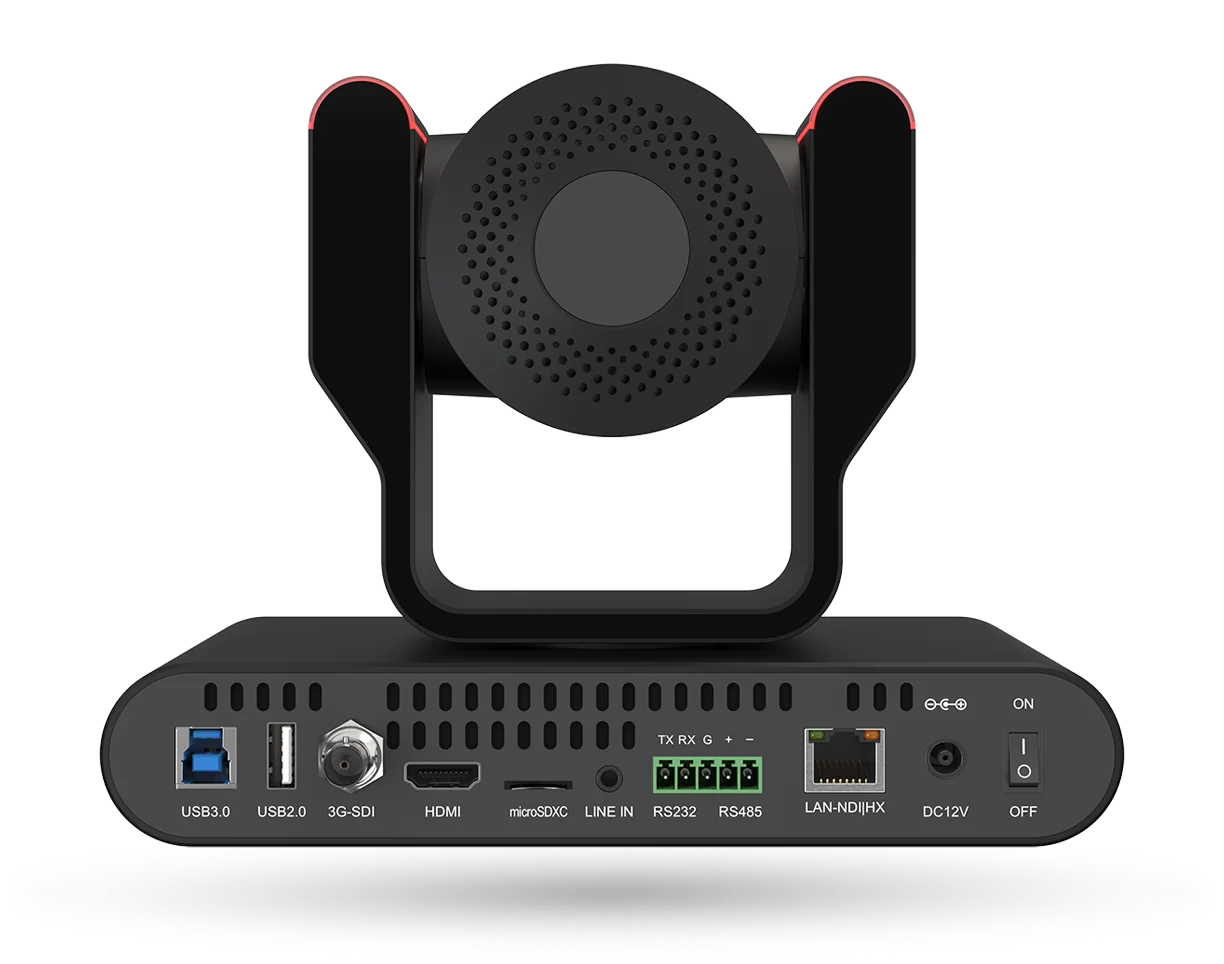

Interfaces
- USB 3.0: Connect USB 3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080p@60Hz.
- USB 2.0: Connect USB 2.0 type A cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080p@60Hz.
- 3G-SDI: Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 1080p@60Hz over SDI cabling.
- HDMI: Connect to an HDMI device such as a video production switcher or a video display up to 1080p@60Hz.
- MicroSD: Record up to 1 TB.
- Audio In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
- RS-232, RS-485: Connect cascading RS-232 or RS-485 to control the camera(s) with a joystick controller or control software.
- LAN-ND|HX: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream (Can facilitate NDI|HX3 connectivity).
- Power: Connect supplied 12V power adapter.
BG-Commander-G2: See Interface Description Here
