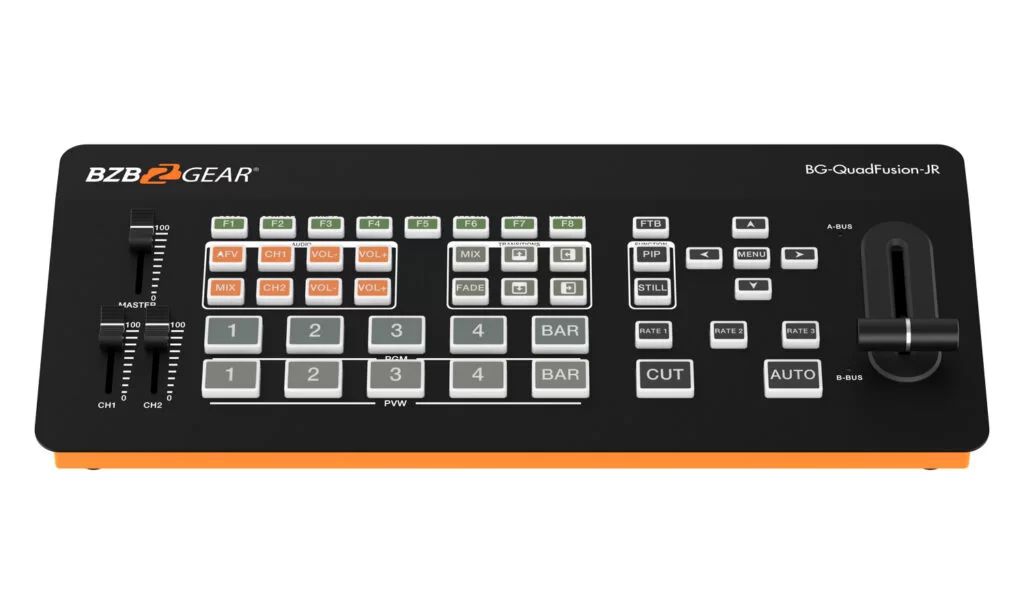

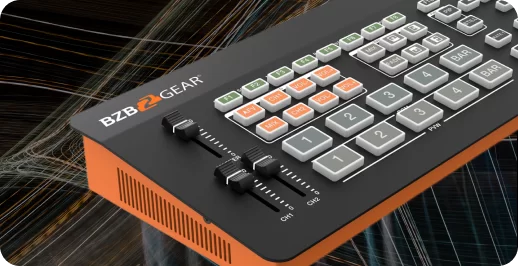

Tech Specifications
SKU | BG-QuadFusion-JR | |
Video Signal Input | Input signal | HDMI 1.4 / DP 1.2 video signal |
Connector | Standard | |
Reflection loss | >15dB 5MHz~3GHz | |
Signal amplitude | 800mV±10% (HDMI) | |
Impedance | 100Q (HDMI) | |
Balance | Adaptive | |
DVD input HDMI support | 480i/576i, 480p/576p, 720p, 1080i, 1080p | |
Computer HDMI input support | 1920x1080, 1680x1050, 1600x900, 1440x1050, 1366x768, 1360x768, 1360x768, 1280x1024, 1280x960, 1280x800, 1280x768, 1280x720, 1280x600, 1152x864, 1024x768, 800x600 |
|
Video Signal Output | Output signal | HDMI video output |
Resolution | 1080P60Hz / 1080P50Hz / 1080P30Hz / 1080P25Hz / 1080P24Hz / 1080160Hz / 1080150Hz |
|
Connector | Standard | |
Return Loss | >15dB 5MHz~3GHz | |
Signal amplitude | 800mV±10% (HDMI) | |
Impedance | 100Q (HDMI) | |
DC offset | 0V±0.5V | |
Clock recovery | Support | |
Control Parameters | Control | 9600 baud, 8 bits, 1 stop bit, no parity |
Connection | 15-pin D-port, 2-RX, 3-TX, 5-GND | |
Network control | RJ45, 100M | |
General Parameters | Power supply | 12V/DC |
Power rate | <25W | |
Size | 11in x 4.3in x 1.4in [280mm x 110mm x 36mm] | |
Control panel | Support on-site production, integration of a variety of buttons | |
Operating temperature | 32°F ~ 122°F / 0°C ~ 50°C, No condensation | |
Storage temperature | -4°F ~ 167°F / -20°C ~ 75°C | |
Working humidity | 20% ~ 70%RH | |
Storage humidity | 0% ~ 90%RH, No condensation |
PACKAGE CONTENTS
- 1 x BG-QuadFusion-JR
- 1 x Power Adapter (12V DC)
- 1 x User Manual
- 1 x USB 3.0 Type-A to Type-B Cable

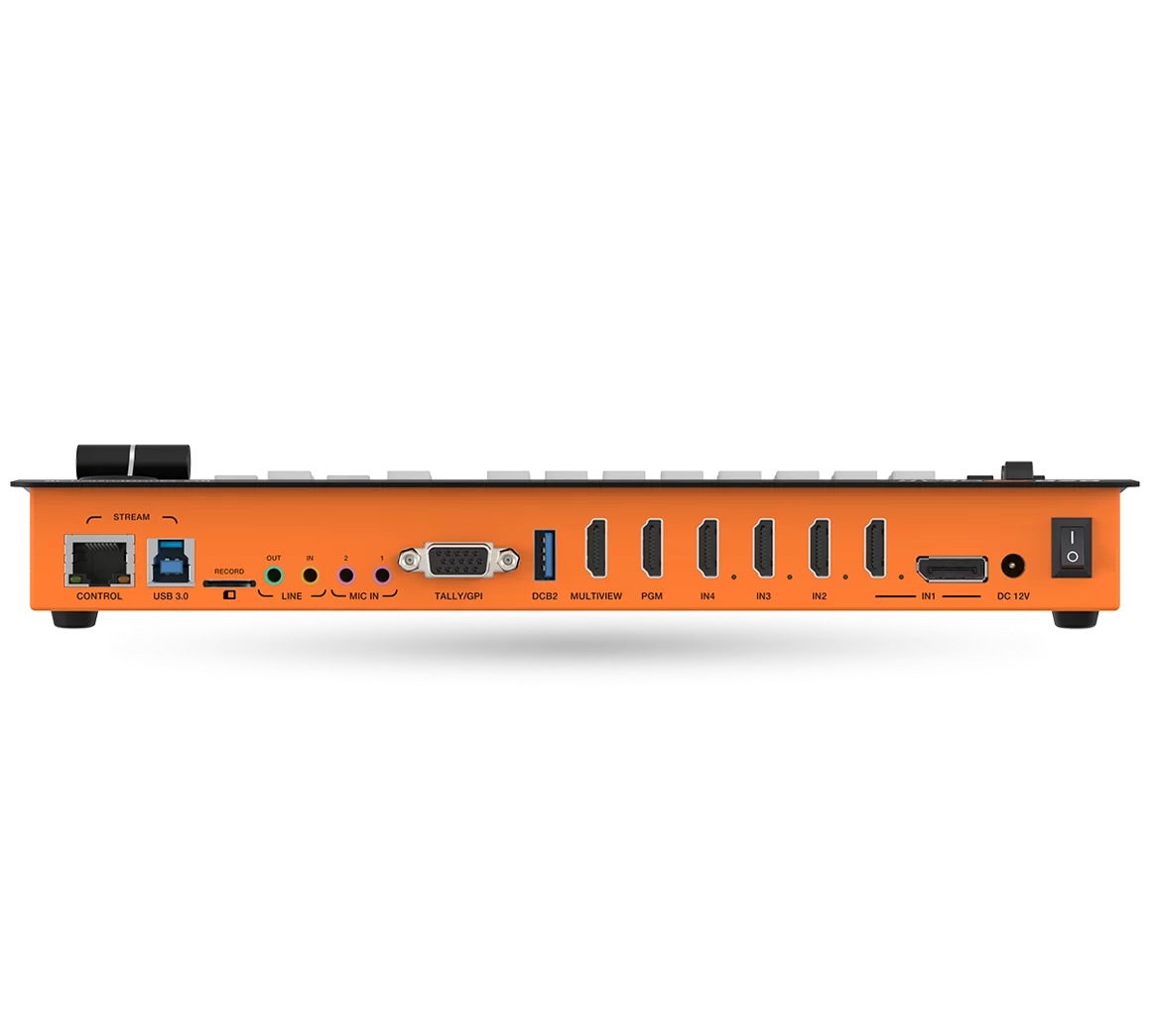

Interfaces
- Control: RJ45 LAN connector for network control and RTMP Stream.
- USB 3.0: USB 3.0 Type-B UVC stream capture port.
- Micro SDXC: Micro SDXC card port for direct PGM recording.
- Line In/Out: 3.5mm Stereo audio input / output.
- MIC In: 2x 3.5mm stereo microphone inputs.
- Tally/GPI: DB-15 port for serial control or GPI Tally system.
- DCB2: External control for keyboard, wireless tally, or device cascade.

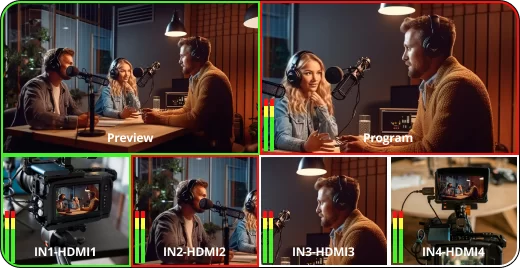

- Multiview: HDMI 1.4, 19-pin female multiview output.
- PGM: HDMI 1.4, 19-pin female program live output.
- HDMI Input: 4x HDMI 1.4, 19-pin female video inputs.
- DisplayPort Input: DisplayPort video input which can replace HDMI IN1.
- DC 12v: Power input.
