HDMI Extenders Over Category Cable
Comparison Table
| SKU | Transmission Distance | Max Resolution | Audio Formats | Video Bandwidth | HDBaseT | HDMI Compliance | HDCP Compliance |
|---|---|---|---|---|---|---|---|
| BZB-EXH-50 | Up to 165ft (50m) over Cat6/6a/7 | 4K2K@60Hz RGB/YCBCR 4:4:4 | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DSD-HD Master Audio, DSD | 18Gbps | × | HDMI 2.0 | HDCP 1.4|HDCP 2.2 |

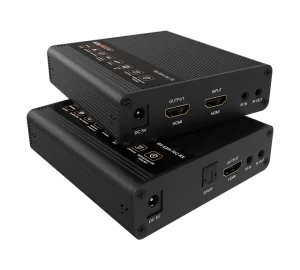

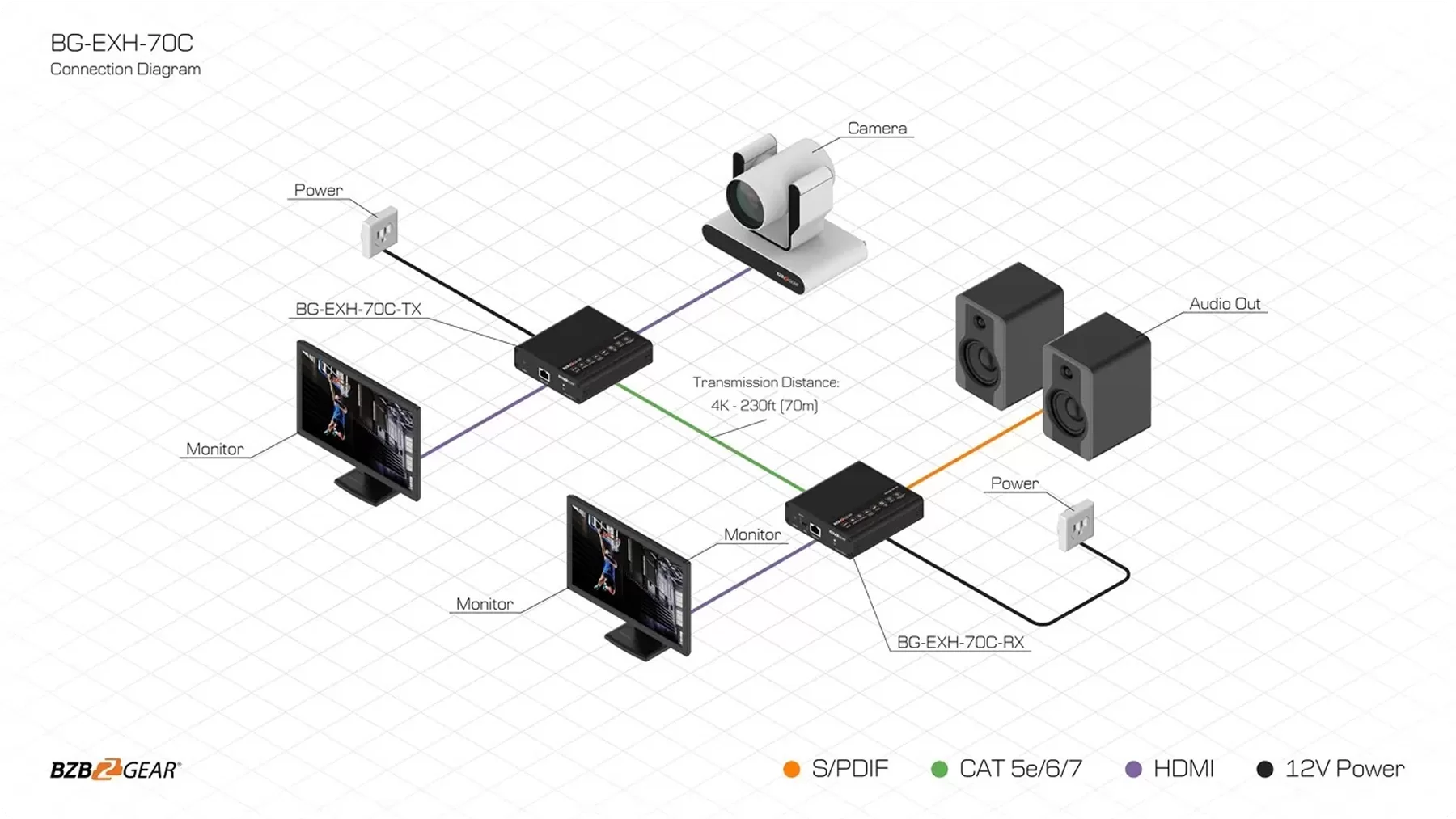

| BG-EXH-70C | Up to 230ft (70m) over Cat6/6a/7 | 4K@60Hz 4:4:4 | LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 7.1CH | 18Gbps | × | HDMI 2.0 | HDCP 1.4|HDCP 2.2 |

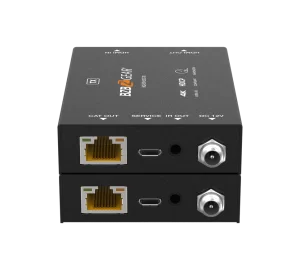

| BG-EXH-50C | Up to 165ft (50m) over Cat6/6a/7 | 4K@60Hz 4:4:4 | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X | 18Gbps | × | HDMI 2.0 | HDCP 1.4|HDCP 2.2 |

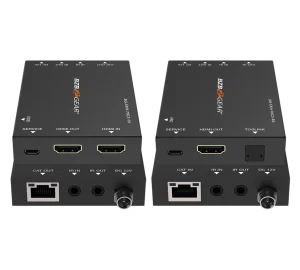

| BG-EXH-70C3 | Up to 230ft (70m) over Cat6/6a | 4K2K@60Hz RGB/YCBCR 4:4:4 | HDMI: LPCM 7.1CH, Dolby True HD, DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0 | 18Gbps | × | HDMI 2.0b | HDCP 1.4|HDCP 2.2 |
| BG-EXH-150C | Up to 492ft (150m) over Cat6 | 4K2K@50/60Hz 4:4:4 | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X | 18Gbps | YES | HDMI 2.0 | HDCP 1.4|HDCP 2.2 |
| BG-EXH-70C4 | Up to 230ft (70m) over Cat6 | 4K2K@60Hz RGB/YCBCR 4:4:4 | HDMI: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0 | 18Gbps | YES | HDMI 2.0b | HDCP 1.4|HDCP 2.2 |

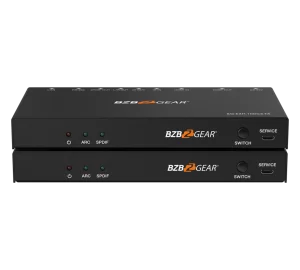

| BG-EXH-100C5 | Up to 328ft (100m) over Cat6 | 4K@60Hz 4:4:4 | HDMI: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0 | 18Gbps | YES | HDMI 2.0b | HDCP 1.4|HDCP 2.2 |

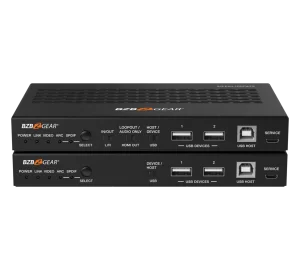

| BG-EXH-100C6 | Up to 328ft (100m) over Cat6 | 4K@60Hz 4:4:4 | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD, Master Audio, DSD | 18Gbps | YES | HDMI 2.0b | HDCP 1.4|HDCP 2.2 |
What Are HDMI Extenders
HDMI extenders are signal extension devices designed to extend the reach of video and audio signals beyond the typical 50-foot limit of standard HDMI cables. By leveraging category cables like Cat5e, Cat6, or Cat6a, HDMI extenders enable signal transmission over much longer distances—up to several hundred feet. This capability is particularly valuable in professional AV setups, educational environments, and large-scale installations where long cable runs are necessary.
What Makes BZBGEAR HDMI Extenders Stand Out
- True 4K60 Support: BZBGEAR HDMI extenders are designed to deliver unparalleled video quality with true 4K60 support. This ensures that you can transmit high-resolution, 60Hz video signals without any degradation, making them ideal for high-definition content applications where clarity and detail are crucial.
- Extensive Audio Support: Our extenders go beyond video by offering extensive audio support. They are equipped to handle a wide range of audio formats, including multi-channel audio, ensuring that your sound experience matches the exceptional video quality. This feature is particularly beneficial for complex AV setups where audio and video synchronization is essential.
- IR Passthrough: With built-in IR passthrough capability, BZBGEAR HDMI extenders allow you to control your source devices from a distance. This feature lets you operate your devices via remote control even when they are located far from the display, adding convenience and functionality to your AV system setup.
Types of HDMI Extenders
HDMI extenders come in various forms, each suited to different applications. If you require project design assistance to find the right signal extension solution, don’t hesitate to reach out to a BZBGEAR representative:
- HDMI Extender Over Cat5e/6: These extenders use Cat5/6 cables to carry HDMI signals. They are cost-effective and ideal for moderate distances, typically up to 330 feet. The Cat5e/6 HDMI extension solutions are popular choices for home theaters and small office setups.
- HDMI Extender Over Ethernet: Some extenders utilize standard Ethernet cables and ethernet infrastructure. This method is advantageous for integrating HDMI signals into existing setups and can support longer distances compared to traditional HDMI cables.
- 4K HDMI Extender: Designed to handle high-resolution video, the 4K HDMI extender ensures that video quality remains intact even at extended distances. These extenders are essential for applications requiring ultra-high-definition content, such as digital signage and high-end home theaters.
- HDMI Cat5 Extender: This variant specifically uses Cat5 cables and is suited for shorter distances compared to Cat6. It’s a viable option for situations where ultra-high resolution is not a priority but where cost and flexibility are key considerations.
Choosing the Right HDMI Extender
Selecting the best HDMI extender involves considering several factors. We recommend paying close attention to these three factors:
Distance:
Determine the length of the run to choose an extension solution that matches your needs. For short to moderate distances, an HDMI extender over Cat5e/6 may suffice. For longer distances, a more robust solution like an HDMI over HDBaseT might be necessary. When measuring, be sure to consider port accessibility.
Resolution Requirements
Ensure the device supports the desired resolution. For 4K HDMI extenders, check that the device can handle the higher bandwidth requirements of 4K content. The same applies to 8K extenders. We recommend checking the extender’s HDMI compatibility as well.
Compatibility
Verify that the device is compatible with your existing equipment and supports necessary features like HDCP and EDID.
Benefits of Using HDMI Extenders
HDMI extenders offer several advantages:
- Extended Reach: They allow HDMI signals to travel over much greater distances than traditional HDMI cables, making them ideal for large installations.
- Signal Integrity: By using category cables, extenders maintain signal quality and prevent degradation over long runs. Additionally, ethernet cables can lock into the port to ensure the connection is stable in busy environments.
- Flexibility: With various types available, including those that work over Cat5e/6, users can select extenders that best fit their specific needs and existing infrastructure.
Elevate Your Setup with BZBGEAR!
Features
-
LONG-RANGETransmit HDMI signals at distances up to 150 meters / 492 feet -
4K UHDResolutions up to 4K@60fps supported -
HDMIHDMI 2.0a compliant, HDCP 2.2 compliant -
EASY INSTALLATIONCompact designs and category cables simplify installation -
AUDIO DE-EMBEDDINGCertain models de-embed audio for connection to an audio system -
IR PASSTHROUGHExtend control signals for IR devices -
HDMI LOOP OUTConnect an additional display at the transmitter -
3 YEAR WARRANTYParts & Labor covered for 3 years.
The BZBGEAR Difference
BZBGEAR offers the industry’s best warranty for all products, ensuring unparalleled protection for our clients. Beyond the initial sale, our commitment to service and support extends far into the future. With BZBGEAR, clients can confidently specify, purchase, and install, knowing they have unmatched coverage even in the rare event it’s needed.
