4K UHD Over Cat5e/6/7 Receiver for VP1616

ProGear
NEW
BG-4K-VP-R-1-nl BG-4K-VP-R-2-nl BG-4K-VP-R-3-nl BG-4K-VP-R-4-nl

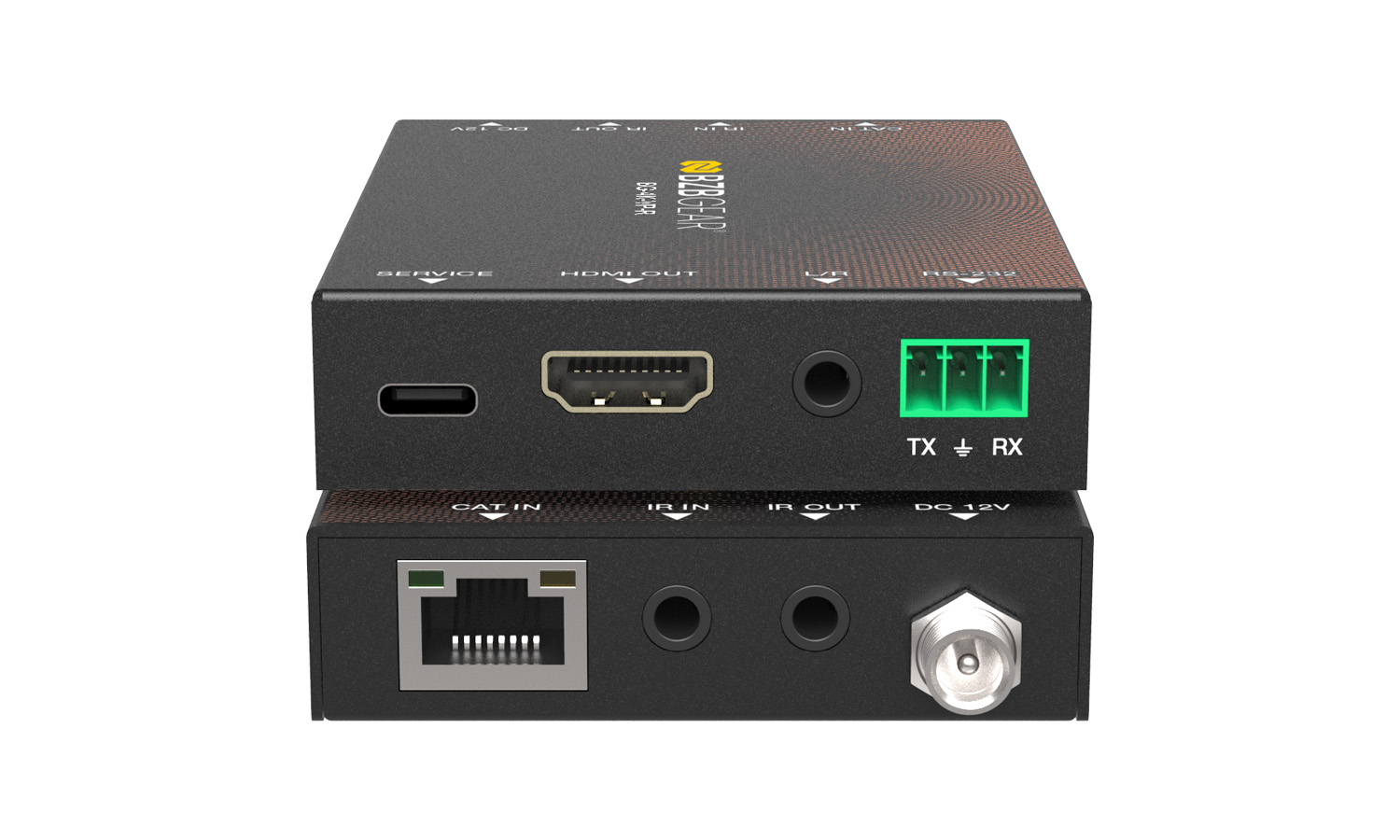

BG-4K-VP-R-1-nl

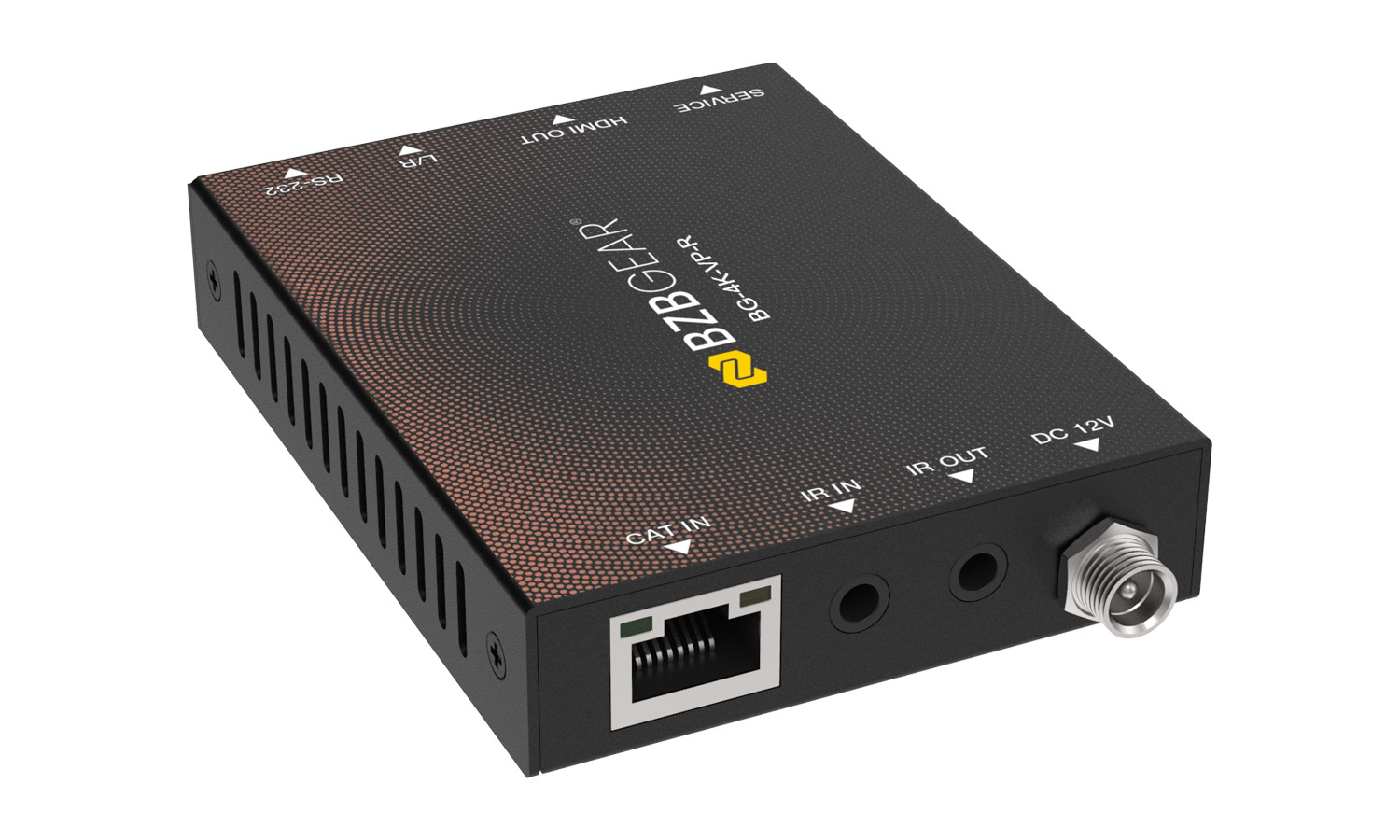

BG-4K-VP-R-2-nl

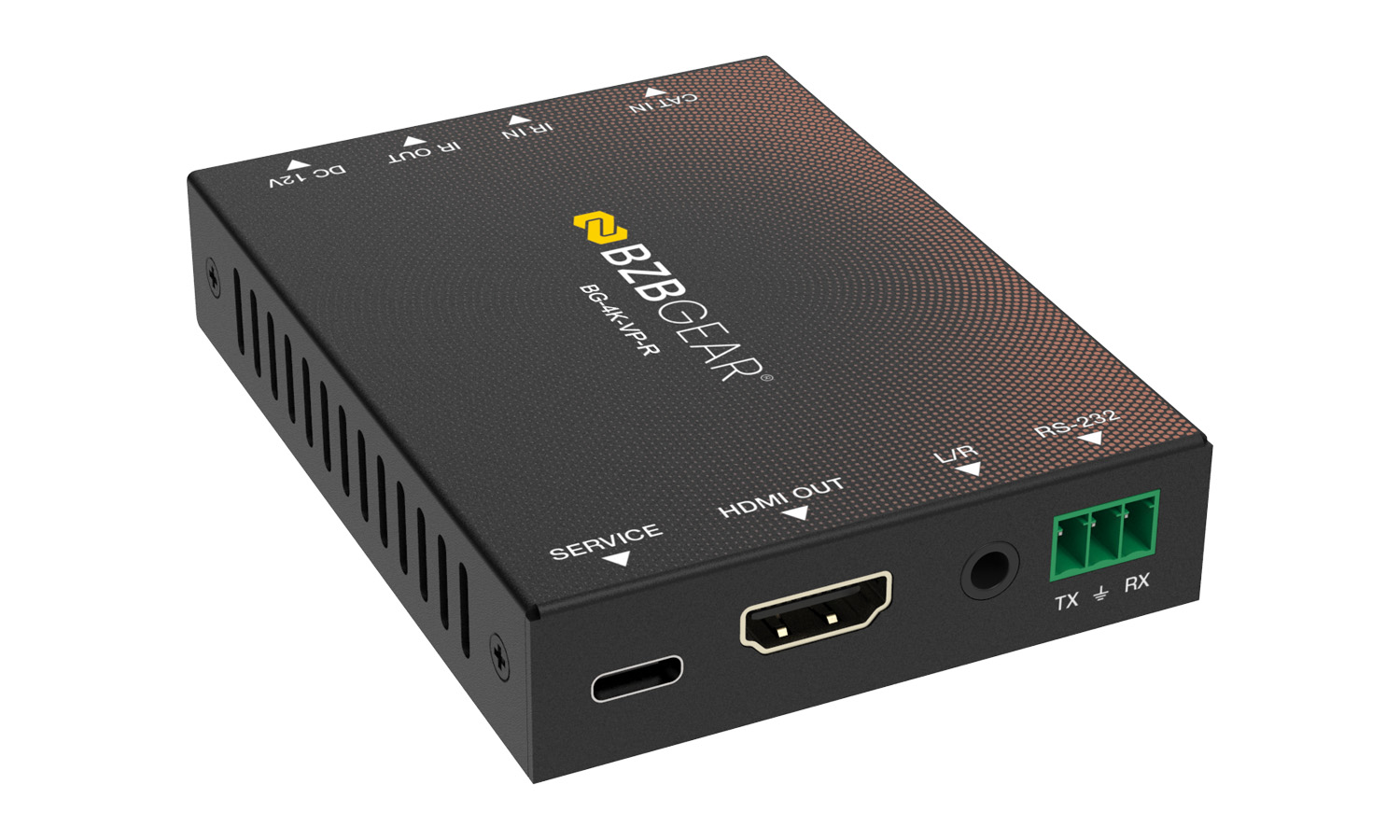

BG-4K-VP-R-3-nl

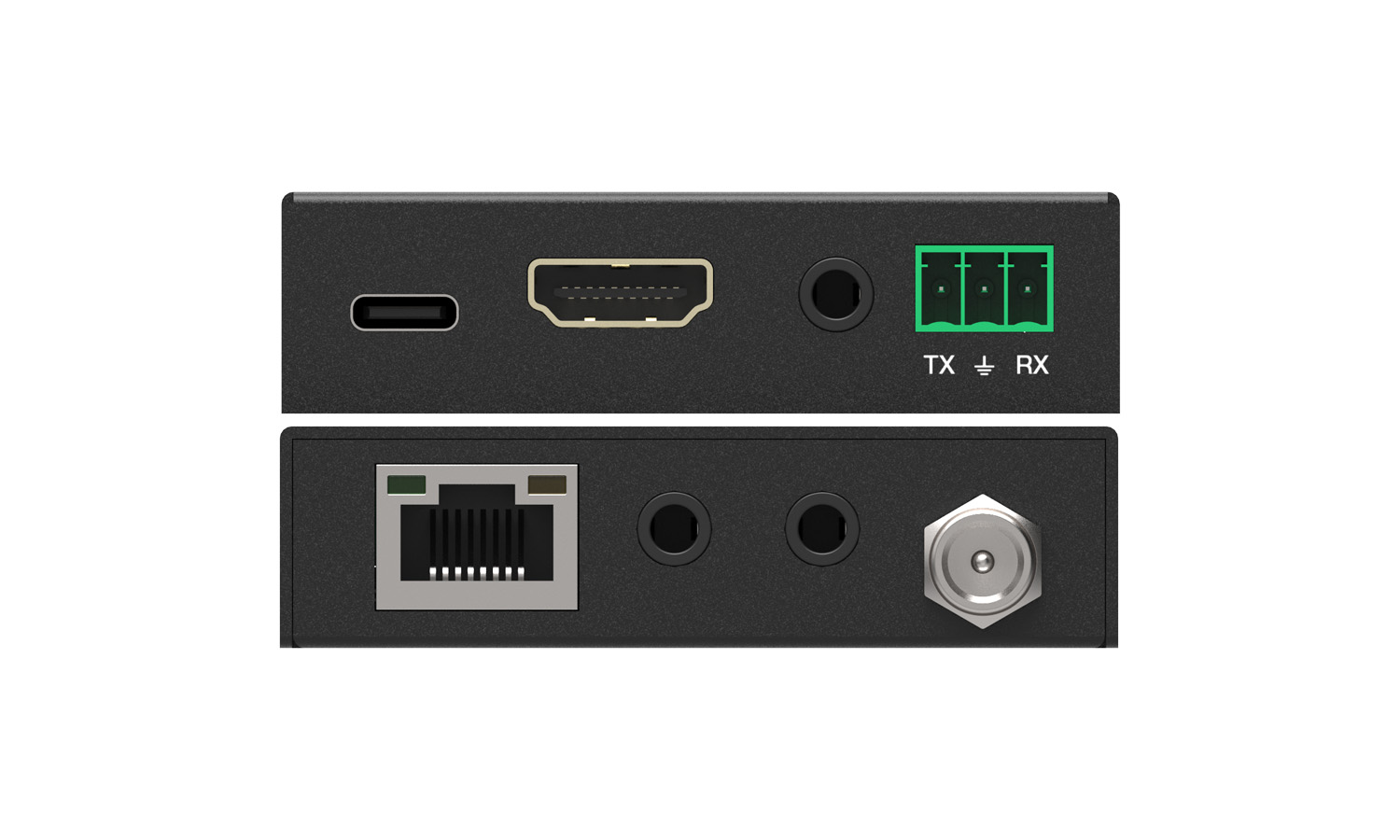

BG-4K-VP-R-4-nl
U.S.-based Company
U.S.-based Company
Complimentary design services<br> and engineering support
Complimentary design services
and engineering support
5 year warranty
5 year warranty
Click here to learn more about BZBGEAR Fundamentals
BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Overview Specifications Package contents Trade In

Overview

The BG-4K-VP-R is a professional 4K UHD HDMI receiver designed for high-quality long-distance signal reception over a single Cat5e/6/6a/7 cable. Supporting HDMI 2.0b and HDCP 2.3 compliance with full 18Gbps bandwidth, it delivers stable, uncompressed video and audio performance for commercial and residential AV environments.

The unit receives 4K HDMI signals up to 230ft (70m) over a single Cat6/6a cable while maintaining full signal integrity and HDR compatibility. With integrated IR control, RS-232 pass-through, audio de-embedding, and PoC power support, the BG-4K-VP-R provides a compact and reliable solution for extended-distance HDMI signal reception.

Technical Description

The BG-4K-VP-R is a professional HDMI 2.0b receiver supporting ultra-high-definition video up to 4K@60Hz 4:4:4 with 18Gbps bandwidth and HDCP 2.3 compliance. It ensures full-quality signal reception from compatible HDMI distribution systems while maintaining support for modern HDR formats including HDR10, HDR10+, Dolby Vision, and HLG.

It is designed to receive HDMI signals up to 230ft (70m) over Cat5e/6/6a cabling, providing stable, low-latency performance for professional AV installations. The receiver includes HDMI audio de-embedding for direct audio extraction, as well as bi-directional IR pass-through for remote control functionality across connected devices.

For integration flexibility, the unit supports RS-232 pass-through for external control systems and is powered via PoC (Power over Cable), eliminating the need for a local power adapter. Its compact design allows for easy installation in tight spaces, making it ideal for classrooms, conference rooms, digital signage, and commercial AV deployments.

The BG-4K-VP-R is the dedicated receiver for the BG-4K-VP1616PRO 16×16 4K UHD Video Wall Matrix Switcher, providing reliable signal reception at each display location. The BG-4K-VP1616PRO includes 16 BG-4K-VP-R receivers, one for each of its 16 outputs.

Whether you need a replacement receiver or an additional unit for your installation needs, the BG-4K-VP-R is available for separate purchase.

Learn More About the BG-4K-VP1616PRO

Features

  • bi_badge-4k
    4K UHD
    Supports HDMI 2.0b and HDCP 2.3 with resolutions up to 4K@60Hz 4:4:4
  • Long-Range | LONG RANGE KVM | LONG RANGE USB | EXTREME RANGE | BUFFERED AND RE-CLOCKED OUTPUTS | ANALOG STEREO RANGE | EXTENDED RANGE
    Extended Range
    Receives HDMI signals up to 230ft (70m) over Cat5e/6/6a/7 cable
  • HDR
    Advanced HDR Support
    HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through compatibility
  • AUDIO DE-EMBEDDING
    HDMI Audio De-Embedding
    Extracts embedded HDMI audio for external audio systems
  • IR-PASS-THROUGH
    Bi-Directional IR Control
    Enables remote device control across the installation
  • img8
    PoC (Power over Cable):
    Powered remotely via the connected cable line, no local power supply required
  • Supports RGB and YCbCr 4:4:4 / 4:2:2 / 4:2:0 color formats
  • 8/10/12-bit color depth support depending on resolution
  • Wideband IR support (20–60KHz)
  • Stable long-distance signal reception over single Cat5e/6/6a/7 cable
  • RS-232 Pass-Through: Supports external control system integration
  • 18Gbps Bandwidth Performance: Ensures full uncompressed video and audio transmission

Tech Specifications

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.3
Video Bandwidth 18Gbps
Video Resolution Up to 4K@60Hz 4:4:4
Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4
Color Depth 8/10/12-bit (1080P@60Hz, 4K@30Hz, 4K@60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K@60Hz 4:4:4 )
HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
ESD Protection Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge)
Connections
Receiver Inputs:  1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] 1x SERVICE [USB Type C, Update port] Outputs: 1x HDMI Type A [19-pin female]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 2.4" (W) x 3.5" (D) x 0.7” (H) [61mm (W) x 88mm (D) x 18mm (H)]
Weight 0.34lbs [155g]
Power Supply Input: AC 100 - 240V 50/60Hz Output: DC 12V/1A
Power Consumption 3.84 W
Operating Temperature 32 - 104°F / 0 - 40°C
Storage Temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)
Resolution / Distance 4K@60 - Feet / Meters 4K@30 / 1080P - Feet / Meters
CAT5e/6/6a/7 230ft / 70M 230ft / 70M
HDMI IN/OUT 10ft / 3M 30ft / 10M
The use of “Premium High Speed HDMI” cable is highly recommended.

PACKAGE CONTENTS

  • 1x 4K UHD HDMI Receiver
  • 1x IR Blaster cable (1.5 meters)
  • 1x 20~60KHz IR Receiver cable (1.5 meters)
  • 1x 12V/1A Locking Power adapter
