Dual-Host USB 3.2/HDMI Switcher & HDBaseT 3.0 Extender Kit with Dual USB-C Host Inputs and Dual 4K60 HDMI Outputs with Bi-Directional PoC/RS-232 up to 328ft
Overview

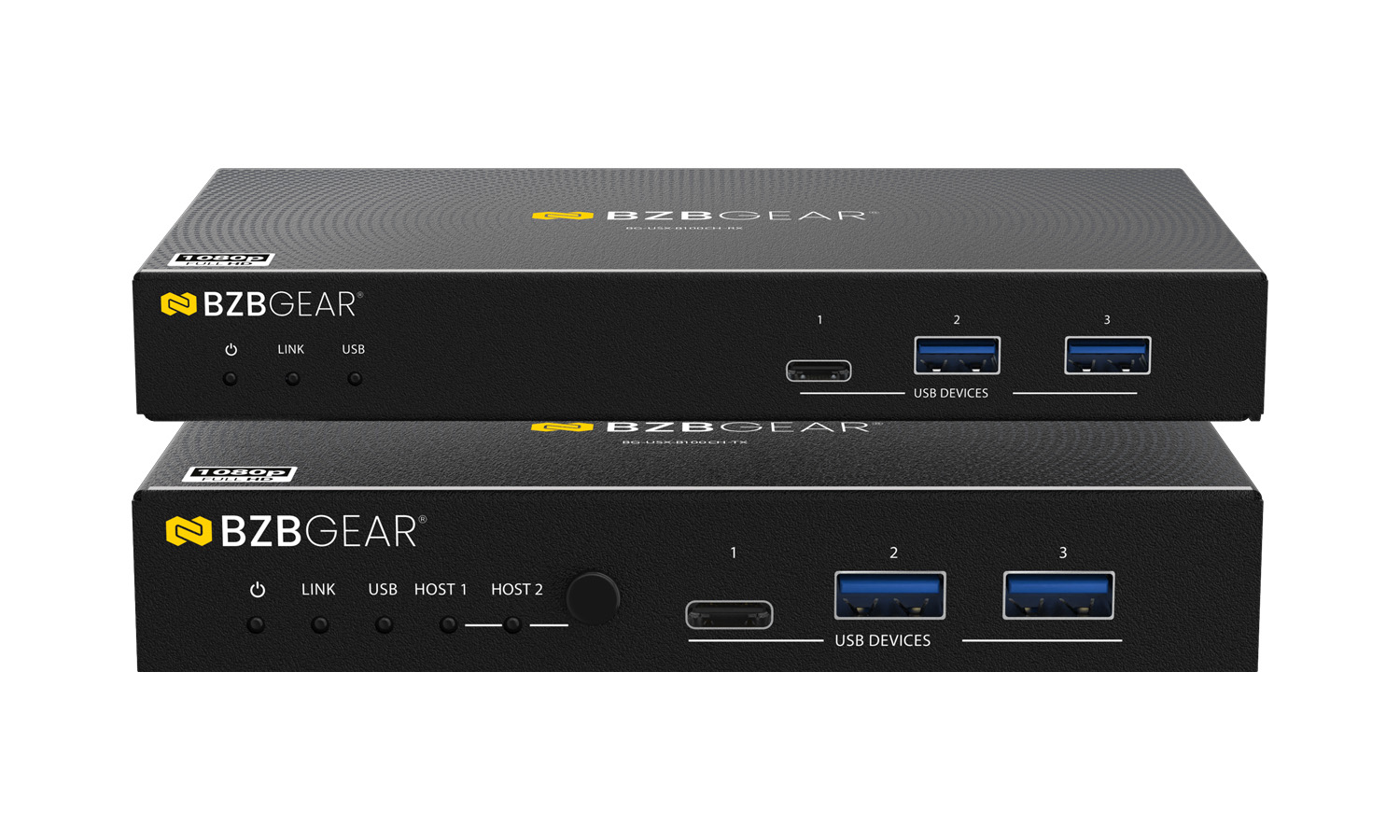

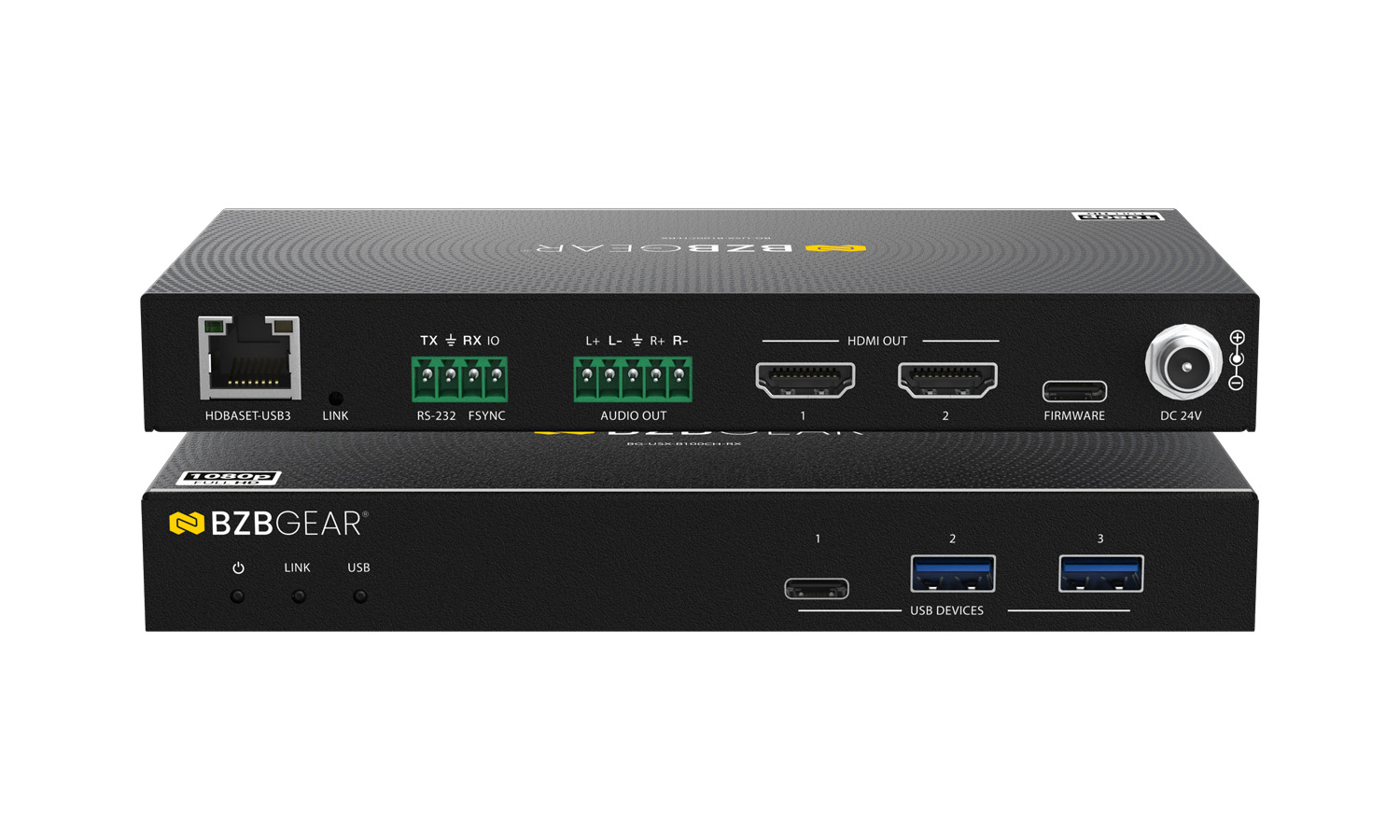

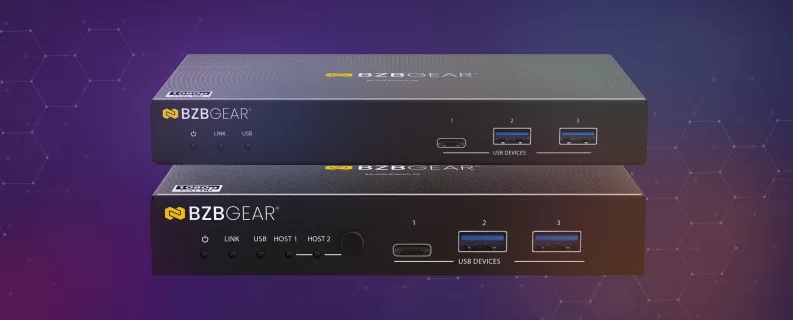

The BG-USX-B100CH is a professional-grade USB 3.2 Gen 1 extender that simultaneously extends high-speed USB data and dual HDMI video signals up to 100 meters (328 feet) over a single CAT6a (F/FTP) cable. Supporting USB data rates up to 5Gbps and dual 4K@60Hz HDMI outputs via DisplayLink technology, it provides a powerful solution for applications requiring long-distance connectivity without sacrificing performance.
Designed for demanding AV, industrial, and enterprise environments, the BG-USX-B100CH features dual USB-C host inputs with automatic or manual source switching, bi-directional Power over Cable (PoC), RS-232 pass-through, FSYNC GPIO support, and analog audio de-embedding. Its robust metal construction, flexible USB connectivity, and professional integration features make it ideal for control rooms, medical imaging, machine vision, and collaborative workspaces.
Features in Depth
The BG-USX-B100CH extends USB 3.2 Gen 1 connectivity over distances of up to 100m (328ft) using a single CAT6a (F/FTP) cable while maintaining data transfer speeds of up to 5Gbps. Fully compatible with USB 2.0 and USB 1.1 devices, it supports a wide range of USB peripherals including cameras, storage devices, touchscreens, keyboards, mice, and specialized industrial equipment. The transmitter includes two USB-C host connections with both automatic and manual switching, allowing users to seamlessly alternate between connected host systems without reconnecting cables.
Integrated DisplayLink technology enables the simultaneous extension of dual HDMI video outputs with resolutions up to 4K@60Hz, allowing remote workstations to operate multiple displays while maintaining full USB functionality. Both the transmitter and receiver feature multiple USB device ports, including USB-C and USB-A connections, for flexible peripheral deployment at either end of the installation. This combination of USB and video extension makes the BG-USX-B100CH an ideal solution for conference rooms, production environments, control centers, and remote workstation applications.
Engineered for professional system integration, the BG-USX-B100CH supports bi-directional 24V Power over Cable (PoC), allowing both units to operate from a single external power supply. Additional integration features include RS-232 pass-through for remote control, FSYNC GPIO support for synchronized industrial and machine vision cameras, balanced and unbalanced analog audio de-embedding, and USB-C service ports for convenient firmware updates. These advanced capabilities provide installers with a reliable, scalable solution for high-performance AV, industrial automation, and mission-critical environments.
Features
-
![Wide-Angle 1]()
100m USB 3.2 ExtensionExtends USB data up to 328ft (100m) over a single CAT6a (F/FTP) cable while supporting transfer speeds up to 5Gbps -
![fluent_dual-screen-span-20-regular]()
Dual USB-C SwitchingFeatures two USB-C host inputs with automatic and manual switching for seamless multi-computer operation -
![bi_badge-4k]()
Dual 4K HDMI OutputsUses DisplayLink technology to deliver dual HDMI video outputs with resolutions up to 4K@60Hz -
![Power Over Cable (POC)]()
Bi-Directional PoCSupports 24V PoC, allowing the transmitter and receiver to be powered using a single external power supply -
![Control Options]()
Professional ControlIncludes RS-232 pass-through, API control support, and FSYNC GPIO for industrial and machine vision applications -
![bi_usb-symbol]()
Flexible USB ConnectivityProvides USB-C and USB-A device ports on both the transmitter and receiver for connecting multiple high-speed USB peripherals
- USB 3.2 Gen 1 compliant with backward compatibility for USB 2.0 and USB 1.1 devices
- Supports high-bandwidth peripherals including external storage, cameras, docking stations, and industrial USB devices
- Analog audio de-embedding with balanced and unbalanced audio outputs
- Firmware upgrades via dedicated USB-C service ports on both transmitter and receiver
- Single CAT6a (F/FTP) cable installation simplifies long-distance deployments
- Durable metal enclosures designed for professional AV and industrial environments
- Includes locking 24V/3.75A power supply for secure operation
- Mounting ears and hardware included for rack or surface installation
Tech Specifications
| Technical | |
| USB Protocol | USB 3.2 Gen 1 |
| Data Rate | Up to 5Gbps |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Maximum Video Resolution | Up to 4K@60Hz |
| Color Depth | 8 / 10 / 12-bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| ESD Protection | IEC 61000-4-2: ±8kV (Air), ±4kV (Contact) |
| Transmission | |
| USB Extension Distance | 100m / 328ft via CAT6a (F/FTP) |
| USB Cable Distance | 1.5m / 4.9ft |
| HDMI Cable Distance | 3m / 9.8ft (Passive) |
| Connections – Transmitter (TX) | |
| USB-C Host Inputs | 2 x USB-C (24-pin, Female) |
| USB Device Outputs | 1 x USB-C (24-pin), 2 x USB-A (9-pin) |
| Extension Port | 1 x HDBT-USB3 (RJ45, 24V PoC) |
| RS-232 Control | 1 x 3-Pin 3.5mm Phoenix |
| FSYNC | 1 x 1-Pin 3.5mm Phoenix |
| Service Port | 1 x USB-C (Firmware Upgrade) |
| Power Input | DC 24V / 3.75A |
| Connections – Receiver (RX) | |
| Extension Input | 1 x HDBT-USB3 (RJ45, 24V PoC) |
| USB Device Outputs | 1 x USB-C (24-pin), 2 x USB-A (9-pin) |
| HDMI Outputs | 2 x HDMI Type-A |
| Audio Output | 1 x 5-Pin 3.5mm Phoenix (Balanced / Unbalanced) |
| RS-232 Control | 1 x 3-Pin 3.5mm Phoenix |
| FSYNC | 1 x 1-Pin 3.5mm Phoenix |
| Service Port | 1 x USB-C (Firmware Upgrade) |
| Power Input | DC 24V / 3.75A |
| Mechanical & Environmental | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (TX) (WxDxH) | 5.5 x 3 x 0.91in [140 x 75 x 23 mm] |
| Dimensions (RX) (WxDxH) | 7.1 x 3.7 x 0.91in [180 x 95 x 23 mm] |
| Weight (TX) | 0.71 lbs [324 g] |
| Weight (RX) | 1.1 lbs [486 g] |
| Power Supply | AC 100–240V, 50/60Hz; DC 24V / 3.75A |
| Power Consumption (TX) | 18.48W (Max) |
| Power Consumption (RX) | 19.44W (Max) |
| Operating Temperature | 32°F to 104°F / 0°C to 40°C |
| Storage Temperature | -4°F to 140°F / -20°C to 60°C |
| Operating Humidity | 20%–80% RH, Non-Condensing |
| Storage Humidity | 10%–90% RH, Non-Condensing |
Resources
PACKAGE CONTENTS
- 1 x USB 3.2 Gen 1 Extender Transmitter (TX)
- 1 x USB 3.2 Gen 1 Extender Receiver (RX)
- 1 x 24V / 3.75A Locking Power Supply
- 2 x 4-Pin 3.5mm Phoenix Connectors (Male)
- 1 x 5-Pin 3.5mm Phoenix Connector (Male)
- 4 x Mounting Ears
- 8 x Machine Screws (KM3 x 4)
- 1 x User Manual
Interfaces

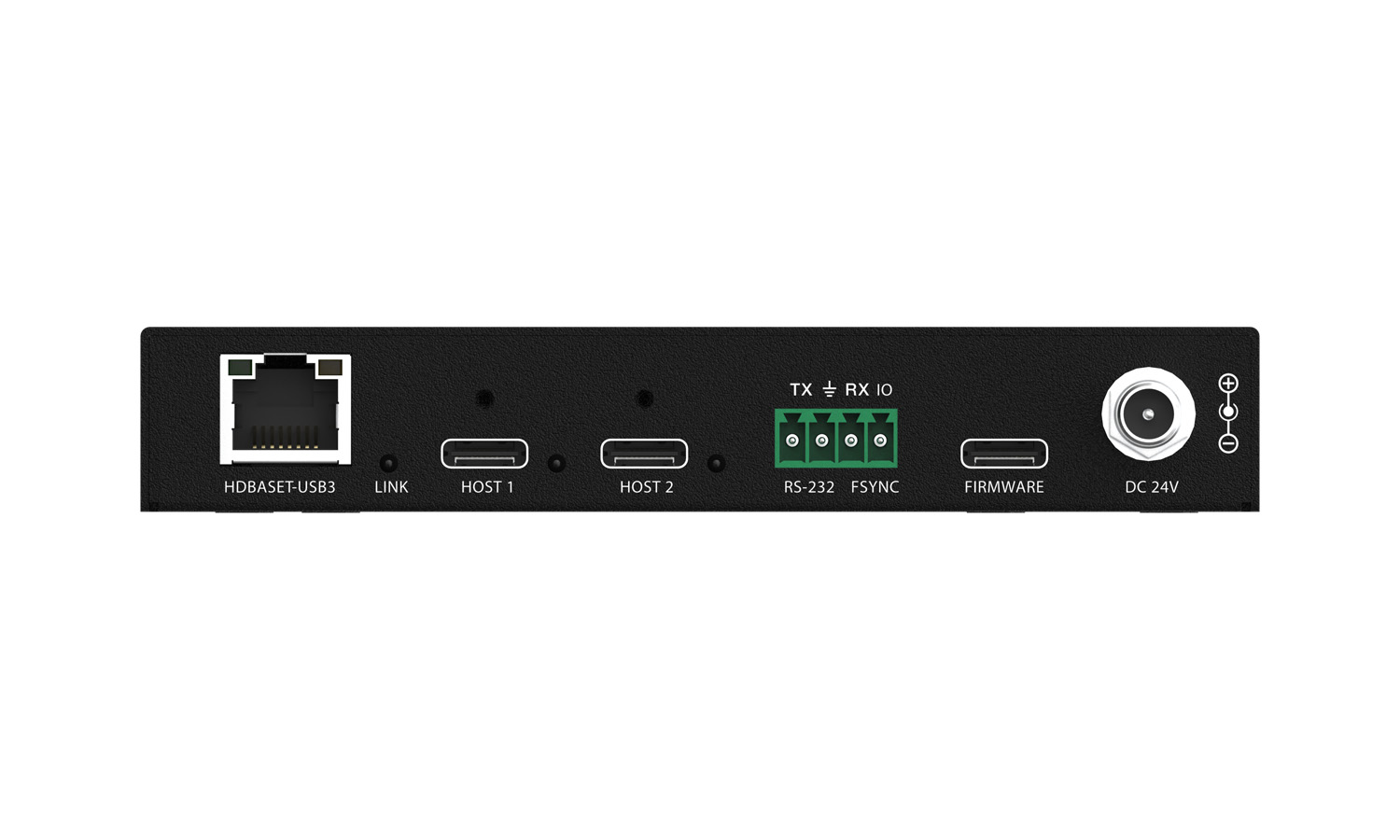

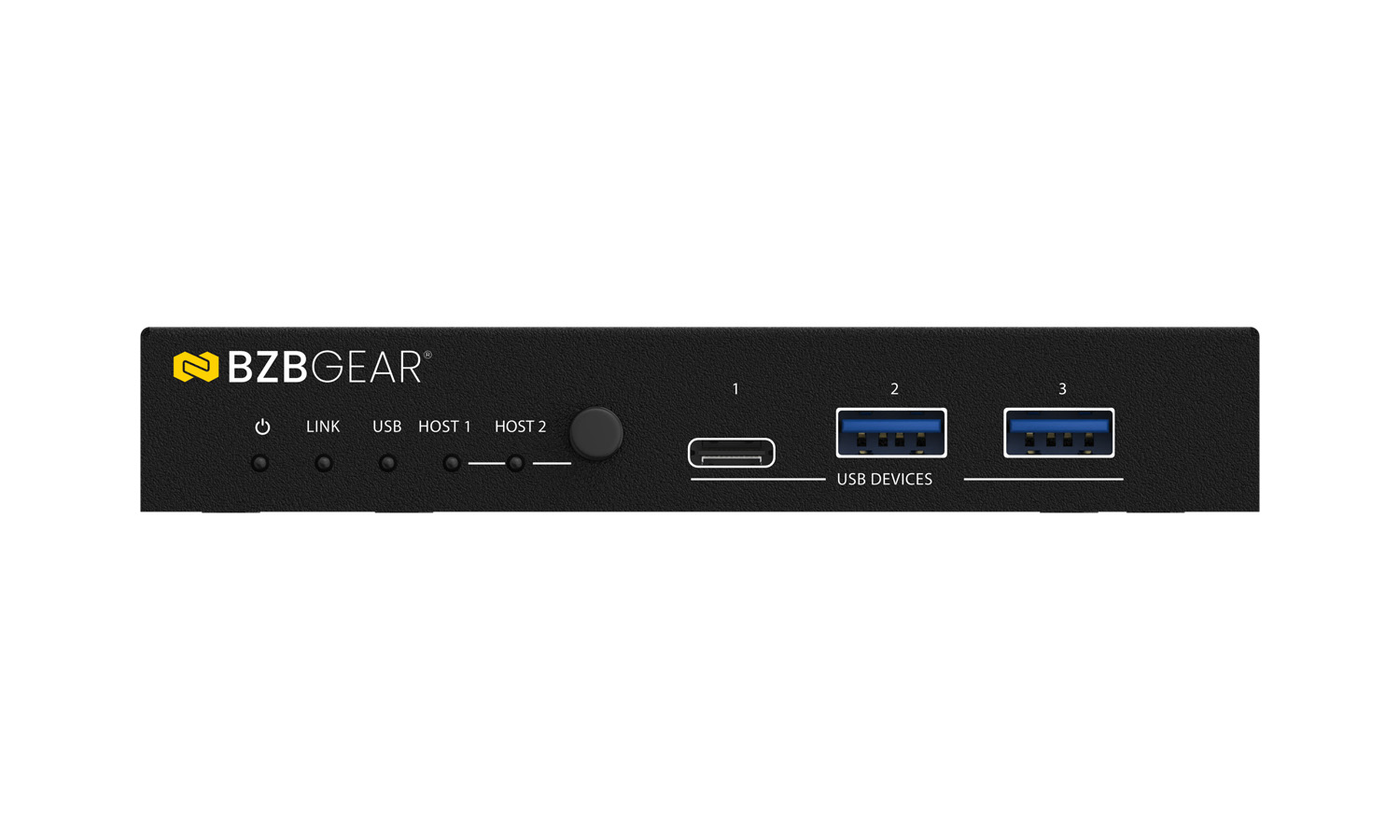

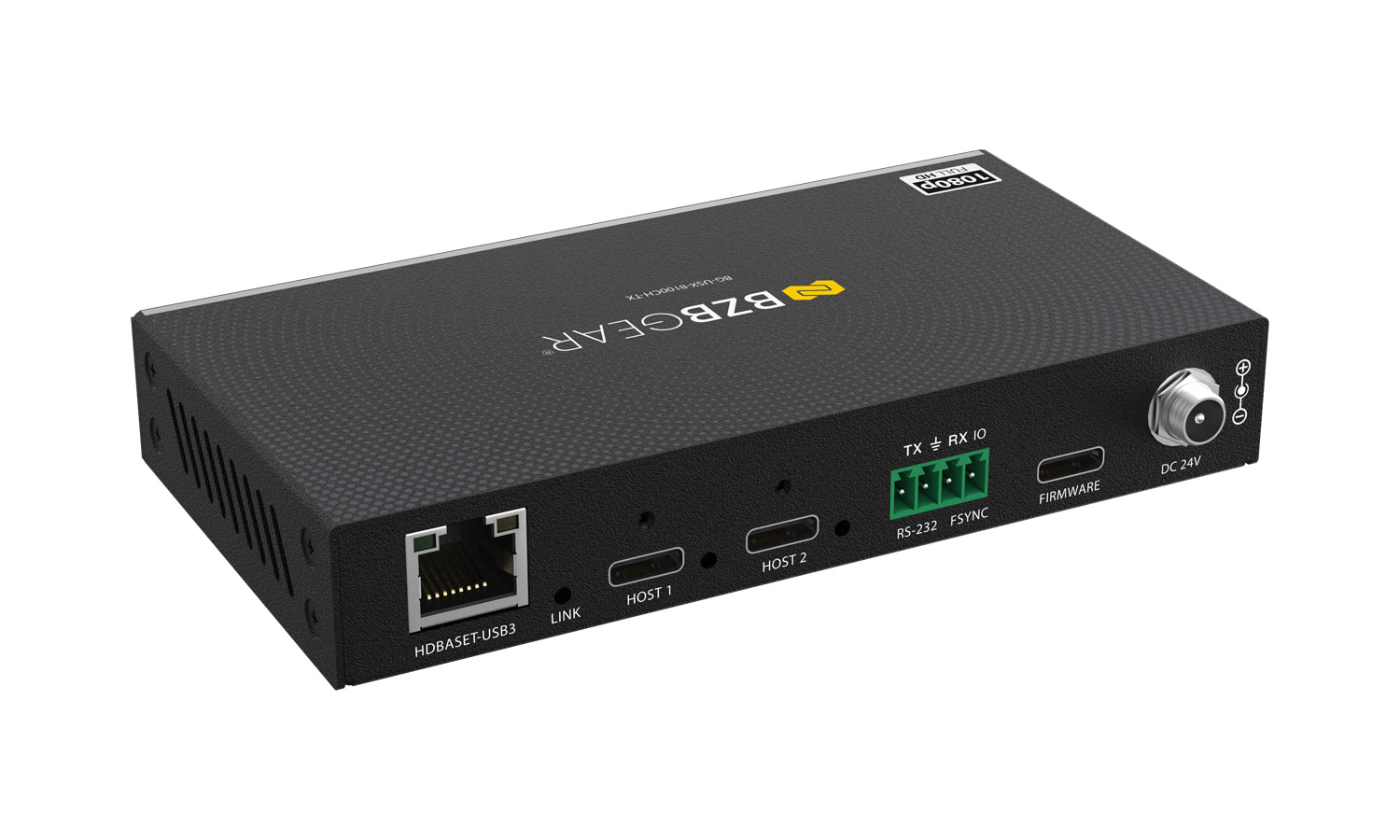

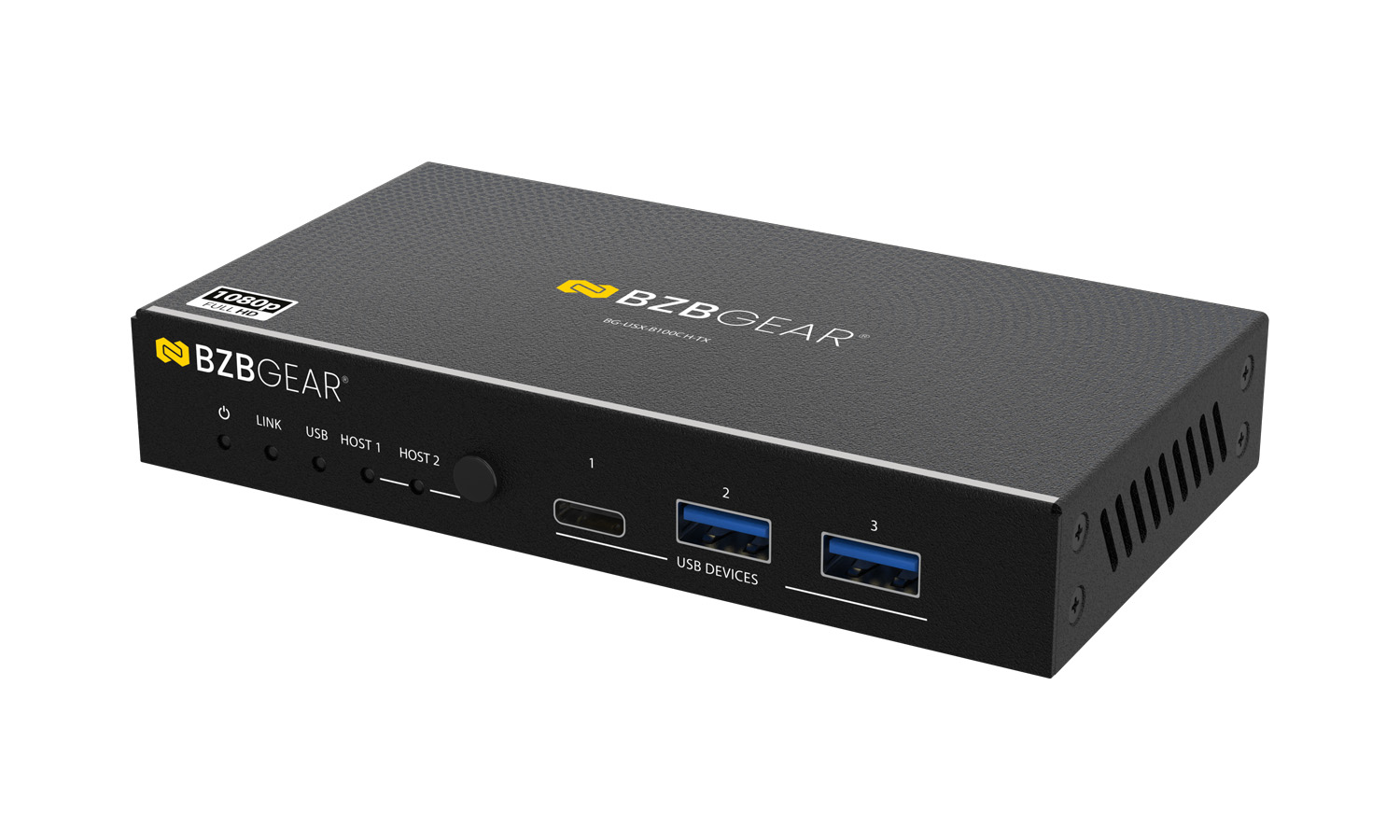

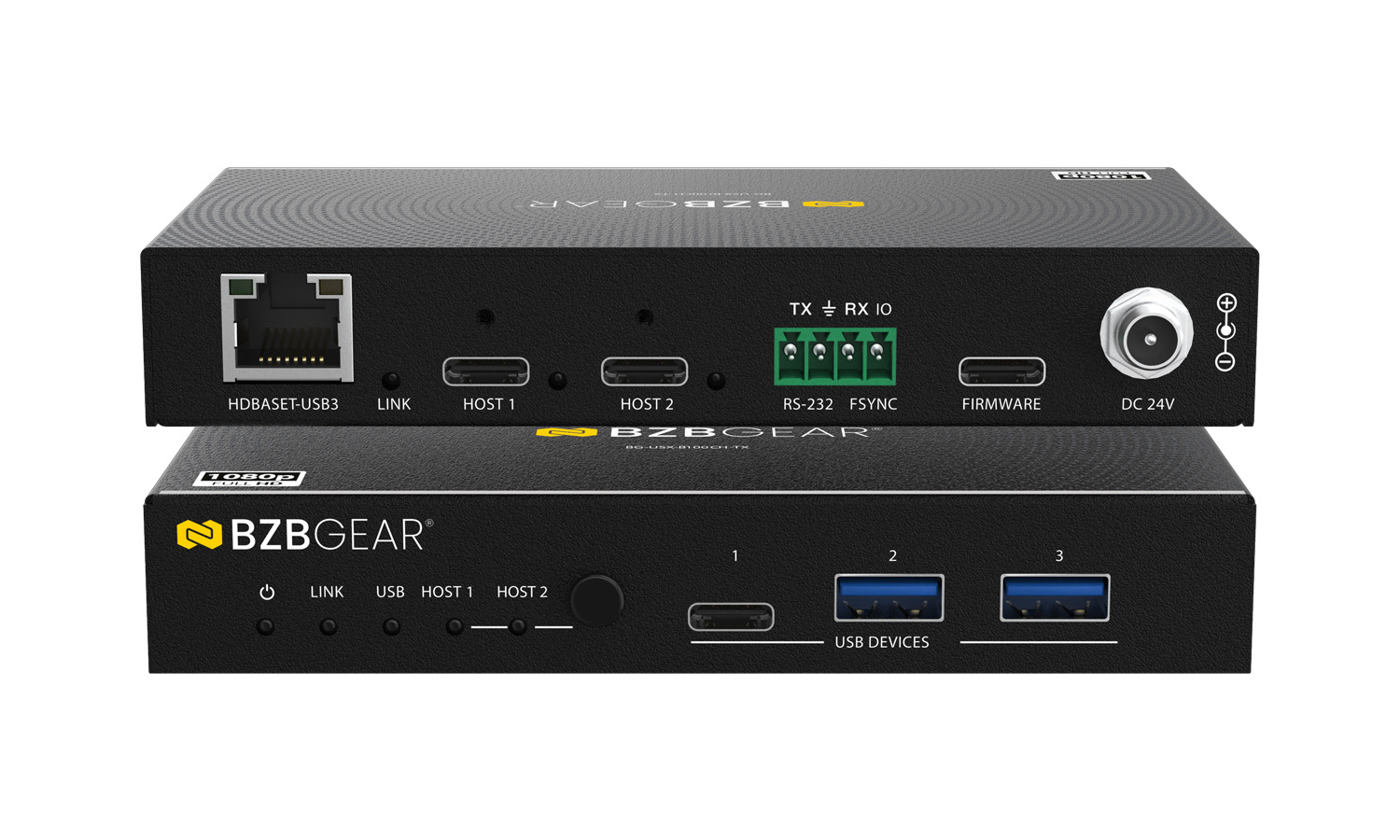

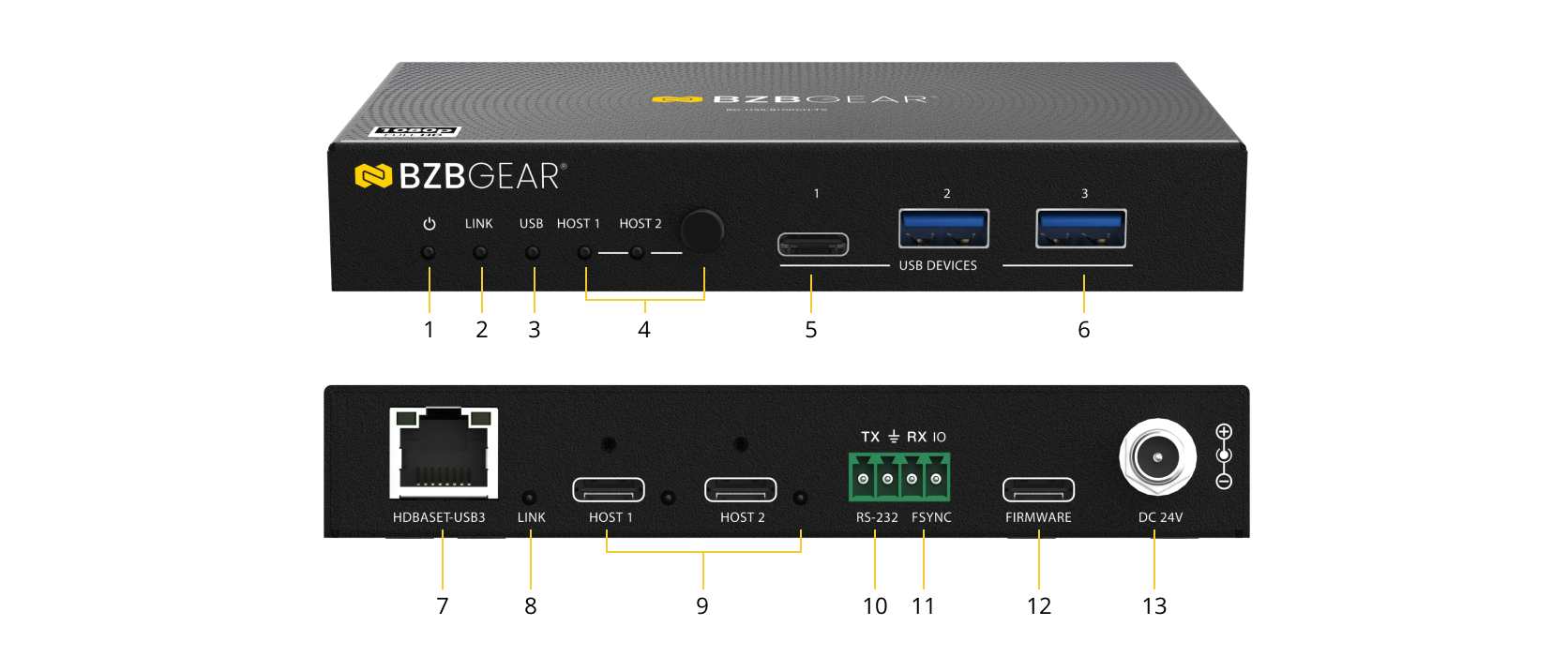

Transmitter
- Power LED: Indicates the transmitter is powered on (Red LED ON).
- LINK LED: Indicates connection status between TX and RX. ON: Linked successfully. OFF: No link established.
- USB LED: USB status indicator. ON: USB 3.0 detected. Blinking: USB 2.0 detected. OFF: No USB signal.
- HOST Switch Button & LED: Selects between USB-C HOST 1 and HOST 2 inputs. Corresponding LED illuminates when active.
- USB-C DEVICE: USB-C downstream port for peripherals (up to 5V/1A power output).
- USB-A DEVICE: USB-A downstream ports for USB peripherals (up to 5V/1.5A output).
- HDBT-USB3 Port: RJ45 port for CAT6a connection to RX, also provides 24V PoC power transmission.
- LINK LED (Secondary): Additional link status indicator confirming TX–RX connection.
- USB-C HOST Ports (1/2): Dual USB-C host inputs for PC/source connection; support automatic/manual switching.
- RS-232: 3-pin Phoenix connector for RS-232 pass-through control.
- FSYNC: GPIO synchronization signal pass-through (0–5V default range).
- SERVICE Port: USB 2.0 port for firmware and MCU/HDBT chip upgrades.
- DC 24V: Locking DC power input (24V / 3.75A).

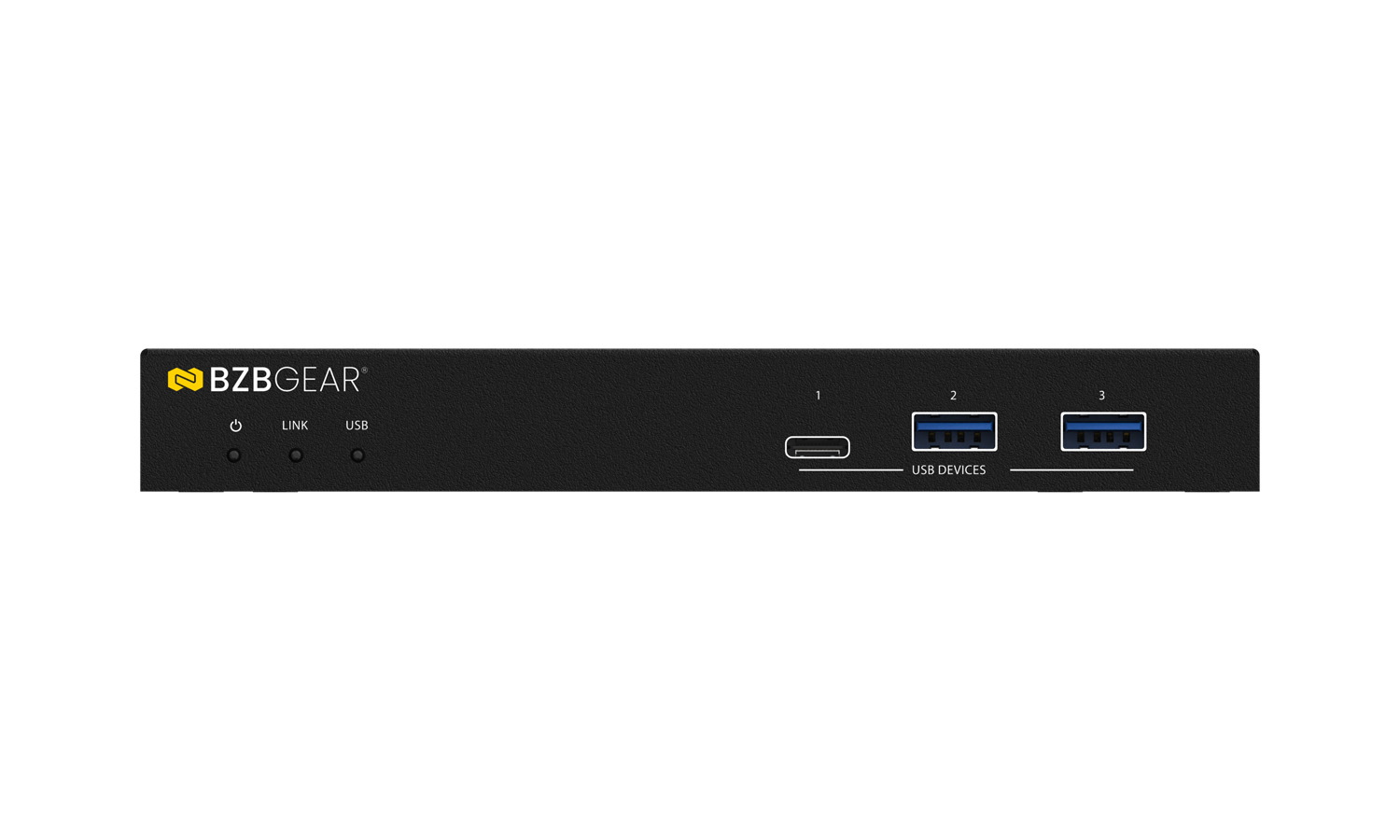

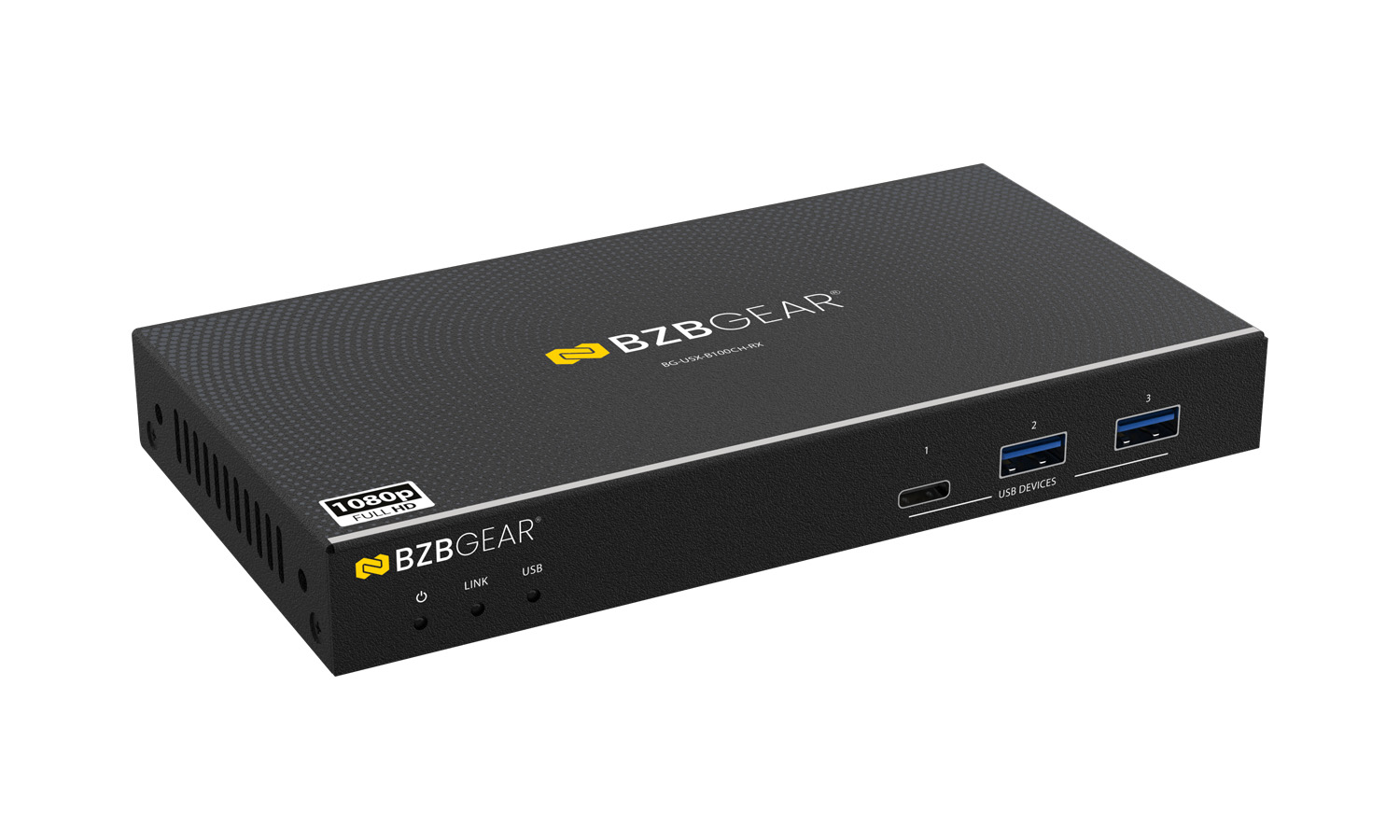

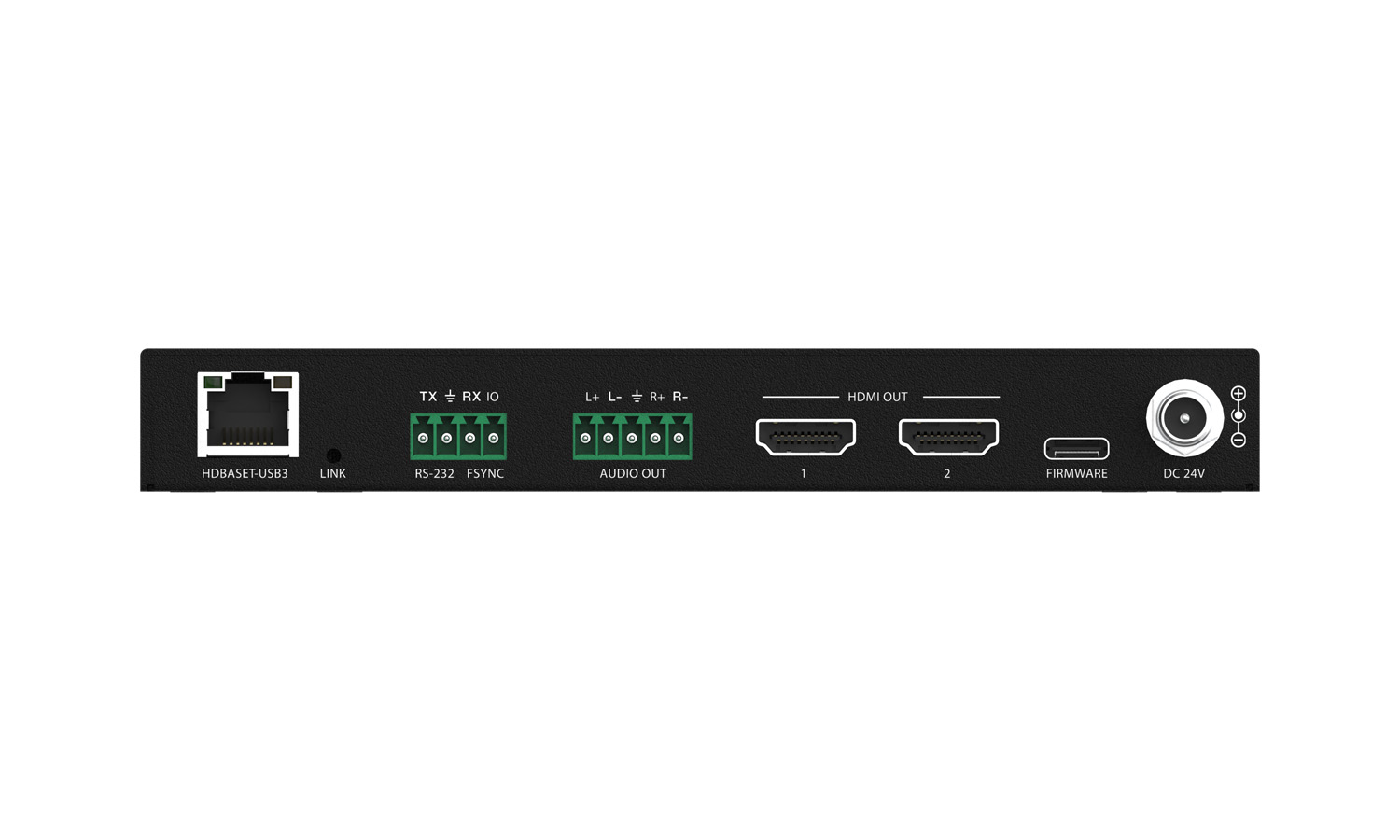

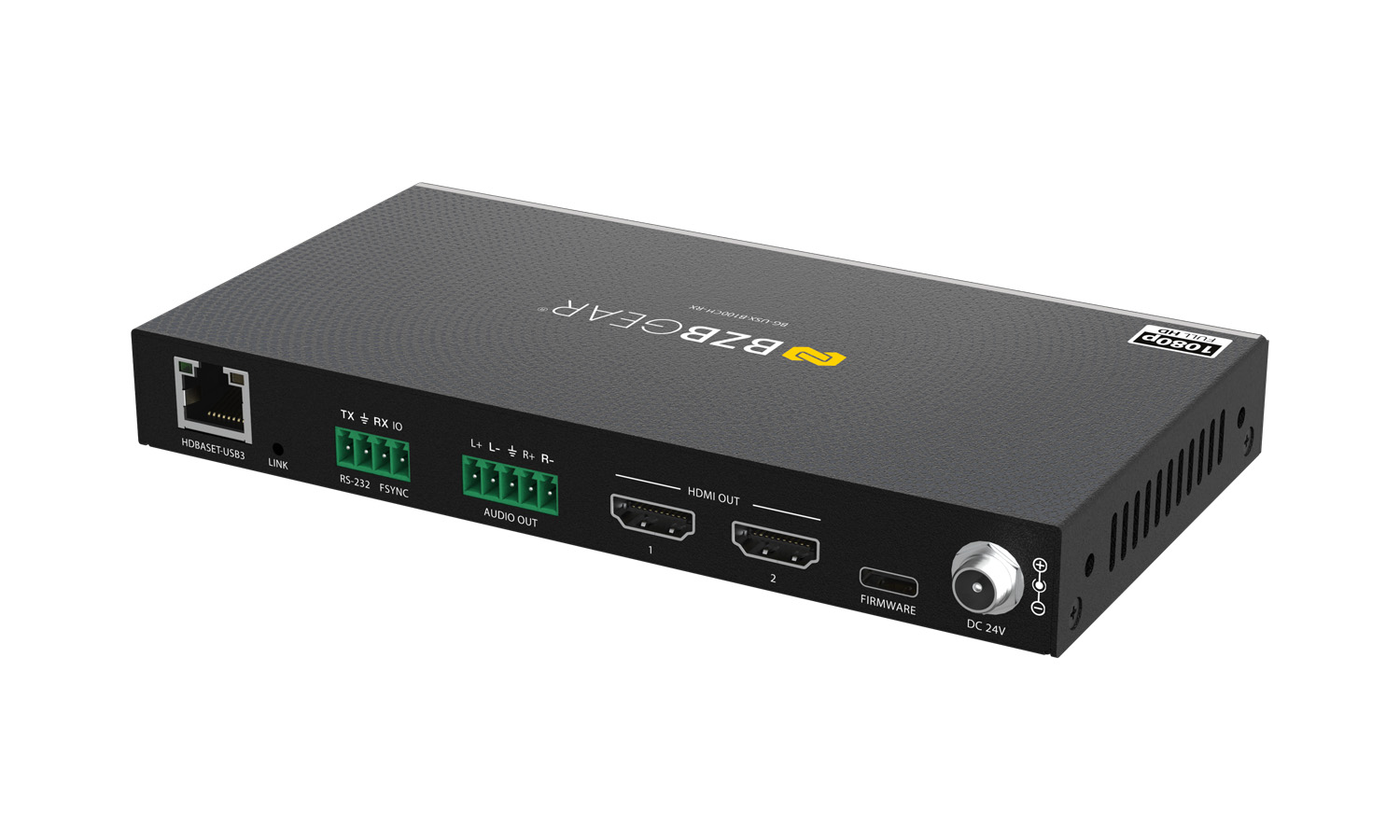

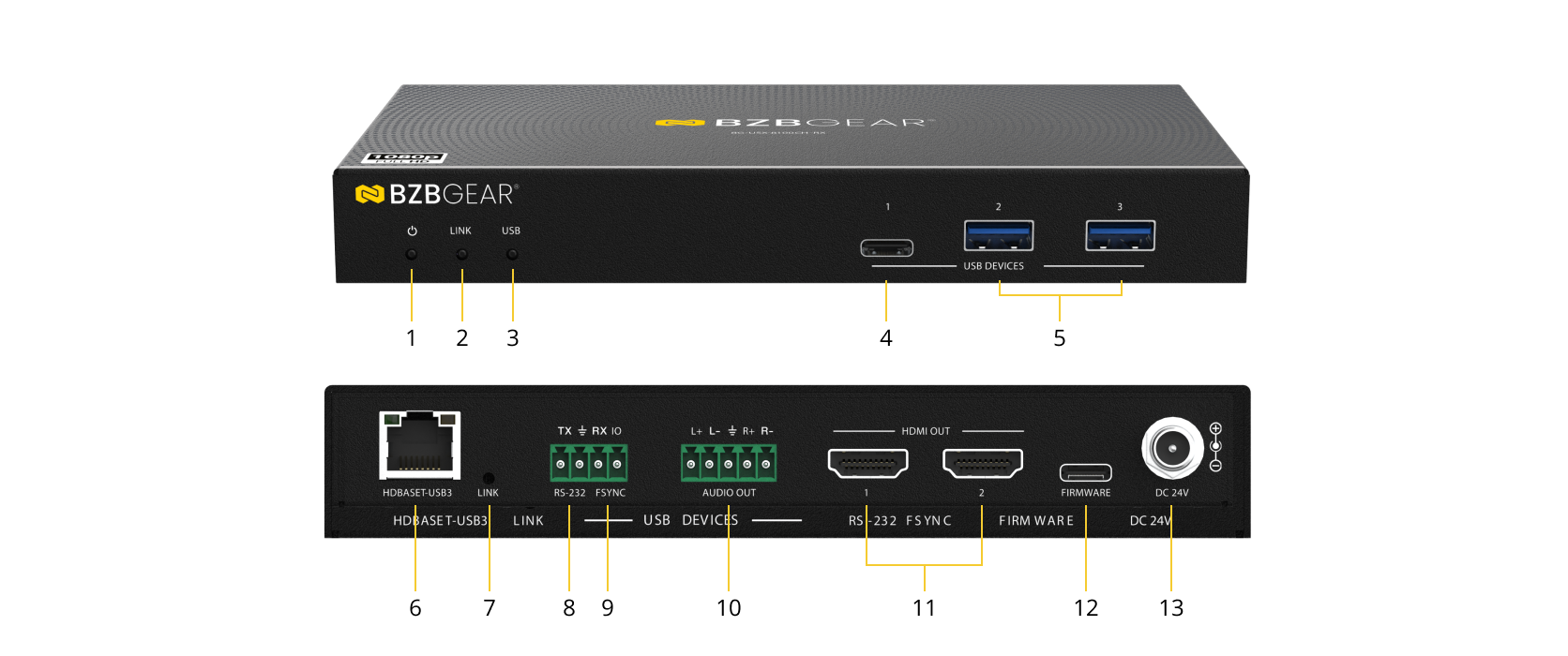

Receiver
- Power LED: Indicates the receiver is powered on (Red LED ON).
- LINK LED: Indicates TX–RX connection status. ON: Linked. OFF: No connection.
- USB LED: USB status indicator. ON: USB 3.0 detected. Blinking: USB 2.0 detected. OFF: No USB signal.
- USB-C DEVICE: USB-C downstream port for peripherals (up to 5V/1A output).
- USB-A DEVICE: USB-A downstream ports for peripherals (up to 5V/1.5A output).
- HDBT-USB3 Port: RJ45 connection to TX unit via CAT6a cable with 24V PoC support.
- LINK LED (Secondary): Additional connection status indicator confirming active link.
- RS-232: 3-pin Phoenix connector for RS-232 pass-through control.
- FSYNC: GPIO synchronization signal pass-through (0–5V default range).
- AUDIO OUT: Analog audio output supporting balanced (up to 2Vrms) and unbalanced (up to 1Vrms) output.
- HDMI OUT (1/2): Dual HDMI outputs for display devices; supports up to 4K@60Hz via DisplayLink.
- SERVICE: Port USB 2.0 port for firmware and MCU/HDBT chip upgrades.
- DC 24V: Locking DC power input (24V / 3.75A).
