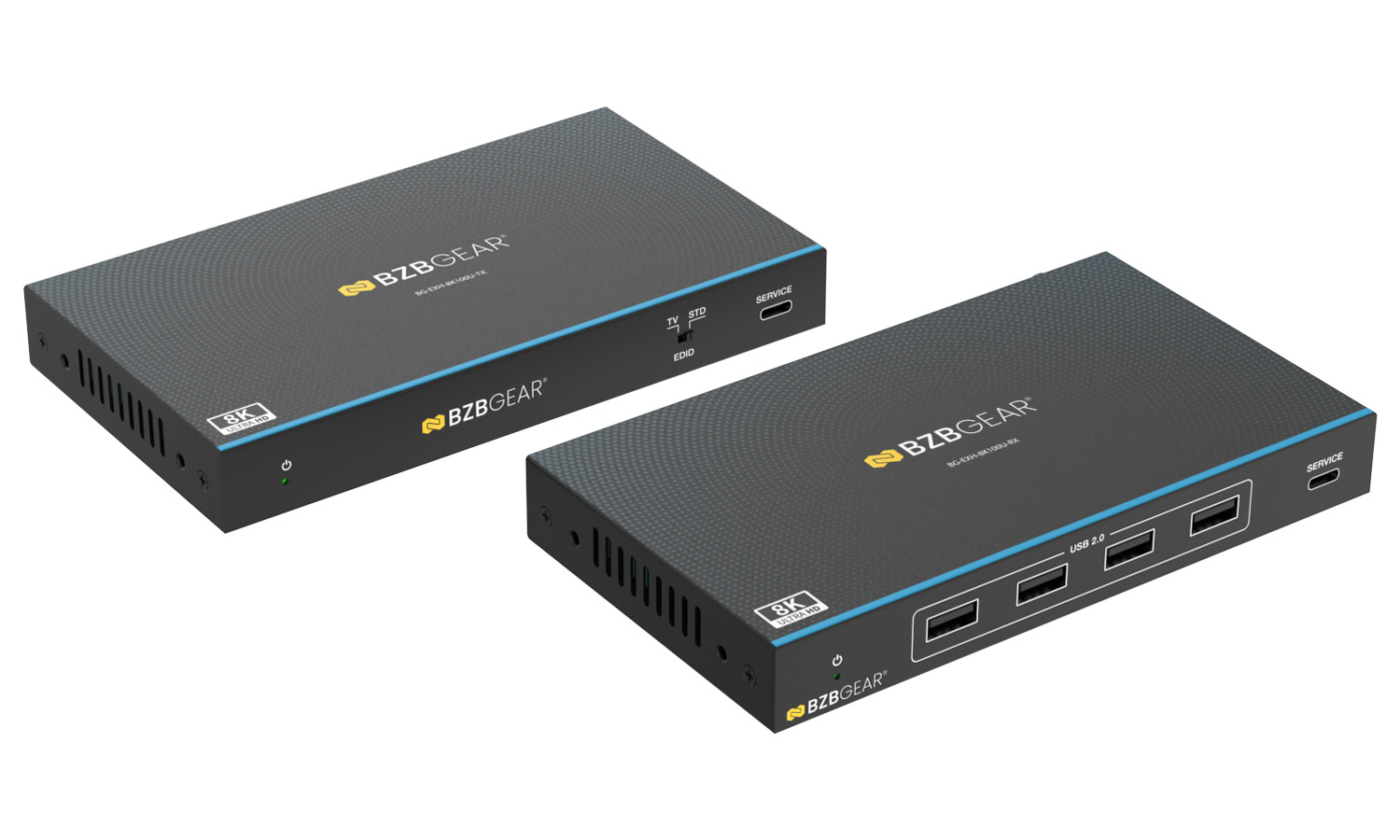

Overview

The BG-EXH-8K100U is a professional HDMI 2.1 HDBaseT extender that transmits ultra-high-resolution video, audio, USB, and control signals up to 100m (328ft) over a single CAT5e/6 cable. Supporting the latest HDMI 2.1 features with up to 48Gbps FRL bandwidth, it delivers stunning resolutions up to 8K@60Hz and 4K@144Hz, making it ideal for next-generation AV installations, corporate environments, digital signage, education, and high-end residential applications.

Designed for complete system integration, the BG-EXH-8K100U combines USB 2.0 extension, bi-directional IR, RS-232 pass-through, CEC support, audio de-embedding, advanced EDID management, and bi-directional Power over Cable (PoC). Its robust HDBaseT architecture, compact metal housing, and plug-and-play operation provide a reliable solution for extending premium AV signals over long distances.

Features in Depth

The BG-EXH-8K100U extends HDMI 2.1 video, audio, USB, and control signals over a single CAT5e/6 cable using HDBaseT technology. Supporting up to 48Gbps Fixed Rate Link (FRL) bandwidth and 18Gbps TMDS, it delivers resolutions up to 8K@60Hz (4:2:0 12-bit) and 4K@144Hz, while supporting advanced HDMI 2.1 features including Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), Quick Media Switching (QMS), Quick Frame Transport (QFT), and Source-Based Tone Mapping (SBTM). Compatibility with HDCP and advanced EDID management ensures reliable interoperability with modern source devices and displays.

Built for professional AV applications, the extender supports HDR10, HDR10+, Dolby Vision, and HLG, preserving exceptional brightness, contrast, and color accuracy for HDR content. High-fidelity audio pass-through supports immersive formats including Dolby Atmos, DTS:X, and other advanced HD audio codecs, while analog audio de-embedding at the receiver allows connection to external amplifiers and audio systems. Integrated USB 2.0 extension enables remote connectivity for peripherals such as keyboards, mice, touchscreens, cameras, and storage devices, making the system well suited for interactive presentations, KVM applications, and collaborative workspaces.

The BG-EXH-8K100U also includes comprehensive integration features for professional installations. Bi-directional IR, RS-232 pass-through, and HDMI CEC enable remote control of connected devices and seamless integration with third-party automation systems. Bi-directional Power over Cable (PoC) allows either the transmitter or receiver to power the complete system using a single external power supply, reducing installation complexity. Combined with its compact metal construction and reliable long-distance performance, the BG-EXH-8K100U is an ideal solution for conference rooms, control centers, digital signage, broadcast facilities, education, and enterprise AV deployments.

Features

  • 8K@30Hz and 4K@120Hz
    8K HDBaseT Extension
    Extends HDMI, USB, audio, and control signals up to 100m (328ft) over a single CAT5e/6 cable while supporting resolutions up to 8K@60Hz and 4K@144Hz
  • bi_hdmi
    48Gbps Performance
    Supports 48Gbps FRL, 18Gbps TMDS, and advanced HDMI 2.1 features including VRR, ALLM, QMS, QFT, and SBTM
  • KVM
    USB 2.0 Extension
    Extends USB peripherals including keyboards, mice, cameras, touchscreens, and storage devices for remote workstation and KVM applications
  • Four-Control-Modes
    Control & Integration
    Includes bi-directional IR, RS-232 pass-through, HDMI CEC, advanced EDID management, and bi-directional PoC for simplified system integration
  • HDR Support
    HDR & Immersive Audio
    Compatible with HDR10, HDR10+, Dolby Vision, HLG, Dolby Atmos, DTS:X, and other advanced HD audio formats
  • AUDIO DE-EMBEDDING
    Audio De-Embedding
    Extracts analog audio at the receiver for easy integration with external amplifiers, DSPs, and sound systems
  • Supports HDMI 2.1 transmission over HDBaseT technology
  • Delivers resolutions up to 8K@60Hz (4:2:0 12-bit) and 4K@144Hz
  • Extends HDMI, USB, IR, RS-232, and CEC over a single CAT5e/6 cable
  • Advanced EDID management with COPY TV and STD modes improves source and display compatibility
  • Bi-directional Power over Cable (PoC) allows either endpoint to power the entire system
  • Bi-directional IR enables remote control of source and display devices
  • RS-232 pass-through supports third-party automation and control systems
  • HDMI CEC support simplifies control of connected HDMI devices
  • Analog audio de-embedding provides flexible integration with external audio equipment
  • Compact metal housing designed for professional rack, wall, or under-desk installations
  • Plug-and-play installation requires no software or drivers

Tech Specifications

TECHNICAL
HDMI Compliance HDMI 2.1
HDCP Compliance HDCP 2.3
Video Bandwidth 48Gbps FRL / 18Gbps TMDS
Max Video Resolution Up to 8K@60Hz (4:2:0 12-bit)
High Refresh Support 4K@144Hz, 4K@120Hz, 8K@60Hz
Color Space RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth 8/10/12-bit
HDR Support HDR10, HDR10+, Dolby Vision, HLG
HDMI Features VRR, ALLM, QMS, QFT, SBTM
Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS-HD Master Audio, DTS:X
CEC Support Yes (pass-through)
EDID Management COPY TV / STD modes
CONNECTIONS
Transmitter Inputs 1x HDMI Type-A, 1x USB-B (Host), 1x IR IN, 1x IR OUT, 1x RS-232, 1x USB-C (Service)
Transmitter Output 1x HDBaseT (RJ45)
Receiver Input 1x HDBaseT (RJ45)
Receiver Outputs 1x HDMI Type-A, 1x Audio Out (3.5mm), 4x USB-A (USB 2.0 Device)
Receiver Control Ports 1x IR IN, 1x IR OUT, 1x RS-232, 1x USB-C (Service)
USB Support USB 2.0 extension (Host/Device)
IR Support Bi-directional IR (20-60kHz)
RS-232 Control 3-pin Phoenix connector (bi-directional)
MECHANICAL
Housing Metal enclosure
Dimensions (W x D x H) 6.2in x 3.5in x 0.79in [157mm x 88mm x 20mm]
Weight TX: 0.82lb [371g] / RX: 0.83lb [378g]
Power Supply DC 24V/1A locking adapter
Power Consumption 21.2W (PoC operation)
Operating Temperature 32°F to 104°F / 0°C to 40°C
Storage Temperature -4°F to 140°F / -20°C to 60°C
Operating Humidity 20%-80% RH (non-condensing)
Storage Humidity 10%-90% RH (non-condensing)
ESD Protection IEC 61000-4-2: ±8kV air, ±4kV contact

Resources

Documents

PACKAGE CONTENTS

  • 1x 8K60 HDMI over HDBaseT Extender (Transmitter)
  • 1x 8K60 HDMI over HDBaseT Extender (Receiver)
  • 1x 24V/1A Locking Power Supply
  • 1x USB Cable (USB-A to USB-B)
  • 1x IR Blaster Cable (1.5m)
  • 1x IR Wideband Receiver Cable (1.5m)
  • 2x 3-pin 3.5mm Phoenix Connectors
  • 4x Mounting Ears (Rack/Wall Installation)
  • 8x Machine Screws (KM3x6)
  • 1x User Manual

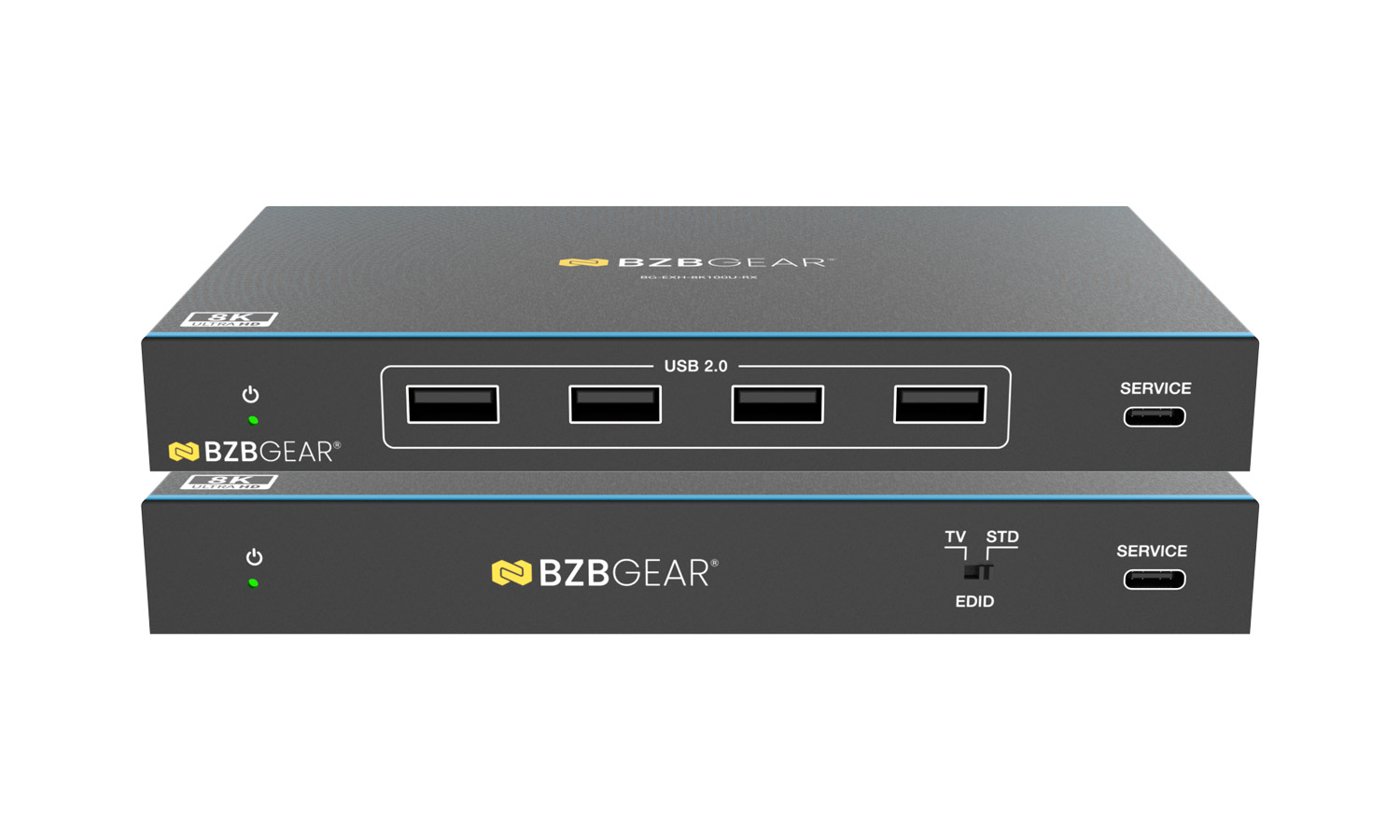

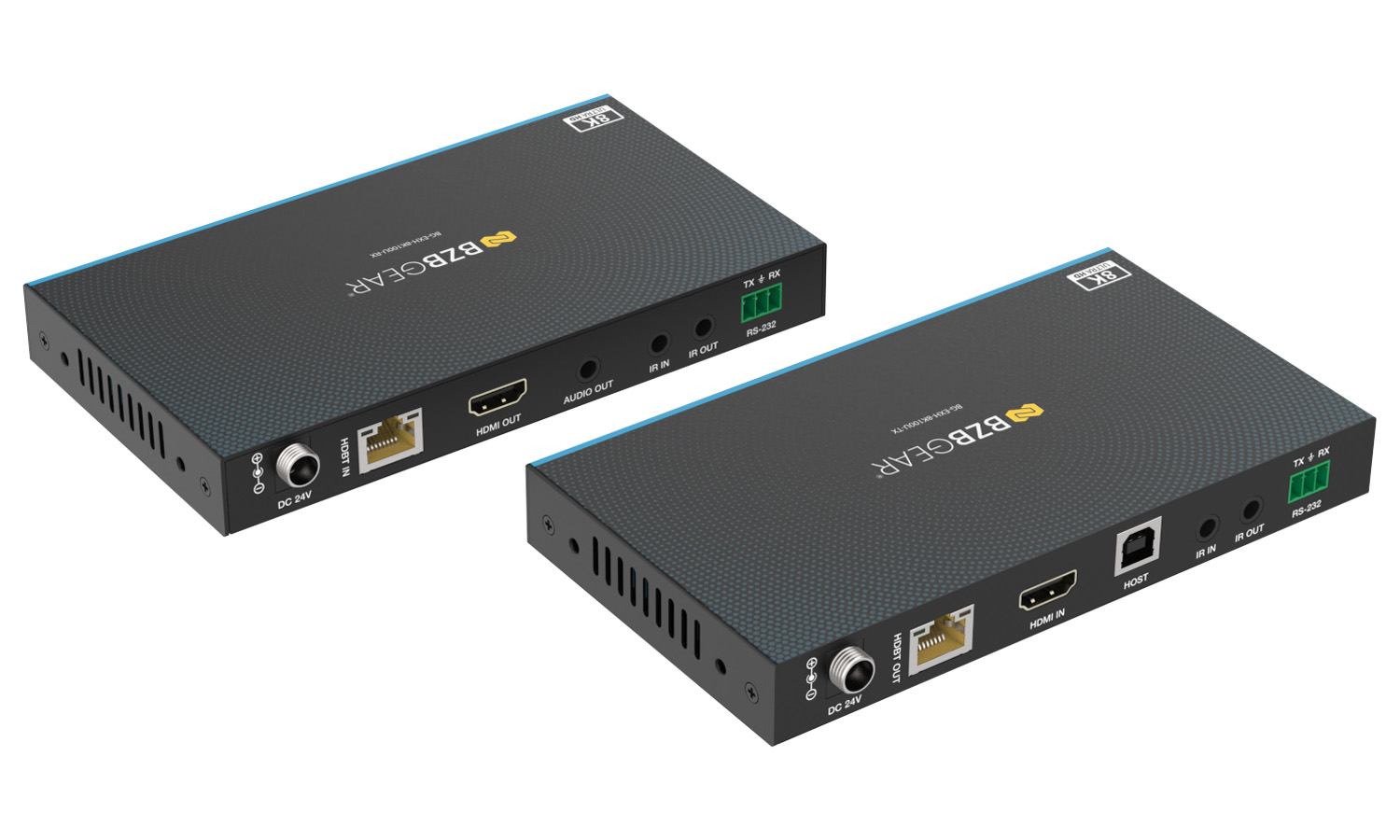

Interfaces

Interfaces image

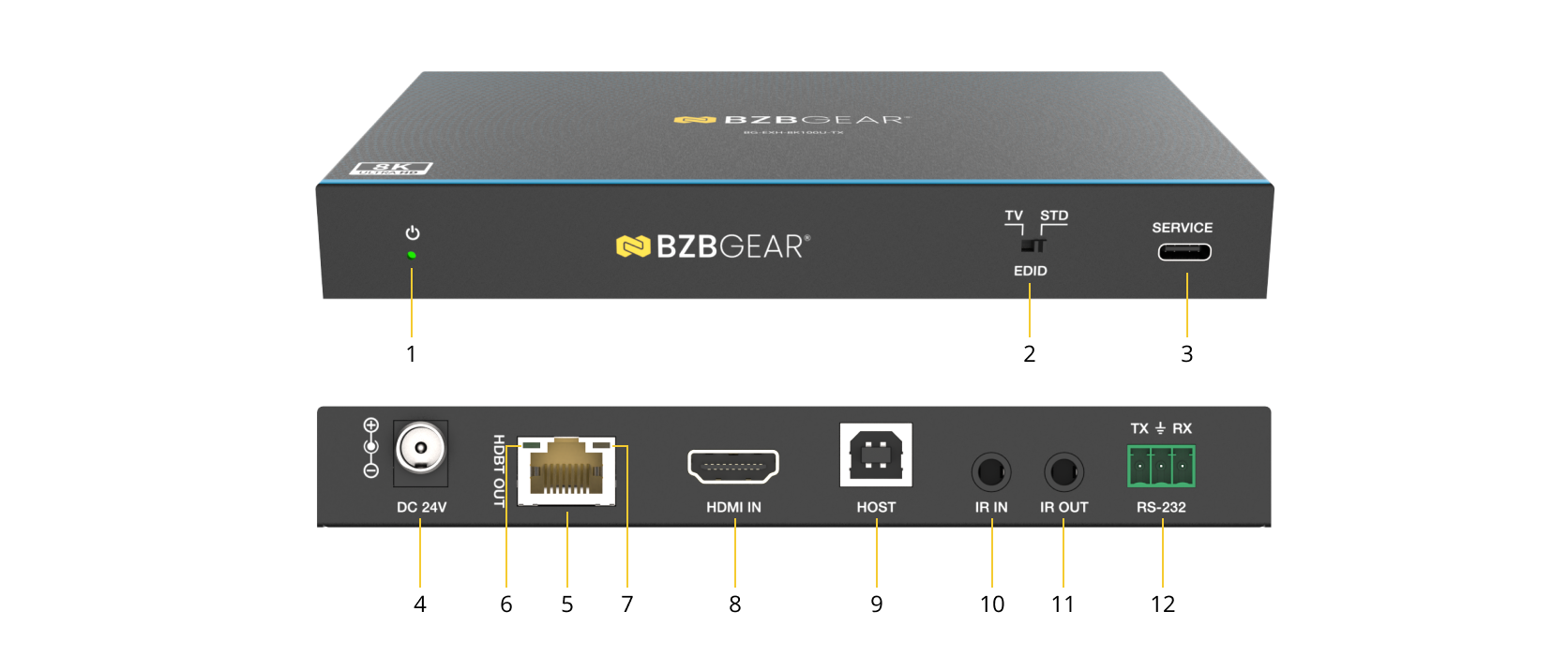

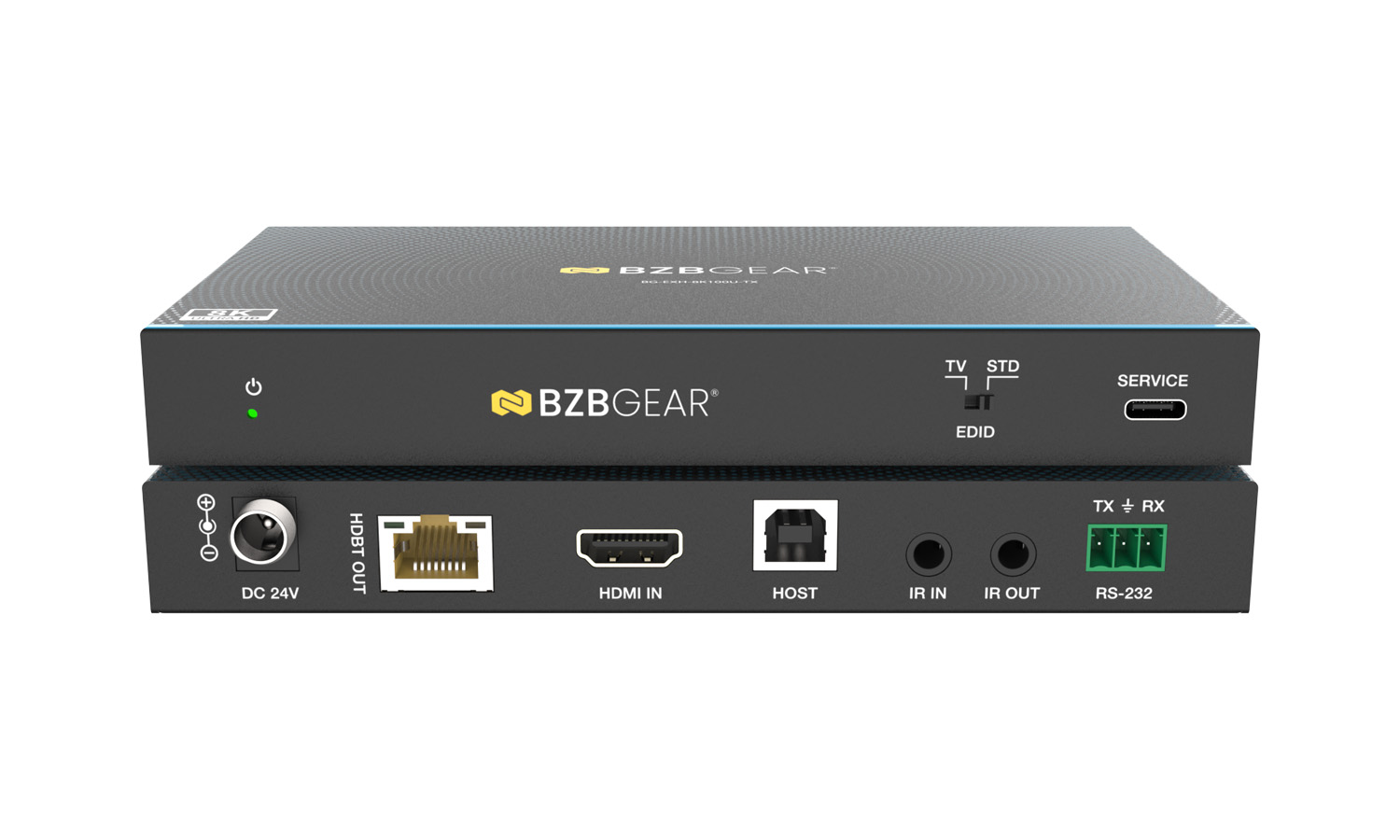

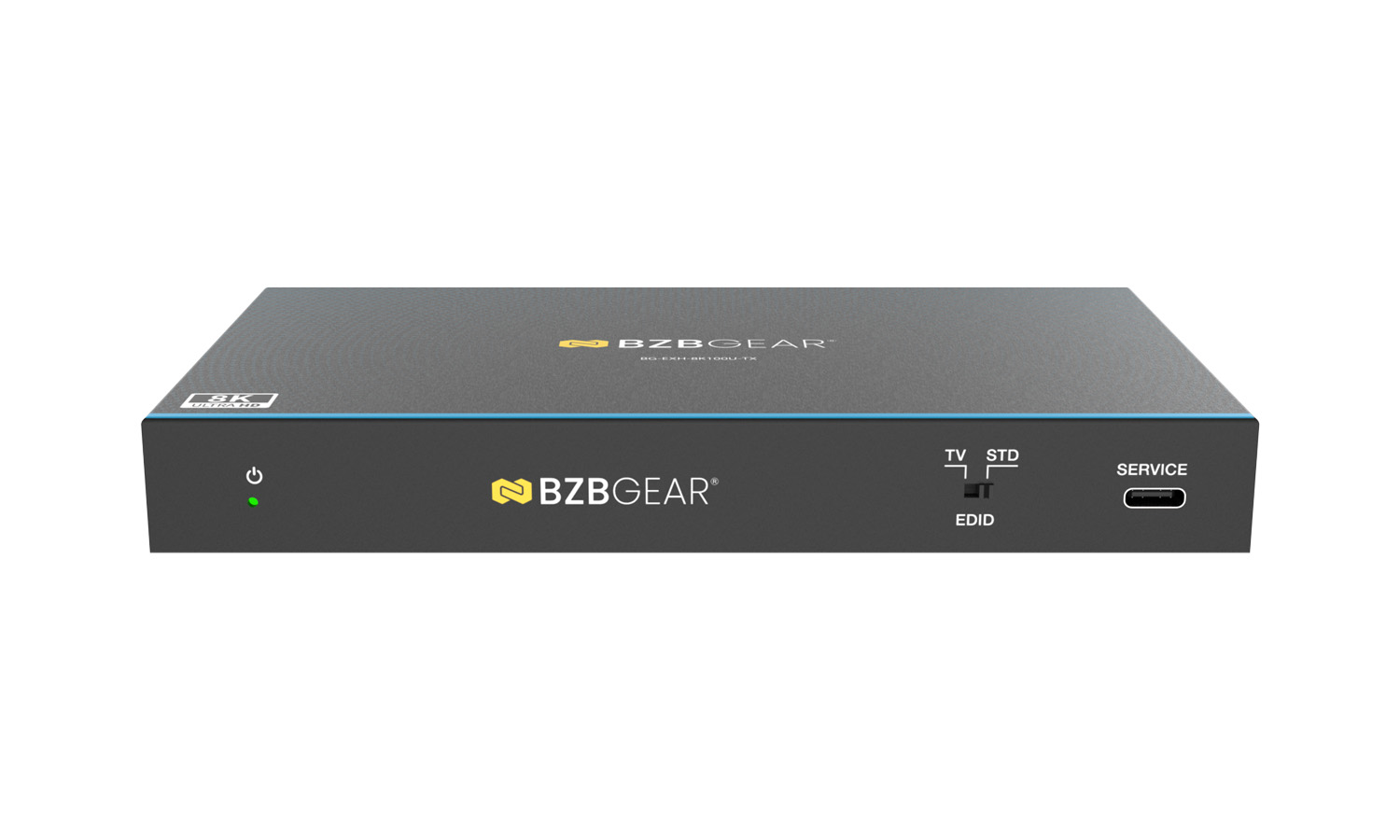

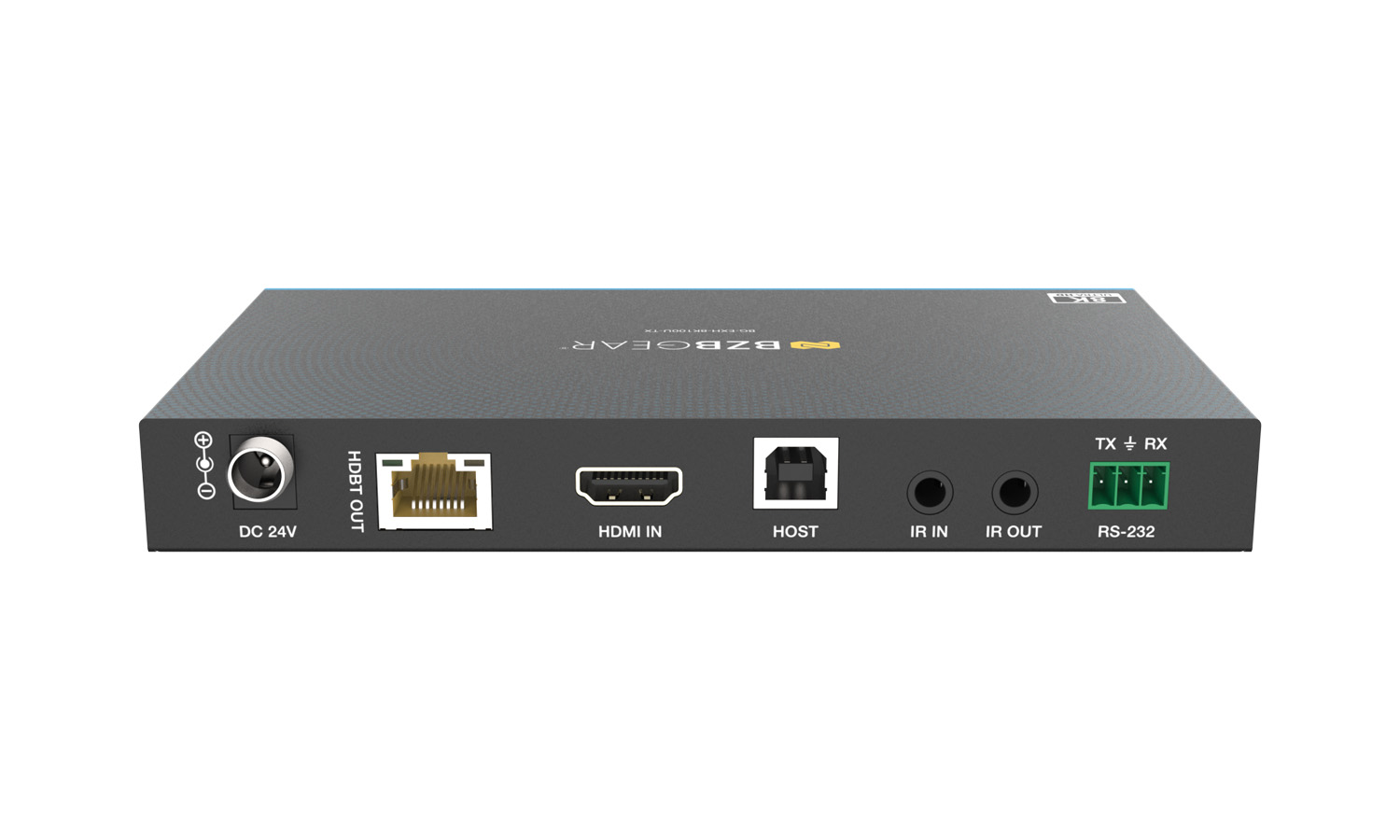

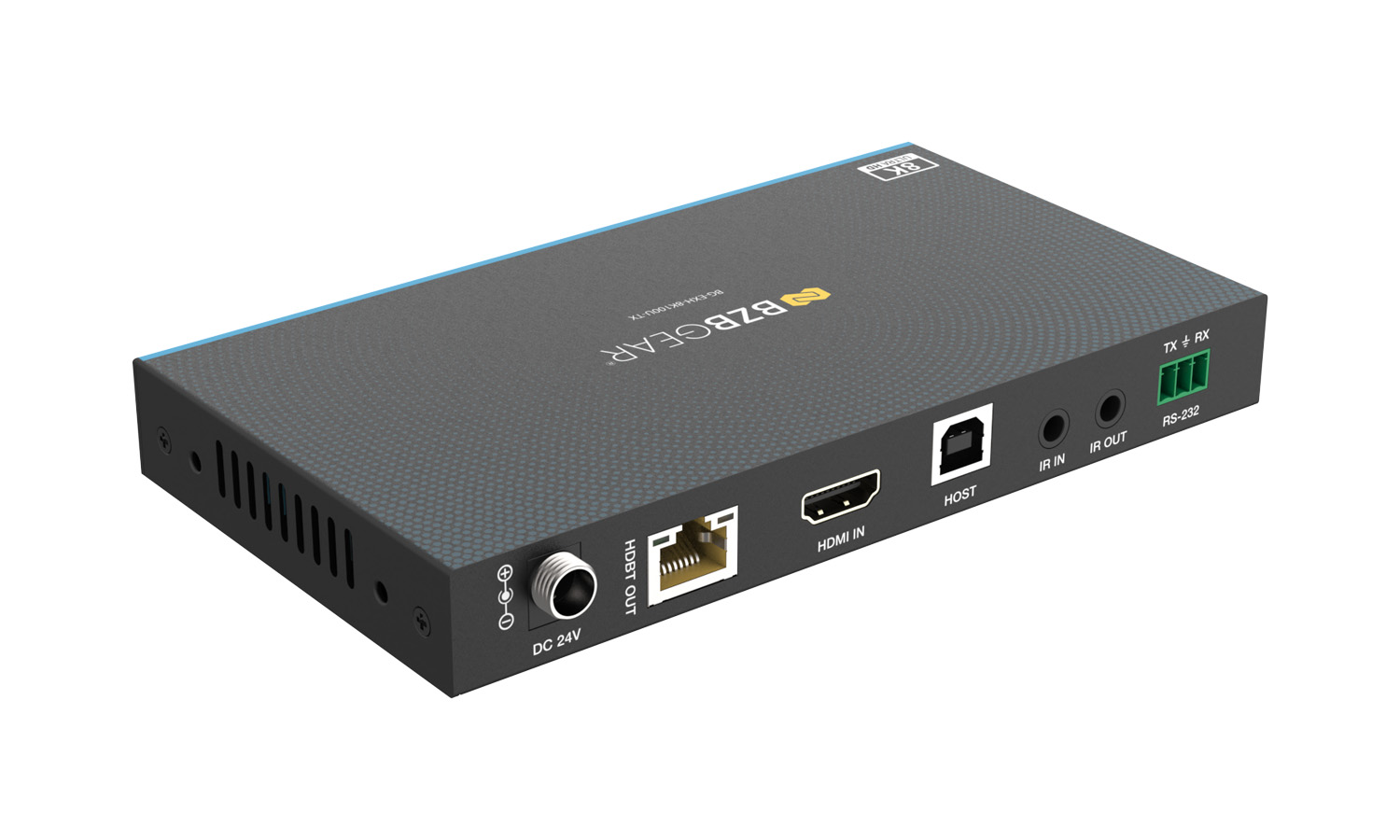

Transmitter

  1. PWR LED: Green LED illuminates when the transmitter is powered on.
  2. EDID DIP Switch: Selects EDID mode: TV (COPY) copies EDID from the connected display;
    STD uses built-in standard EDID (4K60 4:4:4 SDR 2CH).
  3. SERVICE (USB-C): Firmware update port for system maintenance and upgrades.
  4. DC 24V: Locking 24V/1A power input. Supports PoC operation (powering RX from TX or vice versa).
  5. HDBT OUT: HDBaseT output (RJ45) connection to receiver unit.
  6. LINK LED (Green): ON: TX and RX are linked. OFF: No HDBaseT link.
  7. DATA LED (Yellow): ON: HDMI signal with HDCP. Flashing: HDMI signal without HDCP. OFF: No HDMI signal.
  8. HDMI IN: HDMI input from source device.
  9. HOST (USB-B): USB host connection to PC for USB 2.0 extension.
  10. IR IN: Connects IR receiver cable for sending IR to receiver side IR OUT.
  11. IR OUT: Connects IR blaster cable for receiving IR from receiver IR IN.
  12. RS-232: 3-pin Phoenix connector for serial control pass-through.
Interfaces image

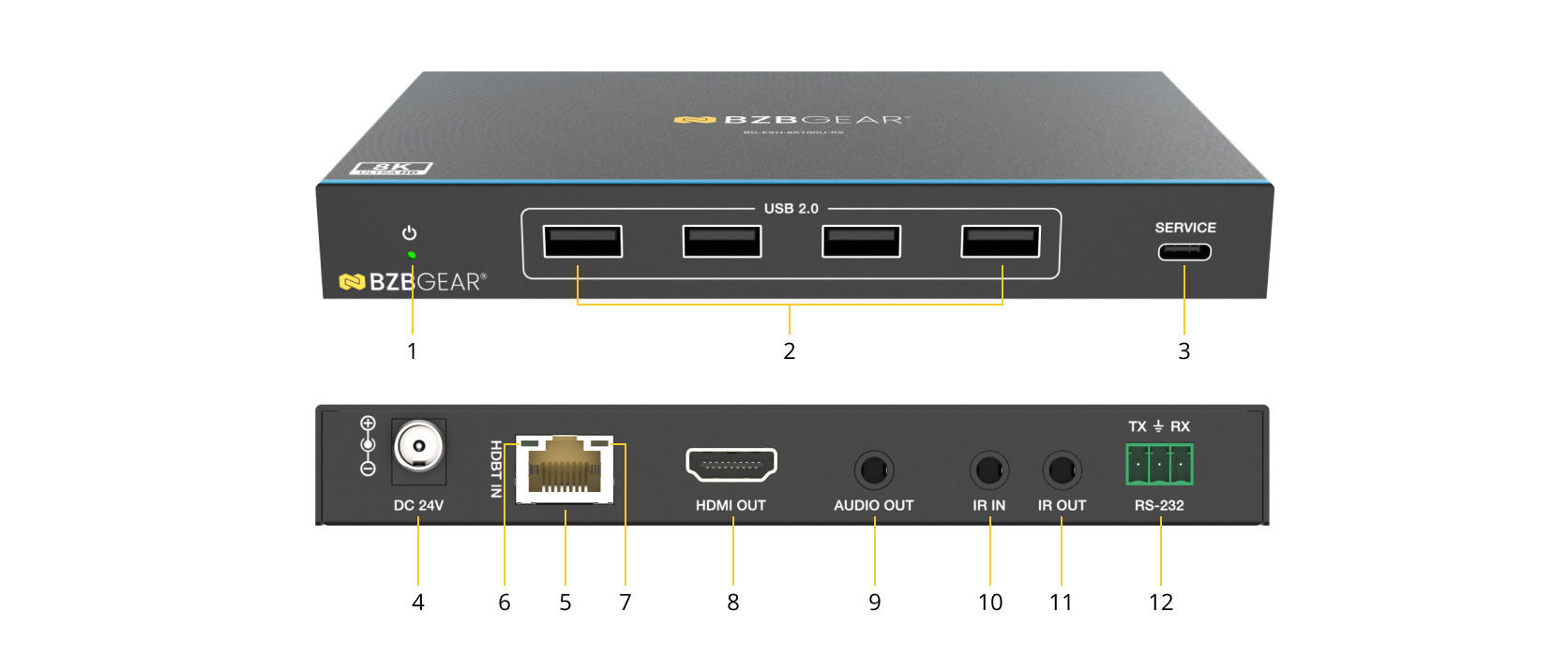

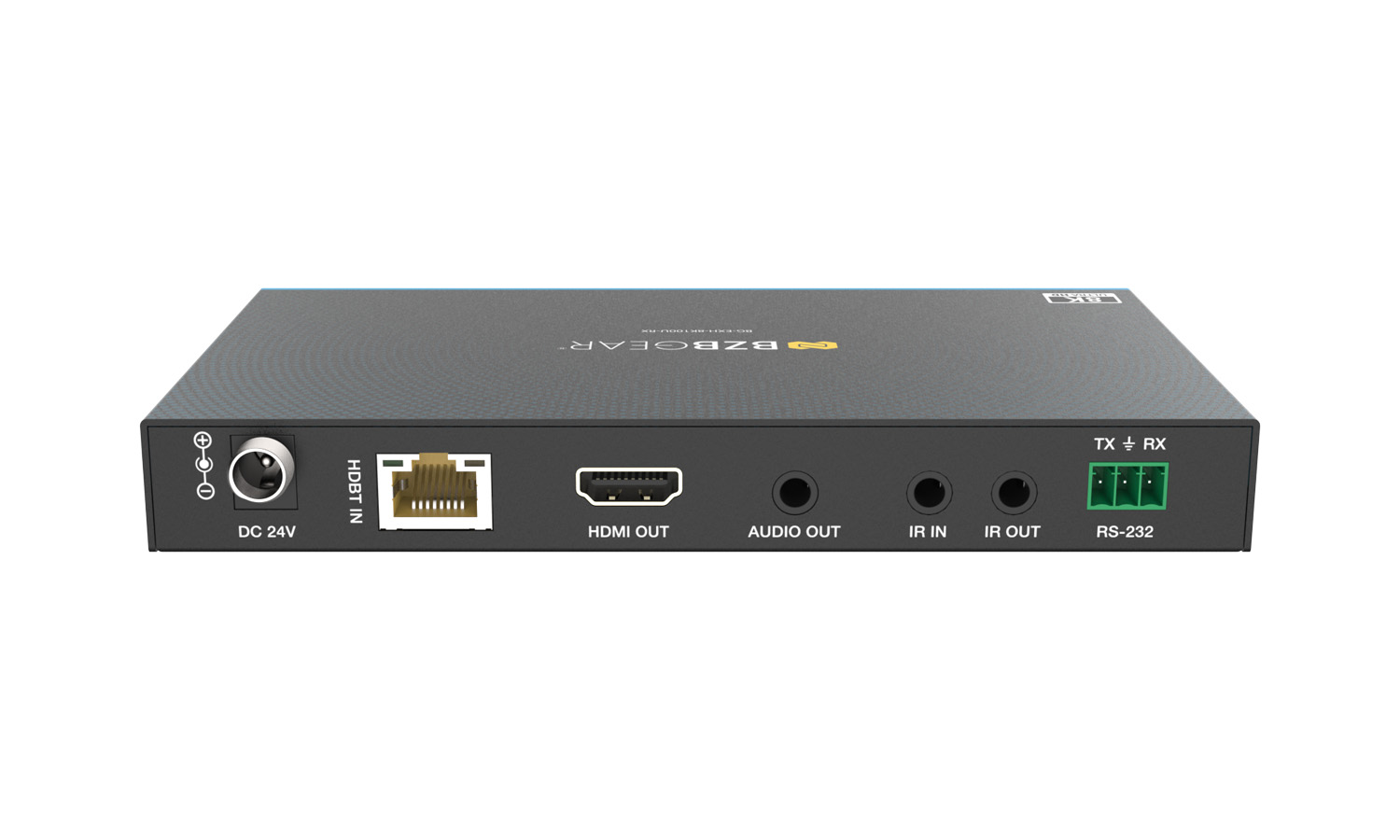

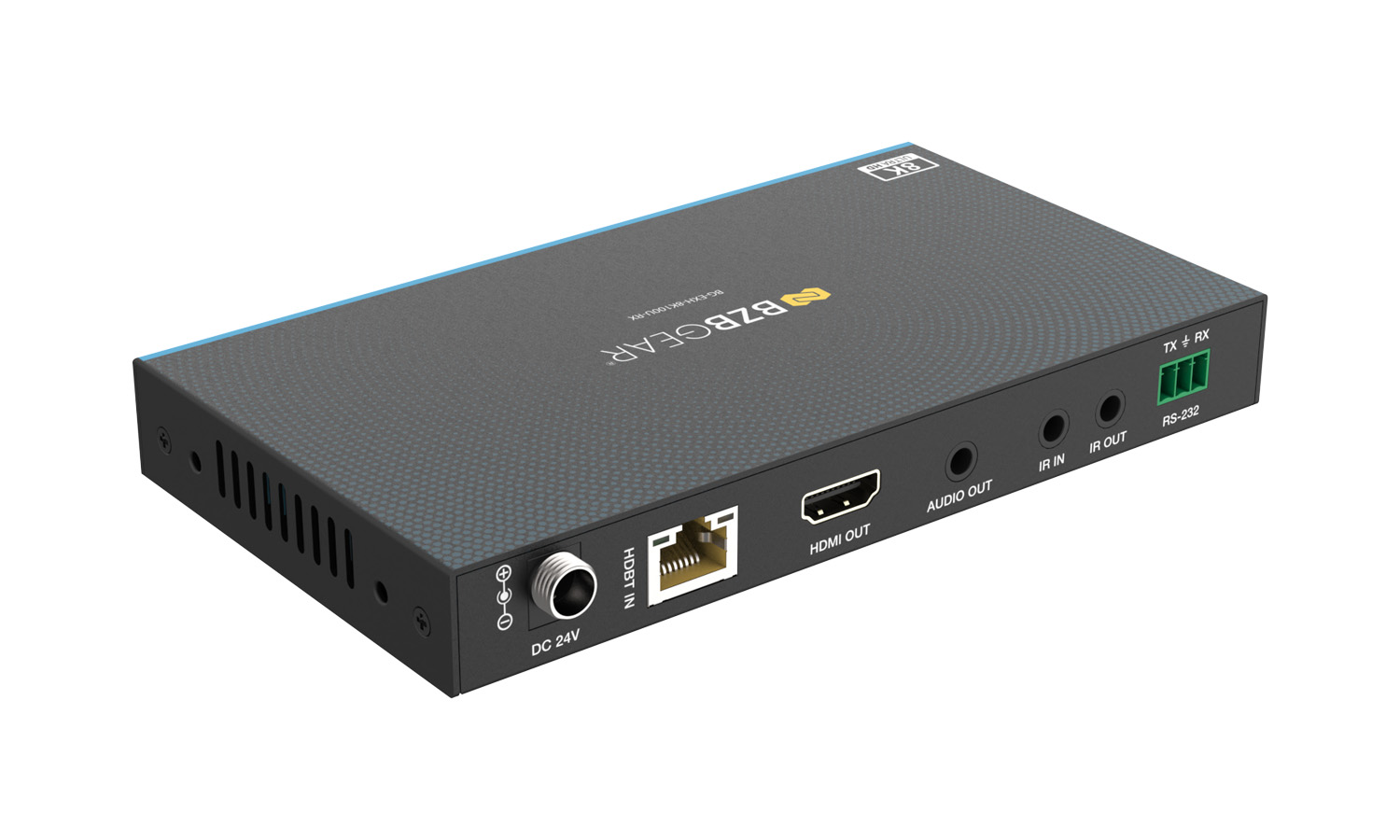

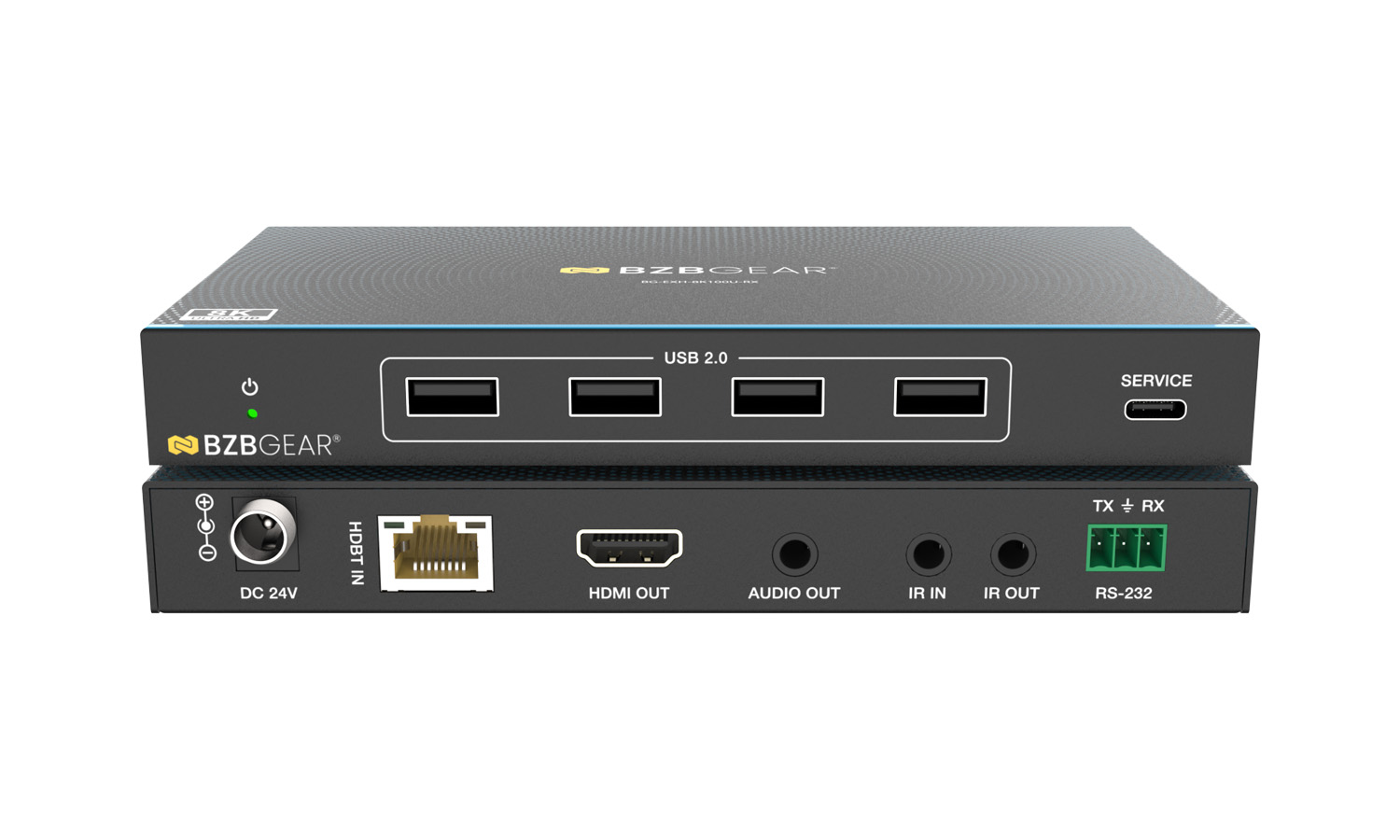

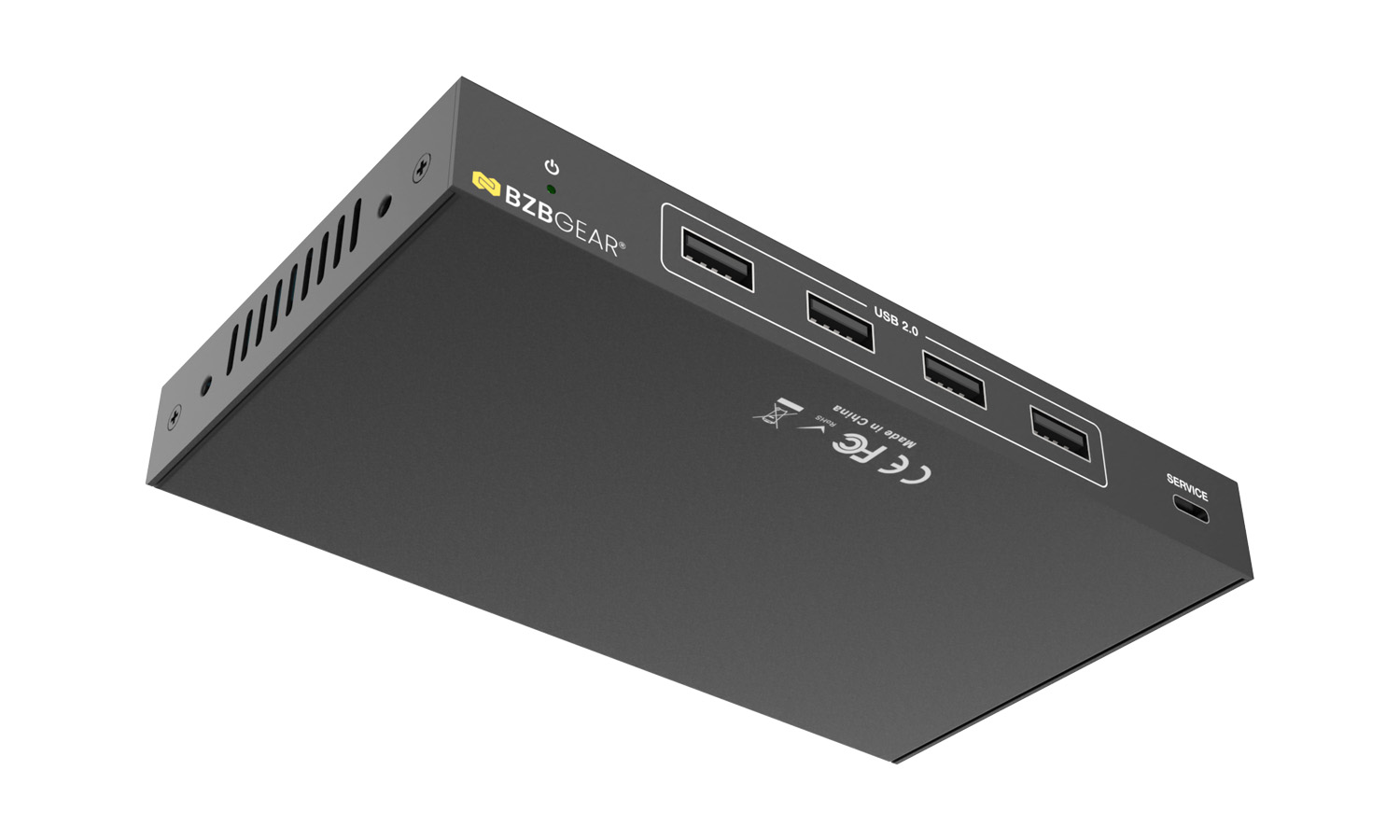

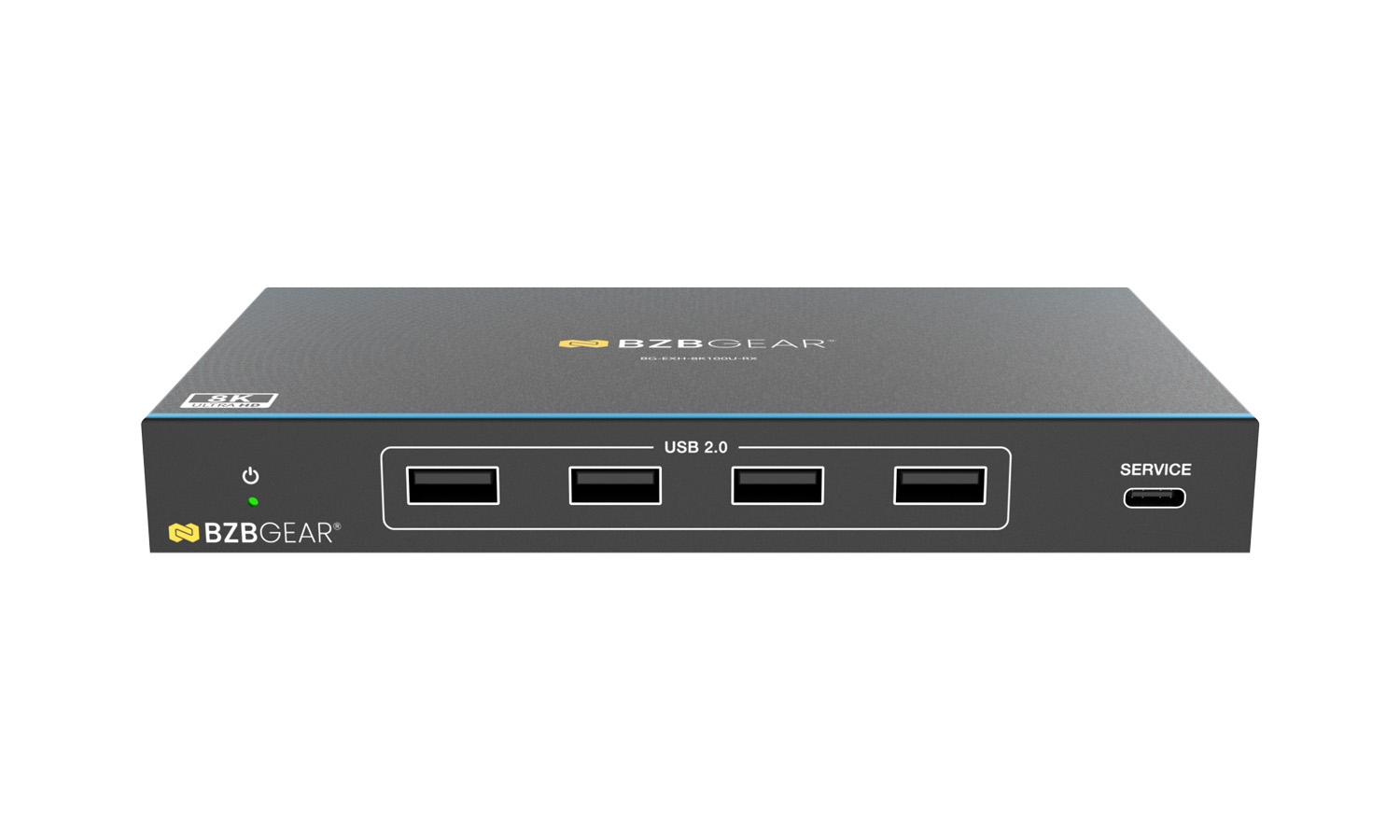

Receiver

  1. PWR LED: Green LED illuminates when the receiver is powered on.
  2. USB 2.0 DEVICE: USB-A ports for peripherals such as keyboard, mouse, flash drives, and cameras (5V/500mA per port).
  3. SERVICE (USB-C): Firmware update port for system maintenance and upgrades.
  4. DC 24V: Locking 24V/1A power input. Supports PoC operation.
  5. HDBT IN: HDBaseT input (RJ45) connection from transmitter unit.
  6. LINK LED (Green): ON: TX and RX are linked. OFF: No HDBaseT link.
  7. DATA LED (Yellow): ON: HDMI signal with HDCP. Flashing: HDMI signal without HDCP. OFF: No HDMI signal.
  8. HDMI OUT: HDMI output to display device (monitor/TV/projector).
  9. AUDIO OUT: Analog audio de-embedding output (3.5mm).
  10. IR IN: Connects IR receiver cable for sending IR to transmitter side IR OUT.
  11. IR OUT: Connects IR blaster cable for receiving IR from transmitter IR IN.
  12. RS-232: 3-pin Phoenix connector for serial control pass-through.
