5x1 4K60 18Gbps Seamless HDMI/USB-C Presentation Switcher with Multiview/KVM/60W Charging/Dante Audio and Included HDBaseT 3.0 Receiver

ProGear
NEW
Shipping Q4 2026
BG-PSC51-4K-2 BG-PSC51-4K-3 BG-PSC51-4K-4 BG-PSC51-4K-5 BG-PSC51-4K-6 BG-PSC51-4K-7 BG-PSC51-4K-8 BG-PSC51-4K-9 BG-PSC51-4K-10 BG-PSC51-4K-11 BG-PSC51-4K-1
BG-PSC51-4K-2
BG-PSC51-4K-3
BG-PSC51-4K-4
BG-PSC51-4K-5
BG-PSC51-4K-6
BG-PSC51-4K-7
BG-PSC51-4K-8
BG-PSC51-4K-9
BG-PSC51-4K-10
BG-PSC51-4K-11
BG-PSC51-4K-1
U.S.-based Company
U.S.-based Company
BZBGEAR Control Software
BZBGEAR Control Software
5 year warranty
5 year warranty
Click here to learn more about BZBGEAR Fundamentals
BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Overview Specifications Interfaces Resources Package contents Trade In

Overview

The BG-PSC51-4K is a professional 5x1 seamless presentation switch designed for conference rooms, classrooms, collaboration spaces, and enterprise AV installations. Featuring three HDMI inputs and two USB-C inputs with DisplayPort Alt Mode, it supports seamless source switching, mirrored HDMI and HDBaseT outputs, and stunning 4K@60Hz 4:4:4 video. Integrated HDBaseT 3.0 technology extends video, USB, control, and Ethernet signals up to 70m (230ft) over a single CAT6A cable while powering the receiver via PoE, simplifying installation and reducing cable requirements.

Built for modern collaborative environments, the BG-PSC51-4K combines advanced multiview layouts, USB KVM extension, Dante audio networking, comprehensive audio routing, and extensive control options into a single platform. Whether used for corporate presentations, higher education, government, or command centers, it provides a flexible, centralized solution for managing video, audio, USB, and control signals.

Features in Depth

The BG-PSC51-4K delivers professional-grade presentation switching with support for three HDMI and two USB-C inputs, allowing users to connect laptops, media players, and other presentation devices without adapters. The USB-C inputs support DisplayPort Alt Mode, USB 2.0 data, 100Mbps Ethernet, and up to 60W Power Delivery, enabling compatible laptops to receive video, network connectivity, USB peripheral access, and charging through a single cable. Mirrored HDMI and HDBaseT outputs deliver uncompressed 4K@60Hz 4:4:4 video, while HDBaseT 3.0 technology extends signals up to 70m (230ft) at 4K@30Hz or 40m (131ft) at 4K@60Hz over standard CAT6A cable with integrated PoE for simplified deployment.

Designed for collaborative presentation environments, the BG-PSC51-4K supports multiple display layouts including full-screen, Picture-in-Picture (PIP), Picture-by-Picture (PBP), triple-window, and quad-window modes, allowing multiple sources to be viewed simultaneously for comparison, discussion, and collaboration. Integrated USB 2.0 KVM extension enables keyboards, mice, touchscreens, and other USB peripherals to be switched locally or remotely through the HDBaseT receiver. Advanced EDID management, HDCP 2.2 compliance, automatic or manual source switching, and seamless transition technology ensure reliable operation and minimal interruption during live presentations.

Audio capabilities extend beyond traditional presentation switchers with built-in Dante 2x2 audio networking, balanced and unbalanced analog audio I/O, and a powerful 3x3 internal audio matrix. Independent audio routing, equalization, volume adjustment, and delay control allow audio to be embedded, de-embedded, and distributed across HDMI, HDBaseT, analog, and Dante outputs with exceptional flexibility. Comprehensive control options-including front-panel buttons, IR remote, RS-232, TCP/IP, and an intuitive Web GUI-make the BG-PSC51-4K easy to integrate into third-party automation systems while supporting firmware updates, configuration backup, and remote system management.

Features

  • MULTI-FORMAT CONVERSION
    5x1 Seamless Presentation Switching
    Switches between three HDMI and two USB-C sources with seamless transitions and mirrored HDMI and HDBaseT outputs for professional presentation environments
  • bi_usb-c
    USB-C Collaboration Connectivity
    USB-C inputs support DisplayPort Alt Mode, USB 2.0, 100Mbps Ethernet, and up to 60W Power Delivery over a single cable
  • 3
    HDBaseT 3.0 Signal Extension
    Extends uncompressed 4K@60Hz video, USB, control, and Ethernet up to 70m (230ft) over CAT6A with integrated PoE for the receiver
  • KVM
    Advanced Multiview & KVM
    Supports full-screen, PIP, PBP, triple-window, and quad-window layouts with integrated USB 2.0 KVM switching for local and remote USB devices
  • Dante-logo 1
    Integrated Dante Audio Matrix
    Features Dante 2x2 networking, analog audio I/O, and a 3x3 audio matrix with independent EQ, volume, delay, embedding, and de-embedding
  • Four Control Modes
    Comprehensive System Control
    Supports front-panel operation, IR remote, RS-232, TCP/IP, and Web GUI management with advanced EDID control, CEC, firmware updates, and configuration backup
  • Three HDMI inputs and two USB-C inputs for flexible source connectivity
  • HDMI 2.0b compliant with support for 4K@60Hz 4:4:4 video at 18Gbps
  • Mirrored HDMI and HDBaseT outputs for simultaneous local and remote displays
  • HDBaseT 3.0 extends signals up to 70m (230ft) at 4K@30Hz or 40m (131ft) at 4K@60Hz
  • Integrated PoE powers the HDBaseT receiver through the CAT6A cable
  • USB 2.0 KVM extension supports keyboards, mice, touchscreens, and other peripherals
  • Bi-directional RS-232 and IR pass-through for remote device control
  • Built-in Dante 2x2 audio input and output for networked audio integration
  • Analog balanced and unbalanced audio input and output connections
  • 3x3 internal audio matrix supports independent audio routing between HDMI, HDBaseT, analog, and Dante paths
  • Independent audio EQ, volume adjustment, and delay control
  • Audio embedding and de-embedding across multiple signal paths
  • Advanced EDID management ensures reliable compatibility with connected devices
  • Automatic input switching with configurable priority and fallback sources
  • CEC and RS-232 display control support for automated display power and input selection
  • Web GUI allows remote configuration, monitoring, firmware updates, and system management
  • Import and export configuration settings for simplified deployment and maintenance
  • PoE operation can be enabled or disabled through the Web GUI
  • Durable professional metal enclosure designed for continuous commercial operation

Tech Specifications

TECHNICAL
Product Model BG-PSC51-4K
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
DisplayPort Version DP 1.2
Video Bandwidth 18 Gbps
Input Video Resolution 480i-1080p@50/60Hz, 4K@24/30Hz, 4K@50/60Hz 4:4:4
Output Video Resolution Auto, up to 4096x2160@60Hz
Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Color Depth Input: 8/10/12-bit (8-bit @ 4K60 4:4:4); Output: 8-bit
HDR Support Input supported; output not supported
HDBaseT Standard HDBaseT 3.0
Transmission Distance 230 ft / 70 m (1080p & 4K30); 131 ft / 40 m (4K60)
PoE Support Yes (TX PSE, RX PD)
Multiview Modes Single, PIP, PBP, Triple, Quad
USB Support USB 2.0 local KVM and USB extension over HDBaseT
USB-C Functions Video (DP Alt Mode), USB 2.0, 100M Ethernet, up to 60W charging
Network Bandwidth 100 Mbps
Control Methods Front panel, IR, RS-232, TCP/IP, Web GUI
EDID Management Advanced, user-configurable
ESD Protection IEC 61000-4-2 ±8kV (air), ±4kV (contact)
TX ANALOG AUDIO
Input Impedance 10 kΩ
Output Impedance 330 Ω
Max Line Input Level 8.2 dBu (2 Vrms), balanced/unbalanced
Max Line Output Level 8.2 dBu (2 Vrms) balanced; 2.2 dBu (1 Vrms) unbalanced
Frequency Response 20 Hz-20 kHz (+0.5 dB / -1 dB)
Audio Delay 0-50 ms
S/N Ratio 93 dB @ 2 Vrms, 1 kHz (A-weighted)
THD+N <0.1% @ 0 dBV, 1 kHz
RX ANALOG AUDIO
Output Impedance 330 Ω
Max Line Output Level 8.2 dBu (2 Vrms) balanced; 2.2 dBu (1 Vrms) unbalanced/strong>
Frequency Response 20 Hz-20 kHz (+0.5 dB / -1 dB)
Audio Delay 0-50 ms
S/N Ratio 93 dB @ 2 Vrms, 1 kHz (A-weighted)
THD+N <0.1% @ 0 dBV, 1 kHz
DANTE AUDIO
Network Audio Dante 2x2
Audio Format LPCM 2.0
Sample Rates 44.1 / 48 / 88.2 / 96 kHz @ 24-bit
Audio Delay 2, 3, 4, 5, 10 ms
Network Bandwidth 100 Mbps
CONNECTION
Transmitter Inputs 3x HDMI, 2x USB-C, 1x Line In, 1x Dante
Transmitter Outputs 1x HDMI, 1x HDBaseT, 1x Line Out
Transmitter Control RS-232, LAN, USB Host, 2x USB Device, IR In/Out
Receiver Inputs HDBaseT, HDMI
Receiver Outputs HDMI, Line Out
Receiver Control RS-232, USB Host, 2x USB Device, IR In/Out
Receiver Power PoE via HDBaseT or DC 24V
MECHANICAL
Housing Aluminum front panel, metal enclosure
Color Black
Dimensions (Transmitter) 8.7 x 5.9 x 1.7 in [220 x 150 x 44 mm]
Dimensions (Receiver) 5.5 x 4.1 x 0.85 in [140 x 105 x 21.5 mm]
Weight (Transmitter) 2.7 lbs [1.21 kg]
Weight (Receiver) 0.93 lbs [424 g]
Power Supply AC 100–240V, DC 24V / 8A
Max Power Consumption 150 W
Operating Temperature 32°F to 104°F / 0°C to 40°C
Storage Temperature −4°F to 140°F / −20°C to 60°C
Operating Humidity 20%–80% RH (non-condensing)
Storage Humidity 10%–90% RH (non-condensing)

Resources

Documents

PACKAGE CONTENTS

  • 1x 5x1 Seamless Presentation Switch
  • 1x HDBaseT Receiver
  • 1x IR Blaster Cable (1.5 meters)
  • 1x IR Wideband Receiver Cable (1.5 meters)
  • 2x 3pin-3.5mm Phoenix Connector (male)
  • 3x 5pin-3.5mm Phoenix Connector (male)
  • 4x Mounting Ear
  • 8x Machine Screw
  • 1x 24V/8A Desktop Power Supply & 1 x AC Power Cord (1.5 meters)
  • 1x IR Remote
  • 1x User Manual

Interfaces

Interfaces image

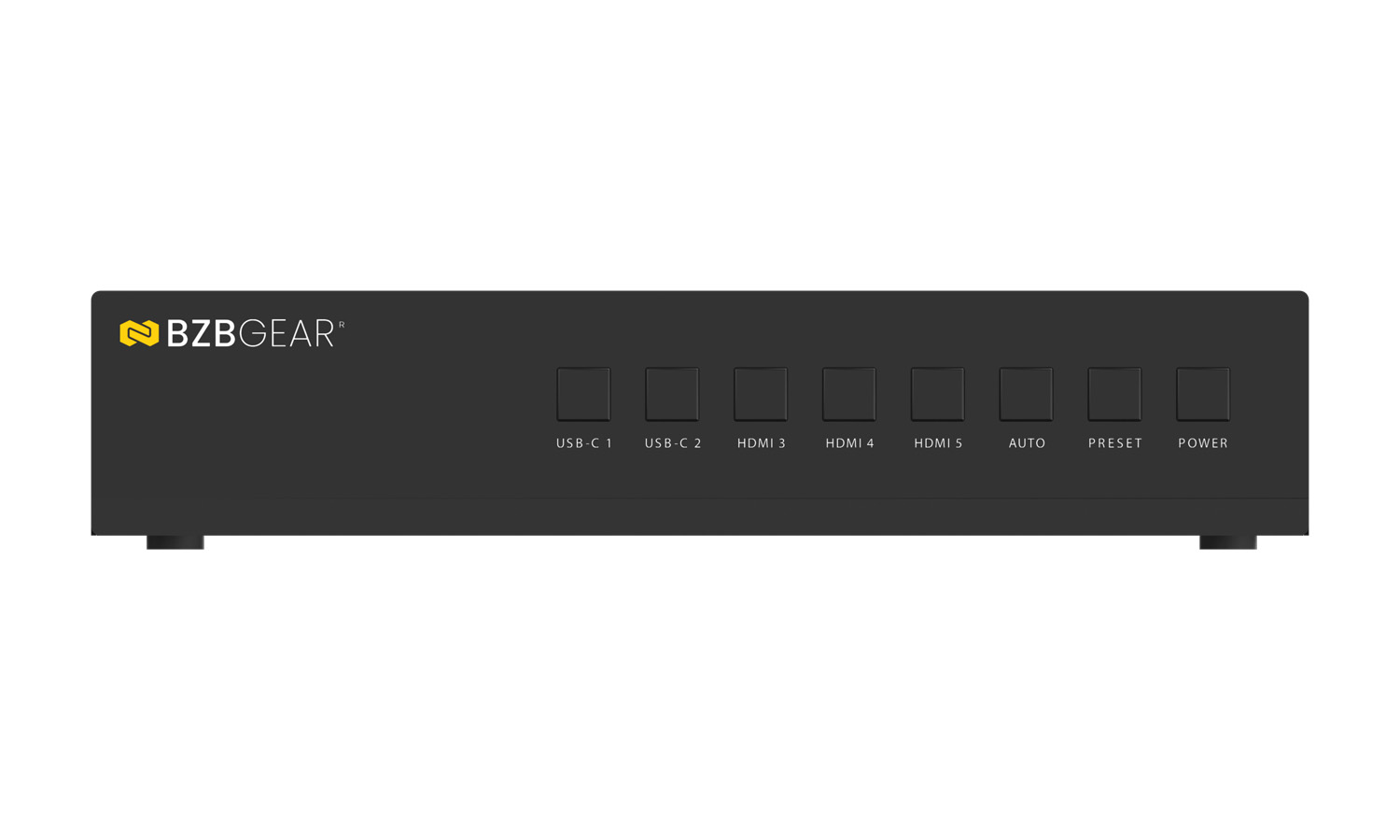

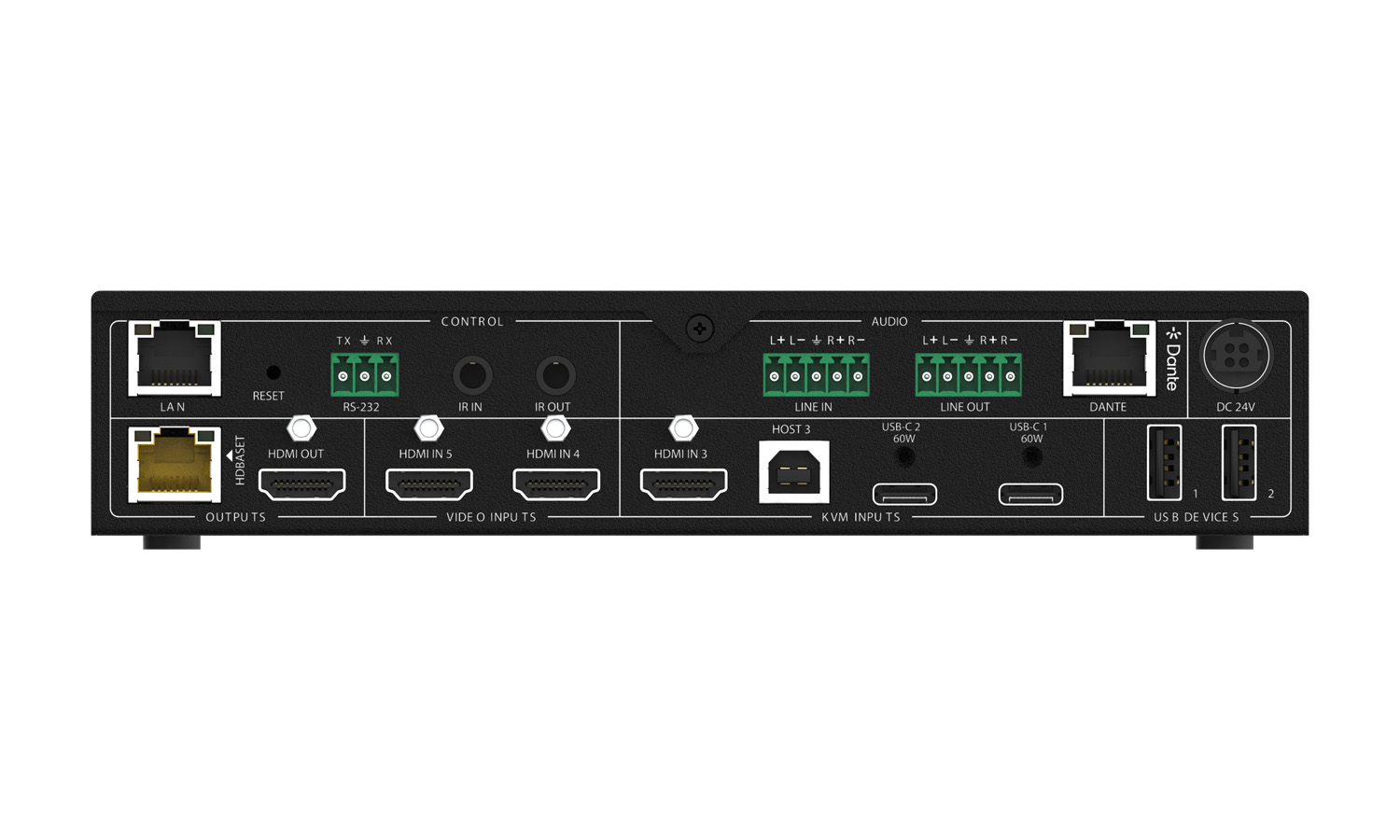

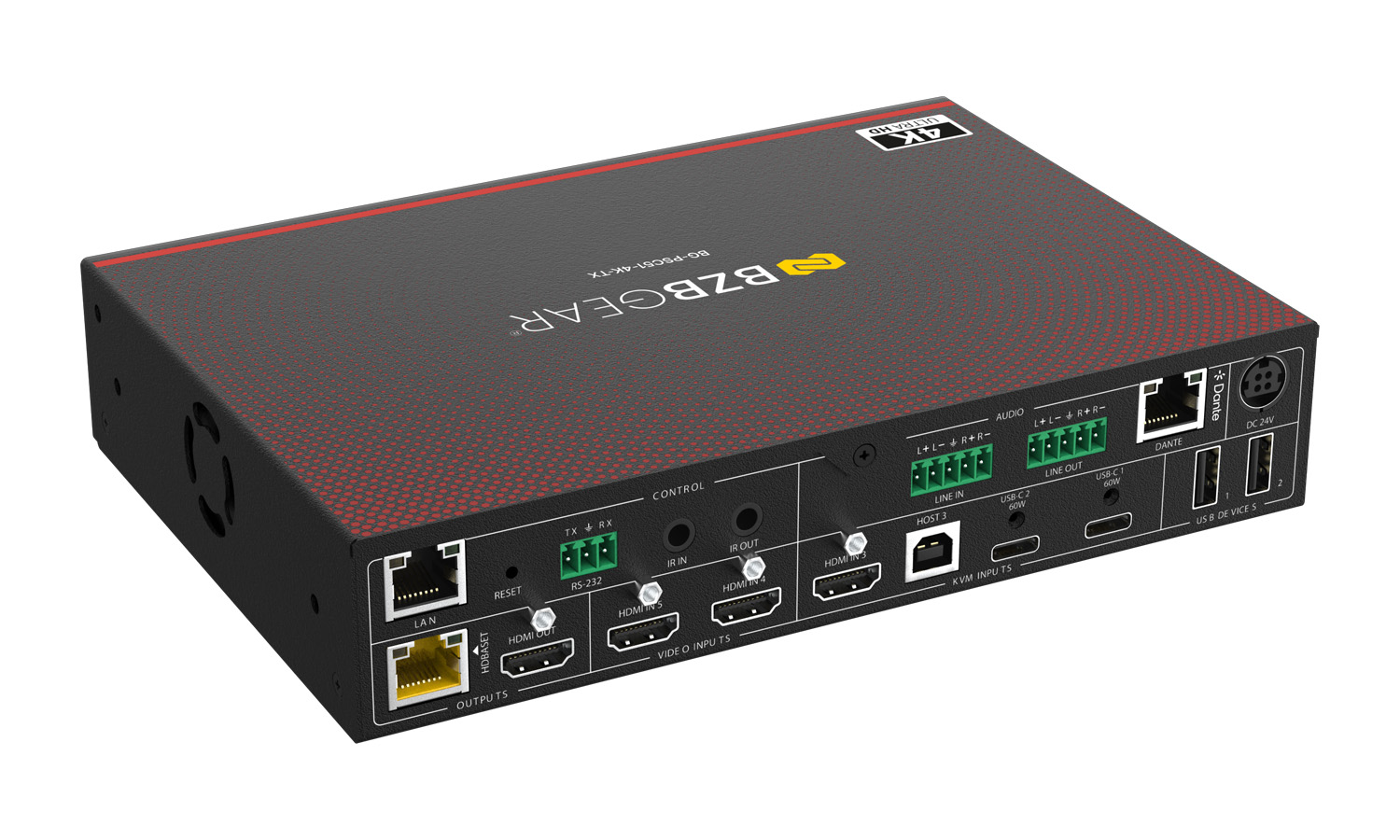

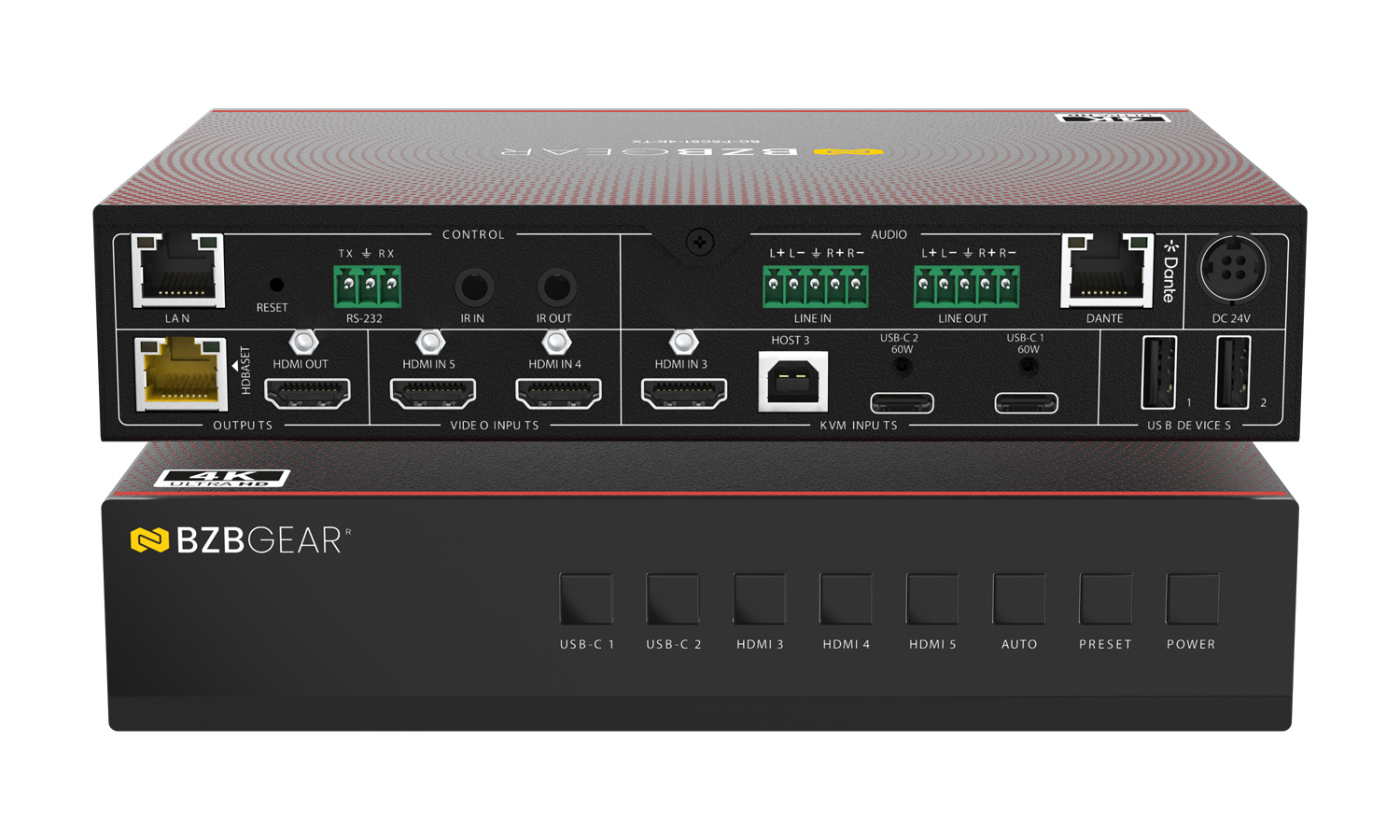

Transmitter

  1. IR Window: Receives IR signals from the remote control for system operation and control.
  2. Input Selection Buttons (USB-C 1 / USB-C 2 / HDMI 3 / HDMI 4 / HDMI 5):
    Selects active input source in single-screen mode; in multiview mode indicates active sources assigned to display windows.
  3. AUTO Button: Enables or disables automatic input switching based on signal detection priority.
  4. PRESET Button: Cycles through saved multiview or layout presets configured via Web GUI.
  5. POWER Button: Turns the unit on or places it into standby mode with a long press (3 seconds).
  6. LAN Port: Provides network access for Web GUI control and USB-C Ethernet functionality.
  7. RESET Button: Restores the device to factory default settings when pressed and held for 5 seconds.
  8. RS-232 Port: Enables serial control and bi-directional RS-232 pass-through communication.
  9. IR IN Port: Receives external IR signals for control or pass-through to connected devices.
  10. IR OUT Port: Sends IR signals from the system to controlled devices via IR blaster.
  11. LINE IN Port: Accepts balanced or unbalanced analog audio input (up to 2 Vrms).
  12. LINE OUT Port: Outputs analog audio with support for balanced and unbalanced connections.
  13. DANTE Port: Provides Dante 2×2 network audio input/output.
  14. DC 24V Port: Power input for the external 24V power adapter.
  15. HDBaseT OUTPUT Port: Transmits uncompressed AV signal to receiver over CAT6A with PoE support.
  16. Data Signal Indicator (Yellow): Indicates HDMI signal status (HDCP, active signal, or no signal).
  17. Link Signal Indicator (Green): Shows HDBaseT link status between transmitter and receiver.
  18. HDMI OUTPUT Port: Provides mirrored local HDMI output to a display device.
  19. HDMI IN 3/4/5 Ports: HDMI inputs for connecting external video sources.
  20. USB HOST Port: USB-B connection for PC host control in KVM mode.
  21. USB-C 1/2 Ports: USB-C inputs supporting video (DP Alt Mode), USB 2.0, Ethernet, and 60W charging.
  22. USB DEVICE Ports: USB-A ports for peripherals such as keyboard, mouse, or USB cameras.
Interfaces image

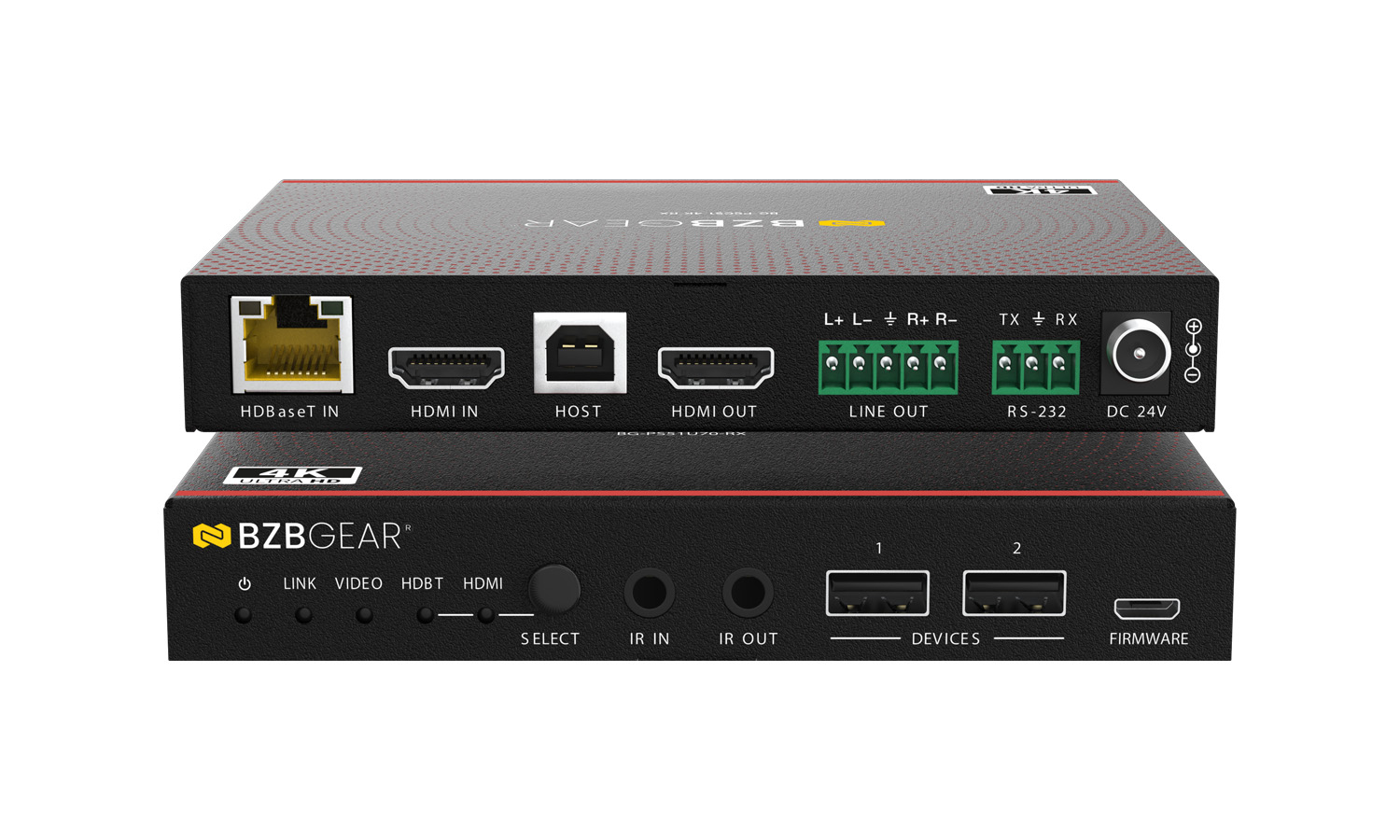

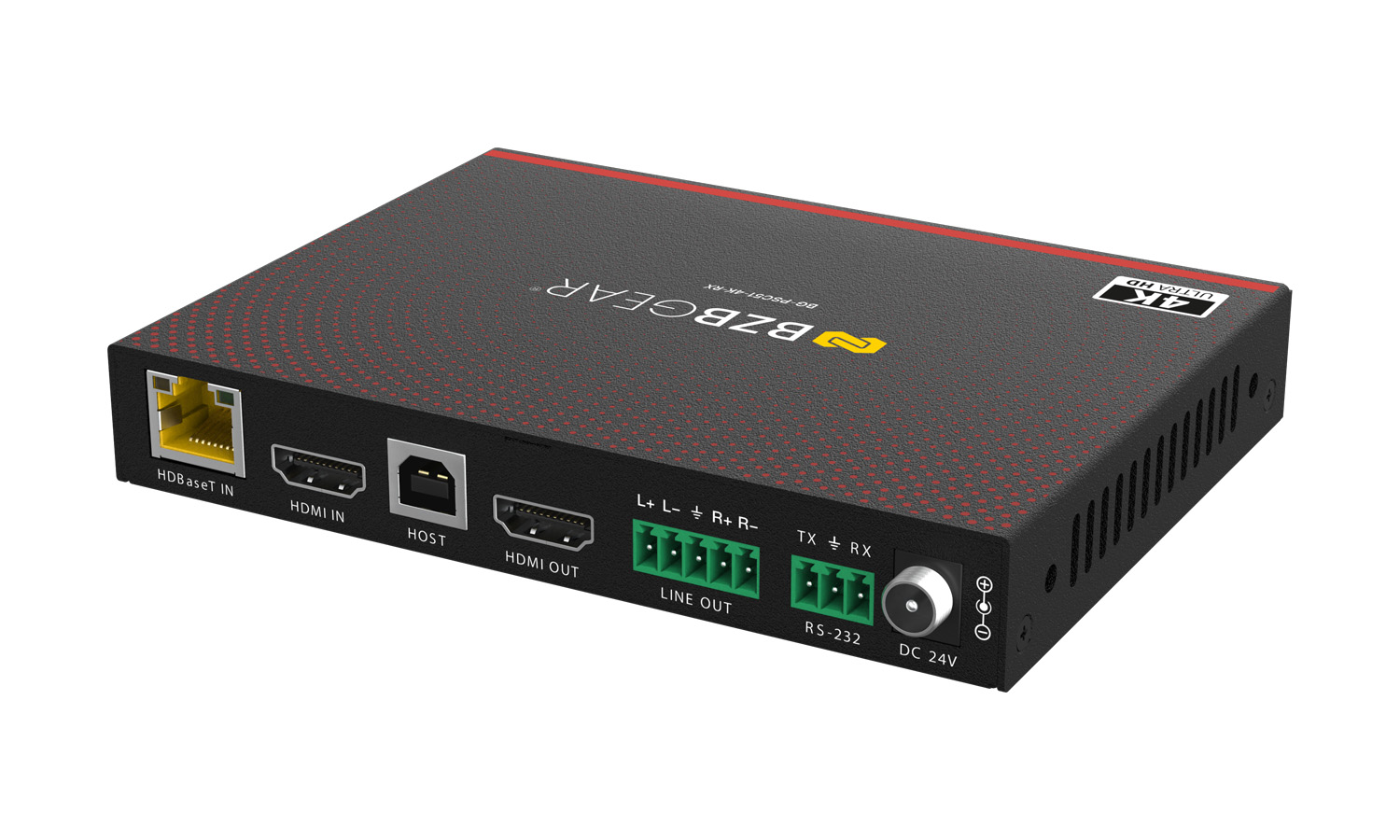

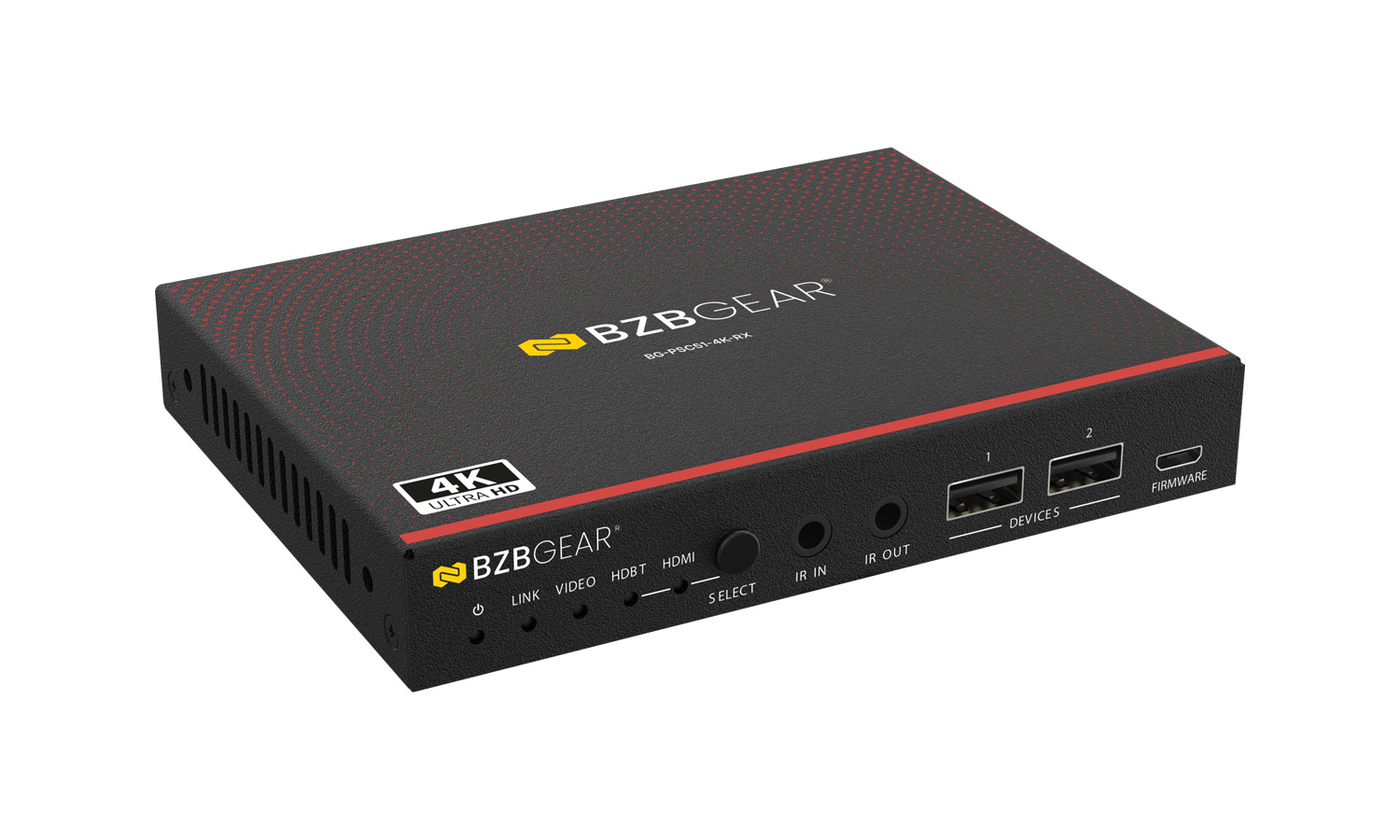

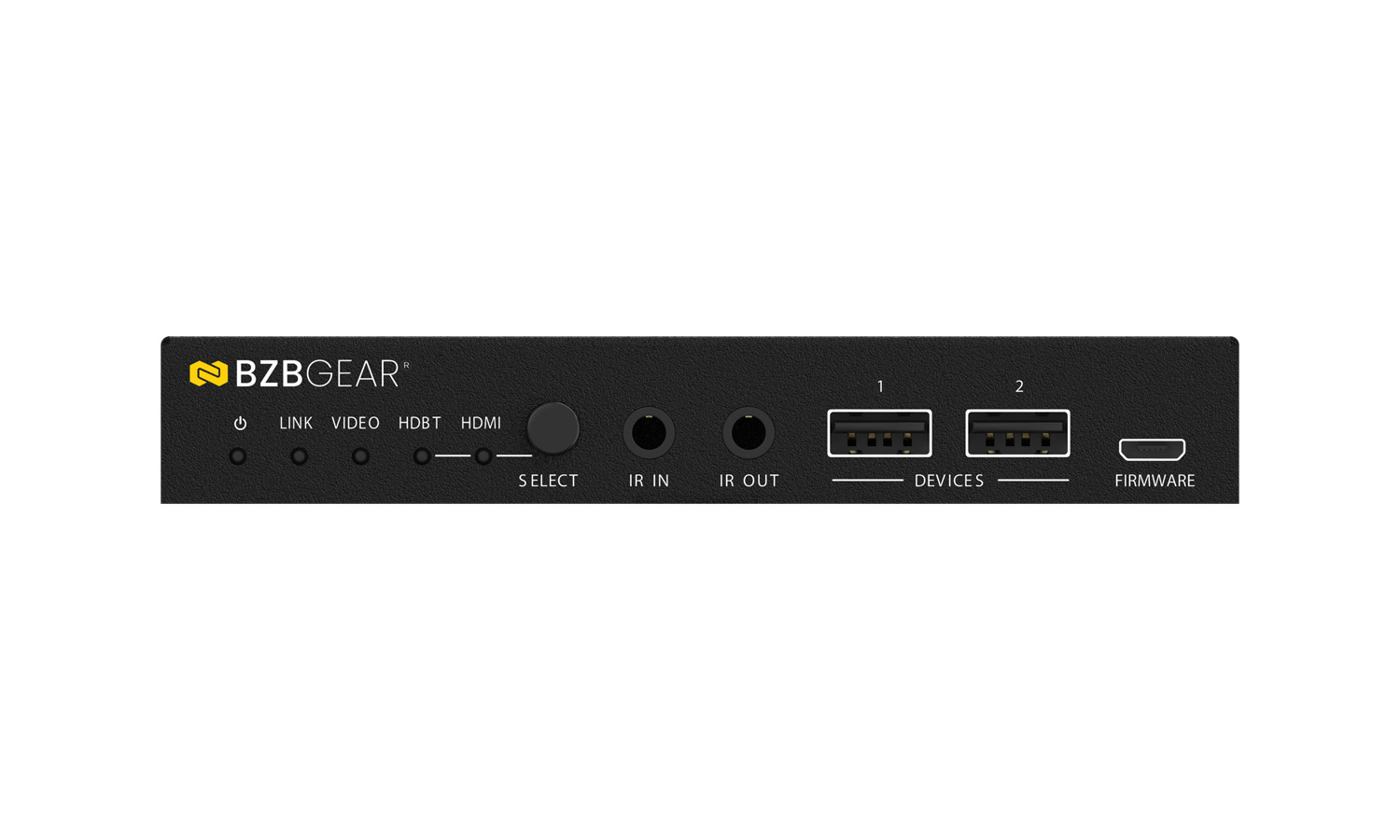

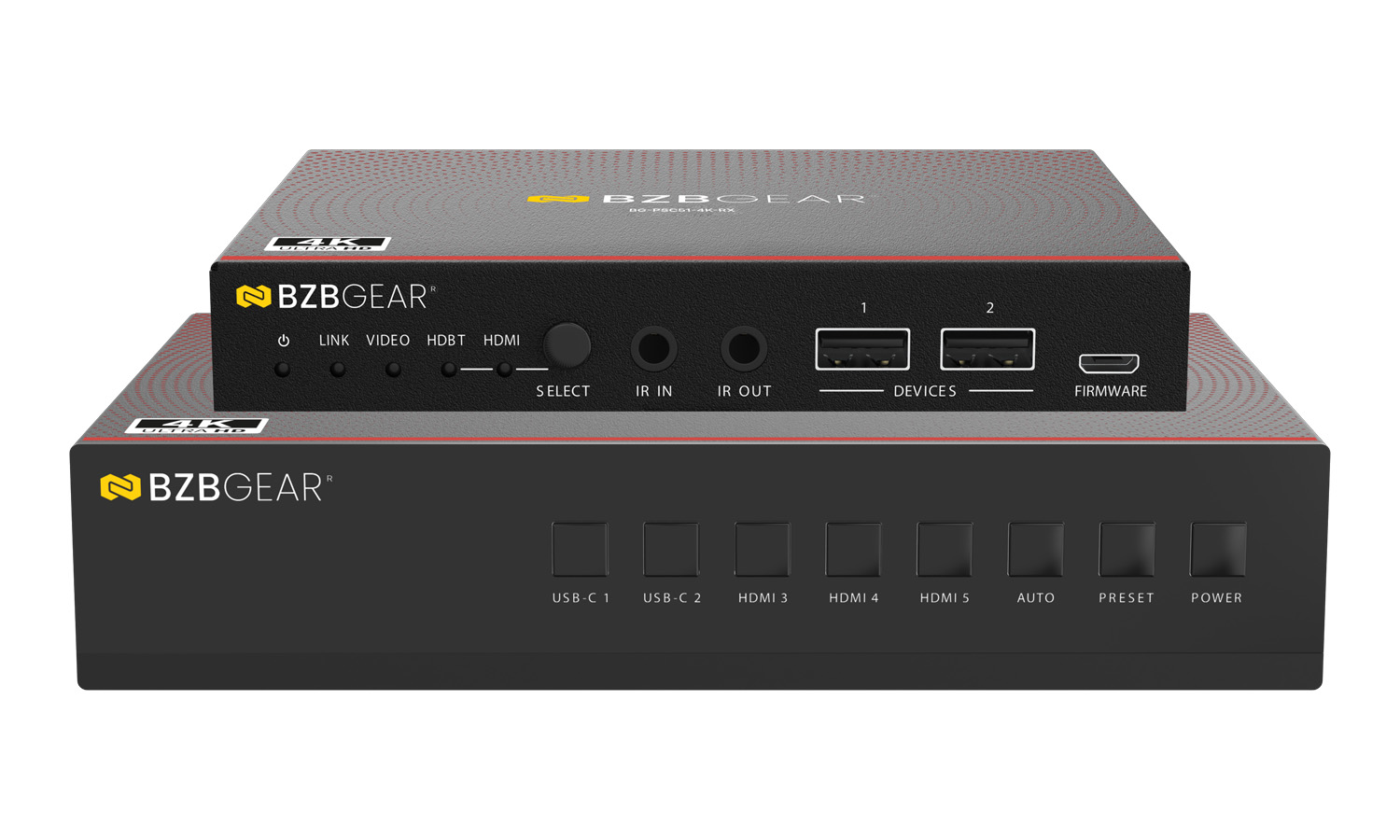

Receiver

  1. Power LED: Indicates the receiver is powered on.
  2. LINK LED: Shows HDBaseT connection status between transmitter and receiver.
  3. VIDEO LED: Indicates active video signal presence and HDCP status.
  4. HDBT LED: Illuminates when HDBaseT input is selected as the active source.
  5. HDMI LED: Illuminates when HDMI input is selected as the active source.
  6. SELECT Button: Manually switches between HDMI IN and HDBaseT IN inputs.
  7. IR IN Port: Receives IR signals for pass-through or remote system control.
  8. IR OUT Port: Outputs IR signals to controlled devices via IR blaster.
  9. USB DEVICE Ports (2x): Connects USB peripherals such as keyboard, mouse, or touchscreen devices.
  10. SERVICE Port: Used for firmware upgrades and maintenance via USB connection.
  11. HDBaseT IN Port: Receives AV, USB, control, and power signals from the transmitter via CAT6A cable.
  12. Data Signal Indicator (Yellow): Indicates HDMI signal status (HDCP active, non-HDCP signal, or no signal).
  13. Link Signal Indicator (Green): Shows HDBaseT link quality and connection status.
  14. HDMI IN Port: Local HDMI input for alternate source selection at the receiver.
  15. USB HOST Port: USB-B connection for PC host in KVM operation mode.
  16. HDMI OUT Port: Outputs video signal to connected display device.
  17. LINE OUT Port: Provides balanced/unbalanced analog audio output.
  18. RS-232 Port: Enables serial control and bi-directional pass-through communication.
  19. DC 24V Port: Optional power input when PoE is not used via HDBaseT.
