Comparison Table

SKU MAIN CONNECTION TYPES CONTROL KVM MAX RESOLUTION WIRELESS SCALER AUDIO SUPPORT HDBASET HDCP EDID

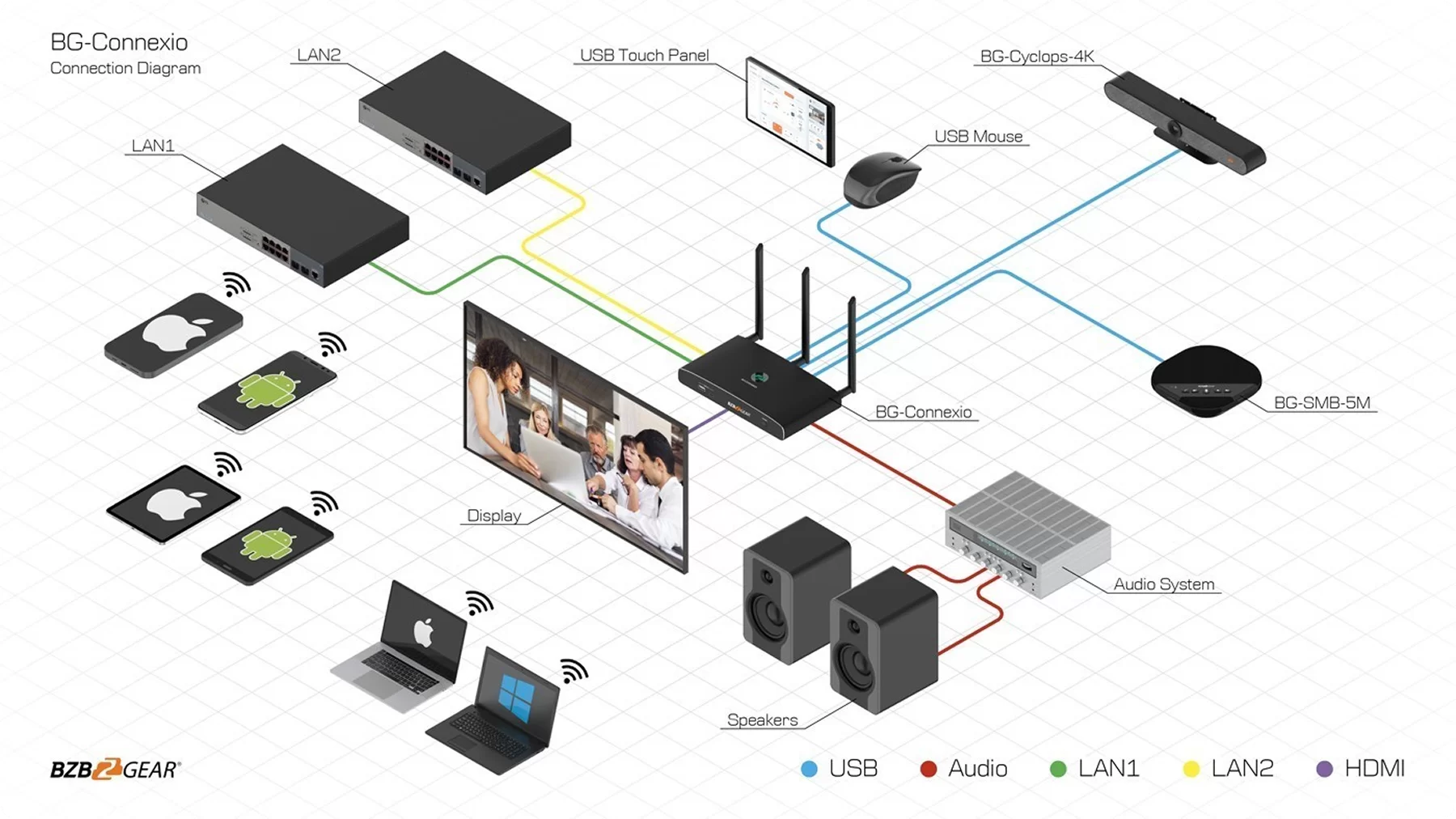

BG-Connexio Wireless, HDMI, USB 3.0, LAN, Audio WIRELESS CONTROL, FRONT PANEL BUTTONS, USB 3.0, HDMI, RS-232, REMOTE CONTROL, RS232, TCP/IP, BG-SWITCH-CONTROL App (BZBGEAR proprietary matrix switcher control software) x 4K@60Hz YES x YES x x x
BZB-SW-41A HDMI 2.0B FRONT PANEL  BUTTONS/IR REMOTE YES 4K@60HZ × × YES × 2.2 YES
BG-PS21-4K HDMI 2.0/USB-C/ FRONT PANEL  BUTTONS/RS-232 × 4K@60HZ × × YES × 2.2 YES
BG-UHD-KVM41 HDMI 2.0/USB 3.0 FRONT PANEL BUTTONS/RS-232/BG-SC-GRHU TABLE GROMMETS YES 4K@60HZ × × YES × 2.2 YES
BG-UHD-KVM41-KIT HDMI 2.0/USB 3.0 FRONT PANEL BUTTONS/RS-232/BG-SC-GRHU TABLE GROMMETS YES 4K@60HZ × × YES × 2.2 YES
BG-PS41-BYOD-4K WIRELESS/USB TYPE-C/USB 3.0 WIRELESS/USB TYPE-C/USB 3.0/HDMI × 4K@30HZ YES × YES × 2.2 YES
BG-PSC6X2-4K HDMI 2.0/
USB-C
FRONT PANEL BUTTONS,
IR,
RS-232, TCP/IP
× 1080P@60HZ × YES YES × 2.2 YES

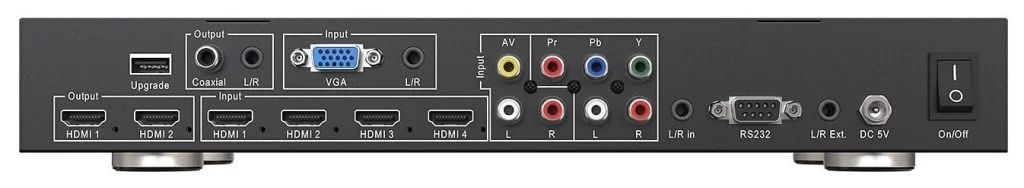

BG-PSC7X2 HDMI/VGA/
YPBPR
(COMPONENT)
/COMPOSITE RCA
FRONT PANEL BUTTONS,
IR,
RS-232, TCP/IP
× 4K@30HZ × YES YES YES 2.2 YES
BG-PSC8X2HDB HDMI/IP/DP
/VGA/AUDIO/
HDBASET
BI-DIRECTIONAL
IR, RS232,
AND IP CONTROL
× 4K@60HZ × × YES YES 2.2 YES
BG-PSC11X2-HDBT HDMI/IP/YPBPR/
VGA/CV/
AUDIO/HDBASET
FRONT PANEL BUTTONS,
IR,
TCP/IP OR RS-232
× 4K@30HZ × YES YES YES 1.4 YES
BG-PSC8X2-REC HDBASET/
AUDIO/
HDMI/ETHERNET
BI-DIRECTIONAL IR,
RS232, AND IP
CONTROL SIGNALS
× 4K@30HZ × × × YES × YES
BG-SC-GRHU HDMI 2.0/ USB 3.0 FRONT PANEL BUTTONS YES 4K60HZ × × × × × ×
BG-PS-BYOD-4K

HDMI/USB-C/
DISPLAY PORT


× × 4K@60HZ × × × × 2.2 ×

Ultra HD Clarity

BZBGEAR switchers produce outstanding images that ensure your presentation looks its best. Our 4K presentation switcher supports resolutions up to 4K@60Hz!

Wireless Presentation Switcher

One of our most popular presentation switchers is our 4K wireless BYOD (Bring Your Own Device) presentation switcher. This device allows users to present from their PC or smartphone wirelessly using Miracast or Airplay. This creates a fun, organized and effective presentation space!

Presentation Switcher Solutions

Presentation switchers offer a wide variety of solutions including a presentation switcher conference room solution and a presentation switcher classroom solution. Speak to one of our experts to get a perfectly tailored solution for your next project!

Features

  • Software Controllable*
    Certain models feature a PC utility for advanced configuration and features
  • UItra-HD
    Resolutions up to 4K@60Hz HDR supported
  • HDMI
    HDMI 2.0a compliant, HDCP 2.2 compliant
  • Auto-Scaling:
    HDMI connections automatically up/downscale to support legacy devices
  • Audio De-embedding
    Audio signals can be extracted from an HDMI source to connect external audio systems
  • Airplay and Miracast support:
    Connect your devices quickly and easily, with no wires needed!
  • HDBaseT
    Certain models support HDBaseT for long distance HDMI extension
  • 3 Year Warranty
    Parts & Labor covered for 3 years
