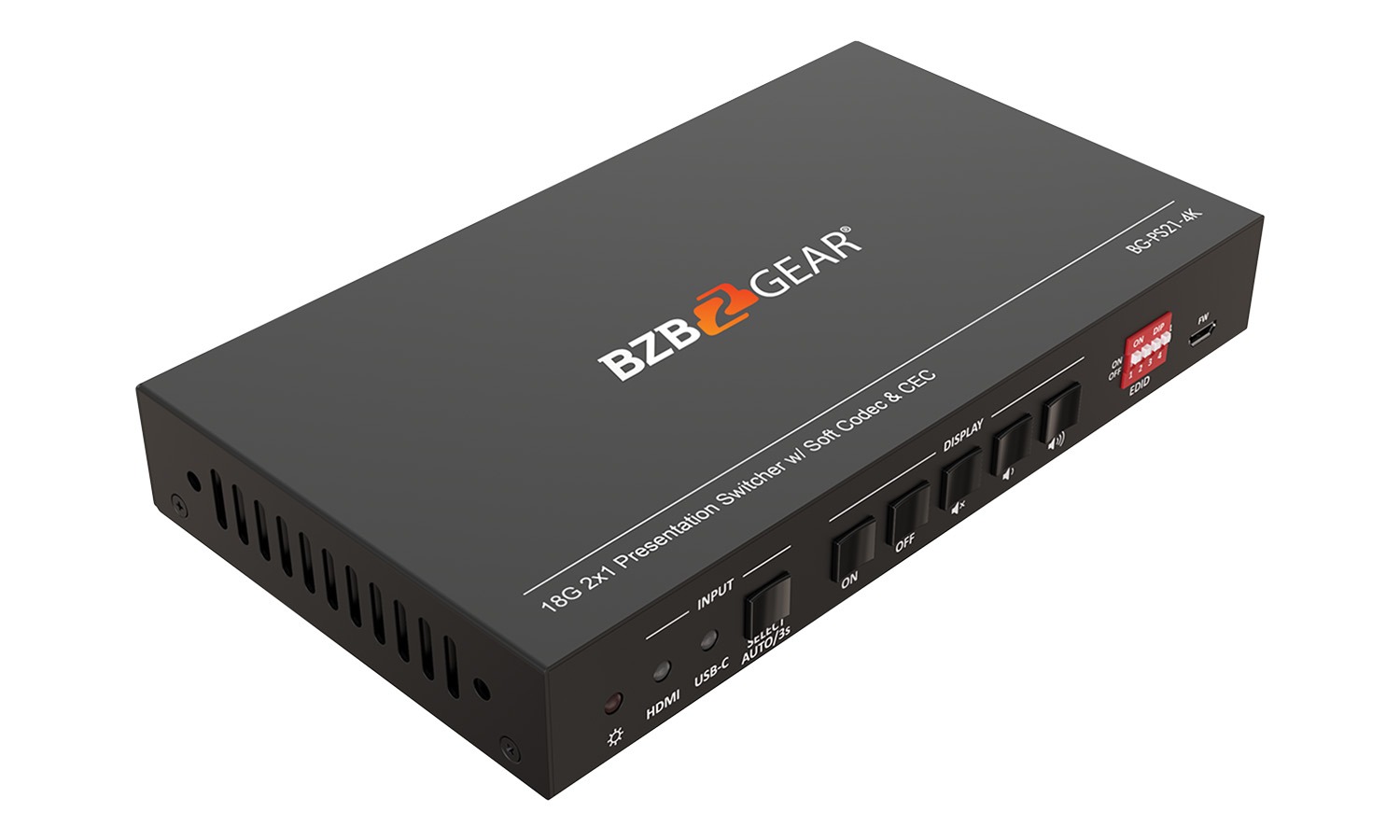

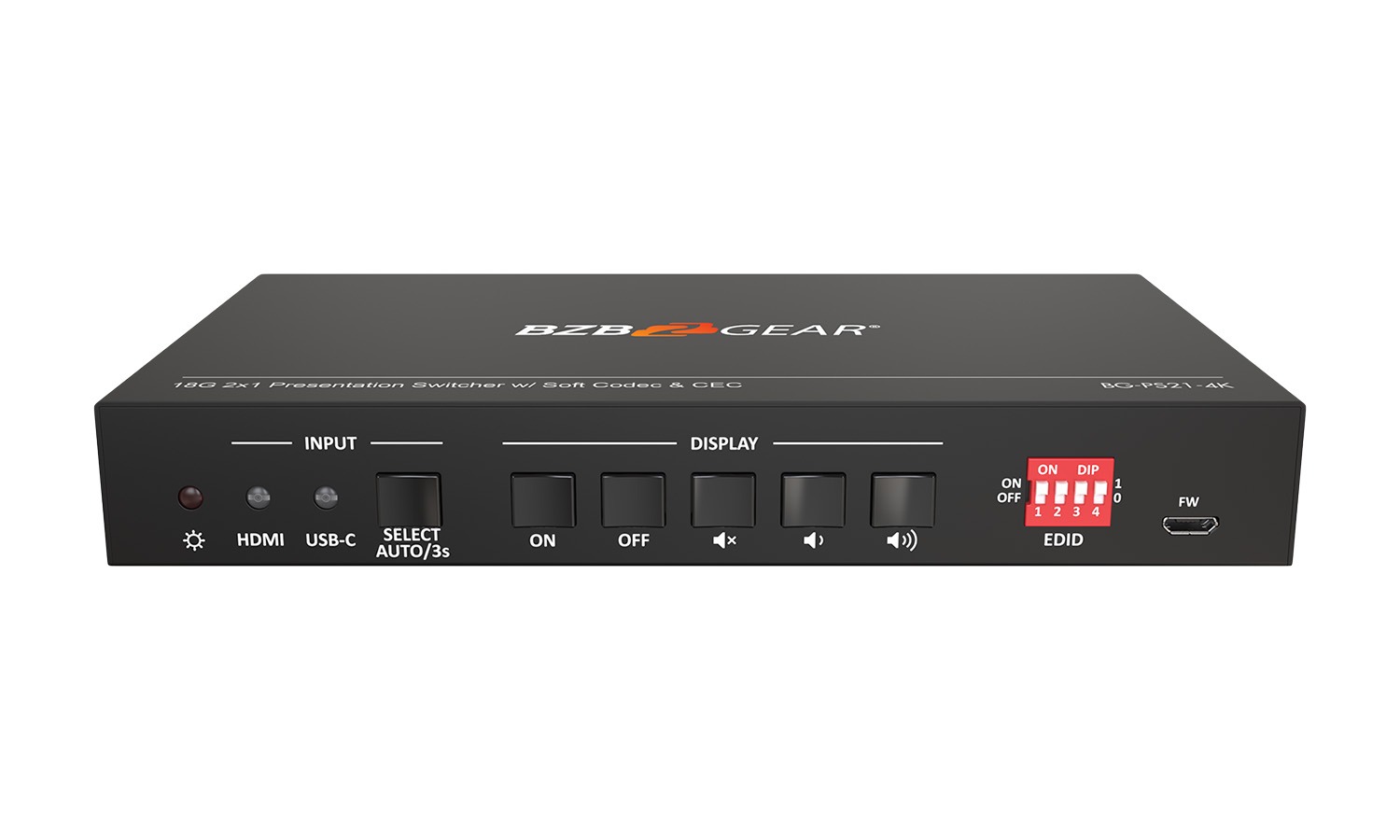

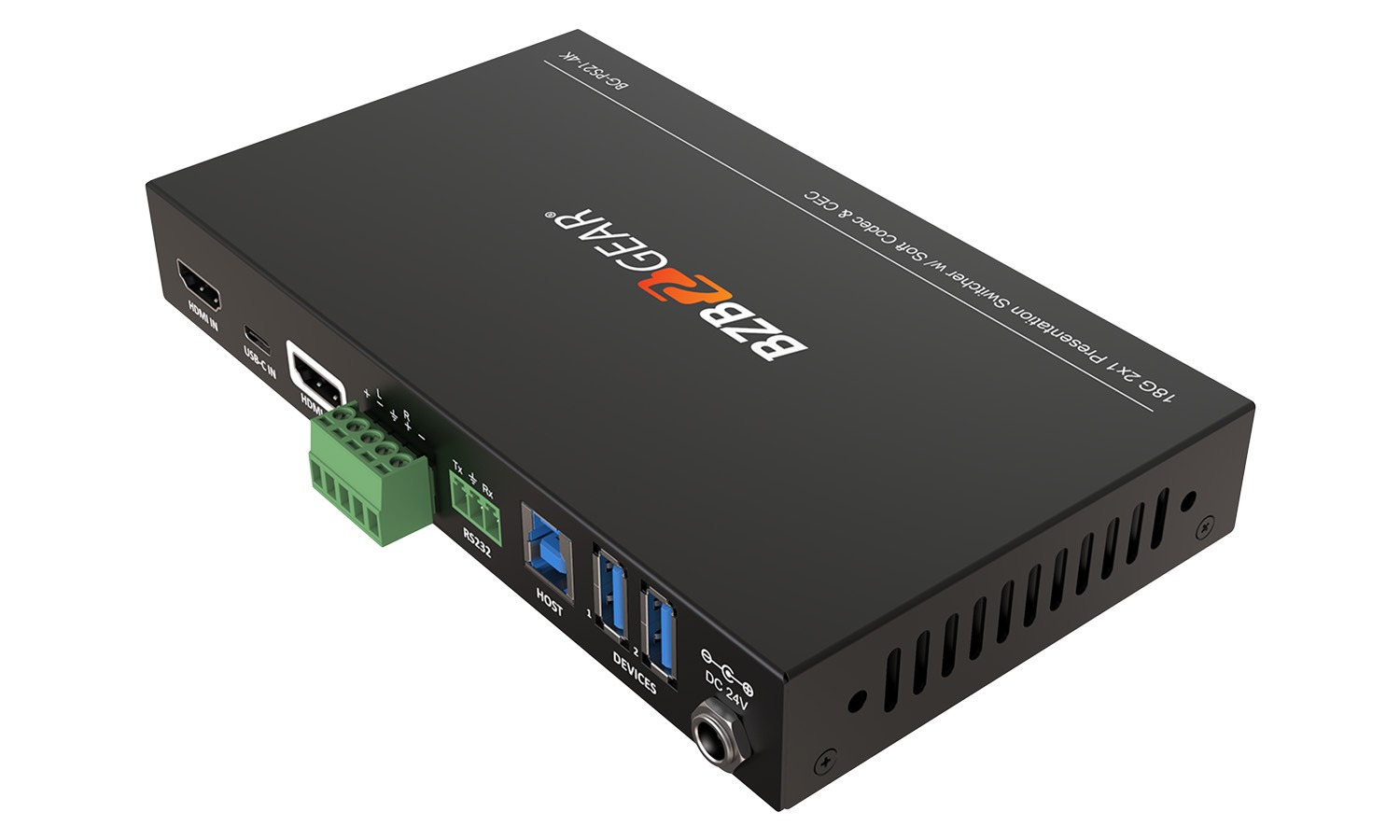

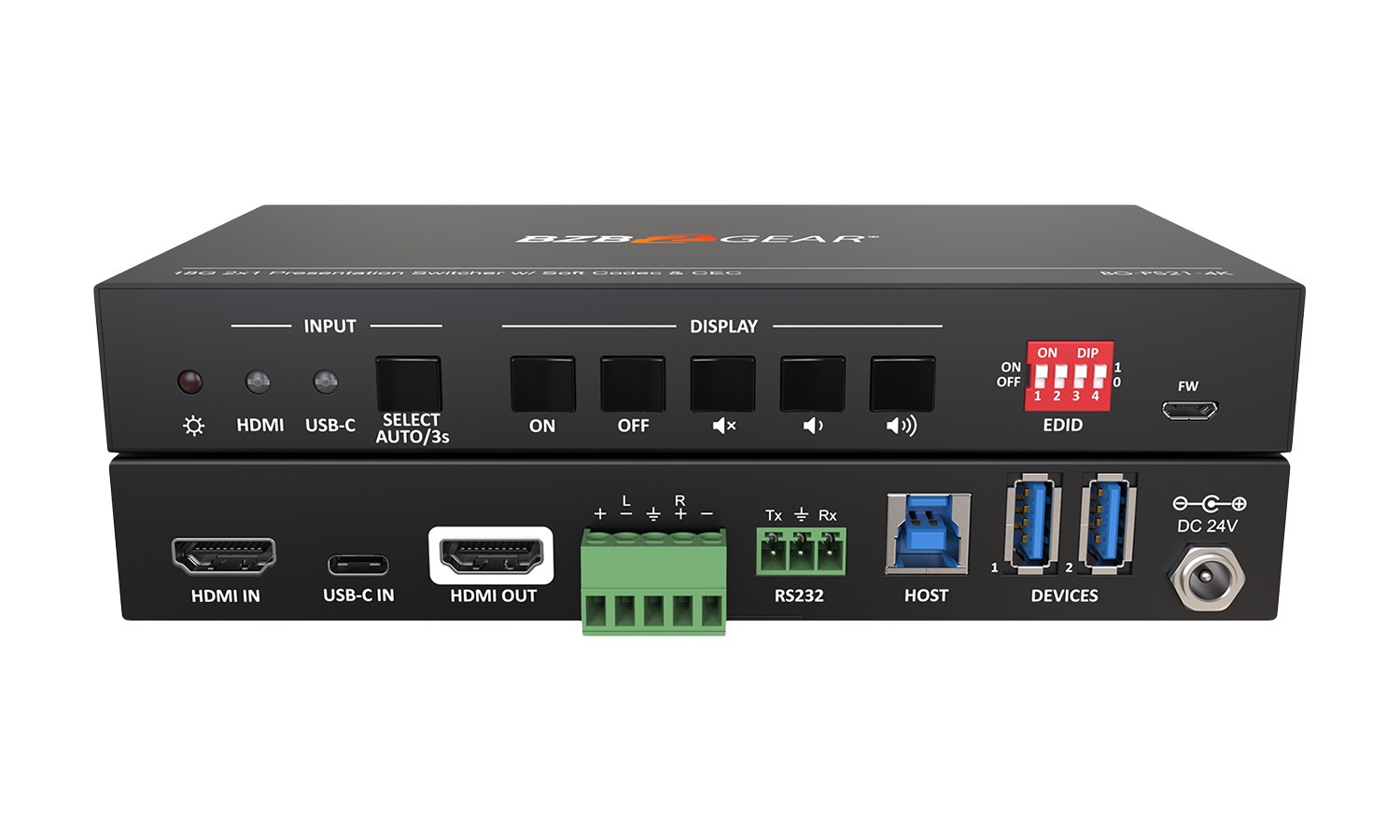

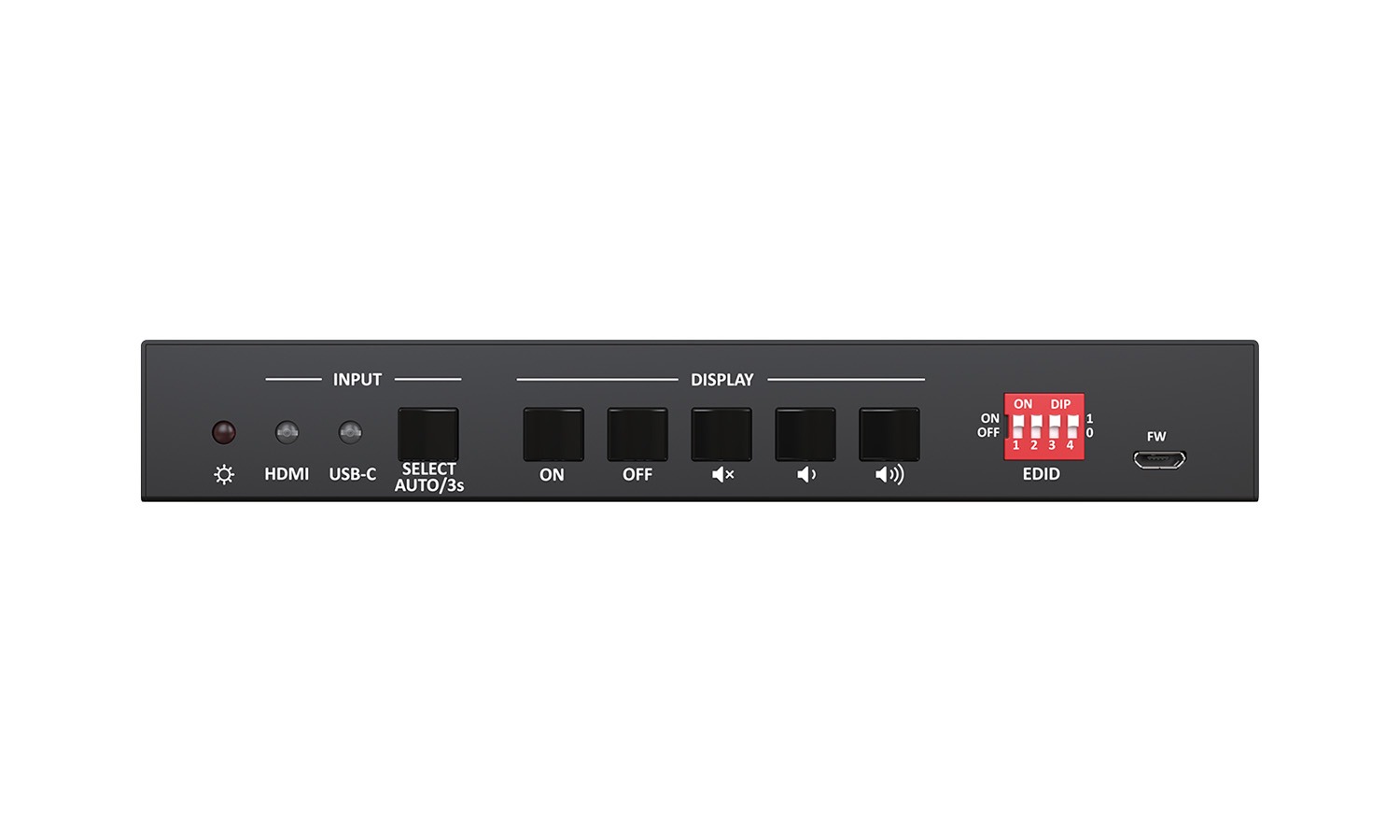

2-Port 4K 60Hz KVM Presentation Switcher with HDMI and USB-C Inputs and HDMI out
MSRP: $499.00

MSRP $499.00

3

Description

The BG-PS21-4K is a 2-port 4K60Hz KVM presentation switcher. Equipped with 2 inputs (1 HDMI and 1 USB-C) and 1 HDMI output, this switcher allows users to simultaneously connect 2 devices to the same display at resolutions up to [email protected] Hz. Supporting HDMI 2.0 and HDCP 2.2, this switcher is also equipped with auto switching that enables inputs to automatically switch when signal is detected.

While the USB-C port offers 4K video transmission it also provides 40 watts of charging ability for a connected device. Peripheral units such as a keyboard, mouse and even cameras can be connected by the type-A USB (USB 3.0/2.0) ports. The USB peripherals can be shared between the HDMI/Host connections and the USB-C connection.

In addition to the auto-switching feature this device can be controlled manually with the front panel buttons or the RS-232 interface. The programmable EDID setting ensures you have a seamless HDMI connection. The balanced analog audio output enables audio de-embedding and supports various audio formats such as LPCM 7.1 audio, Dolby Digital® Plus and DTS-HD® Master Audio™ pass-through.

Additional information

Weight 3 lbs
Dimensions 11 × 8 × 3 in

Specifications

Video
Video Input (1) HDMI, (1) USB-C
Video Input Connector (1) Type-A female HDMI, (1) Type-C USB
HDMI Input Resolution Up to [email protected] 4:4:4 8bit
USB-C Input Resolution Up to [email protected] 4:4:4
Video Output (1) HDMI
Video Output Connector (1) Type-A female HDMI
HDMI Output Resolution Up to [email protected] 4:4:4 8bit
HDMI Version 2.0
HDCP Version 2.2
USB Version 3.0
HDR 10 Supported
CEC Supported
HPD Supported
Audio
Audio Output (1) AUDIO OUT (Stereo balanced L/R)
Audio Output Connector (1) 5-pin terminal block
HDMI Audio Format LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS: X™, and DTS-HD® Master Audio™ pass-through
Stereo balanced L/R audio Format PCM
Max Output Level 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal
THD+N <0.05% (-80dB), 20Hz ~ 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)
SNR >80dB, 20Hz ~ 20KHz bandwidth
Crosstalk Isolation >70dB, 10KHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)
Frequency Response Deviation <±0.5dB 20Hz ~ 20KHz
Output Load Capability 1KΩ and higher (supports 10x paralleled 10KΩ loads)
Stereo Channel Separation >[email protected]
Control Part
Control (1) EDID, (1) FW, (1) RS232, (1) HOST, (2) DEVICE
Control Connector (1) 4-pin DIP switch, (1) Micro-USB, (1) 3-pin terminal block, (1) Type-B USB 3.0, (2) Type-A USB 3.0
General
HDMI 2.0 Cable Length [email protected] 4:4:4 ≤ 5m,

[email protected] 4:2:0 ≤ 10m,

1080P ≤ 15m

Bandwidth 18Gbps
Operation Temperature -10℃ ~ +55℃
Storage Temperature -25℃ ~ +70℃
Relative Humility 10% ~ 90%
External Power Supply Input: AC 100~240V, 50/60Hz, Output: 24V DC 2.71A
Power Consumption 54W (Max)
Dimension (W*H*D) 168.0mm x 24.5mm x 95.0mm
Net Weight 245g

Applications

Resources

Download Manual - Click Icon Below


Download Manual

Package Contents

① 1x BG-PS21-4K 18G 2x1 Presentation Switcher

② 2x Mounting Ears with 4 Screws

③ 4x Plastic Cushions

④ 1x 5-pin Terminal Block

⑤ 1x RS232 Cable (3-pin terminal block to DB9)

⑥ 1x Power Cord

⑦ 1x Power Adapter (24V DC, 2.71A)

⑧ 1x User Manual

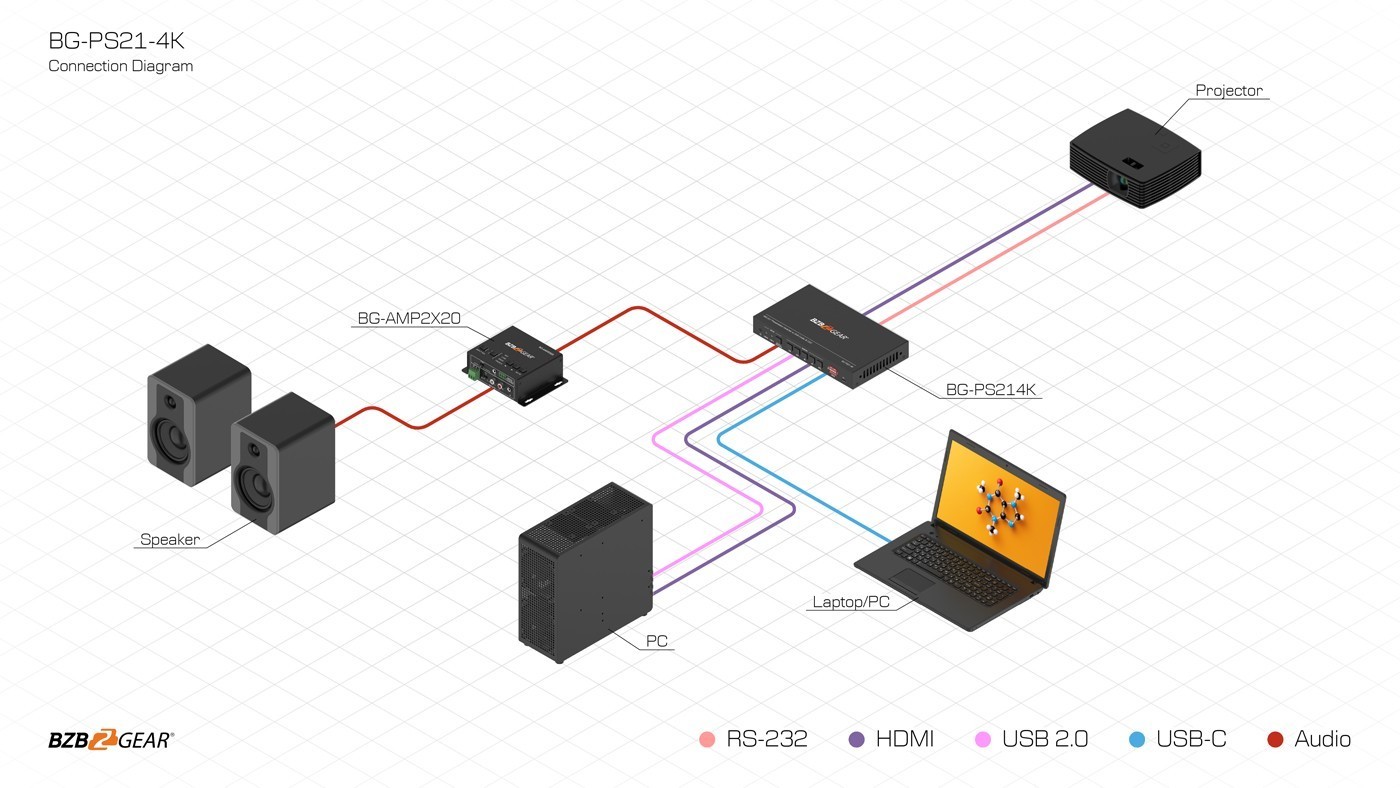

Diagram

Overview

The BG-PS21-4K is a 2-port 4K60Hz KVM presentation switcher. Equipped with 2 inputs (1 HDMI and 1 USB-C) and 1 HDMI output, this switcher allows users to simultaneously connect 2 devices to the same display at resolutions up to [email protected] Hz. Supporting HDMI 2.0 and HDCP 2.2, this switcher is also equipped with auto switching that enables inputs to automatically switch when signal is detected.

While the USB-C port offers 4K video transmission it also provides 40 watts of charging ability for a connected device. Peripheral units such as a keyboard, mouse and even cameras can be connected by the type-A USB (USB 3.0/2.0) ports. The USB peripherals can be shared between the HDMI/Host connections and the USB-C connection.

In addition to the auto-switching feature this device can be controlled manually with the front panel buttons or the RS-232 interface. The programmable EDID setting ensures you have a seamless HDMI connection. The balanced analog audio output enables audio de-embedding and supports various audio formats such as LPCM 7.1 audio, Dolby Digital® Plus and DTS-HD® Master Audio™ pass-through.



Features
4K/60 4:4:4 Сapable
Supports resolutions up to [email protected] 4:4:4 8bit.
Plug and Play
Easy to install and use.
MULTICHANNEL AUDIO SUPPORT
LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS: X™, and DTS-HD® Master Audio™ pass-through.
EDID
Eliminates connection issues.
AUTO-SWITCHING
Automatically change inputs when signal is detected.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections.
  • 18G 2x1 switcher with HDMI and USB-C inputs
  • Supports automatic switching
  • Controllable via front panel buttons and RS232
  • Supports HDMI 2.0, [email protected] 4:4:4, HDR 10, Dolby Vision, HDCP 2.2
  • Provides charging on USB-C port up to 40W
  • Provides USB data (USB 3.0/2.0) and 4K video transmission on USB-C port
  • Balanced analog audio for audio de-embedding
  • Peripheral units (e.g. microphone and camera) can be connected by type-A USB (USB 3.0/2.0) ports and automatically switched along with HDMI and USB-C input as USB DEVICES for corresponding HOST
  • Smart EDID management capable for various applications and customized setting
  • Front panel buttons trigger both CEC and RS232 commands for display control. (ON, OFF, MUTE, VOL+, VOL -)


Specifications

Video

Video Input

(1) HDMI, (1) USB-C

Video Input Connector

(1) Type-A female HDMI, (1) Type-C USB

HDMI Input Resolution

Up to [email protected] 4:4:4 8bit

USB-C Input Resolution

Up to [email protected] 4:4:4

Video Output

(1) HDMI

Video Output Connector

(1) Type-A female HDMI

HDMI Output Resolution

Up to [email protected] 4:4:4 8bit

HDMI Version

2.0

HDCP Version

2.2

USB Version

3.0

HDR 10

Supported

CEC

Supported

HPD

Supported

Audio

Audio Output

(1) AUDIO OUT (Stereo balanced L/R)

Audio Output Connector

(1) 5-pin terminal block

HDMI Audio Format

LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS: X™, and DTS-HD® Master Audio™ pass-through

Stereo balanced L/R audio Format

PCM

Max Output Level

2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal

THD+N

<0.05% (-80dB), 20Hz ~ 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)

SNR

>80dB, 20Hz ~ 20KHz bandwidth

Crosstalk Isolation

>70dB, 10KHz sine at 0dBFS level (or max level before clipping)

L-R Level Deviation

< 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)

Frequency Response Deviation

<±0.5dB 20Hz ~ 20KHz

Output Load Capability

1KΩ and higher (supports 10x paralleled 10KΩ loads)

Stereo Channel Separation

>[email protected]

Control Part

Control

(1) EDID, (1) FW, (1) RS232, (1) HOST, (2) DEVICE

Control Connector

(1) 4-pin DIP switch, (1) Micro-USB, (1) 3-pin terminal block, (1) Type-B USB 3.0, (2) Type-A USB 3.0

General

HDMI 2.0 Cable Length

[email protected] 4:4:4 ≤ 5m, [email protected] 4:2:0 ≤ 10m, 1080P ≤ 15m

Bandwidth

18Gbps

Operation Temperature

-10°C ~ +55°C

Storage Temperature

-25°C ~ +70°C

Relative Humility

10% ~ 90%

External Power Supply

Input: AC 100~240V, 50/60Hz, Output: 24V DC 2.71A

Power Consumption

54W (Max)

Dimension (W*H*D)

168.0mm x 24.5mm x 95.0mm

Net Weight

245g

MORE / LESS SPECS
Ideal fit for:
- Conference Rooms
- Small Offices
- Auditoriums
- Classrooms


Who is buying it?
- Small Businesses
- Schools/Universities
- Hospitals

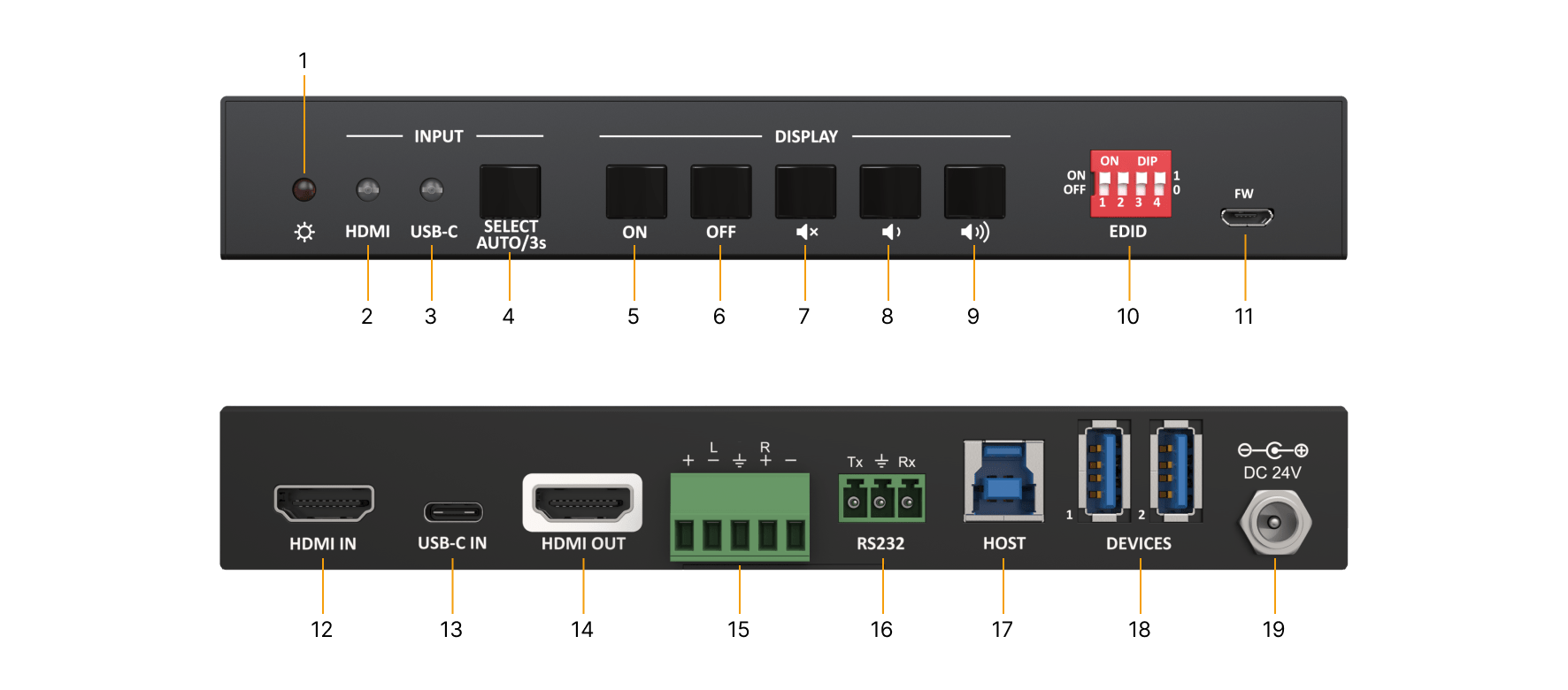

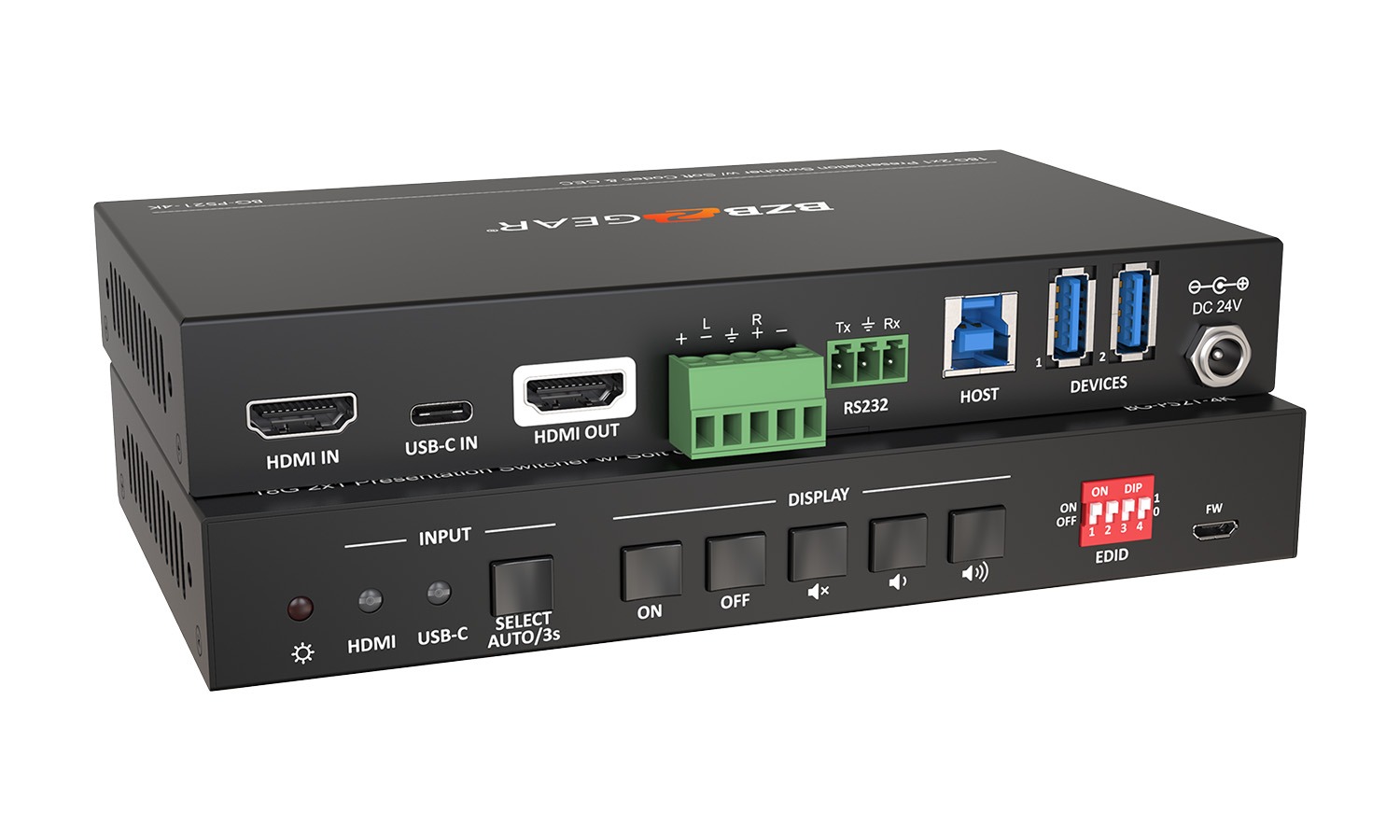

Interface


HDMI

Crystal clear image with resolutions up to up to [email protected]

USB

USB 3.0 plug & play connectivity.

L/R Audio Out

Stereo audio output for connecting to local audio system.

Power

Use supplied Power Adapter.

RS-232 Control

If you are looking for simple solution to control of a wider variety of cameras, the RS-232 is for you.

Micro USB

Upgrade the software in your controller by directly plugging into this connection from your PC.


Application

Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.





Package Contents
① 1xBG-PS21-4K 2x1 Presentation Switcher
② 2xMounting Ears with 4 Screws
③ 4xPlastic Cushions
④ 1x5-pin Terminal Block
⑤ 1xRS232 Cable (3-pin terminal block to DB9)
⑥ 1xPower Cord
⑦ 1xPower Adapter (24V DC, 2.71A)
⑧ 1xUser Manual
