1080P AUTO TRACKING HDMI/SDI/USB 2.0/USB 3.0/POE Live Streaming PTZ Camera with Tally Lights

MSRP: $1,499.00$1,699.00
BlackBlackWhiteWhite
12x12x20x20x30x30x
Requests a Quote

Tag:

5



Overview

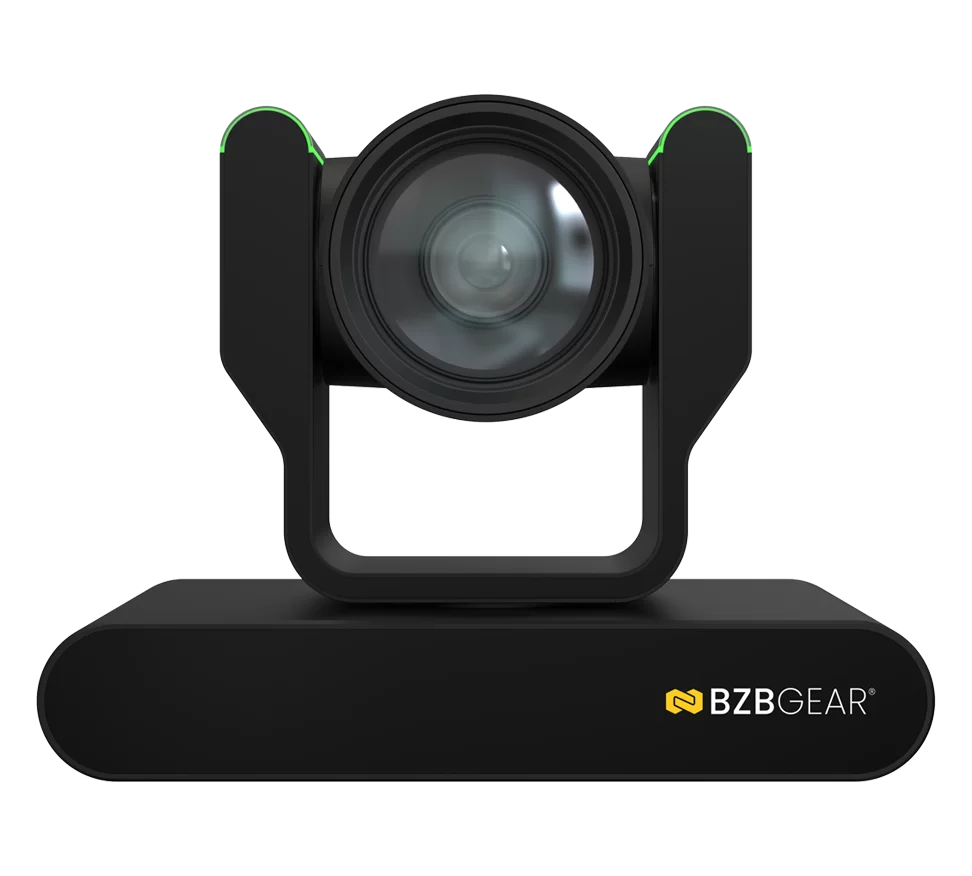

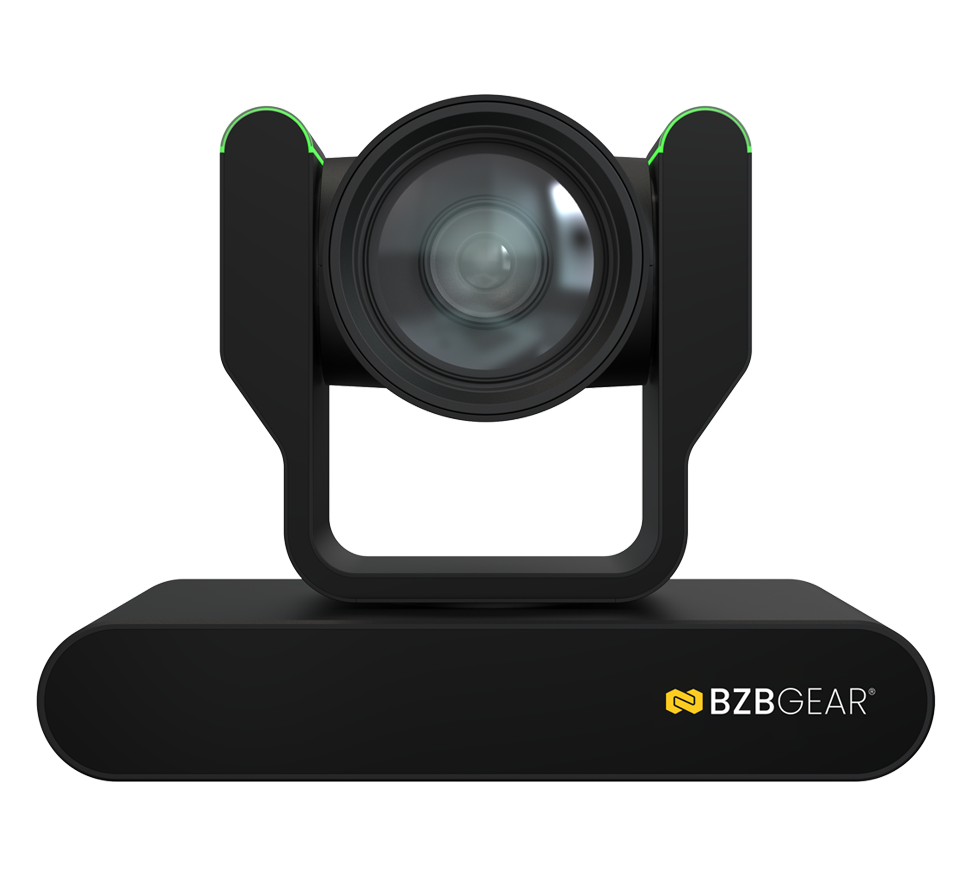

BG-ADAMO-JR: The Next Generation of Full HD PTZ Cameras

The BG-ADAMO-JR is a brand-new Full HD PTZ camera with 3 types of lenses available: 12X optical zoom with 70.3 FOV, 20X optical zoom with 60.04 FOV, and 30X optical zoom with 58.1 FOV. It features smooth PTZ functions, advanced image processing features and flexible connection options.

BG-ADAMO-JR Features

Advanced Visual Performance: With the high quality 1/2.8-inch SONY CMOS image sensor, the resolution of this camera can get up to [email protected] Additionally, the low noise 1/2.8-inch SONY CMOS guarantees high SNR and the advanced 3D noise reduction technology further reduces the noise while ensuring pristine image clarity. The advanced ISP processing technology and algorithms also allow the camera to deliver true-to-life image quality for the most natural and accurate viewing experiences.

Optical Zoom: The BG-ADAMO-JR offers three different optical zoom lenses that users can choose from: 12X optical zoom with 70.3 viewing angle, 20X optical zoom with 60.04 viewing angle and 30X optical zoom with 58.1 viewing angle.

Flexible Connections: The BG-ADAMO-JR supports HDMI, SDI, USB 2.0, USB 3.0 and LAN connections. It also supports IP streaming, offering flexible workflow options for users.

Smooth Video and Audio Processing: The BG-ADAMO-JR offers a smooth and impressively clear viewing experience. It uses advanced video and audio compression techniques to ensure the best quality content. Additionally, advanced auto focus technology allows the camera to autofocus stably, swiftly, and precisely.

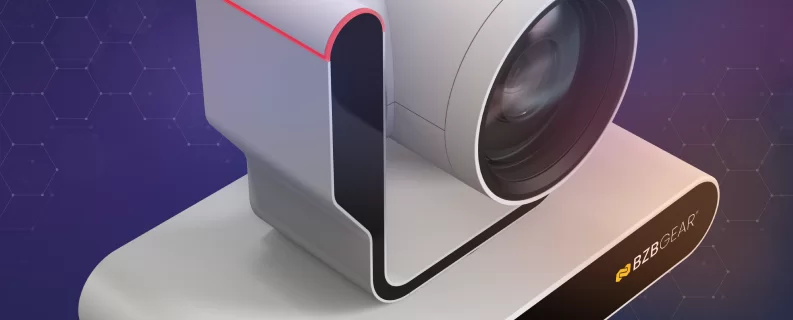

Innovative Design

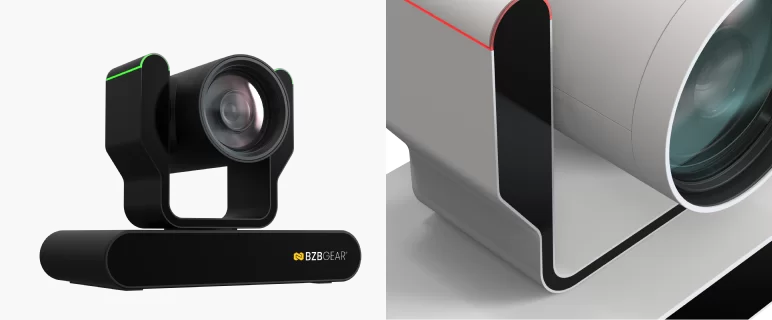

Available in either classic white or black finishes, the chassis of the BG-ADAMO is designed to be as functional and attractive as its formidable feature set. The high-stability substructure provides a solid foundation for the precision lens delivering full HD resolution video at 60fps. Eliminating the need for bulky external accessories, the control arms feature distinctive built-in tally lights that illuminate either green or red with 360-degree visibility.

Extensive Control Options

RS Communication Protocols: The BG-ADAMO-JR supports RS422 (compatible with RS485) output and RS232 input/output. RS232 supports cascading, making it easy for engineers to operate.

Control Protocols: Support for multiple control protocols include VISCA, PELCO-D, PELCO-P, and auto identification protocol.

Network Protocols: Support for multiple network protocols include ONVIF, GB/T28181, RTSP, RTMP protocols, and supports push mode in RTMP to easily link with streaming media servers. Plus, it supports RTP multicast mode and network full command VISCA control protocols.

BZBGEAR Camera Control Software: BZBGEAR offers a free control software available for Windows, Mac and iOS.

Additionally, this full HD PTZ camera will enable users to set up to 255 presets (10 can be set via remote control).




The auto-tracking technology uses the latest human detection AI algorithms to exhibit unparalleled tracking speed and accuracy. This monocular tracking method uses only one camera and one lens to easily detect and capture human forms and moving objects in seconds.

The auto tracking is presented in two modes: Presenter Tracking and Zone Tracking. Presenter Tracking tracks its target everywhere without the need to wear any receiving devices. It has strong locking and anti-interference capabilities giving presenters the flexibility to leave the stage and interact with the audience while continuously being tracked. Zone Tracking can be set to track a specific area providing a clear, smooth representation of what's being shown behind the presenter such as a whiteboard.



Features
1080p
Output up to [email protected] resolution
Tally Lights
Integrated red/green LED tally lights
MicroSD
Record and store up to 1 TB
Zoom
Available with 12x/20x/30x optical zoom lens
Multiple Video Outputs
Choose from SDI, HDMI, USB 3.0, USB 2.0, or IP Streaming
PoE
Data, power, and control over a single category cable

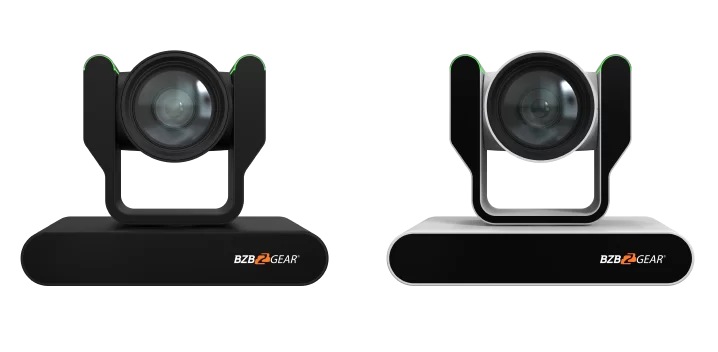

  • Available in white or black
  • Multiple forms of control including RS232, RS422, Web GUI, Control App, or IR Remote
  • Stream to your choice of platform directly from the camera, no capture card needed


Specifications
Camera/Lens
Optical zoom 12X 20X 30X
Focus Range f=4.1 mm ~ 49.2 mm ±5% f=5.05 mm ~ 91.49 mm ±5% f=5.2 mm ~ 148.4 mm ±5%
FOV Horizontal (H): 6.57°(tele) ~ 70.28°(wide)
Vertical (V): 3.76°(tele) ~ 42.06°(wide)
Horizontal (H): 3.45°(tele) ~ 60.04°(wide)
Vertical (V): 1.97°(tele) ~ 35.31°(wide)
Horizontal (H): 2.14°(tele) ~ 58.1°(wide)
Vertical (V): 1.2°(tele) ~ 33.8°(wide)
Iris Value F1.8 ~ F2.68±5% F1.8 ~ F2.9±5% F1.3 ~ F4.8±5%
Image Sensor 1/2.8 inch SONY CMOS sensor 1/2.8 inch SONY CMOS sensor 1/2.8 inch SONY CMOS sensor
Effective Pixels 2.07 Megapixels 16:9
Video Signal HDMI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94;
SDI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
USB2.0:
MJPG: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
H264: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
YUY2: 800*448 /720*480P25; 640*360 /432*240P30
NV12: 800*448P25; 640*480 /640*360 /432*240P30
USB3.0:
YUY2: 1920*1080P30/25; 1280*720P60/50/30/25; 960*540 /800*600P30; 720*576P50; 720*480P60; 640*480P30;
Minimum Illumination 0.05Lux (F1.8, AGC ON)
DNR 3D
White Balance Auto / Manual / One-Push / Specified Color Temperature
Focus Mode Auto / Manual / One-Push
Exposure Mode Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority
Iris Value F1.8 ~ F11, CLOSE
Shutter Speed 1/25 ~ 1/10000
BLC On/Off
Dynamic Range Off / Dynamic Level Adjustment
Video Adjustment Brightness, Hue, Saturation, Contrast, Sharpness, WB Mode
SNR ≥50dB
Interface Parameters
Interface HDMI, SDI, LAN (POE), USB 2.0, A-IN, USB 3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Power Switch
Video Compression Format LAN: H.264, H.265
USB 2.0: MJPG, H264, H265, YUY2, NV12
USB 3.0: YUY2
Audio Input Dual channel 3.5mm line input
Audio Output HDMI, SDI, LAN
Audio Compression Format AAC
Network Jack 10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output
Network Protocols RTSP, RTMP, ONVIF, GB/T28181; support network VISCA control protocol
Control Jack RS232-IN, RS232-OUT, RS422 compatible with RS485
Serial Port Communication VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400
USB Communication Protocol UVC (Video Communication Protocols)
Power Supply HEC3800 Power Outlet (DC12V)
Power Adapter Input: AC110V-AC220V; Output: DC12V/1.5A
Input Voltage DC12V±10%
Input Current <1.5A
Power Consumption <12W
PTZ Parameters

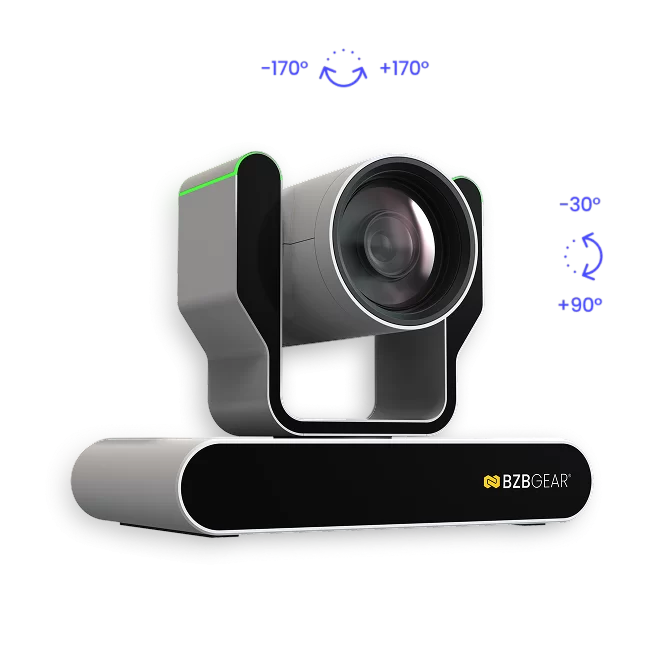

Pan -170° ~ +170°
Tilt -30° ~ +90°
Pan Speed 1.4°/s ~ 100°/s
Tilt Speed 2.9°/s ~ 30°/s
Preset Speed Pan (H): 78.8°/s, Tilt (V): 31.7°/s
Preset Quantity 255 Presets (10 can be set via remote control)
MORE / LESS SPECS


Zoom Selection


Not sure which zoom you need? Our handy calculator will make your choice easy! Simply enter the distance (in feet) from the camera to the area you’re trying to record. It will give you the height and width (in feet) of the coverage area for each lens at full zoom and full wide. Find the one that best matches your intended shot and contact one of our friendly sales associates to place your order. Now go kick your feet up - you’ve earned it!

Optical Zoom Field of View Calculator


Distance from Camera Lens (ft)

Calculate

12x 20x 30x
Zoomed In width
height
0
0
0
0
0
0
Zoomed Out width
height
0
0
0
0
0
0



Ideal fit for:
  • Studio Recordings
  • Houses of Worship
  • Sporting Events
  • Event Businesses
  • Doctors
  • Clergy

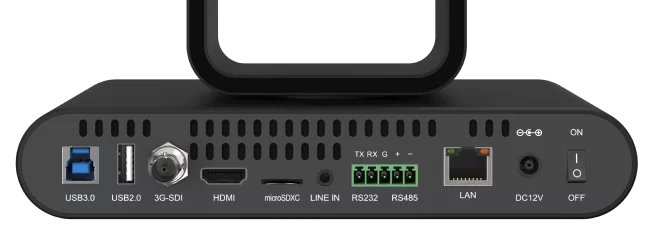

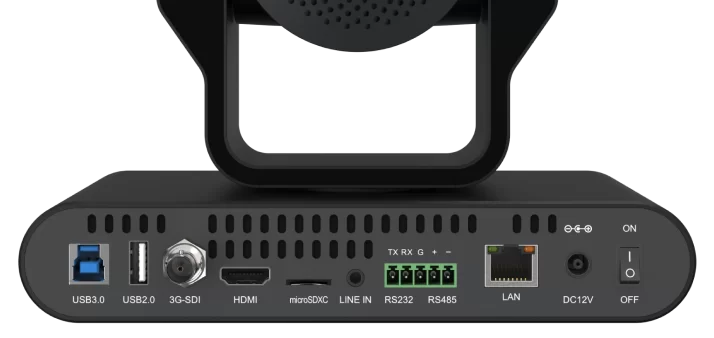

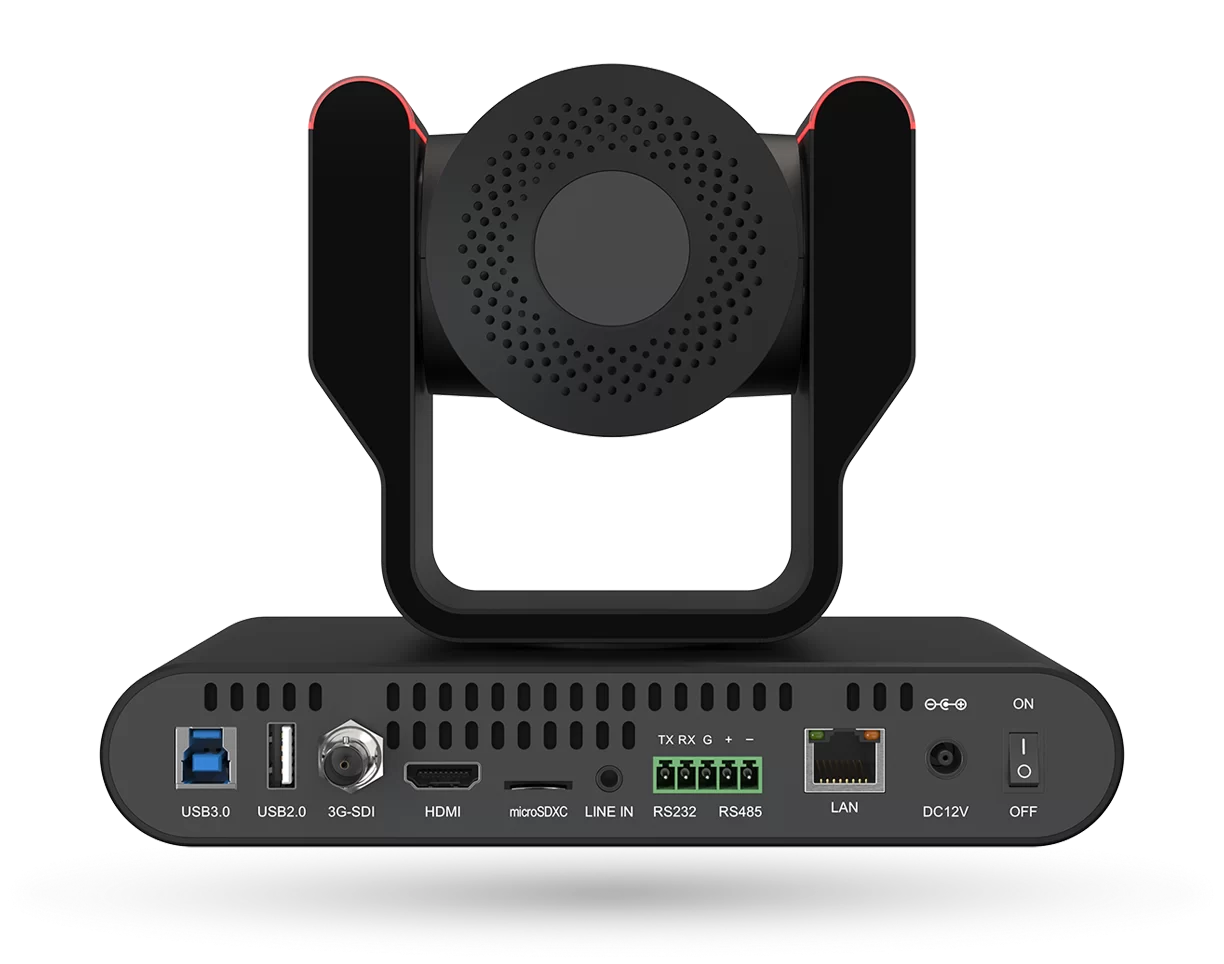

Interface
1.
USB 3.0: Connect USB 3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to [email protected]
2.
USB 2.0: Connect USB 2.0 type A cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to [email protected]
3.
3G-SDI: Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to [email protected] over SDI cabling.
4.
HDMI: Connect to an HDMI device such as a video production switcher or a video display up to [email protected]
5.
MicroSD: Record up to 1 TB.
6.
Audio In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
7.
RS-232, RS-485: Connect cascading RS-232 or RS-485 to control the camera(s) with a joystick controller or control software.
8.
LAN: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
9.
Power: Connect supplied 12V power adapter.


BZBGEAR on iOS
Scan or Tap QR Code
Download the BZBGEAR Camera Control Software
Videos


ADAMO JR Brand New 1080p Auto Tracking PTZ Option From BZBGEAR! | ISE 2023
Everything You Love About the ADAMO 4K but 1080p Instead | BG-ADAMO-JR

×

×

×

×

×

×

×

×

×

×

×

×

×

×
×
×
×
Mounting Ideas
Click the image below to watch a video

Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.





Package Contents
① BG-ADAMO-JR Camera
② Power Adapter
③ RS232 Control Cable
④ USB 2.0 Cable
⑤ USB 3.0 Cable
⑥ Remote Control
⑦ Manual
