Compact PTZ 1080P FHD 10X/20X/30X Camera with HDMI/SDI/USB 3.0/POE

Zoom
SKU: BG-VPTZ-HSU3
MSRP: $1,199.00 – $1,599.00
Status: In Stock
Overview Specifications Interfaces Resources Package contents

Overview

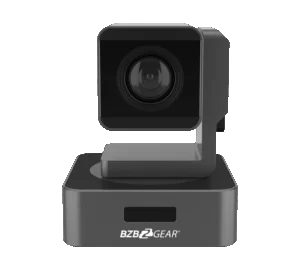

The BG-VPTZ-HSU3 is a compact 1080p HD PTZ camera. Designed with a compact footprint to unobtrusively blend into offices and classrooms, this performer is equipped with simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs.

Connectivity and Features

The BG-VPTZ-HSU3 camera can capture images at resolutions up to 1080p@60Hz. With simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs this camera can integrate seamlessly with nearly any workflow. Available with 10X, 20X, or 30X optical zoom lenses, the BG-VPTZ-HSU3 produces detailed close-ups in even large venues.

The 3.5mm audio input jack allows the BG-VPTZ-HSU3 to embed audio directly into the video stream. The camera supports H.264 and H.265 video compression formats, and can broadcast in ONVIF, RTSP, and RTMP IP streaming protocols.

Control

This camera can be controlled using RS-232, RS-485, LAN, or IR remote control. There are various protocols supported including IP VISCA, ONVIF, and PELCO-P/D. There are 255 available preset positions that can be stored internally, with nine of those presets being available via IR remote control.

Features

  • Broadcast Quality Video
    Fluid motion, clear image, and accurate colors
  • Latest Streaming Tech
    Supports H.264/H.265 video compression and RTMP(S) network protocol for Youtube/Facebook
    live streaming
  • Simultaneous Video Outputs
    3G-SDI / HDMI / USB3.0 / IP Streaming
  • Power over Ethernet
    Delivers power directly over an ethernet cable from your PoE enabled network switch
  • Audio Embedding
    Connect audio mixer output or powered mic and embed audio into your live stream
  • Flexible installation options
    Supports ceiling, wall, tripod, or desk mount installations
  • Multiple control options
  • Smart menu & WebGUI Interface
  • Includes 2D/3D noise reduction functions
  • All-aluminum high-stability chassis
  • Resolutions up to 1080p@60Hz
  • Small form factor for tight installs
  • AAC audio encoding support
  • Advanced video image processing
  • Main and sub streams available

Compatible with:

Videos

GaETC 2022 | Budget Friendly Education Based PTZ the BZBGEAR VPTZ
GaETC 2022 | Budget Friendly Education Based PTZ the BZBGEAR VPTZ
Seamless Content Capture with 4x2 Multiviewer Presentation Switcher Scaler | NAB Show 2022
Seamless Content Capture with 4x2 Multiviewer Presentation Switcher Scaler | NAB Show 2022
Command and Control Various BZBGEAR PTZ Cameras via Newly Updated BG-PTZ-Control App (Full Overview)
Command and Control Various BZBGEAR PTZ Cameras via Newly Updated BG-PTZ-Control App (Full Overview)
How To Network the BG-VPTZ-HSU3 PTZ Camera Using BZBGEAR's Upgraded WebGUI
How To Network the BG-VPTZ-HSU3 PTZ Camera Using BZBGEAR's Upgraded WebGUI
BZBGEAR BG-VPTZ-HSU3 PTZ Camera with USB 3.0, 3G-SDI, HDMI, and IP for Live Streaming
BZBGEAR BG-VPTZ-HSU3 PTZ Camera with USB 3.0, 3G-SDI, HDMI, and IP for Live Streaming
Top 3 BZBGEAR PTZ Cameras Comparison
Top 3 BZBGEAR PTZ Cameras Comparison
Setting Up an IP Address for a PTZ Camera on the LAN Using Mac - BZBGEAR BG-VPTZ-HSU3
Setting Up an IP Address for a PTZ Camera on the LAN Using Mac - BZBGEAR BG-VPTZ-HSU3
How to Connect a PTZ Camera to a Joystick Using Serial Control - RS232, RS422, RS485
How to Connect a PTZ Camera to a Joystick Using Serial Control - RS232, RS422, RS485
How To Network Your BZBGEAR PTZ Camera - BG-VPTZ-HSU3
How To Network Your BZBGEAR PTZ Camera - BG-VPTZ-HSU3
How BZBGEAR PTZ Camera Picture Quality Stacks Up
How BZBGEAR PTZ Camera Picture Quality Stacks Up
BZBGEAR BG-VPTZ-HSU3 PTZ Camera - USB 3.0, 3G-SDI, HDMI, and IP Live Streaming
BZBGEAR BG-VPTZ-HSU3 PTZ Camera - USB 3.0, 3G-SDI, HDMI, and IP Live Streaming
Firmware Update for BZBGEAR's BG-VPTZ-10HSU3 Series Live Streaming PTZ Cameras
Firmware Update for BZBGEAR's BG-VPTZ-10HSU3 Series Live Streaming PTZ Cameras
How to Network a PTZ Camera | BG-VPTZ-HSU3 IP Setup Live Stream Video over LAN
How to Network a PTZ Camera | BG-VPTZ-HSU3 IP Setup Live Stream Video over LAN
BZBGEAR PTZ Camera for Live Streaming Outputs HDMI, 3G-SDI, USB 3.0, and IP Simultaneously
BZBGEAR PTZ Camera for Live Streaming Outputs HDMI, 3G-SDI, USB 3.0, and IP Simultaneously
How to Mount a PTZ Camera | BZBGEAR BG-VPTZ-HSU Series
How to Mount a PTZ Camera | BZBGEAR BG-VPTZ-HSU Series

Mounting Ideas

Click the image below to watch a video
Play
Play
Play

Tech Specifications

Camera Specs
Image Sensor 1/2.7″ Exmor CMOS (10X), 1/2.8″ Exmor CMOS (20X), 1/2.8″ Exmor CMOS (30X)
Frame Rate 1080p@60/ 59.94 / 50 /30 / 29.97 /25
1080i@60/59.94 / 50 / 30 / 29.97 / 25
720p@60/50/ 30 / 25, 480i@60, 576i@50
Zoom Optical - 10X/20X/30X
F-number 1.6(W)-3.5(T) (10X), 1.6(W)-3.5(T) (20X), 1.3(W)-4.8(T) (30X)
Focus f=5.1mm~51mm (10X), f=4.7mm~94.0mm (20X), f=5.2mm~148.4mm (30X)
Effective Pixels 2.70 Megapixel (10X), 2.38 Megapixel (20X), 2.70 Megapixel (30X)
View Angle (H) 72° (10X), 65° (20X), 65.4° (30X)
Min Illumination 0.5lux (F 1.8, AGG ON)
Shutter Speed 1 to 1/10000s
Image Adjustment Vertical Flip & Mirror Supported
Input/Output Interface
Video Output HDMI, 3G-SDI, USB 3.0 (USB 2.0 backwards compatible port only), RJ45 Network (10/100M Adaptive Ethernet ports)
Audio Input 3.5mm audio interface, Line In
Communication interface 1X RS232 IN, 1X RS232 Out, 1X RJ45, RS485
Power Connection DC IN 12V, Power over Ethernet
Mechanical
Pan/Tilt Rotation ±178°, Tilt Rotation Angle -30°~ +90°
Pan 90°/s; Tilt: 90°/s
Presets Max 255 Presets ( Remote 9 Presets)
Network Protocol VISCA, PELCO P/D, ONVIF Protocol
IPC Video Features
Video standard H.265/H.264/MJPEG
Video Stream Main stream, Sub stream
Main stream resolution 1920x1080, 1280x720
Sub stream resolution 720x480, 320x240
Bit Rate 128K, 256K, 384K, 512K, 768K, 1024K, 1536K, 2048K, 3072K, 4096K, 5120K, 6144K, 8192K
Bit Rate Type Variable rate, Fixed rate
Maximum Frame 60fps
Audio encode standard G.711, G.722, G.722.1, G.728, G.722.1C AAC
Audio stream rate 96K, 128K, 256K
Supported protocols TCP/IP, RTSP, RTMP
Generic
Dimensions (L*W*H) 4.7in x 4.7in x 5.7in / 120mm x 120mm x 145mm
Gross Weight 3.5 lbs [1.6kg]
Operating Temperature 14°F ~ 122°F / -10°C ~ 50°C
Max Consumption 12W DC12V@1A
Attention: USB 3.0 connection port on BG-VPTZ-10HSU3 camera is only compatible with USB 3.0 port on either PC or MAC when connected directly and only compatible with up to 10ft USB 3.0 cable due to a limitation in the chipset. This camera will not work with any USB 3.0 peripherals. It doesn't affect BG-VPTZ-20HSU3 or BG-VPTZ-30HSU3 models.
Working Environment Indoor Only

PACKAGE CONTENTS

  • 1x BG-VPTZ-HSU3 Camera
  • 1x IR Remote Controller
  • 1x RS-232 to DB 9pin cable
  • 1x 12V/ 2.0 A DC Power Adapter
  • 1x User Manual

Interfaces

  1. Power: Connect supplied 12V power adapter.
  2. COM: Connect cascading RS-232 to control the camera(s) with a joystick controller or control software.
  3. LAN: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
  4. SDI: Connect to an SDI device such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) up to 330ft away over SDI cabling.
  5. HDMI: Connect to an HDMI device such as a video production switcher or a video display up to 1080p@60Hz.
  6. USB: Connect USB3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom.
  7. A-In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
