Overview

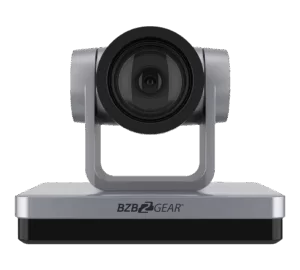

Meet the Universal 1080P FHD PTZ HDMI/SDI/USB 3.0 RS232/485 Live Streaming Camera - BG-UPTZ. This camera offers 12x, 20x, and 30x zoom options, delivering outstanding 1080p image quality through a 1/2.8" Sony CMOS sensor. With simultaneous HDMI, 3G-SDI, and USB 3.0 outputs, it seamlessly integrates into various workflows. It supports popular video protocols like ONVIF, RTSP, and RTMP, allowing compatibility with video production software and direct streaming to platforms like YouTube and Twitch. For enhanced audio/video over IP streaming, the BG-UPTZ supports NDI|HX2 with the BG-UPTZ-ND model.
Offering IR remote, IP control, and RS232/485 serial connections, it allows precise control and up to 255 camera presets. The BG-UPTZ also supports SRT for reliable internet streaming and comes in black, silver, or white. With superb auto focus and multiple output options, it's the ultimate choice for streaming and recording needs. You can choose your next ptz camera for live streaming from our extensive catalog.
What is NDI?
Network Device Interface (NDI) is a high performance AV over IP standard that allows anyone to use real time, ultra low latency video on existing IP video networks. The NDI open protocol enables professionals to share video through a local area network (LAN) with video-compatible devices. With a single ethernet cable connection, professionals can merge all stages of production from start to finish. That way, all production tasks and processes will be united, so accomplishing a creative vision will be simple. With the NDI 5.5 tool-kit, users will also be able to connect any audio device as an NDI source with NDI’s Audio Direct tool. This adds audio over IP to NDI’s revolution.
What is NDI|HX2?
NDI|HX2 is an updated version of NDI|HX1. NDI|HX2 also compresses the bandwidth, but is more efficient than NDI|HX1. With compressed bandwidth, users can have more devices on their LAN without running into latency issues. NDI|HX2 provides good quality output, low bandwidth and medium latency. The main difference compared to NDI|HX1 is that HX2 is truly a native NDI stream - all the way from the source device to the destination. This means it is a 'cleaner' implementation than HX1 and can potentially be more reliable, provide lower latency and give a more flexible connection which shares all the usual features of NDI. Learn more about NDI technology
Benefits of NDI Technology for Your Streaming Project
NDI technology presents a multitude of advantages for live streaming, encompassing high-quality video and audio, minimal latency, scalability, and seamless integration with your current hardware and software setup. It has emerged as a favored option among broadcasters and content creators seeking to provide top-notch professional live streams.
Connectivity
The BG-UPTZ's connectivity options are second to none. Its 1/2.8” Sony CMOS sensor provides crystal-clear images at resolutions of up to 1080p@60Hz, ensuring that your content looks stunning. What sets this camera apart is its versatile zoom choices. With 12X, 20X, and 30X zoom options, it adapts effortlessly to any venue's size, allowing you to capture all the details, whether you're in a small studio or a large auditorium.
Versatility doesn't stop at image quality. The BG-UPTZ is equipped with simultaneous HDMI, 3G-SDI, and USB 3.0 outputs, making it compatible with various setups and video production equipment. This flexibility means you can use it in a live production environment, connect it to a computer for streaming, or even record high-quality video directly to storage devices.
Compatibility is a top priority with the BG-UPTZ. It supports popular video protocols such as ONVIF, RTSP, and RTMP. This means that whether you're using professional video production software or looking to stream directly to popular platforms like YouTube, Twitch, or Facebook, the BG-UPTZ seamlessly integrates with your workflow. Additionally, the inclusion of a 3.5mm input jack allows for external microphones and audio systems to be effortlessly embedded into your video stream, ensuring that your audience hears your message loud and clear.
Control
Precision and control are key features of the BG-UPTZ. An onboard dial enables users to lock the output resolution, preventing potential resolution discrepancies before they occur, giving you the peace of mind that your content will look consistently professional.
Control options are abundant. The BG-UPTZ can be managed via an IR remote, IP control (IP VISCA, ONVIF), or through a user-friendly browser interface. For advanced users, the RS232 and RS485 serial connections support VISCA, PELCO-D, and PELCO-P protocols, allowing for precise control and customization of your camera's settings. You can store up to 255 camera preset positions, and with the IR remote control, ten of these presets are easily accessible, making it simple to switch between your preferred angles and shots.
Moreover, this camera supports Secure Reliable Transport (SRT) technology, ensuring high-quality, low-latency video can be reliably sent over the internet. This feature is invaluable for those looking to stream with minimal delay and top-notch video quality.
Features
-
ZoomAvailable in 12x/20x/30x optical zoom
+10x digital -
ControlIP, IR, and cascadable RS232/485 (VICSA/Pelco) + 255 preset positions -
Multiple Video OutputsHDMI, 3G-SDI, USB 3.0, and IP-streaming working simultaneously -
Latest Streaming TechSupports H.264/H.265 video compression and RTMP(S) -
Superb Auto FocusAuto focusing algorithms resulting in quick, accurate, and stable focus -
Power over EthernetDelivers power directly over an ethernet cable
- 1/2.8" 2.07MP low-noise CMOS
- Quiet, high-quality step motor
- FOV between 56° & 72.5° (dependent on zoom)
- Resolutions up to 1080p@60Hz
- Network protocols ONVIF, RTSP, RTMP / RTMP(S)
- 3.5mm stereo audio input
- Shutter speed 1/1~1/10,000s
- Available in white, silver, or black color
- Supports NDI|HX2
Enhanced Optical Zoom Capability
Experience exceptional clarity and precision with our versatile optical zoom lens, offering magnification options of 12X, 20X, and 30X. Whether capturing mid-range scenes or close-up details, achieve stunning shots with ease.
Flexible Video Output
Select from a range of output options including HDMI, USB 3.0, or SDI, or harness the power of all three simultaneously to suit your streaming needs perfectly.
Seamless Audio Integration
Effortlessly embed audio into your streams using the convenient line-in port situated on the camera's rear, ensuring crisp sound accompanies your high-quality visuals.
Efficient Power and Connectivity
Utilize Power Over Ethernet (PoE) to supply both power and network connectivity via a single Ethernet cable, simplifying setup and eliminating cable clutter for a streamlined operation.

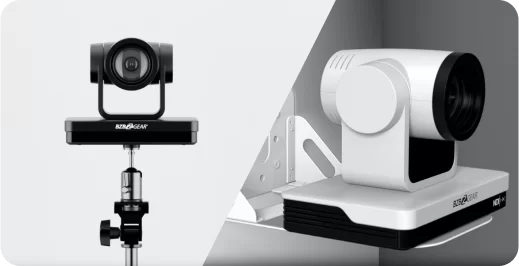

Versatile Mounting Options

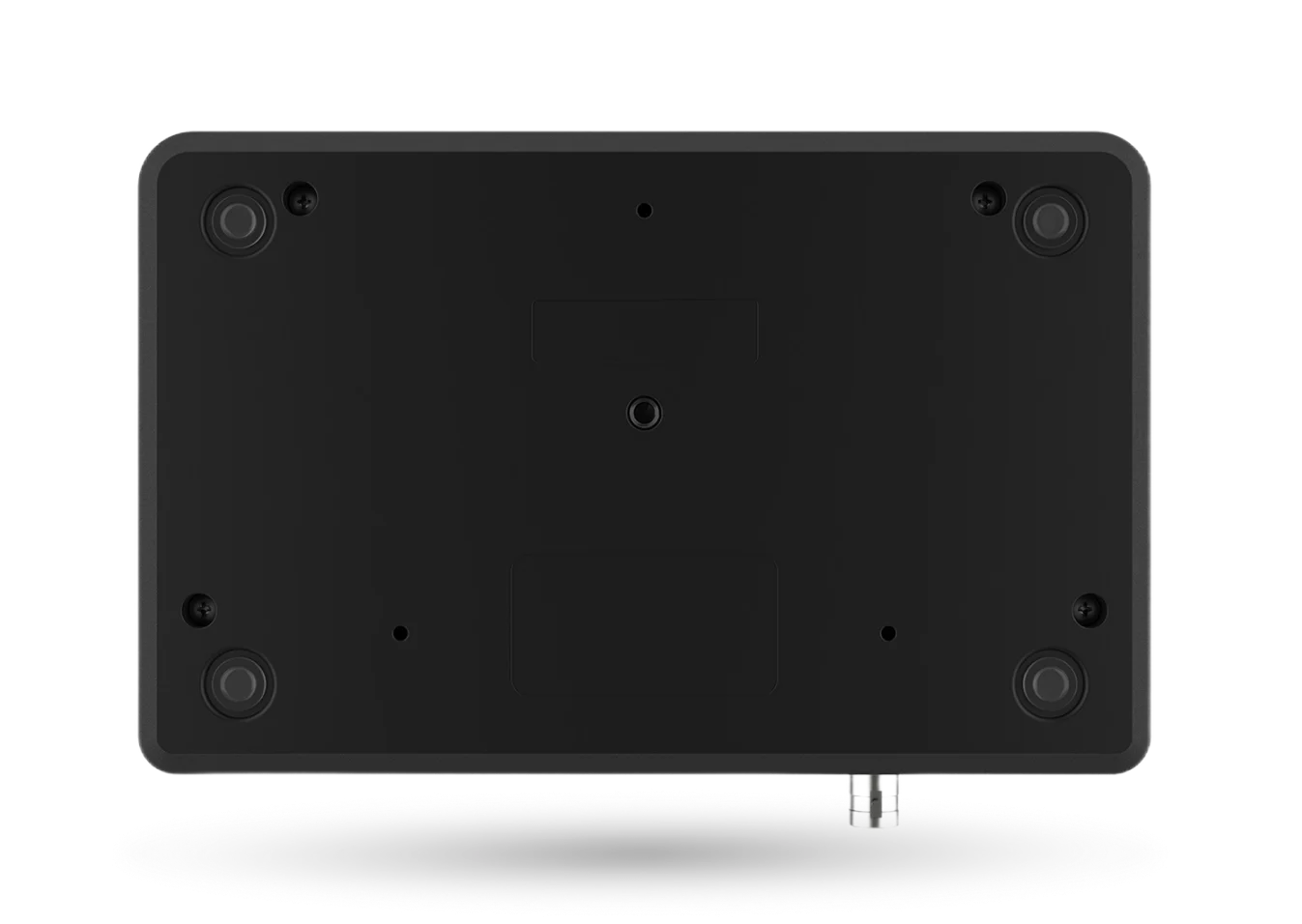

Easily mount the camera onto a tripod, wall, or ceiling with the secure mounting panel located on the bottom, providing stability and flexibility for diverse filming setups.

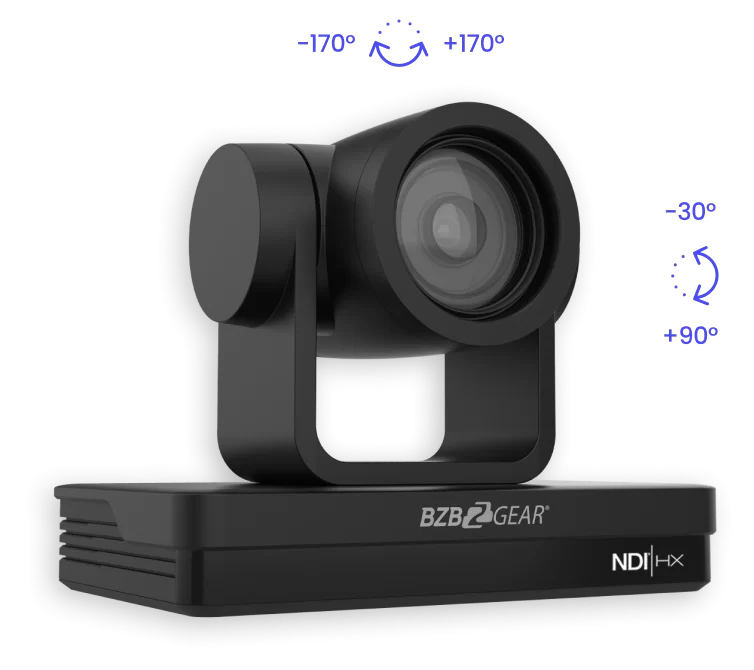

Do more with the power of PTZ
- Wide Range of Motion: Pan, tilt, and zoom capabilities allow coverage of a larger area.
- Preset Positions: Easily move and focus on specific areas with up to 255 customizable preset options.
- Cost-Effective: Substitute multiple stationary cameras with a single PTZ camera to save on costs.
Multiple Output and Streaming Options. The BG-UPTZ is designed for all your live streaming needs, providing seamless IP streaming and simultaneous video output via HDMI, SDI, and USB. Its versatile functionality allows you to broadcast live online while delivering high-quality local video output, enhancing your streaming flexibility.
Flexible Audio and Video Support. The BG-UPTZ models include line-in ports, providing seamless connectivity for audio mixers, powered microphones, or any 3.5mm audio source.
Multiple Control Options
- IR Control: The BG-UPTZ comes with a complimentary IR remote for easy camera and system menu control.
- Joystick Controller: Supports multiple control protocols and is compatible with various PTZ joystick controllers. Explore our available options!
- Web GUI: Access a secure, password-protected web interface for comprehensive camera and settings control.
- BZBGEAR Pro Control App: Enjoy free PTZ camera control with our app, available on Windows, Mac, iOS, and Android.
- Additional Options: Features serial control, StreamDeck compatibility, and more control options coming soon!
Universal Compatibility. The BG-UPTZ is designed for universal compatibility, ensuring seamless integration with existing systems and versatility across a wide range of applications.

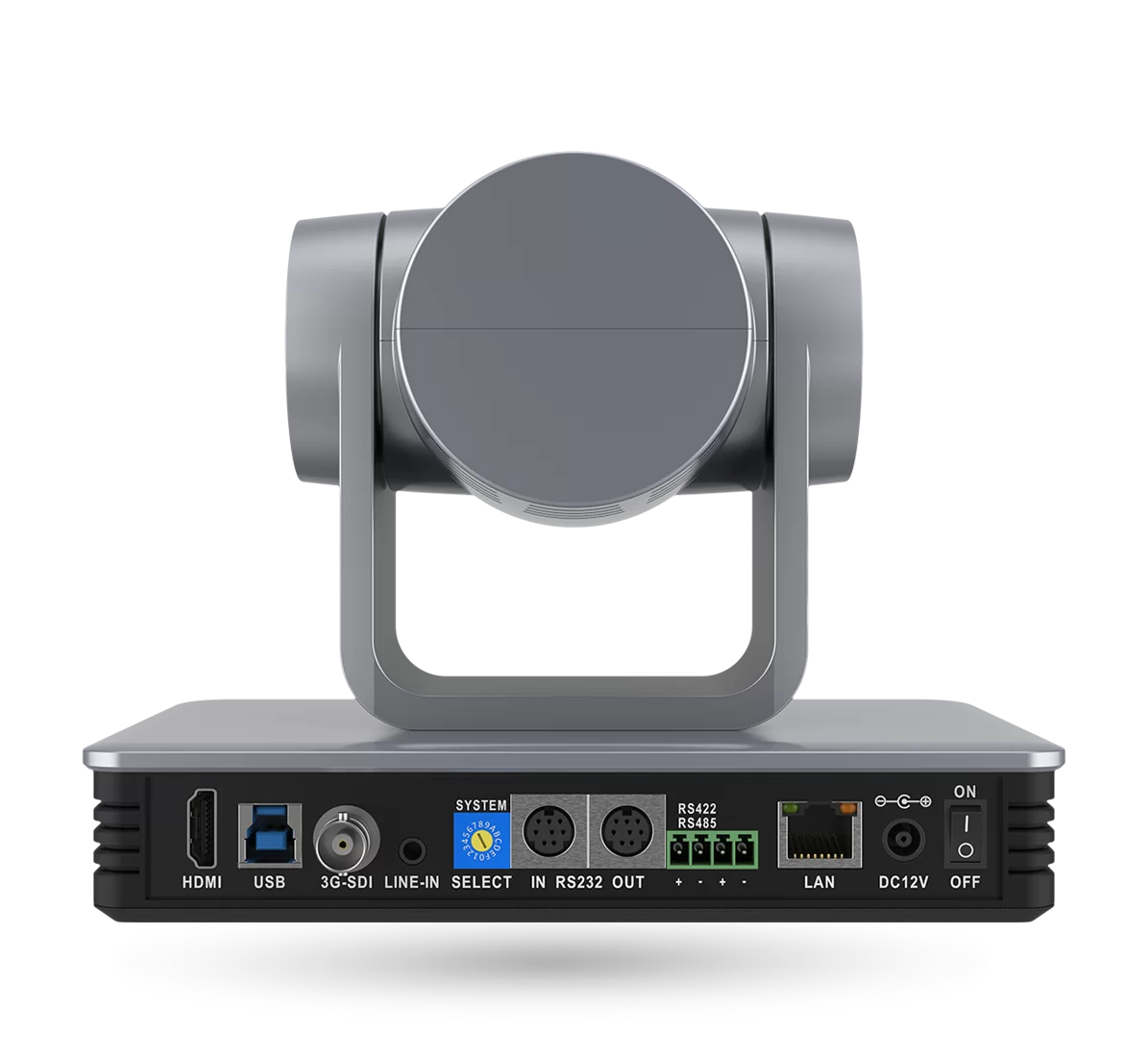

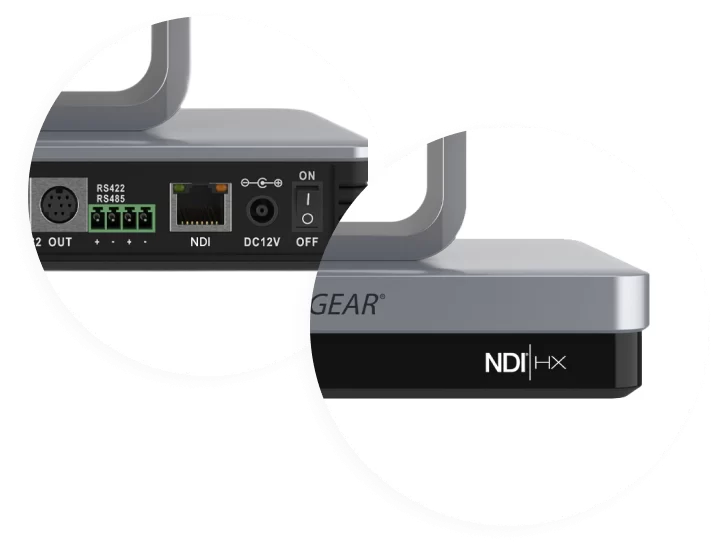

A Port for Every Situation
- USB Output: Equipped with USB 3.0 and 2.0 ports for direct video output to PCs, capture cards, and video switchers.
- HDMI & SDI Output: Includes 3G-SDI and HDMI ports for seamless local monitoring and integration with AV equipment.
- Ethernet (PoE) Port: Features a PoE-enabled Ethernet port for power and network connectivity, supporting RTSP, RTMP, SRT, and more for IP streaming.
NDI HX2. Revolutionizing video transmission over IP networks, NDI HX2 offers superior efficiency, scalability, and exceptional image quality. With better compression than standard formats, it reduces bandwidth needs, allowing more devices on a LAN without latency issues. True native NDI stream capability ensures lower latency, increased reliability, and greater flexibility, making NDI HX2 perfect for live broadcasting, corporate webinars, educational distance learning, and remote productions.
Flexible Optical Zoom Options
- The BG-UPTZ camera offers flexible zoom options with a choice of 12X, 20X, or 30X optical zoom lenses, catering to various requirements.
- To find the perfect lens for your space, consult with a BZBGEAR project design expert for free. Our experts will help you select the ideal lens based on your environment's dimensions, ensuring optimal performance and coverage.

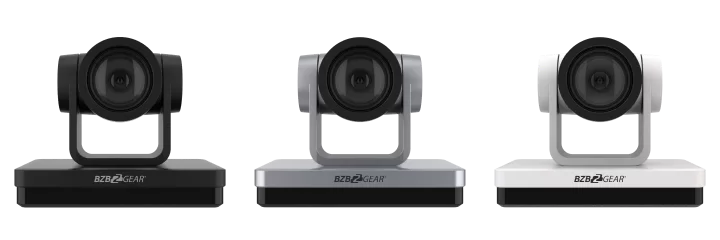

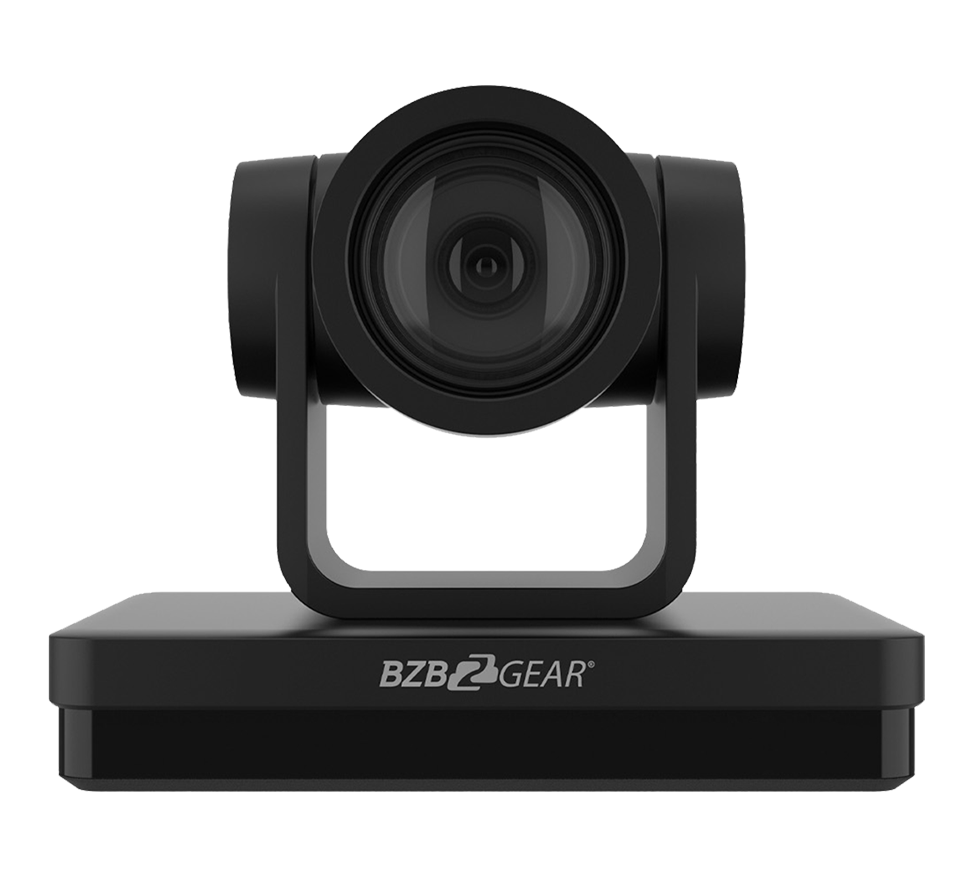

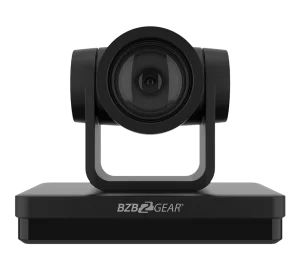

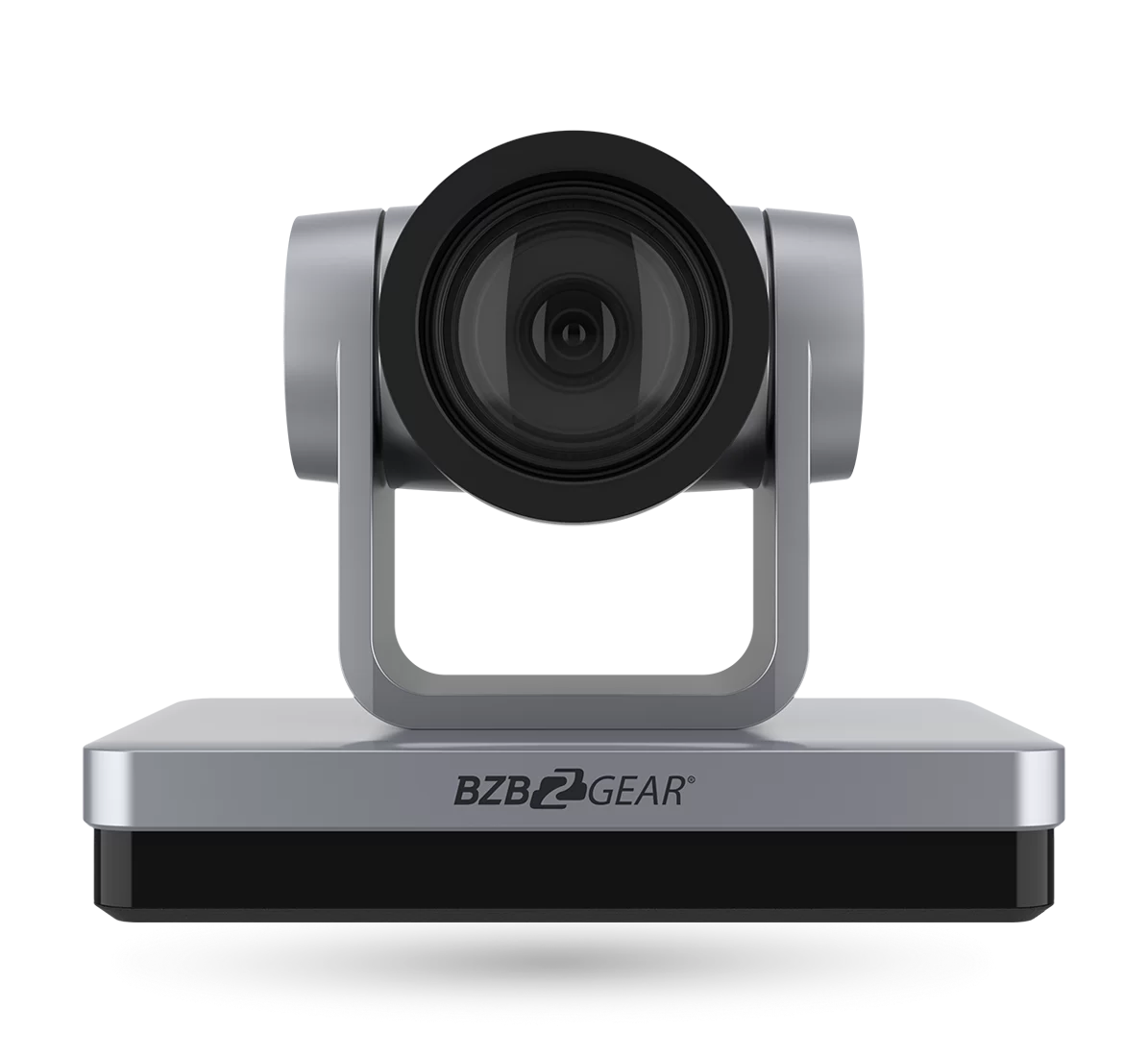

Choose Your Style. The BG-UPTZ is available in three elegant finishes: Black, White, and Silver. Select the camera that seamlessly blends with your environment and complements your space.
Download our app now and effortlessly manage multiple cameras wirelessly!
Compatible with:
Videos
Mounting Ideas
Popular Camera Systems

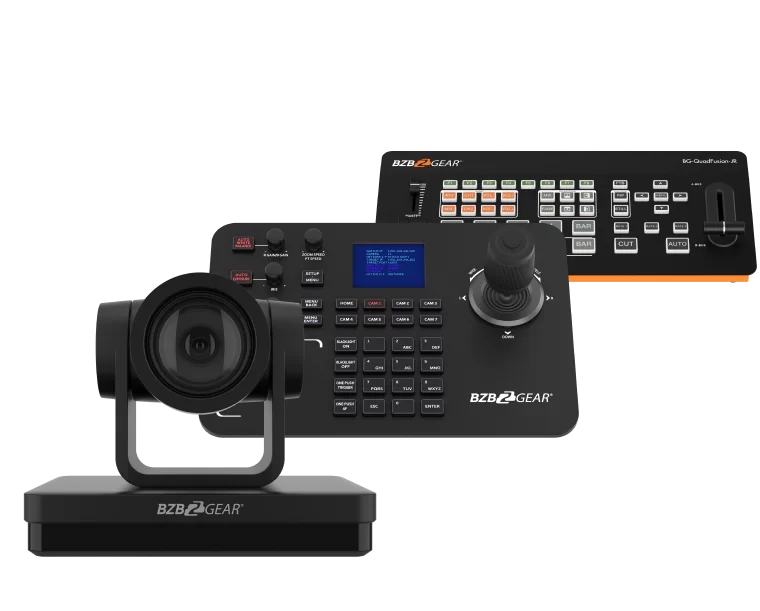

Large-Scale Live Streaming: Our setup, featuring four BG-UPTZ cameras, a 4-channel HD video production switcher, and the BG-Commander, delivers professional-grade HD audio and video from four angles. It ensures seamless control and exceptional quality for expansive live streaming events.

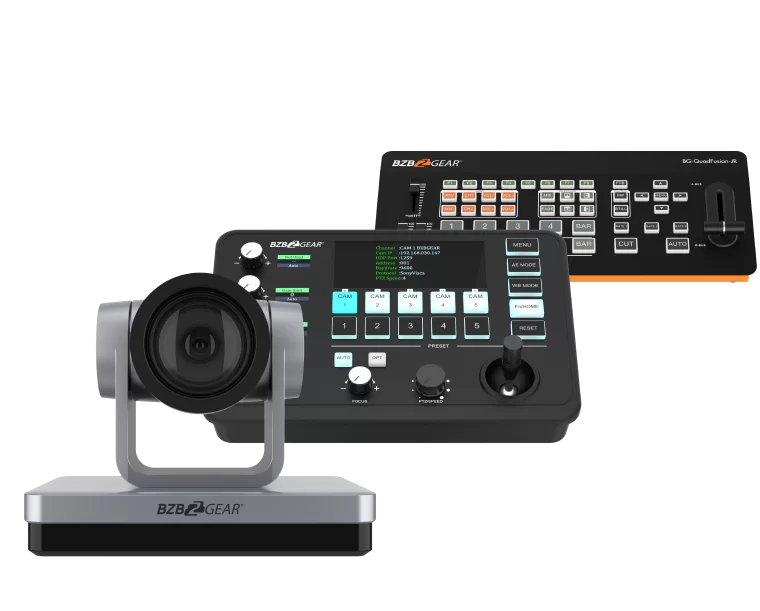

Small-Scale Live Streaming: Ideal for smaller events and venues, our setup featuring two BG-UPTZ cameras, a compact PTZ controller, and an HD video production switcher provides professional-grade audio and video from two angles. This efficient kit offers full control capabilities while saving valuable space.

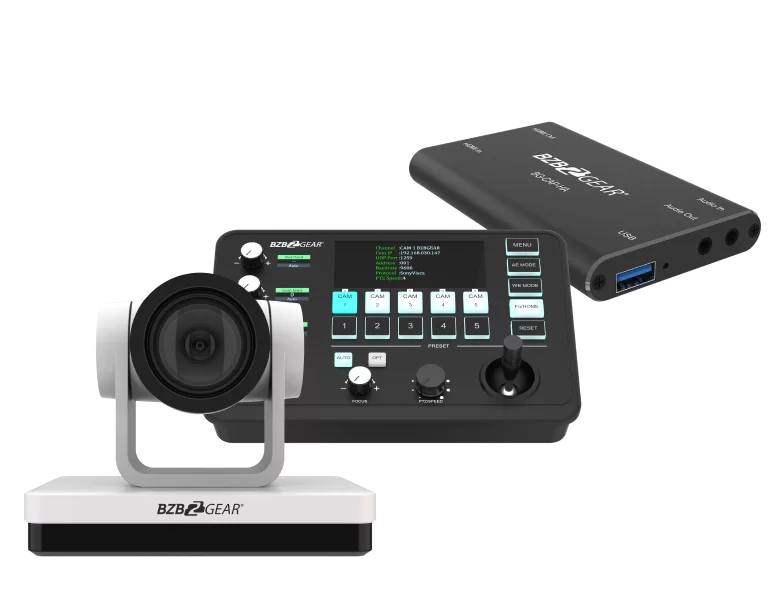

Content Creator Kit: Our BG-UPTZ, combined with a compact PTZ controller and an HD audio/video capture card, offers content creators a streamlined FHD solution. This kit delivers easy control, high-quality streaming, and seamless audio embedding for external sources, ensuring professional-grade content creation.
Tech Specifications
| BG-UPTZ-12XHSU | BG-UPTZ-20XHSU | BG-UPTZ-30XHSU | |
| Lens | 12X Optical zoom | 20X Optical zoom | 30X Optical zoom |
| Horizontal View Angle | 72.5°(W)~6.3°(T) | 54.7°(W)~3.3°(T) | 65.1°(W)~2.34°(T) |
| Image Sensor | 1/2.8" Progressive CMOS | ||
| Effective Pixels | 2.07 Megapixels (16:9) | ||
| Resolution | 1080p@60/50, 1080i@60/50, 1080p@30/25, 720p@60/50 | ||
| Interface | USB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN | ||
| Pan Rotation | 340°(max. speed: 80°/s) | ||
| Tilt Rotation | -30° to +90° (max. speed: 60°/s) | ||
| Focus System | Auto/Manual | ||
| S/N Ratio | ≥50db | ||
| Preset Position | 9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC | ||
| Minimum Illumination | 0.5 Lux (F1.8, AGC ON) | ||
| Exposure Control | Auto/Manual/Priority AE/Exposure Compensation/Bright | ||
| Shutter Speed | 1/1~1/10,000s | ||
| Gain | Auto/Manual | ||
| White Balance | Auto/Manual/ATW/One-click/Indoor/Outdoor | ||
| Image Effect | Full color/black and white/Electronic flip | ||
| Video Output HD | HDMI, 3G-SDI, IP, USB 3.0 | ||
| Control Protocol | RTSP, RTMP, ONVIF, GB/T28181 | ||
| Power | 12V DC | ||
| Power Consumption | Max. 30W (DC 12V) | ||
| Operating Temperature | 32°F ~ 104°F / 0°C ~ +40°C | ||
| Storage Temperature | -4°F ~ 140°F / -20°C ~ +60°C | ||
| Camera Dimensions | (L)7 x (W)4.5 x (H)5.9in [(L)178 x (W)115.5 x (H)150.9mm] | ||
| Weight | 3 lbs [1.38KG] | ||
| Color | Black, Silver, White | ||
| Working Environment | Indoor Only | ||
Resources
PACKAGE CONTENTS
- 1x BZBGEAR BG-UPTZ Camera
- 1x 12V/1.5A Power supply
- 1x RS232 control cable
- 1x IR Remote Control
- 1x User Manual

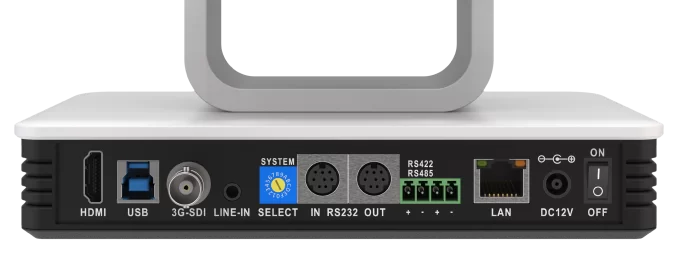

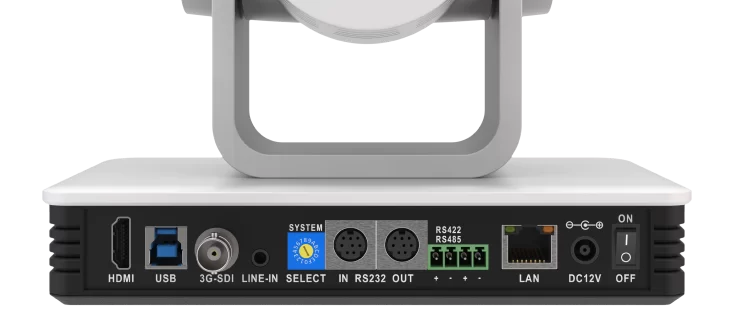

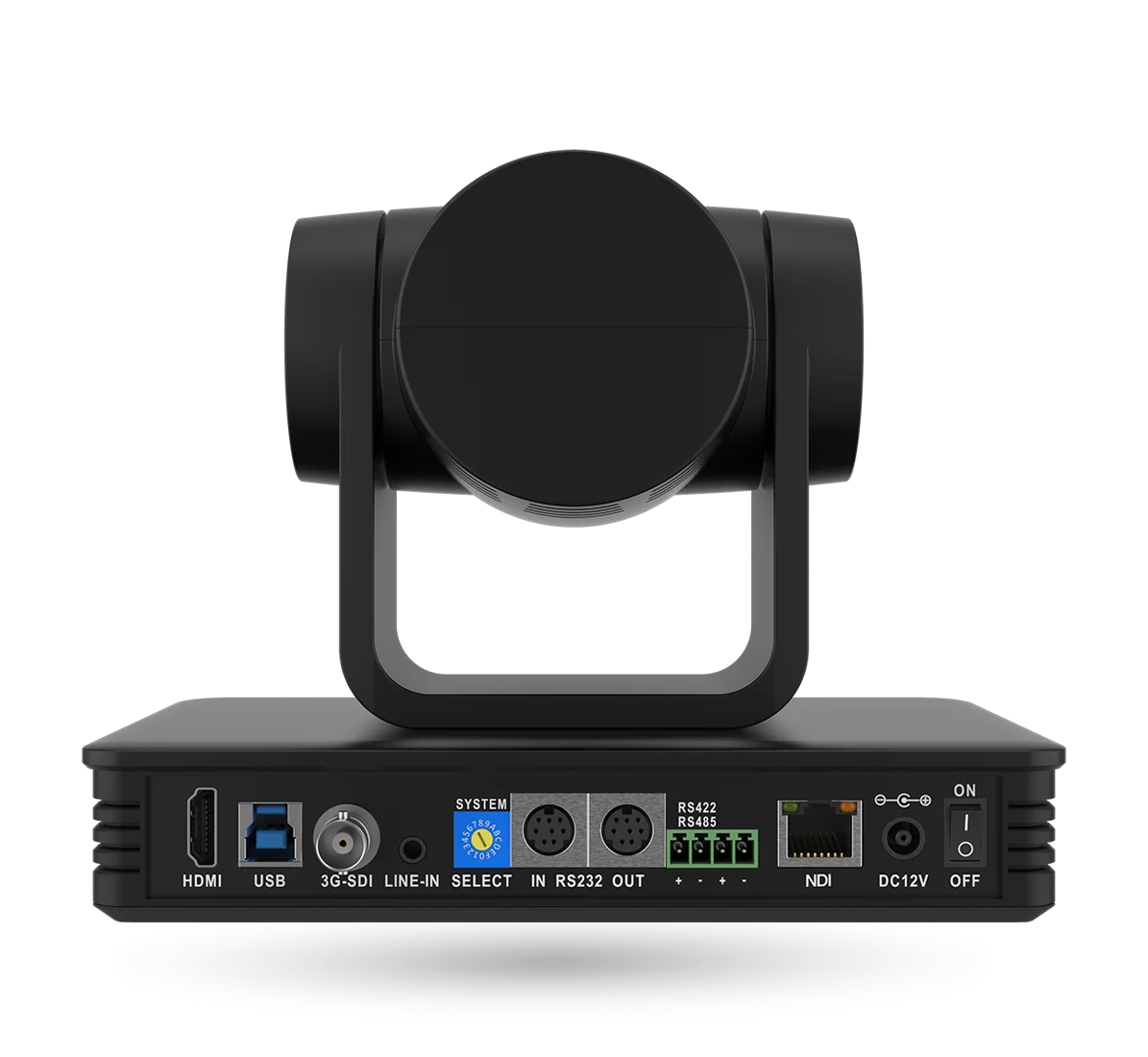

Interfaces
- HDMI: Connect to an HDMI device such as a video production switcher or a video display up to 1080@60Hz.
- USB: Connect USB3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080@60Hz.
- SDI: Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) over SDI cabling.
- Line-In: Stereo audio input for connecting mics and embedding local audio into all video output interfaces.
- System Select: Turn this dial to set desired output resolution. See manual for resolution options.
- RS-232, RS-422/485: Connect cascading RS-232 or RS-422/485 to control the camera(s) with a joystick controller or control software.
- LAN: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
- Power: Connect supplied 12V power adapter.
