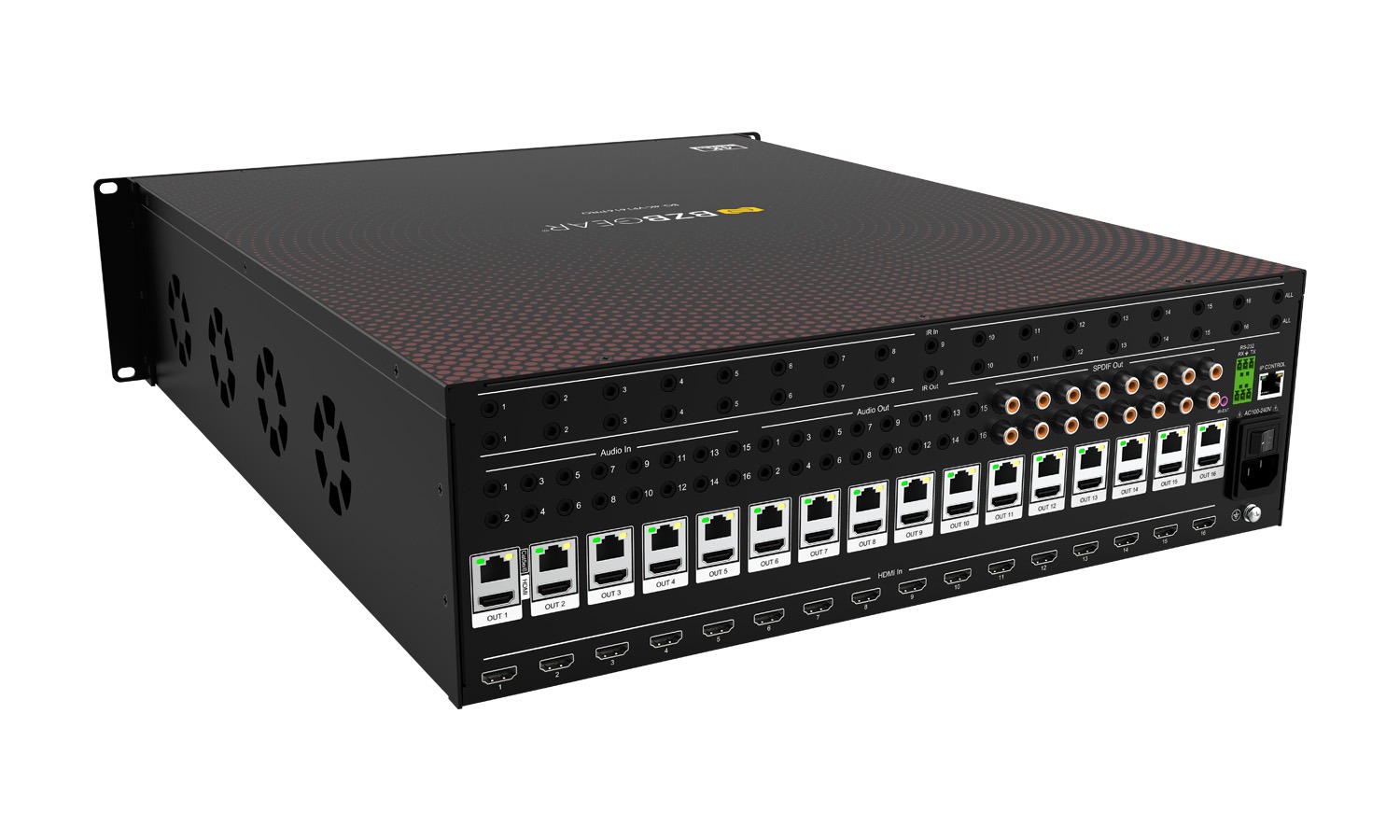

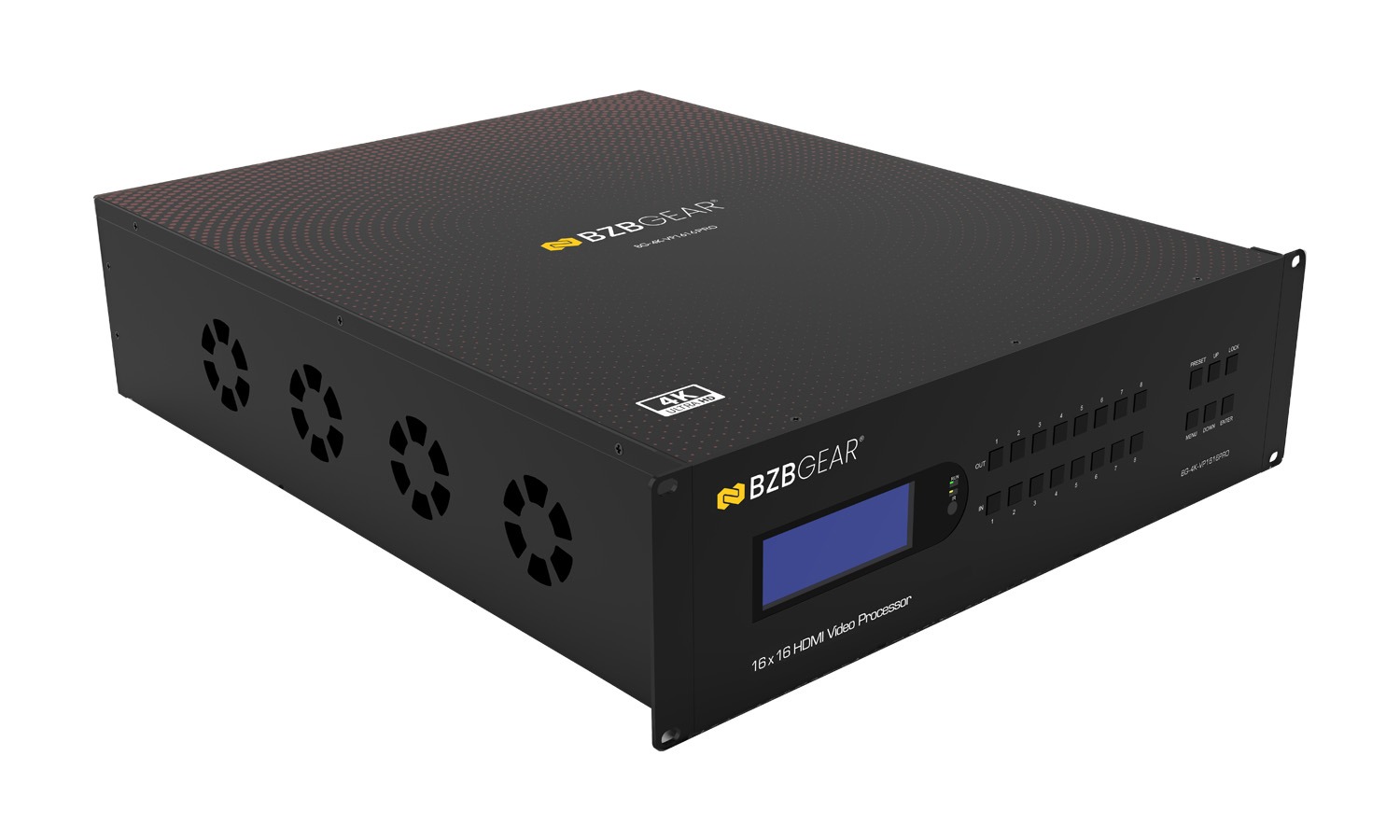

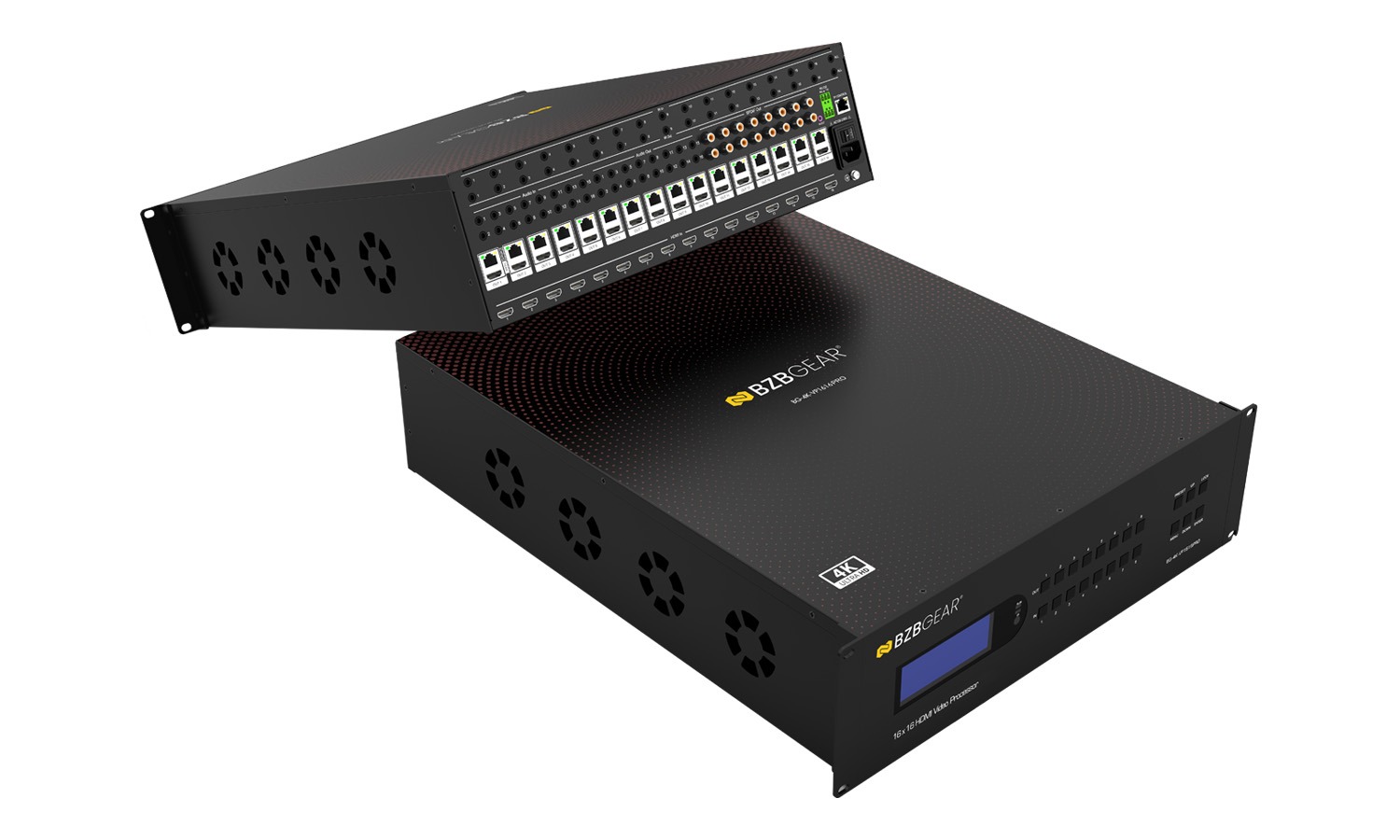

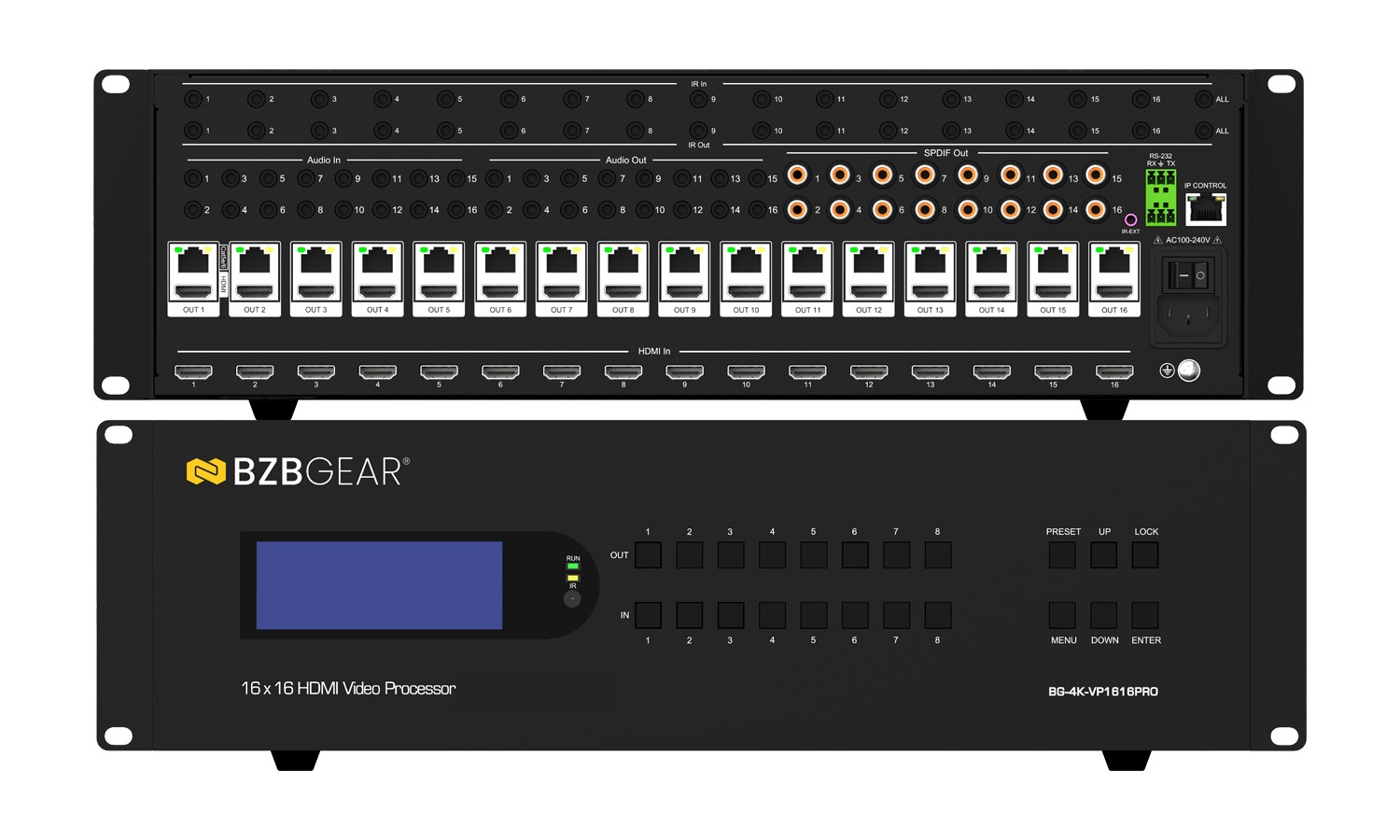

16x16 4K UHD Seamless HDMI Matrix Switcher/Video Wall Processor/MultiViewer over Cat5/e6/7 Kit with 16 Receivers
Overview
The BG-4K-VP1616PRO is a professional-grade 16x16 HDMI 4K UHD seamless matrix switcher, video wall processor, and multiviewer designed for high-end commercial and mission-critical AV installations. It allows full independent routing of up to sixteen HDMI sources to sixteen displays while also delivering advanced processing modes, including seamless switching, video wall creation, and multiview display configurations.
Built for demanding environments, the system supports up to 4K@60Hz 4:4:4 video with full HDR compatibility and 18Gbps bandwidth performance. With integrated scaling, flexible display processing, and professional-grade control options, the BG-4K-VP1616PRO delivers a complete and scalable signal management platform for complex AV distribution systems.
Matrix Switching & Signal Compatibility
The BG-4K-VP1616PRO is a true 16x16 HDMI matrix switcher that allows any input to be independently routed to any output with full flexibility and no compromise in signal integrity. It supports HDMI 2.0b and HDCP 2.3, ensuring compatibility with modern 4K UHD content, protected media sources, and professional AV display systems.
Seamless Switching & Video Processing
A key strength of the system is its seamless switching engine, which delivers instant source transitions without black screens, delays, or signal interruptions. This makes it well-suited for demanding environments such as broadcast production, control rooms, and live monitoring applications where continuous video performance is essential. The integrated video wall processor also supports flexible display configurations, including rotation, bezel correction, and custom screen mapping, along with advanced multiview modes such as PIP, PAP, quad-view, and up to 16 simultaneous sources.

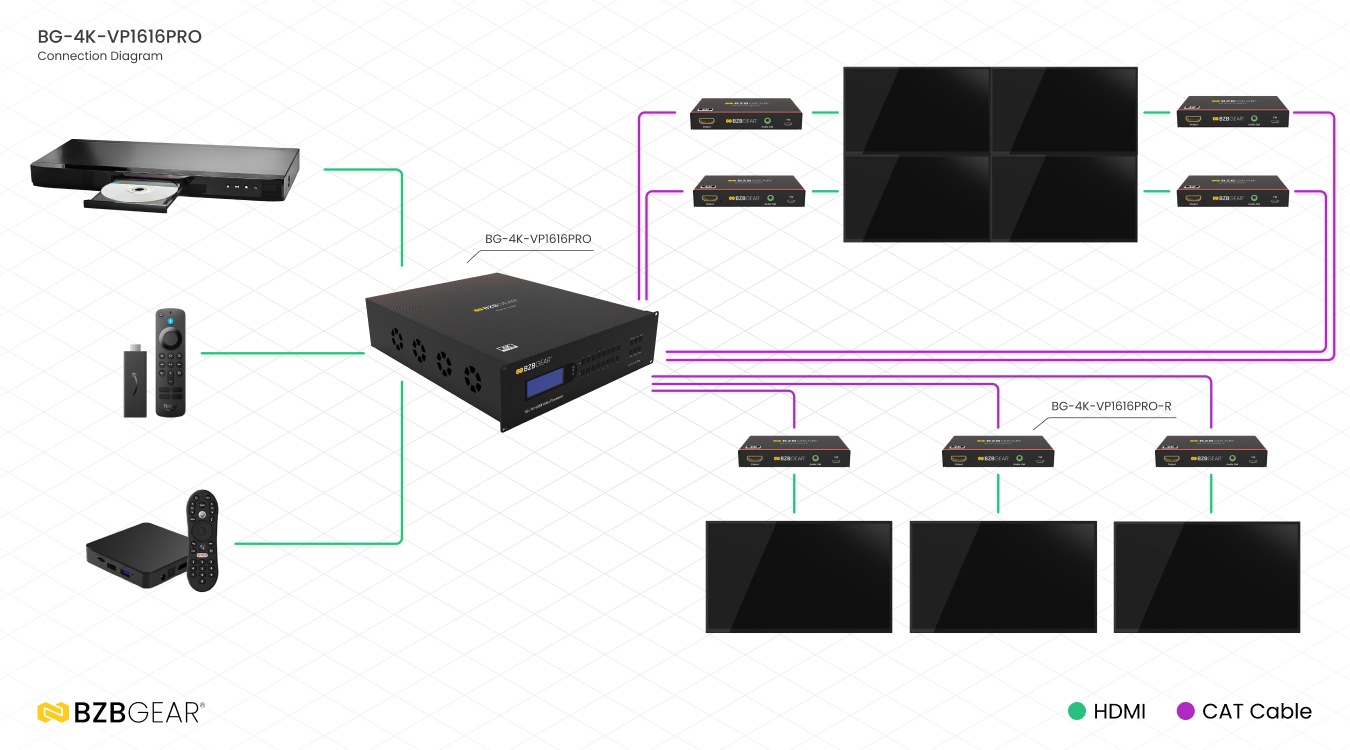

Long-Distance Signal Extension
In addition, the BG-4K-VP1616PRO features a mirrored CAT output system that extends HDMI signals up to 70 meters (230 feet) over Cat6/7 cabling. This enables long-distance signal distribution without the need for external extenders, making it ideal for large-scale or distributed AV installations requiring both central control and remote display deployment.

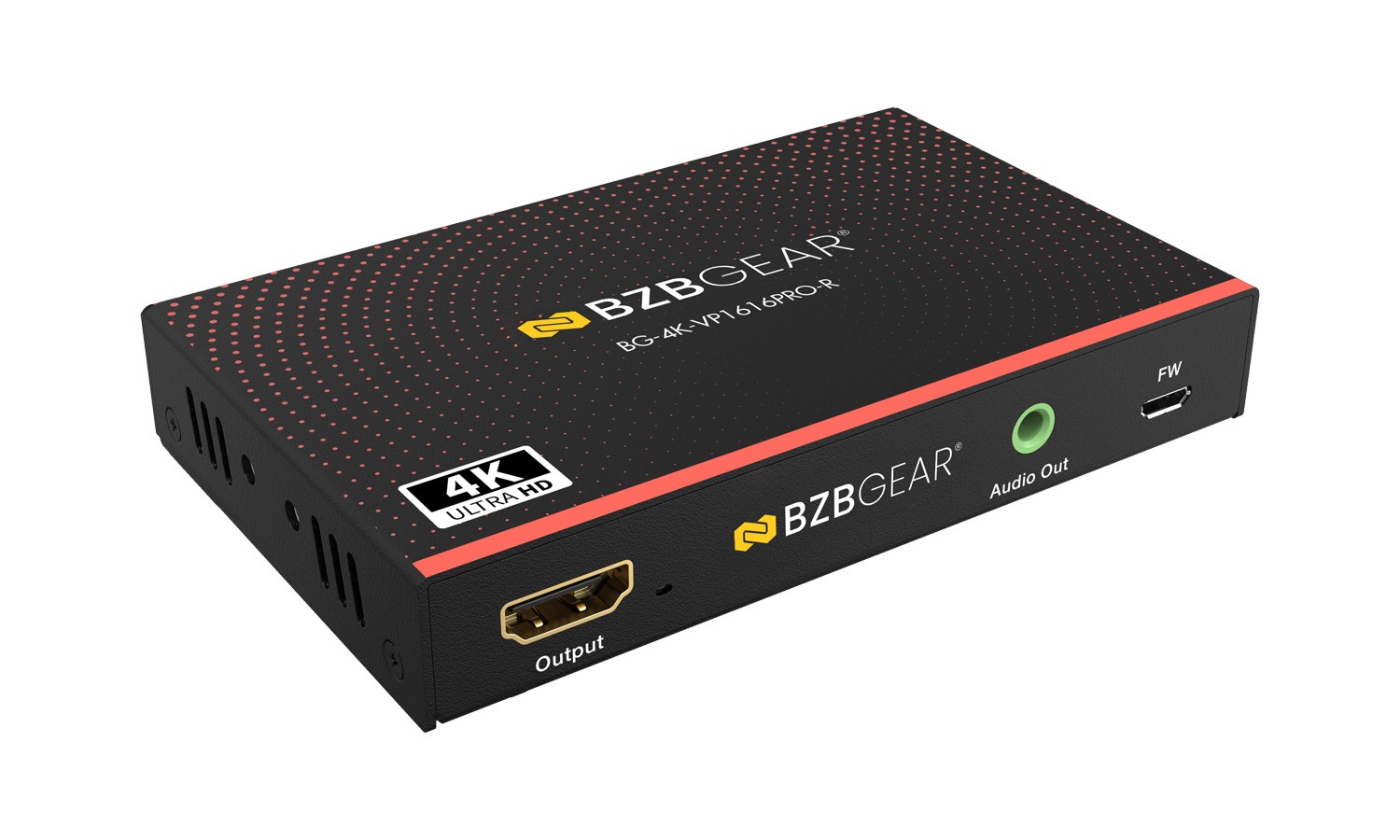

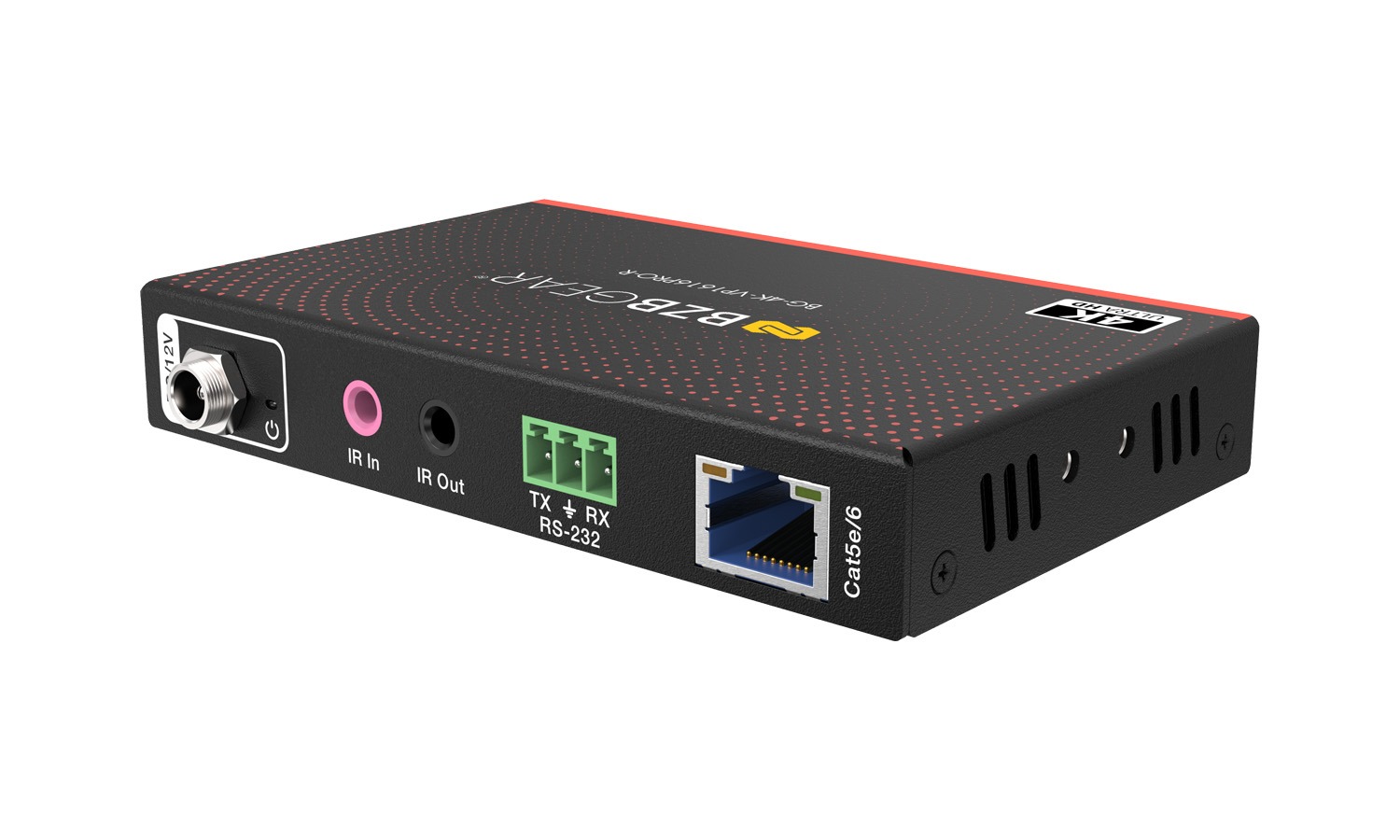

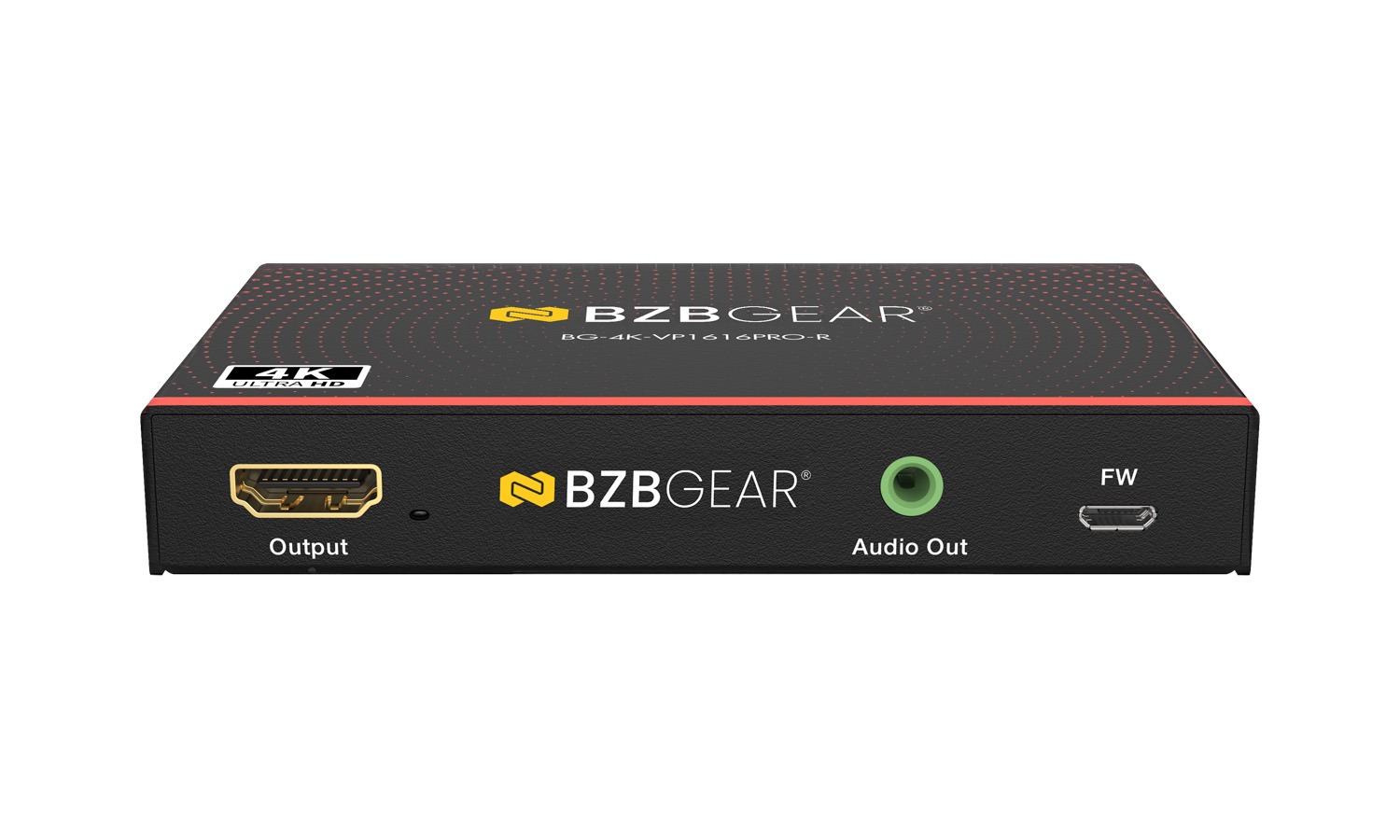

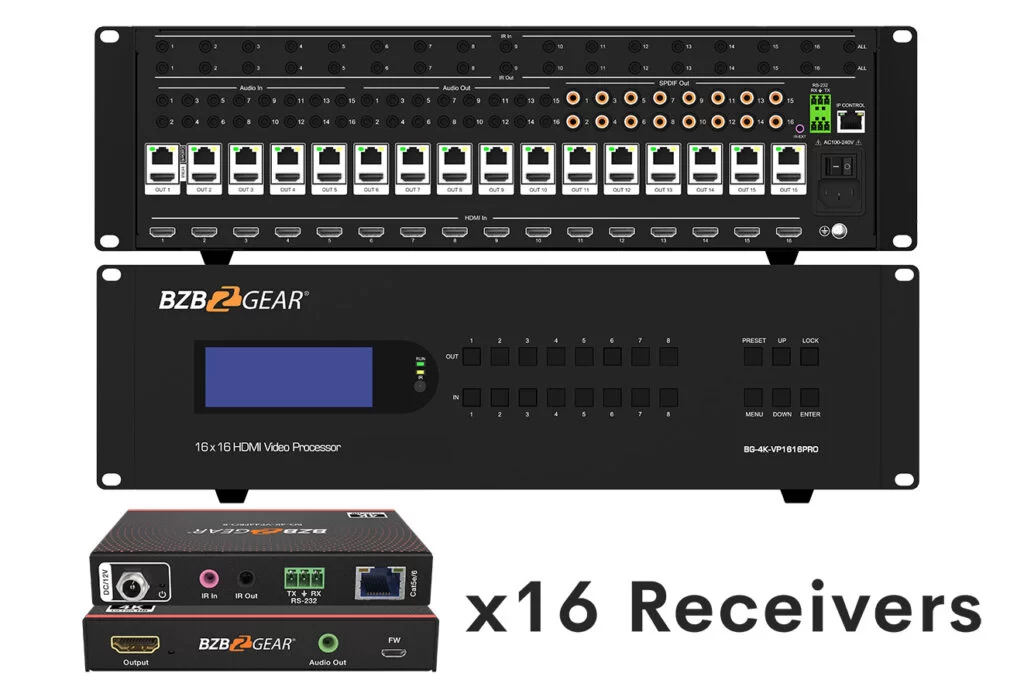

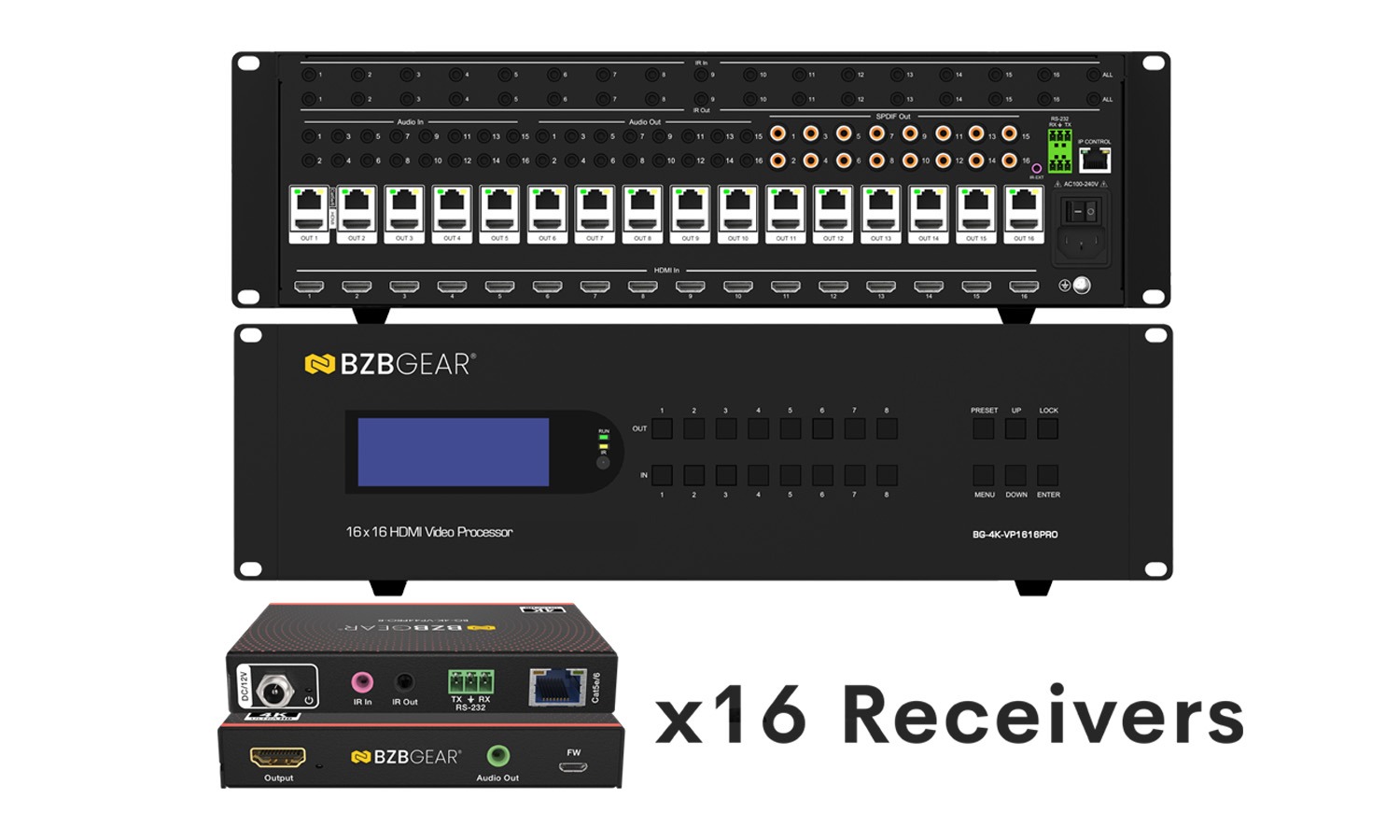

The BG-4K-VP1616PRO includes 16 BG-4K-VP-R receivers, providing a dedicated receiver for each of the matrix's 16 outputs. The BG-4K-VP-R receives 4K UHD HDMI signals over a single Cat5e/6/6a/7 cable, making it ideal for extending video to displays located throughout an installation.
Additional BG-4K-VP-R receivers are available for separate purchase, providing added flexibility for replacement units, additional system configurations, or future installation needs.
BZBGEAR AWARDS
Features
-
![Monitor]()
16X16 Matrixing16x HDMI Inputs which can be independently routed to 16x HDMI Outputs -
![video-wall2-icon]()
Video wallSupports multiple video walls at the same time -
![ph_picture-in-picture-light]()
Multiview CapabilitiesUp to 16 sources can be displayed on each output in different layouts -
![material-symbols_shield-lock-outline]()
Mirrored CAT OutputsSimultaneously outputs HDMI over Cat6/7 for long-distance display distribution -
![fluent_zoom-fit-24-filled]()
Control OptionsControl via panel button, Remote Control, RS232 Control, TCP/IP Control, BZBGEAR Switch Control App -
![bi_badge-4k]()
4K@60HzSupports resolution up to 4K@60Hz 4:4:4
- HDMI 2.0b & HDCP 2.3 compliance for modern content compatibility
- HDR support including HDR10, HDR10+, Dolby Vision, and HLG
- HDMI embedded audio support up to 7.1 surround formats
- Dolby Atmos, Dolby TrueHD, and DTS:X audio compatibility
- Audio de-embedding via analog (RCA) and digital outputs
- EDID management for optimized device compatibility
- ARC and CEC integration for enhanced system control
- Preset save and recall for quick system configuration switching
- RGB and YCbCr color format support with 8/10/12-bit processing
Effortlessly control and
manage your video system
with our user-friendly app!
Videos
Tech Specifications
Matrix Switcher |
|
| Input ports | 16xHDMI |
| Output ports | 16xHDMI, 16xCAT |
| Video Format Supported | 4K@60Hz, YUV4:4:4 8 bit 4K@30Hz/1080P/1080i/720P |
| Audio Formats Supported | HDMI digital audio DTS-5.1/Dolby-5.1, up to 7.1 |
| HDCP Compliant | HDCP 2.3 and HDCP 1.4 |
| Input Video Signal | 0.5-1.0 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Bandwidth | 18 Gbit/s |
| Matrix mode | 16x16 seamless switching |
| Video wall mode | Multiple video wall modes |
| Multi-viewer mode | Multiple multi-viewer modes |
| Operating Temperature Range | 23 to +104°F / -5 to +40°C |
| Storage Temperature Range | -14 to +140°F / -10 to +60°C |
| Operating Humidity Range | 5 to 90 % RH (no condensation) |
| Dimensions (L x W x H) | 20in x 17in x 3.5in [499mm x 440mm x 88.5mm] |
Receiver |
||
| Technical | ||
| HDMI Compliance | HDMI 2.0b | |
| HDCP Compliance | HDCP 2.3 | |
| Video Bandwidth | 18Gbps | |
| Video Resolution | Up to 4K@60Hz 4:4:4 | |
| Color Space | RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4 | |
| Color Depth | 8/10/12-bit (1080P@60Hz, 4K@30Hz, 4K@60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K@60Hz 4:4:4 ) | |
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X | |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) | |
| Connections | ||
| Receiver | Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] 1x SERVICE [USB Type C, Update port] Outputs: 1x HDMI Type A [19-pin female] | |
| Mechanical | ||
| Housing | Metal Enclosure | |
| Color | Black | |
| Dimensions | 2.4" (W) x 3.5" (D) x 0.7” (H) [61mm (W) x 88mm (D) x 18mm (H)] | |
| Weight | 0.34lbs [155g] | |
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 12V/1A | |
| Power Consumption | 3.84 W | |
| Operating Temperature | 32 - 104°F / 0 - 40°C | |
| Storage Temperature | -4 - 140°F / -20 - 60°C | |
| Relative Humidity | 20 - 90% RH (no condensation) | |
| Resolution / Distance | 4K@60 - Feet / Meters | 4K@30 / 1080P - Feet / Meters |
| CAT5e/6/6a/7 | 230ft / 70M | 230ft / 70M |
| HDMI IN/OUT | 10ft / 3M | 30ft / 10M |
| The use of “Premium High Speed HDMI” cable is highly recommended. | ||
PACKAGE CONTENTS
- 1x Main Unit (16x16 HDMI Matrix)
- 16x Receivers
- 1x Remote control
- 1x Wide-Band IR Receiver cables
- 1x CD for user manual & Command list
- 1x 3 Pin Phoenix terminal plug
