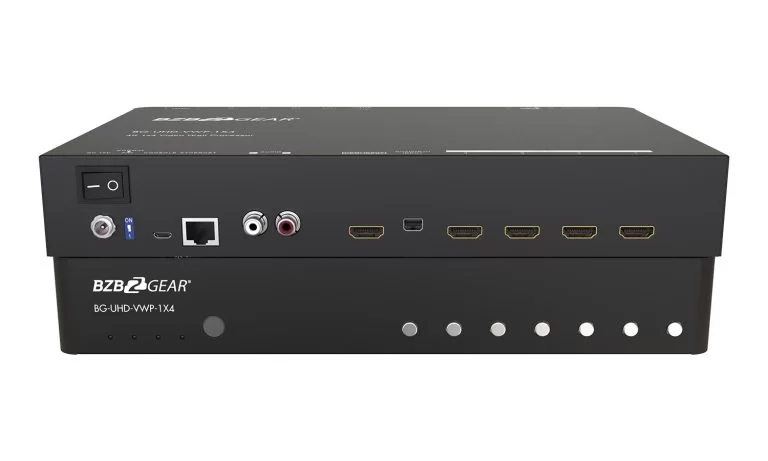

Model: BG-UHD-VWP-1X4
OVERVIEW FEATURESSPECSRESOURCESPACKAGE CONTENTS
4-Port 4K 60Hz Video Wall processor with Scaler, Audio and 1×3/1×4/2×2/4×1 Layout
MSRP: $1,499.00

MSRP $1499.00

3

Description

The BG-UHD-VWP-1X4 4K Video Wall Processor is a powerful and cost-effective data & video processor for use with multiple flat panels displays or projectors. The onboard processor accepts input resolutions up to [email protected] 4:4:4 and will scale each output to match display resolutions up to 1920x1200p. The versatile control software provides a variety of layout options and makes it easy to modify video properties for a variety of applications.  The powerful HD processing and crystal-clear image quality make it perfectly suited for digital signage, video broadcasting, sports bars and surveillance systems.

Additional information

Weight 5 lbs
Dimensions 15 × 9.5 × 4.5 in

Specifications

Technical
Role of usage Video Wall Processor
HDCP compliance Yes
Video bandwidth Input – Single link 600MHz [18Gbps]

Output –Single-link 225MHz [6.75Gbps]
Video support Input – [email protected] (4:2:2 8bits) / [email protected] (4:4:4 8bits)

Output – [email protected] / [email protected]
Video Format Support HDMI / DisplayPort
Audio support Yes
ESD protection Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
Input 1xHDMI + 1xDisplayPort + 1xUSB + 1xRJ45
Output 4x HDMI + 1xStereo
Control IR remote control / Ethernet / USB (virtual) / Front Panel / Cloud Control
Input TMDS signal 1.2 Volts [peak-to-peak]
HDMI connector Type A [19-pin female]
Mini-USB connector Type A
RJ-45 connector WE/SS 8P8C



Enclosure Metal case
Dimensions
(L x W x H)		 Model 290x180x44mm [11.4”x7”x1.7”]
Package 376x240x112mm [1’2”x9.4”x 4.4”]
Carton 590x510x405mm [1’9”x1’7”x1’3”]
Weight Model 1427g [3.2lbs]
Package 2077g [4.6lbs]
Fixedness 1U rack-mount with ears and Wall hanging holes
Power supply 12V DC
Power Consumption 12W
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]

Resources

Download Manual - Click Icon Below


Download Manual

Panel Drawing

Diagram

Package Contents

① 1x BG-UHD-VWP-1X4
② 1x User Manual
③ 1x 1U rack-mounting ear set
④ 1x 12V power supply
⑤ 1x Installation software CD

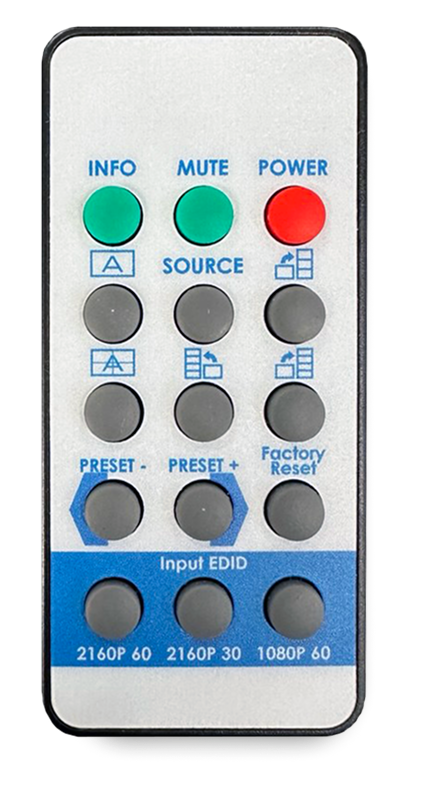

⑥ 1x IR Remote control (15 keys)
Overview

The BG-UHD-VWP-1X4 4K Video Wall Processor is a powerful and cost-effective data & video processor for use with multiple flat panels displays or projectors. The onboard processor accepts input resolutions up to [email protected] 4:4:4 and will scale each output to match display resolutions up to 1920x1200p. The versatile control software provides a variety of layout options and makes it easy to modify video properties for a variety of applications.  The powerful HD processing and crystal-clear image quality make it perfectly suited for digital signage, video broadcasting, sports bars and surveillance systems.



Introduction

BZBGEAR's new video wall processor, the BG-UHD-VWP-1x4 can easily create and display high-quality resolutions from video sources delivering [email protected] (4:4:4) in a single 1x1 image or divide the images into an array of layout including 2x2, 1x3 and 1x4 with individual propagation and rotation capabilities.
Features
4K/60 4:4:4 Support
Supports HDMI and Display port input up to 4K2K @ 60 (YUV 4:4:4).
3RD Party Control System Connections
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections.
Remote Access
Video wall can be controlled by Ethernet, USB, IR Remote, push button, and Cloud Control.
HDMI 2.0
HDMI 2.0a & DisplayPort 1.2a compliant.
SCALABILITY
Able to resize, position and zoom each HDMI output video up to 1920x1200 using output settings.
  • Four HDMI outputs from 640x480 to 1920x1200
  • Supports HDMI and DisplayPort input from 640x480 to [email protected] (YUV 4:4:4), interlaced or progressive
  • HDCP compliant
  • DisplayPort 1.2a & HDMI 2.0a compliant
  • Image parameters and layouts are automatically saved in flash memory of the device and can be recalled for later use
  • Several image parameters and layouts can be saved in computers and can be loaded for later use
  • Firmware upgradable for new features and technology enhancements
  • The video wall processor can control by USB, push button, Ethernet, IR remote control and cloud control
  • Resize, position, zoom for each HDMI output video
  • User-selectable output settings, up to 1920x1200
  • Supports remote control to switch 1x1, 2x2, 1x3 rotate, and 1x4 rotate mode
  • Supports independent input rotation at the resolution up to 1080p
  • 4K2K60 (YUV 4:4:4) can be divided and displayed onto four 1080p60 TV (2x2 layout only)
  • Supports individual propagation delay on each display to have the best visual perception


Specifications

Technical

Role of usage

Video Wall Processor

HDCP compliance

Yes

Video bandwidth

Input – Single link 600MHz [18Gbps] Output –Single-link 225MHz [6.75Gbps]

Video support

Input – [email protected] (4:2:2 8bits) / [email protected] (4:4:4 8bits) Output – [email protected] / [email protected]

Video Format Support

HDMI / DisplayPort

Audio support

Yes

ESD protection

Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]

Input

1xHDMI + 1xDisplayPort + 1xUSB + 1xRJ45

Output

4x HDMI + 1xStereo

Control

IR remote control / Ethernet / USB (virtual) / Front Panel / Cloud Control

Input TMDS signal

1.2 Volts [peak-to-peak]

HDMI connector

Type A [19-pin female]

Mini-USB connector

Type A

RJ-45 connector

WE/SS 8P8C

Enclosure

Metal case

Dimensions (L x W x H)

Model

290x180x44mm [11.4”x7”x1.7”]

Package

376x240x112mm [1’2”x9.4”x 4.4”]

Carton

590x510x405mm [1’9”x1’7”x1’3”]

Weight

Model

1427g [3.2lbs]

Package

2077g [4.6lbs]

Fixedness

1U rack-mount with ears and Wall hanging holes

Power supply

12V DC

Power Consumption

12W

Operation temperature

0~40°C [32~104°F]

Storage temperature

-20~60°C [-4~140°F]

Relative humidity

20~90% RH [no condensation]
