SKU	Supported Configuration	Max Resolution	Audio Formats	Control Options	HDMI Compliance	HDCP Compliance	Video Bandwidth
BG-8K-DA14A-G2	1X4	4K@120Hz 4:4:4\|8K@60Hz 4:2:0	HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD. Audio de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH Analog: PCM 2.0	EDID Dip Switch	HDMI 2.1	HDCP 2.3	40Gbps
BG-8K-DA12A-G2	1X2	4K@120Hz 4:4:4\|8K@60Hz 4:2:0	HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD. Audio de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH Analog: PCM 2.0	EDID Dip Switch	HDMI 2.1	HDCP 2.3	40Gbps
BG-8K-DA12	1X2	4K@120Hz 4:4:4\|8K@60Hz 4:2:0	HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD. Audio de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH Analog: PCM 2.0	EDID Dip Switch	HDMI 2.1	HDCP 2.3	40Gbps
BG-8K-DA14	1X2	4K@120Hz 4:4:4\|8K@60Hz 4:2:0	HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD. Audio de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH Analog: PCM 2.0	EDID Dip Switch	HDMI 2.1	HDCP 2.3	40Gbps
BG-8K-DA14A	1X4	4K@120Hz 4:4:4\|8K@60Hz 4:2:0	HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD. Audio de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH Analog: PCM 2.0	EDID Dip Switch	HDMI 2.1	HDCP 2.3	40Gbps
BG-8K-DA12A	1X2	4K@120Hz 4:4:4\|8K@60Hz 4:2:0	HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD. Audio de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH Analog: PCM 2.0	EDID Dip Switch	HDMI 2.1	HDCP 2.3	40Gbps
BG-DA-18G2	1X8	4K@60Hz 4:4:4	All known HDMI audio formats including Dolby TrueHD, Atmos, and DTS-HD Master Audio transmission	EDID Dip Switch	HDMI 2.0b	HDCP 1.4\|HDCP 2.2	18Gbps
BG-DA-1X2AS	1X2	4K@60Hz 4:4:4	HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD. L/R Audio Format: PCM 2.0	EDID Dip Switch	HDMI 2.0b	HDCP 1.4\|HDCP 2.2	18Gbps
BG-UHD-DA2X8	2X8	4K@60Hz 4:4:4	LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X, and DTS-HD® Master Audio pass-through	EDID Dip Switch	HDMI 2.0b	HDCP 1.4\|HDCP 2.2	18Gbps
BG-UHD-DA1X24	1X24	4K@60Hz 4:4:4	LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.	EDID Dip Switch	HDMI 2.0b	HDCP 1.4\|HDCP 2.2	18Gbps
BG-UHD-DA1X16	1X16	4K@60Hz 4:4:4	LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.	EDID Dip Switch	HDMI 2.0b	HDCP 1.4\|HDCP 2.2	18Gbps
BG-DA-1X4AS	1X4	4K@60Hz 4:4:4	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD, PCM 2.0	EDID Dip Switch	HDMI 2.0b	HDCP 1.4\|HDCP 2.2	18Gbps
BG-DA-14	1X4	4K@60Hz 4:4:4	LPCM 7.1CH, Dolby TrueHD, DTS-HD	EDID Dip Switch	HDMI 2.0b	HDCP 1.4\|HDCP 2.2	18Gbps

BZBGEAR HDMI Splitters

BZBGEAR provides a versatile lineup of HDMI signal splitters, supporting resolutions from 4K to 8K and 4K120 for exceptional video clarity. Designed for more than just high-quality signal distribution, our splitters also feature advanced audio support, auto downscaling technology, and a range of additional enhancements to optimize your AV setup.

Explore our line of innovative HDMI splitters today!

BZBGEAR Innovations

BZBGEAR has redefined HDMI signal splitting with cutting-edge solutions, including 8K and 4K120 HDMI splitters, intelligent auto downscaling for seamless source-to-display communication, and advanced audio features such as analog and digital audio extraction, as well as seamless audio de-embedding. Stay tuned as we continue to revolutionize HDMI signal splitting and distribution!

What is an HDMI Splitter?

An HDMI splitter is a device that takes a single HDMI input and splits it into multiple HDMI outputs, allowing you to display the same video and audio signal on multiple monitors or TVs simultaneously. This is particularly useful for setups where you need the same content displayed in different locations, such as in a sports bar, a conference room, or a multi-screen home theater system.

BZBGEAR also provides TAA-compliant signal splitters, authorizing the equipment for government use. Overall, our signal-splitting solutions are perfect for those looking for a simple and effective way to distribute content at resolutions up to 4K60 and 8K. If you have any questions about our solutions, please contact a BZBGEAR representative.

Types of HDMI Splitters

1x2 HDMI Splitter

A 1x2 HDMI splitter splits one input into two outputs. This type is perfect for basic setups, such as connecting a single source to two TVs in different rooms.

1x4 HDMI Splitter

A 1x4 HDMI splitter allows you to connect one source to four different displays. This is ideal for more extensive setups like digital signage in public areas or multi-screen entertainment systems.

1x8 HDMI Splitter

For even larger setups, a 1x8 HDMI splitter lets you distribute a single source signal to eight displays. This type is commonly used in commercial settings such as retail stores and trade shows.

Popular Request- HDMI Splitter for 2 Monitors

A dual monitor HDMI splitter is designed to connect one source to two monitors, making it a popular choice for gaming, presentations, and extended desktop setups.

Popular Request- HDMI Splitter with Audio Extraction

An HDMI audio splitter can extract the audio signal from the input and output it to a separate audio system, providing greater flexibility in managing your audio setup.

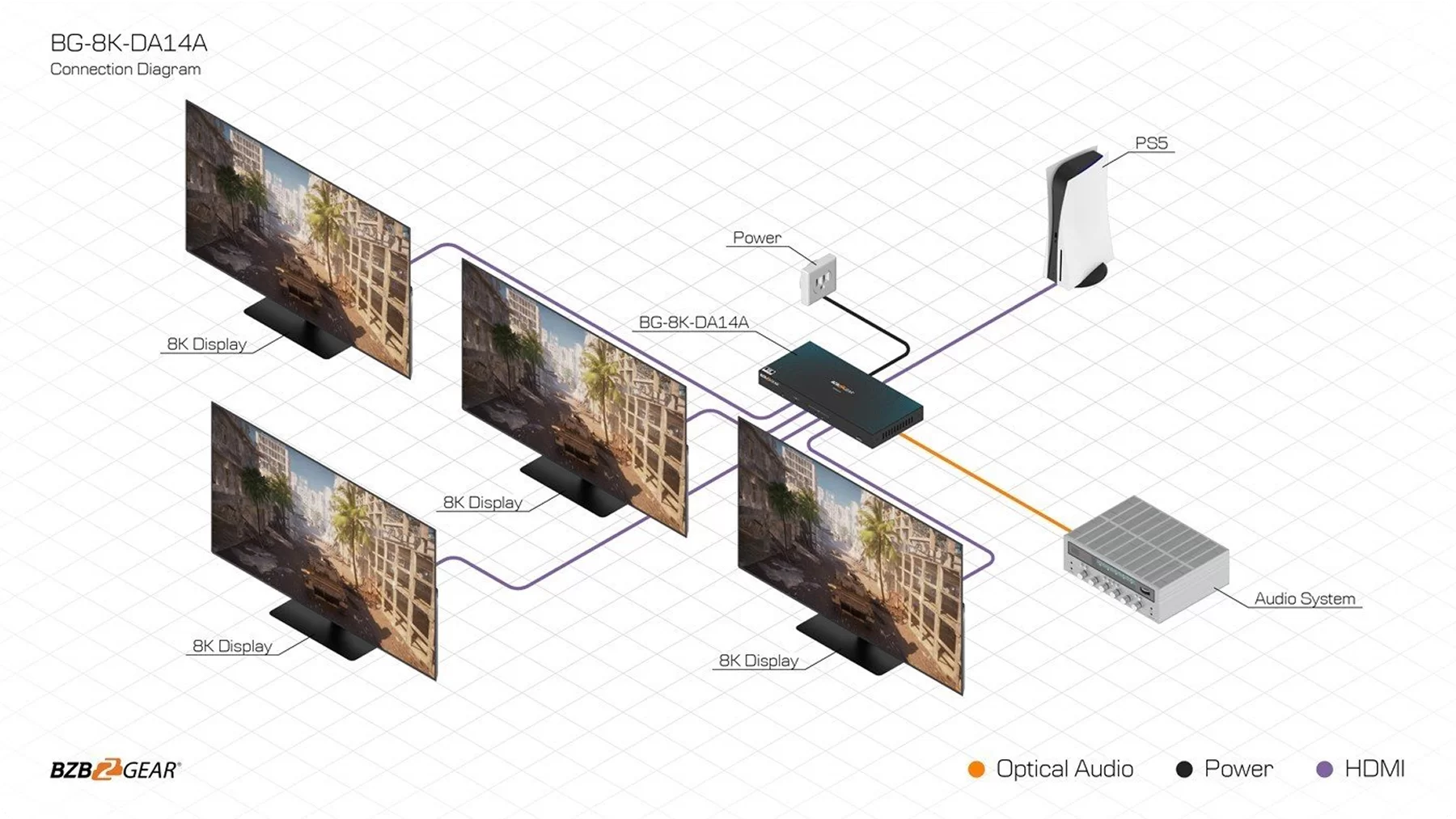

How to Use an HDMI Splitter

There are several types of processors available, each designed to meet specific needs:

1. Connect the HDMI Source

Plug the HDMI cable from your source device (like a Blu-ray player, gaming console, or computer) into the input port of the splitter.

2. Connect the Displays

Attach HDMI cables from the output ports to your monitors or TVs.

3. Power On

Connect the power adapter to the splitter if it requires one and power on all devices. The splitter will then distribute the signal from the source to the connected displays.

Benefits of Using an HDMI Splitter

Simplified Setup

An HDMI signal-splitting solution simplifies the process of connecting multiple displays to a single source. This reduces the need for additional hardware and complex wiring, making your setup cleaner and more efficient.

Cost-Effective

Using an HDMI splitter is often more cost-effective than purchasing multiple source devices or additional streaming equipment, especially in larger setups.

Enhanced Viewing Experience

With a splitter, you can enjoy your favorite content on multiple screens without compromising on quality. This is particularly beneficial for events, presentations, and entertainment systems where the same high-quality video needs to be displayed across several screens.

Choosing the Right HDMI Splitter

When selecting an HDMI splitter, consider the following factors:

Number of Outputs

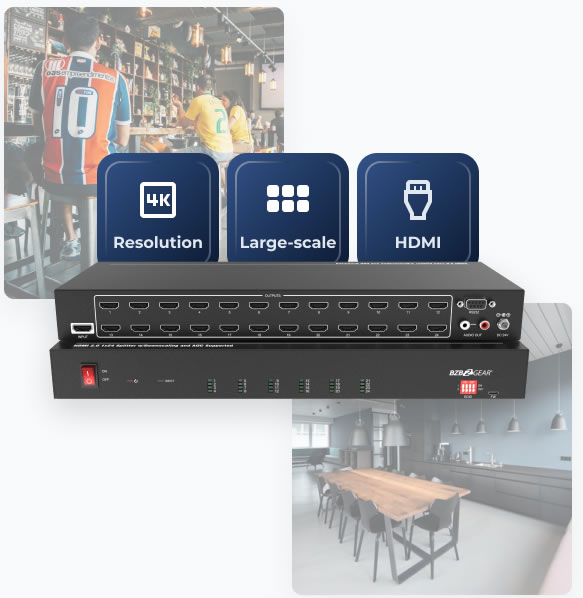

Determine how many displays you need to connect. Choose a device with the appropriate number of output ports, such as a 1x2 HDMI splitter for two monitors or a 1x8 HDMI splitter for more extensive setups. For large-scale projects, ask a BZBGEAR representative about our 1x16 or 1x24 options!

Resolution Support

Ensure the splitter supports the resolution of your source and displays. For example, if you have 4K content, opt for an HDMI splitter 4K to maintain the highest video quality. For setups that aren’t 4K, ensure you select an HDMI splitter with backward compatibility or advanced EDID settings. Speak with a BZBGEAR representative if you need assistance.

Audio Support

If you need to extract audio separately, consider an HDMI audio splitter that supports your audio system requirements.

Compatibility

Check the compatibility of the splitter with your devices, especially if you are using specialized equipment like gaming consoles or AV receivers.

Elevate Your Setup with BZBGEAR!

Whether you're working with 4K or 8K equipment, BZBGEAR has you covered with an extensive selection of HDMI switchers, video wall processors, testers, cables, and more.

Discover the perfect solutions to complete and enhance your setup today! Buy directly from BZBGEAR or inquire about the best partner or provider of BZBGEAR equipment.

Do you need to split your HDMI signal a longer distance?
