1x4 8K UHD HDMI 2.1 Splitter with Audio De-embedder (8K60 4K120 4:4:4 10bit VRR, FVA, ALLM support)
U.S.-based Company
Complimentary design services
and engineering support
and engineering support
3 year warranty
Click here to learn more about BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Tech Specifications
Technical | |
HDMI Compliance | HDMI 2.1 |
HDCP Compliance | HDCP 2.3 |
Video Bandwidth | 40Gbps |
Video Resolutions | Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit |
Color Depth | 8/10/12-bit |
Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
Audio Formats | HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Auido de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH Analog: PCM 2.0 |
ESD Protection | Human-body model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
Connection | |
Input | 1x HDMI IN [Type A, 19-pin female] |
Output | 4x HDMI OUT [Type A, 19-pin female] 1x OPTICAL [S/PDIF] 1x L/R [3.5mm Stereo Mini-jack] |
Control | 1x SERVICE [Micro USB, Update port] |
Mechanical | |
Housing | Metal Enclosure |
Silkscreen Color | Black |
Dimensions | 8.3”(W) x 3.7"(D) x 0.9”(H) [212mm(W) x 94mm(D) x 23mm(H)] |
Weight | 1.2lbs [539g] |
Power Supply | Input: AC 100~240V 50/60Hz, Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
Power Consumption | 9W (Max) |
Operation Temperature |
32°F ~ 104°F / 0°C ~ 40°C |
Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
Relative Humidity | 20~90% RH (non-condensing) |
Recommended HDMI Cable | ||||
Video Resolution | 8K | 4K60 | 4K24 | 1080P |
HDMI Cable Type | Ultra HDMI 2.1 | HDMI 2.0 | HDMI 1.4 | HDMI 1.4 |
HDMI Cable Length (HDMI IN / OUT) |
3m/10ft | 8m/26ft | 12m/39ft | 15m/49ft |
The use of a “Premium High Speed HDMI” cable is highly recommended. |
Resources
Documents
PACKAGE CONTENTS

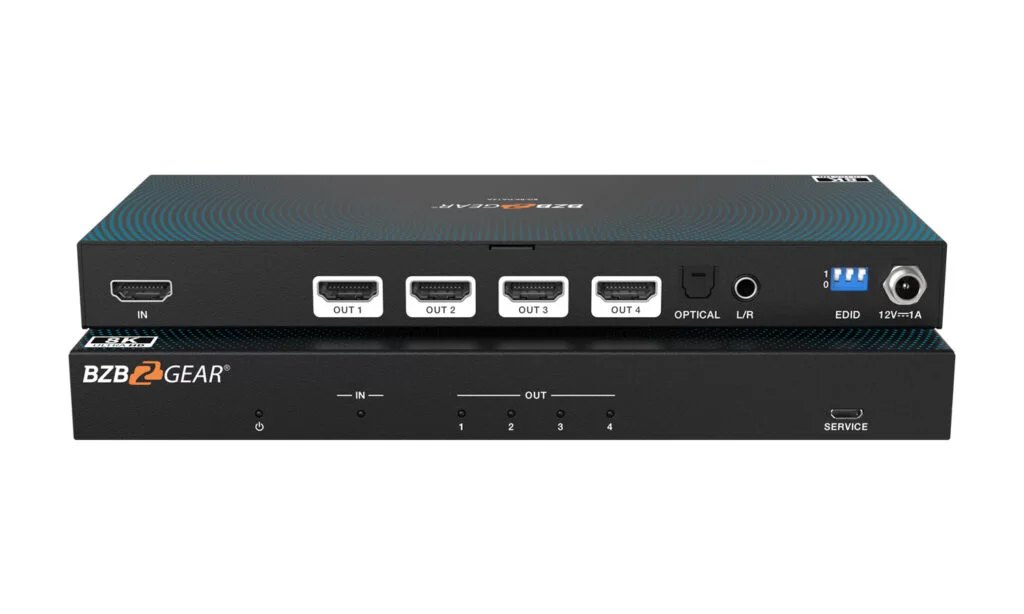

- 1x 8K HDMI 1X4 Splitter
- 1x 12V/2.5A Multinational Power Supply
- 1x User Manual
Interfaces

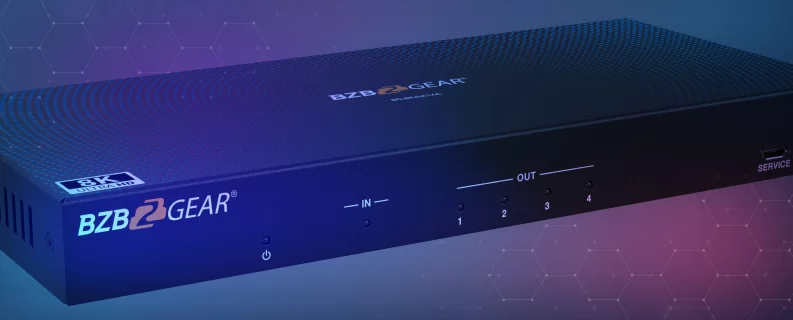

- POWER LED: When the device is powered on the blue LED will illuminate.
- IN LED: When the HDMI IN port connects an active source device the blue LED will illuminate.
- OUT LED (1~4): When the HDMI OUT 1/2/3/4 port connects a display device and outputs a signal the corresponding blue LED will illuminate.
- SERVICE: Firmware update port.
- IN port: Connect to an HDMI source device such as Bluray player or PS5 with an HDMI cable.
- OUT port (1~4): Connect to HDMI display devices such as TVs or Monitors with HDMI cables.
- OPTICAL: Optical fiber audio output port.
- L/R: Analog audio output port.
- EDID DIP switch: Use the DIP switch to set EDID.
- Power port: 12V/2.5A Power input port.
