BG-UHD-DA1X16
HDMI V2.0 1X16 Splitter with Downscaling and AOC Supported
HDMI V2.0 1X16 Splitter with Downscaling and AOC Supported
HDMI V2.0 1X16 Splitter with Downscaling and AOC Supported
SKU: BG-UHD-DA1X16
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
18GBPS / HDMI 2.0
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
4K HDR
4K UHD WITH HDR OVER HDBaseT Multi-zone transmission of HDR-10 content is nothing new to WyreStorm; we’ve been sending this high-bandwidth content, native & uncompressed over long distances since the introduction of our first H2 extender in 2015. Our H2 matrix is no different, sending pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 100m/328ft.
4K UHD WITH HDR OVER HDBaseT Multi-zone transmission of HDR-10 content is nothing new to WyreStorm; we’ve been sending this high-bandwidth content, native & uncompressed over long distances since the introduction of our first H2 extender in 2015. Our H2 matrix is no different, sending pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 100m/328ft.

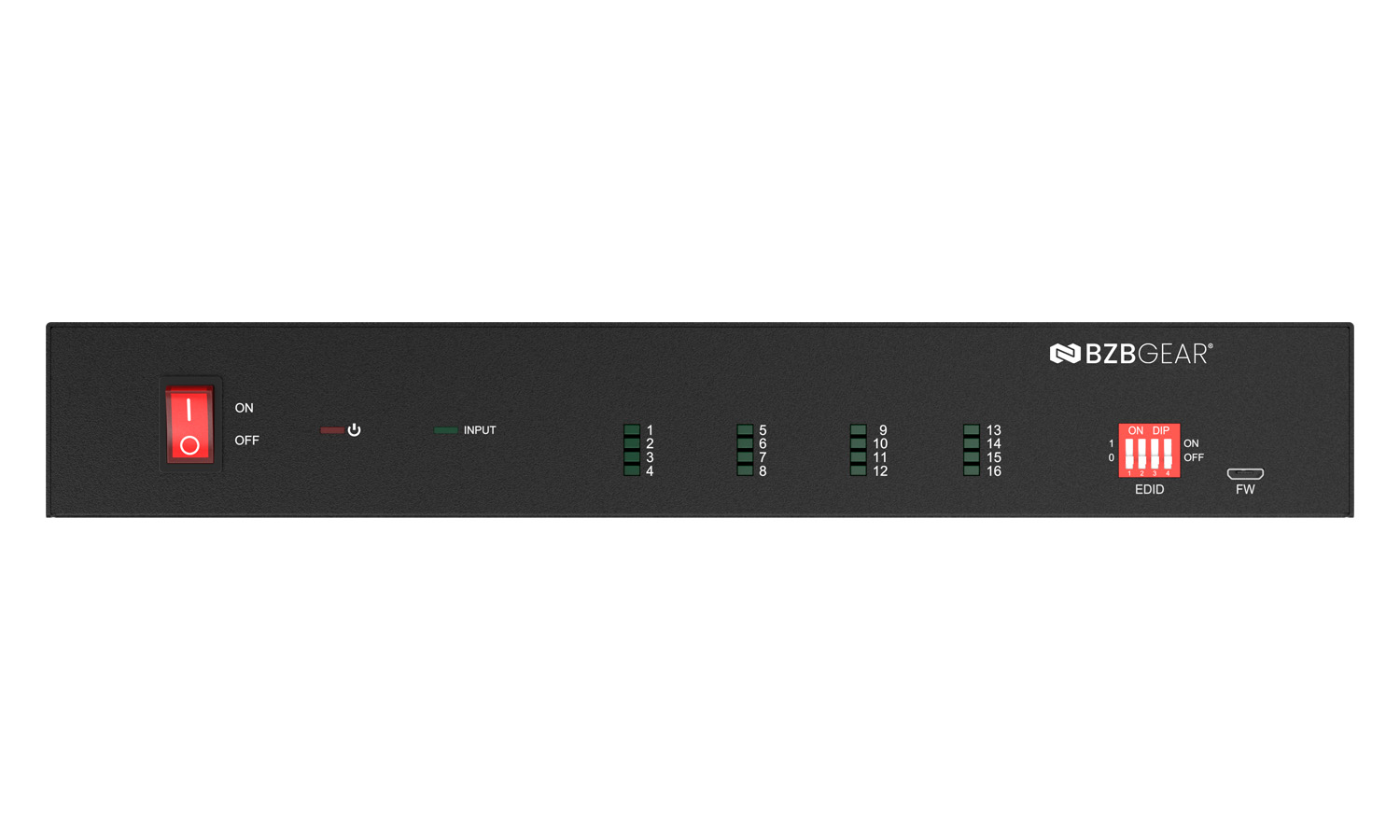

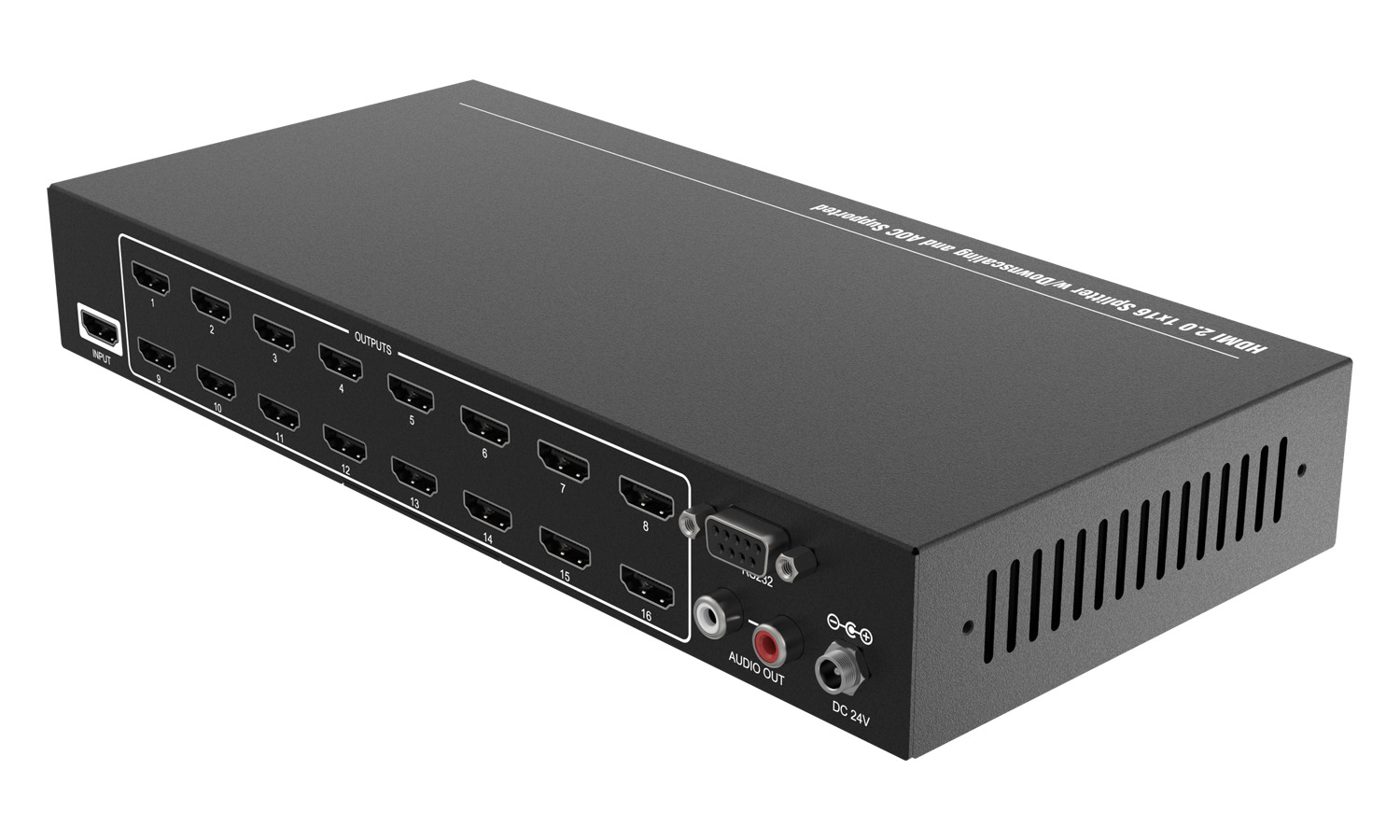

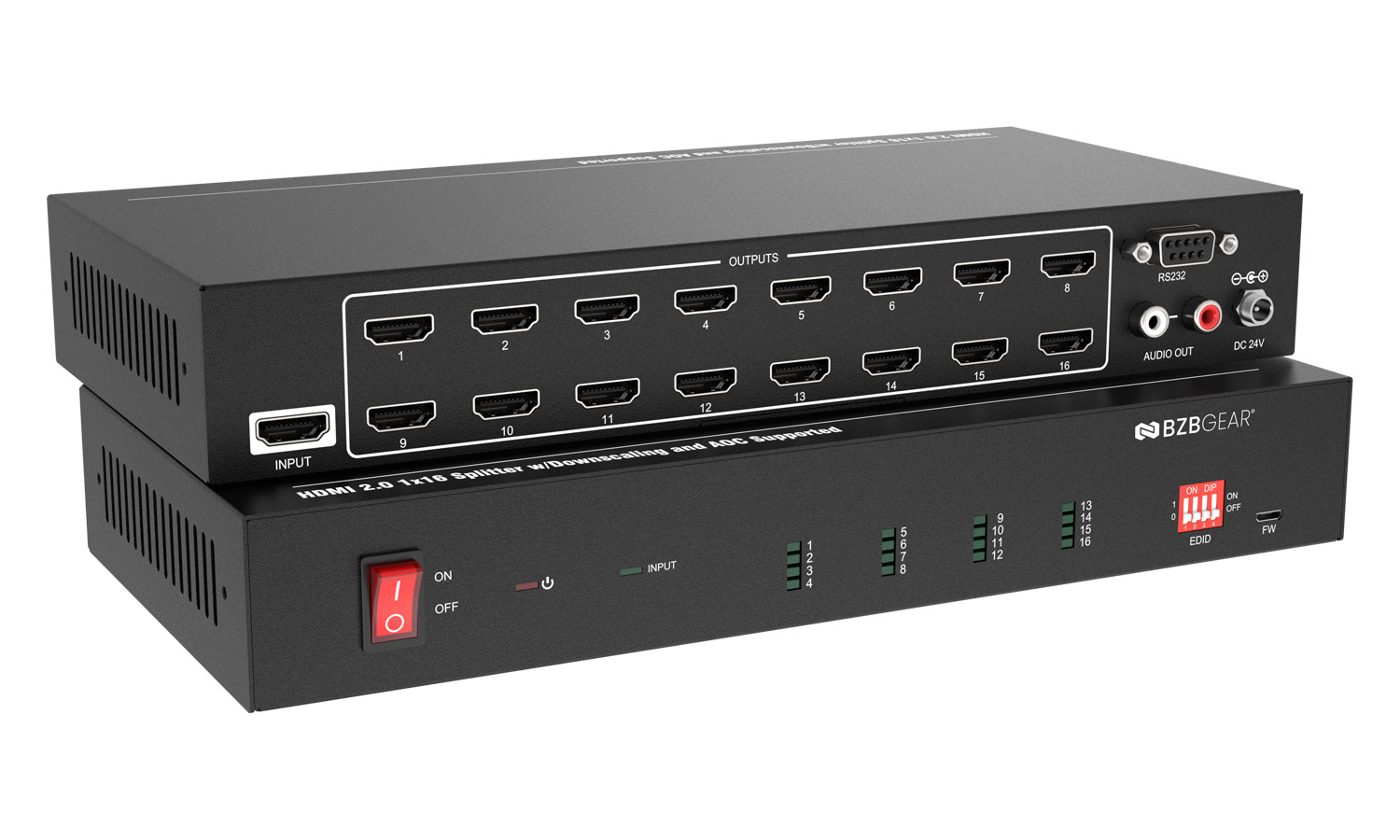

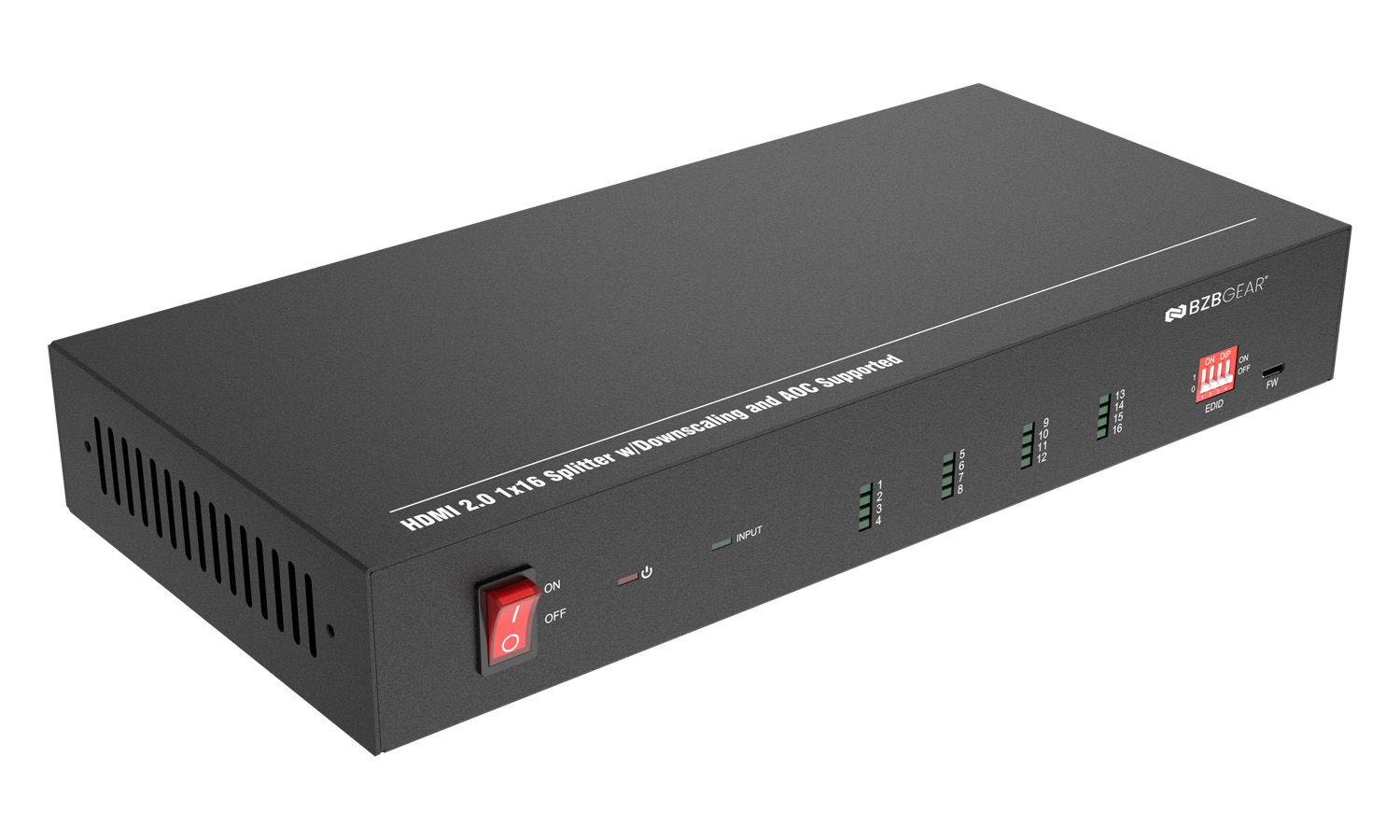

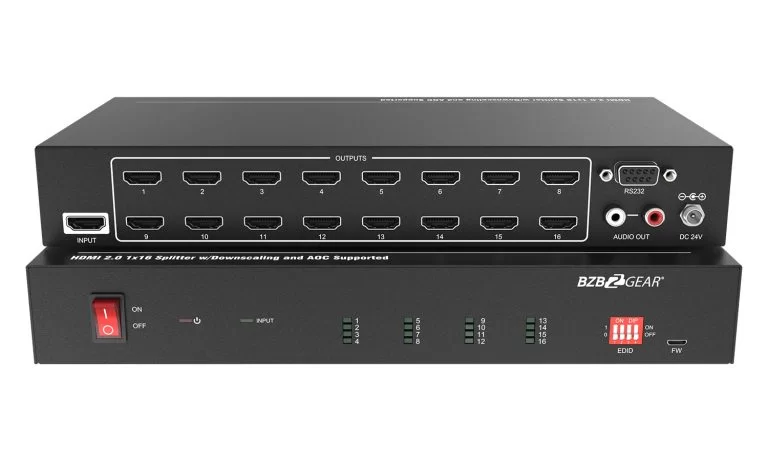

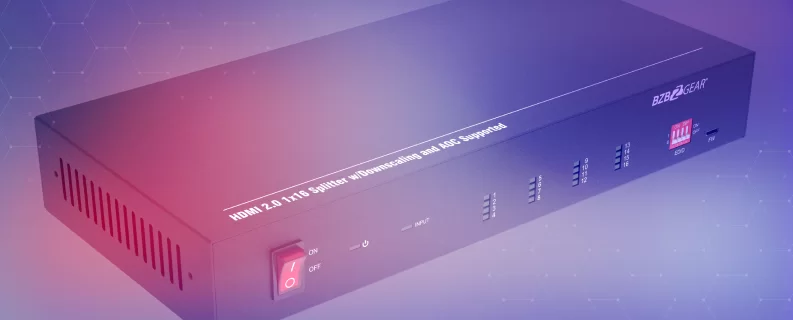

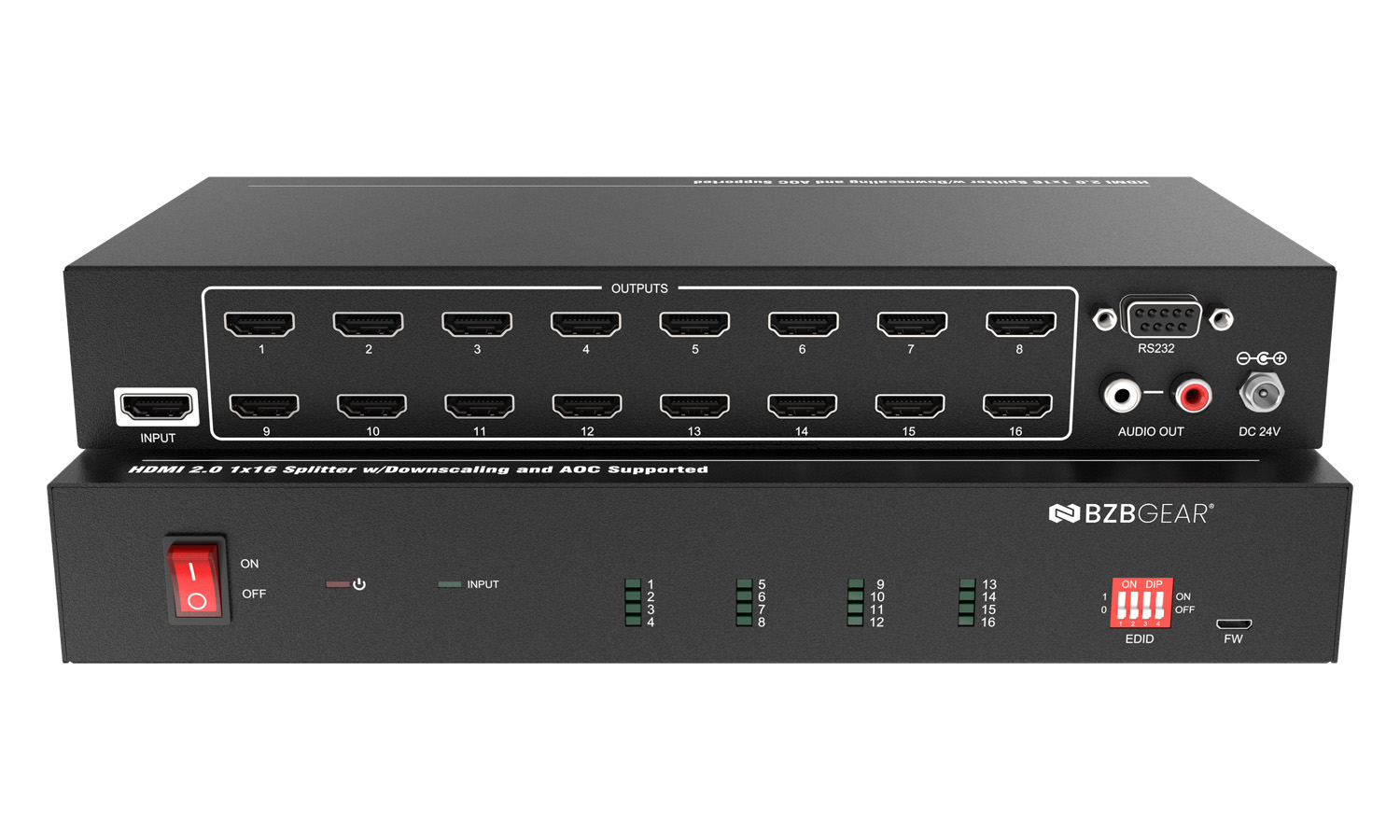

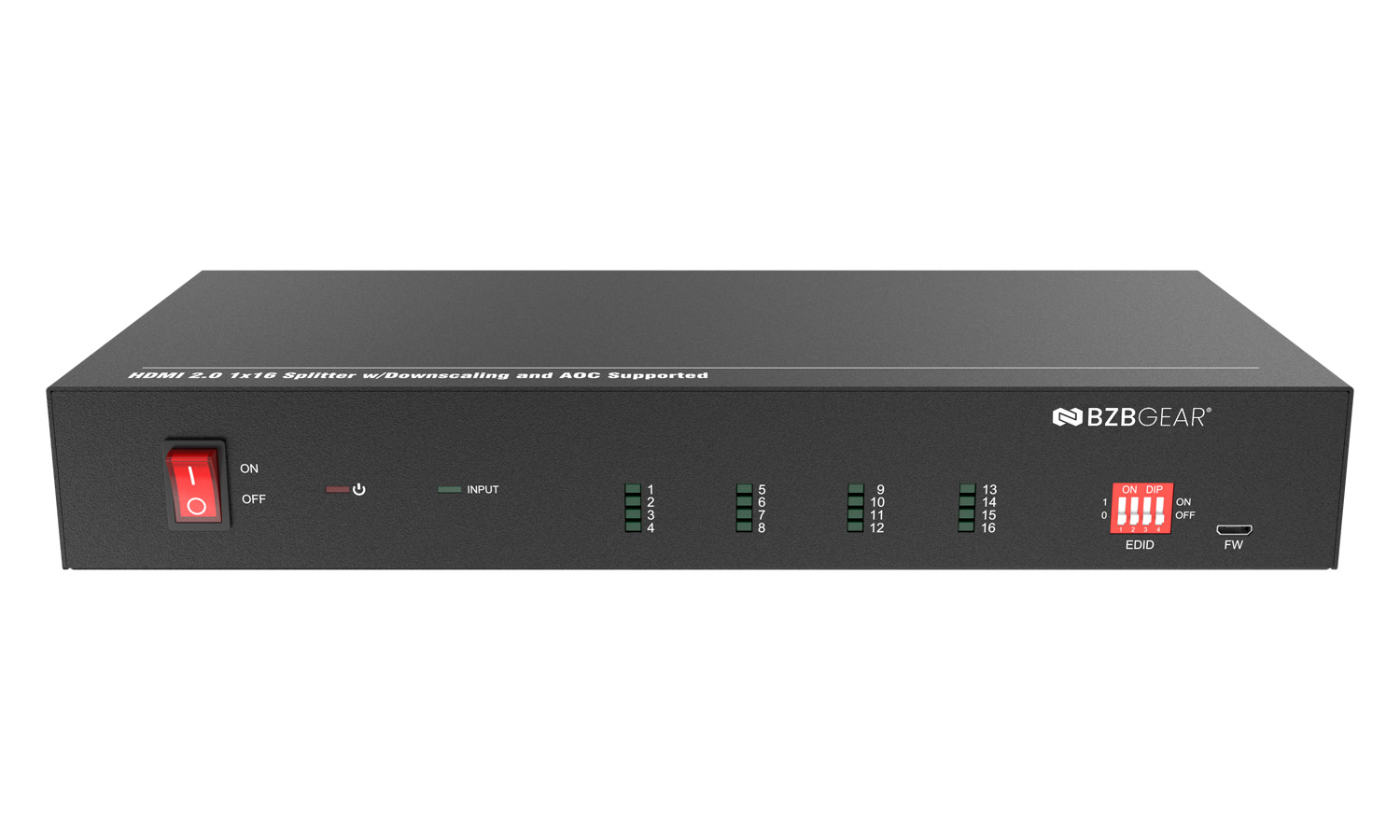

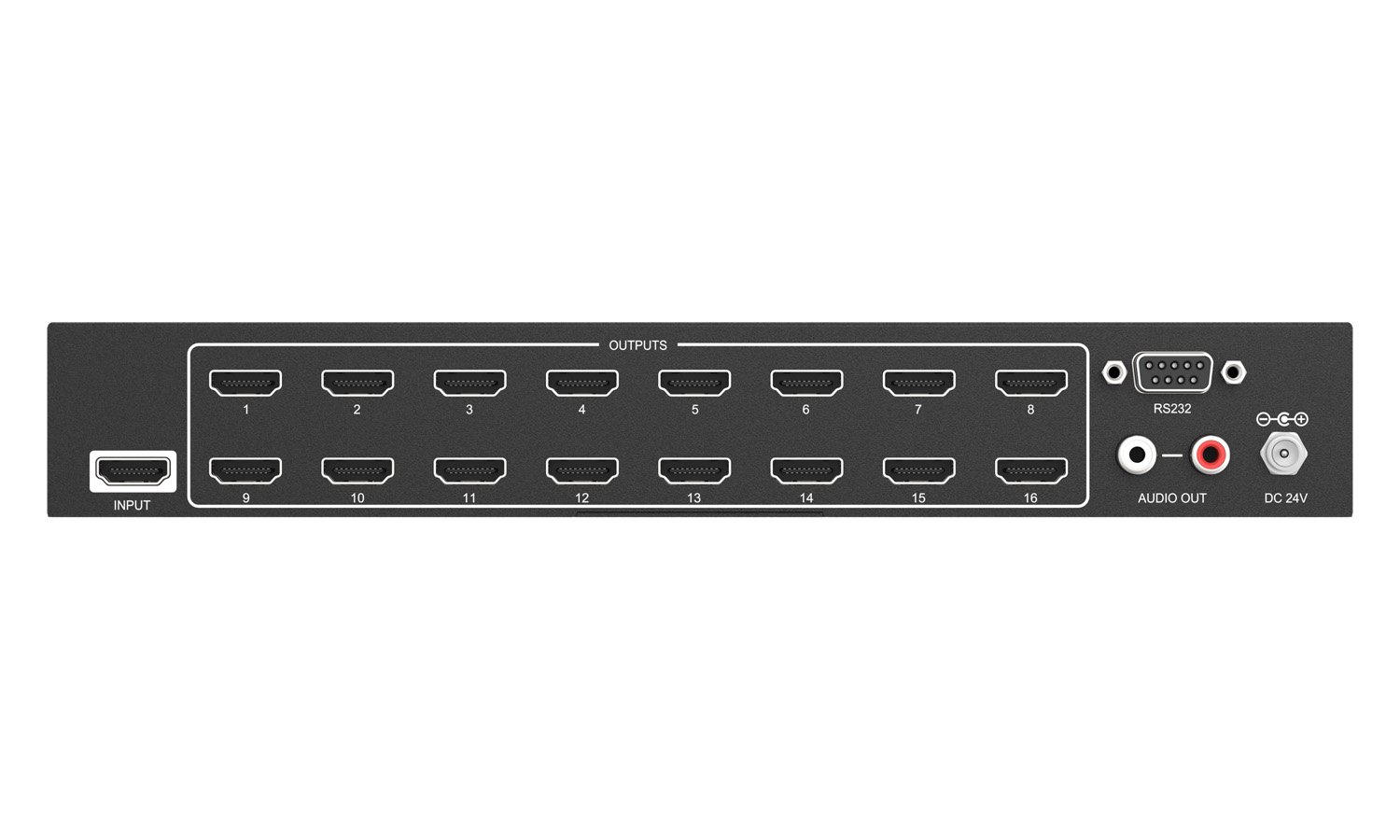

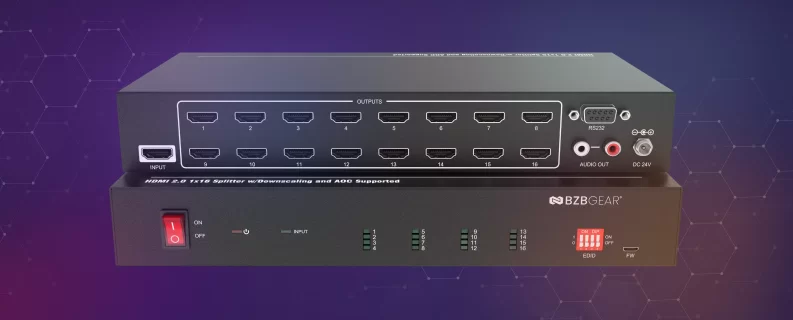

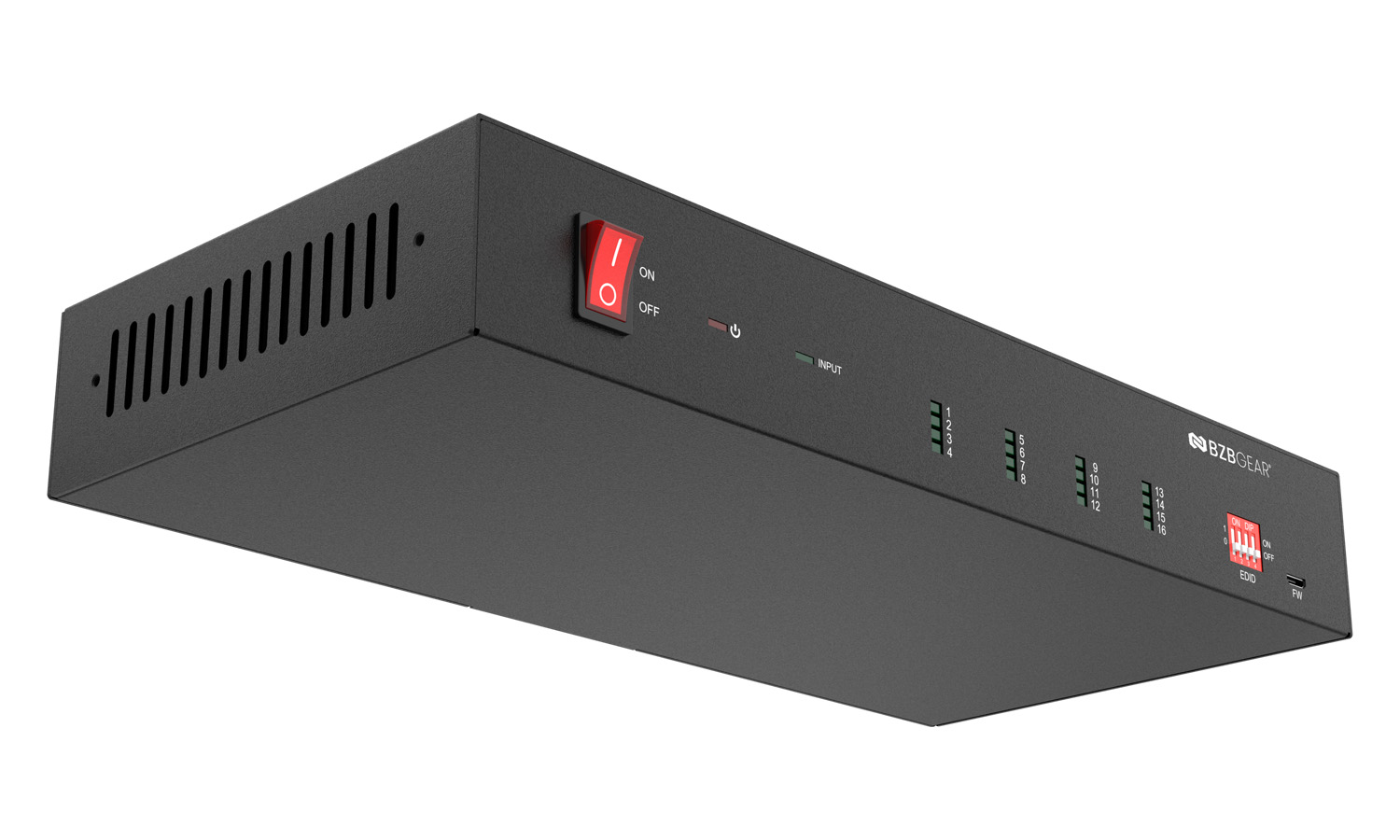

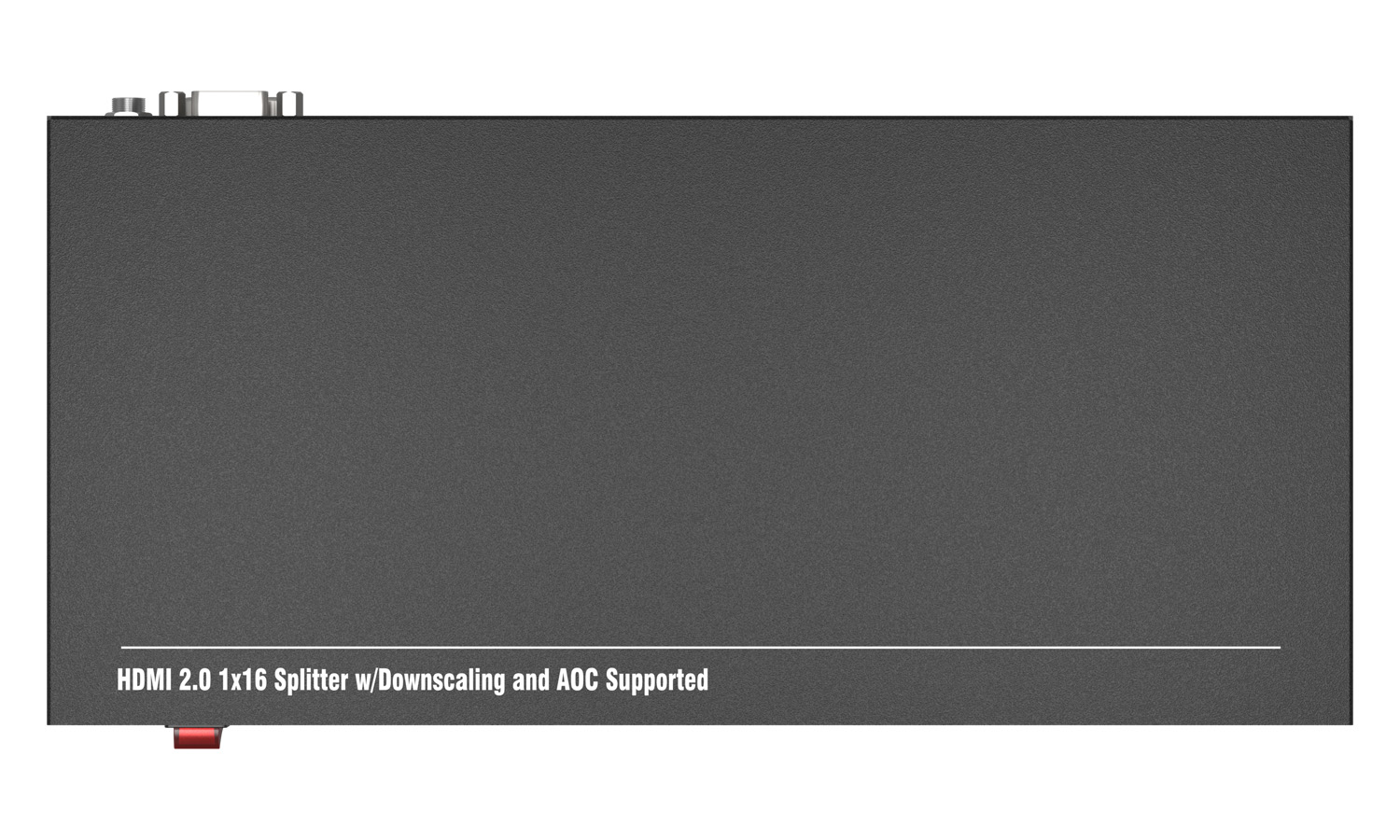

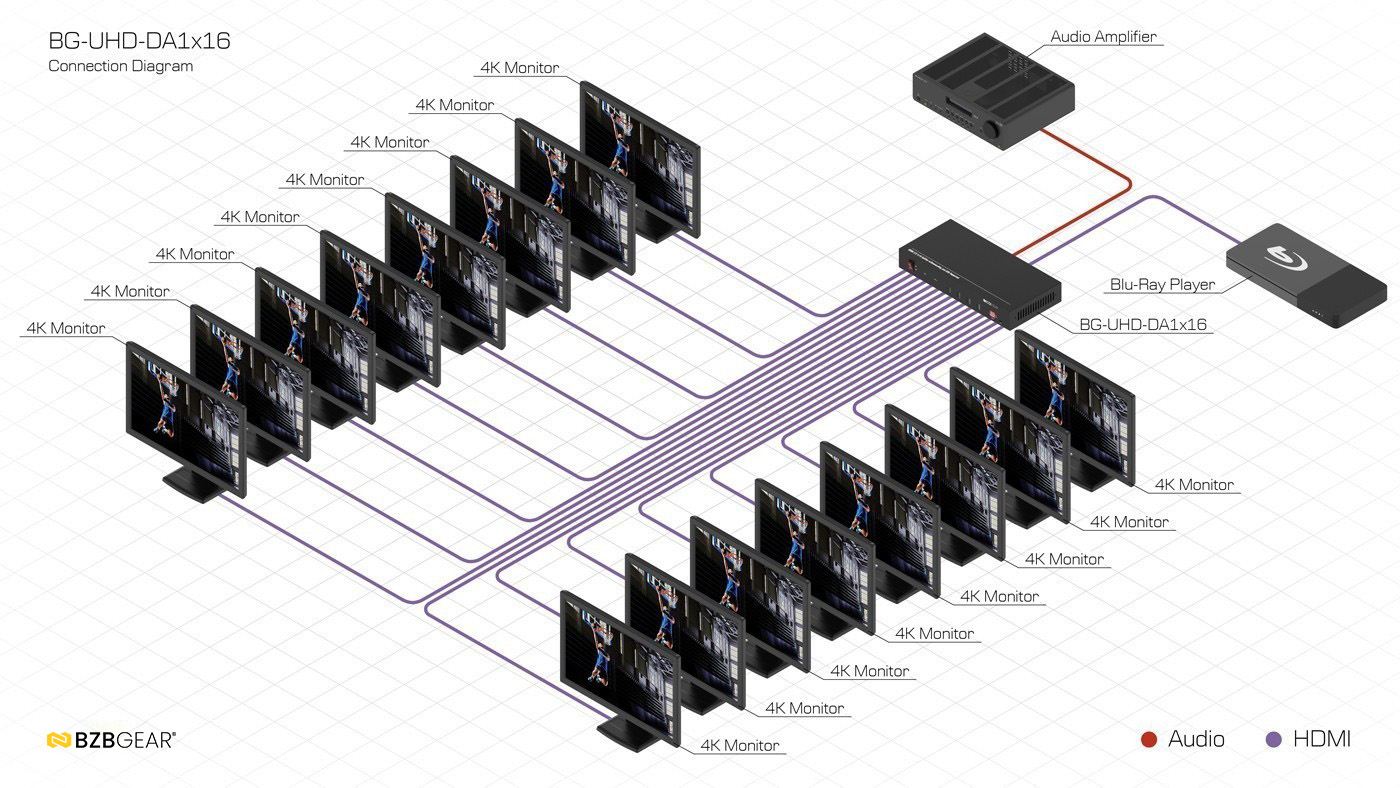

The BG-UHD-DA1X16 can distribute one HDMI input to sixteen HDMI outputs. The splitter supports 4K signals up to 4K@60Hz 4:4:4, HDR 10, Dolby Vision and features advanced EDID management option using 4-pin DIP switch on the front panel of the unit. It also supports downscaling so a 4K video input can automatically be down scaled to a 1080p output when connecting a display that only supports resolution up to 1080p. Stereo analog L/R audio output is provided for audio de-embedding from HDMI input and the splitter supports CEC and RS232 control.
MSRP $599.00*
*Pricing is for US only. International pricing will vary.Features
- HDMI V2.0, 4K@60Hz 4:4:4 8bit, HDR 10, Dolby Vision.
- HDCP 2.2 compliant.
- Compatible with HDMI AOC cable, provides up to 5V100mA power on each output.
- Auto 4K to 1080p downscaling.
- Stereo analog L/R audio output for audio de-embedding from HDMI input.
- Smart EDID management and HDCP management.
- CEC and RS232 control.
Specifications
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
18GBPS / HDMI 2.0
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
4K HDR
4K UHD WITH HDR OVER HDBaseT Multi-zone transmission of HDR-10 content is nothing new to WyreStorm; we’ve been sending this high-bandwidth content, native & uncompressed over long distances since the introduction of our first H2 extender in 2015. Our H2 matrix is no different, sending pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 100m/328ft.
4K UHD WITH HDR OVER HDBaseT Multi-zone transmission of HDR-10 content is nothing new to WyreStorm; we’ve been sending this high-bandwidth content, native & uncompressed over long distances since the introduction of our first H2 extender in 2015. Our H2 matrix is no different, sending pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 100m/328ft.

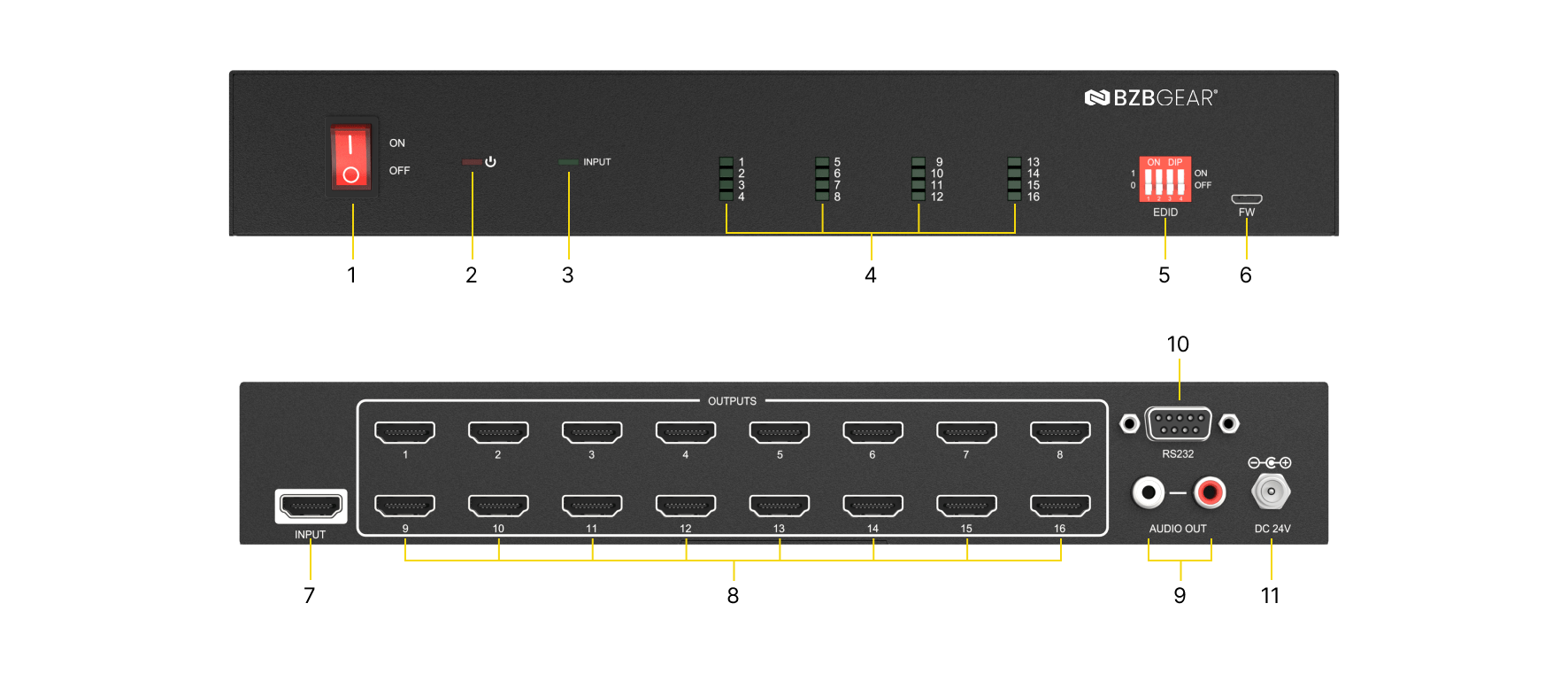

| Video | |
| Input | (1) HDMI |
| Input Connector | (1) Type-A female HDMI |
| Input Video Resolution | Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision |
| Output | (16) HDMI |
| Output Connector | (16) Type-A female HDMI |
| Output Video Resolution | Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision, supports 4K to 1080p down-scaling. |
| HDMI Output | Supports up to 5V100mA power for AOC cable. |
| HDMI Standard | V2.0 |
| HDCP Version | 2.2 |
| HDMI Audio Signal | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through. |
| Analog Audio Output | |
| Output | (1) AUDIO |
| Output Connector | (1) RCA (L+R) |
| Frequency Response | 20Hz~20kHz, ±1dB |
| Max output level | 2.0Vrms ± 0.5dB. 2V=16dB headroom above-10dBV (316mV) nominal consumer line level signal |
| THD+N | < 0.05%, 20Hz~20kHz bandwidth, 1kHz sine at 0dBFS level (or max level) |
| SNR | > 80dB, 20Hz~20kHz bandwidth |
| Crosstalk isolation | < -80dB, 10kHz sine at 0dBFS level (or max level before clipping) |
| L-R level deviation | < 0.05dB, 1kHz sine at 0dBFS level (or max level before clipping) |
| Output load capability | 1Kohm and higher (supports 10x paralleled 10Kohm loads) |
| Noise Level | - 80dB |
| Control Part | |
| Control Port | (1) EDID Switch, (1) FW, (1) RS232 |
| Control Connector | (1) 4-pin DIP switch, (1) Micro-USB, (1) Female DB9 |
| General | |
| Bandwidth | 18Gbps |
| Operation Temperature | -5°C ~ +55°C |
| Storage Temperature | -25°C ~ +70°C |
| Relative Humidity | 10%-90% |
| External Power Supply | Input: AC 100~240V, 50/60Hz; Output: 24V DC 1.25A |
| Power Consumption | 26W (Max) |
| Dimension (W*H*D) | 268mm x 40mm x 125mm |
| Net Weight | 1.14KG |
Package Contents
① 1x16 Splitter
② 2x Mounting Ears with 4 Screws
③ 4x Plastic Cushions
④ 1x RS232 Cable (Female DB9 to Male DB9)
⑤ 1x Power Adapter (24V DC, 1.25A)
⑥ 1x User manual
② 2x Mounting Ears with 4 Screws
③ 4x Plastic Cushions
④ 1x RS232 Cable (Female DB9 to Male DB9)
⑤ 1x Power Adapter (24V DC, 1.25A)
⑥ 1x User manual
Warranty: 2 years
