Integration Tools

TAA Compliant

4K/1080P HDMI 2.0 18Gbps Portable Signal Test Generator and Analyzer

8K/4K/1080P HDMI 2.1 48Gpbs Portable Signal Test Generator and Analyzer

SKU: BG-AVTPG-MINI-G2

$1,199.00

TAA Compliant

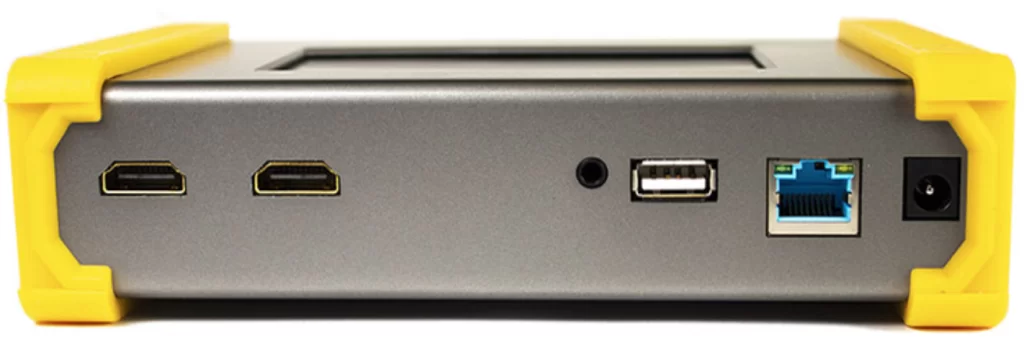

4K/1080P HDMI 2.0 18Gbps Video Test Pattern Generator/Tester and Analyzer with Ethernet

SKU: BG-AVTPG-4K

$2,199.00

TAA Compliant

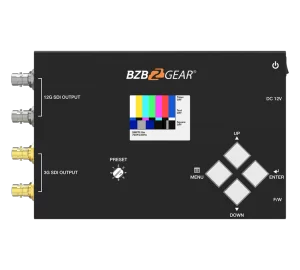

4K/1080P 12G-SDI Video Test Pattern Generator (12G/6G/3G/HD-SDI Support)

SKU: BG-SDITPG-G2

$2,499.00

TAA Compliant

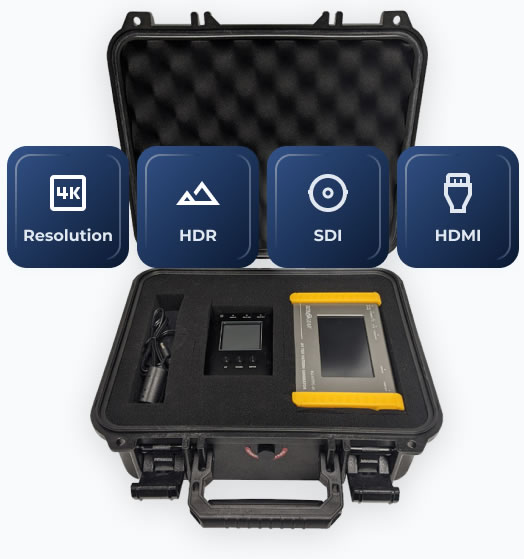

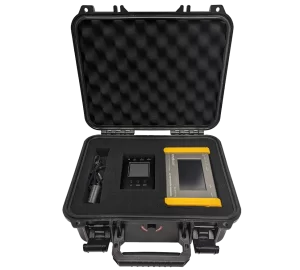

BG-AVTPG-4K and BG-AVTPG-MINI Installer Kit

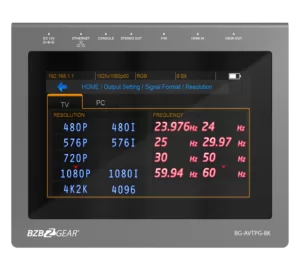

8K UHD HDMI 2.1 48Gbps Advanced Signal Test Generator and Analyzer (1080P/4K/8K Support)

SKU: BG-AVTPG-8K

$6,999.00

Configure the Perfect Solution

Get Started

Comparison Table

SKU	VIDEO FORMAT SUPPORT	VIDEO SUPPORT	CONTROL OPTIONS	HDCP COMPLIANCE

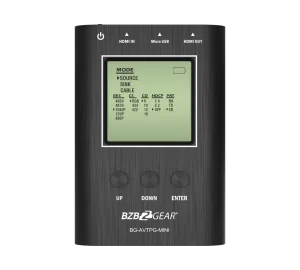

BG-AVTPG-MINI	HDMI (2.0 & Below)	Up to 4K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit (HDR)	Device Buttons	1.4\|2.2
BG-AVTPG-MINI-G2	HDMI (2.1)	Up to 8K60 4:2:0 10bit, 8K30 4:4:4, 4K2K 120Hz	Device Buttons	1.4\|2.3
BG-AVTPG-4K	HDMI (2.0 & Below)	Up to 4K2K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit (HDR)	USB mouse / Touch panel / Ethernet	1.4\|2.2
BG-SDITPG-G2	SDI (Multiple Formats)	[12G] 4K2K@50/59.94/60 [6G] 4K2K@23.97/24, 25, 30 [3G] 1080p@50/59.94/60 (4:2:2) [HD] 720p50/59.94/60, 1080p24/30, 1035i50/59.94/60, 1080i50/59.94/60 [SD] NTSC@59.94Hz, PAL@50Hz	Four buttons, rotary switch, and LCD screen

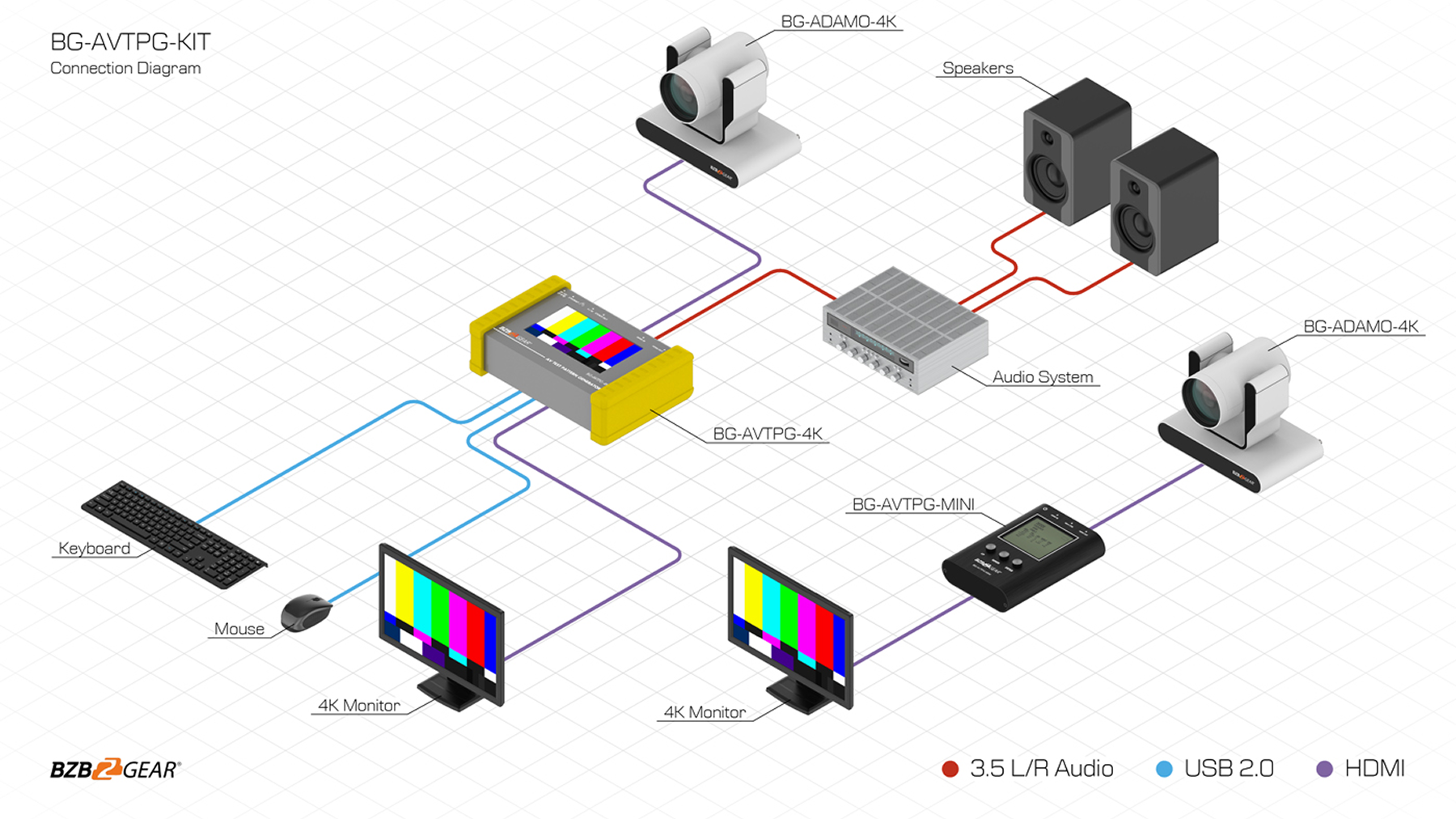

BG-AVTPG-KIT	HDMI (2.0 & Below)	Up to 4K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit (HDR)	Device Buttons/USB mouse / Touch panel / Ethernet	1.4\|2.2
BG-AVTPG-8K	HDMI (2.1)	Up to 8K60 4:2:0 8bits, 8K30 4:4:4, 4K2K 120Hz & 4K2K@60 10bits/12bits (HDR)	USB mouse / Touch panel / Ethernet	1.4\|2.2\|2.3

BZBGEAR Integration Tools

BZBGEAR test pattern generators are essential diagnostic tools for AV professionals, streamlining installations and troubleshooting by generating reliable video signals. These tools help quickly identify issues with cabling, signal compatibility, and connected devices, ensuring efficient workflows across residential, commercial, and live production environments.

BZBGEAR Innovations

At BZBGEAR, we’re redefining how professionals approach video testing and analysis. Our advanced test pattern generators and signal analyzers are packed with innovative features designed to streamline your workflow and keep you ahead of the curve. With support for 8K and 4K@120Hz resolutions and full backward compatibility, our solutions are truly future-proof.

Whether you're calibrating displays or troubleshooting signal issues, you'll benefit from a wide range of test patterns, built-in rechargeable batteries for portable use, and integrated audio support for comprehensive testing - all in one unit.

How do Test Pattern Generators and Analyzers Work?

BZBGEAR also offers advanced cable testers and 8K signal analyzers that support resolutions up to 8K@60Hz and 4K@120Hz, complete with built-in test patterns, HDR modes, and both HDMI and SDI compatibility. Designed for both in-depth diagnostics and quick field use, BZBGEAR's lineup includes rechargeable, portable models and high-performance analyzers tailored to modern AV standards.

Cable testers work by generating standardized video and audio signals to simulate real AV sources, allowing technicians to verify the integrity of cables, displays, and other connected equipment. By outputting test patterns at various resolutions - including 4K, 8K, HDR, and high frame rates - these devices help quickly identify issues like signal loss, handshake failures, or format incompatibility. Some models also feature built-in analyzers, user-friendly controls, and rechargeable batteries for field use, making them essential tools for both troubleshooting and validating professional AV installations.

4K vs 8K Test Pattern Generators:
What’s the Difference?

4K Test Pattern Generators

4K Test Pattern Generators are ideal for most current consumer and commercial applications. They provide robust support for 4K UHD content, HDR formats, and common HDMI 2.0 configurations. These are excellent for verifying setups in conference rooms, classrooms, and residential installations.

8K Test Pattern Generators

8K Test Pattern Generators, on the other hand, are built for the next generation of video. They support HDMI 2.1 and offer advanced output options like 8K@60Hz and 4K@120Hz. These are especially valuable for high-end AV workflows, gaming environments, and forward-thinking broadcast applications.

Comparison Table: 4K vs 8K
Test Pattern Generators

Feature	4K Test Pattern Generators	8K Test Pattern Generators
Max Resolution Output	Up to 4K@60Hz	Up to 8K@60Hz, 4K@120Hz
Color Depth & Chroma	4:4:4 8-bit / 4:2:0 16-bit HDR	4:2:0 8/10-bit, 4:4:4 8/10-bit HDR
HDMI Version	HDMI 2.0	HDMI 2.1
Ideal For	Legacy 4K equipment, conference rooms, AV installations	8K-capable displays, gaming, broadcast & future-proofing
HDR Support	Yes	Yes (with wider compatibility and bit-depth)
Control Options	Device buttons, USB mouse, Ethernet	USB mouse, Ethernet, touch panel
HDCP Support	1.4, 2.2	1.4, 2.2, 2.3

Whether you're upgrading to support 8K workflows or staying with tried-and-true 4K setups, BZBGEAR offers the right tools to ensure your AV systems are calibrated and ready to perform.
