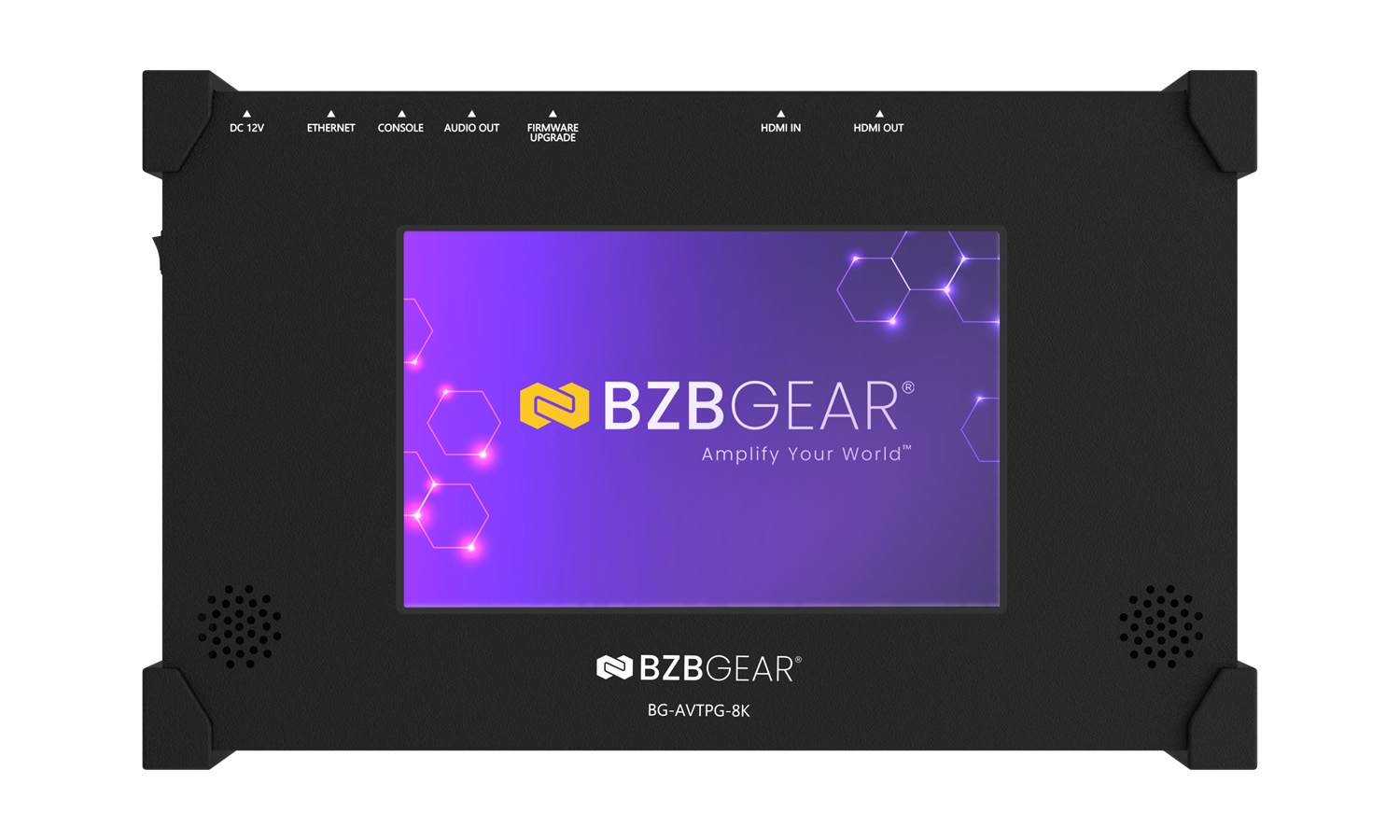

8K UHD HDMI 2.1 48Gbps Advanced Signal Test Generator and Analyzer (1080p FHD/4K120 UHD/8K60)

ProGear
NEW
Shipping Q3 2024
Configure the Perfect Solution
Get Started
Overview Specifications Interfaces Resources Package contents

Overview

The BG-AVTPG-8K stands out as an HDMI 2.1 signal generator and analyzer, serving as an indispensable and versatile tool specifically crafted for integrators. It effortlessly accommodates the full bandwidth of HDMI 2.1 and HDCP 2.2, streamlining the installation and troubleshooting processes like never before.

This compact and portable device comes equipped with a robust rechargeable battery, an array of video test patterns, user-friendly touch panel controls, and convenient access to cloud-based firmware upgrades. Furthermore, the BG-AVTPG-8K boasts the capability to support up to 8 channels of LPCM audio with selectable sample rates.

The loop-through function of the BG-AVTPG-8K allows the connected HDMI input to seamlessly transmit to an external display or its own built-in 7.0" touch screen. This feature empowers users to swiftly verify HDMI sources, displays, and cables. Additional functionalities, such as the HDCP analyzer and loop tester, ensure that installers have all the essential tools at their fingertips, simplifying their tasks with efficiency.

BZBGEAR AWARDS

BZBGEAR has a number of award winning products from past tradeshow events. These award winning products were nominated and judged against other nominees. See what makes our award winning products so extraordinary!
BEST OF SHOW - ISE 2024: SOUND & VIDEO CONTRACTOR WINNER
2024 TOP NEW TECHNOLOGY (TNT) AWARD - Category: Residential > Installation Tools and Testers

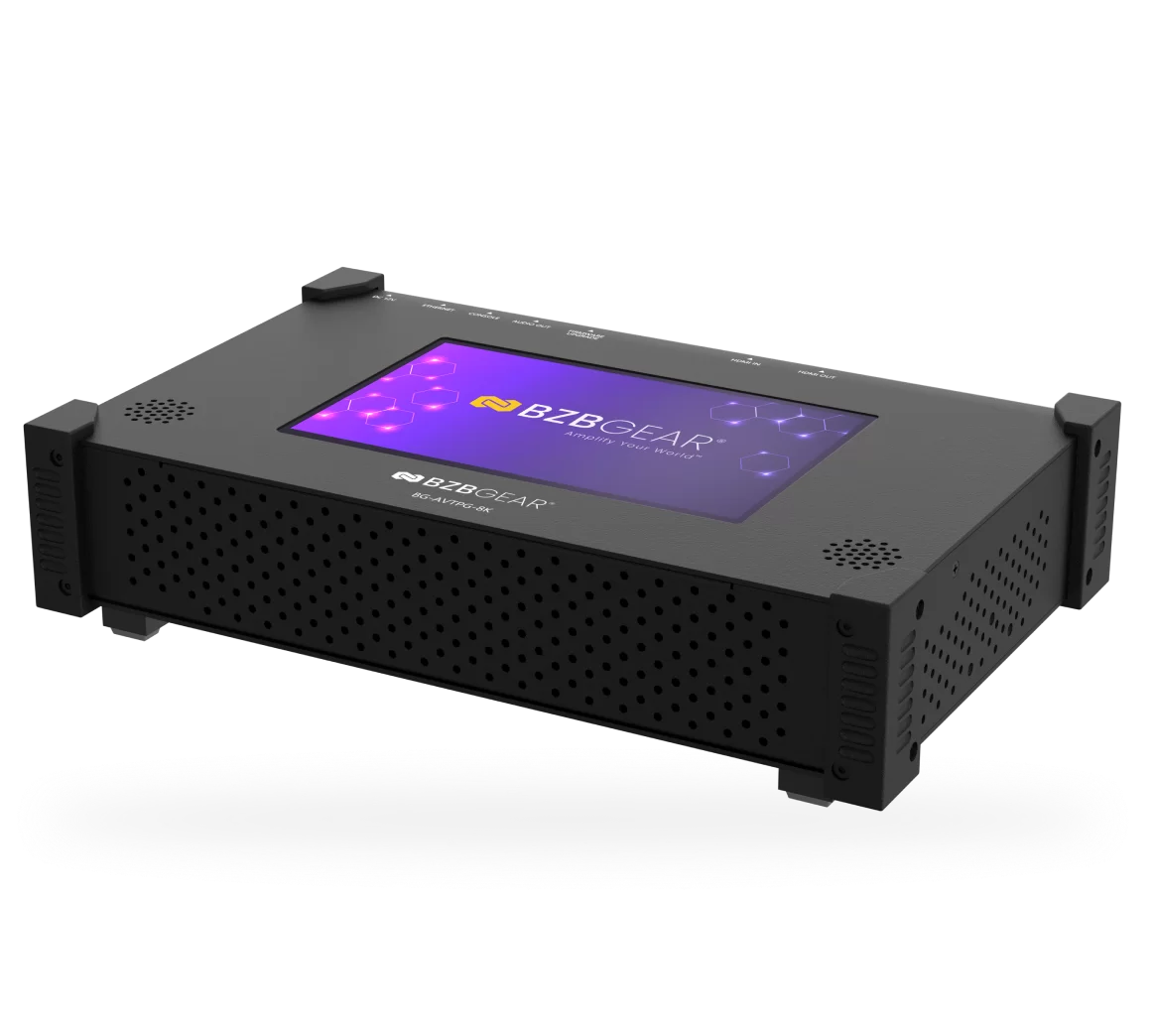

Features

  • Future Proof
    8K60 4:2:0 8bits, 8K30 4:4:4, 4K2K 120Hz & 4K2K@60 1 0bits/12bits HDR pattern generator
  • Enhanced UX
    7.0” touch panel for quick and easy access
  • Control Options
    Mouse control and control via Ethernet
  • Simplified Monitoring
    HDMI loop through functionality
  • HDCP Compliant
    HDCP analyzer and generator that is able to transmit HDCP encrypted video
  • Rechargeable battery powered
    Portable for up to 9 hours on a full charge
  • Supports true color
  • Voltage measurement on +5V and hotplug
  • DDC from HDMI source and display
  • Firmware updateable through USB Flash Drive
  • User defined pattern storage up to 4 GB
  • Embedded LINUX KERNEL system with limitless extension
  • Scrambler for videos over 340 MHz

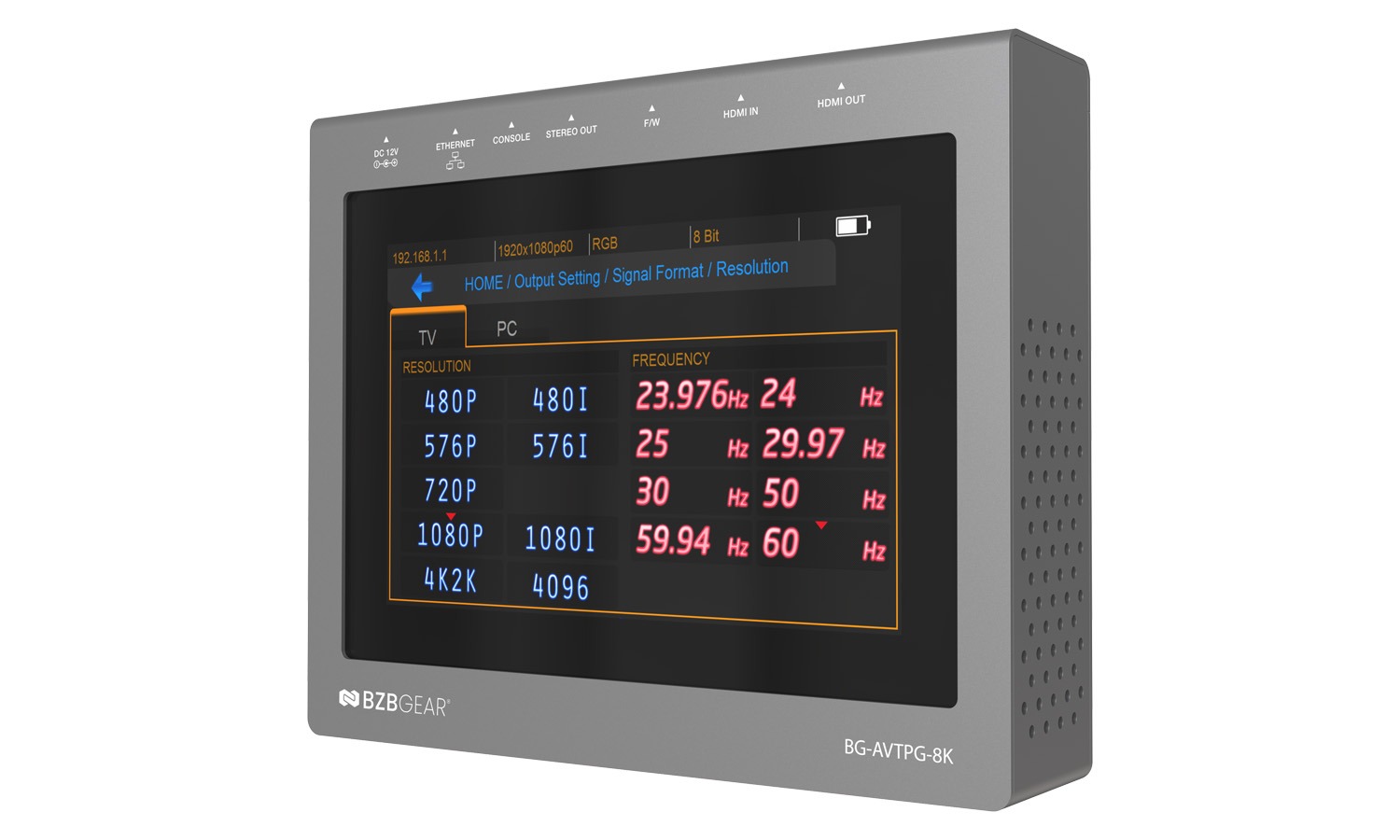

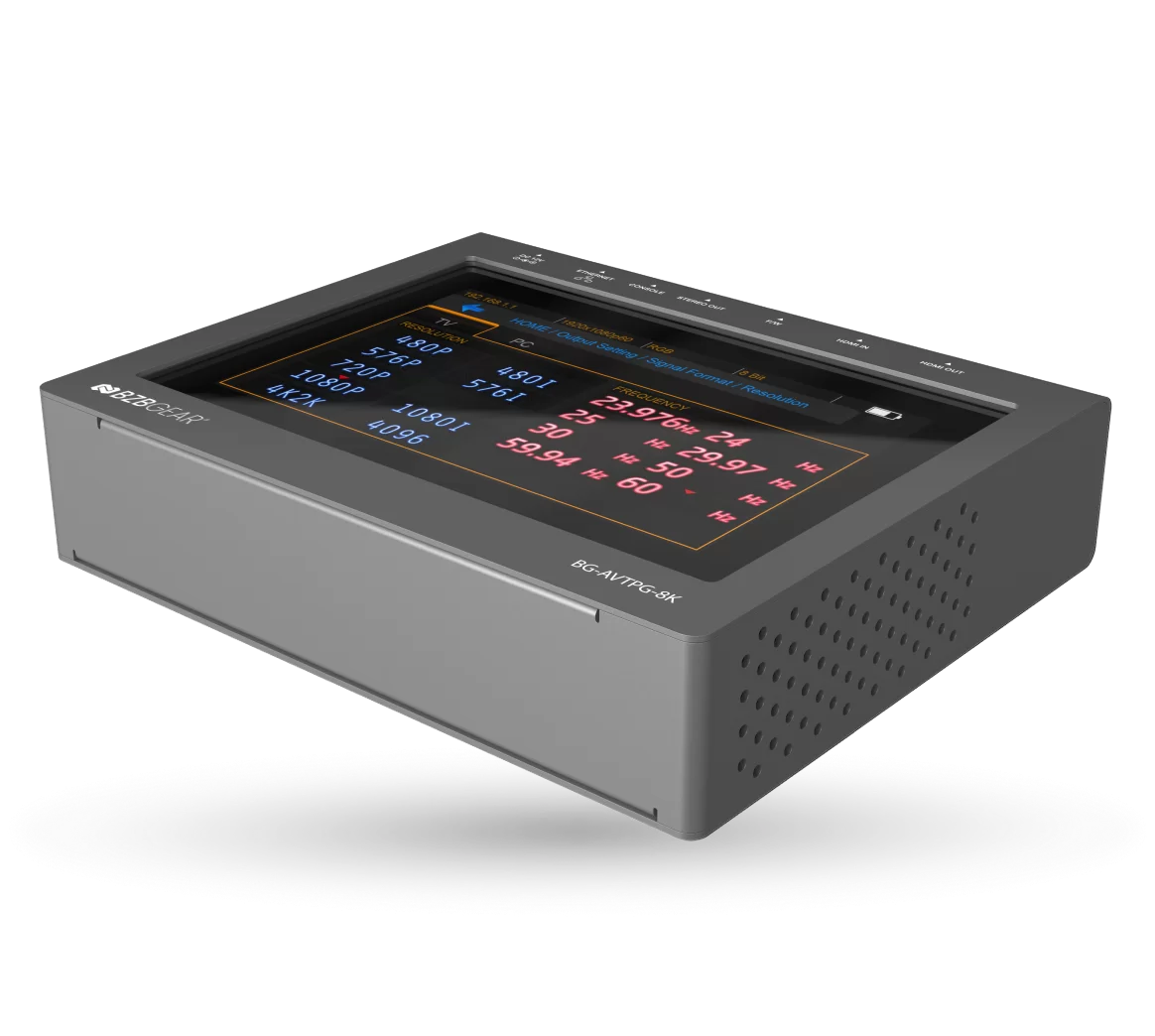

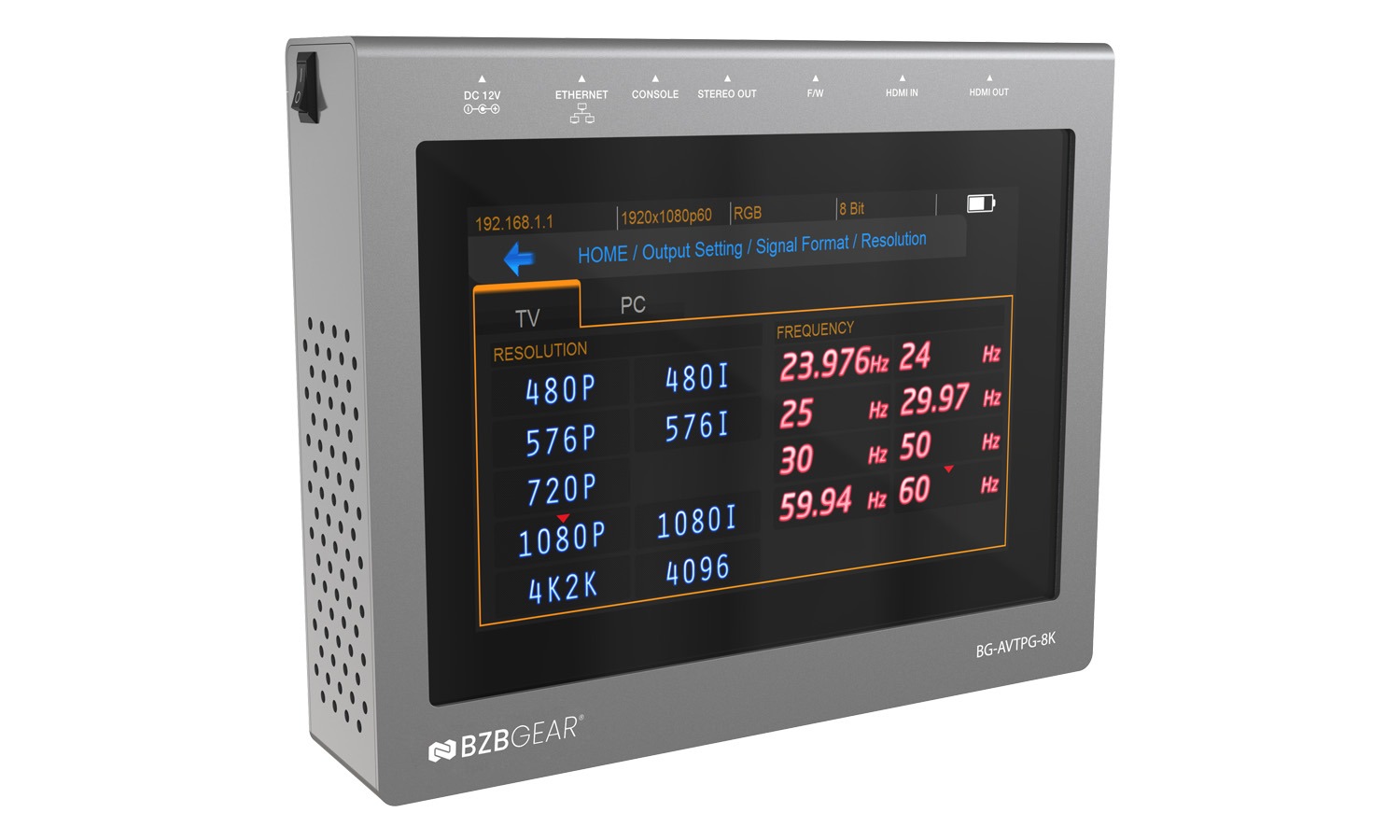

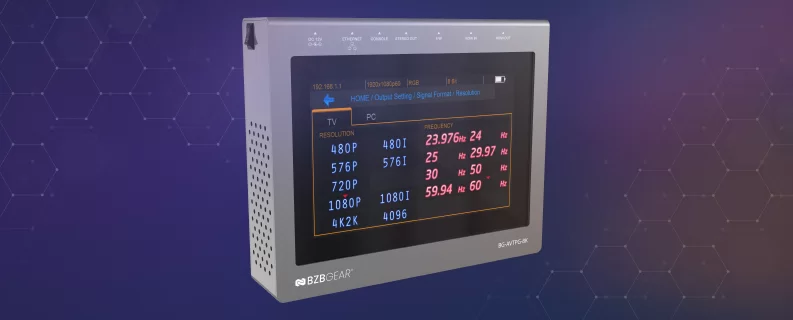

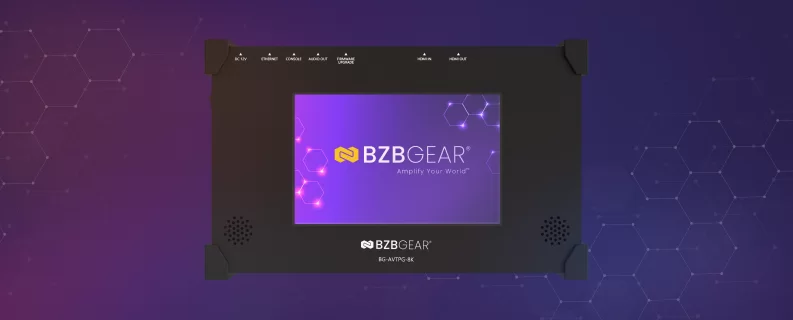

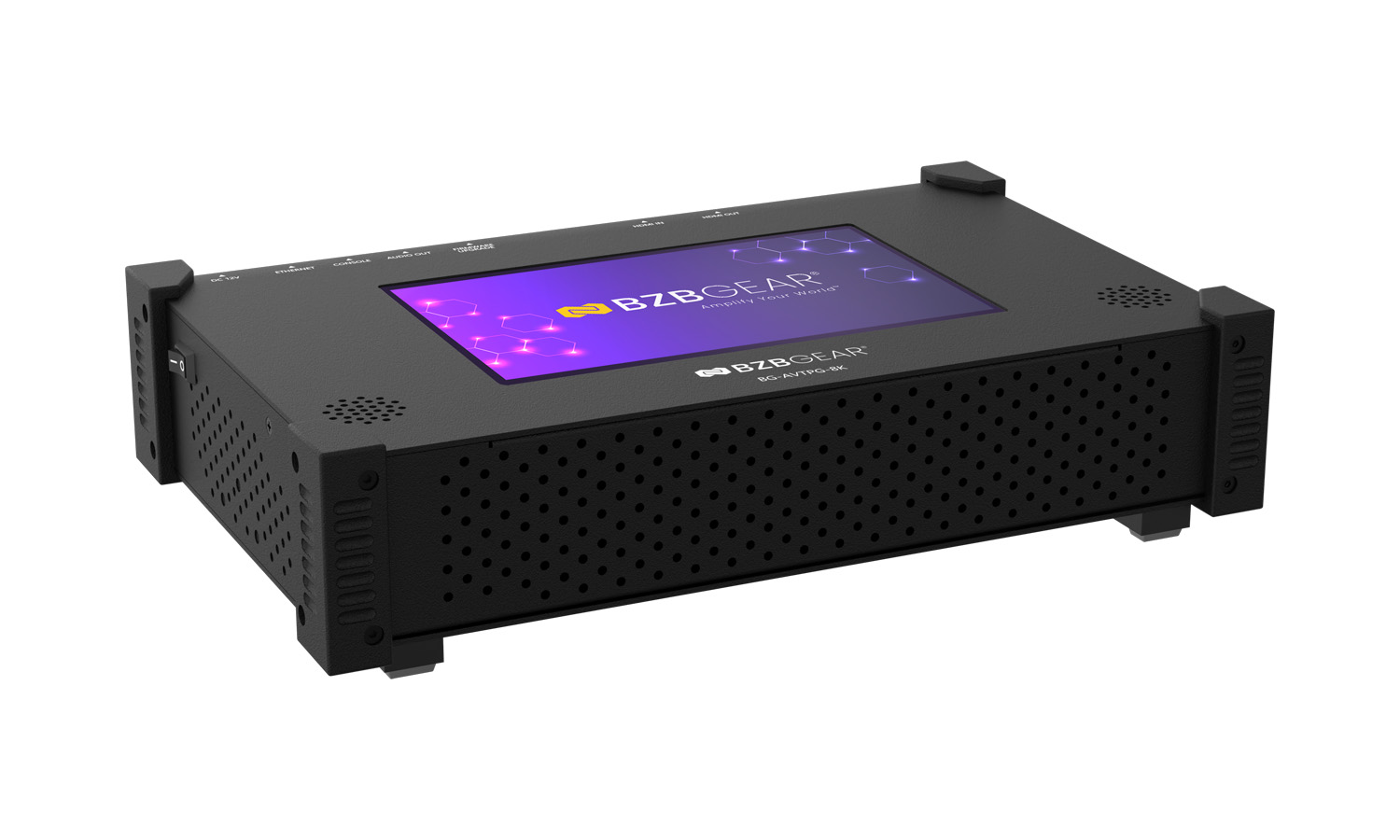

Revolutionary Touch Panel Interface

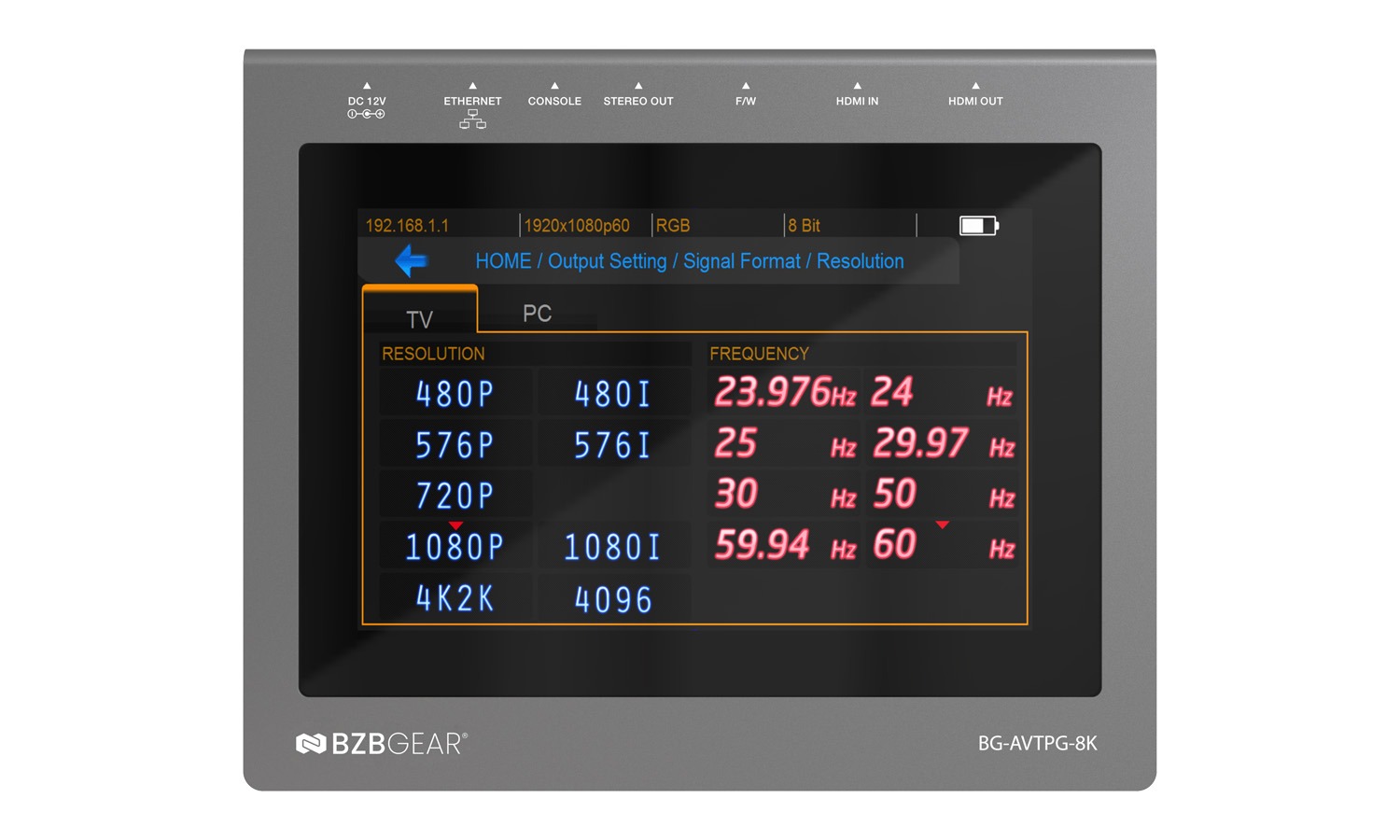

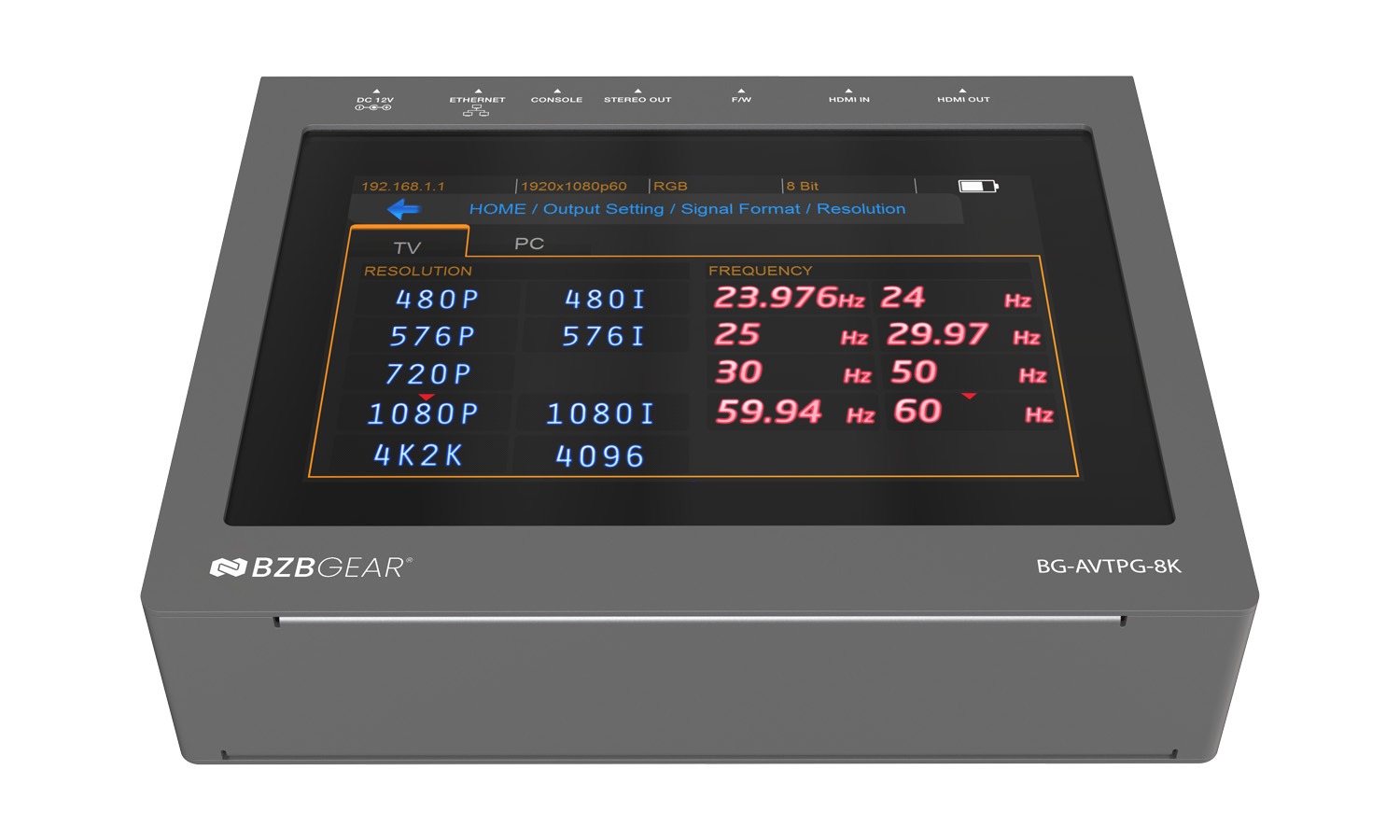

Experience unparalleled ease with the BG-AVTPG-8K's advanced 7.0” touch panel, designed for seamless and intuitive navigation, ensuring effortless operation.

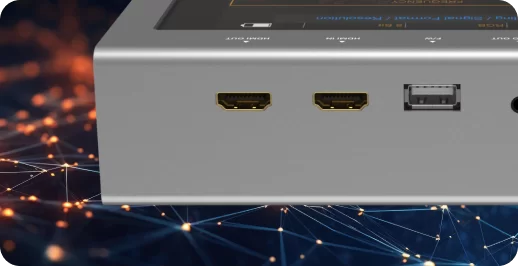

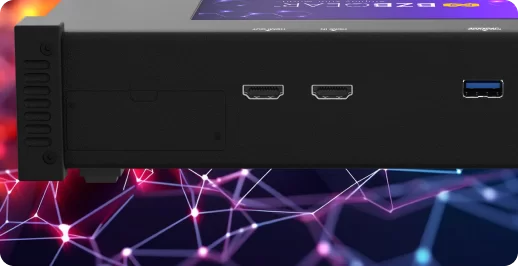

Streamlined USB Connectivity

Unlock a world of possibilities with the versatile USB port, offering effortless mouse control, seamless uploading of custom test patterns, efficient management of EDID information, and hassle-free firmware updates.

Enhanced Remote Accessibility

Harness the power of network connectivity for convenient remote control access, providing unparalleled flexibility and ease of use for enhanced user experience.

Videos

Get Your 8K on With Our Lineup of Test Pattern Generators and Analyzers! | ISE 2024
Get Your 8K on With Our Lineup of Test Pattern Generators and Analyzers! | ISE 2024
Check Out the Award Winning 8K Test Pattern Generator From BZBGEAR! | ISE 2024
Check Out the Award Winning 8K Test Pattern Generator From BZBGEAR! | ISE 2024

Tech Specifications

Model Name BG-AVTPG-8K
Technical
Role of usage Generator / Analyzer
Video Bandwidth TBD
HDMI Compliance HDMI 2.1 and below
HDCP Compliance HDCP 2.3 and below
Video Support Up to 8K60 4:2:0 8bits, 8K30 4:4:4, 4K2K 120Hz & 4K2K@60 10bits/12bits (HDR)
Video Format Support HDMI
Audio Support 8ch LPCM up to 192K
Control USB mouse / touch panel / Ethernet
ESD Protection Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
Input 1x HDMI + 1x USB + 1x RJ-45 (Ethernet)
Output 1x HDMI + 1x 3.5mm (Stereo)
USB Support USB 2.0
HDMI Connector Type A [19-pin female]
USB Connector Type A
RJ-45 Connector WE/SS 8P8C with 2 LED indicators
Mechanical
Housing Metal Enclosure
Power Supply 12V DC / Battrery
Operation Temperature 32~104°F / 0~40°C
Storage Temperature -4~140°F / -20~60°C
Relative Humidity 20~90% RH [no condensation]

Resources

Documents
Download Manual
Download Brochure

PACKAGE CONTENTS

  • 1x BG-AVTPG-8K
  • 1x DC 12V Power Supply
  • 1x User Manual

Interfaces

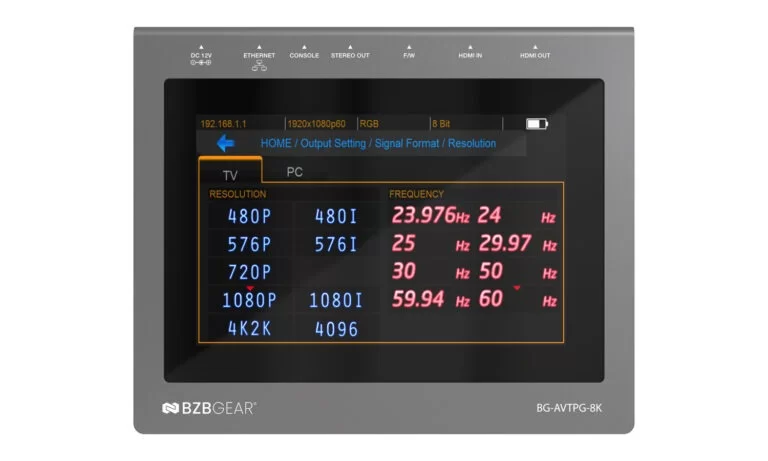

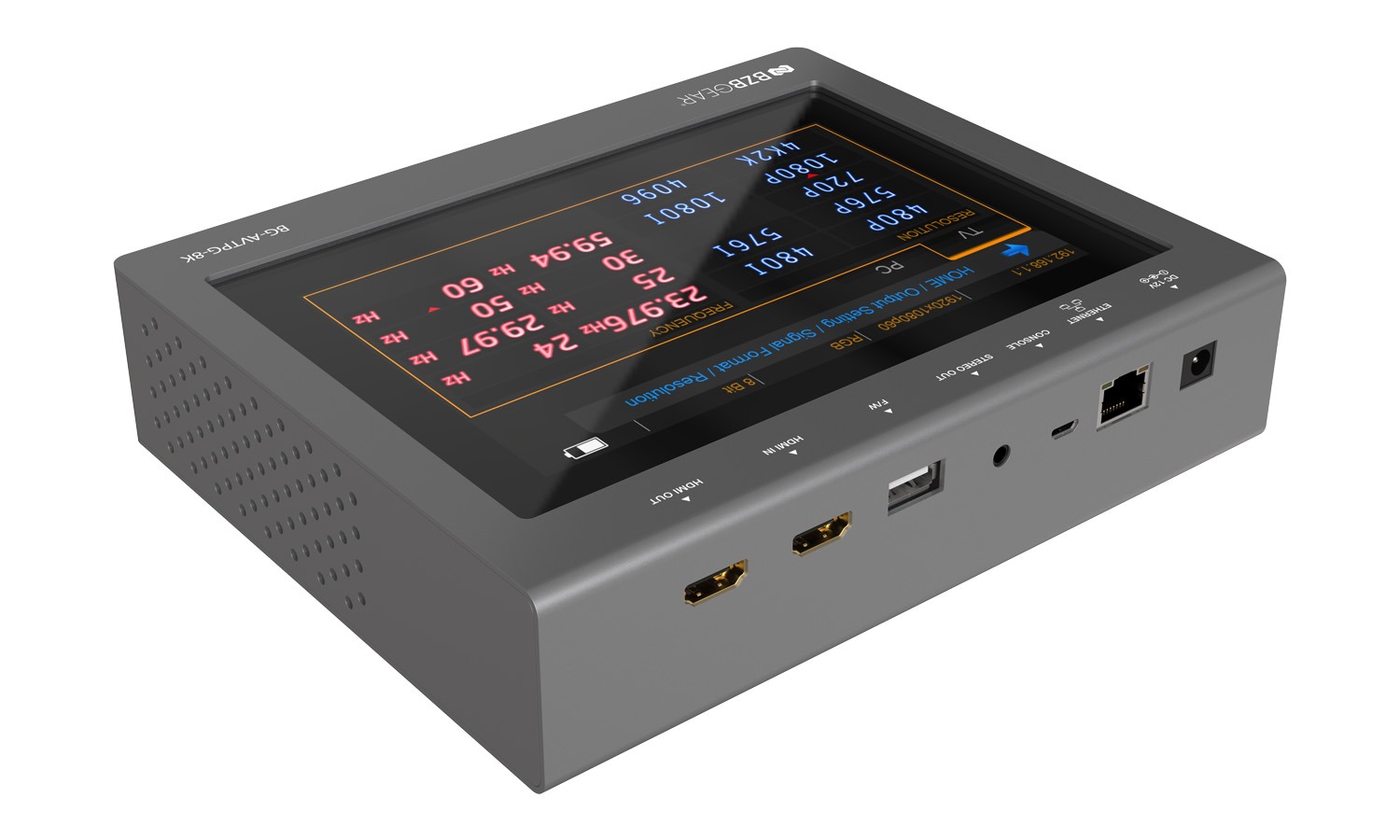

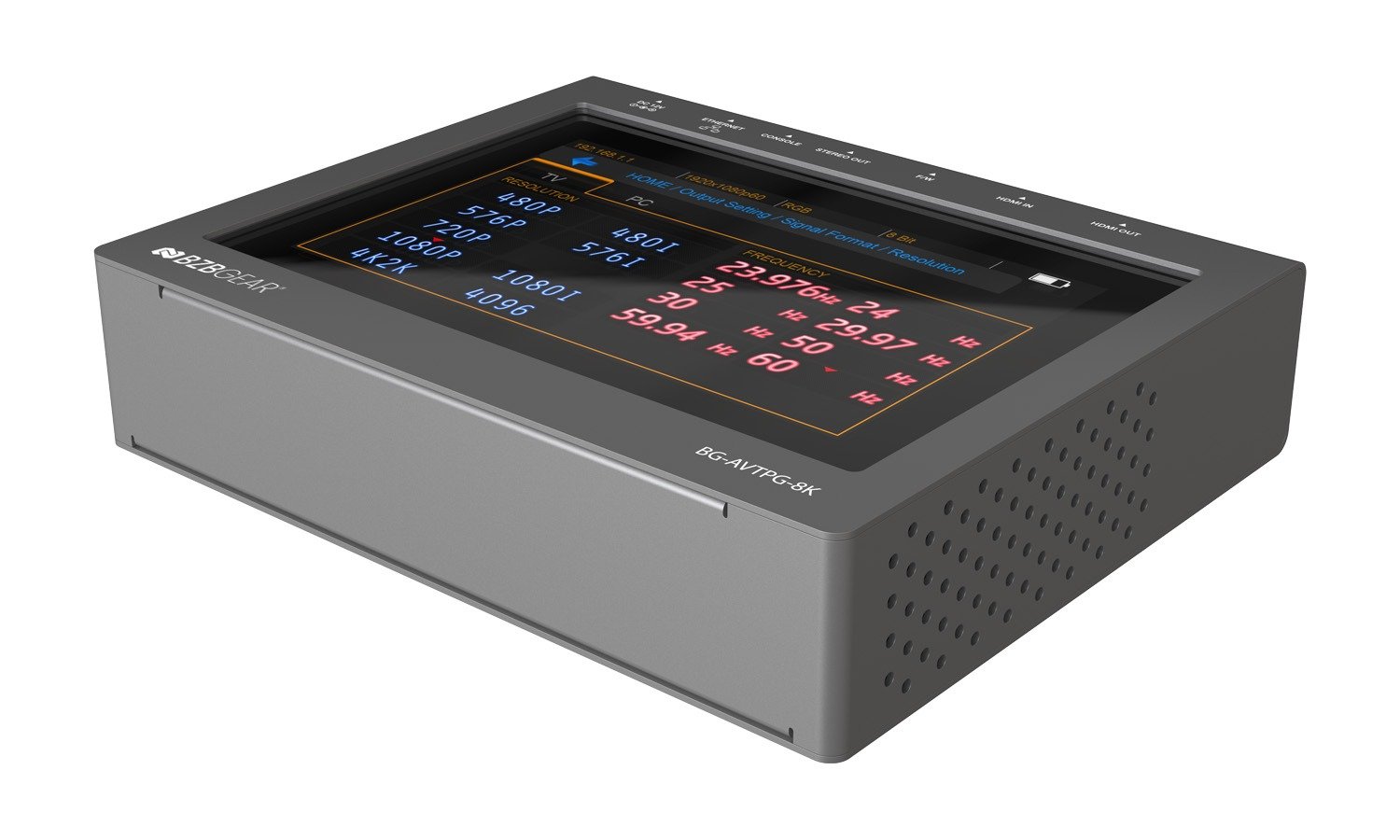

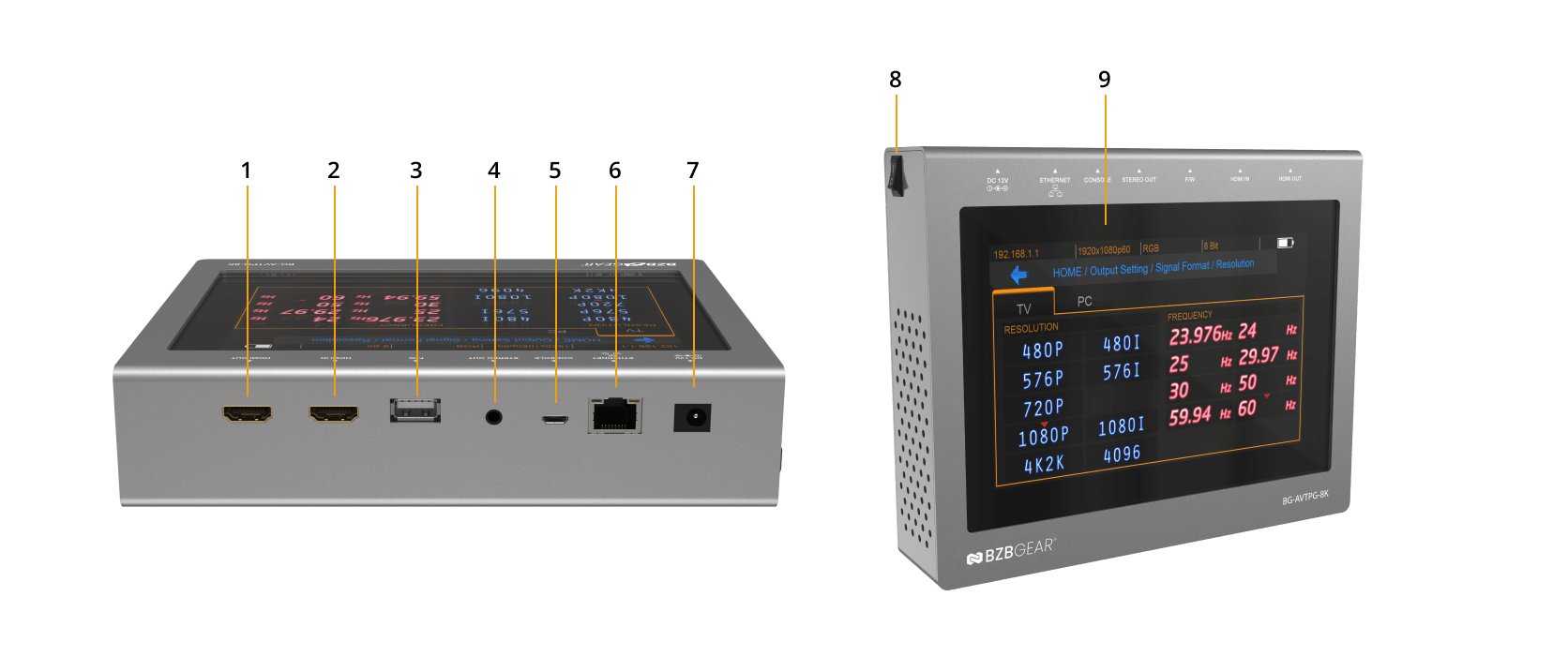

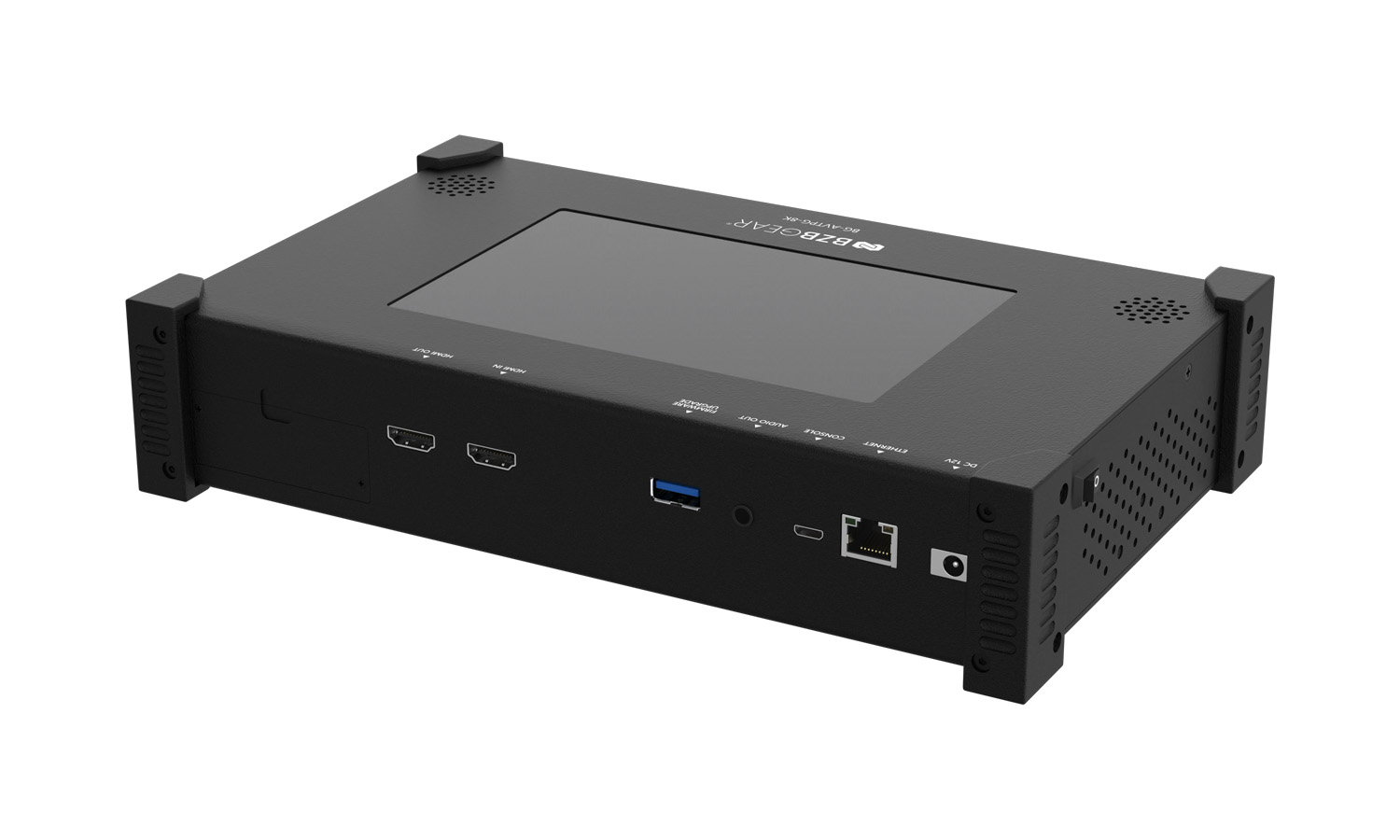

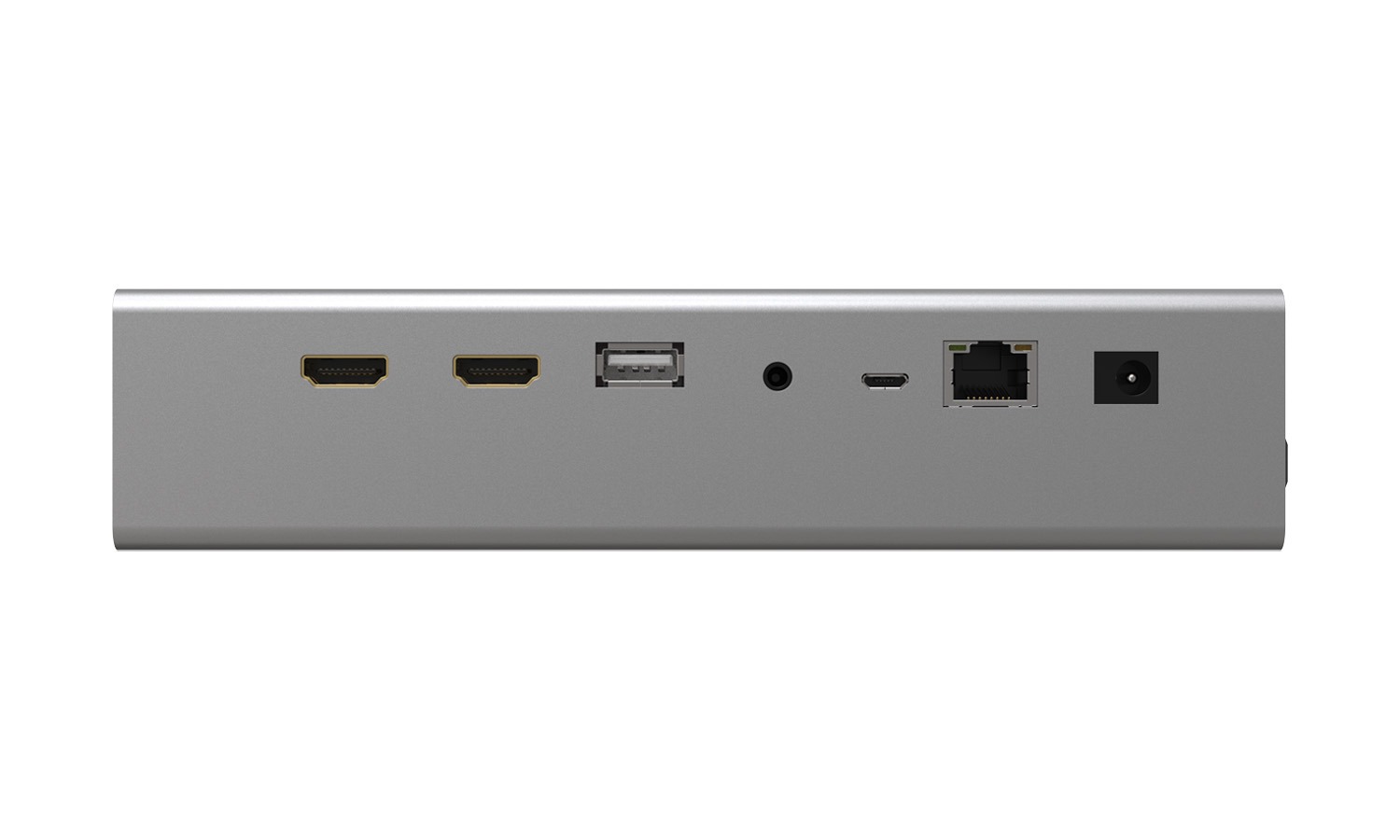

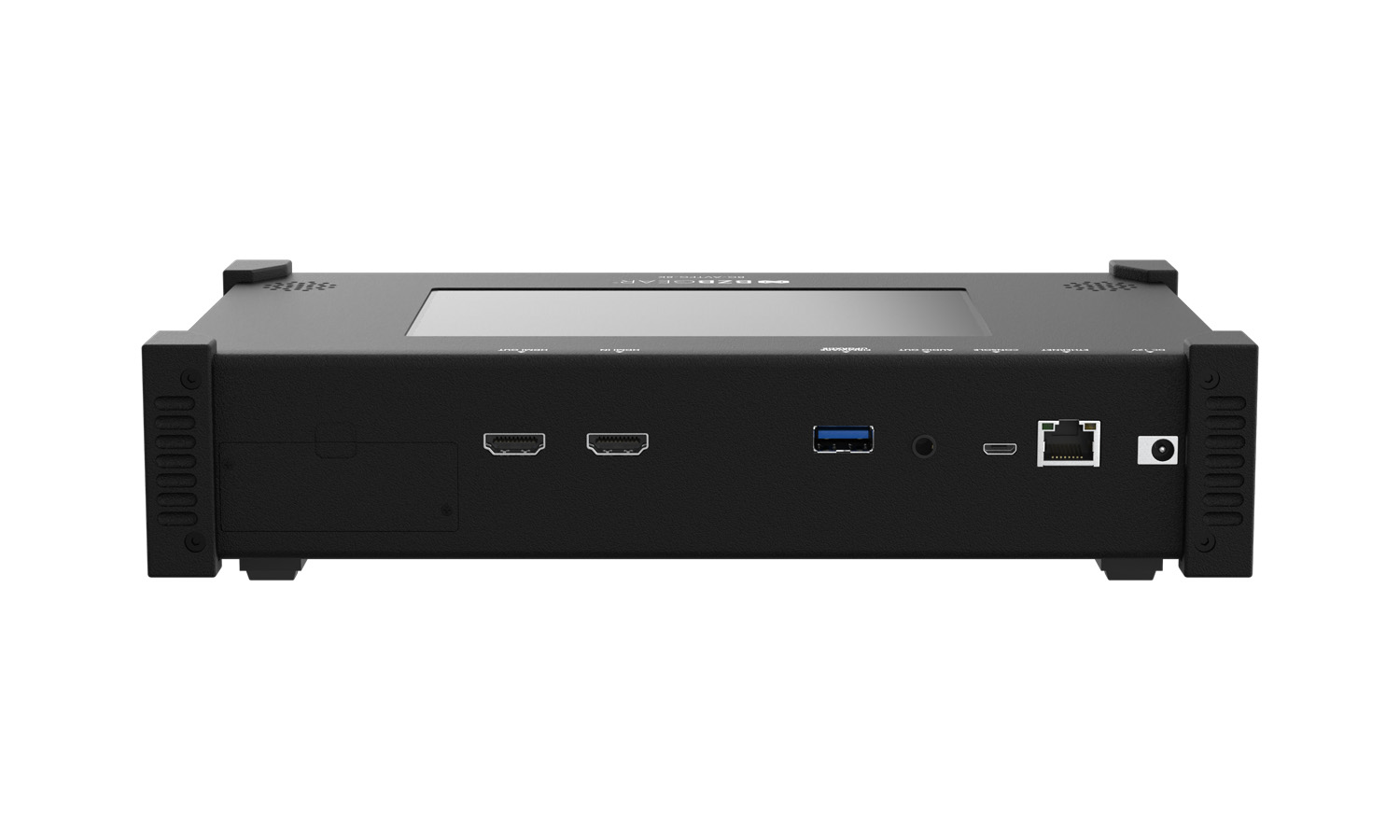

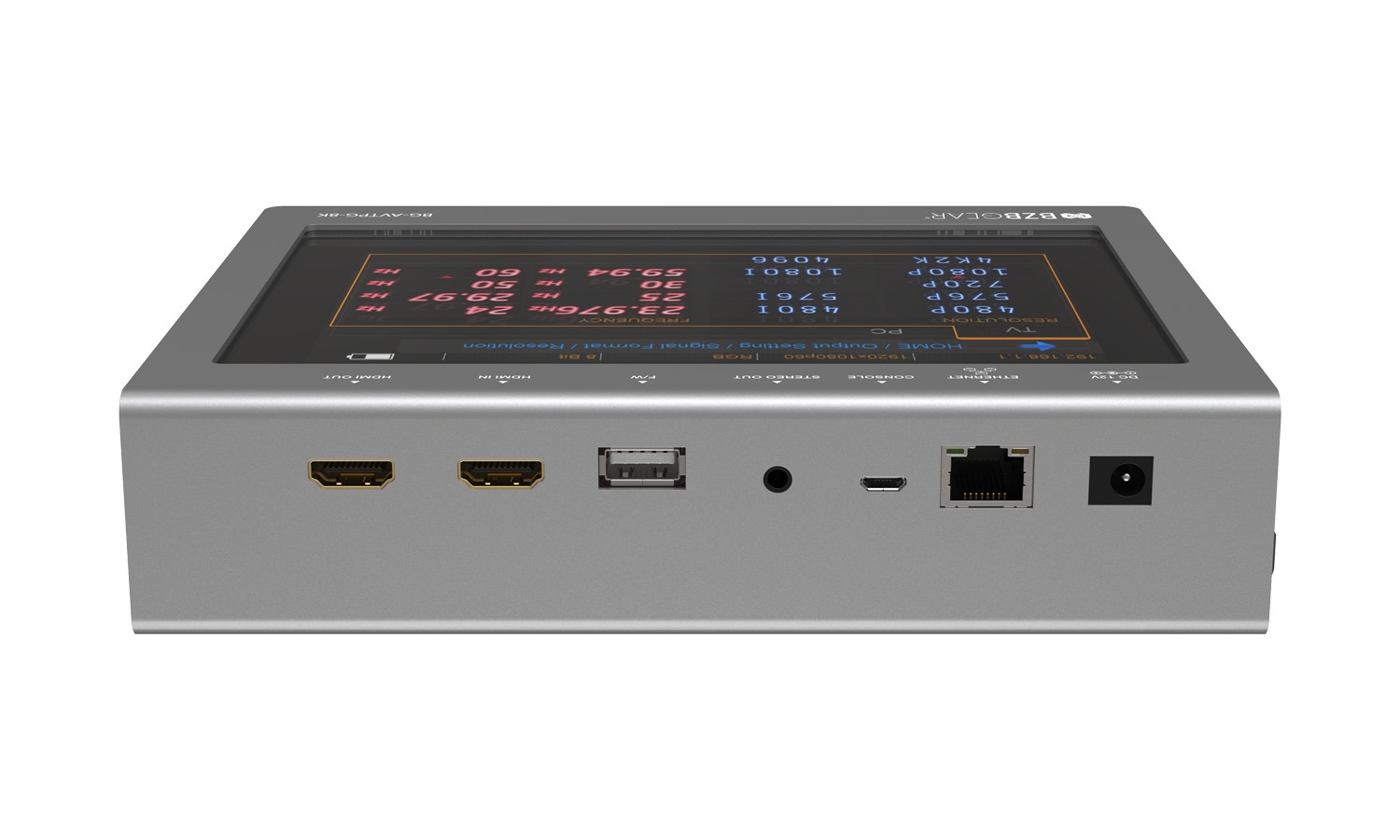

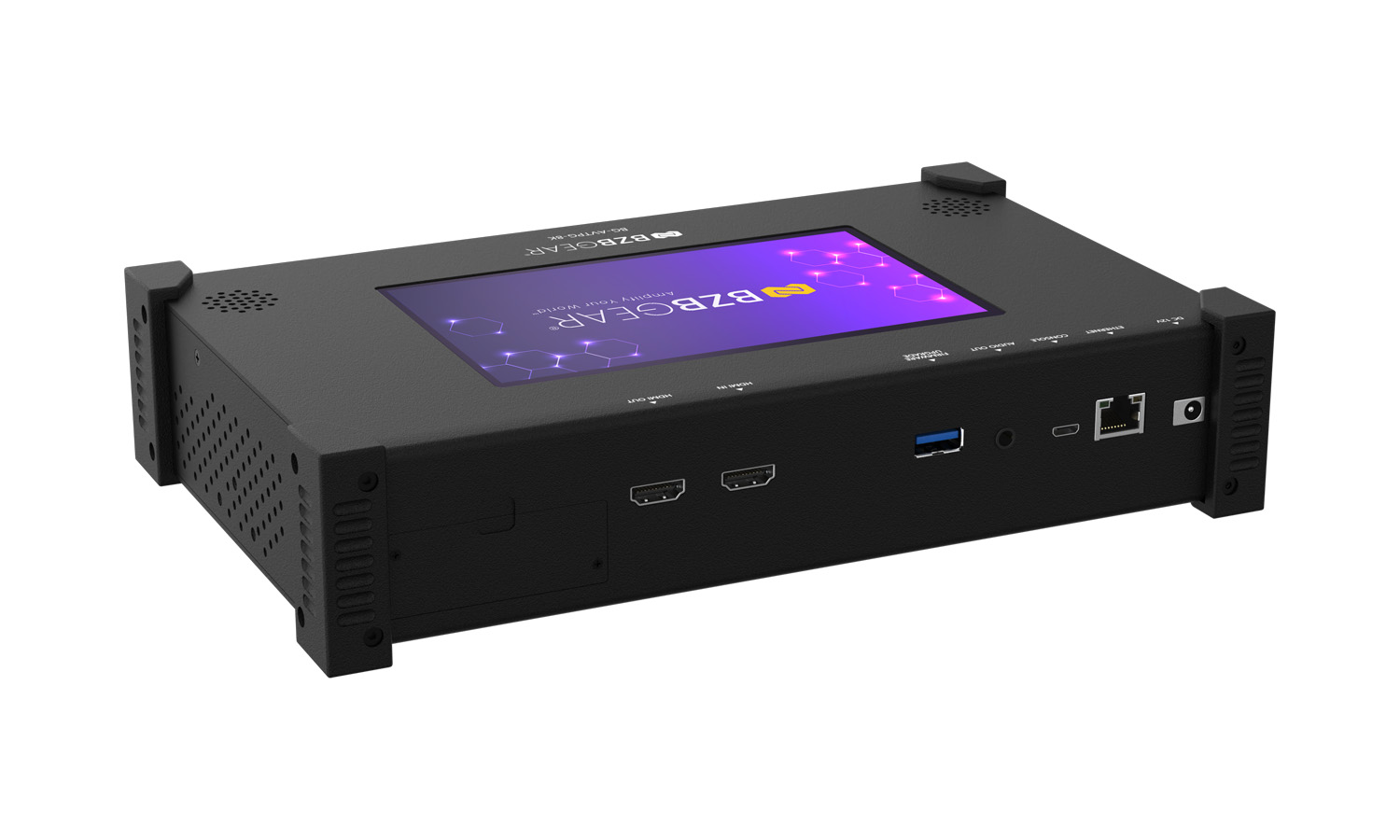

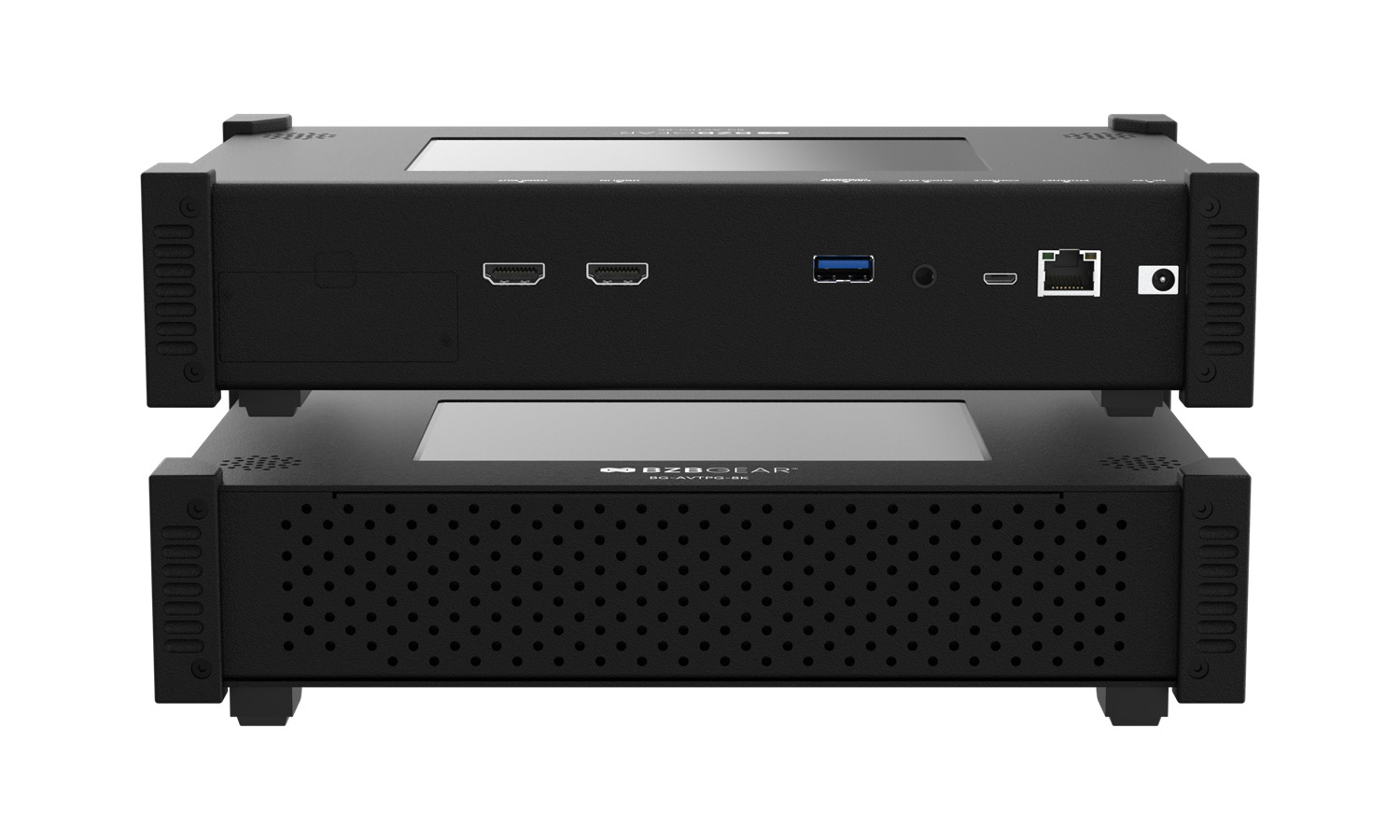

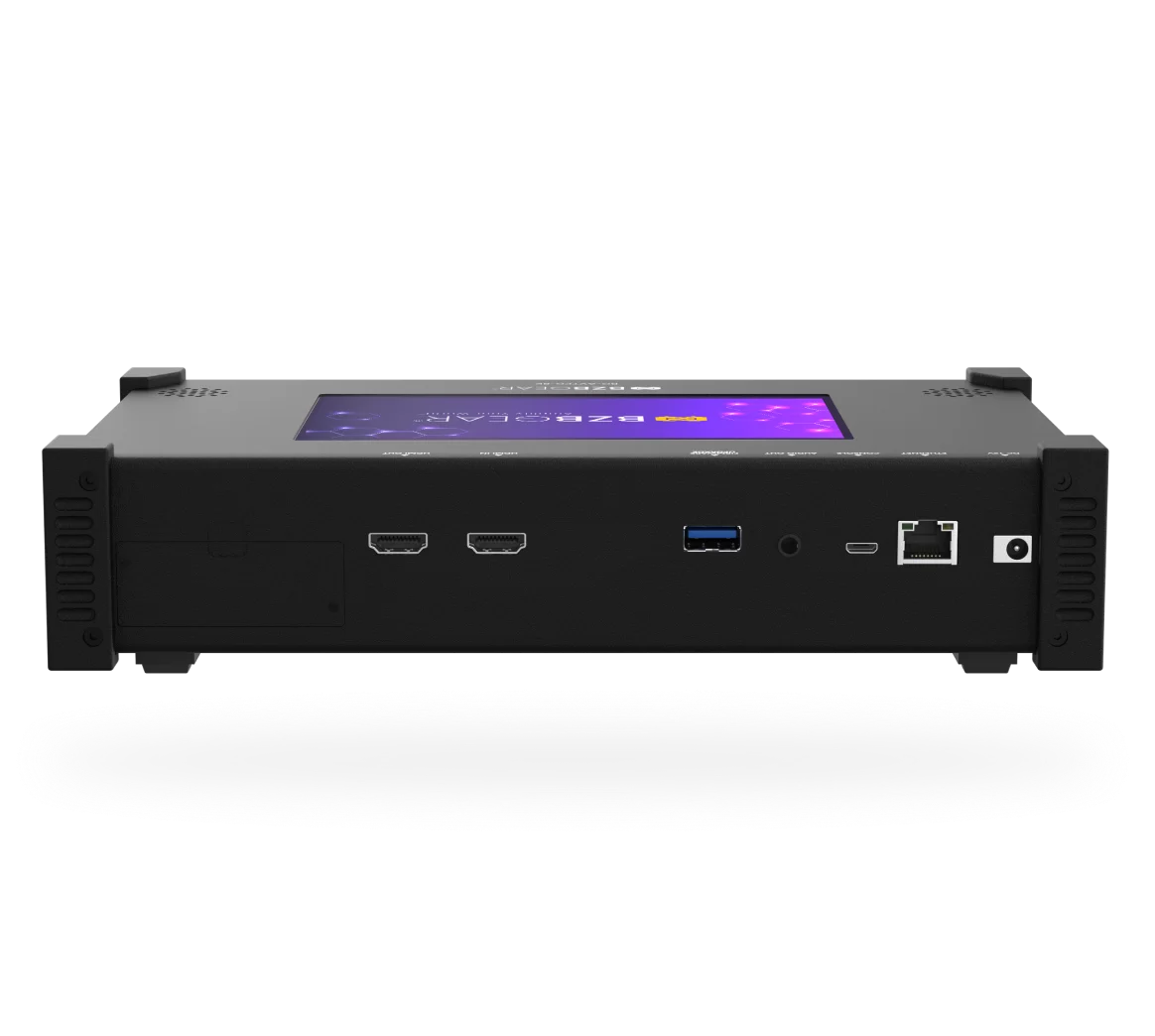

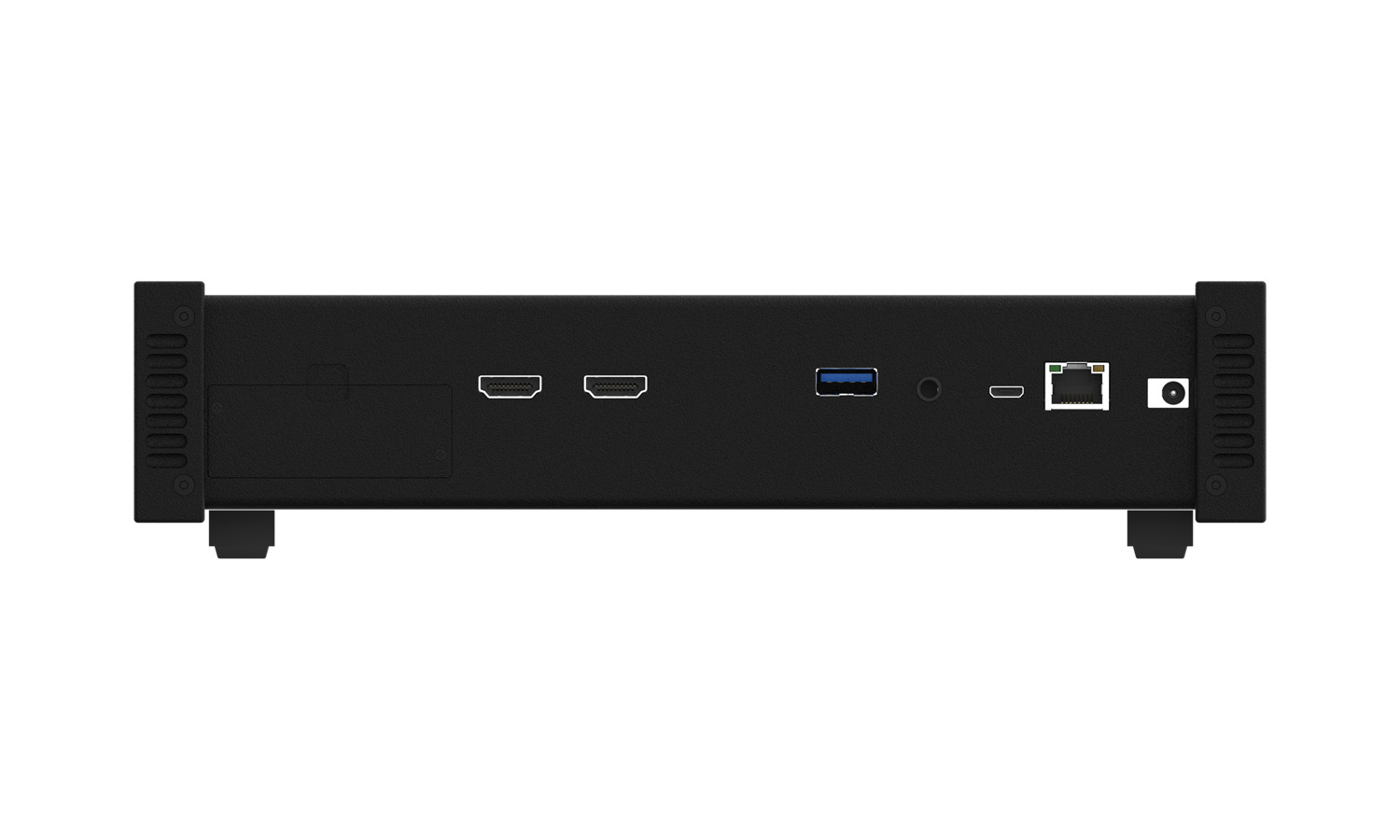

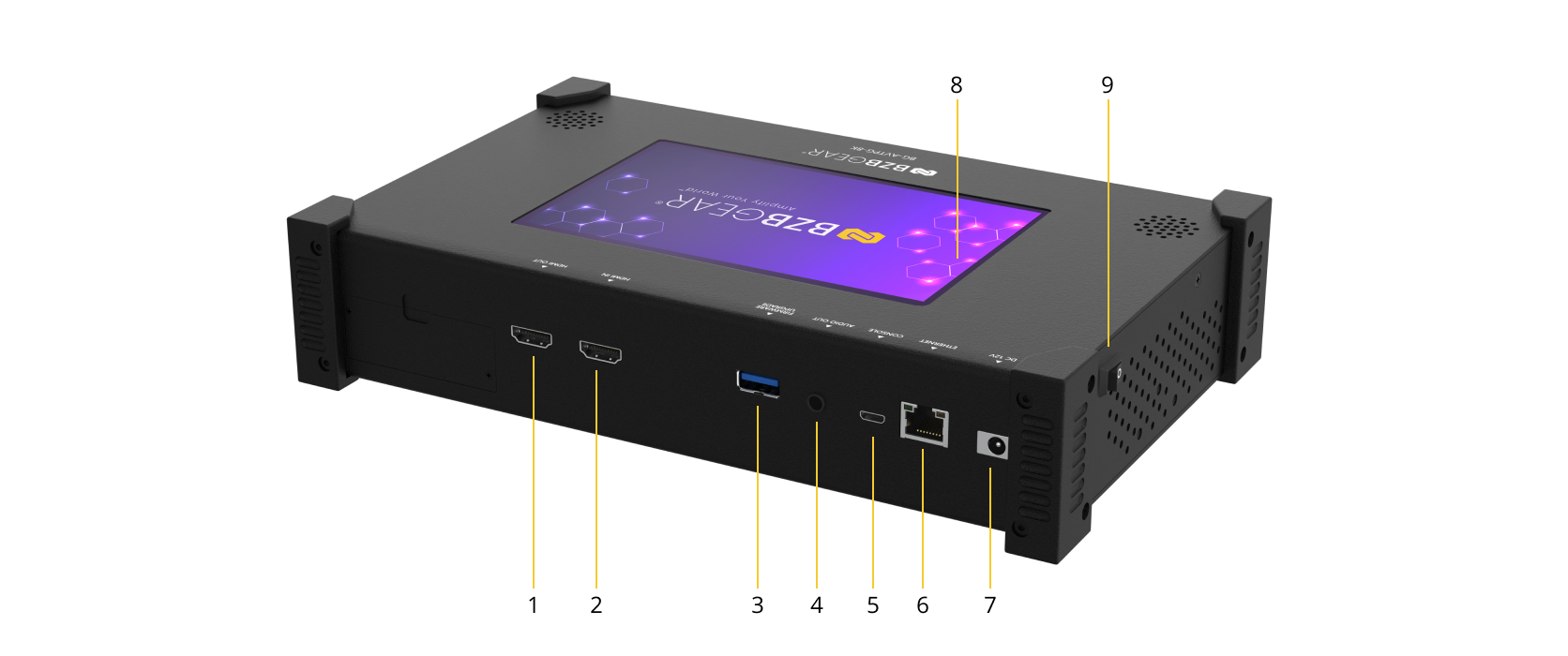

  1. OUTPUT: HDMI output to Display or Sink device.
  2. INPUT: HDMI input from source device.
  3. USB: Connect to USB device for mouse control, uploading user created test patterns, EDID information, and firmware updates.
  4. Stereo Out: 3.5mm stereo analog audio output.
  5. Micro USB: Console port (Reserved).
  6. Ethernet: Connect to a network for remote control.
  7. +12V DC: 12V 5A DC power jack.
  8. Power Switch: Power ON/OFF switch.
  9. Touch Panel: Touch screen for control.
