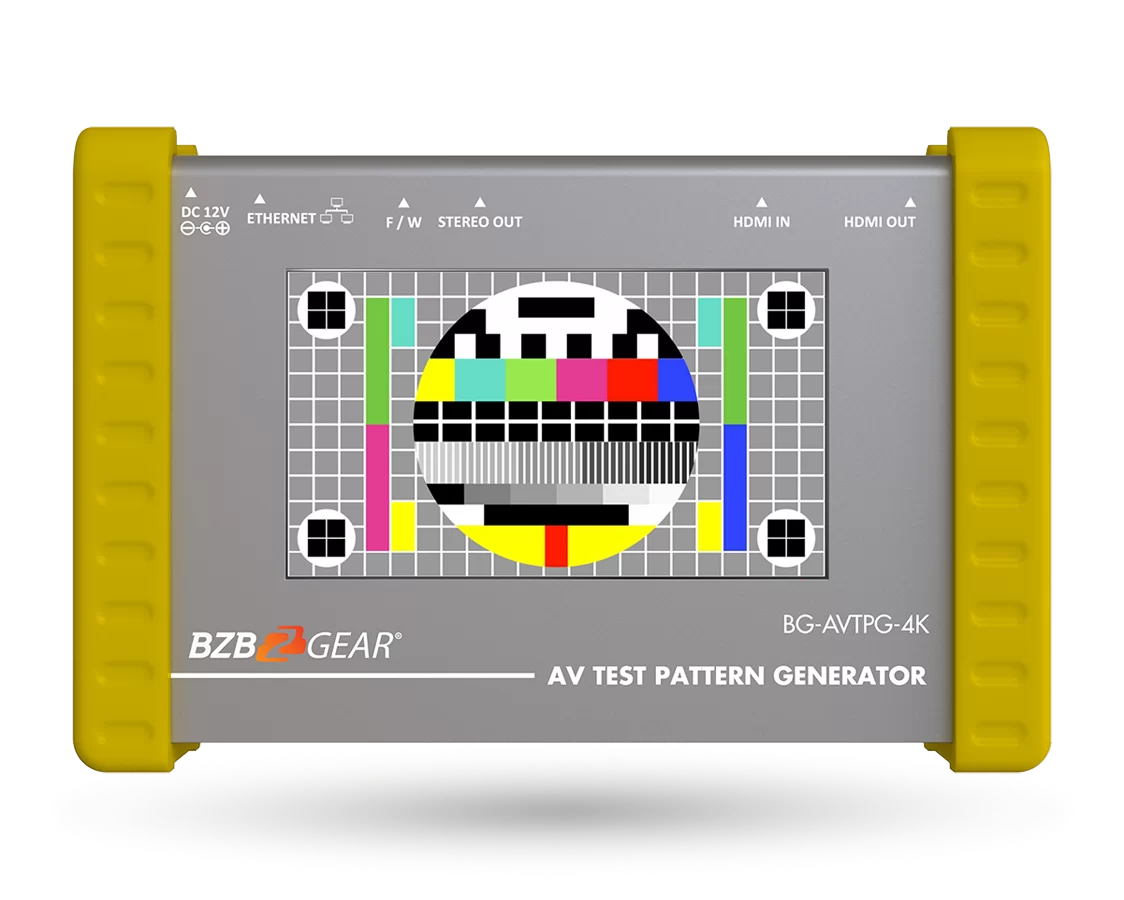

BG-AVTPG-4K
HDMI 2.0 18Gbps Video Test Pattern Generator, Tester and Analyzer with Ethernet

HDMI 2.0 18Gbps Video Test Pattern Generator, Tester and Analyzer with Ethernet

SKU: BG-AVTPG-4K
18GBPS / HDMI 2.0

The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
4K 60 4:4:4 SUPPORT

Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
HDCP 2.2

HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
3RD PARTY CONTROL SYSTEM CONNECTIONS

Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.

The BG-AVTPG-4K HDMI 2.0 Generator / Analyzer is a versatile HDMI 2.0 toolbox provides full bandwidth and HDCP 2.2 support. For ease of HDMI 2.0 installations, the BZ-AVTPG-4K is equipped with HDMI 2.0 pattern generator and analyzer.
Users will immediately take notice of the durable yellow rubber ends reassuring transport while on the go. This unit is packed with features including a built-in 4-hour rechargeable battery that rapidly charges in only 2-hours. Thanks to the advanced touch panel and optional USB connection for mouse extension control, you can easily access the options for video patterns and audio signals, Ethernet cloud-based upgrade access firmware and a multitude of other features such as HDCP analyzer and loop signal testing.
This unit is designed to support 8-channel LPCM audio with selectable sample rate. The BZ-AVTPG-4K works flawlessly as the most cost-effective HDMI 2.0 tool in the market simplifying any HDMI installation.

MSRP $1799.00*

*Pricing is for US only. International pricing will vary.

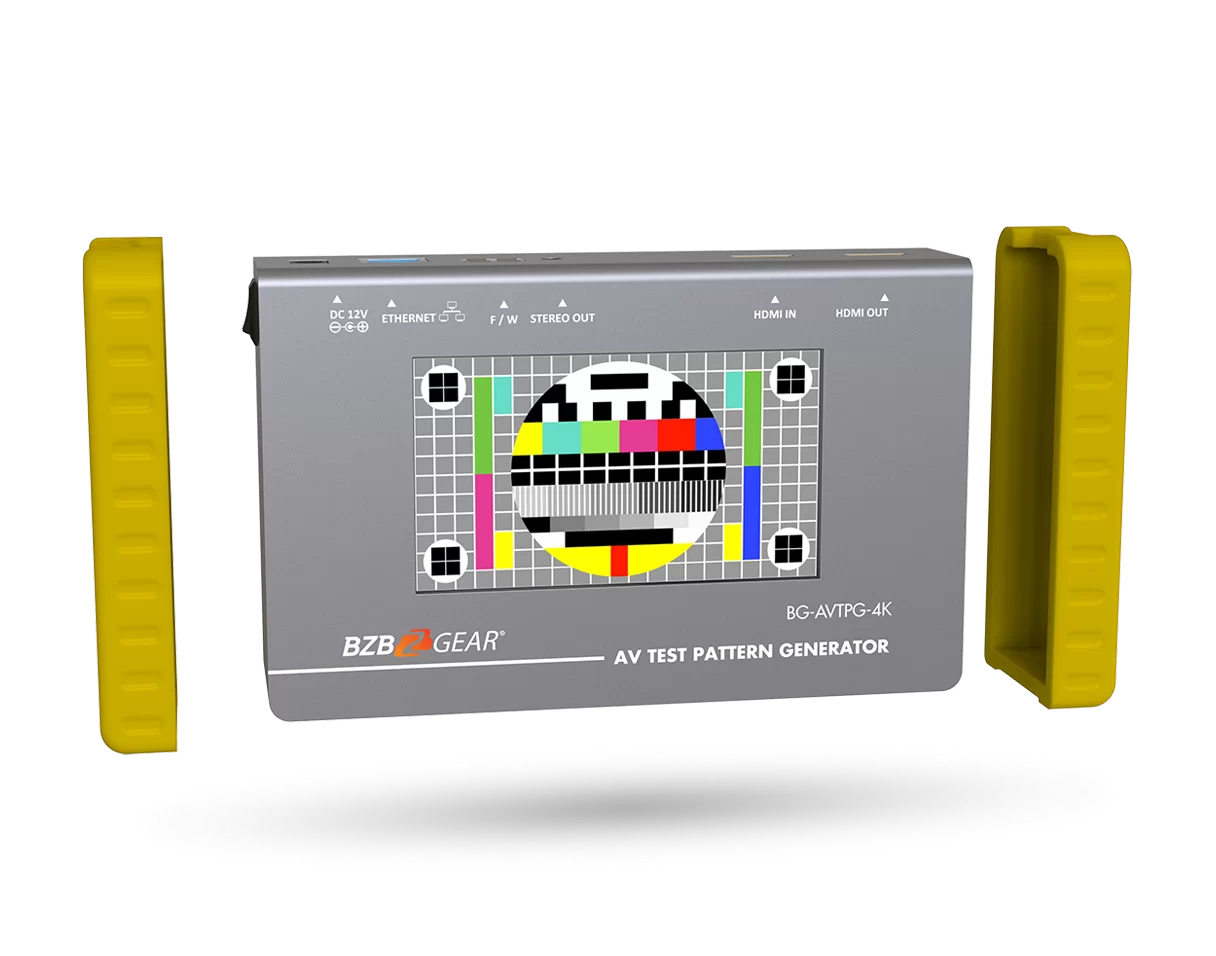

Features
  • 4K2K60 4:4:4 8bit, 4K2K60 4:2:0 16bit HDR pattern generator
  • 4.3 touch panel
  • Supports mouse control
  • Supports user control device through Ethernet
  • Firmware update through USB Flash Drive
  • Supports user defined pattern up to 2GB
  • Embedded LINUX KERNAL system with limitless extension
  • Scrambler supported for videos over 340MHz output wise
  • Loop test capability to provide statistics analysis for connection stability
  • Supports HDMI loop through function
  • HDCP test allow verify HDCP of HDMI source and transmit HDCP encrypted video
  • Qualified physical layer performance to ensure the best compatibility
  • Battery powered for portability, it can extend operation time with full load up to 4 hours
  • Rechargeable battery design with short charging time about 2 hours

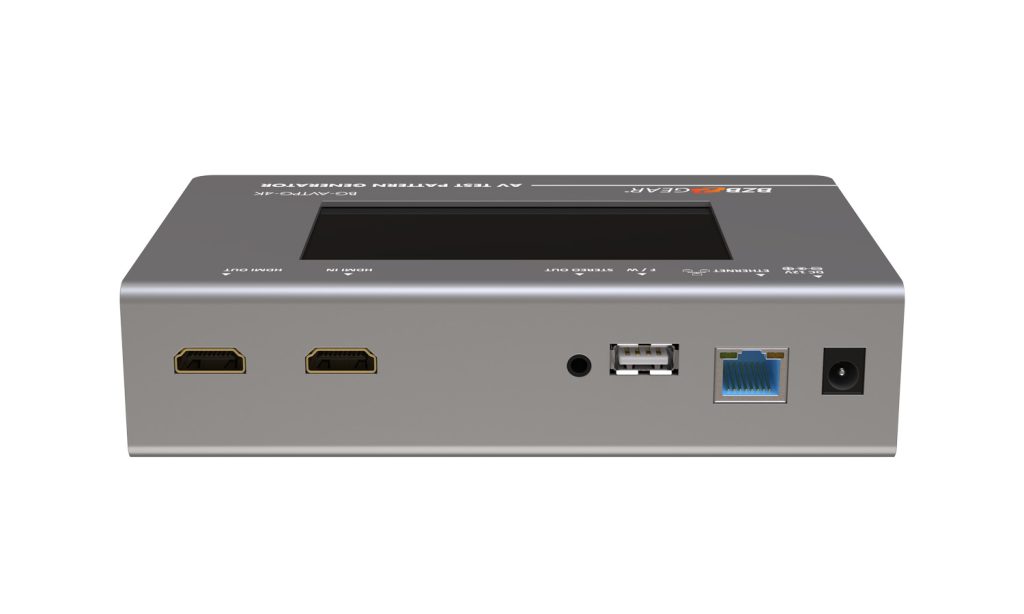

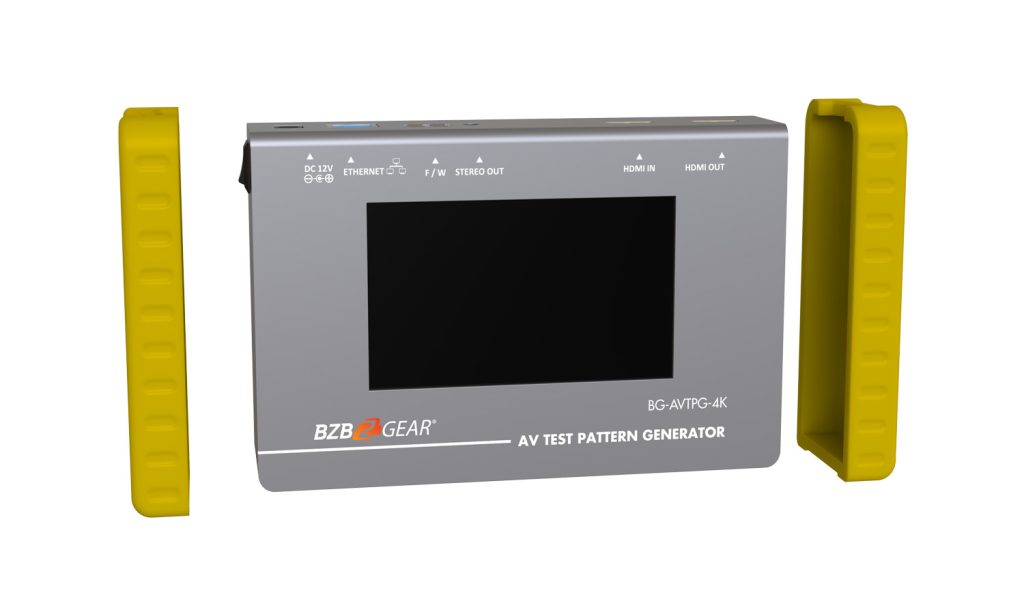

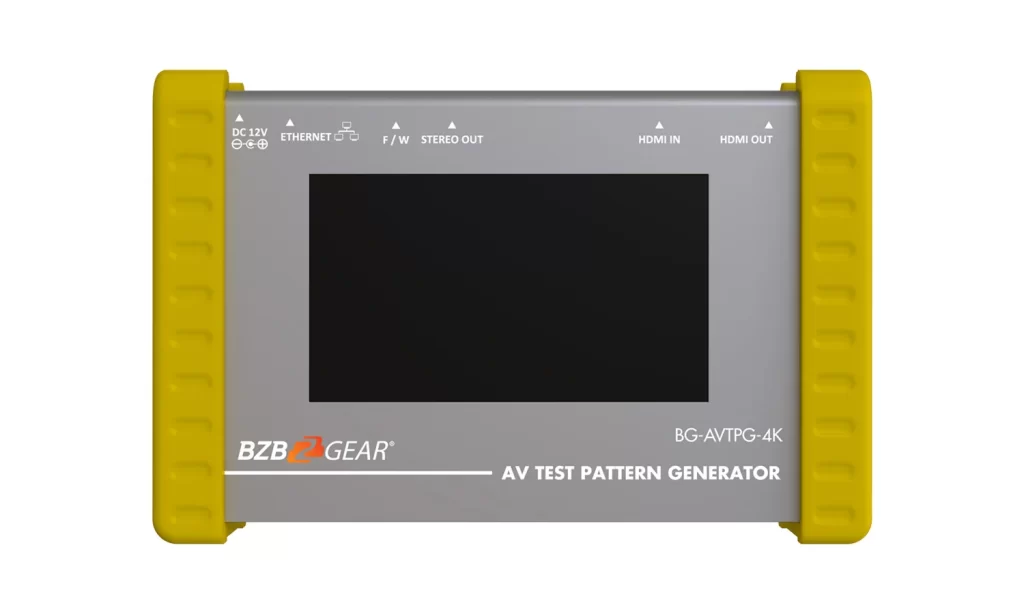

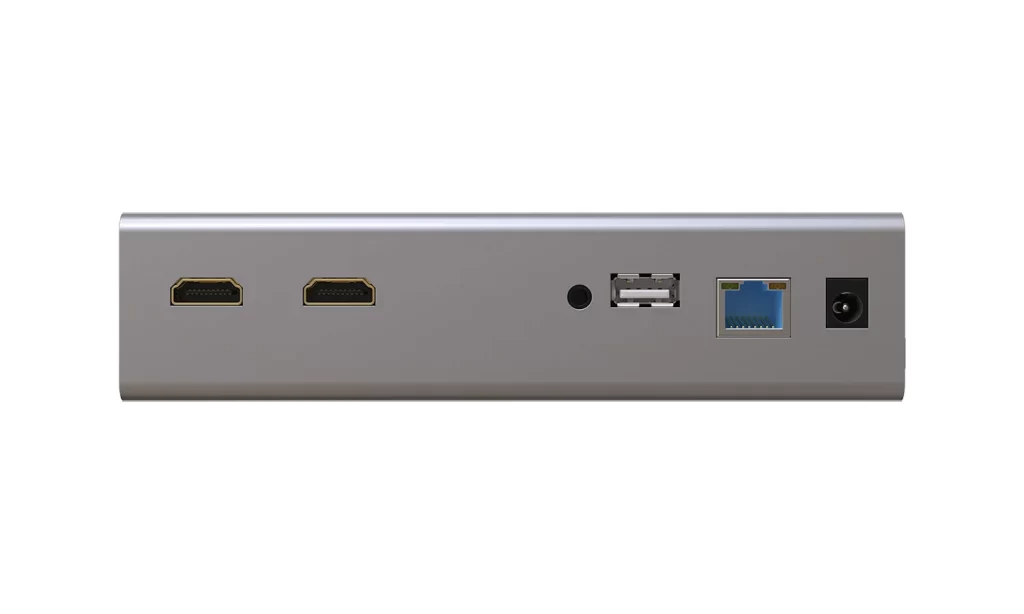

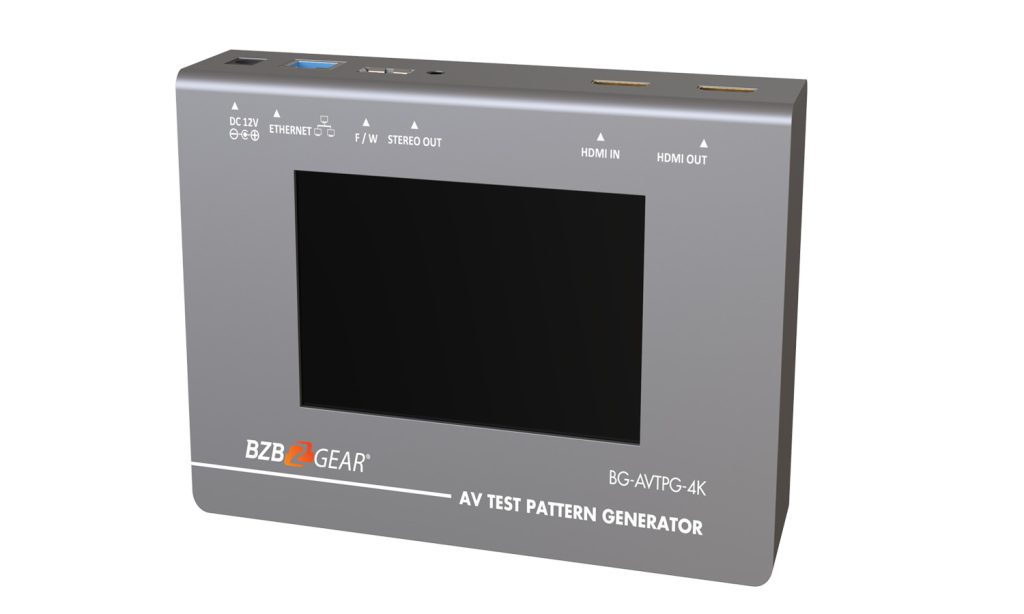

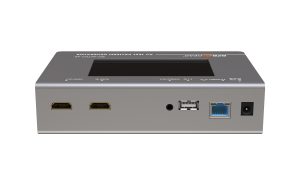

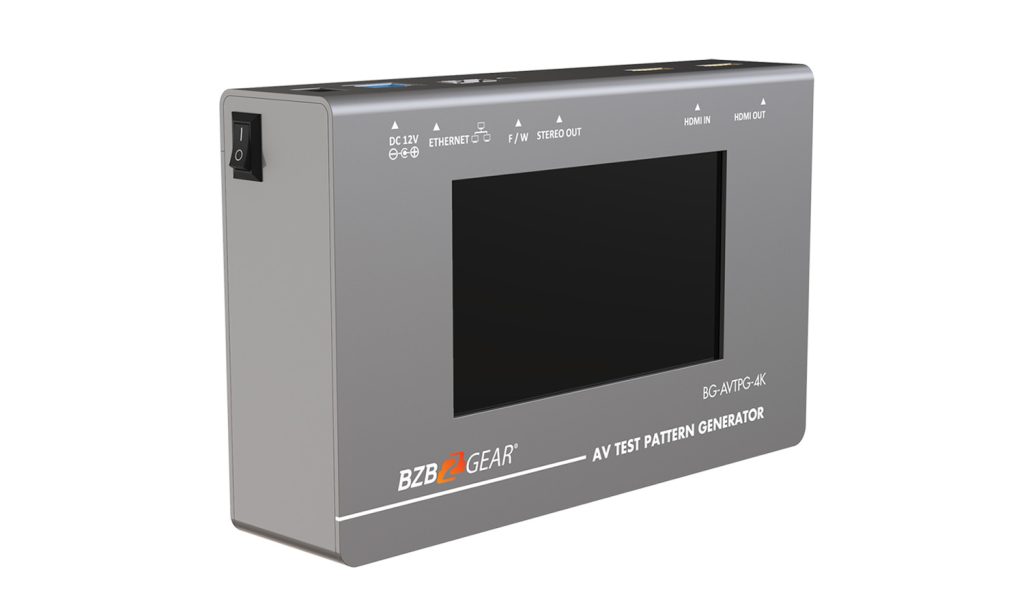

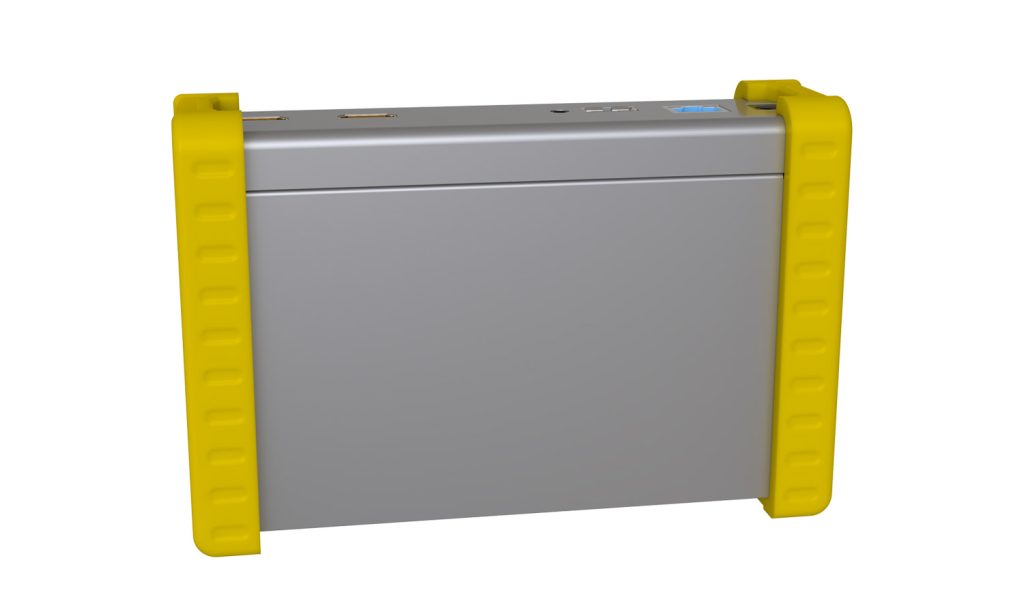

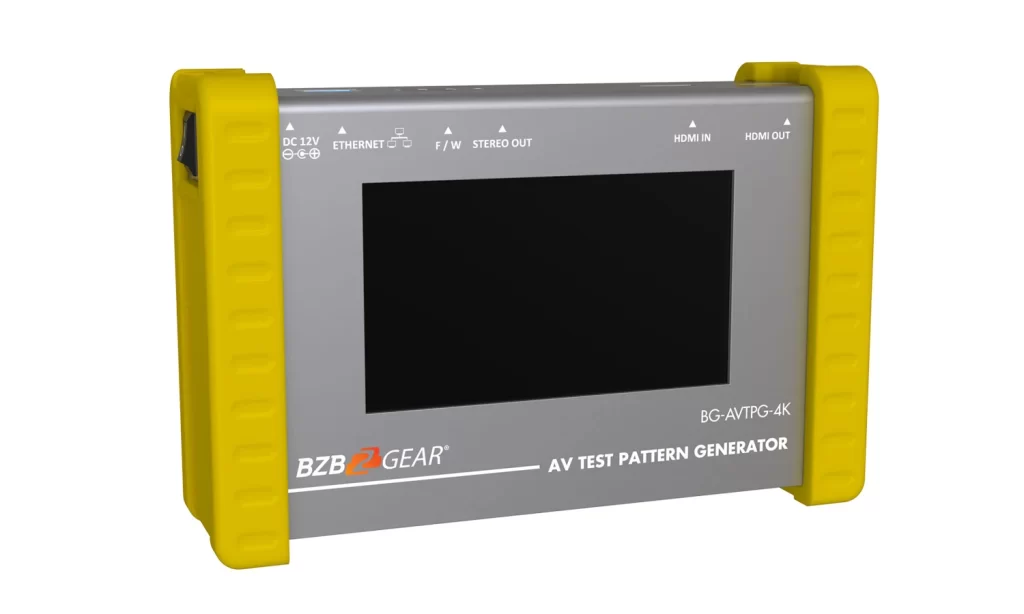

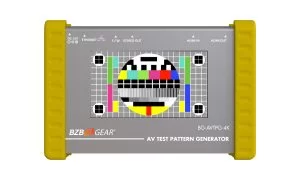

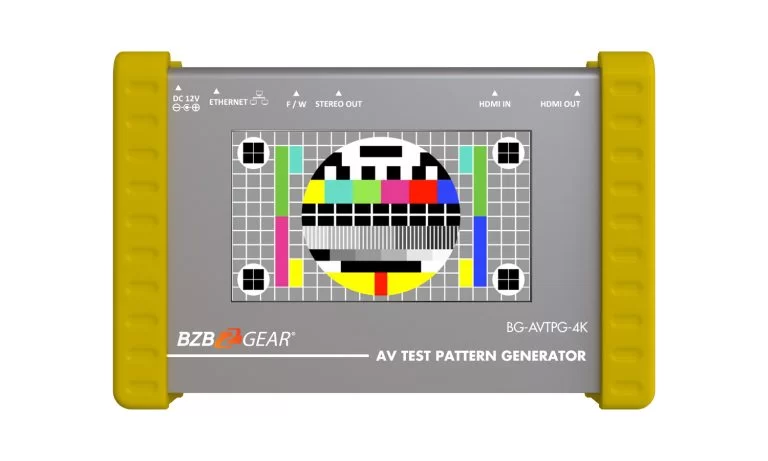

3D Pictures of the Product
Product Video
For a detailed demonstration on how this product connects and operates, check out BZBGEAR's Video!
  • Device capabilities and compatibility.
  • Type of connections available.
  • How to set up and use software if applicable.
  • Useful tricks and tips.
Specifications


18GBPS / HDMI 2.0

The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
4K 60 4:4:4 SUPPORT

Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
HDCP 2.2

HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
3RD PARTY CONTROL SYSTEM CONNECTIONS

Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.

Technical
Role of usageGenerator / Analyzer
Video bandwidthSingle link 600MHz (18Gbps)
HDMI complianceHDMI 2.0 and below
HDCP complianceHDCP 2.2 and below
Video SupportUp to 4K2K60 4:4:4 8bit, 4K2K60 4:2:0 16bit (HDR)
Video Format SupportHDMI
Audio support8ch LPCM up to 192K
ControlUSB mouse / touch panel / Ethernet
ESD protectionHuman body model ±15kV [air-gap discharge] & ±8kV [contact discharge]

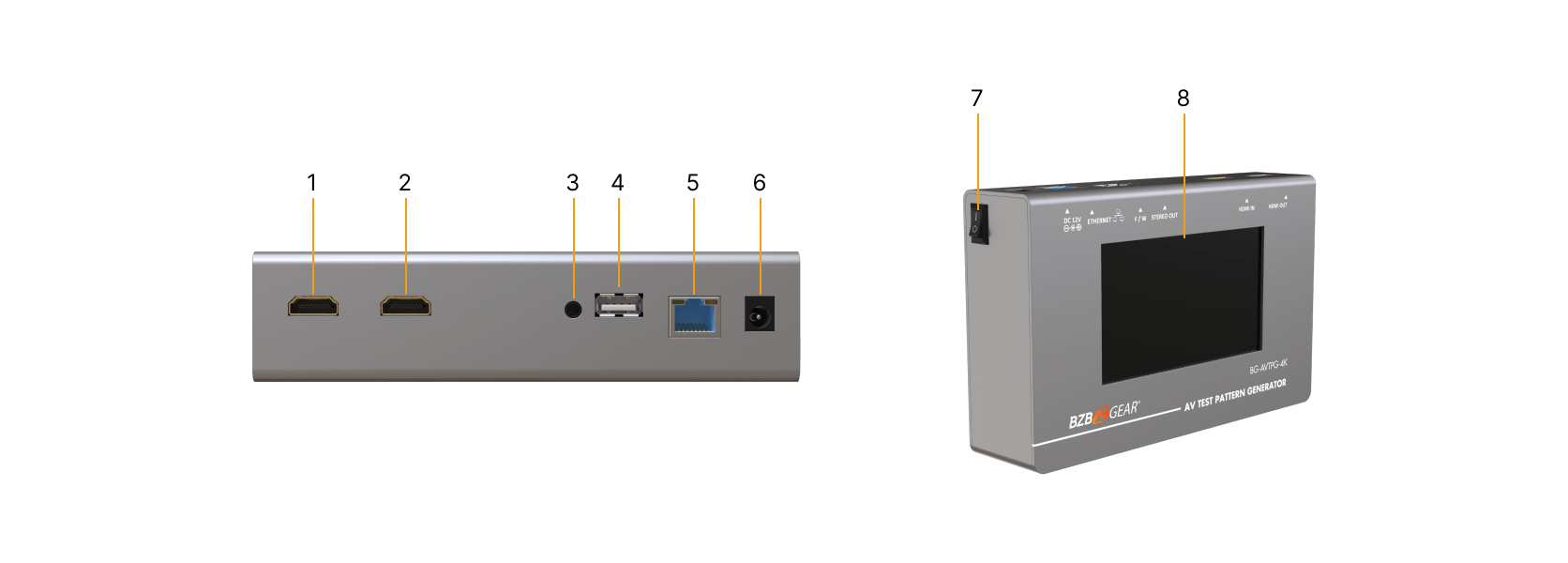

Input1x HDMI+ 1xUSB + 1x RJ-45(Ethernet)
Output1x HDMI+ 1x 3.5mm (Stereo)
USB SupportUSB 2.0
HDMI connectorType A (19-pin female)
USB ConnectorType A
RJ-45 connectorWE/SS 8P8C with 2 LED indicators
Mechanical
HousingMetal enclosure
Dimensions (L x W x H)Model105 x 166 x 42mm (4.1" x 6.6" x 1.7")
Package371x 170 x 77mm (1'5" x 6.7" x 3")
Carton410 x 368 x 393mm (1'3" x 1'4" x 1'5")
WeightModel765g (27oz)
Package1294g (2.8 lbs)
Power supply12V 5A DC / Battery
Power Consumption15 Watts
Operation temperature0~40°C  (32~104°F)
Storage temperature-20~60°C  (-4~140°F)
Relative humidity20-90% RH [no condensation]
