1080P FHD/4K UHD HDMI 2.0 18Gbps Portable Signal Test Generator and Analyzer

ProGear
TAA Compliant
Configure the Perfect Solution
Get Started
Overview Specifications Interfaces Resources Package contents

Overview

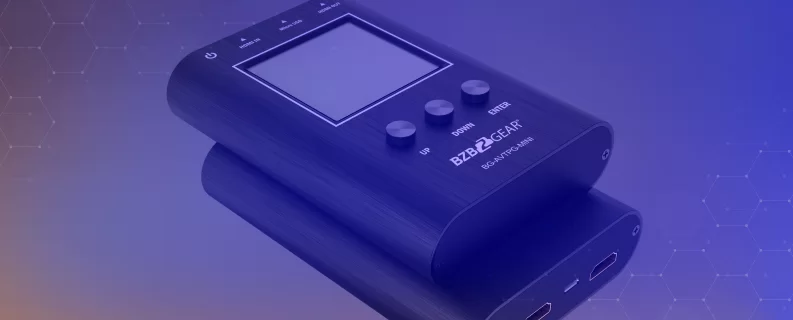

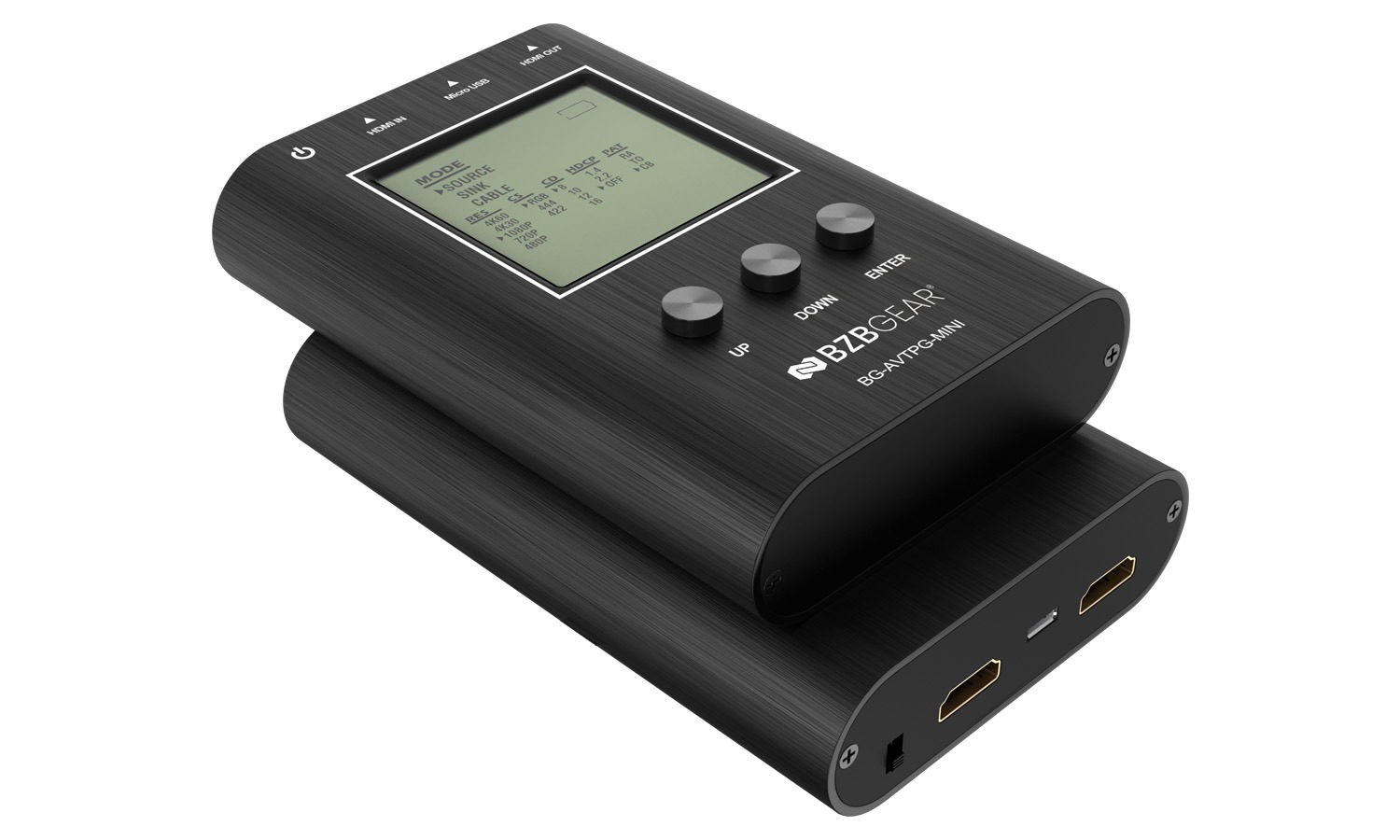

The BG-AVTPG-MINI is a portable handheld 4K signal analyzer and test pattern generator. Capable of generating and analyzing HDMI signals at resolutions up to 4096x2160@60Hz 4:4:4, This powerful tool provides users with the ability to quickly test and verify HDMI cabling and equipment.

Features In-depth

Supports a maximum resolution of 4K2K@60Hz, the BG-AVTPG-MINI can generate and analyze signals with chroma subsampling rates of 4:4:4 8 bit and 4:2:0 16 bit (HDR). This analyzer is HDCP 1.4 and 2.2 compliant, allowing users to test a wide variety of 1080P and 4K HDMI devices. The rechargeable battery provides an operating time of up to three hours.

The BG-AVTPG-MINI features three useful video test patterns designed to demonstrate signal quality and stability. The adjustable color depth allows users to test range of the connected equipment’s capabilities. By connecting the HDMI output to the HDMI input, users receive a link quality estimate based on the HDMI 2.0 Character Error Detection.

TAA COMPLIANT PRODUCT

 TAA COMPLIANT PRODUCT.
 This product meets the standards of the Trade Agreement Act (TAA).
 You can find all BZBGEAR TAA Compliant Products on this page.

Features

  • 4K Support
    Supports up to 4K2K@60 4:4:4 8bit, HDR 10 bits, 12 bits 16 bits
  • HDCP 2.2
    HDCP 1.4 and 2.2 compliant
  • 18Gbps/HDMI 2.0
    The maximum bandwidth possible due to the introduction of HDMI 2.0
  • Mobile
    Hand-held pocket size with 3 hour battery life
  • Easy to Use
    Simple for anyone to learn
  • Multiple Patterns
    Easily and quickly test HDMI devices
  • Supports video resolution outputs up to 4K2K@60 4:4:4 8bit, HDR 10bits, 12bits, 16bits
  • Fundamental HDMI feature analysis up to 4K2K@60 4:4:4 8bit HDMI 2.0 input
  • Provides statistics analysis for cable quality or connection stability
  • Rechargeable battery design with short charging time about 3 hours
  • Built-in 3 video patterns
  • HDCP 1.4 & 2.2 compliant
  • Hand-held pocket size
  • Both HDMI input and output support up to HDMI 2.0
  • Tests cable quality
  • Battery powered for portability, it can extend operation time with full load up to 3 hours

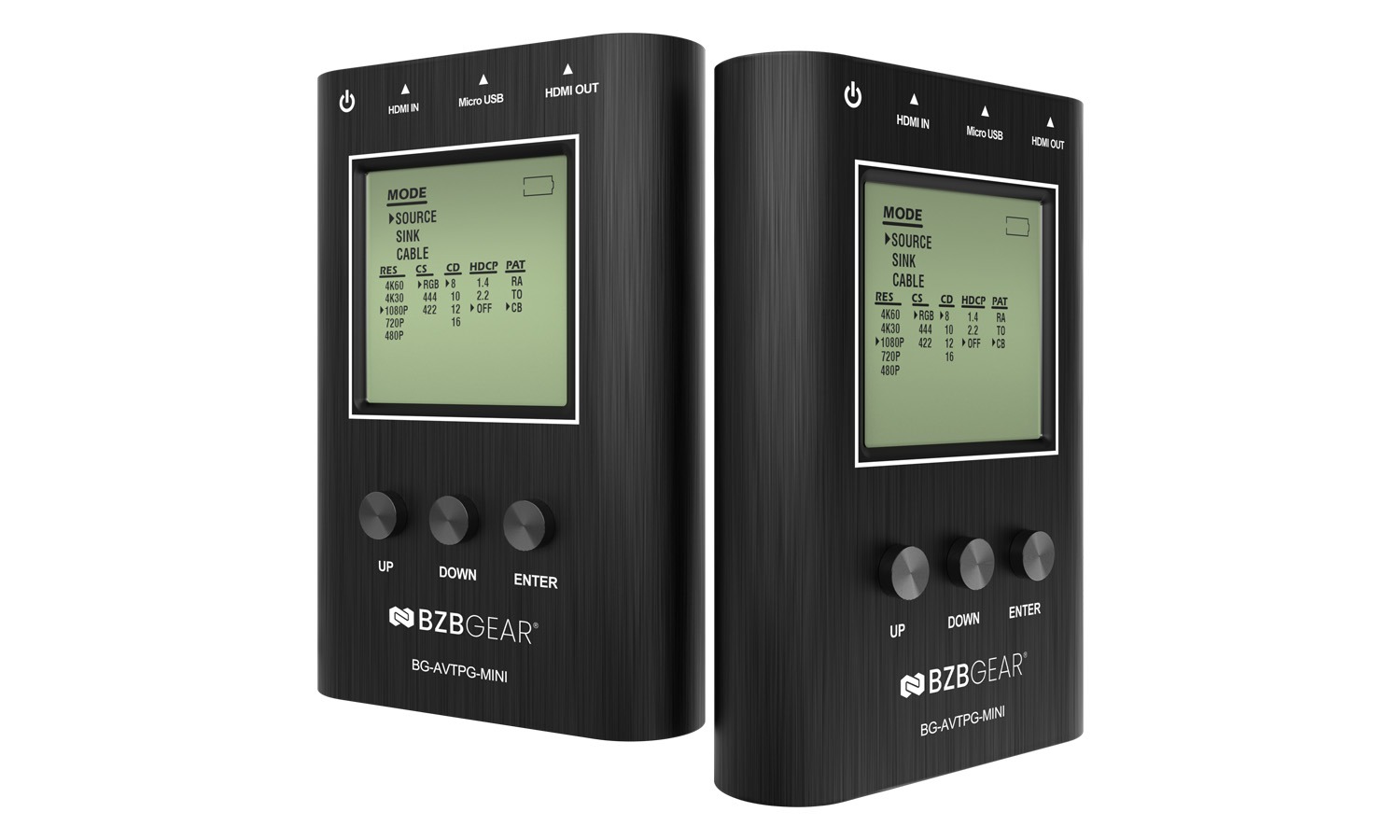

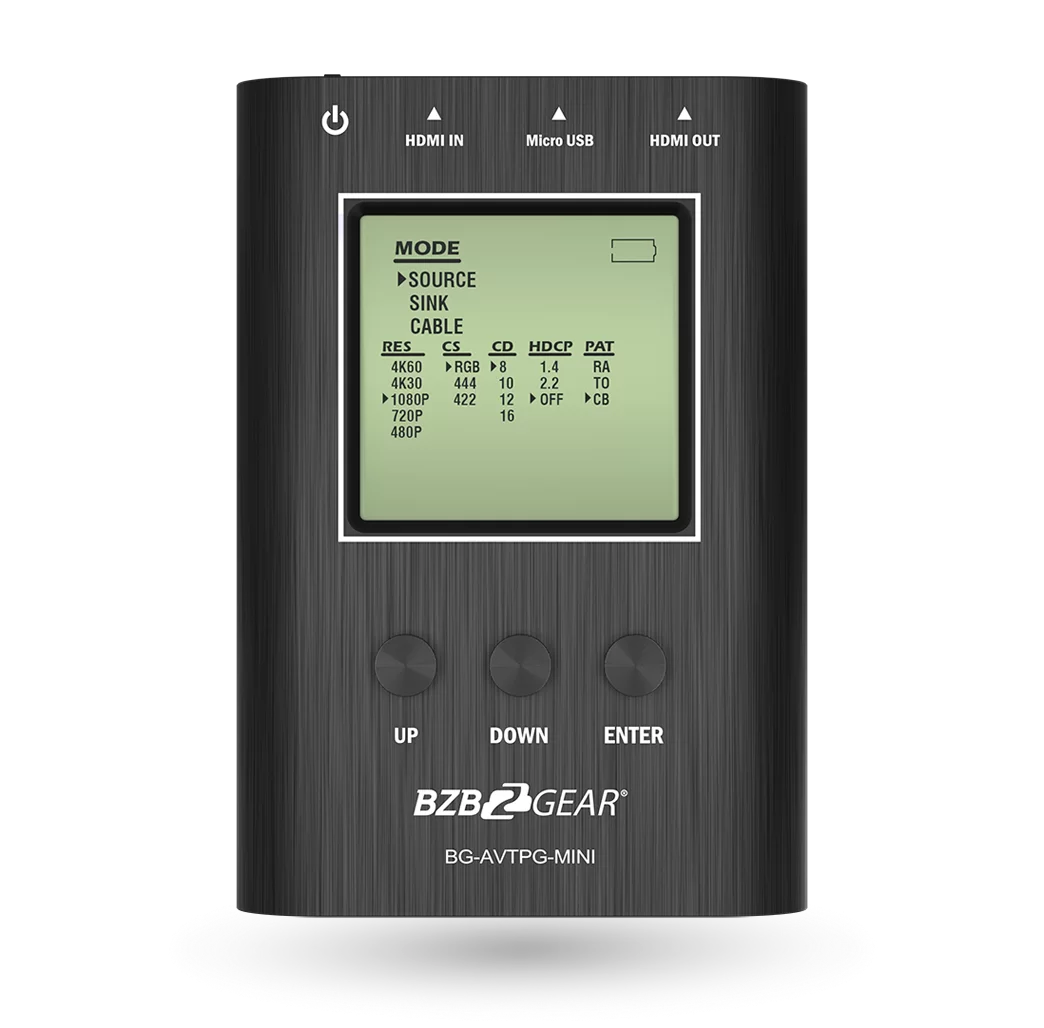

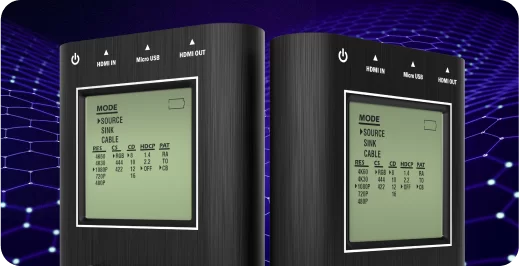

Clear Display for On-the-Go Convenience

Experience real-time data displayed prominently on the LCD screen, facilitating effortless on-the-go usage.

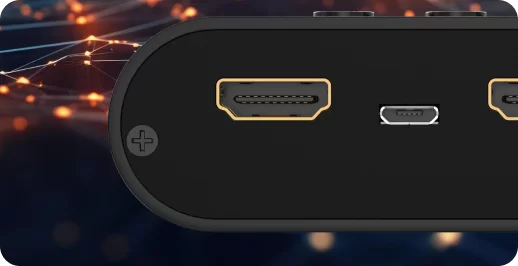

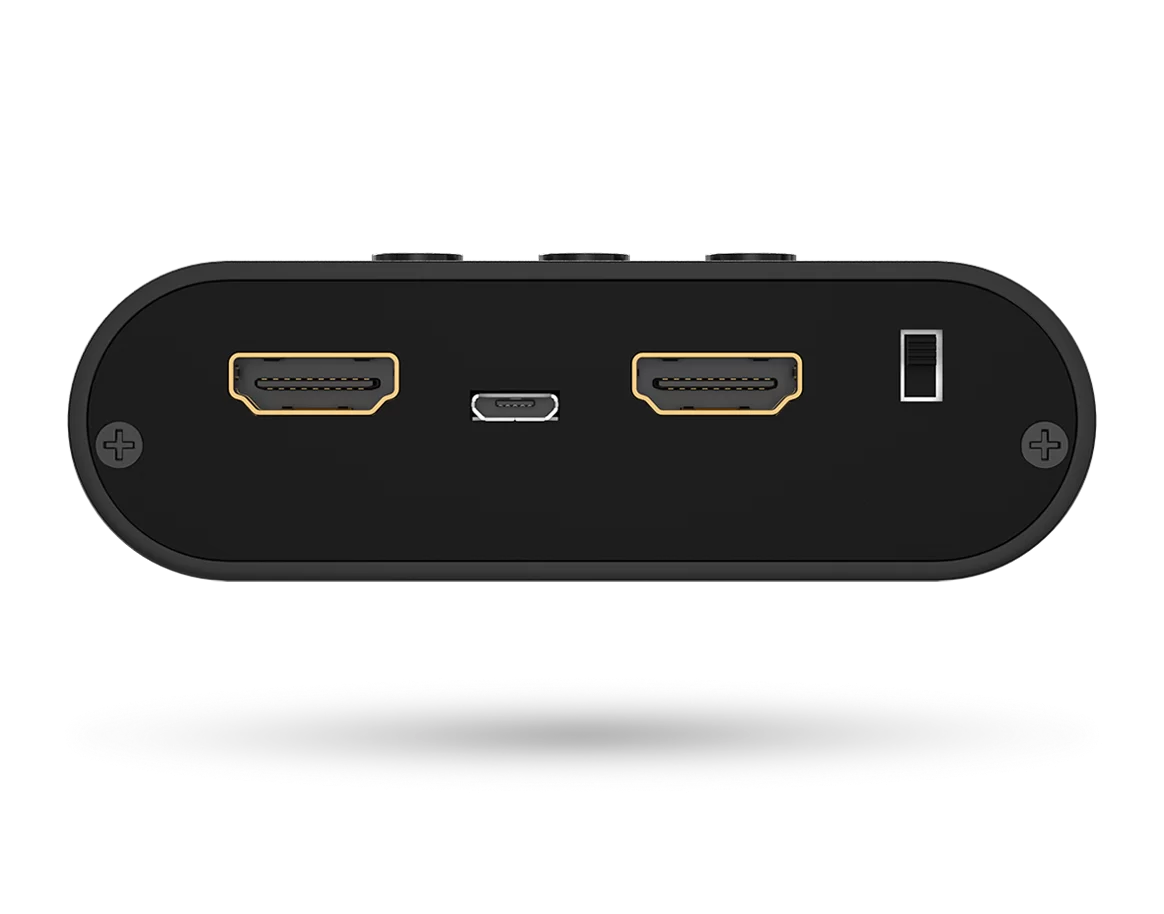

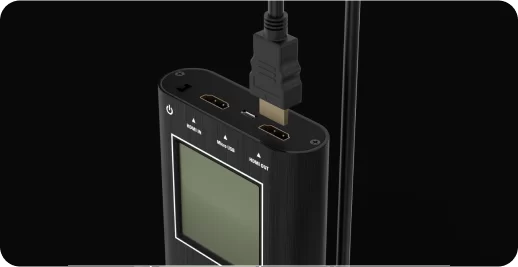

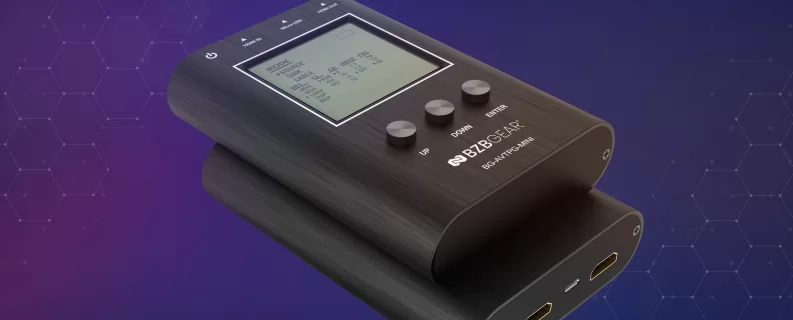

HDMI In and Out

The BG-AVTPG-MINI comes with both HDMI input and output ports, catering to a diverse set of testing requirements.

Convenient Recharging

Easily recharge your tester via the USB port, offering not only a hassle-free charging solution but also enabling seamless firmware upgrades for consistently optimal performance.

Videos

BZBGEAR Debuts 8K Test Pattern Generator at InfoComm 2023 - AVTPG-MINI
BZBGEAR Debuts 8K Test Pattern Generator at InfoComm 2023 - AVTPG-MINI
InfoComm 2023 AV TPG MINI Test Pattern Generator
InfoComm 2023 AV TPG MINI Test Pattern Generator
Professional Grade 4K Video Test Pattern Generators, Testers & Analyzers
Professional Grade 4K Video Test Pattern Generators, Testers & Analyzers
Mini 4K Test Pattern Generator and Analyzer Perfect for any Job BG-AVTPG-MINI
Mini 4K Test Pattern Generator and Analyzer Perfect for any Job BG-AVTPG-MINI

Tech Specifications

Role of usage HDMI 2.0a Installation Gear
Video bandwidth Single link 600MHz [18Gbps]
HDMI compliance HDMI 2.0 and below
HDCP compliance HDCP 2.2 and below
Video Support up to 4K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit (HDR)
ESD protection Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
Video Format Support HDMI
Input 1x HDMI
Output 1x HDMI
Control Push Button
HDMI connector Type A [19-pin female]
USB Support Firmware update / Recharge
USB connector Micro-USB (Type B)
Mechanical
Enclosure Metal case
Dimensions (L x W x H) Model 5.1" x 3.5" x 0.6" [130 x 89 x 14mm]
Package 7.8" x 5.4" x 2.9" [198 x 137 x 74mm]
Weight Model 7.8oz [220g]
Package 11.3oz [320g]
Power supply Micro-USB / Battery
Power Consumption 5W [MAX]
Operation temperature 32~104°F / 0~40°C
Storage temperature -4~140°F / -20~60°C
Relative humidity 20~90% RH [no condensation]

PACKAGE CONTENTS

  • 1x BG-AVTPG-MINI
  • 1x User Manual
  • 1x Micro-USB to USB cable

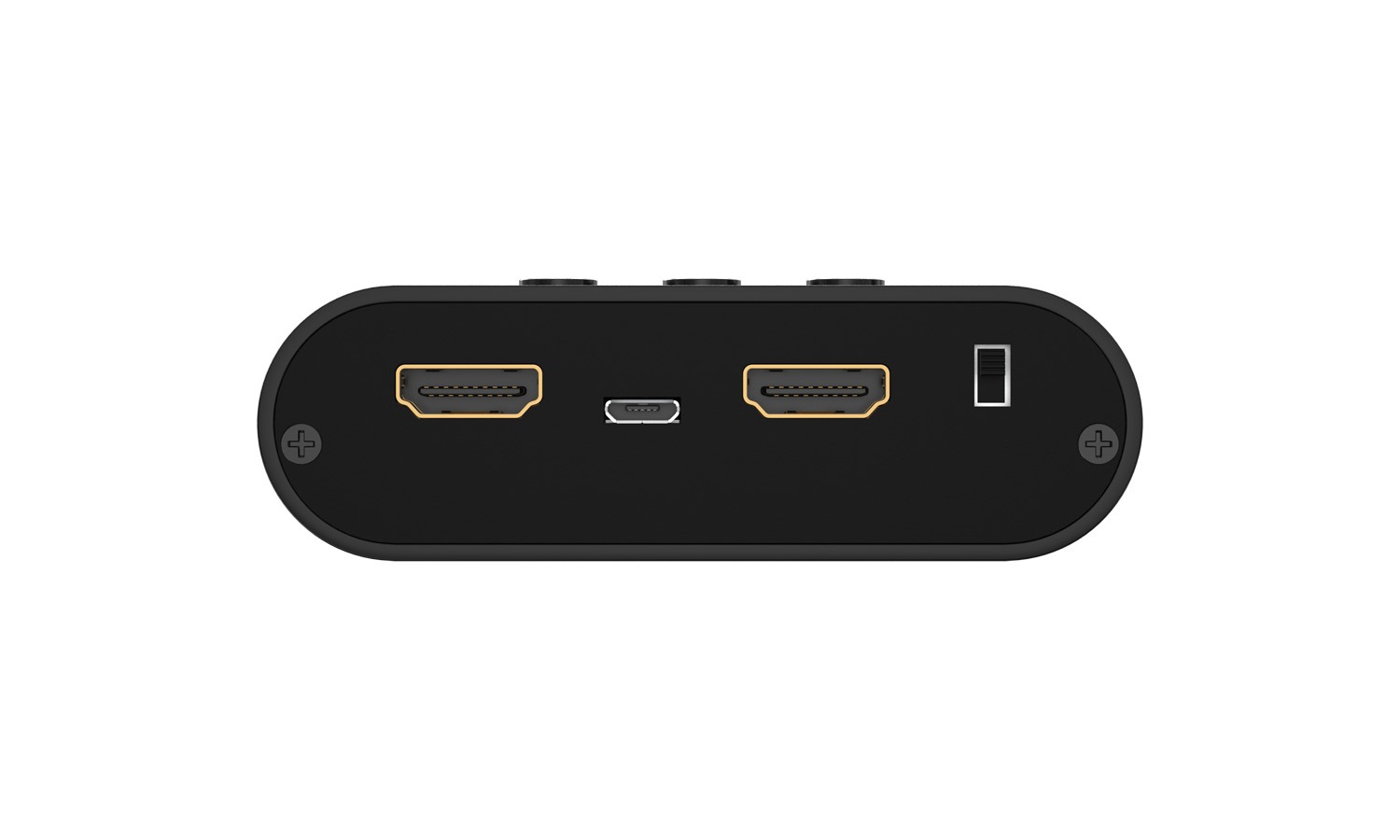

Interfaces

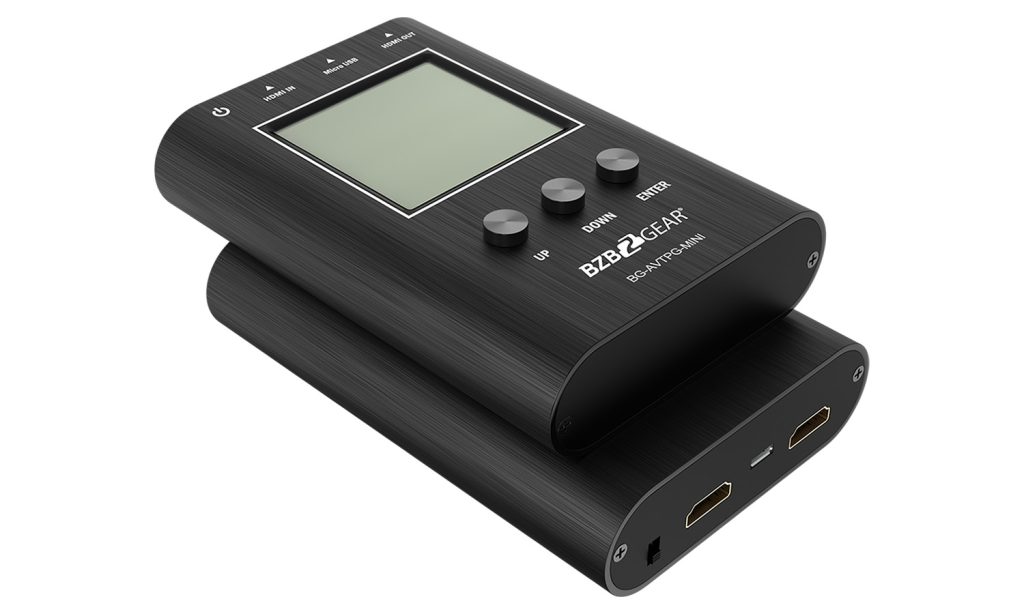

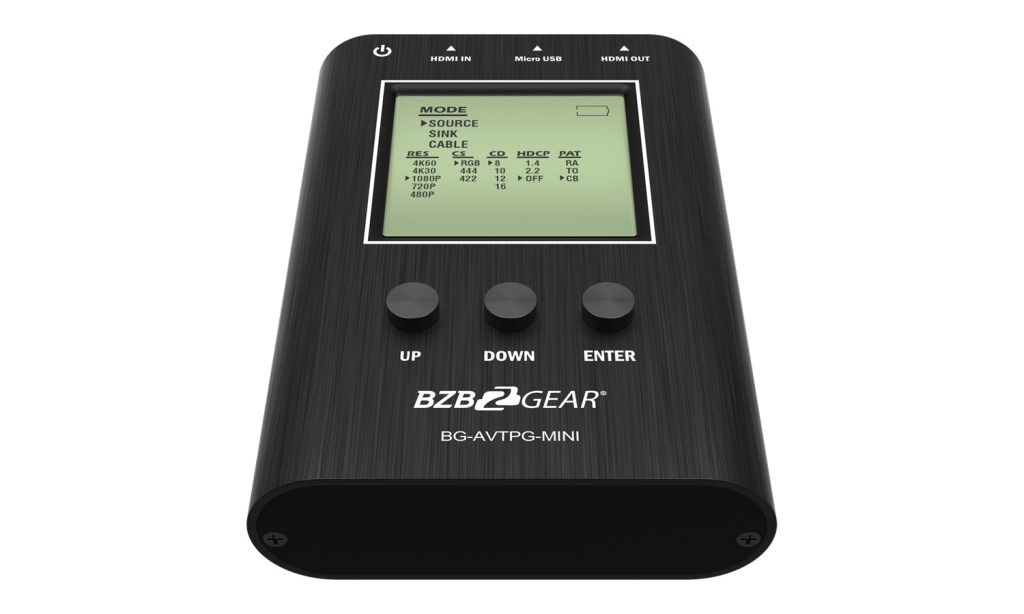

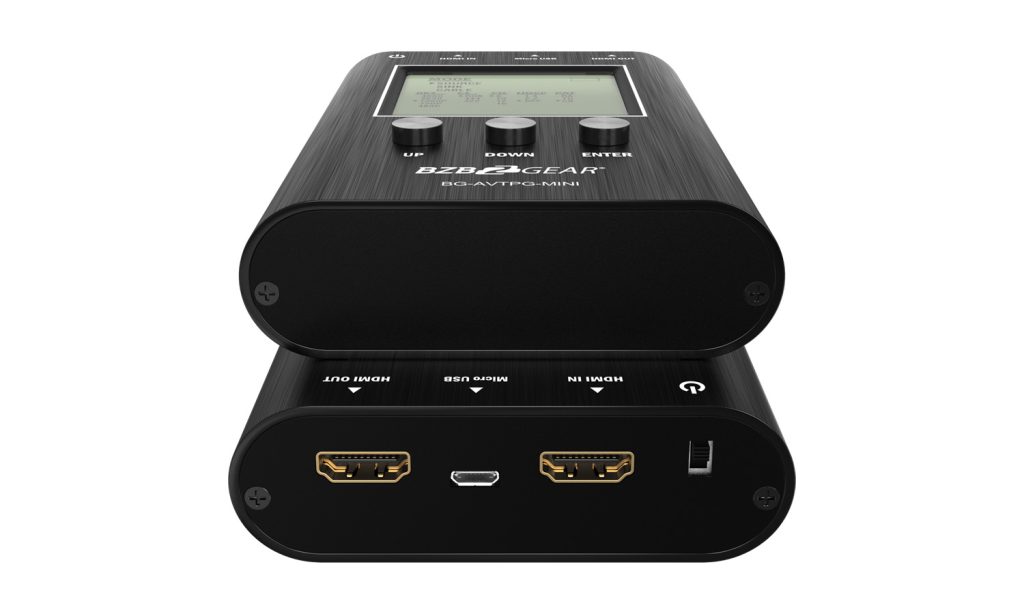

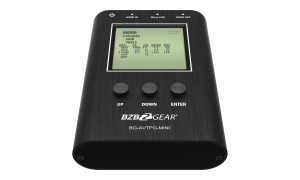

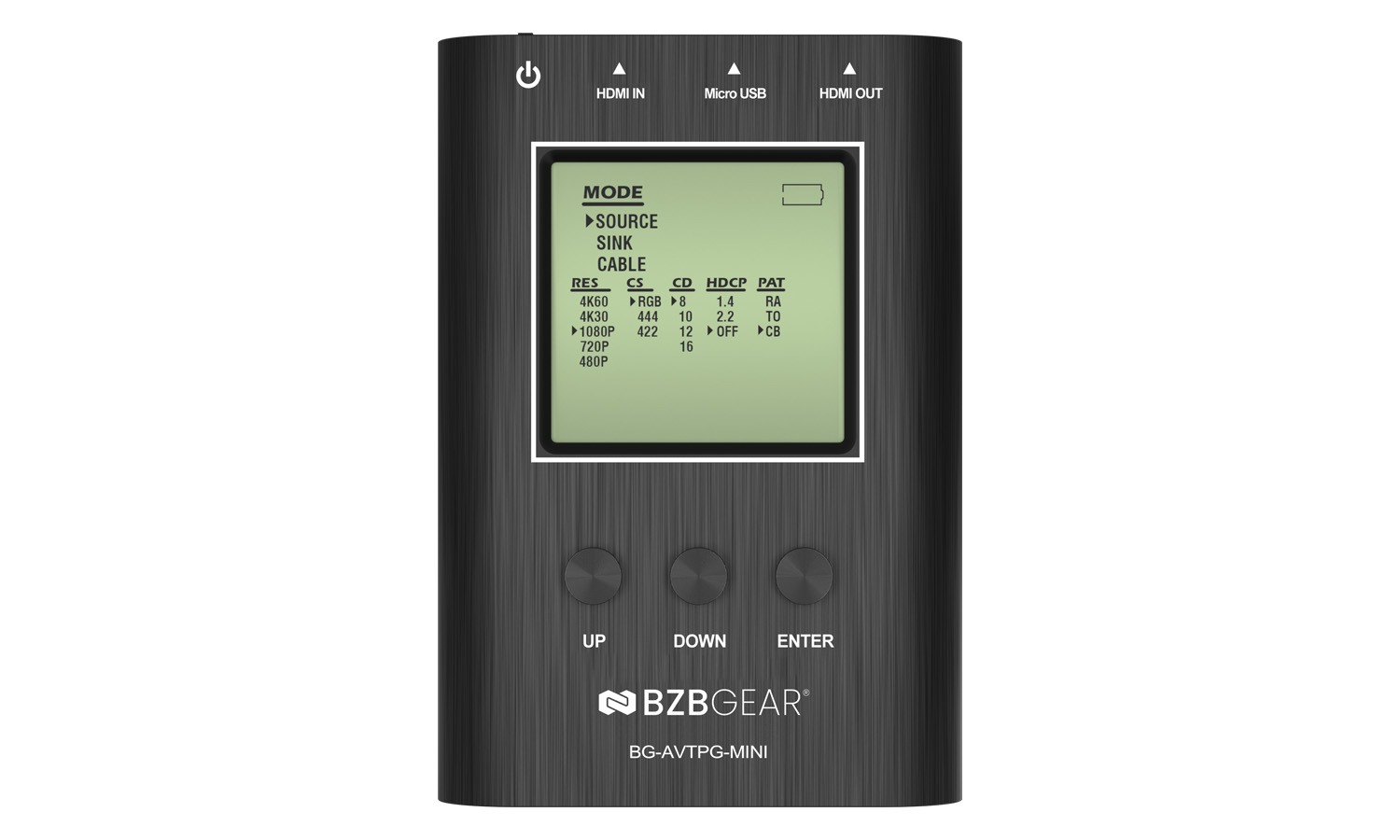

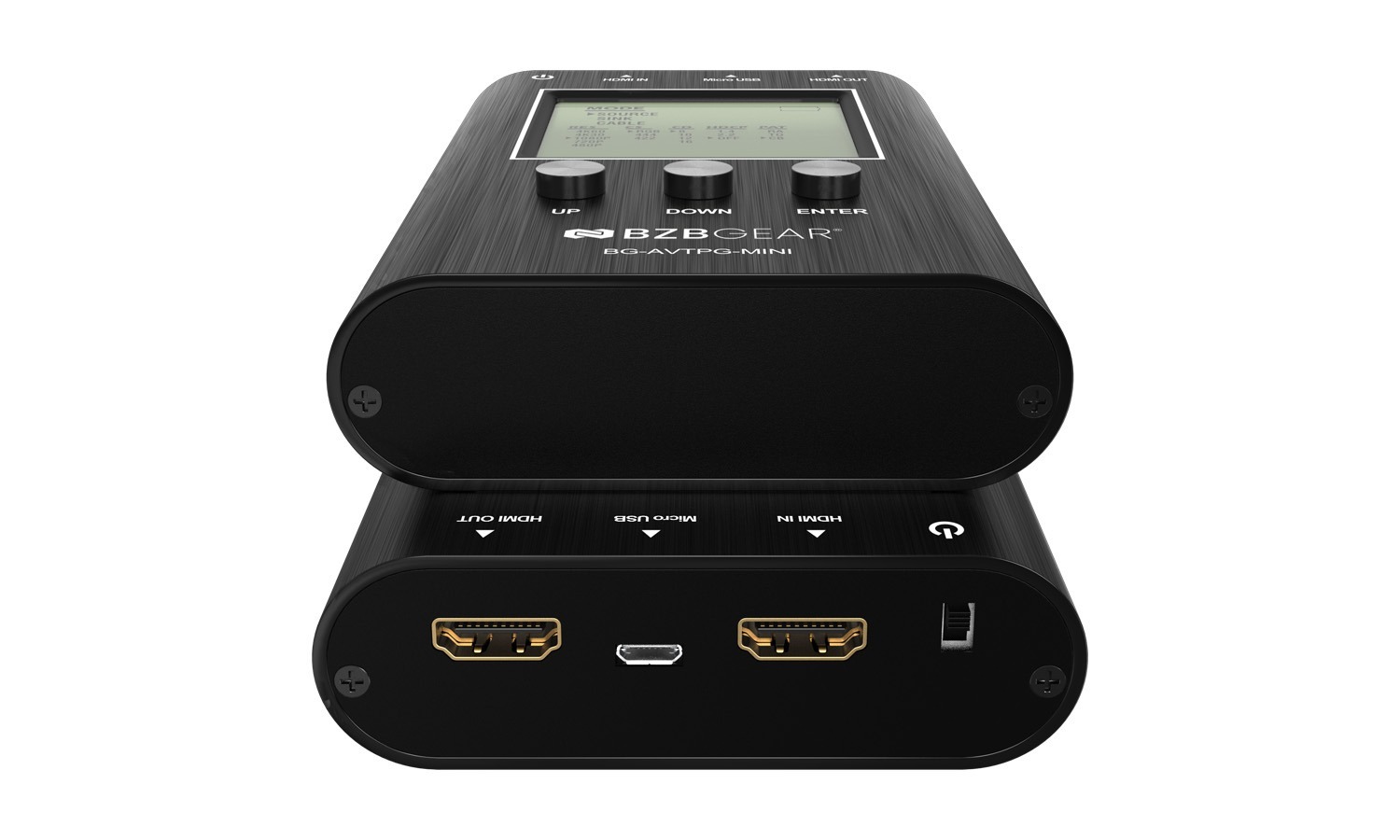

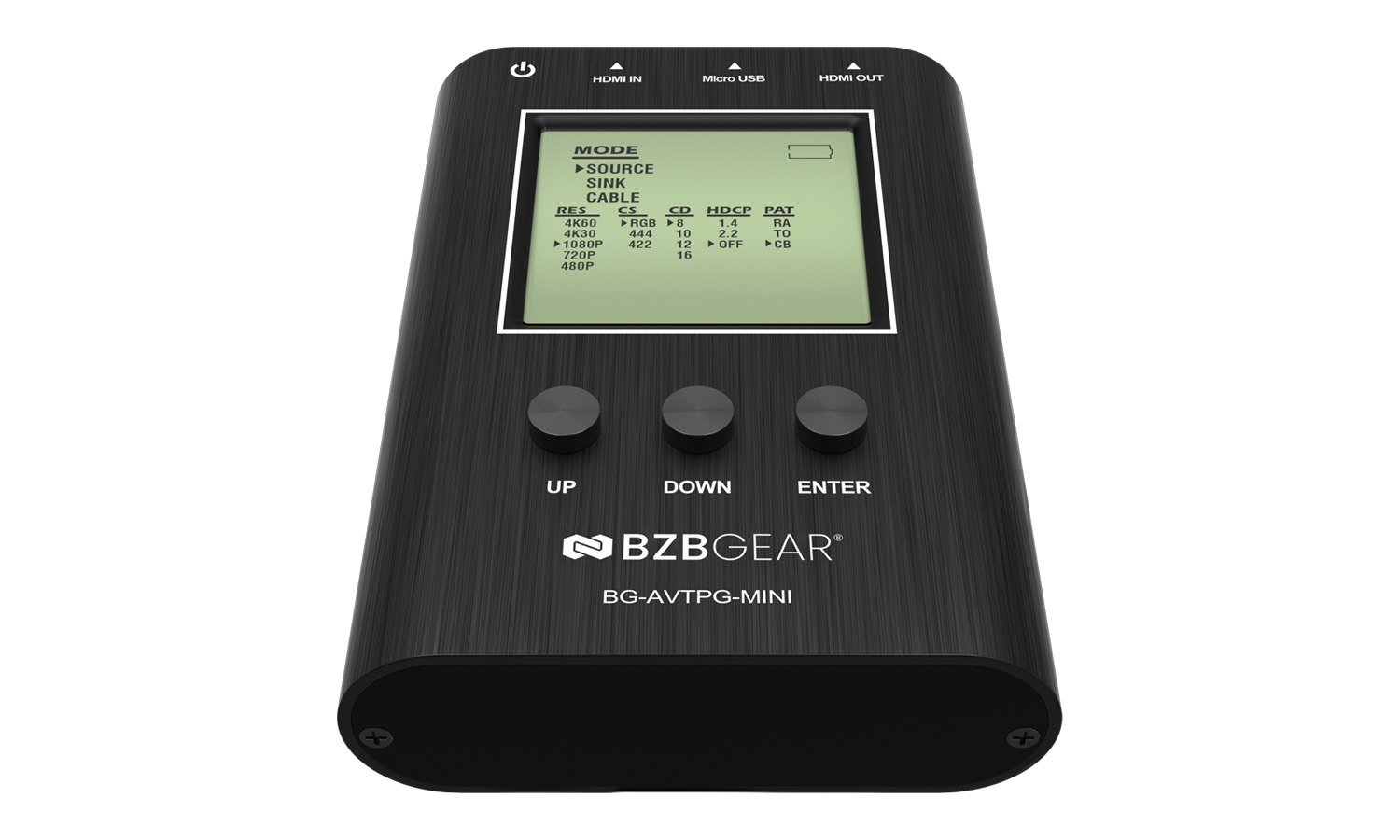

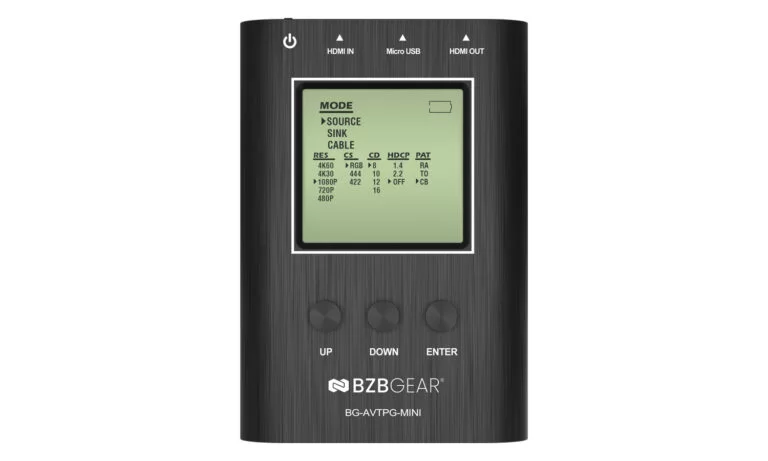

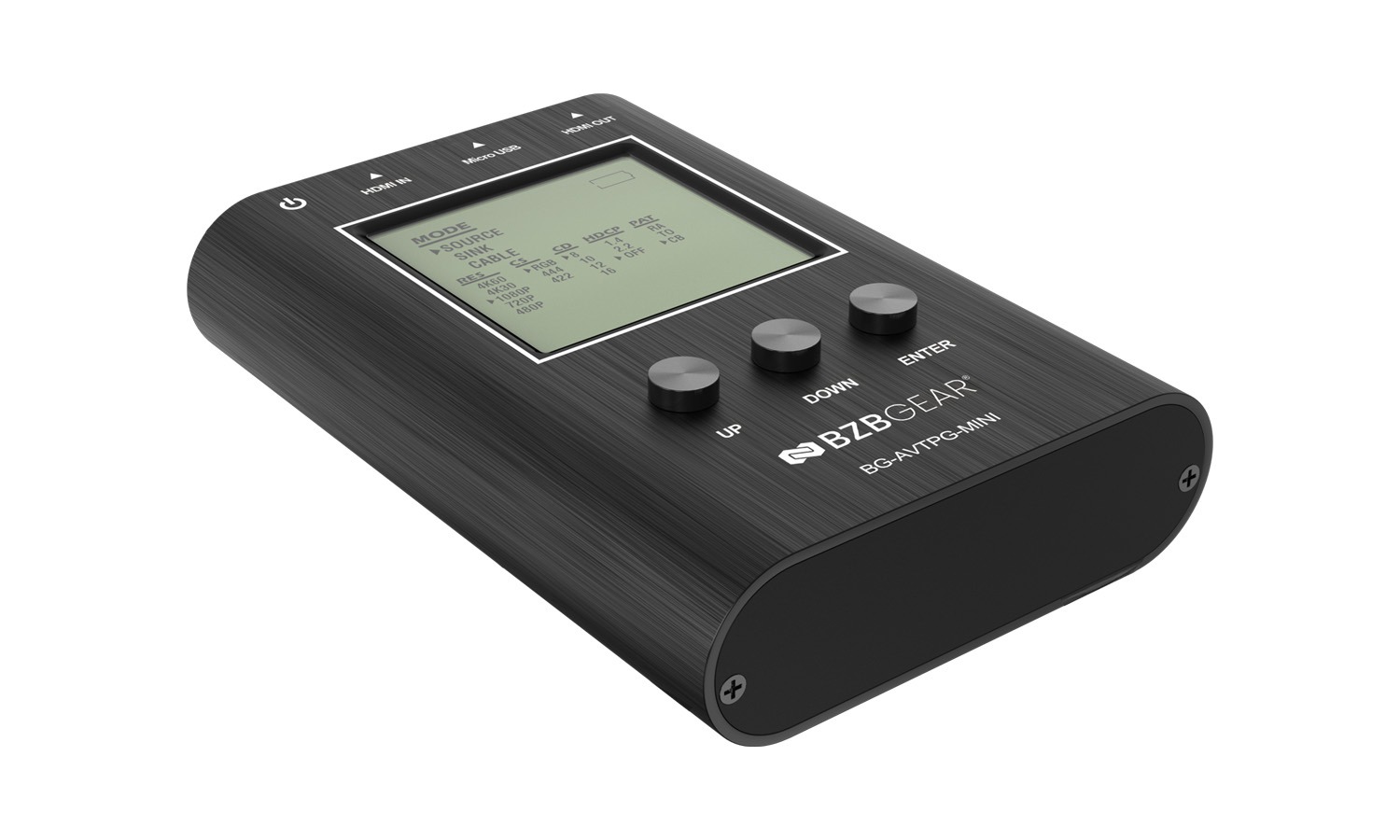

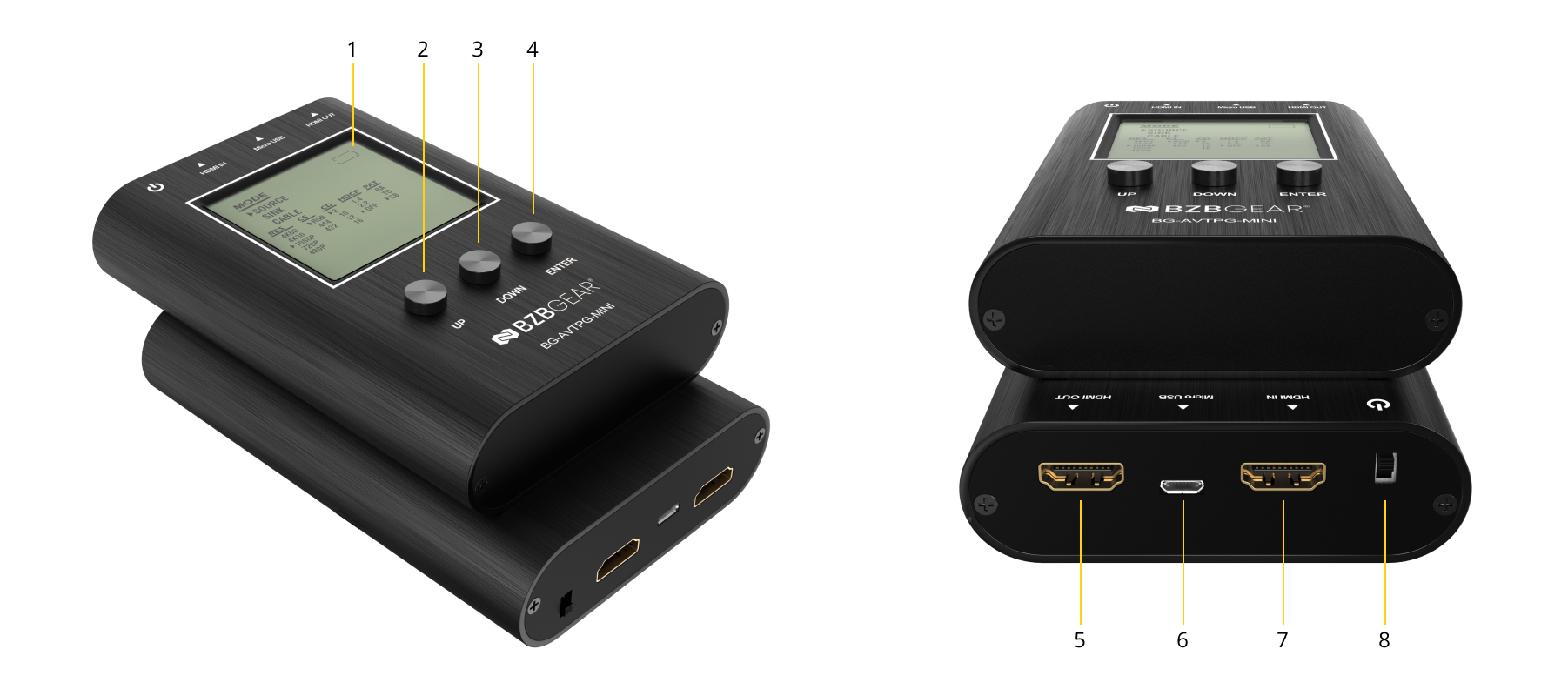

  1. LCD Display: The data is shown on the display.
  2. Up Button: Move the cursor up.
  3. Down Button: Move the cursor down.
  4. Enter Button: Confirm selection on screen.
  5. OUTPUT: HDMI output.
  6. Micro-USB: Firmware update / Recharge.
  7. INPUT: HDMI input.
  8. Power Switch: Power ON/OFF Switch.
