HDMI Generator and Analyzer Testing Kit 18Gbps 4K HDR 4x4x4

HDMI Generator and Analyzer Testing Kit 18Gbps 4K HDR 4x4x4

SKU: BG-AVTPG-KIT
3RD PARTY CONTROL SYSTEM CONNECTIONS

Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
4K 60 4:4:4 SUPPORT

Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
4K HDR

4K UHD WITH HDR OVER HDBaseT Multi-zone transmission of HDR-10 content is nothing new to WyreStorm; we’ve been sending this high-bandwidth content, native & uncompressed over long distances since the introduction of our first H2 extender in 2015. Our H2 matrix is no different, sending pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 100m/328ft.
HDCP 2.2

HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
18GBPS / HDMI 2.0

The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.

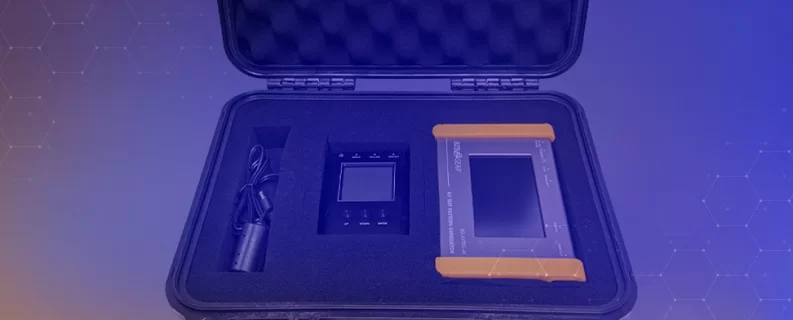

The BG-AVTPG-KIT combines 2 of our best selling HDMI tester/analyzers for a comprehensive toolkit that should be a part of every professional installer’s arsenal. The kit includes one BG-AVTPG-4K and one BG-AVTPG-MINI in a foam-lined protective case built to withstand years of job site abuse. The kit allows for full end-to-end testing of all HDMI-related cabling and gear, allowing installers to quickly identify and correct issues that would otherwise complicate and delay progress.

The BG-AVTPG-4K HDMI 2.0 Generator and Analyzer is a versatile and compact test set designed for A/V Professionals. The set allows the user to conduct verification and diagnostic tests of HDMI cables, A/V components and video distribution networks with confidence. Its protective rubberized edges and rechargeable battery make it well-suited for on-site testing virtually anywhere. With the advanced touch panel and USB connection mouse control you can easily access options for video patterns, audio signals, HDCP analyzer, and loop signal testing. The unit supports 8 channel LPCM with selectable sampling rate making it perfect for testing multi-channel audio systems. The BG-AVTPG-4K is a must-have for all AV System Integrators and Technicians.

The BG-AVTPG-MINI HDMI 2.0a tester/analyzer is a mobile, hand-held device which can help installers test cable quality by generating HDMI signals and detecting important HDMI features quickly. With this handy and portable tool users will appreciate the built-in 3 hour chargeable battery, video patterns and other features. It features adjustable color depth so installers can instantly test the connected display’s capability. Getting important pieces of information makes troubleshooting a breeze and helps installers take the guess work out of HDMI compatibility issues. With the device’s response time, you will have the answer to a potential problem in less than a minute! The BG-AVTPG-MINI, with its cost and features, is the ideal testing unit for custom and commercial integrators to have on every call!

MSRP $2499.00*

*Pricing is for US only. International pricing will vary.
Features

BG-AVTPG:

  • 4K2K60 4:4:4 8bit, 4K2K60 4:2:0 16bit HDR pattern generator
  • 4.3 touch panel
  • Supports mouse control
  • Supports user control device through Ethernet
  • Firmware update through USB Flash Drive
  • Supports user defined pattern up to 2GB
  • Embedded LINUX KERNAL system with limitless extension
  • Scrambler supported for videos over 340MHz output wise
  • Loop test capability to provide statistics analysis for connection stability
  • Supports HDMI loop through function
  • HDCP test allow verify HDCP of HDMI source and transmit HDCP encrypted video
  • Qualified physical layer performance to ensure the best compatibility
  • Battery powered for portability, it can extend operation time with full load up to 4 hours
  • Rechargeable battery design with short charging time about 2 hours

BG-AVTPG-MINI:

  • Supports video resolution* outputs up to [email protected] 4:4:4 8bit, HDR 10bits**, 12bits, 16bits
  • Built-in 3 video patterns***
  • Both HDMI input and output support up to HDMI 2.0
  • Fundamental HDMI feature analysis up to [email protected] 4:4:4 8bit HDMI 2.0 input
  • HDCP 1.4 & 2.2 compliant
  • Tests cable quality
  • Provides statistics analysis for cable quality or connection stability
  • Hand-held pocket size
  • Battery powered for portability, it can extend operation time with full load up to 3 hours
  • Rechargeable battery design with short charging time about 3 hours
Product Video
For a detailed demonstration on how this product connects and operates, check out BZBGEAR's Video!
  • Device capabilities and compatibility.
  • Type of connections available.
  • How to set up and use software if applicable.
  • Useful tricks and tips.
Specifications


3RD PARTY CONTROL SYSTEM CONNECTIONS

Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
4K 60 4:4:4 SUPPORT

Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
4K HDR

4K UHD WITH HDR OVER HDBaseT Multi-zone transmission of HDR-10 content is nothing new to WyreStorm; we’ve been sending this high-bandwidth content, native & uncompressed over long distances since the introduction of our first H2 extender in 2015. Our H2 matrix is no different, sending pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 100m/328ft.
HDCP 2.2

HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
18GBPS / HDMI 2.0

The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.



BG-AVTPG HDMI 2.0 18Gbps Video Test Pattern Generator/Tester and Analyzer

Technical Specifications
Role of usage Generator / Analyzer
Video bandwidth Single link 600MHz (18Gbps)
HDMI compliance HDMI 2.0 and below
HDCP compliance HDCP 2.2 and below
Video Support Up to 4K2K60 4:4:4 8bit, 4K2K60 4:2:0 16bit (HDR)
Video Format Support HDMI
Audio support 8ch LPCM up to 192K
Control USB mouse / touch panel / Ethernet
ESD protection Human body model ±15kV [air-gap discharge] & ±8kV [contact discharge]
Input 1x HDMI + 1xUSB + 1x RJ-45(Ethernet)
Output 1x HDMI + 1x 3.5mm (Stereo)
USB Support USB 2.0
HDMI connector Type A (19-pin female)
USB Connector Type A
RJ-45 connector WE/SS 8P8C with 2 LED indicators
Mechanical
Housing Metal enclosure
Dimensions (L x W x H) Model 105 x 166 x 42mm (4.1" x 6.6" x 1.7")
Package 371x 170 x 77mm (1'5" x 6.7" x 3")
Carton 410 x 368 x 393mm (1'3" x 1'4" x 1'5")
Weight Model 765g (27oz)
Package 1294g (2.8 lbs)
Power supply 12V 5A DC / Battery
Power Consumption 15 Watts
Operation temperature 0~40°C  (32~104°F)
Storage temperature -20~60°C  (-4~140°F)
Relative humidity 20-90% RH [no condensation]

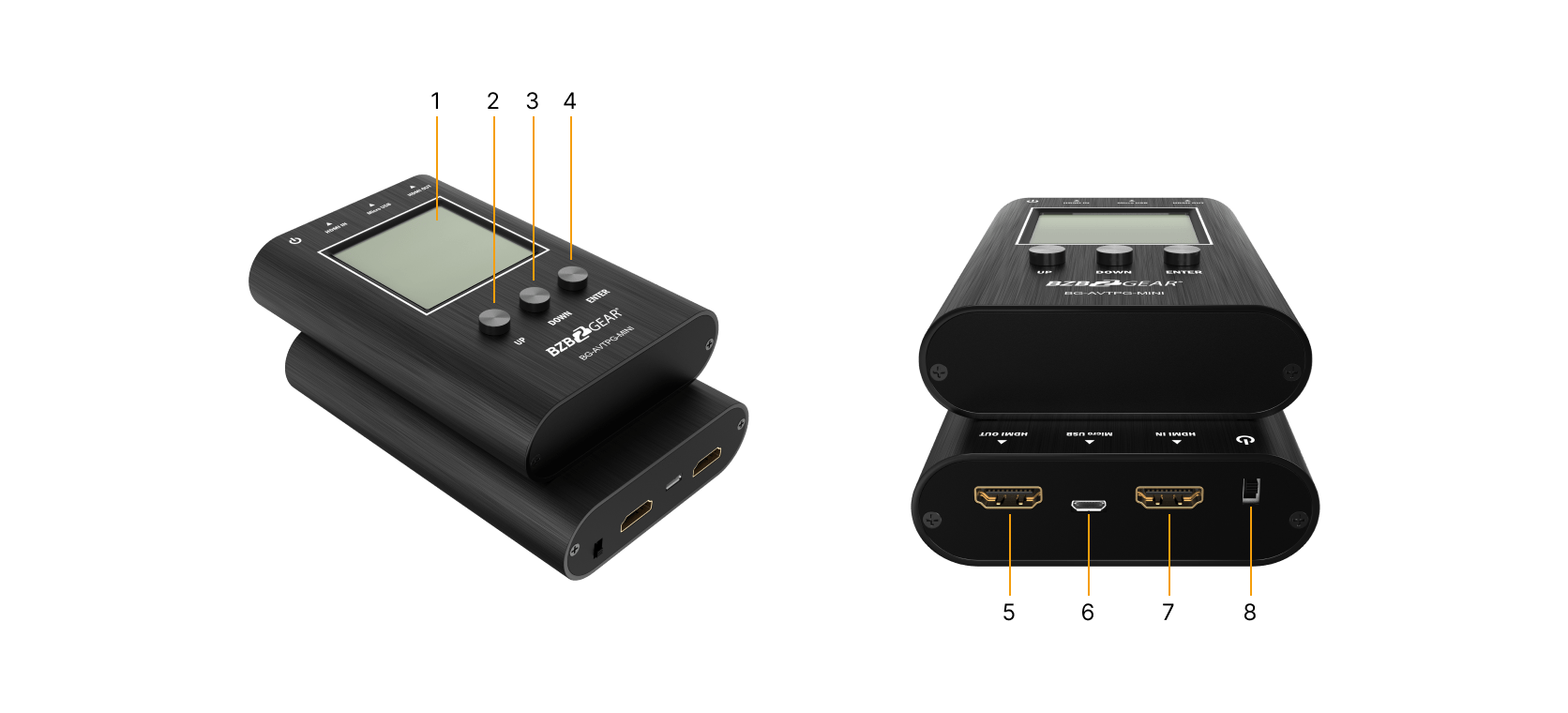

BG-AVTPG-MINI HDMI 2.0a Installation Gear

Role of usage HDMI 2.0a Installation Gear
Video bandwidth Single link 600MHz [18Gbps]
HDMI compliance HDMI 2.0 and below
HDCP compliance HDCP 2.2 and below
Video Support up to 4K60 4:4:4 8bit, 4K2K60 4:2:0 16bit (HDR)
ESD protection Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
Video Format Support HDMI
Input 1x HDMI
Output 1x HDMI
Control Push Button
HDMI connector Type A [19-pin female]
USB Support Firmware update / Recharge
USB connector Micro-USB (Type B)
Mechanical
Enclosure Metal case
Dimensions (L x W x H) Model 130 x 89 x 14mm [5.1" x 3.5" x 0.6"]
Package 198 x 137 x 74mm [7.8" x 5.4" x 2.9"]
Carton 420 x 400 x 300mm [1'4"x 1'3" x 11.8"]
Weight Model 220g [7.8oz]
Package 320g [11.3oz]
Power supply Micro-USB / Battery
Power Consumption 5W [MAX]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]





Resources



Package Contents

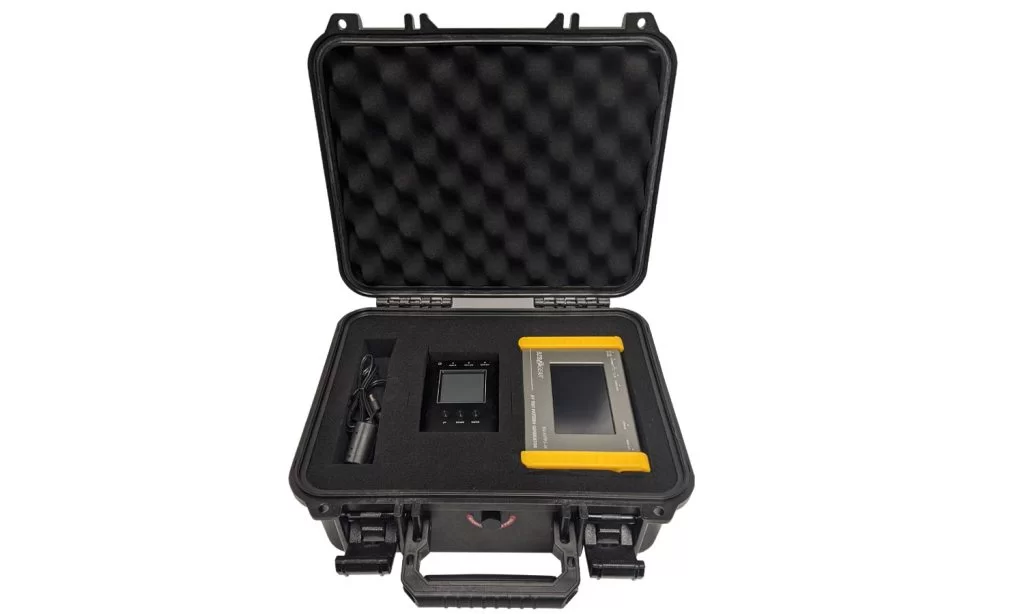

① 1x BG-AVTPG Video Test Pattern Generator/Tester & Analyzer
② 1x BG-AVTPG-MINI HDMI 2.0a Installation Gear
③ 1x Power Supply
④ 1x Case
⑤ 1x User Manual


Warranty: 2 years
