BZ-MVS8X8-4K
8×8 HDMI Video Wall Processor & Seamless Matrix Switcher w/Scaler, IR and Audio
8×8 HDMI Video Wall Processor & Seamless Matrix Switcher w/Scaler, IR and Audio
8×8 HDMI Video Wall Processor & Seamless Matrix Switcher w/Scaler, IR and Audio
SKU: BZ-MVS8X8-4K
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
18GBPS / HDMI 2.0
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
Full MultiView/PiP Matrix Switcher
Matrix Switch devices offer the ability to view one or more sources on one or more displays simultaneously. Multiviewers make it possible to divide multiple video sources onto a single display in individual frames.
Matrix Switch devices offer the ability to view one or more sources on one or more displays simultaneously. Multiviewers make it possible to divide multiple video sources onto a single display in individual frames.

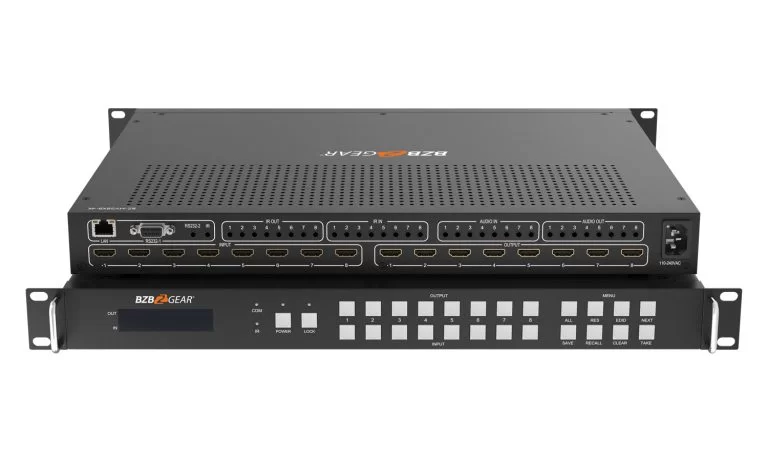

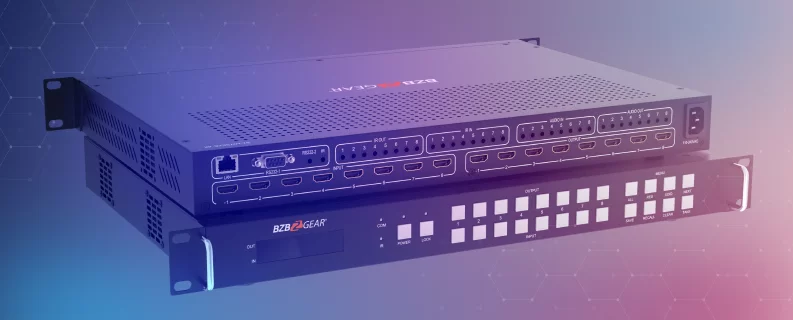

The BZ-MVS8X8-4K is a high-performance seamless 8X8 HDMI Matrix Switcher combined with a Video Wall Processor providing 8-Source Inputs and 8-Display Outputs. A standout feature is the ability to divide sources for the purpose of creating a Video Wall including 2x2, 3x2 and 2x3 layouts up to 4/6-Displays. Equipped with the latest HDMI 2.0 ports and HDCP 2.2 compliance the picture quality is amazing streaming at 18Gbps delivering resolutions up to 4Kx2K@60Hz with Chroma Sampling 4:4:4. This Matrix Switcher is capable of 2-Channel Stereo HDMI audio extraction/de-embedding as well as HDMI Audio insertion/embedding. Control is made simple using IR and RS-232 ports.
MSRP $3999.00*
*Pricing is for US only. International pricing will vary.Features
- Support HDMI 2.0/HDCP 2.2
- Support seamless switching
- Support IR Matrix Control
- Support HDMI audio extract
- Support external LR audio insert on HDMI stream
- Support EDID management
- HDMI video output resolution: 3840x2160@60, 3840x2160@30,1920x1080@60,1280x720@60, 1920x1200@60,1360x768@60,1280x1024@60, 1024x768@60
- Front panel, RS232, TCP/IP (LAN 10M/100M) control
- 4K2K60 (YUV 4:4:4) can be divided and displayed on Four/Six 1080p60 TVs (2x2,3x2, 2x3 layouts)
Product Video
For a detailed demonstration on how this product connects and operates, check out BZBGEAR's Video!
- Device capabilities and compatibility.
- Type of connections available.
- How to set up and use software if applicable.
- Useful tricks and tips.
Specifications
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
18GBPS / HDMI 2.0
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
Full MultiView/PiP Matrix Switcher
Matrix Switch devices offer the ability to view one or more sources on one or more displays simultaneously. Multiviewers make it possible to divide multiple video sources onto a single display in individual frames.
Matrix Switch devices offer the ability to view one or more sources on one or more displays simultaneously. Multiviewers make it possible to divide multiple video sources onto a single display in individual frames.
| Electrical parameter | |
| Interface | HDMI-A |
| HDMI /DP /VGA Version | HDMI2.0,HDCP2.2 |
| Bandwidth | 18Gbps |
| Video Resolution | |
| Input | 800x600@60Hz,1024x768@60Hz, 1280x768@60Hz,1280x800@60Hz, 1280x1024@60Hz,1360x768@60Hz, 1366x768@60Hz,1400x1050@60Hz, 1440x900@60Hz,1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz. 480p,576p,720p,1920x1080i,1920x1080p, 3840x2160@24Hz/25Hz/30Hz/50Hz/60Hz, 4096x2160@24Hz/25Hz/30Hz/50Hz/60Hz. |
| Output | 1920x1080@60Hz, 3840x2160@30Hz, 3840x2160@60Hz, 1280x720@60Hz, 1024x768@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1200@60Hz, |
| HDMI Amplitude | T.M.D.S +/- 0.4Vpp |
| Differential impedance | 100±15ohm |
| RS232/Ethernet control | |
| Baud rate and protocol | Baud rate：9600, data bit：8， |
| stop bit：1,no parity checking | |
| Ethernet | IE10.0+,HTML5 |
| Power | |
| Max Consumption | 100W, 110-240VAC |
| Matrix Mechanical dimensions | |
| Size(mm) | 430(L)X300(W)X44 (H) |
| Weight | 5Kg |
| Other | |
| Operating temperature | 0 to 40°C |
| Storage temperature | -20 to 70°C |
| Permissible humidity | 10%-50% |
Resources
Package Contents
① 1xBZ-MVS8X8-4K unit
② 1xBZ-MVS8X8-4K User Manual
③ 1xAC Power Cord
④ 1xRemote Control
⑤ 1xRS-232 / USB Cable
② 1xBZ-MVS8X8-4K User Manual
③ 1xAC Power Cord
④ 1xRemote Control
⑤ 1xRS-232 / USB Cable
Warranty: 2 years
Buy this 8×8 HDMI Video Wall Processor & Seamless Matrix Switcher w/Scaler, IR and Audio
MSRP $3999.00*
