4K 18Gbps HDMI 2.0 Fiber Extender Kit up to 10 km with Included SFP+ Modules and USB KVM/Bi-Directional IR/RS-232 and Audio De-Embedding Support

ProGear
NEW
Shipping Q4 2026
BG-EXH-4KFE-1 BG-EXH-4KFE-2 BG-EXH-4KFE-3 BG-EXH-4KFE-4 BG-EXH-4KFE-5 BG-EXH-4KFE-6 BG-EXH-4KFE-7 BG-EXH-4KFE-8 BG-EXH-4KFE-9 BG-EXH-4KFE-10 BG-EXH-4KFE-11 BG-EXH-4KFE-12 BG-EXH-4KFE-13 BG-EXH-4KFE-14 BG-EXH-4KFE-15
BG-EXH-4KFE-1
BG-EXH-4KFE-2
BG-EXH-4KFE-3
BG-EXH-4KFE-4
BG-EXH-4KFE-5
BG-EXH-4KFE-6
BG-EXH-4KFE-7
BG-EXH-4KFE-8
BG-EXH-4KFE-9
BG-EXH-4KFE-10
BG-EXH-4KFE-11
BG-EXH-4KFE-12
BG-EXH-4KFE-13
BG-EXH-4KFE-14
BG-EXH-4KFE-15
U.S.-based Company
U.S.-based Company
Complimentary design services<br> and engineering support
Complimentary design services
and engineering support
5 year warranty
5 year warranty
Click here to learn more about BZBGEAR Fundamentals
BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Overview Specifications Interfaces Resources Package contents Trade In

Overview

The BG-EXH-4KFE is a professional HDMI over fiber extender engineered to deliver uncompressed 4K@60Hz 4:4:4 video over distances of up to 10km (6.2 miles) using single-mode fiber. Supporting the full 18Gbps HDMI 2.0b bandwidth with HDCP 2.2 compliance and HDR pass-through, it provides exceptional image quality and signal reliability for mission-critical AV installations where copper cabling is no longer practical.

Designed for professional AV integration, the BG-EXH-4KFE combines long-distance video transmission with bi-directional IR, RS-232 pass-through, USB KVM extension, HDMI loop-out, advanced EDID management, and analog audio de-embedding. Its compact, durable metal enclosure and robust fiber-based architecture make it an ideal solution for broadcast facilities, control rooms, digital signage, enterprise campuses, and large commercial installations.

Features in Depth

The BG-EXH-4KFE extends HDMI 2.0b signals over fiber while preserving full 18Gbps bandwidth for resolutions up to 4K@60Hz 4:4:4 without compression. Using single-mode fiber, the system supports transmission distances up to 10km (6.2 miles) while maintaining exceptional signal integrity and immunity to electromagnetic interference. For shorter installations, the extender also supports OM4 multi-mode fiber with compatible SFP modules, enabling transmission distances up to 300m (984ft). Full compatibility with HDCP 2.2 ensures reliable playback of protected 4K content, while support for HDR10, HDR10+, Dolby Vision, HLG, and up to 12-bit Deep Color delivers vibrant, true-to-life image quality.

Beyond video transport, the BG-EXH-4KFE incorporates comprehensive control and management features for professional system integration. Bi-directional IR and RS-232 pass-through allow remote control of source and display devices, while integrated USB 1.1 KVM extension enables remote keyboard and mouse operation for workstation control. The transmitter includes an HDMI loop-out for local monitoring, making it easy to verify source content without affecting the extended signal path. At the receiver, analog audio de-embedding provides flexible integration with external amplifiers and sound systems.

Advanced EDID management simplifies compatibility between connected source devices and displays, ensuring stable signal negotiation across a wide variety of AV equipment. Combined with its compact metal construction, efficient low-power operation, and high resistance to electrical interference, the BG-EXH-4KFE delivers a dependable long-distance fiber extension solution for broadcast studios, command centers, digital signage networks, medical facilities, educational campuses, and enterprise AV systems.

Features

  • Wide-Angle 2
    Ultra-Long Distance Extension
    Transmits uncompressed HDMI signals up to 10km (6.2 miles) over single-mode fiber, with support for 300m (984ft) over OM4 multi-mode fiber using compatible SFP modules
  • bi_badge-4k
    18Gbps Performance
    Supports HDMI 2.0b, HDCP 2.2, and resolutions up to 4K@60Hz 4:4:4 with full 18Gbps bandwidth
  • IR-PASS-THROUGH
    Professional Control Integration
    Features bi-directional IR, RS-232 pass-through, and USB 1.1 KVM extension for remote device control and system integration
  • HDR Support
    HDR & Premium Audio
    Passes HDR10, HDR10+, Dolby Vision, HLG, LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio, and other advanced audio formats
  • HDMI audio formats
    Loopout & Audio Extraction
    Includes HDMI loop-out on the transmitter and analog audio de-embedding on the receiver for flexible AV workflows
  • ep_connection
    Advanced EDID Management
    Provides selectable EDID modes to optimize compatibility between source devices and connected displays
  • Uncompressed HDMI transmission over fiber with excellent signal integrity
  • Immune to electromagnetic interference (EMI) common in copper cable installations
  • Supports up to 12-bit Deep Color for enhanced color reproduction
  • Compatible with HDMI 2.0b and HDCP 2.2 protected content
  • USB 1.1 extension supports remote keyboard and mouse operation
  • Bi-directional IR enables remote control of source and display devices
  • RS-232 pass-through integrates with third-party automation and control systems
  • HDMI loop-out allows local display monitoring at the transmitter
  • Analog audio de-embedding simplifies integration with external audio equipment
  • Compact metal enclosure designed for professional AV environments
  • Efficient low-power design ensures reliable 24/7 operation
  • Includes locking power supplies, USB cable, IR accessories, mounting hardware, and Phoenix connectors for complete installation

Tech Specifications

TECHNICAL
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 18Gbps
Video Resolution (Max) Up to 4K@60Hz (3840x2160), 4:4:4
Supported Resolutions 4K@60/50Hz, 4K@30/25Hz, 1080p@60/50Hz, 1920x1200, 1360x768, 1280x720, 1024x768
Color Space RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth 8/10/12-bit
HDR Support HDR10, HDR10+, Dolby Vision, HLG
Audio Formats LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS-HD Master Audio, DSD
Fiber Type 10G SFP+ module
Transmission Distance Up to 10km (single-mode fiber), up to 300m (OM4 multi-mode)
IR Level 5Vp-p
IR Frequency 20K-60KHz (wideband)
ESD Protection IEC 61000-4-2: ±8kV air, ±4kV contact
CONNECTIONS
Transmitter Inputs 1x HDMI IN, 1x IR IN (3.5mm), 1x USB-B (HOST), 1x RS-232 (3-pin phoenix)
Transmitter Outputs 1x HDMI OUT (loop out), 1x IR OUT, 1x LC Fiber OUT
Transmitter Control 1x USB-C (service/firmware)
Receiver Inputs 1x LC Fiber IN, 1x IR IN
Receiver Outputs 1x HDMI OUT, 1x IR OUT, 1x AUDIO OUT (3-pin phoenix)
Receiver USB 2x USB-A (keyboard & mouse)
Receiver Control 1x RS-232 (3-pin phoenix), 1x USB-C (service)
MECHANICAL
Housing Metal enclosure
Color Black
Dimensions (W x D x H) 5.7in x 3.1in x 0.91in [144mm x 78mm x 23mm] (TX/RX)
Weight TX: 0.74lb [337g] / RX: 0.73lb [330g]
Power Supply 5V/2A locking power adapter (AC 100-240V, 50/60Hz)
Power Consumption TX: 5W max / RX: 5W max
Operating Temperature 32°F to 104°F / 0°C to 40°C
Storage Temperature -4°F to 140°F / -20°C to 60°C
Operating Humidity 20% - 80% RH (non-condensing)
Storage Humidity 10% - 90% RH (non-condensing)

Resources

Documents

PACKAGE CONTENTS

  • 1x 18Gbps HDMI over Fiber Extender (Transmitter)
  • 1x 18Gbps HDMI over Fiber Extender (Receiver)
  • 2x 5V/2A Multinational Locking Power Supplies
  • 1x USB Cable (Type A to Type B, 1.5m)
  • 1x IR Blaster Cable (1.5m)
  • 1x IR Wideband Receiver Cable (1.5m)
  • 3x 3-pin 3.5mm Phoenix Connectors (Male)
  • 4x Mounting Ears
  • 8x Machine Screws (KM3x4)
  • 1x User Manual

Interfaces

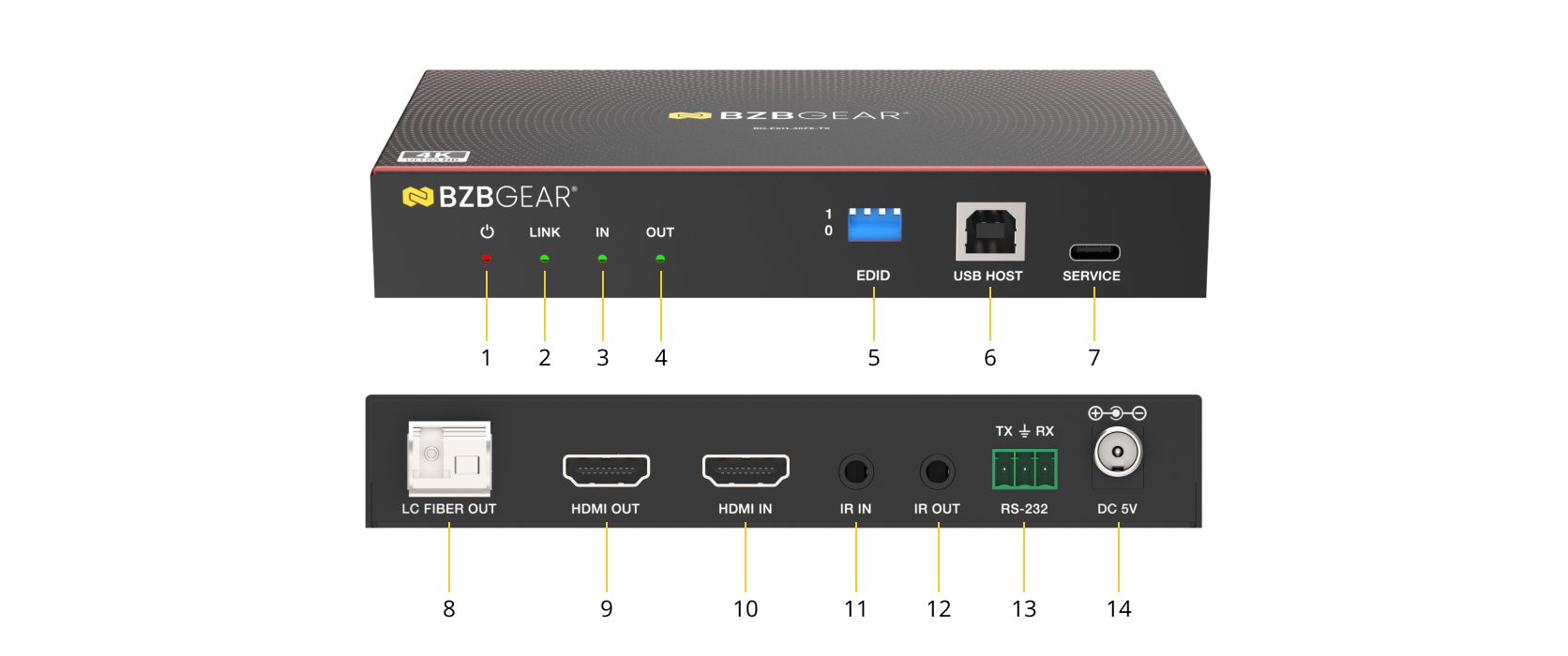

Interfaces image

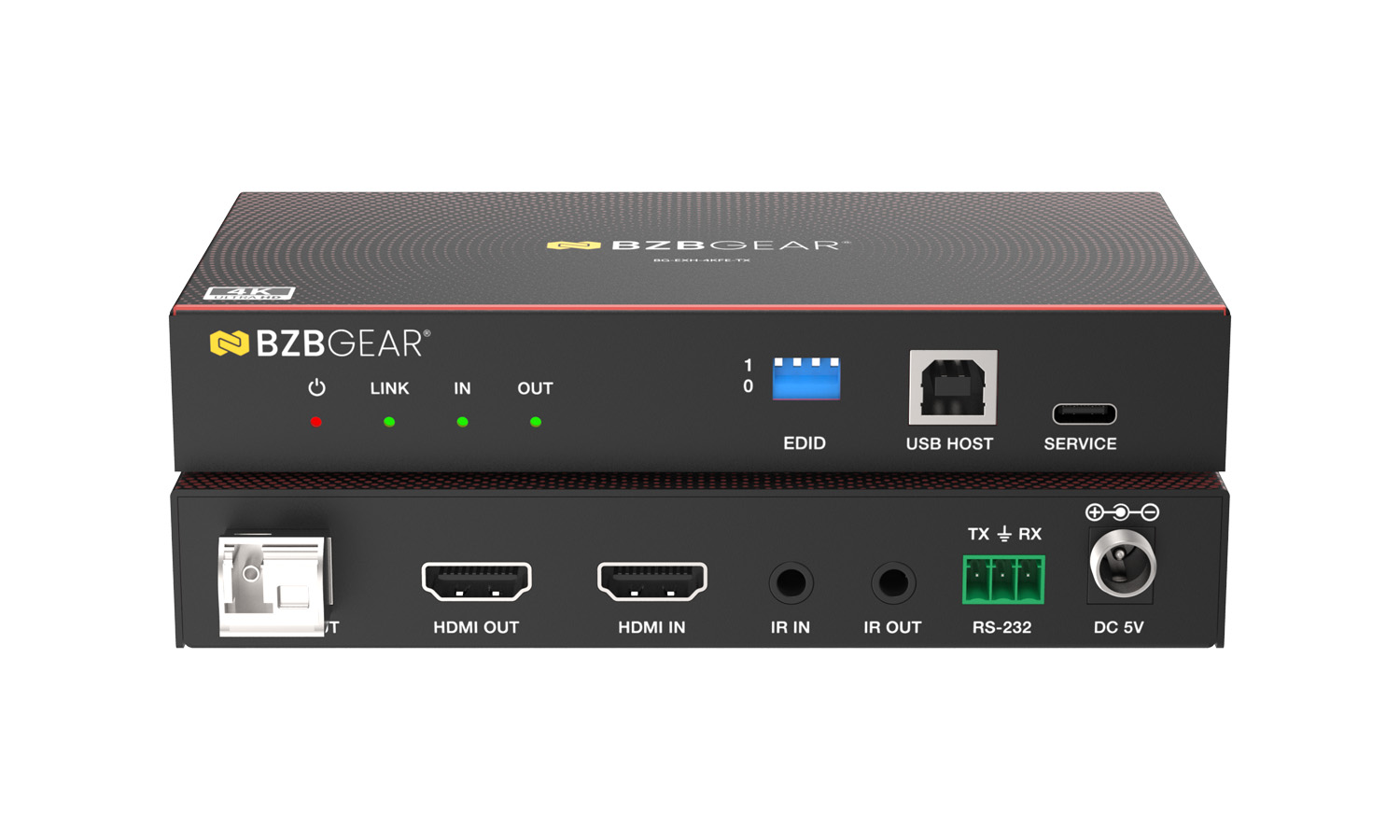

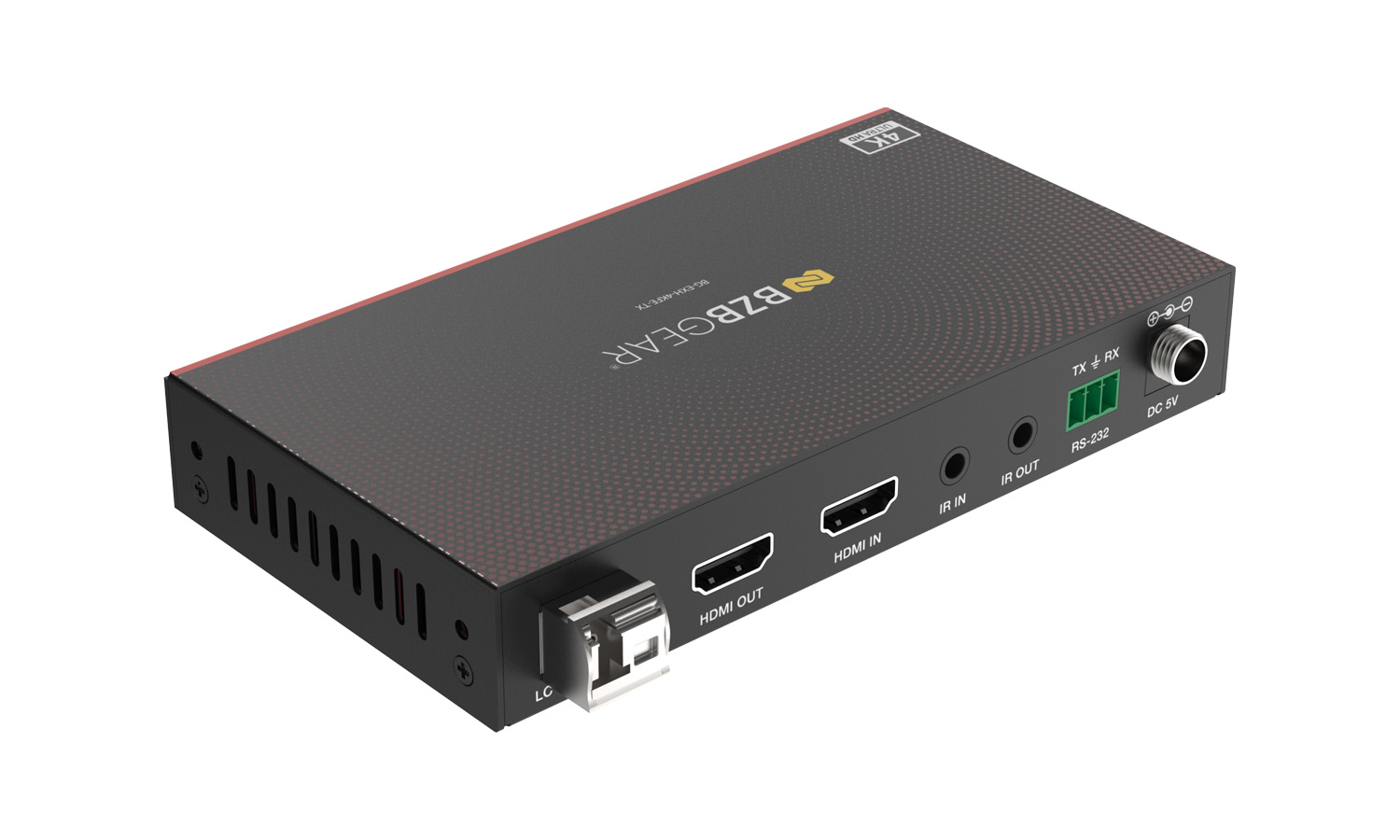

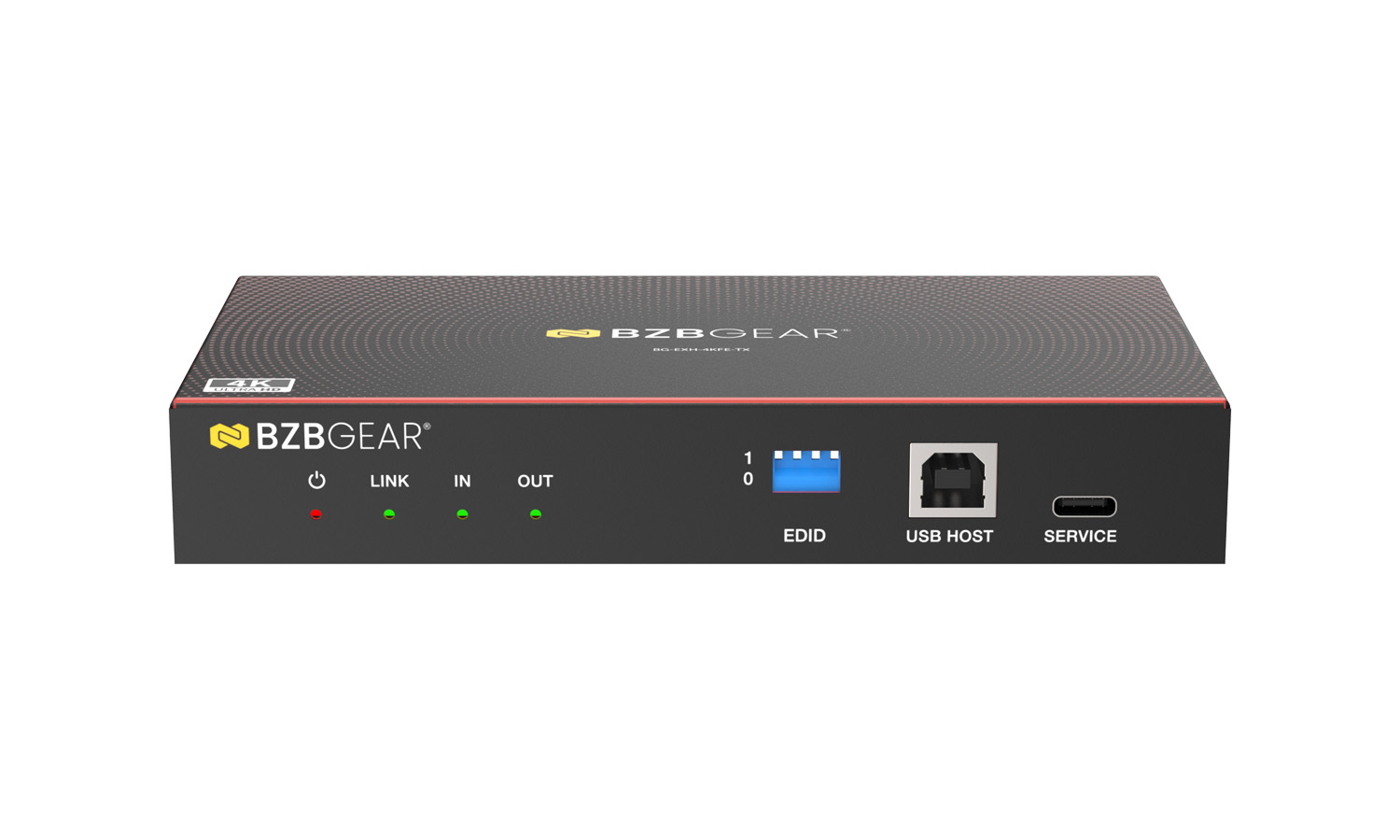

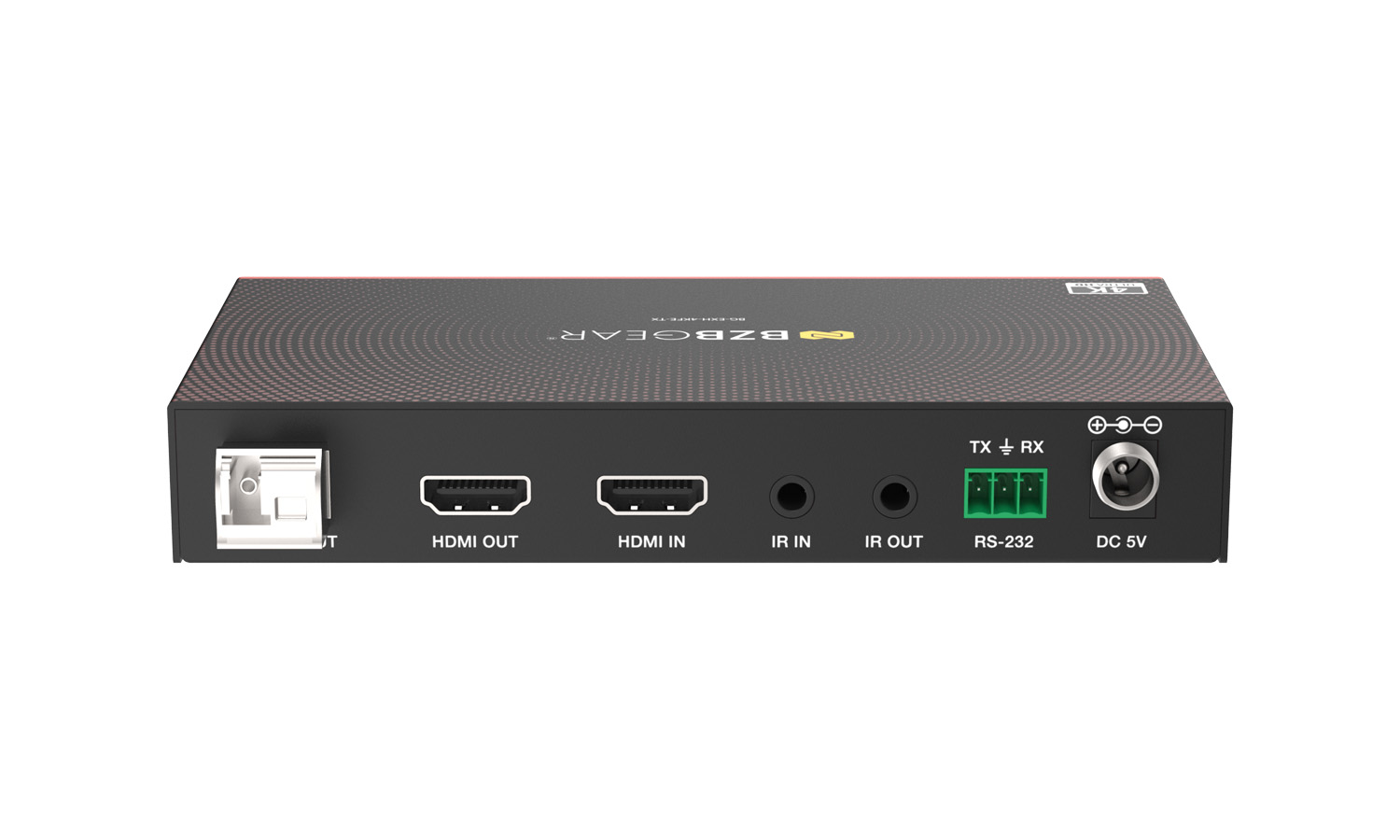

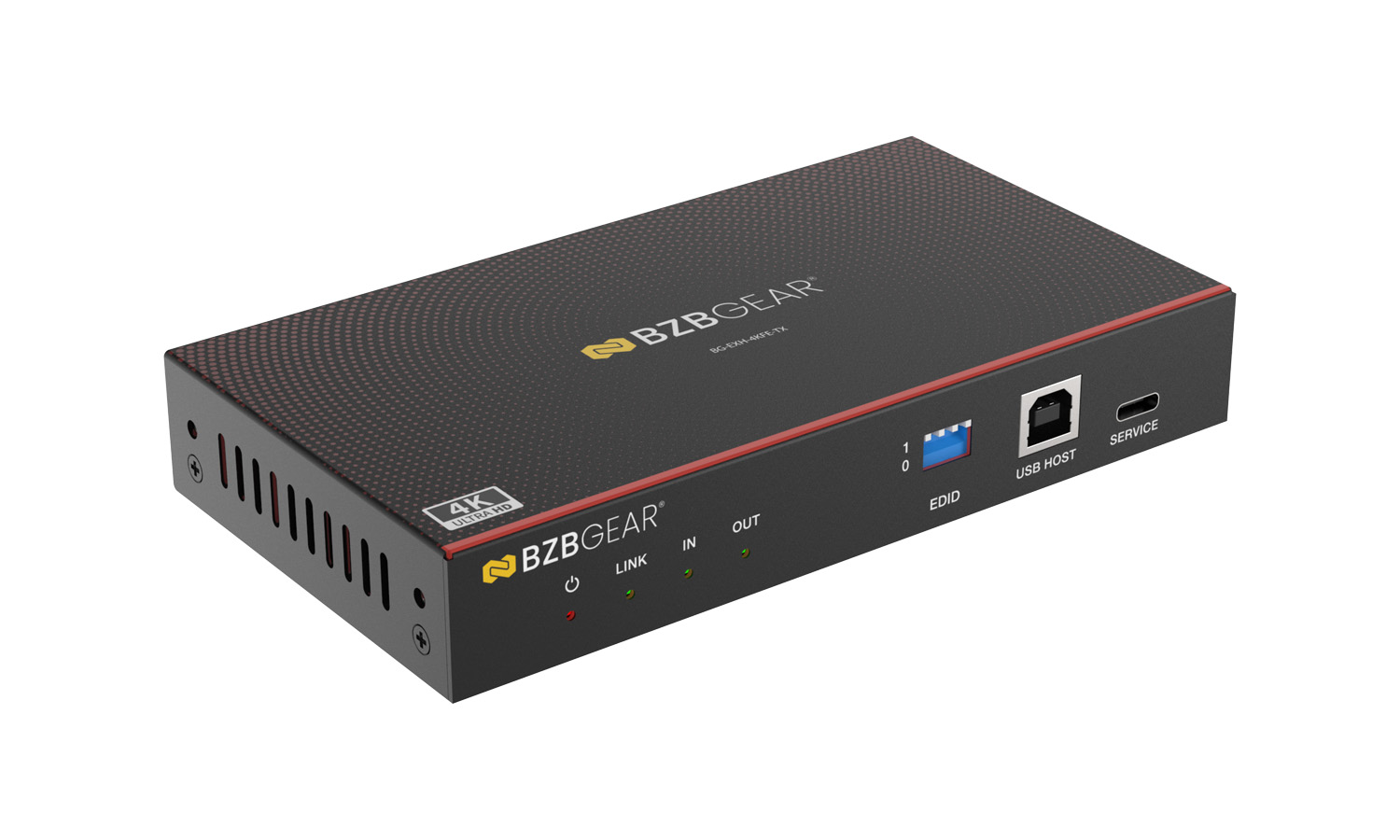

Transmitter

  1. POWER LED: Red LED illuminates when the transmitter is powered on.
  2. LINK LED: Green LED stays on when a stable fiber link is established between TX and RX.
  3. IN LED: Green LED indicates an active HDMI input signal is detected.
  4. OUT LED: Green LED indicates an HDMI display device is connected to the loop-out port.
  5. EDID DIP Switch: Used for selecting EDID mode (copy RX/TX EDID or predefined HDR/SDR resolutions and audio formats).
  6. USB HOST: USB Type-B port used to connect the transmitter to a host PC for USB KVM function.
  7. SERVICE: USB-C port for firmware updates and service use.
  8. LC FIBER OUT: Fiber optic LC output port connected to the receiver’s LC FIBER IN port.
  9. HDMI OUT: HDMI loop-out port for local display connection or monitoring.
  10. HDMI IN: HDMI input port for source devices such as PC, Blu-ray player, or media device.
  11. IR IN: 3.5mm IR receiver input for remote control signal reception.
  12. IR OUT: 3.5mm IR blaster output for transmitting IR control signals.
  13. RS-232: 3-pin phoenix connector for serial pass-through control between TX and RX.
  14. DC 5V: 5V/2A locking power input connector.

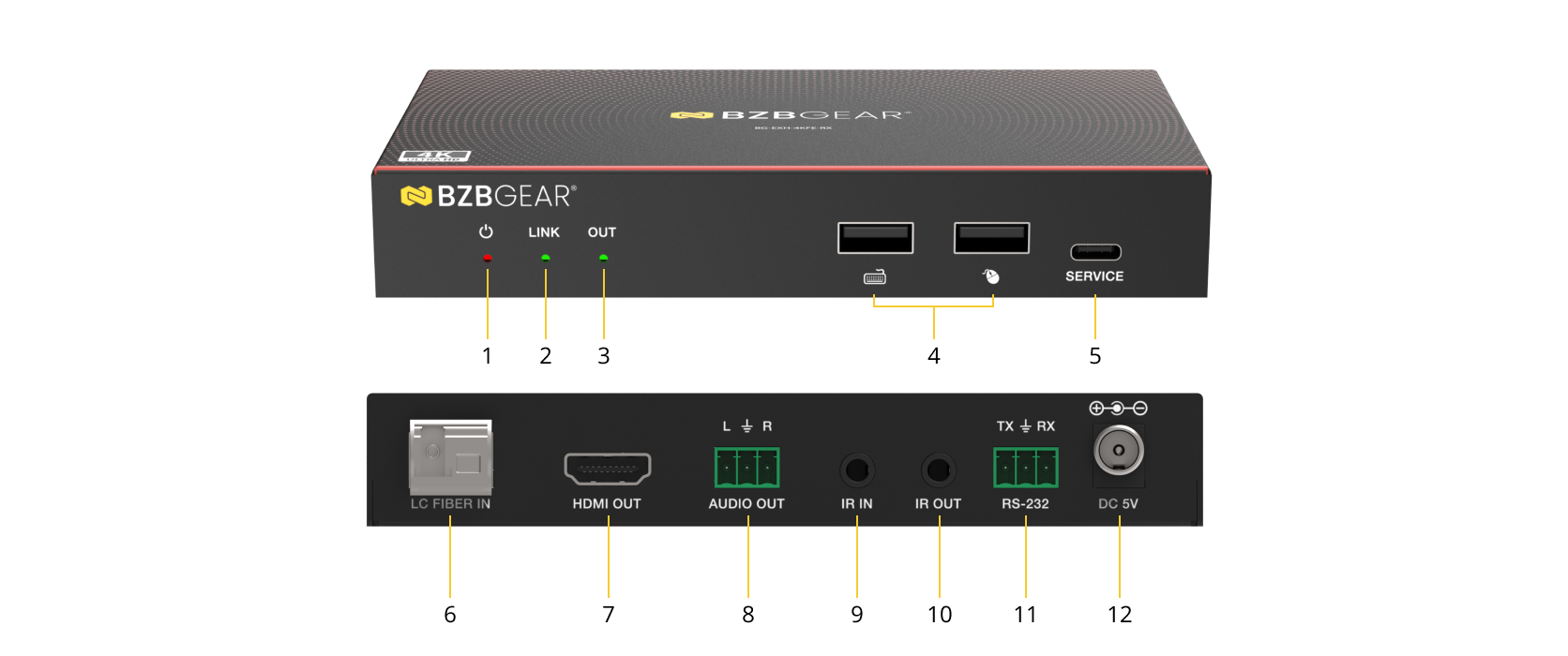

Interfaces image

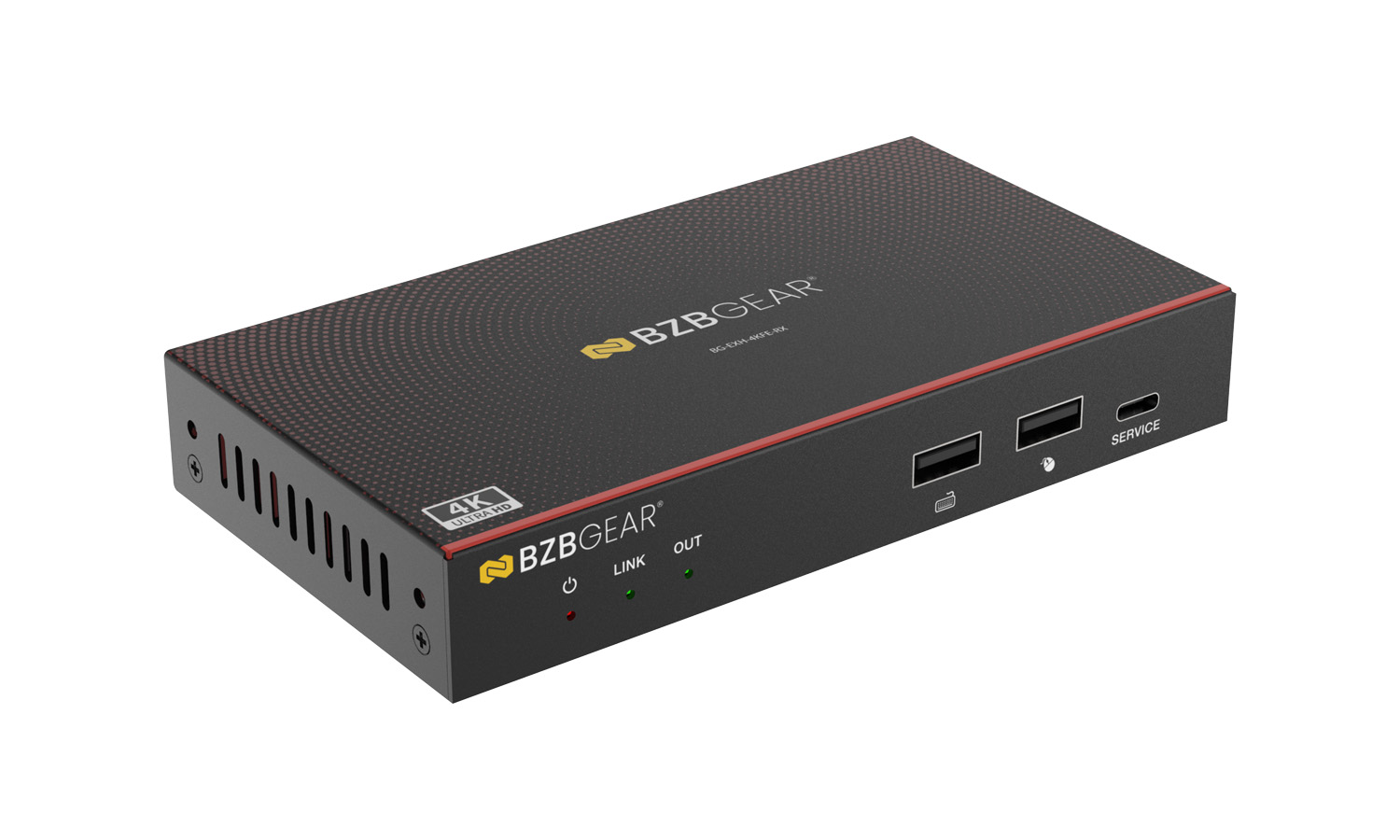

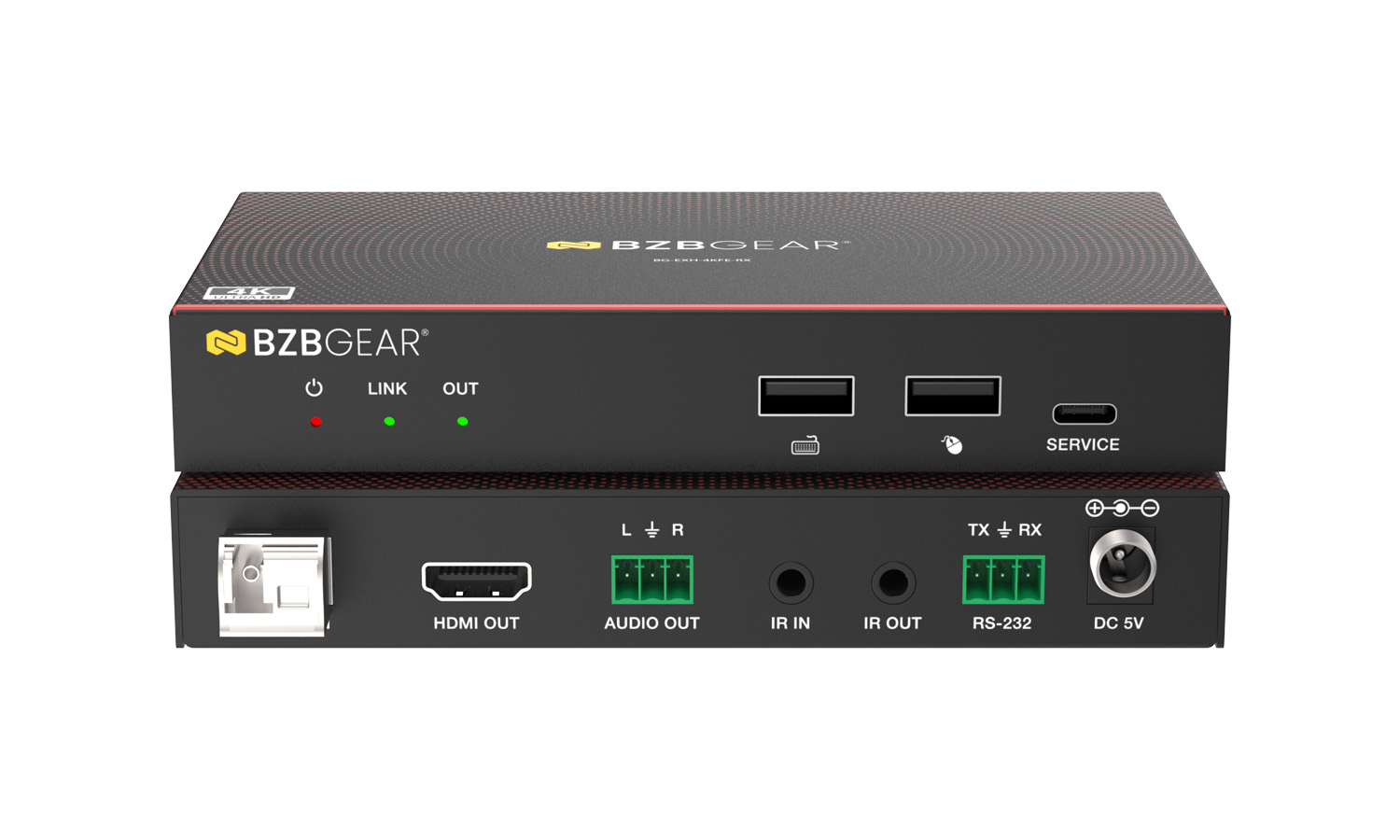

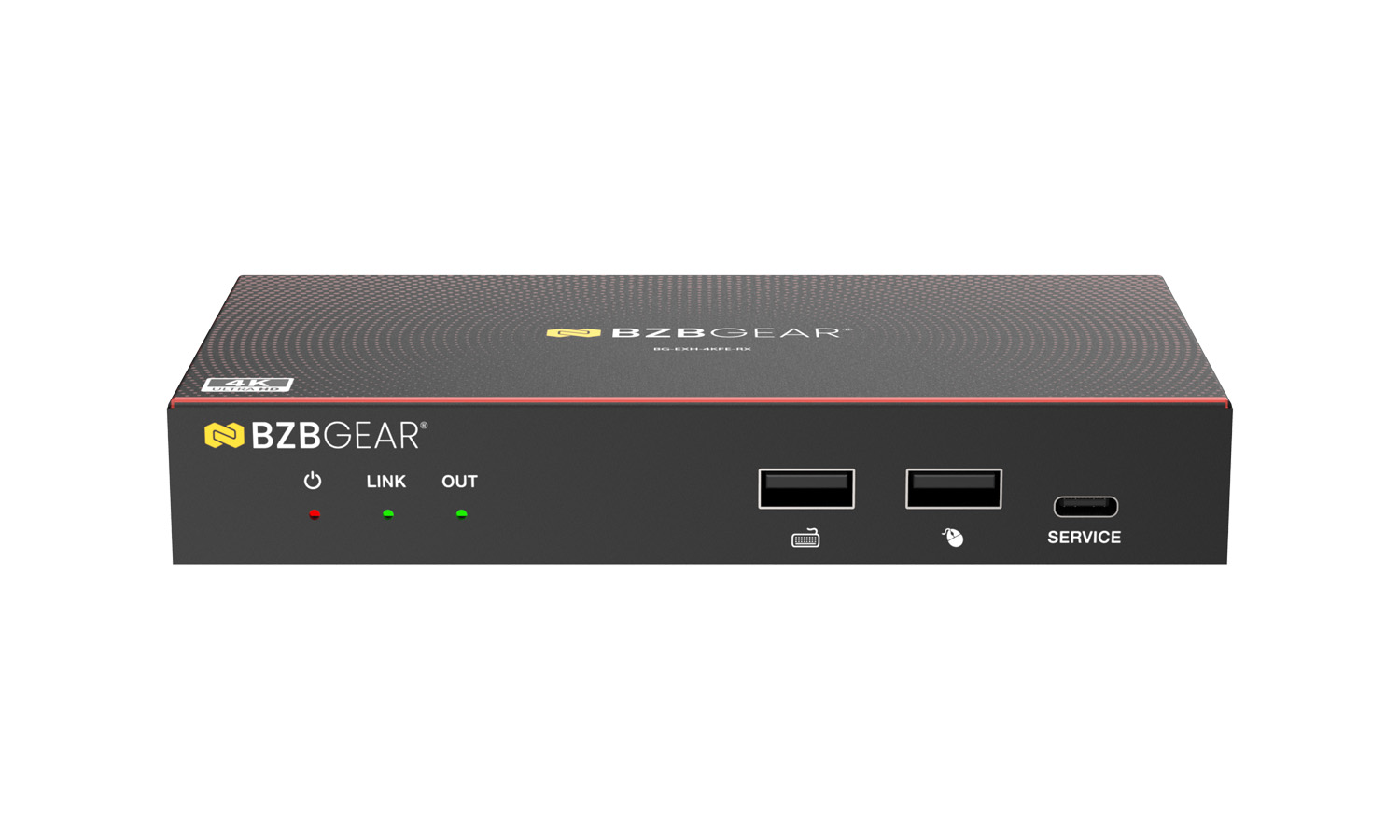

Receiver

  1. POWER LED: Red LED illuminates when the receiver is powered on.
  2. LINK LED: Green LED stays on when a stable fiber link is established between TX and RX.
  3. OUT LED: Green LED indicates an active HDMI display connection.
  4. USB (Keyboard & Mouse): USB-A ports for connecting keyboard and mouse for KVM extension.
  5. SERVICE: USB-C port for firmware updates and service use.
  6. LC FIBER IN: Fiber optic LC input port connected to the transmitter’s LC FIBER OUT port.
  7. HDMI OUT: HDMI output port for connection to display devices such as TVs or monitors.
  8. AUDIO OUT: Analog audio de-embedding output (L / GND / R) for external audio systems.
  9. IR IN: 3.5mm IR receiver input for remote control signal reception.
  10. IR OUT: 3.5mm IR blaster output for transmitting IR control signals.
  11. RS-232: 3-pin phoenix connector for serial pass-through control between TX and RX.
  12. DC 5V: 5V/2A locking power input connector.
