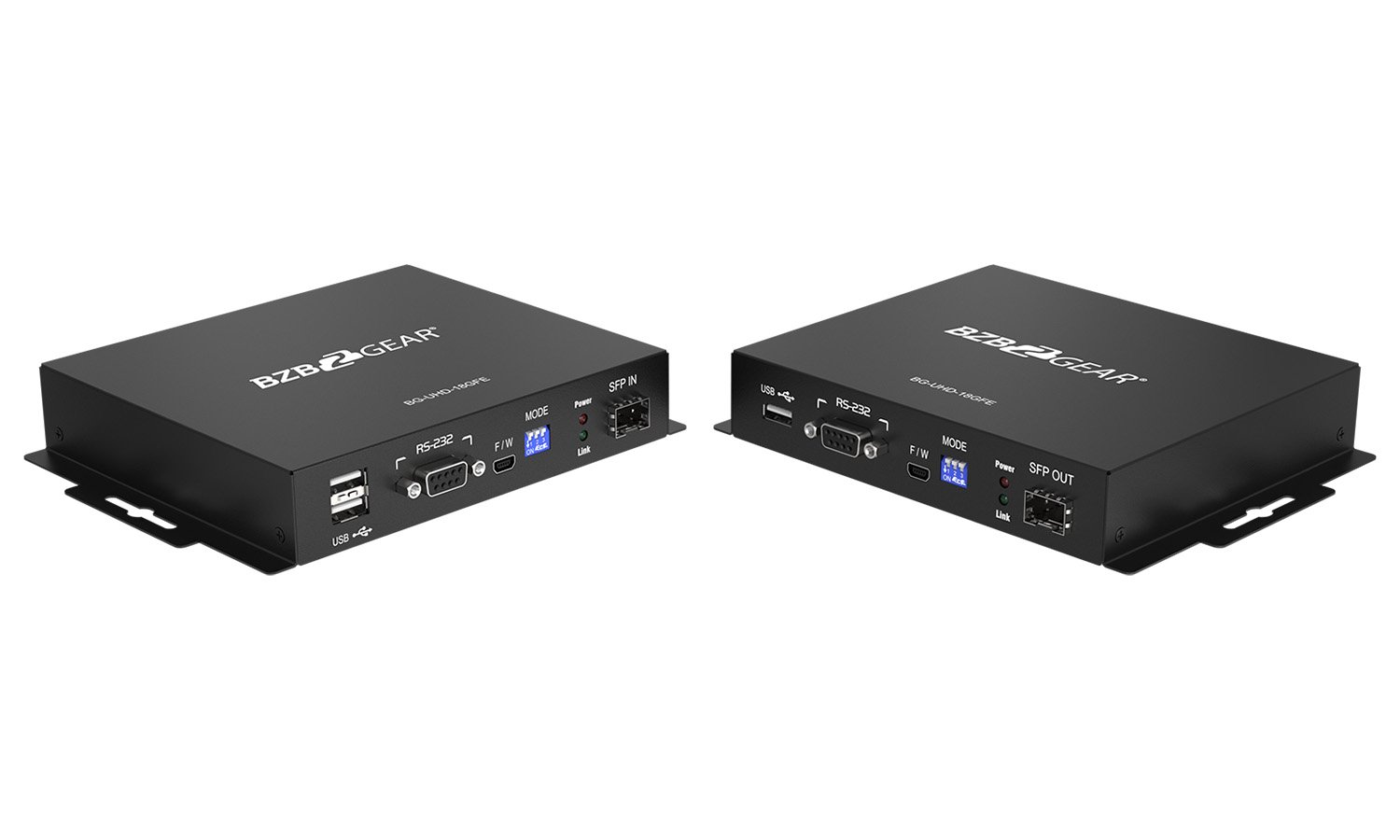

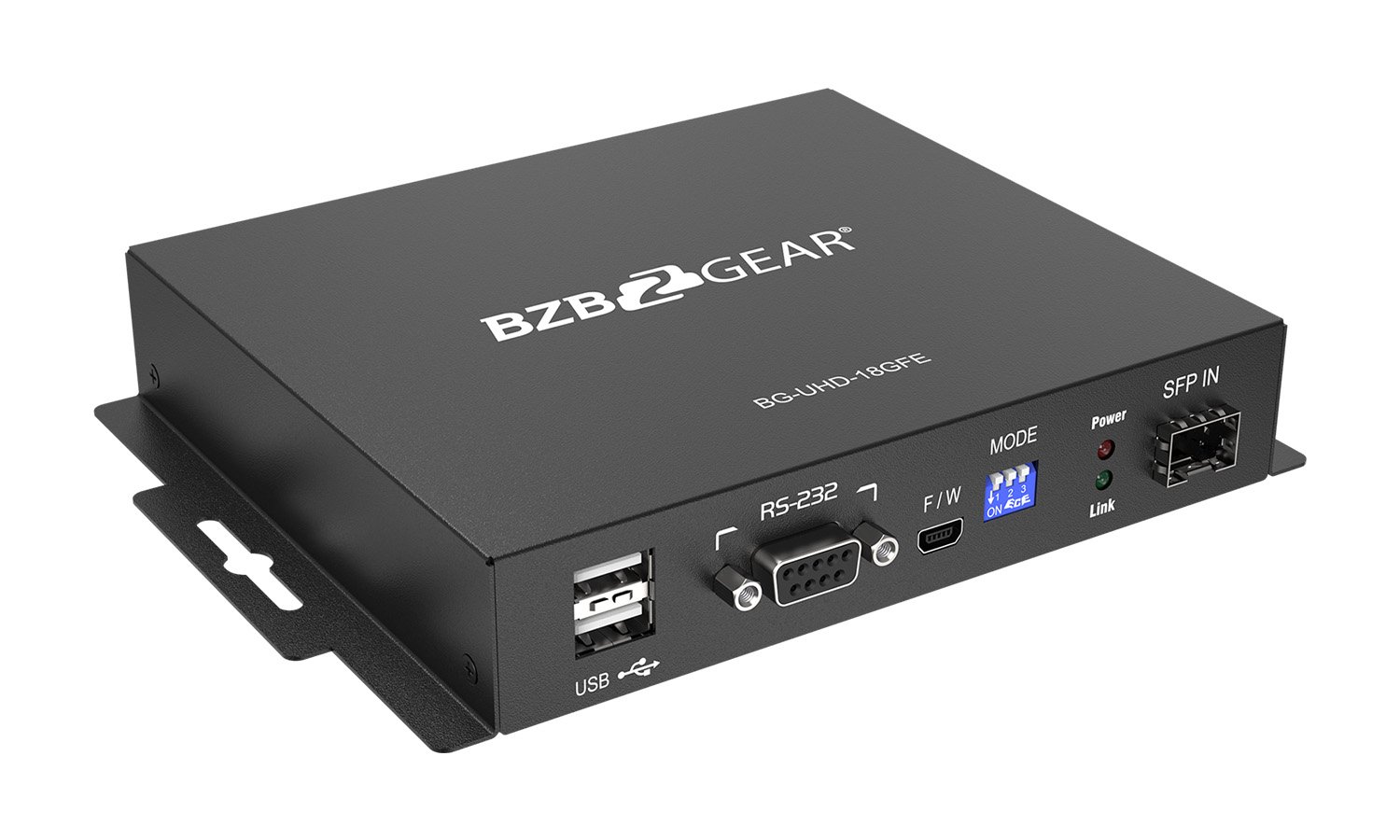

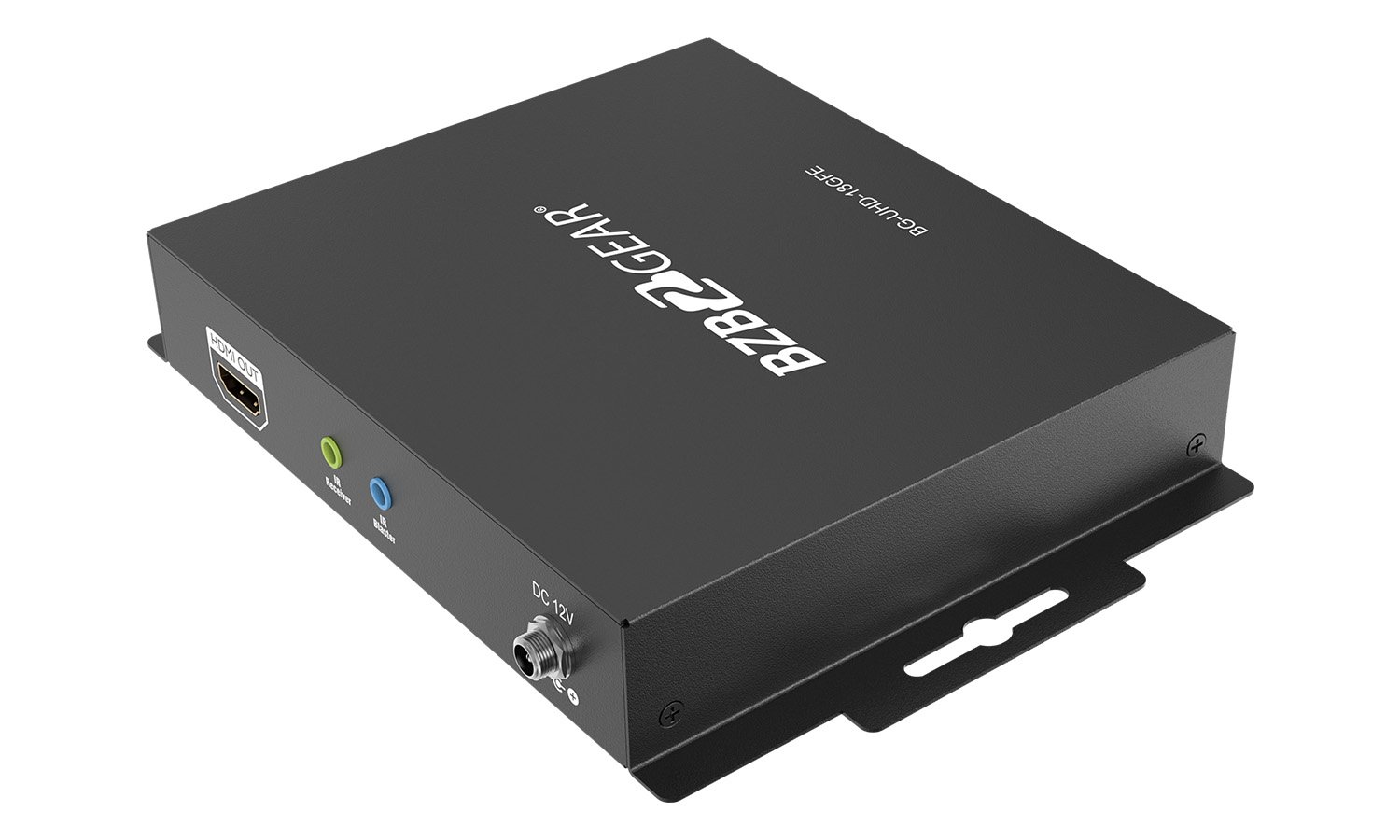

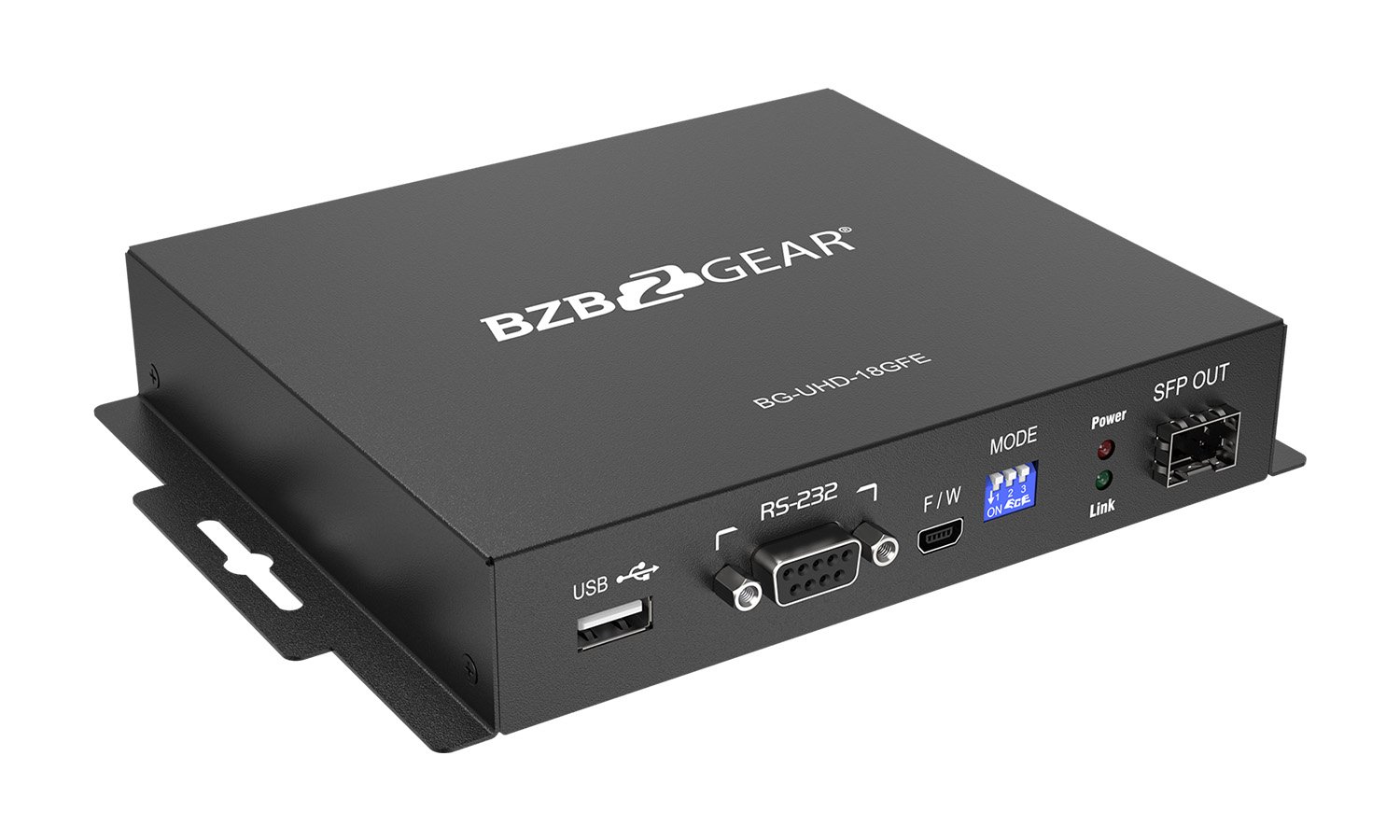

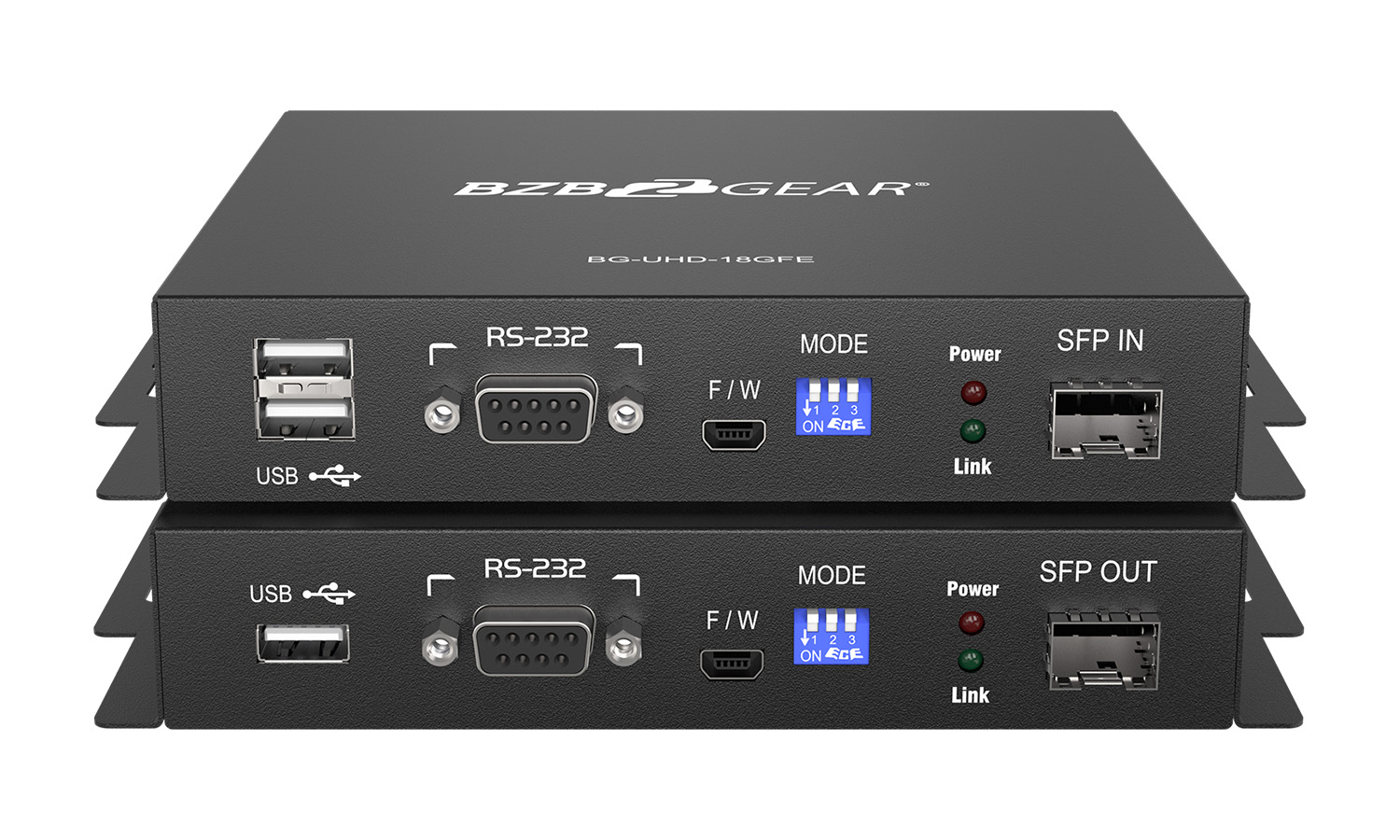

4K HDMI USB KVM Extender Kit Over fiber w/HDR, 2-Way IR & RS-232
MSRP: $2,299.00

MSRP $2299.00

3

Description

The BG-UHD-18GFE is a 4K HDMI KVM extender that can transmit a [email protected] HDMI signal with USB 2.0 at distances up to 6.25 miles (10km) over a single-mode fiber optic cable, with transfer speeds up to 18Gbps. This HDCP 2.2 compliant extender is equipped with bi-directional IR and RS-232 pass-through, allowing for both source and display control.

The KVM functionality allows keyboard and mouse control of a remote PC or media player at a distance from the receiver unit via the USB 2.0 ports.

With the ability to send high resolution video over long distances, this extender is ideal for sports arenas, concert venues, digital signage applications or anywhere extreme range is a requirement.

Additional information

Weight4 lbs
Dimensions15 × 7 × 3.5 in

Specifications

Technical

Role of usage

Transmitter [TX]

Receiver [RX]

HDMI compliance

HDMI 2.0a

HDCP compliance

HDCP 2.2

Video bandwidthSingle-link 594MHz [18Gbps]
Video supportHDR [email protected] (4:2:0 10bits) / [email protected] (4:4:4 8bits)
HDMI over fiber

Yes

Audio supportSurround sound [up to 7.1ch] or stereo digital audio
Equalization

Auto

Input TMDS signal1.2 Volts [peak-to-peak]
Input DDC signal5 Volts [peak-to-peak, TTL]


ESD protection

[1] Human body model — ±19kV [air-gap discharge] &

±12kV [contact discharge]

PCB stack-up6-layer board [impedance control — differential 100Ω; single 50Ω]
IR pass-thru

Bi-directional

RS-232 support

Yes

Input

1x HDMI

1x 3.5mm

1x fiber 1x 3.5mm

Output

1x fiber 1x 3.5mm

1x HDMI

1x 3.5mm

In / Out

1x RS-232

1x RS-232

HDMI source controlControllable via IR pass-through from RX to TX with IR extenders
HDMI connectorType A [19-pin female]
3.5mm connector

IR receiver / IR blaster

IR receiver / IR blaster

Mechanical

[Tx]

[Rx]

Housing

Metal enclosure

FixednessWall-mounting case with screws
Power supply

12V2A

Power consumption

Max 10W

Operation temperature

0-50°C

Storage temperature

-20~60°C [-4~140°F]

Relative humidity20~90% RH [no condensation]

Applications











Resources

Download Manual - Click Icon Below

Download Manual



Specification Sheet

Download Manual

Overview

The BG-UHD-18GFE is a 4K HDMI KVM extender that can transmit a [email protected] HDMI signal with USB 2.0 at distances up to 6.25 miles (10km) over a single-mode fiber optic cable, with transfer speeds up to 18Gbps. This HDCP 2.2 compliant extender is equipped with bi-directional IR and RS-232 pass-through, allowing for both source and display control.

The KVM functionality allows keyboard and mouse control of a remote PC or media player at a distance from the receiver unit via the USB 2.0 ports.

With the ability to send high resolution video over long distances, this extender is ideal for sports arenas, concert venues, digital signage applications or anywhere extreme range is a requirement.



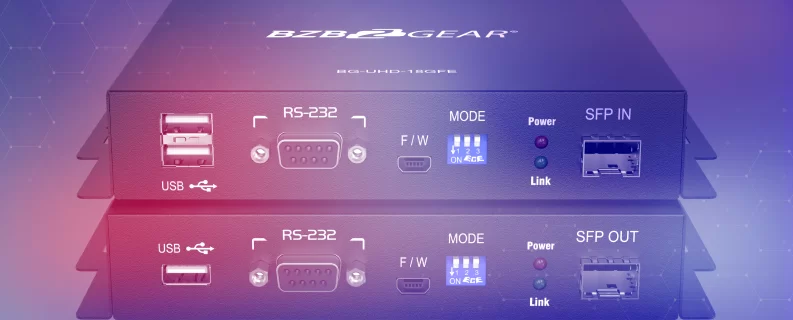

Introduction

The BG-UHD-18GFE is the pro's choice for extending long distance HDR [email protected] (4:2:0) HDMI signals at 18Gbps over Fiber Optics up to 10 km (6.25 miles) using single-mode cabling.
Features
4K Support
Supports [email protected] HDR (4:4:4).
Fiber-Optic
Single-mode SFP connection provides pure signal over extreme distances.
USB 2.0
Connect 2 remote USB devices.
RS-232
Supports RS-232 passthrough to extend control signals.
IR Passthrough
Full 2-way IR passthrough.
Long Range
Extends HDMI up to 6.25 miles (10km).
  • Supports [email protected] 4:4:4 8bits
  • Supports HDR, which is [email protected] 4:2:0 10bits
  • Supports HDCP2.2
  • Extend HDMI signals up to 10km (6.25miles) over single mode fiber optic cables
  • Supports Keyboard & mouse signal transmission
  • Supports full frequency IR signal from 20KHz to 60KHz
  • Bi-directional IR path-through
  • Link LED indicator light
  • Wall mounting housing design for easy and robust installation


Specifications
Tech Specs
Role of usageTransmitter [TX]Receiver [RX]
HDMI complianceHDMI 2.0a
HDCP complianceHDCP 2.2
Video bandwidthSingle link 594MHz [18Gbps]
Video supportHDR [email protected] (4:2:0 10bits) / [email protected] (4:4:4 8bits)
HDMI over fiberYes
Audio supportSurround sound [up to 7.1ch] or stereo digital audio
EqualizationAuto
Input TMDS signal1.2 Volts [peak-to-peak]
Input DDC signal5 Volts [peak-to-peak, TTL]
  ESD protection[1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
PCB stack-up6-layer board [impedance control — differential 100Ω; single 50Ω]
IR pass-thruBi-directional
RS-232 supportYes
Input1x HDMI 1x 3.5mm1x fiber 1x 3.5mm
Output1x fiber 1x 3.5mm1x HDMI 1x 3.5mm
In / Out1x RS-2321x RS-232
HDMI source controlControllable via IR pass-through from RX to TX with IR extenders
HDMI connectorType A [19-pin female]
3.5mm connectorIR receiver / IR blasterIR receiver / IR blaster
Mechanical[Tx][Rx]
HousingMetal enclosure
FixednessWall-mounting case with screws
Power supply12V2A
Power consumptionMax 10W
Operation temperature0-50°C
Storage temperature-20~60°C [-4~140°F]
Relative humidity20~90% RH [no condensation]
MORE / LESS SPECS
Ideal fit for:
- Casinos
- Arenas
- Auditoriums
- Hotels
- Event Centers


Who is buying it?
- Large Businesses
- Schools/Universities
- Corporations
- Arena Management

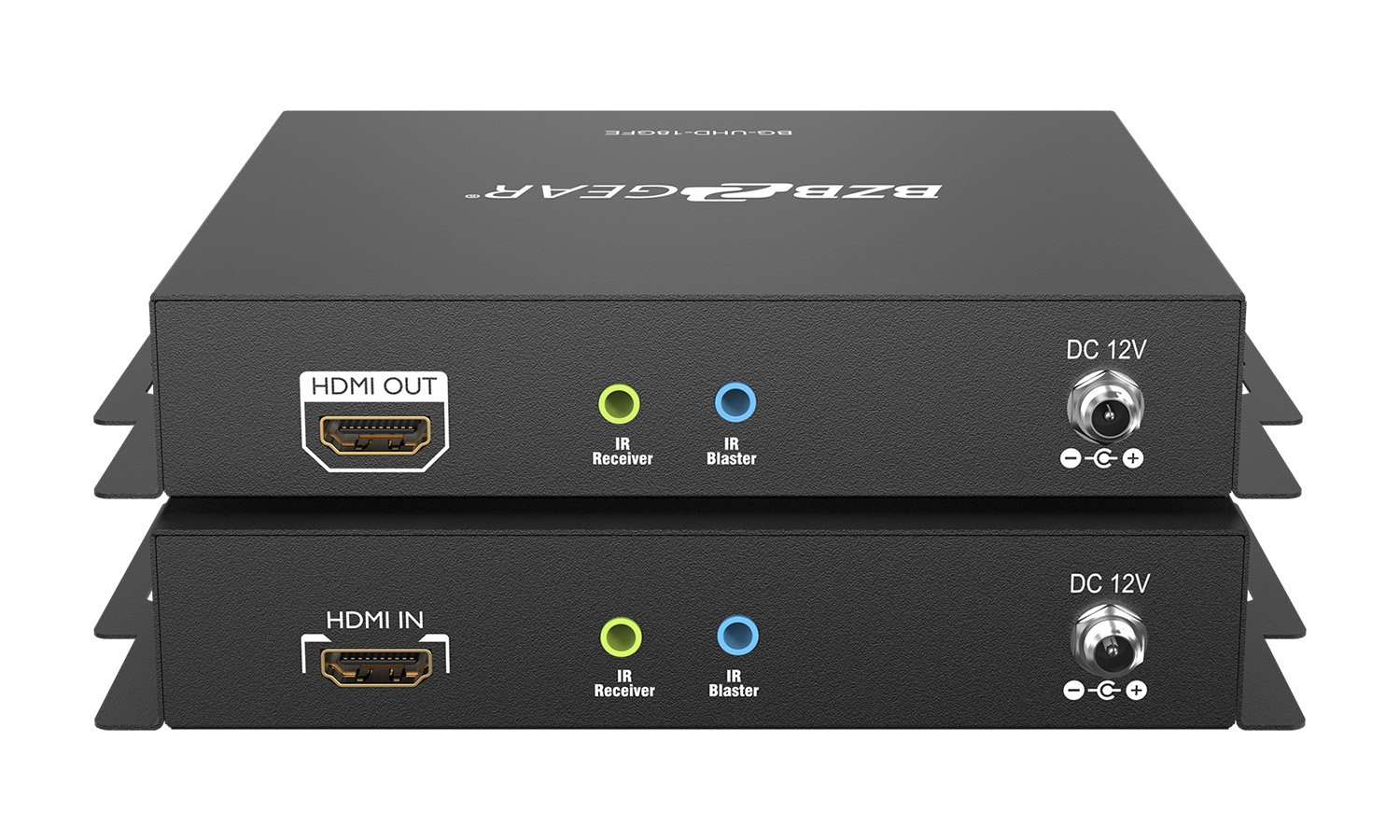

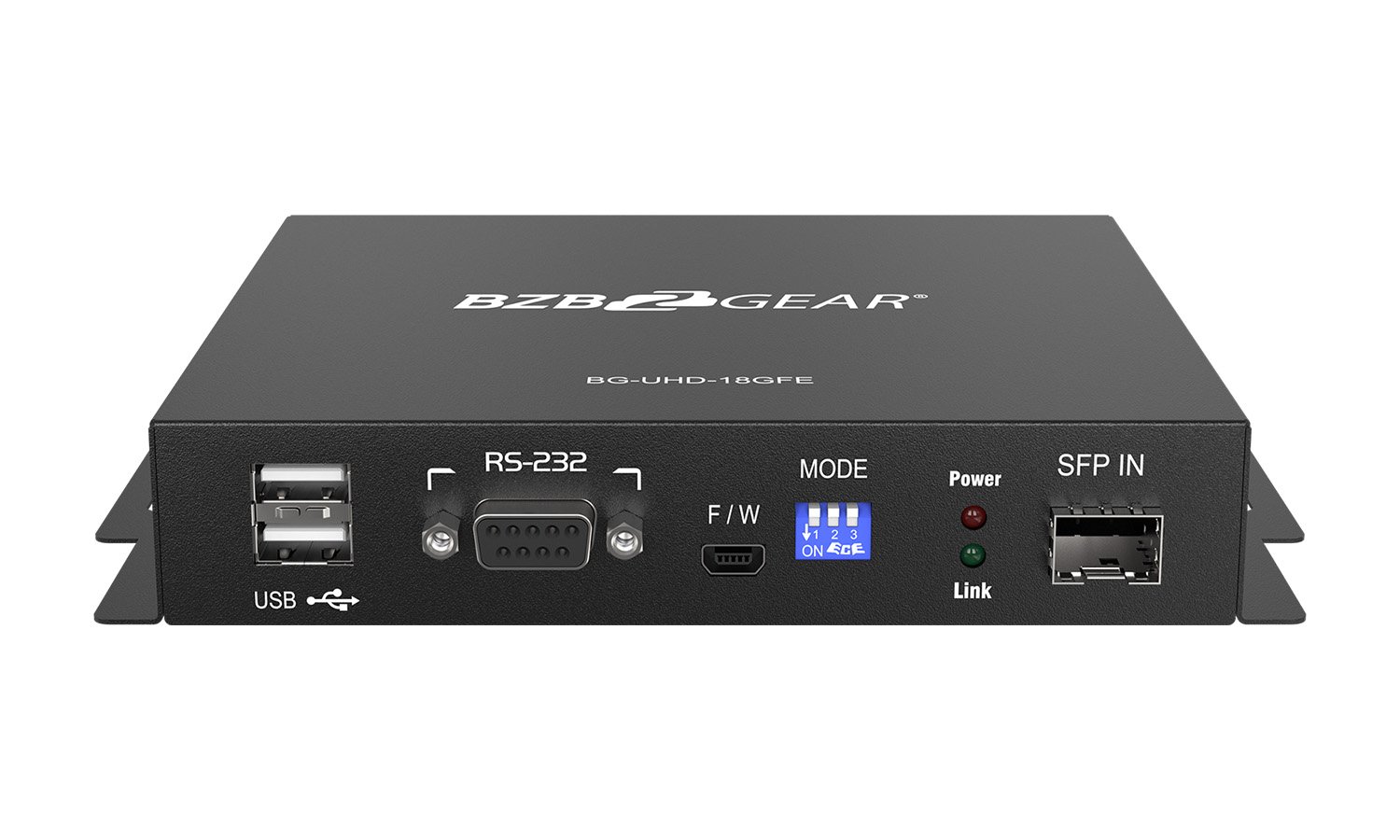

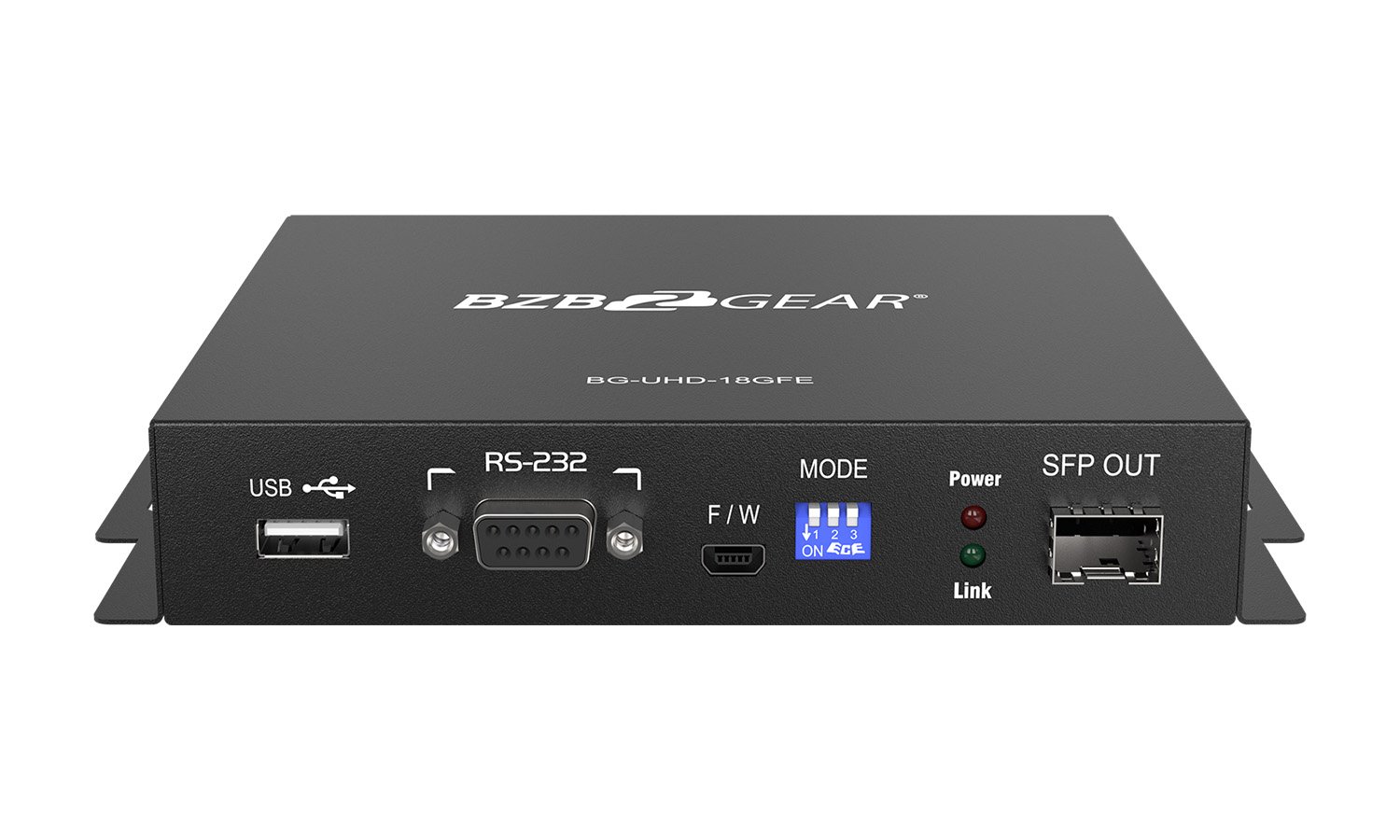

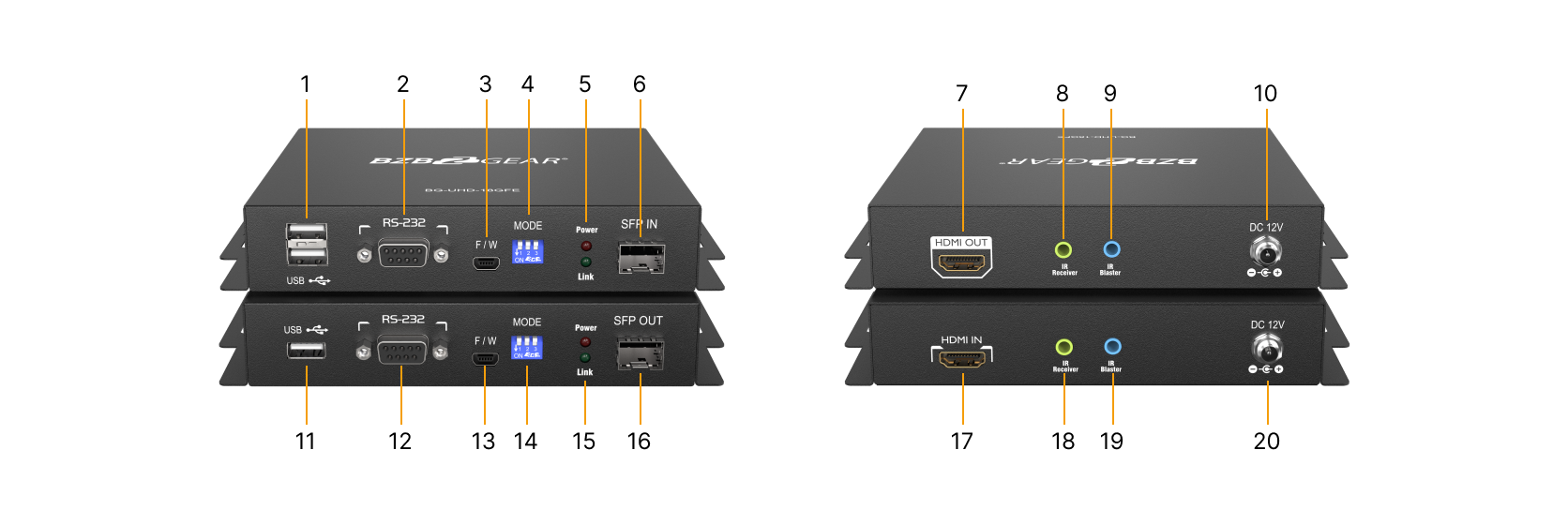

Interface


HDMI

Crystal clear image with resolutions up to up to [email protected]

USB

USB 2.0 Сonnectivity for 2 remote USB devices.

Power

Use supplied Power Adapter.

RS-232 Control

If you are looking for simple solution to control, the RS-232 is for you.


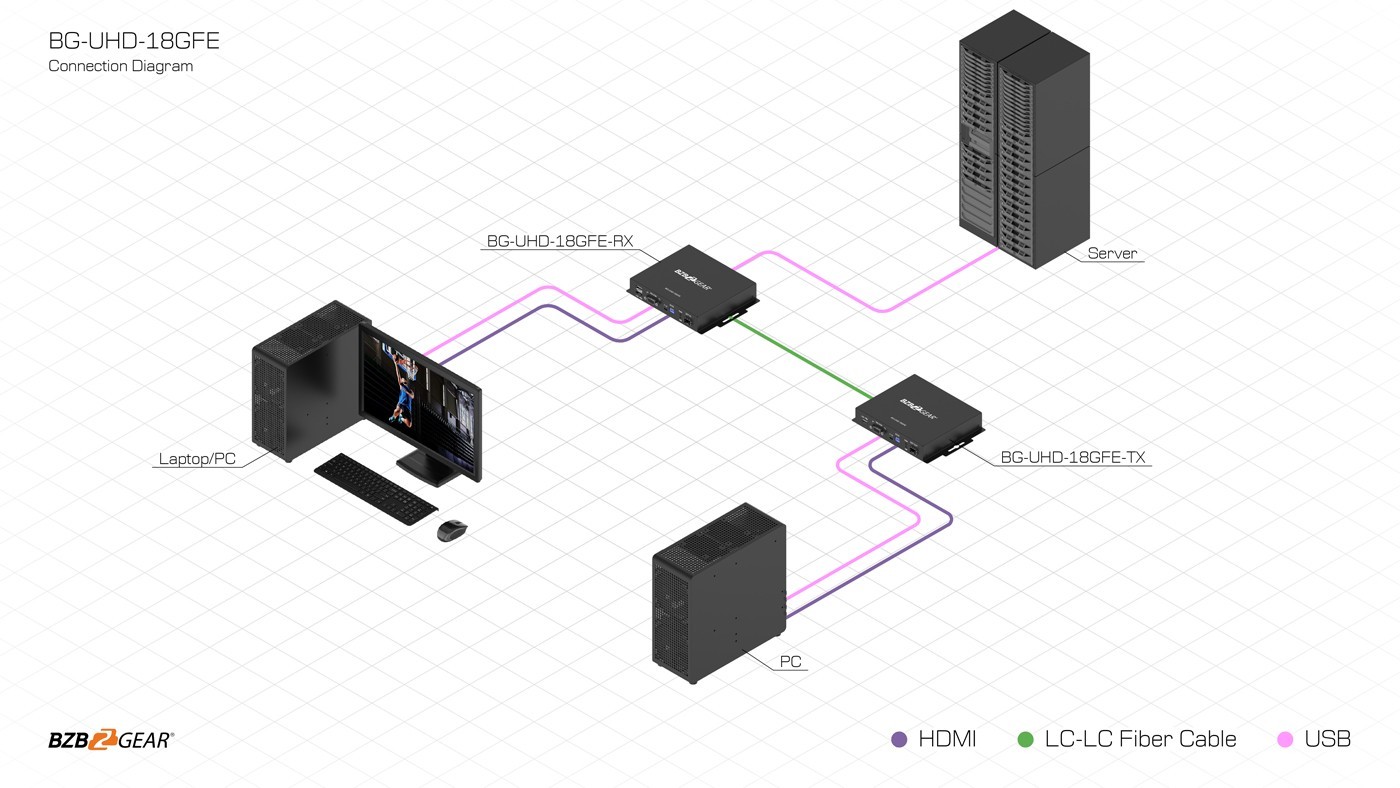

Applications



















Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.





Package Contents
① 1x BG-UHD-18GFE [TX & RX]
② 1x IR blaster
③ 1x IR receiver
④ 2x DC 12V
⑤ 1x User Manual
⑥ 2x Single Mode Module [optional]
