Overview
The BG-EXH-4KFH is a professional HDMI 2.0b over fiber extender designed to transmit uncompressed 4K@60Hz 4:4:4 video over distances of up to 10km (6.2 miles) using single-mode fiber. Supporting the full 18Gbps HDMI bandwidth, HDCP 2.2 compliance, and HDR pass-through, it delivers exceptional image quality and reliable long-distance signal transmission for broadcast, digital signage, enterprise, and mission-critical AV installations.
Built around high-performance 10G SFP+ fiber technology, the BG-EXH-4KFH offers immunity to electromagnetic interference while maintaining pristine video and audio quality across extended distances. Its compact metal enclosure, low-power design, and wide compatibility with professional AV equipment make it an ideal solution for applications where long-distance HDMI transmission is required.
Features in Depth
The BG-EXH-4KFH extends HDMI 2.0b signals over fiber while preserving the full 18Gbps bandwidth required for uncompressed 4K@60Hz 4:4:4 video. Utilizing single-mode fiber, the system supports transmission distances up to 10km (6.2 miles), making it ideal for large campuses, stadiums, control centers, and other installations where traditional copper cabling is impractical. For shorter deployments, the extender also supports OM4 multi-mode fiber with compatible SFP+ modules, providing transmission distances up to 300m (984ft). Compliance with HDCP 2.2 ensures compatibility with protected Ultra HD content from modern media players, PCs, and other HDMI sources.
Designed to preserve premium audiovisual quality, the BG-EXH-4KFH supports HDR10, HDR10+, Dolby Vision, and HLG, delivering enhanced contrast, brightness, and color accuracy on compatible displays. It also passes advanced multichannel audio formats including Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X, allowing immersive audio to accompany high-resolution video without compromise. Broad support for standard HDTV and VESA resolutions ensures compatibility with a wide variety of displays and source devices.
The extender utilizes a 10G SFP+ LC fiber interface, providing stable, scalable, and interference-free transmission in electrically noisy environments. Fiber-based communication eliminates EMI and RFI issues common with copper installations while maintaining reliable signal integrity over long distances. Combined with its durable metal construction, efficient power consumption, USB-C firmware upgrade capability, and dependable 24/7 operation, the BG-EXH-4KFH is an excellent solution for broadcast facilities, digital signage networks, command centers, educational campuses, healthcare environments, and enterprise AV systems.
Features
-
![Wide-Angle 1]()
Ultra-Long Distance ExtensionTransmits HDMI signals up to 10km (6.2 miles) over single-mode fiber or 300m (984ft) over OM4 multi-mode fiber with compatible SFP+ modules -
![bi_badge-4k]()
18Gbps PerformanceSupports HDMI 2.0b, HDCP 2.2, and resolutions up to 4K@60Hz 4:4:4 for uncompromised Ultra HD video quality -
![HDR Support]()
HDR & Premium Audio SupportPasses HDR10, HDR10+, Dolby Vision, HLG, Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio, DTS:X, and other advanced audio formats -
![mdi_signal-distance-variant]()
Professional 10G SFP+Uses an LC SFP+ connection for stable, high-bandwidth, long-distance signal transmission -
![8K Exclusive Features]()
Wide Resolution CompatibilitySupports common HDTV and VESA resolutions for seamless interoperability with a broad range of source and display devices -
![Future-Proof]()
Reliable PerformanceImmune to EMI/RFI interference with a durable metal enclosure designed for continuous professional operation
- Supports uncompressed HDMI 2.0b transmission with the full 18Gbps bandwidth
- HDCP 2.2 compliant for compatibility with protected 4K UHD content
- Supports resolutions up to 4096x2160 and 3840x2160 at 60Hz with 4:4:4 chroma sampling
- Compatible with HDR10, HDR10+, Dolby Vision, and HLG high dynamic range formats
- Passes advanced multichannel audio including LPCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X
- USB-C service port supports convenient firmware upgrades
- Compact metal housing provides durability for commercial AV installations
- Low-power operation minimizes heat generation for reliable 24/7 performance
- Fiber transmission eliminates electromagnetic and radio frequency interference
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Supported Resolutions | Up to 4096x2160p60, 3840x2160p60, 3840x2160p50, 3840x2160p30, 1920x1080p60, and other VESA resolutions |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDR Support | HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio, DTS:X |
| Fiber Interface | 10G SFP+ module (LC connector) |
| Transmission Distance | Up to 10km (single-mode fiber), up to 300m (OM4 multi-mode fiber) |
| ESD Protection | IEC 61000-4-2: ±8kV (air), ±4kV (contact) |
| Connection | |
| Transmitter Input | 1x HDMI Type A (19-pin female) |
| Transmitter Output | 1x SFP+ OUT (LC fiber) |
| Transmitter Service | 1x USB-C (firmware update port) |
| Receiver Input | 1x SFP+ IN (LC fiber) |
| Receiver Output | 1x HDMI Type A (19-pin female) |
| Receiver Service | 1x USB-C (firmware update port) |
| Mechanical | |
| Housing | Metal enclosure |
| Color | Black |
| Dimensions (W x D x H) | 3.2in x 1.9in x 0.98in [81mm x 49mm x 25mm] |
| Weight | Transmitter: 0.30 lb [138g] / Receiver: 0.30 lb [138g] |
| Power Supply | DC 5V/1A (AC 100–240V, 50/60Hz) |
| Power Consumption | TX: 3.05W (Max) / RX: 2.25W (Max) |
| Operating Temperature | 32°F to 104°F / 0°C to 40°C |
| Storage Temperature | -4°F to 140°F / -20°C to 60°C |
| Operating Humidity | 20%–80% RH (non-condensing) |
| Storage Humidity | 10%–90% RH (non-condensing) |
Resources
PACKAGE CONTENTS
- 1x BG-EXH-4KFH HDMI over Fiber Transmitter
- 1x BG-EXH-4KFH HDMI over Fiber Receiver
- 2x 5V/1A Power Adapters (US/EU standards)
- 1x User Manual

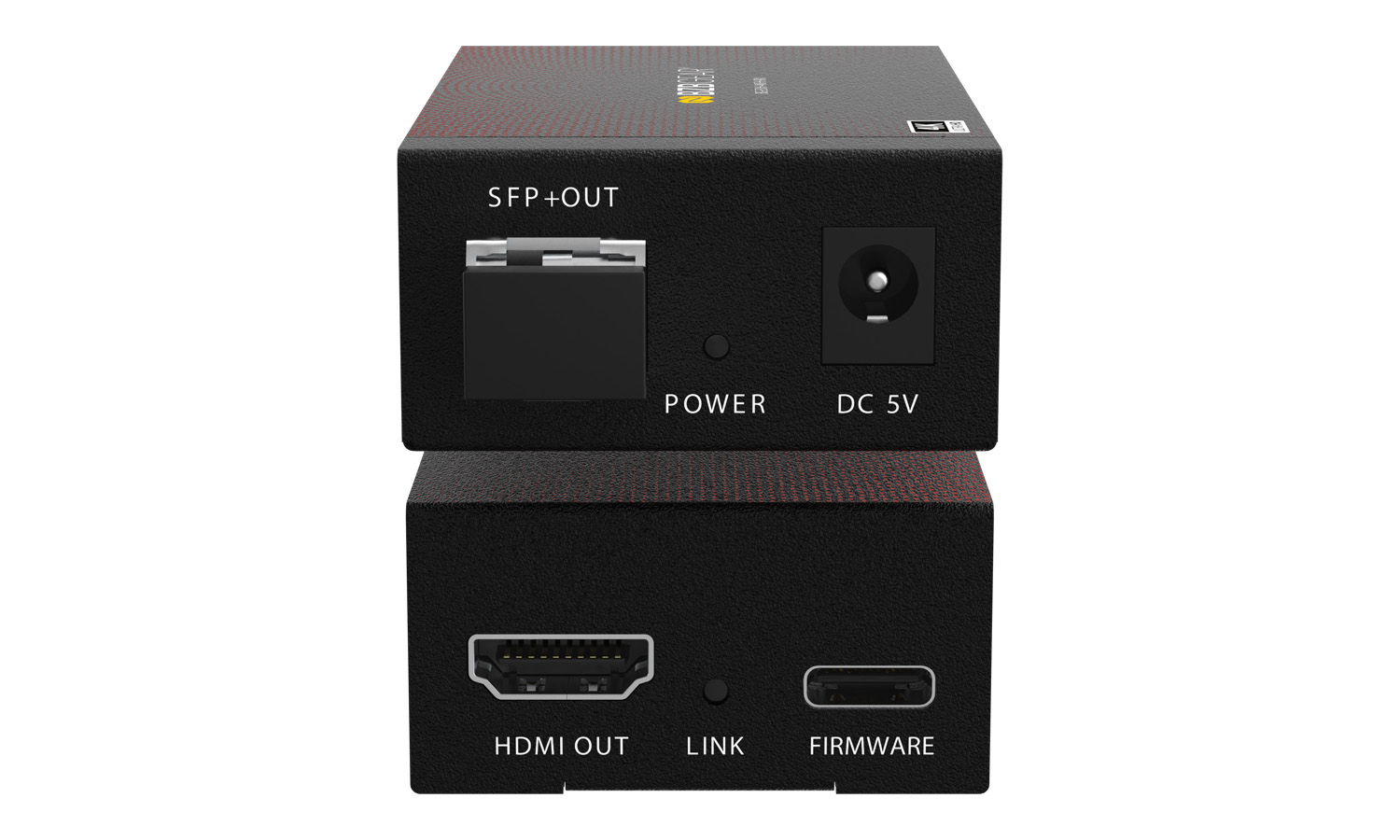

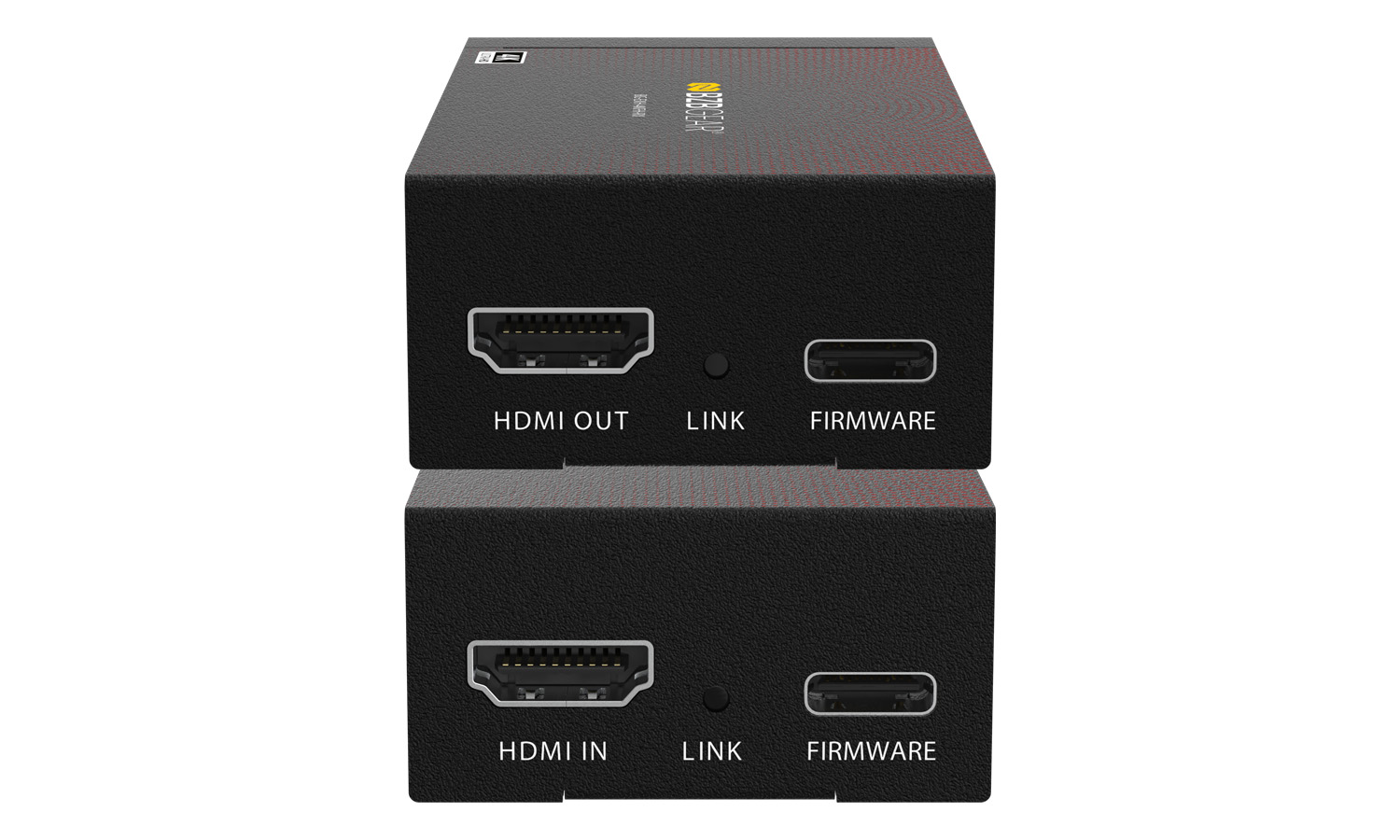

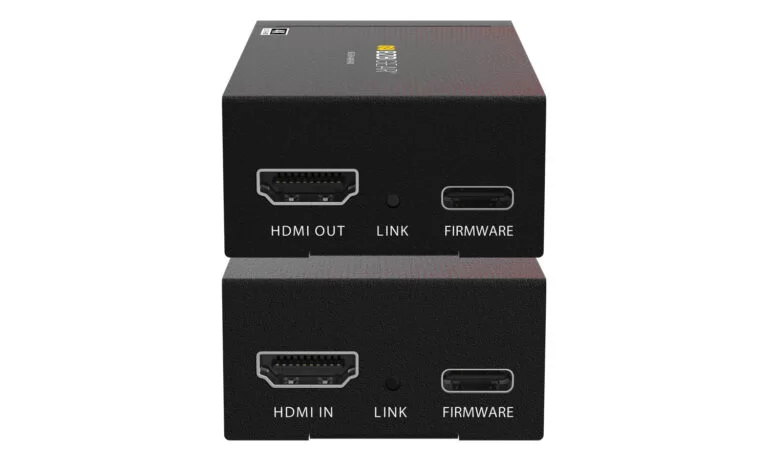

Interfaces

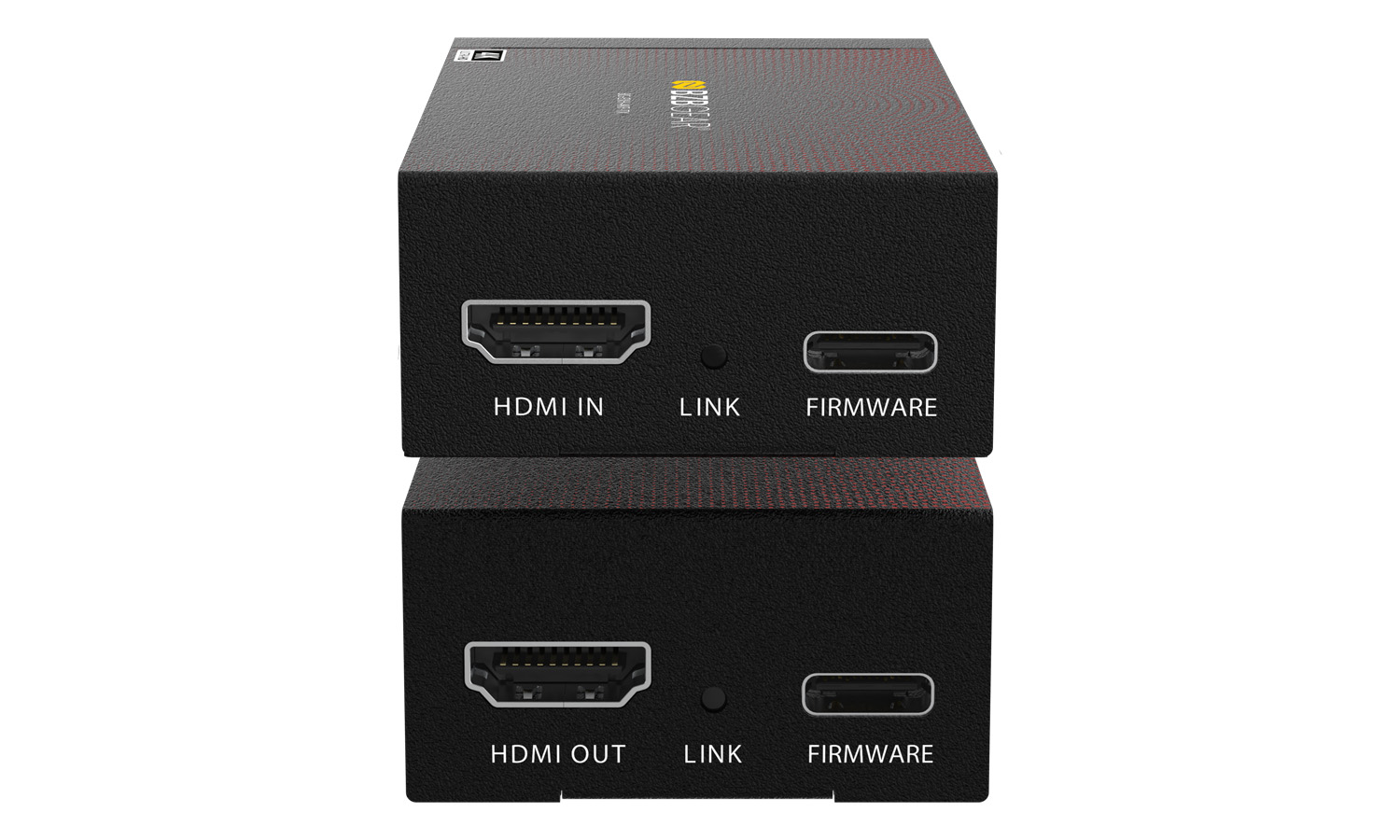

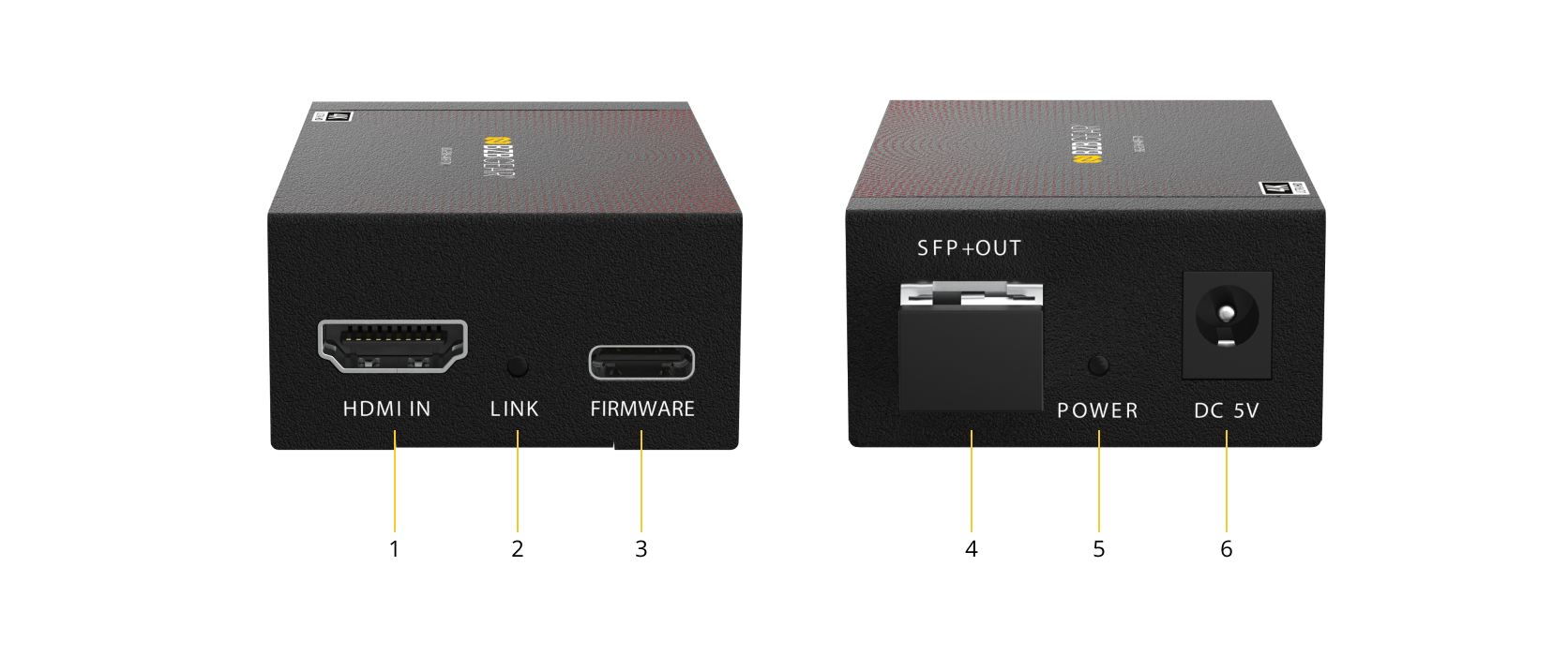

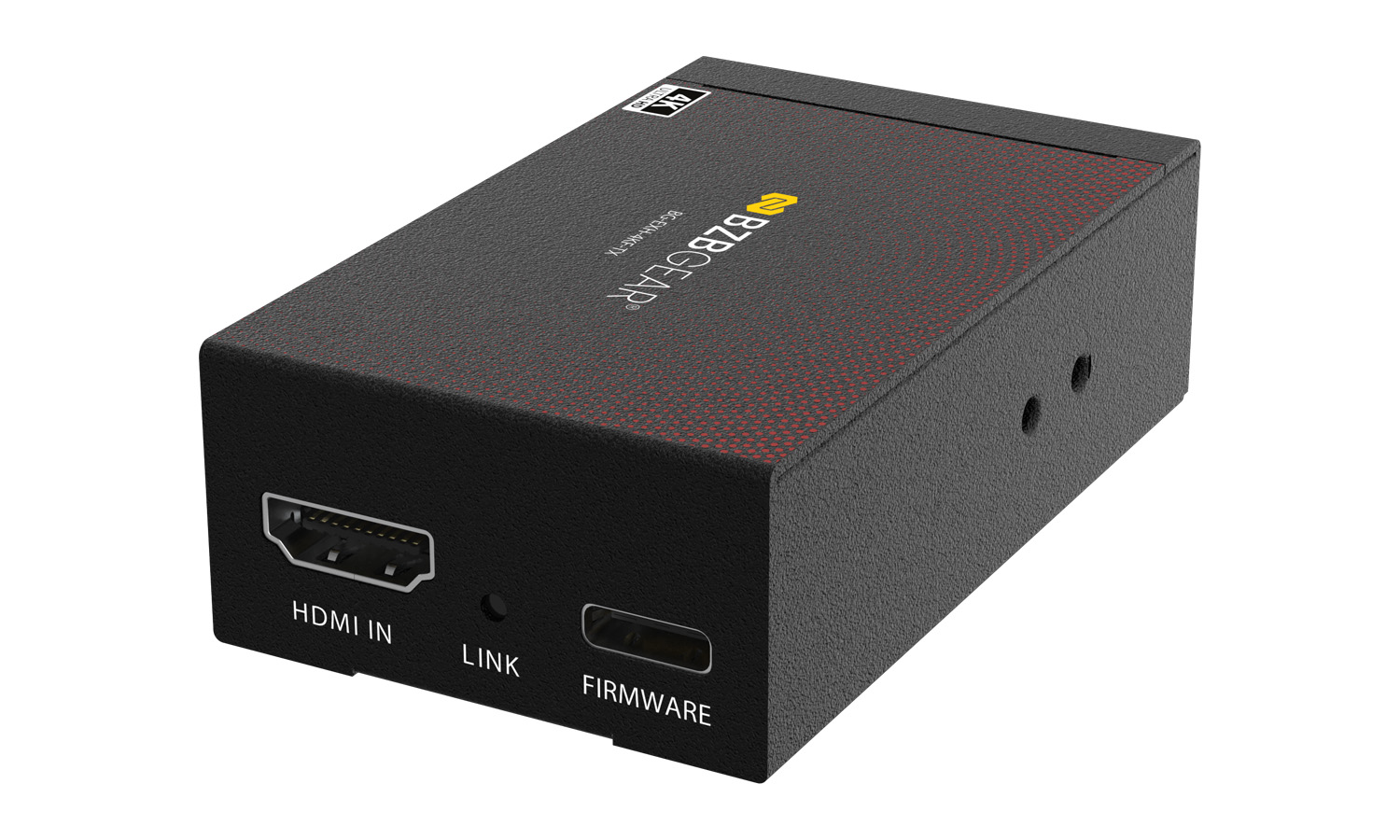

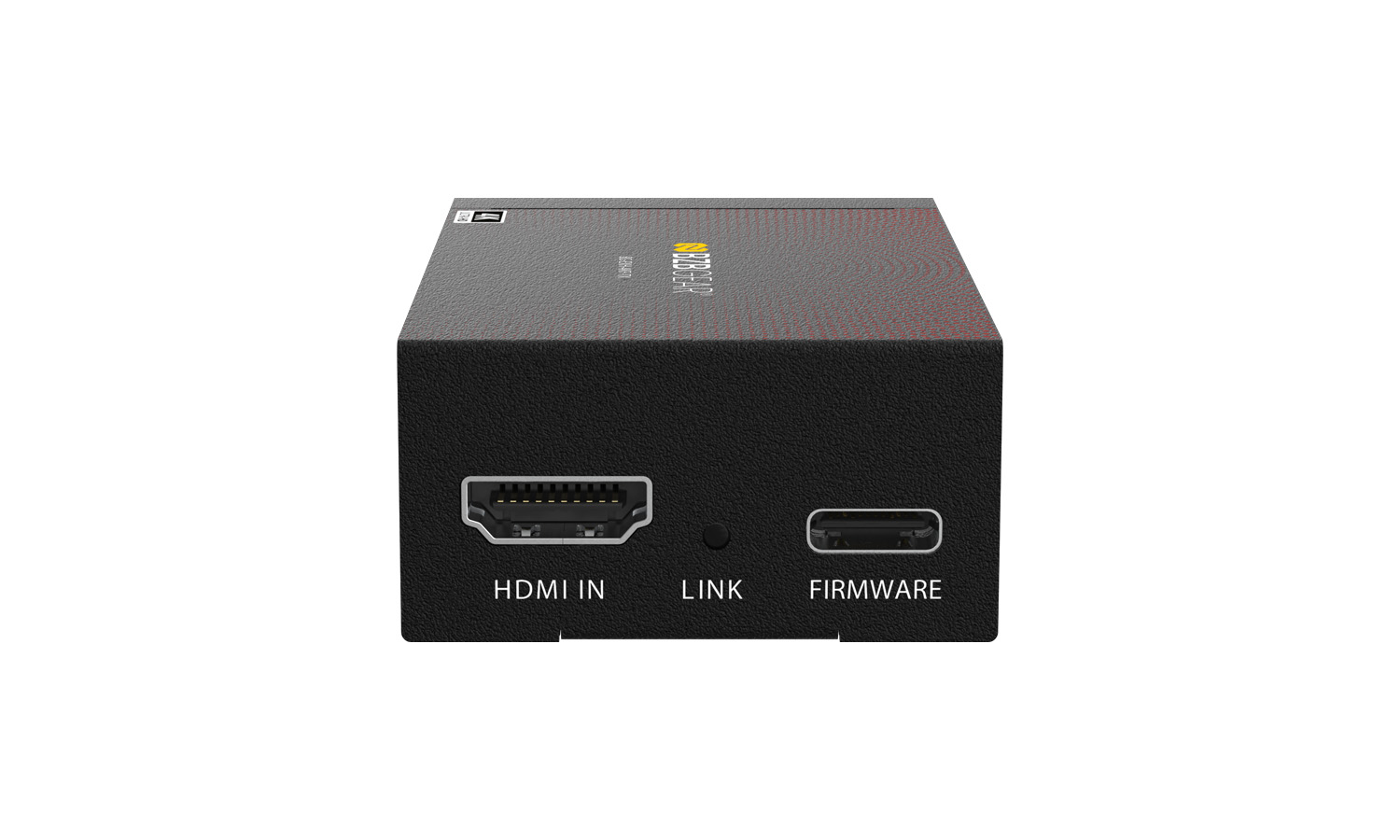

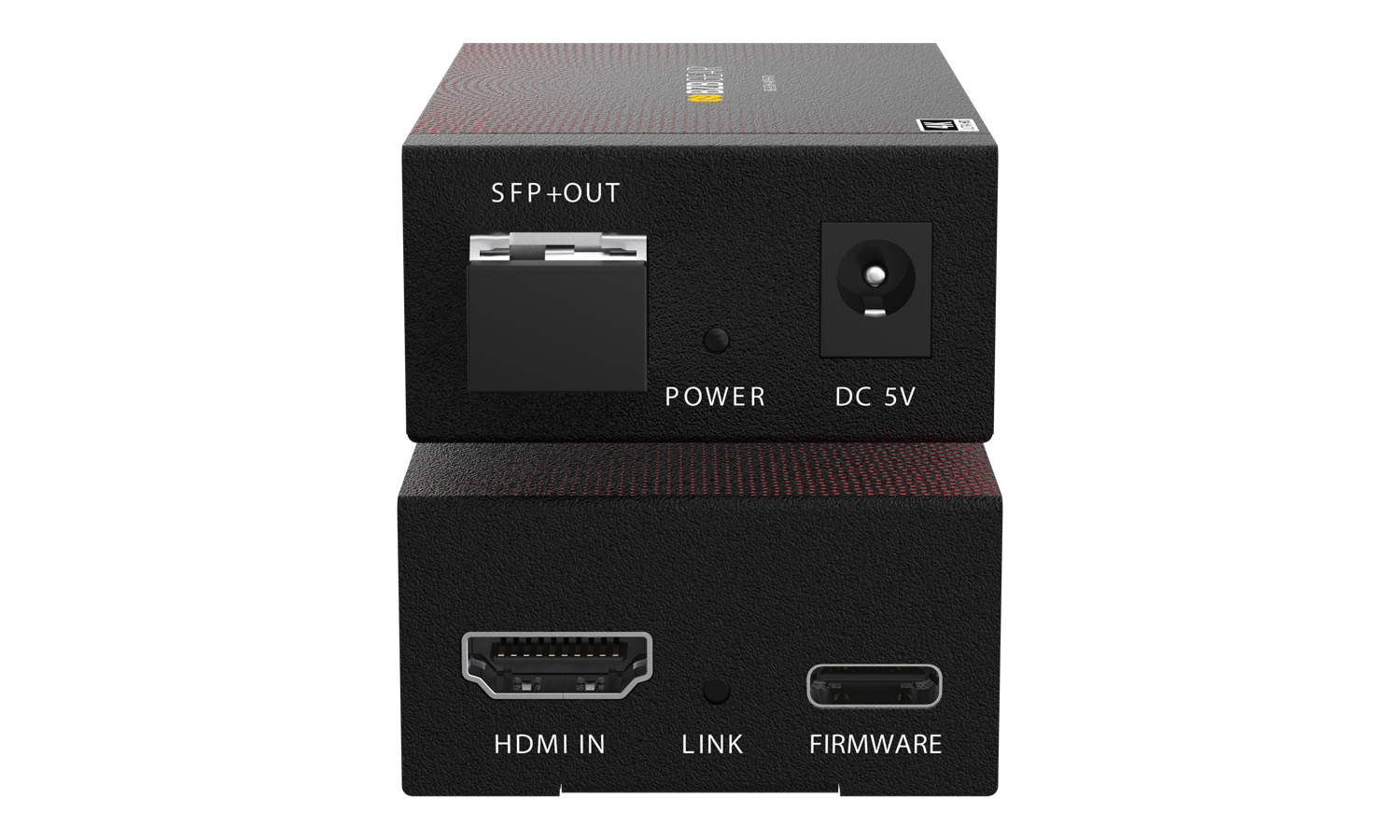

Transmitter

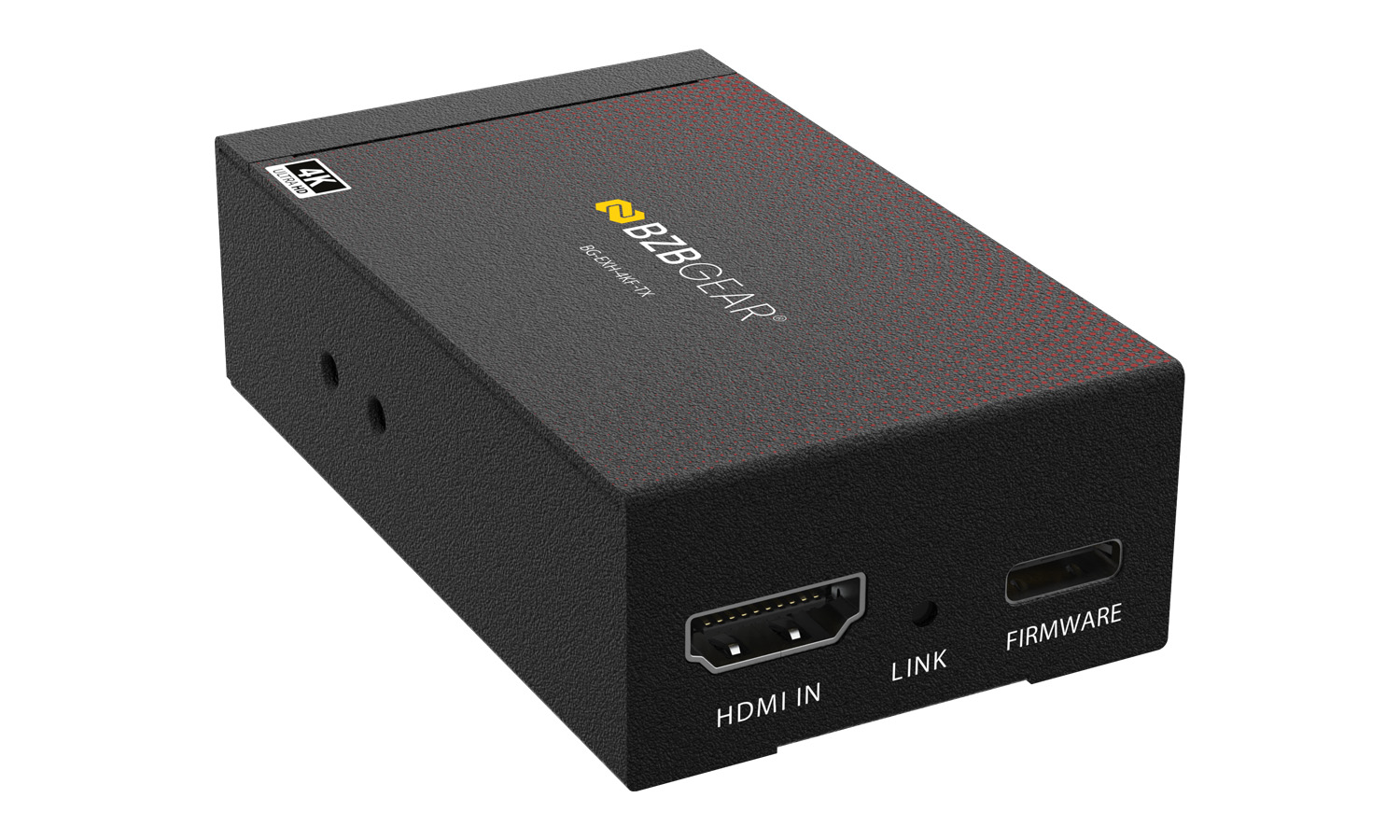

- IN: HDMI input port. Connects to an HDMI source device such as a Blu-ray player, media player, or PC.
- LINK Indicator: Green LED indicator. Lights solid when a stable fiber link is established between transmitter and receiver.
- SERVICE Port: USB-C port used for firmware updates and service maintenance.

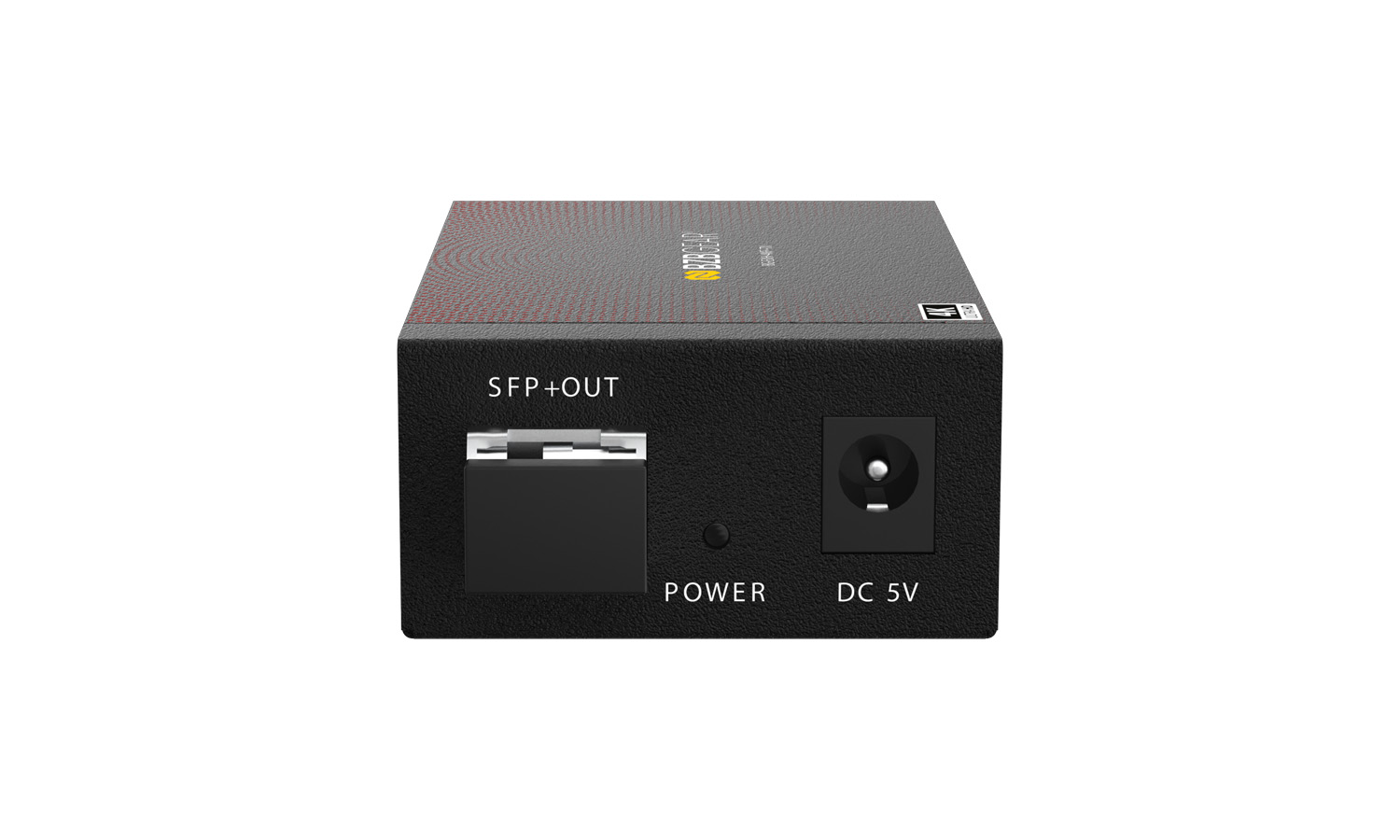

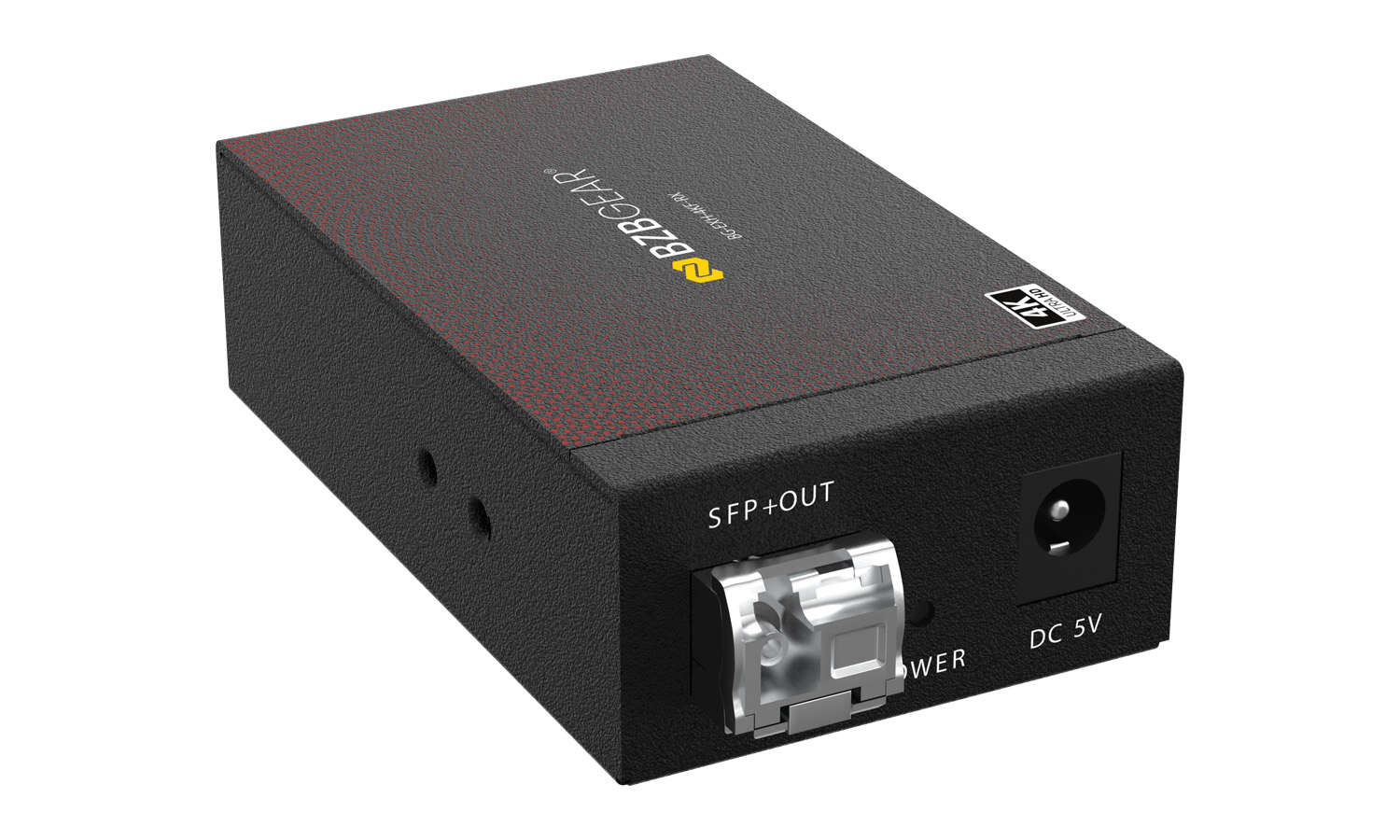

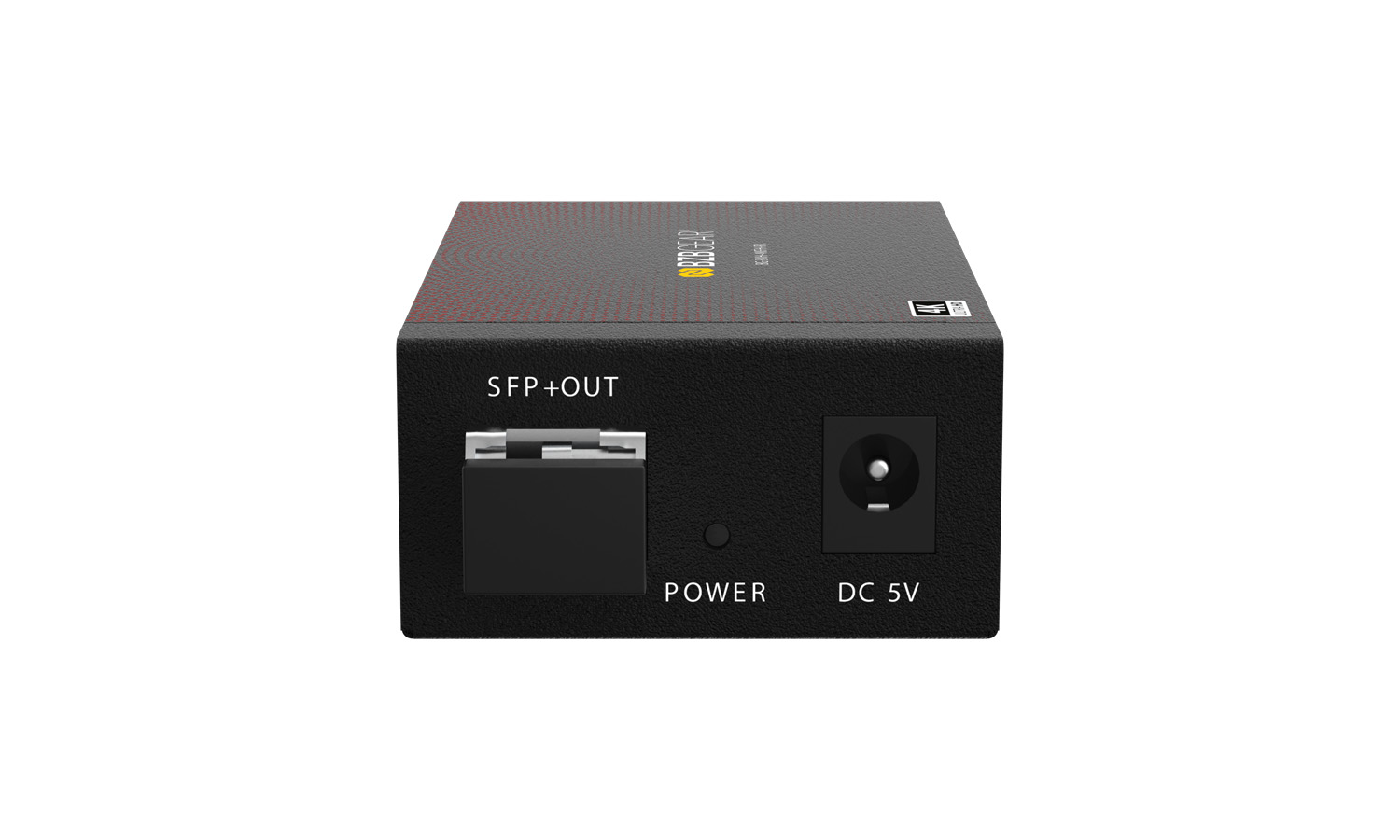

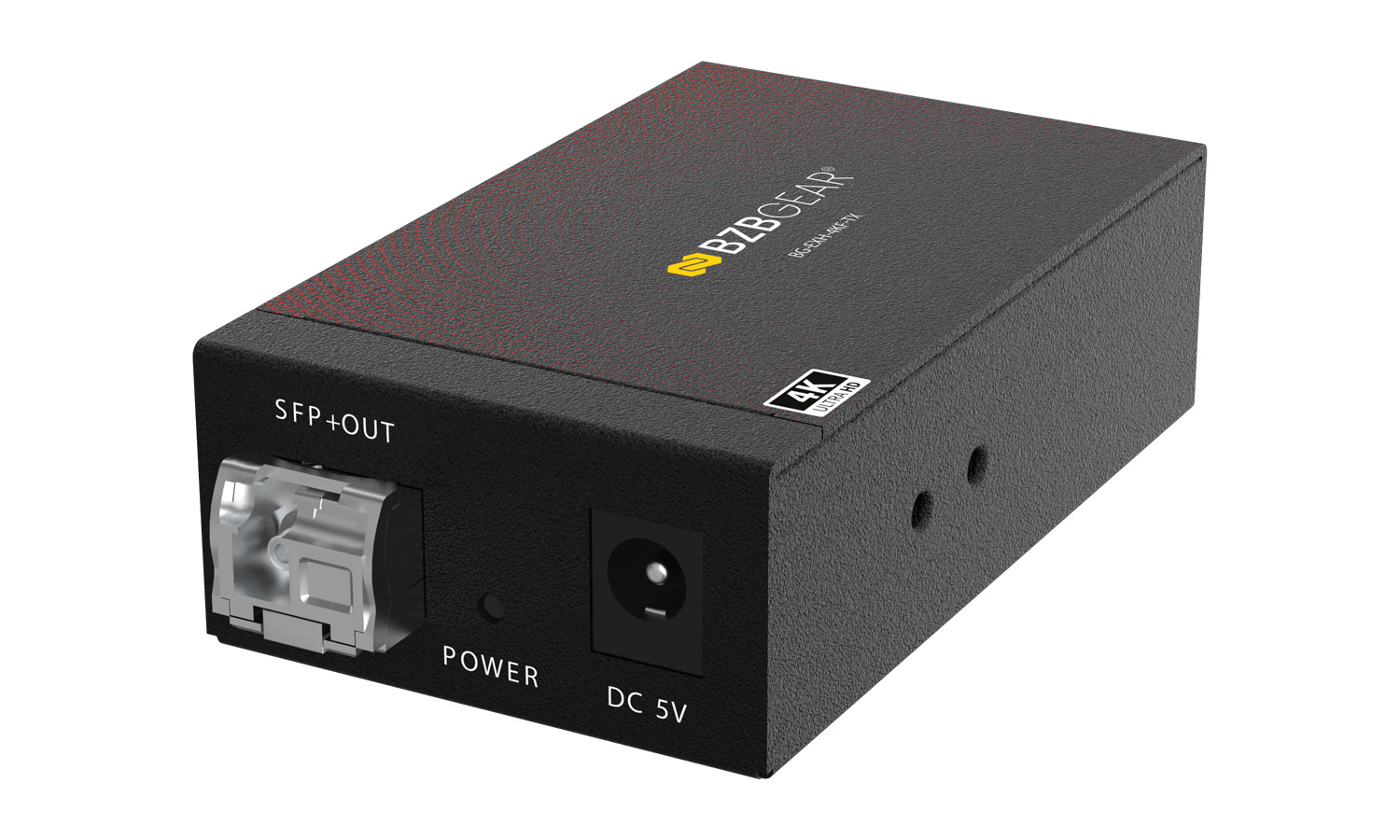

- SFP+ OUT: LC fiber output port. Connects to the receiver’s SFP+ IN port via single-mode or multi-mode fiber cable.
- POWER Indicator: Green LED indicator. Illuminates when the transmitter is powered on.
- DC 5V: 5V DC power input port (5V/1A power adapter required).

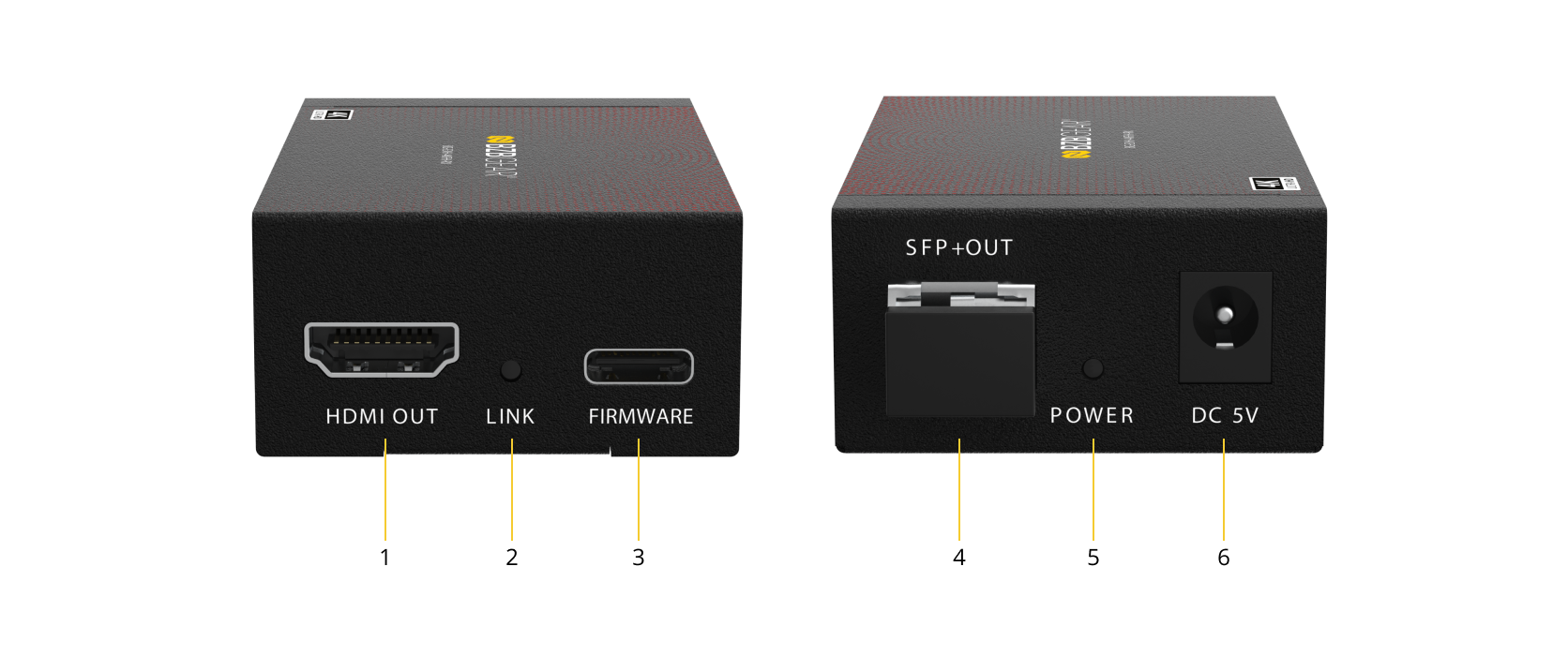

Receiver

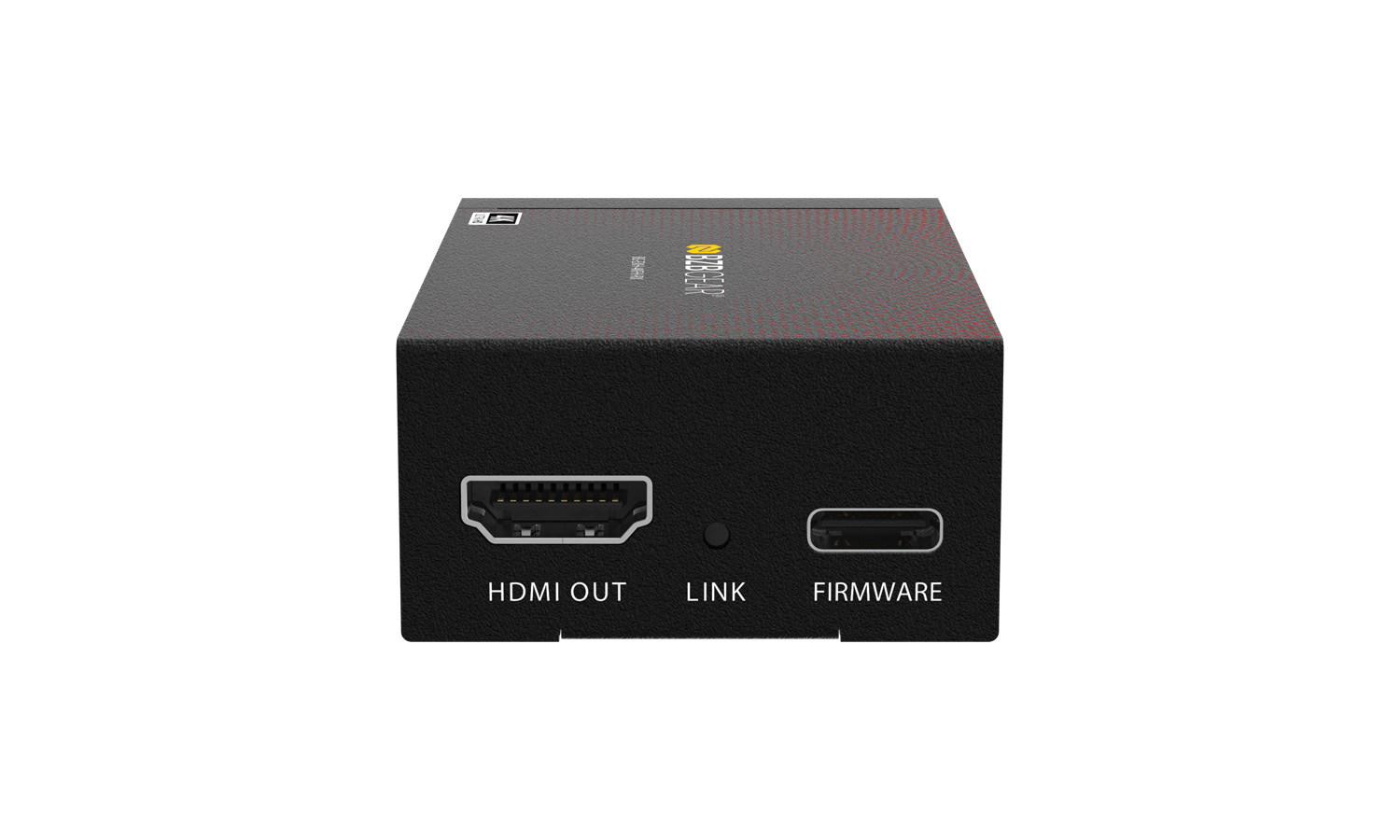

- OUT: HDMI output port. Connects to a display device such as a TV, monitor, or projector.
- LINK Indicator: Green LED indicator. Lights solid when a stable fiber link is established between transmitter and receiver.
- SERVICE Port: USB-C port used for firmware updates and service maintenance.
- SFP+ IN: LC fiber input port. Connects to the transmitter’s SFP+ OUT port via fiber cable.
- POWER Indicator: Green LED indicator. Illuminates when the receiver is powered on.
- DC 5V: 5V DC power input port (5V/1A power adapter required).
