Tech Specifications
Camera Parameter | |
Sensor | 1/2.8 inch sensor |
Effective Pixels | 2 Megapixel, 16:9 |
Video Format | HDMI video format 1080I@60fps, 1080I@50fps, 1080P@30fps, 1080P@25fps, 720P@60fps, 720P@50fps USB3.0 interface video format Horizontal screen: 1920×1080@30fps, 1280×720@30fps, 1024×576@30fps, 960×540@30fps, 800×448@30fps, 640×360@30fps, 640×480@30fps, 320×176P@30fps Vertical screen: 1080×1920@30fps, 720×1280@30fps, 576×1024@30fps, 540×960@30fps, 448×800@30fps, 480×720@30fps, 480×640@30fps |
View Angle | 8.8°~68° |
Focus Length | f=4.34mm~41.66mm |
AV | F1.85 ~ F2.63 |
Optical Zoom | 10X |
Minimum Illumination |
0.1Lux (F1.8, AGC ON) |
DNR | 2D&3D DNR |
Super Auto noise reduction |
On/Off |
White Balance | Auto / Manual/ One Push /3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
Focus | Auto/Manual/One Push Focus |
Exposure | Auto/Manual |
BLC | On/Off |
SNR | >50dB |
Vertical Screen Switch |
On/Off |
Focus Assist | On/Off |
Minimum Object Distance |
10cm(W)~100cm(N) |
Input/Output Interface | |
Video Output | USB Interface: USB 3.0 HDMI Interface: HDMI 1.4 |
Video Compression Format |
YUV, NV12, MJPG, H.264 |
Audio Input | Built-in 2 MIC pickups |
Control Interface | USB Interface |
Other Parameters | |
Input Voltage/Current | Voltage: Power Adapter 12 USB 5V Current: Power Adapter 0.425 USB 1A(Max.) |
Power Consumption | 5W(Max.) |
Stored Temperature | 14°F~140°F / -10°C~+60°C |
Stored Humidity | 20%~90% |
Working Temperature | 14°F~122°F / -10°C~+50°C |
Working Humidity | 20%~80% |
Dimension (WxHxD) | 3.1 x 5.4 x 3.1in [78 x 138 x 78mm] |
Weight | 1.3 lbs [0.6Kg] |
Working Environment | Indoor Only |
Resources
PACKAGE CONTENTS

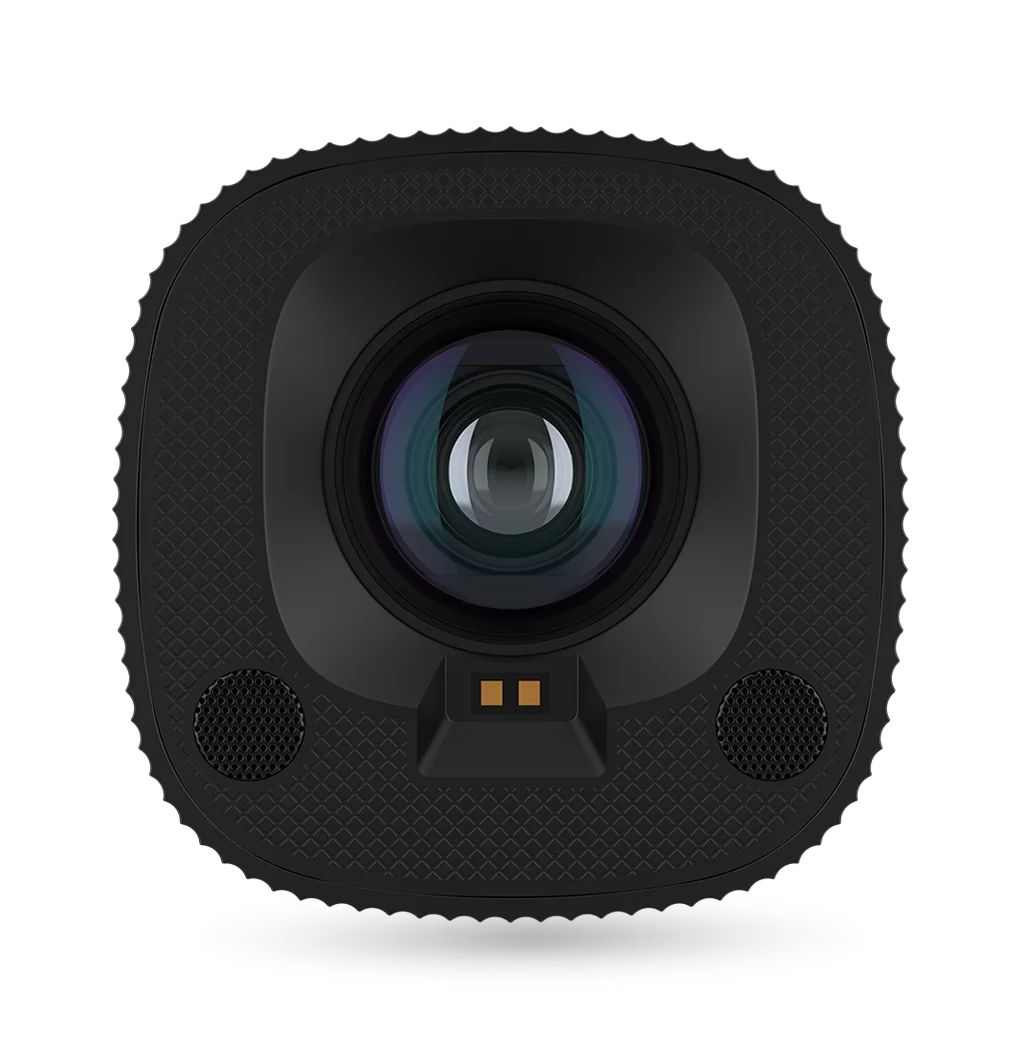

- 1x BG-PACKSHOT-C10X Camera
- 1x Wireless Remote Control
- 1x USB3.0 Cable
- 1x User Manua

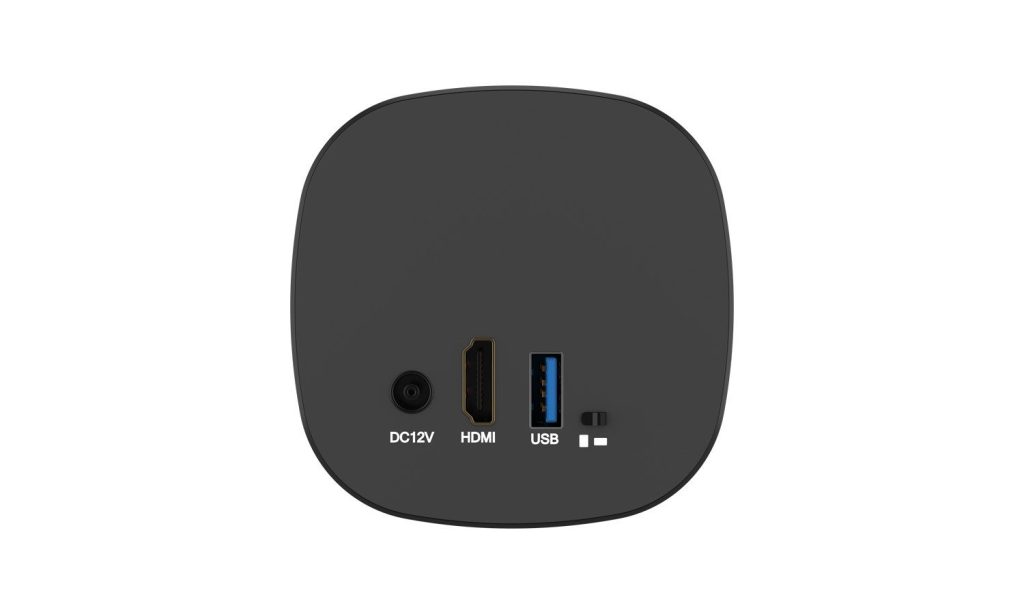

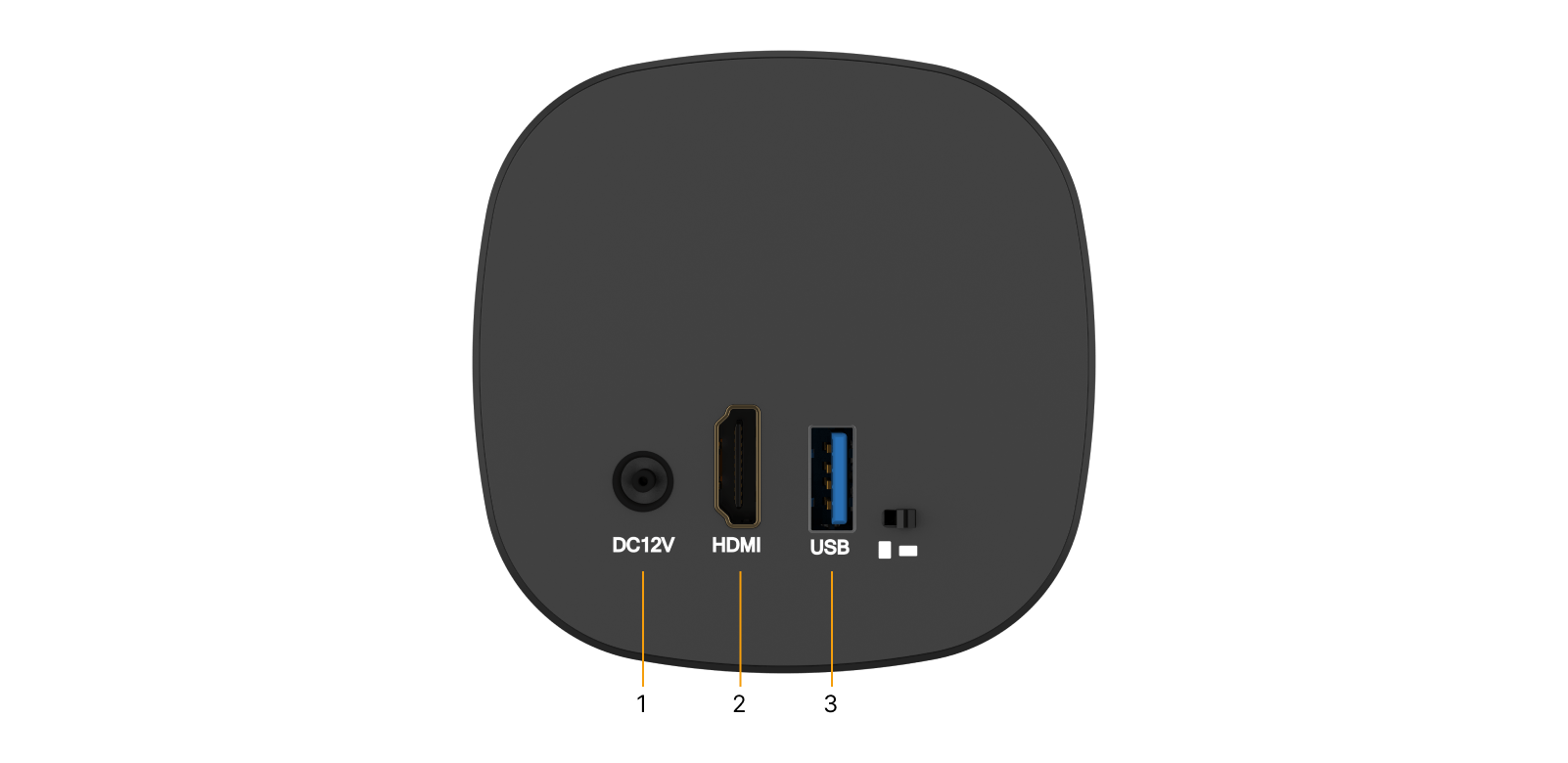

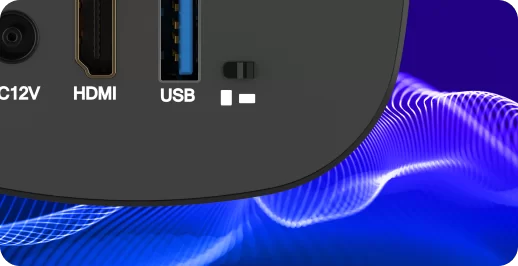

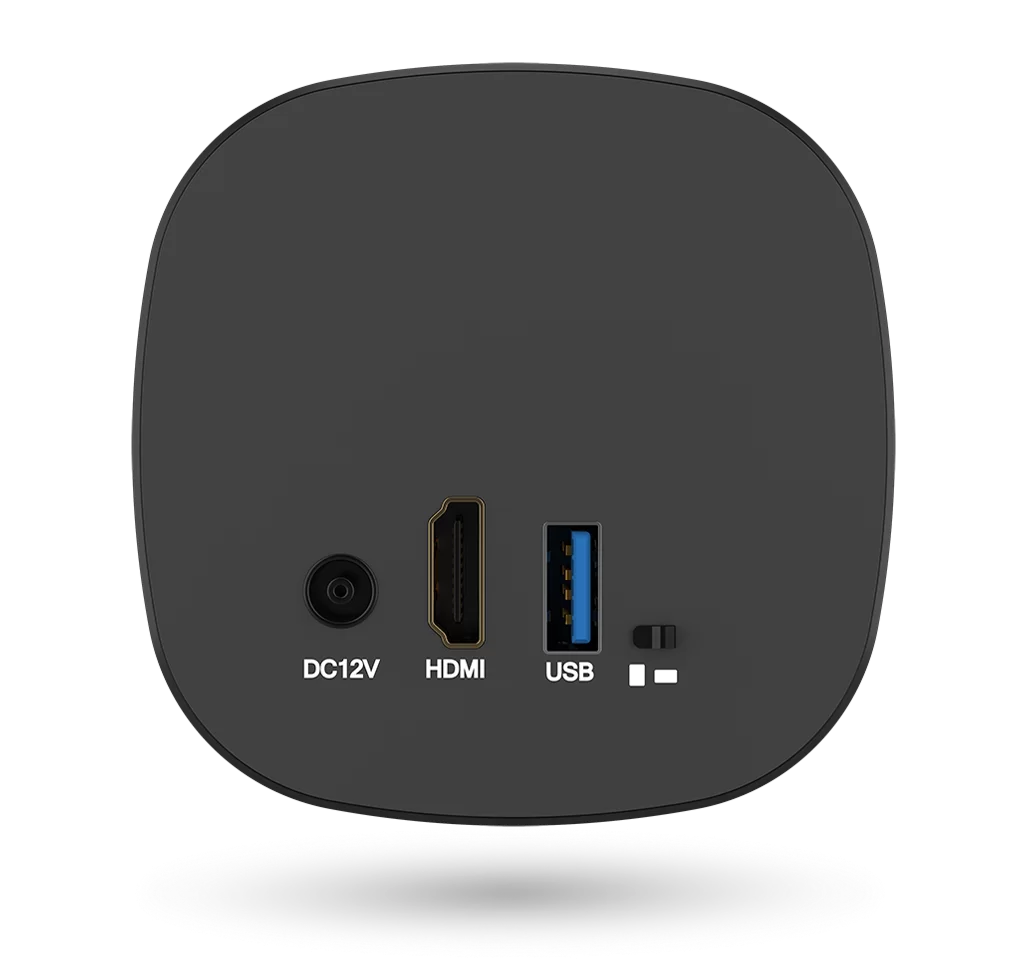

Interfaces
-
Power: Connect supplied 12V power adapter.
-
HDMI: Connect to an HDMI device such as a video production switcher or a video display up to 1080p@30Hz.
-
USB: Connect USB3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080p@30Hz.
