Overview

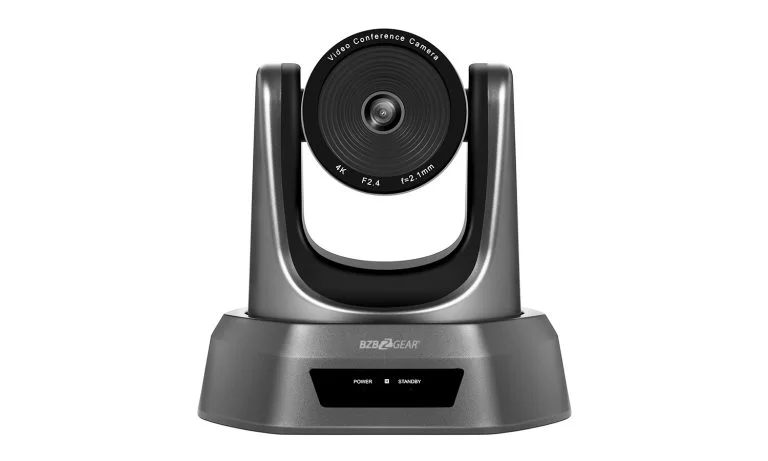

This super wide-angle Pan, Tilt, and fixed zoom camera has a field of view of 138° with no video distortion. With an eight-megapixel full glass fixed lens, the BG-CAM-USB4K can achieve resolutions up to 4K@30Hz. With superior imaging and simple controls, the BG-CAM-USB4K offers a great deal of performance. With its outstanding viewing angle this camera is able to capture an entire meeting space in crystal clear 4K detail. Flexible control options make this device a great choice for any installation.
Connectivity & Performance
The BG-CAM-USB4K has USB 3.0 plug and play connectivity, making it a great choice for use with video conferencing apps like Skype, Zoom, Google Meet, and more. To achieve its high-quality resolution of 4K@30Hz at fixed focus, this camera utilizes a 1/2.1” HD Color 8.29MP CMOS sensor. This camera utilizes a step drive motor mechanism and precision motor drive controller to ensure that PTZ functions work smoothly and quietly to avoid being disruptive. H.264, H.265, and MJPEG video compression options are also supported by this camera.
Control
There are several control options available for the BG-CAM-USB4K, including the IR remote, RS-232, and RS-485 (VISCA, Pelco-D/P) serial control. There are 255 preset positions available with the camera, nine of which are available to operators when using the IR remote control. Plug and play connectivity makes this camera easy to use with a laptop, desktop, or other device on Windows, MacOS and Linux for use with video conferencing software.
The BG-CAM-USB4K can be mounted to a ceiling, tripod, or on a flat surface, providing multiple installation options.
Features
-
![fluent_zoom-fit-24-filled]()
ControlIR and cascadable RS232/485 (VICSA/Pelco) + 255 preset positions -
![ph_cube-focus-fill]()
Superb Auto FocusLatest auto focusing algorithms resulting in quick, accurate, and stable focus -
![bi_badge-4k]()
Crystal Clear Image4K30Hz max resolution -
![mounts-icon]()
VersatileCan be mounted to wall, ceiling, or tripod -
![bi_usb-symbol]()
USB OutputFast and Simple setup -
![fluent_sound-wave-circle-20-regular]()
Extremely Quiet PTStep drive motor mechanism and precision motor drive controller ensure PT works smoothly with no noise
- Fixed focus pan & tilt camera
- 2D / 3D noise reduction switch
- Plug & play USB connectivity
- Full glass lens
- 9 presets via IR remote (255 via RS232)
- Smooth and silent PT movement
- 138° wide FOV with no video distortion
- 1/2.1" high quality, 8.29MP CMOS
- Supports ceiling, wall, and tripod mounts
Compatible with:
Tech Specifications
| Image Sensor | 1/2.1" HD Color CMOS |
| Effective pixel | 8.29MP (16:9) |
| Horizontal Resolution | 4K (3840x2160), 2K (2560x1080), 1080p (1920x1080) |
| Signal standard | NTSC/PAL |
| Zoom | Fixed focus |
| Minimum luminance | 0.5Lux at F2.0 |
| Focal length | F=2.1mm |
| Horizontal Angle | 138° |
| Gain control | Auto |
| Focus | Auto |
| White balance | Auto |
| SNR ratio | ≥50dB |
| Shutter speed | 8 to 1/10000s (auto) |
| Preset position | IR remote control supports 9 presets, PELCO Protocol supports 256 presets |
| Pan/Tilt movement range | Pan: ±175° (max speed 100° /S), Tilt: -35° ~﹢55° (max speed 80° /S) |
| Control terminal | USB, RS-232, RS485 |
| Control Protocol | VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
| Video output | USB 3.0 |
| Video Compression Format | YUV, MJPG, H.264 |
| Noise Reduction | 2D/3D |
| Work temperature | 14°F ~ 122°F / -10°C ~ 50°C |
| Storage temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Baud rate | 38400/9600bps |
| Decoder | Built-in |
| Address set | 1~256 |
| Installation | Support desktop, Tripod, Wall mount and Ceiling mount |
| Power supply | DC12V/2A |
| Power consumption | 12W |
| Net weight/Gross weight | 3.3lbs / 6.3lbs [1.5kg / 2.85kg] |
| Dimension (LxWxH) | 10.2 x 6.9 x 7.1in / 12 x 10 x 8.6in 260 x 175 x 180mm / 296 x 255 x 218mm (before / after packing) |
| Working Environment | Indoor Only |
Resources
PACKAGE CONTENTS
- 1x BG-CAM-USB4K Camera
- 1x DC 12V Power Adaptor
- 1x IR Remote Control
- 1x USB 3.0 Cable
- 1x User Manual
Interfaces
- USB: Connect USB 3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 4K@30Hz.
- RS-232, RS-485: Connect RS-232 or RS-485 to control the camera with a joystick controller or control software.
- Power: Connect supplied 12V power adapter.
