12X 4K UHD HDMI 2.0/USB 3.0/POE/NDI|HX Live Streaming PTZ Camera With Sony CMOS

MSRP: $2,399.00

MSRP $2399

Tag:

5
Overview

Streaming has never been clearer or more flexible thanks to the BG-4KND-12XUHP camera. With Network Device Interface (NDI) technology and 4K 60Hz resolution at your disposal for an amazing price, this camera is a great option for sharing every moment and detail of the action with your audience.

The amazing quality of this camera comes from its Sony CMOS sensor and NDI|HX. The camera is also auto discoverable and can output via USB 3.0, HDMI, and NDI|HX simultaneously for maximum flexibility with other equipment and accessories. With enhanced 12x optical zoom, no quality is lost even at full zoom. With all these advanced features put together, this is one of the best 4K PTZ cameras on the market for this price point.

Doctors, clergy, venues, and performing artists trust the BG-4KND-12XUHP camera for its incredible hardware features as well as exceptional technical support from BZBGEAR. This camera is a great option for studio recordings, broadcasting houses of worship, sporting events, concerts, business meetings, lectures, or other large-scale broadcasts.



What is NDI?

Network Device Interface (NDI) is a high performance AV over IP standard that allows anyone to use real time, ultra low latency video on existing IP video networks. The NDI open protocol enables professionals to share video through a local area network (LAN) with video-compatible devices. With a single ethernet cable connection, professionals can merge all stages of production from start to finish. That way, all production tasks and processes will be united, so accomplishing a creative vision will be simple. With the NDI 5.5 tool-kit, users will also be able to connect any audio device as an NDI source with NDI’s Audio Direct tool. This adds audio over IP to NDI’s revolution.

What is NDI|HX2?

NDI|HX2 is an updated version of NDI|HX1. NDI|HX2 also compresses the bandwidth, but is more efficient than NDI|HX1. With compressed bandwidth, users can have more devices on their LAN without running into latency issues. NDI|HX2 provides good quality output, low bandwidth and medium latency. The main difference compared to NDI|HX1 is that HX2 is truly a native NDI stream - all the way from the source device to the destination. This means it is a 'cleaner' implementation than HX1 and can potentially be more reliable, provide lower latency and give a more flexible connection which shares all the usual features of NDI. Learn more about NDI technology

Camera & Output

The heart of this device is its outstanding optical sensor. The incredible image quality of this camera is delivered by the 1/2.5 Inch SONY CMOS Sensor. CMOS sensors provide much faster image processing than other camera sensor technologies like CCD. With 12x optical zoom and 80.4° field of view, making sure that capturing every angle and detail is never a problem for the BG-4KND-12XUHP. With PoE (Power over Ethernet) support the need for a power supply is eliminated, allowing power, video, and control signals to be transmitted over a single category cable.

This camera supports ONVIF, RTSP, and RTMP protocols. These allow the device to stream directly onto websites like Facebook and YouTube. It is also compatible with Zoom, Cisco Webex, Instagram, Skype, and Google Meet. The BG-4KND-12XUHP utilizes H.264 and H.265 video compression for high-quality, low bandwidth video.

Control & Connectivity

The BG-4KND-12XUHP can be controlled via WebGUI, NDI, IR remote, as well as cascadable RS232/485 (VISCA/Pelco). The camera also features an onboard dial which allows users to set the output resolution. The camera has 255 preset positions, with 10 presets being available via remote control.

In addition to HDMI, USB 3.0, and NDI|HX outputs this camera includes a 3.5mm jack for embedding stereo audio. The device is designed for various orientations, including options for ceiling, wall, and tripod mounting.



This camera supports SRT, enabling high-quality, low-latency video to be sent reliably over the internet.



Features
Stunning [email protected] output
Delivers the ultimate in clarity
Multiple Video Outputs
Simultaneous USB 3.0, HDMI, and IP streaming
NDI
Adoption of NDI® 4.0 from NewTek
Control
IP and NDI, IR, and cascadable RS232/485 (VISCA/Pelco) + 255 preset positions
Zoom
Powerful 12X optical zoom lens
Superb Auto Focus
Latest auto focusing algorithms resulting in quick, accurate, and stable focus
  • Low noise 1/2.5" Sony CMOS sensor
  • Simultaneous HDMI, USB 3.0, LAN/NDI outputs
  • PoE LAN port allows for single cable installations
  • 80.4° field of view
  • USB 3.0 supports main/sub dual stream output
  • Quiet and smooth operation
  • NDI, ONVIF, RTSP, RTMP protocols supported
  • 3.5mm jack for embedding stereo audio
  • H.264/H.265 compression available


Specifications
Optical Zoom 12X
Focus f=3.85 mm ~ 43.06 mm ±5%
FOV Horizontal:7.59° (tele) ~ 80.4° (wide) Vertical:4.6° (tele) ~ 50.0° (wide)
Aperture F1.8 ~ F3.56±5%
Image Sensor 1/2.5 Inch SONY CMOS Sensor
Effective pixels 8.51M; 16:9
Video Format HDMI Video Output Format: 4KP60, 4KP50, 4KP30, 4KP25, 1080P60, 1080P50, 1080i 60, 1080i 50, 1080P30, 1080P25, 720P60, 720P50
USB3.0 Video Output Format: YUY2/NV12: 1920x1080P30, 1280x720P30,1024x576P30, 960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30 MJPEG/H.264: 3840x2160P30, 1920x1080P30, 1280x720P30,1024x576P30, 960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30
USB3.0 downward compatible USB2.0: YUY2/NV12: 640x360P30, 640x480P30, 320x176P30 MJPEG/H.264: 3840x2160P30, 1920x1080P30, 1280x720P30, 1024x576P30, 960x540P30, 800x448P30, 640x360P30, 640x480P30, 320x176P30
Minimum Illumination 0.05Lux  (F1.8,  AGC ON)
DNR 2D&3D DNR
White Balance Auto / Manual / One Push / Specified Color Temperature
Focus Auto / Manual / One Push
Exposure mode Auto / Manual / Shutter Priority / Aperture Priority / Brightness priority
Aperture F1.8 ~ F11, CLOSE
Shutter speed 1/25 ~ 1/10000
BLC OFF/ON
Dynamic range OFF/ Dynamic Level Adjustment
Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR ≥50dB

Interface Features
Interfaces HDMI, NDI, USB3.0 (Type B, compatible with USB2.0), A-IN, RS232-in & out; RS422 (Compatible with RS485), Dial switch, DC12V, Power Switch
Video Compression LAN: H.264,H.265 USB 3.0: MJPG,H264,YUY2,NV12
Audio-in Interface Double track 3.5mm linear Input
Audio out HDMI, NDI, USB3.0
Audio Compression AAC, MP3, G.711A
Network Protocol RTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols, Remote Upgrade, reboot and reset
Control Interface RS232-IN, RS232-OUT, RS422 (RS485)
Serial Protocol VISCA/ Pelco-D / Pelco-P; Baud rare: 115200/38400/9600/4800/2400
USB Communication Protocol UVC (video), UAC (audio)
Power Interface HEC3800 (DC12V)
Power Adapter In: AC110V-AC220V; Out: DC12V/2.5A
Input Voltage DC12V±10%
Input Current <1A
Power Consumption <12W

PTZ Parameters
Pan Rotation -170°~+170°
Tilt Rotation -30°~+90°
Pan Control Speed 0.1°/s~120°/s
Tilt Control Speed 0.1°/s~80°/s
Preset Speed Pan: 120°/s, Tilt: 80°/s
Preset Number 255 Presets (10 presets by remote control)

Other Parameters
Storage Temperature -10°C~+60°C
Storage Humidity 20%~95%
Working Temperature -10°C~+50°C
Working Humidity  20%~80%
Dimension 157.5mm(L) x 189mm(W) x 201mm(H)
Weight 2.60kg
Usage Indoor
MORE / LESS SPECS


Compatible with:


Ideal fit for:
  • Studio Recordings
  • Houses of Worship
  • Sporting Events
  • Event Businesses
  • Doctors
  • Clergy
Interface
1.
Power: Connect supplied 12V power adapter.
2.
NDI: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream (NDI|HX).
3.
System Select: Turn this dial to set desired output resolution. See manual for resolution options.
4.
RS-232, RS-422/485: Connect cascading RS-232 or RS-422/485 to control the camera(s) with a joystick controller or control software.
5.
Line In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
6.
USB: Connect USB3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom.
7.
HDMI: Connect to an HDMI device such as a video production switcher or a video display up to [email protected]


BZBGEAR on iOS
Scan or Tap QR Code
Download the BZBGEAR Camera Control Software
Videos


Stunning 4K PTZ Camera with NDI|HX Projects Clarity in Every Live Stream - BZBGEAR BG-4KND-12XUHP
BZBGEAR NDI|HX PTZ Cameras Transcend The Boundaries of Live Stream Broadcasts
BZBGEAR Multi-function 4K PTZ Camera with USB 3.0, HDMI, and IP NDI|HX Streaming
Command and Control Various BZBGEAR PTZ Cameras via Newly Updated BG-PTZ-Control App (Full Overview)
How to Connect an IP Camera to your Network
How to Facebook Live Stream with an IP PTZ Camera
BZBGEAR Heads Chris & Steve Talk Tech - Ep. 1 IP PTZ cameras, Live Streaming & Accessories
Top 3 BZBGEAR PTZ Cameras Comparison

×

×

×

×

×

×

×

×

×

×

×

×

×

×
×
×
×
Mounting Ideas
Click the image below to watch a video

Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.


Resources
Manual

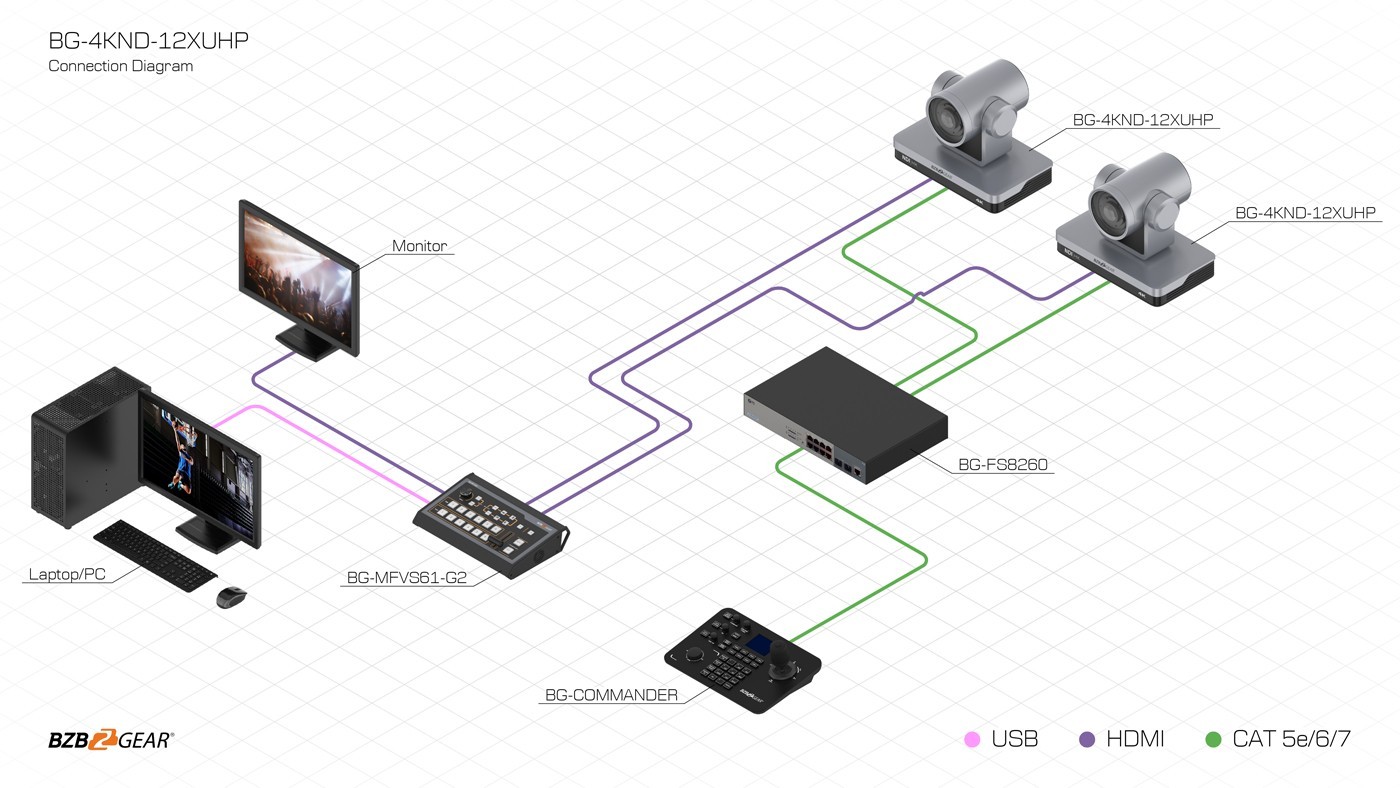

Diagram
Quick Start Guide
Product Brochure



Package Contents
① 1x BG-4KND-UHP Camera
② 1x IR Remote Control
③ 1x Power adapter
④ 1x Wireless Remote Control
⑤ 1x RS232 Cable
⑥ 1x User Manual
⑦ 1x USB3.0 Cable
