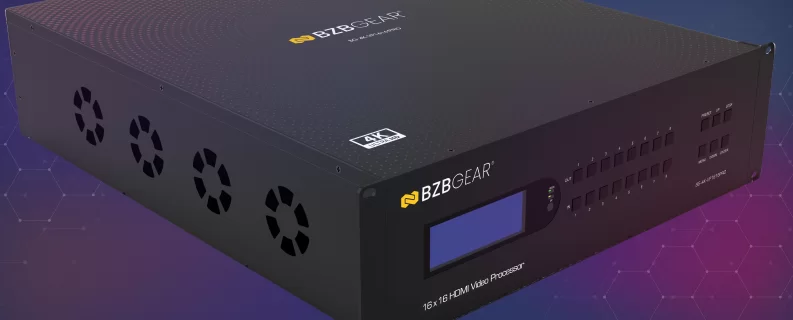

16x16 4K UHD Seamless HDMI Matrix Switcher/Video Wall Processor/MultiViewer over Cat5/6/7 with 16 Receivers Kit
Overview
The BG-4K-VP1616PRO supports sixteen HDMI inputs that can be independently routed to HDMI or LAN Outputs. This unit can create video walls, act as a multi-viewer and perform matrix functions! The BG-4K-VP1616PRO supports video wall configurations of up to 7 different modes with each monitor. It can also display sixteen pictures on the same screen and has multiple split display modes.
Connectivity and Quality
With max resolutions up to 4K@60Hz 4:4:4, the BG-4K-VP1616PRO is capable of producing high-quality imagery with pristine detailing and rich color. All HDMI ports on this unit are HDCP 2.2 compliant. This device also supports analog audio extraction, and audio channels can be switched independently.
Control
The BG-4K-VP1616PRO provides various control methods, including front panel controls, IR remote control, RS-232, and IP control. With the included IR receiver, the unit can be controlled using the provided remote even when placed out of sight, ensuring a neat installation. Additionally, users have the option to utilize the BG-SWITCH-CONTROL app, a proprietary matrix switcher control and management application available for Windows, iOS, Mac, and Android platforms. This software empowers you to effortlessly route sources, manage displays, configure image settings, adjust network settings, and more.
Alongside a comprehensive web interface, the BG-4K-VP1616PRO features control software that can be operated via the RS-232 connection. These interfaces enable users to fine-tune advanced features such as EDID management, mapping, and network settings.
BZBGEAR AWARDS
Features
-
16X16 Matrixing16x HDMI Inputs which can be independently routed to 16x HDMI Outputs -
Video wallSupports multiple video walls at the same time -
Multiview CapabilitiesUp to 16 sources can be displayed on each output in different layouts -
HDCP CompliantHDCP 2.2 compliancy ensures copyright protection -
Control OptionsControl via panel button, Remote Control, RS232 Control, TCP/IP Control -
4K@60HzSupports resolution up to 4K@60Hz 4:4:4
- No switching delay or picture loss during transitions
- EDID management: Seamless scaling for the best results
- Supports HDMI audio formats including Dolby-5.1, DTS-5.1
- Analog audio extraction, and the audio can be independently switching
Effortlessly control and
manage your video system
with our user-friendly app!
Videos
Tech Specifications
| Input ports | 16xHDMI |
| Output ports | 16xHDMI 16xLAN |
| Video Format Supported | 4K@60Hz, YUV4:4:4 8 bit 4K@30Hz/1080P/1080i/720P |
| Audio Formats Supported | HDMI digital audio DTS-5.1/Dolby-5.1 |
| HDCP Compliant | HDCP 2.2 and HDCP 1.4 |
| Input Video Signal | 0.5-1.0 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Bandwidth | 18 Gbit/s |
| Matrix mode | 16x16 seamless switching |
| Video wall mode | Multiple video wall modes |
| Multi-viewer mode | Multiple multi-viewer modes |
| Operating Temperature Range | 23 to +104°F / -5 to +40°C |
| Storage Temperature Range | -14 to +140°F / -10 to +60°C |
| Operating Humidity Range | 5 to 90 % RH (no condensation) |
PACKAGE CONTENTS
- 1x Main Unit (16x16 HDMI Matrix)
- 1x Remote control
- 1x Wide-Band IR Receiver cables
- 1x CD for user manual & Command list
- 1x 3 Pin Phoenix terminal plug
