Auto Tracking Application Solutions
What Is Auto Tracking?
Auto tracking technology enables cameras to follow a subject’s movement automatically – without the need for a camera operator. It ensures presenters, instructors, or performers remain perfectly framed at all times, regardless of where they move. BZBGEAR offers a range of intelligent auto-tracking PTZ cameras ideal for classrooms, conference rooms, performance stages, and content creators.
Core Technology
BZBGEAR’s tracking-capable cameras include:
Applications
Scenario:
- A company wants to automate speaker framing in its conference room without assigning an operator. The camera should intelligently follow whoever is speaking or moving during hybrid meetings.
Solutions:
- BG-CYCLOPS mounted near the front or side of the room.
- Zone tracking enabled to monitor participant zones or the presenter’s path.
- USB or HDMI output to conferencing platforms (Zoom, Teams).
- Clean cable routing for permanent installation.

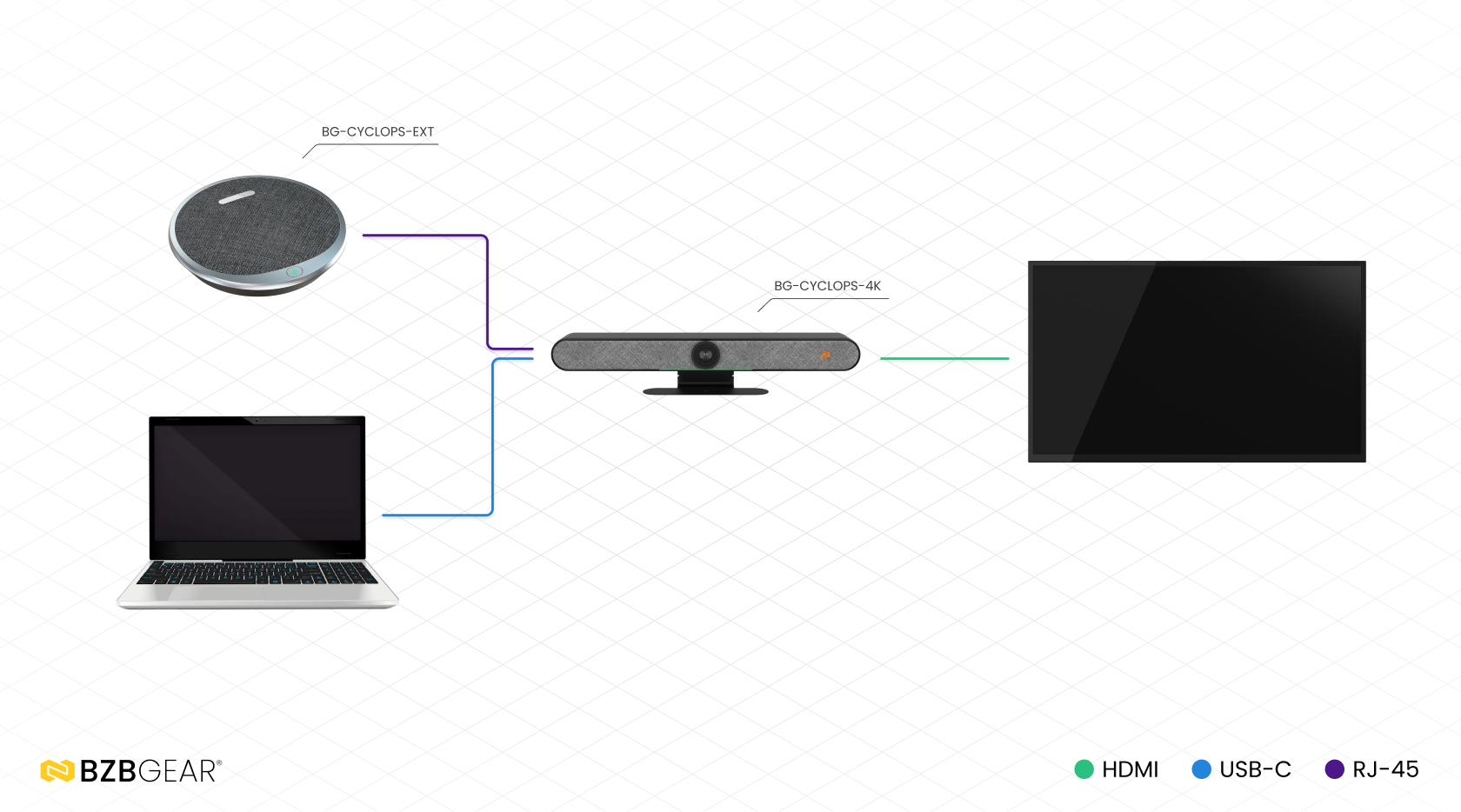

The diagram below demonstrates how the BG-CYCLOPS-4K can be effectively deployed in a large conference room using its intelligent auto-tracking and auto-framing features. Positioned at the end of the table, the all-in-one 4K UHD video bar – with HDMI/USB-C connectivity, 20W speakers, and six MEMS microphones – captures a wide view of the room and tracks the presenter as they move. It connects directly to a laptop via USB-C for use as the main Zoom camera, while the BG-CYCLOPS-EXT extension mic, connected via RJ-45 and placed at the center of the table, enhances audio pickup. The HDMI output is routed to a side display, allowing the presenter to monitor themselves in real time.
Scenario:
- A speaker or performer moves freely across a stage or pulpit area. The venue needs professional-grade video coverage without a camera operator.
Solutions:
- BG-ADAMO-4K mounted at rear of stage or from ceiling rig.
- Presenter Auto-tracking enabled.
- HDMI or SDI output to in-room displays and IP stream to YouTube.
- Compatible with joystick or software interface for camera override.
- Ideal for worship, keynote events, or live presentations.

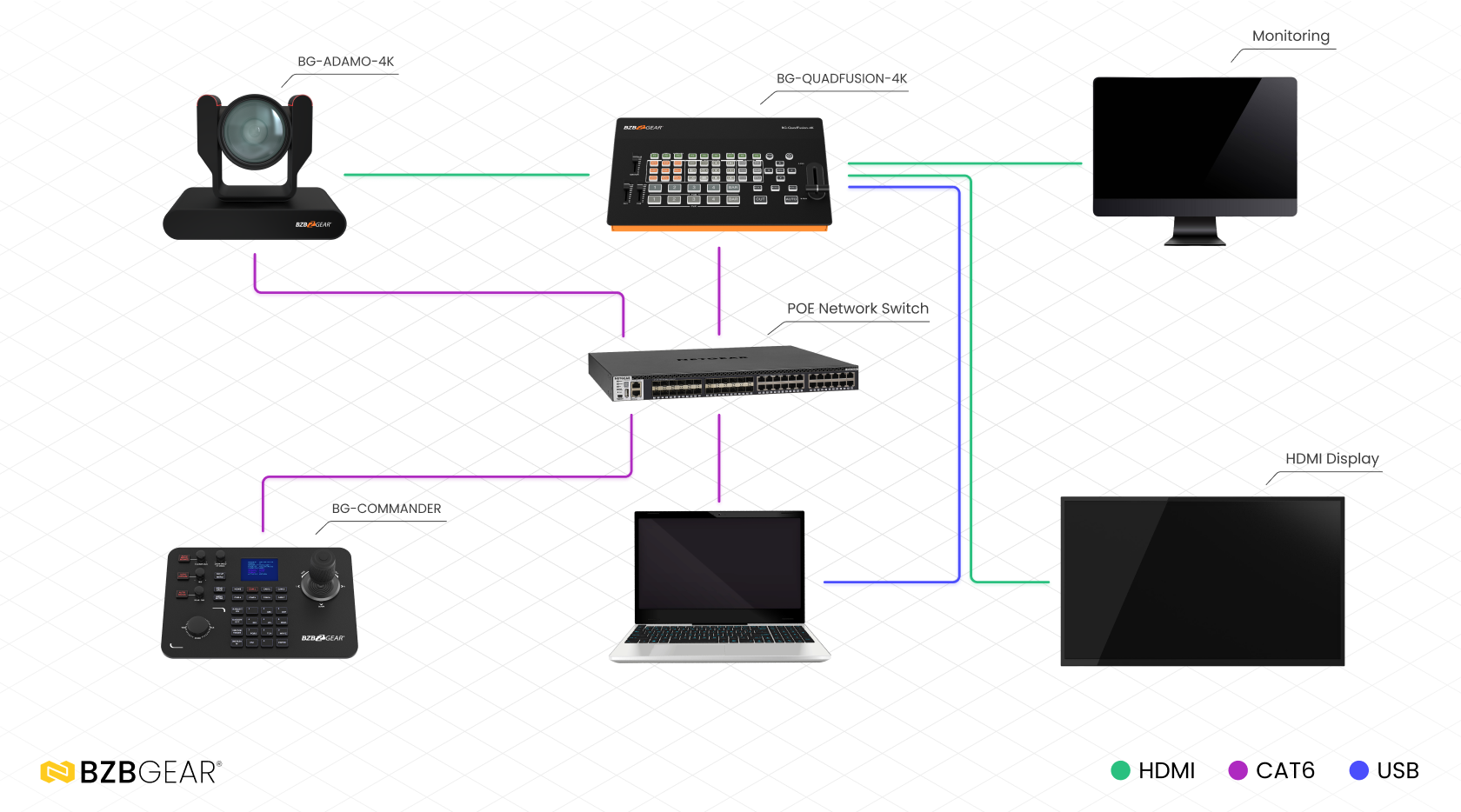

The diagram below illustrates how the BG-ADAMO-4K – an advanced 4K UHD auto-tracking PTZ camera with HDMI 2.0, 12G-SDI, USB 2.0/3.0, and integrated tally lights – can be integrated with the BG-QUADFUSION-4K video switcher and BG-COMMANDER joystick controller to form a complete Stage Presentation Tracking system. Ceiling-mounted, the BG-ADAMO-4K offers optimal angles for uninterrupted presenter tracking, delivering smooth and precise auto-tracking performance. The camera is powered and networked via a single CAT6 cable using PoE, simplifying installation. Video is transmitted over HDMI to the BG-QUADFUSION-4K 4-channel 4K UHD switcher, which then outputs the feed to a laptop over USB 3.0 for live streaming. While manual control via the BG-COMMANDER is secondary due to the auto-tracking feature, it remains a valuable tool for starting/stopping tracking, adjusting image settings, and enabling manual operation when needed.
Scenario:
- A fitness influencer livestreams workouts from a home studio or gym. The setup must follow movement during cardio, yoga, or dance routines - without touch or external help.
Solutions:

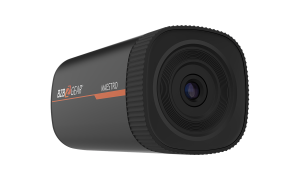

- BG-MAESTRO set up front-facing or overhead.
- AI auto-tracking based on motion and body shape detection.
- USB or IP output into OBS, YouTube, or Instagram Live.
- Silent operation for no distraction during workouts.
- Optional presets or hotkeys for fixed framing at different exercise positions.

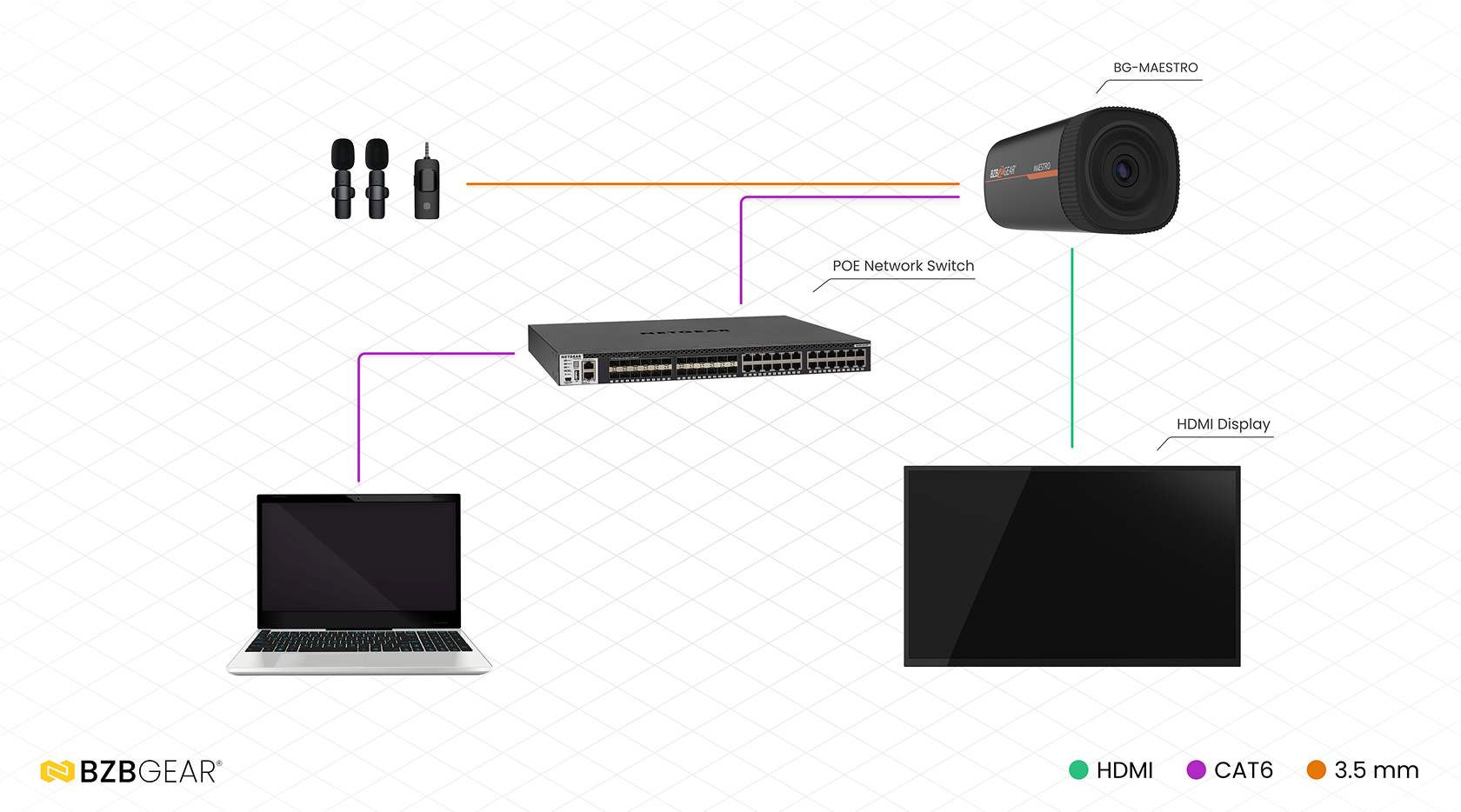

The diagram below illustrates how the BG-MAESTRO can be used to track an active fitness streamer while simultaneously integrating audio and streaming live through OBS Studio. Powered and connected via a single CAT6 cable through a PoE network switch, the BG-MAESTRO transmits both video and audio over IP for seamless integration with OBS. To include the fitness streamer’s audio, a wireless microphone - using the 3.5mm adapter included with most wireless mic kits - can be connected directly to the BG-MAESTRO.
Why Choose BZBGEAR?
BZBGEAR’s auto-tracking solutions give you:
The BZBGEAR Difference
BZBGEAR offers the industry’s best warranty for all products, ensuring unparalleled protection for our clients. Beyond the initial sale, our commitment to service and support extends far into the future. With BZBGEAR, clients can confidently specify, purchase, and install, knowing they have unmatched coverage even in the rare event it’s needed.
