8MP SDI or HDMI USB 3.0 IP POE Wide Angle Educational Auto Tracking Camera
Click here to learn more about BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Tech Specifications
Camera/ Lens Parameters | |||
Image Sensor | 1/2.8" High Quality 4K CMOS Sensor | ||
Effective pixels | 8.28 Megapixel, 16:9 | ||
Video Format | SDI /HDMI output: 1080p@30Hz/25Hz; 720p@60Hz/50Hz/30Hz/25Hz; USB 3.0 output: 1920x1080p@30Hz /25Hz; 1280x720p@60Hz /50Hz /30Hz /25Hz; 960x540p@30Hz; 800x600p@30Hz; 640x360p@30Hz; 640x480p@30Hz; 352x288p@30Hz; USB 3.0 can be compatible with USB 2.0 output |
||
View Angle | 57.2° (D) /47° (H) /36° (V) | ||
Focus | f=7.23mm | ||
Aperture | F2.4+ 5% | ||
Digital Zoom | 3X | ||
Minimum Illumination | 0.5Lux (F1.8, AGC ON) | ||
DNR | 2D & 3D DNR | ||
White Balance | Auto / Manual/ One Push/ Specified color temperature (2400K-7100K, step length is 100) | ||
Focus | Manual | ||
Exposure | Fixed | ||
BLC | ON/ OFF | ||
DNR | >50dB | ||
Input/Output Interface | |||
Video Interfaces | 1x SDI / HDMI interface 1x USB interface 1x LAN interface: 10M/100M adaptive Ethernet port (support POE) |
||
Video Compression Format | H.264, H.265, MJPEG, YUY2, NV12 | ||
Audio Input Interface | Double track 3.5mm linear Input | ||
Audio Compression Format | AAC, MP3, G.711A | ||
Network protocol | RTSP, RTMP, ONVIF, GB/T28181 | ||
Control Interface | RS232, RS485, LAN | ||
Communication Protocol | VISCA, Pelco-D, Pelco-P, support baud rate 115200/38400/9600/4800/2400; Support VISCA Control Protocols | ||
Power Interface | HEC3800 power socket (DC12V) | ||
Other Parameters | |||
Input Voltage | Power Adapter: 12V | ||
POE Supply: 48V | |||
Input Current | Power Adapter: 0.42A (max) | ||
POE Supply: 0.104A (max) | |||
Power Consumption | 5W (max) | ||
Stored Temperature | -10°C ~ +60°C | ||
Stored Humidity | 20% ~ 95% | ||
Working Temperature | -10°C ~ +50°C | ||
Working Humidity | 20% ~ 80% | ||
Dimension (W x H x D) | 5.9 x 3.1 x 3.1in [149.2 x 78 x 78mm] | ||
Weight | Approx. 1.17 lbs [0.53kg] | ||
Working Environment | Indoor Only |
PACKAGE CONTENTS
- 1x BG-MAESTRO Camera
- 1x 10' USB 3.0 Cable

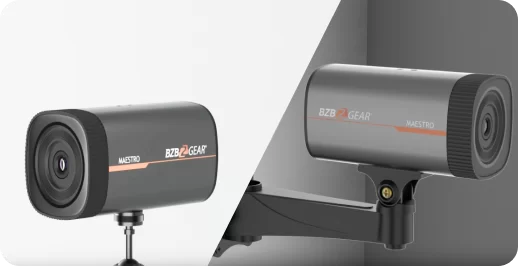

- 1x Metal Wall/Ceiling Mount (White)
- 1x User Manual

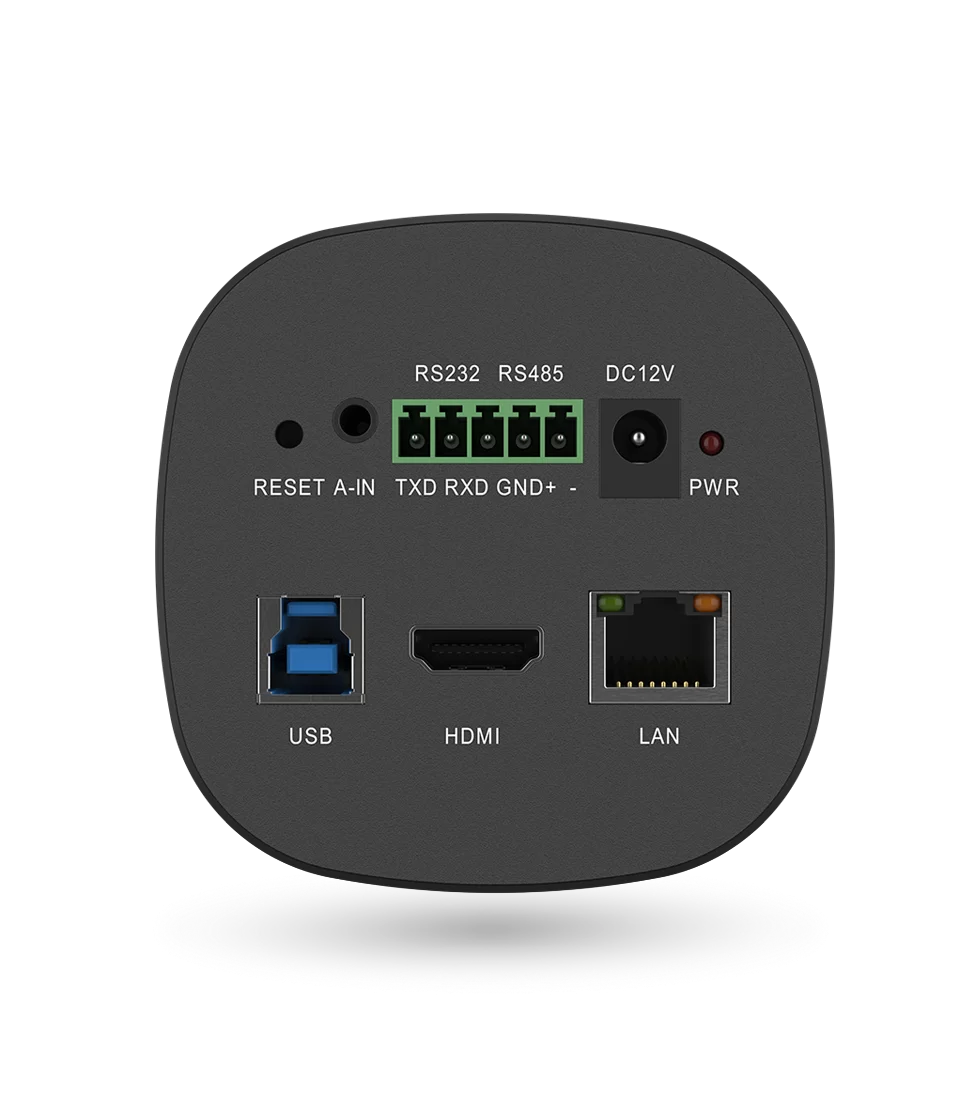

Interfaces
![Interfaces image](https://bzbgear.com/wp-content/uploads/BG-MAESTRO-32.png)

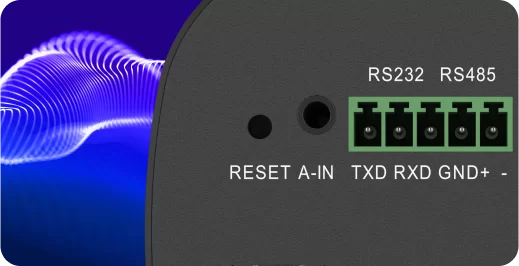

- A-In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
- RS-232, RS-485: Connect cascading RS-232 or RS-485 to control the camera(s) with a joystick controller or control software.
- Power: Connect supplied 12V power adapter.

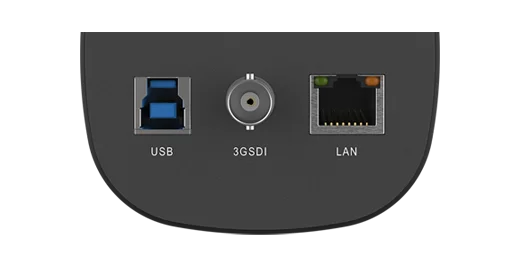

- LAN: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
- 3G-SDI: Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080p@30Hz) over SDI cabling.
- HDMI: Connect to an HDMI device such as a video production switcher or a video display at resolutions up to 1080p@30Hz.
- USB: Connect USB3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080p@30Hz.
- Reset: Hold Reset button to factory restore.
