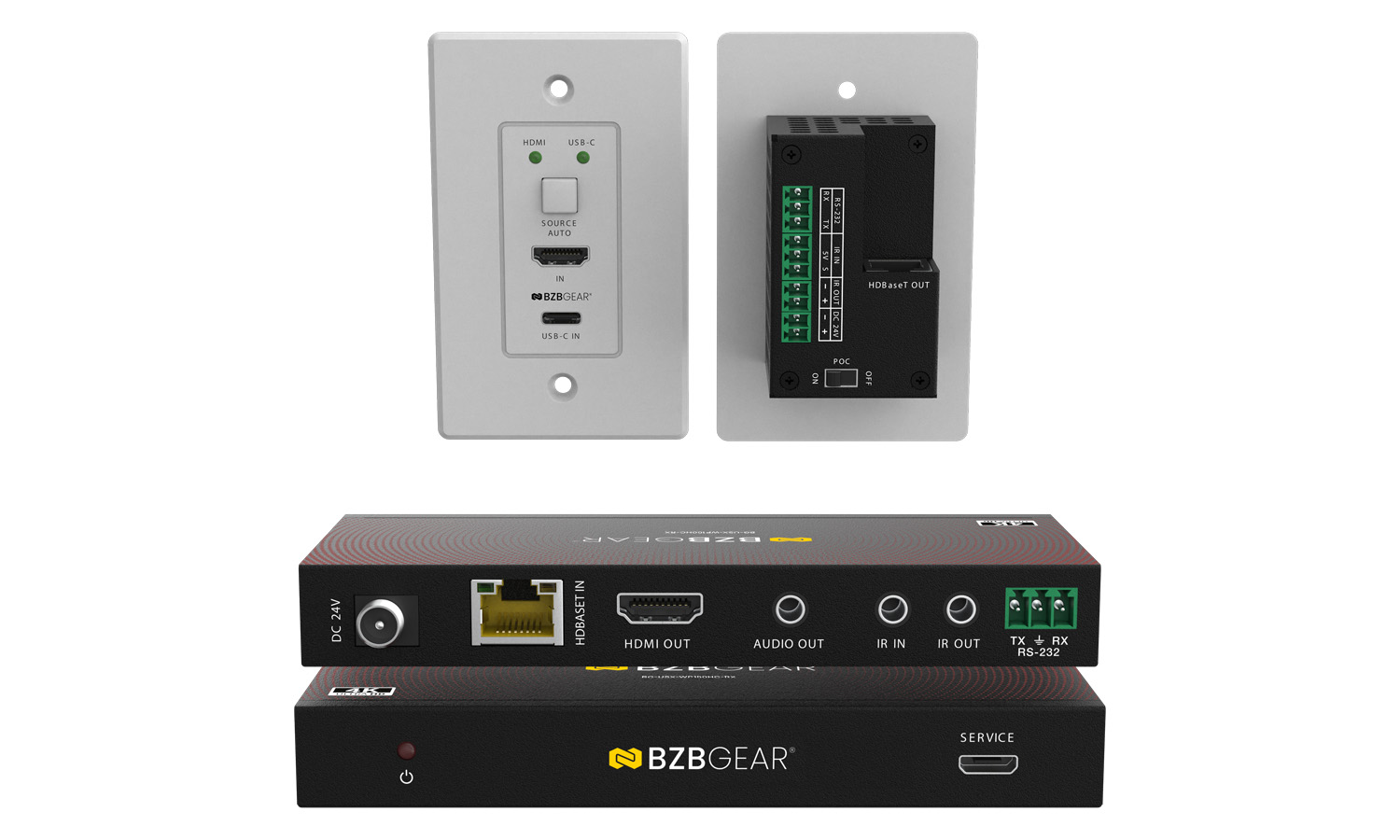

Overview
The BG-USX-WP150HC is a professional 2x1 HDBaseT extender that transmits 4K@60Hz 4:4:4 HDMI and USB-C video signals over a single CAT6/6A cable. Featuring a convenient 1-gang wall plate transmitter with both HDMI and USB-C inputs, it supports transmission distances of up to 120m (394ft) for 4K content and 150m (492ft) for 1080p, making it ideal for classrooms, conference rooms, digital signage, and commercial AV installations.
Built for seamless system integration, the BG-USX-WP150HC supports automatic or manual input switching, bi-directional Power over Cable (PoC), IR and RS-232 pass-through, CEC control, and analog audio de-embedding. With full HDMI 2.0b compliance, 18Gbps bandwidth, HDR support, and HDCP 2.2 compatibility, it delivers reliable, high-quality AV distribution for modern professional environments.
Features in Depth
The BG-USX-WP150HC extends high-resolution video, audio, and control signals over HDBaseT using a single CAT6/6A cable. Supporting HDMI 2.0b, HDCP 2.2, and the full 18Gbps HDMI bandwidth, it delivers uncompressed video at resolutions up to 4K@60Hz with 4:4:4 chroma sampling, ensuring exceptional image clarity and color accuracy. The wall plate transmitter provides both HDMI and USB-C inputs, allowing users to connect laptops, media players, and other AV sources without additional adapters. Automatic signal detection or manual input selection provides flexible operation for a variety of installation scenarios.
Designed for long-distance signal distribution, the extender supports transmission distances up to 120m (394ft) for 4K60 content and 150m (492ft) for 1080p video over a single CAT6/6A cable. Compatibility with HDR10, HDR10+, Dolby Vision, and HLG ensures vivid colors and enhanced contrast for HDR-capable displays, while support for advanced audio formats including Dolby TrueHD, DTS-HD Master Audio, and LPCM 7.1 preserves immersive audio performance throughout the signal path.
The BG-USX-WP150HC is engineered for professional AV integration with bi-directional PoC, allowing either the transmitter or receiver to power the complete system over the HDBaseT link. Additional integration features include bi-directional IR extension, RS-232 pass-through for third-party control systems, HDMI CEC support for simplified device control, and analog audio de-embedding via a 3.5mm output on the receiver. Its compact wall plate design, efficient power consumption, and comprehensive control capabilities make it an ideal solution for conference rooms, classrooms, lecture halls, hospitality, and enterprise AV applications.
Features
-
![Wide-Angle 1]()
4K60 HDBaseT ExtensionTransmits 4K@60Hz 4:4:4 video up to 120m (394ft) or 1080p up to 150m (492ft) over a single CAT6/6A cable -
![fluent-mdl2_connect-virtual-machine]()
Dual HDMI & USB-CFeatures a 1-gang wall plate transmitter with HDMI and USB-C inputs for flexible source connectivity and BYOD applications -
![Compliant]()
18Gbps PerformanceSupports full 18Gbps bandwidth with HDMI 2.0b and HDCP 2.2 compliance for uncompromised AV performance -
![ep_connection]()
Smart Source SwitchingSupports automatic input detection and manual source selection for seamless operation between connected devices -
![Four-Control-Modes]()
Control & IntegrationIncludes bi-directional PoC, RS-232 pass-through, bi-directional IR extension, and HDMI CEC support -
![HDR Support]()
HDR & Advanced AudioCompatible with HDR10, HDR10+, Dolby Vision, HLG, LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio for premium audio and video quality
- Supports resolutions up to 4K2K@60Hz 4:4:4 with full color fidelity
- Single CAT6/6A cable installation reduces infrastructure costs and simplifies deployment
- Bi-directional Power over Cable (PoC) allows either endpoint to power the entire system
- Analog audio de-embedding via 3.5mm output on the receiver
- Compatible with HDMI CEC for simplified control of connected devices
- Bi-directional IR extension enables remote control of source and display equipment
- RS-232 pass-through supports integration with third-party automation and control systems
- Low-power, compact design for continuous operation in professional environments
- Durable hardware suitable for commercial AV installations
Tech Specifications
| TECHNICAL SPECIFICATIONS | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Maximum Video Resolution | Up to 4K2K@60Hz (4:4:4), supports 1080p and PC resolutions up to 1920x1200 |
| Color Depth | 8-bit / 10-bit / 12-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDR Support | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| HDMI Audio Formats | LPCM 2.0-7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS-ES, DTS-HD HRA, DTS-HD Master Audio, DTS-X |
| Analog Audio Output | LPCM 2.0CH (via receiver 3.5mm output) |
| IR Frequency Range | 20 - 60kHz (wideband) |
| IR Level | 5Vp-p |
| Transmission Distance | Up to 120m (4K@60Hz), up to 150m (1080p) over CAT6/6A |
| ESD Protection | IEC 61000-4-2: ±8kV air discharge, ±4kV contact discharge |
| INTERFACES (TRANSMITTER) | |
| HDMI Input | 1x HDMI Type-A (Female), up to 4K60 |
| USB-C Input | 1x USB-C (video input support up to 4K60) |
| HDBaseT Output | 1x RJ45 port |
| RS-232 | 1x 3-pin Phoenix connector |
| IR Input | 1x 3-pin Phoenix connector |
| IR Output | 1x 2-pin Phoenix connector |
| DC Power Input | 24V/1A |
| PoC Switch | ON/OFF selectable bi-directional PoC |
| INTERFACES (RECEIVER) | |
| HDBaseT Input | 1x RJ45 port |
| HDMI Output | 1x HDMI Type-A (Female) |
| Audio Output | 1x 3.5mm stereo jack (analog de-embedded audio) |
| IR Input | 1x 3.5mm stereo jack |
| IR Output | 1x 3.5mm stereo jack |
| RS-232 | 1x 3-pin Phoenix connector |
| Service Port | 1x Mini-USB (firmware update) |
| DC Power Input | 24V/1A |
| HARDWARE SPECIFICATIONS | |
| Housing | Metal enclosure |
| Transmitter Dimensions | 2.7 x 1.5 x 4.5 in [69.8 x 39 x 114 mm] |
| Receiver Dimensions | 5.5 x 2.6 x 0.71 in [140 x 65 x 18 mm] |
| Transmitter Weight | 0.45 lb [203 g] |
| Receiver Weight | 0.34 lb [155 g] |
| Color | Transmitter: White + Black / Receiver: Black |
| POWER SPECIFICATIONS | |
| Power Supply | AC 100–240V, 50/60Hz to DC 24V/1A |
| Power Consumption (TX) | Max 4.5W |
| Power Consumption (RX) | Max 4.7W |
| PoC Support | Bi-directional Power over Cable |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | 32°F to 104°F / 0°C to 40°C |
| Storage Temperature | -4°F to 140°F / -20°C to 60°C |
| Operating Humidity | 20%–80% RH non-condensing |
| Storage Humidity | 10%–90% RH non-condensing |
Resources
PACKAGE CONTENTS
- 1x 4K60 2x1 HDBaseT Extender (Transmitter, Wall Plate Unit)
- 1x 18Gbps HDBaseT Extender (Receiver Unit) (included in full kit version)
- 1x 24V/1A Multinational Power Supply
- 1x IR Blaster Cable (1.5m) (Receiver kit only)
- 1x IR Wideband Receiver Cable (1.5m) (Receiver kit only)
- 1x 2-pin 3.5mm Phoenix Connector (Male)
- 2x 3-pin 3.5mm Phoenix Connector (Male)
- 1x 3-pin 3.81mm Phoenix Connector (Male) (Receiver kit only)
- 2x Mounting Ears (Receiver kit only)
- 4x Machine Screws (KM3x4) (Receiver kit only)
- 1x User Manual

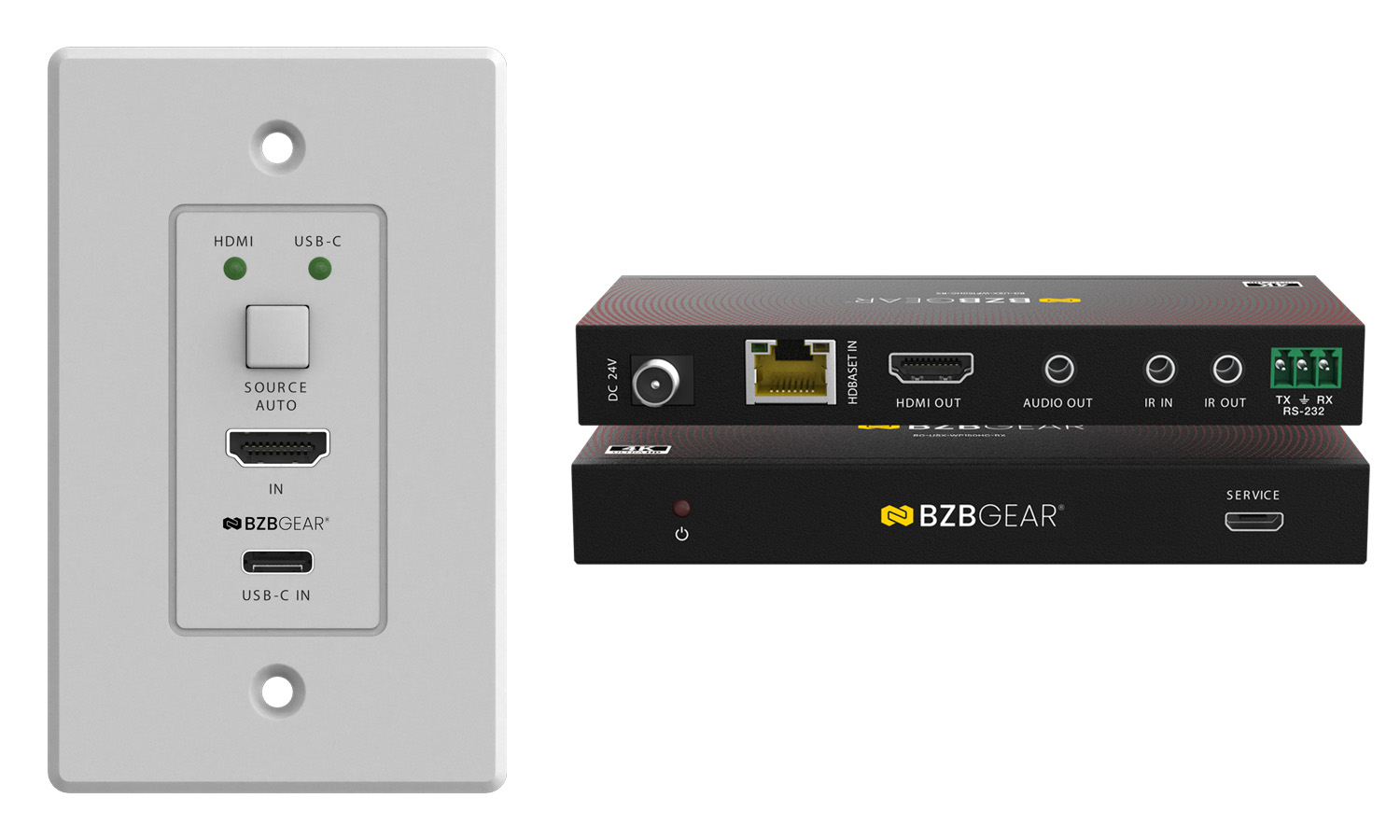

Interfaces

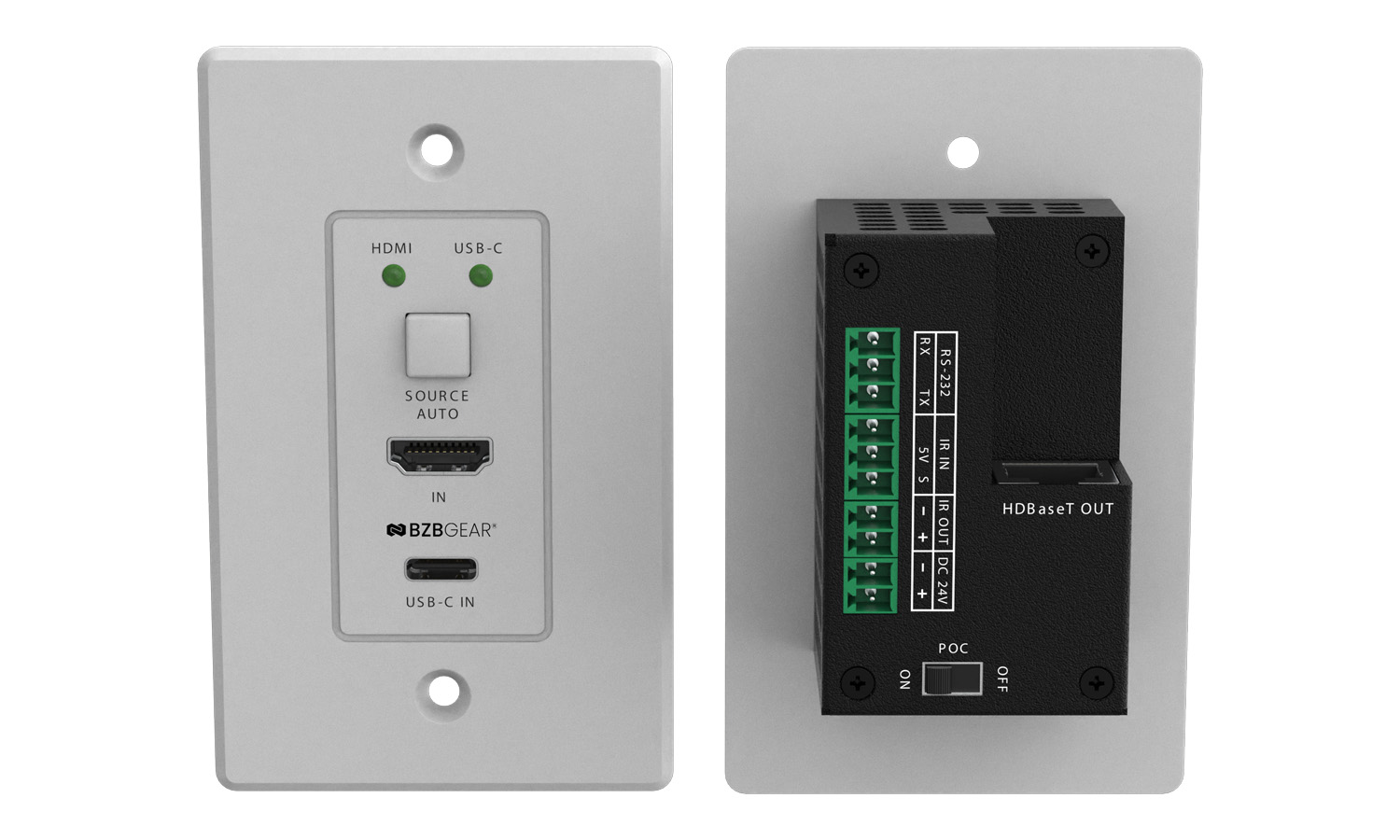

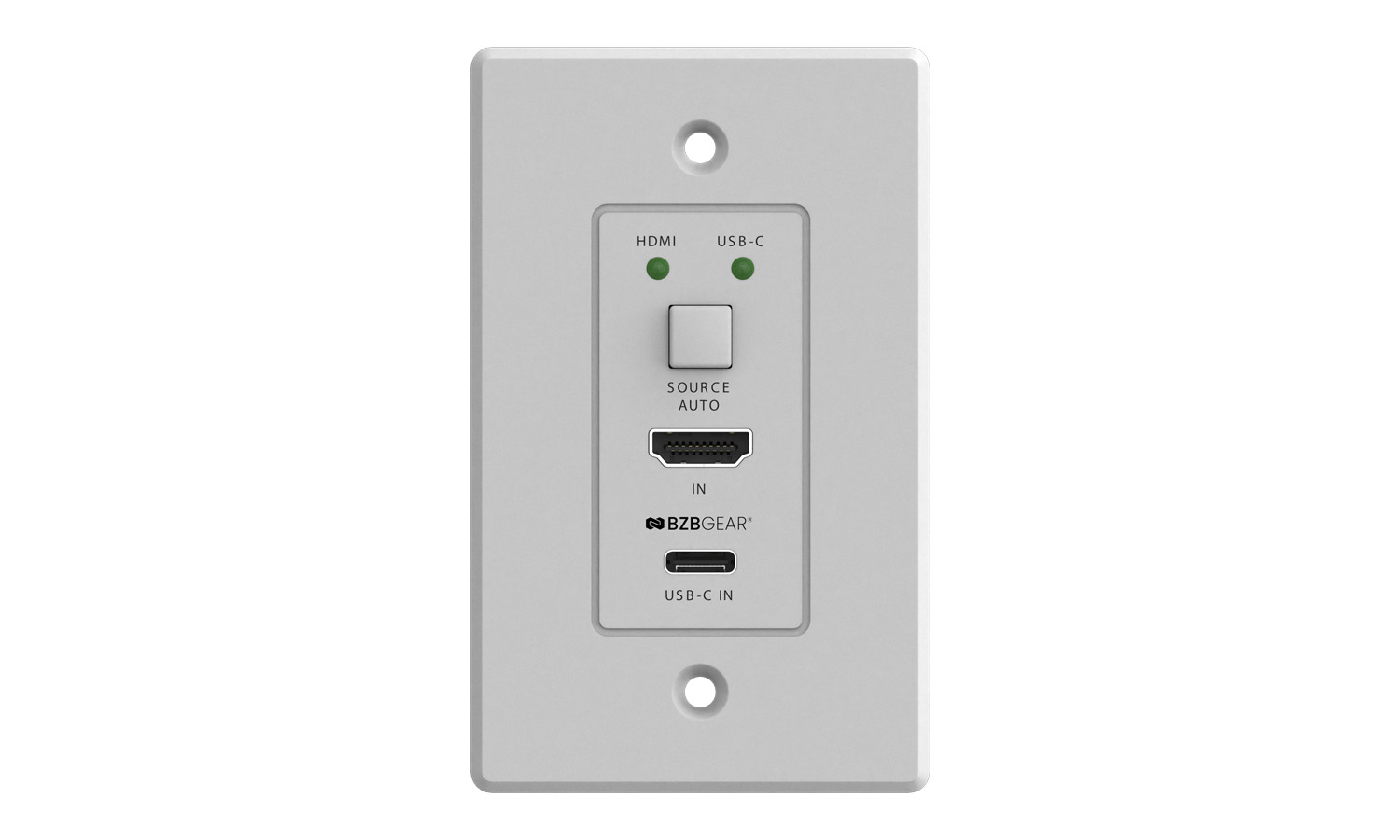

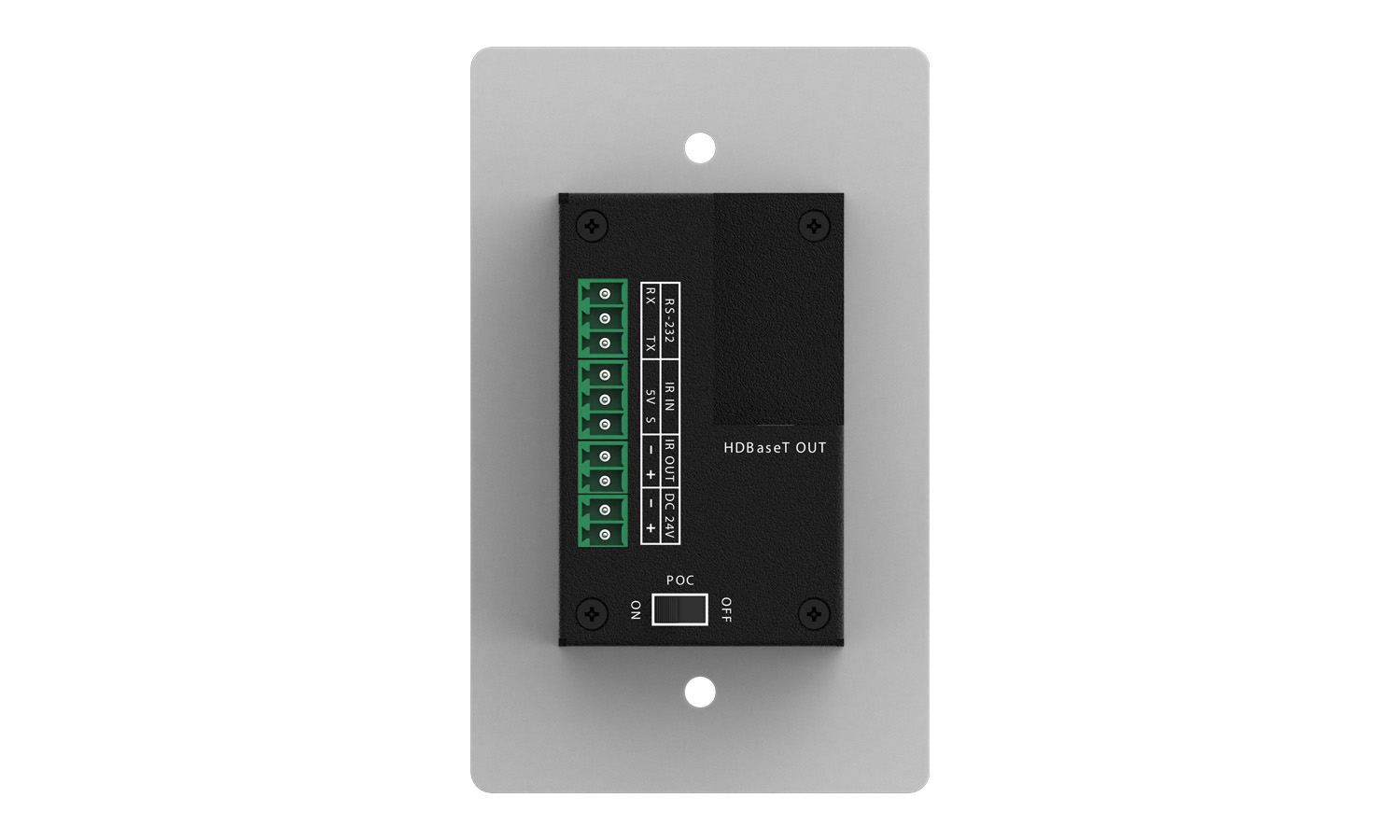

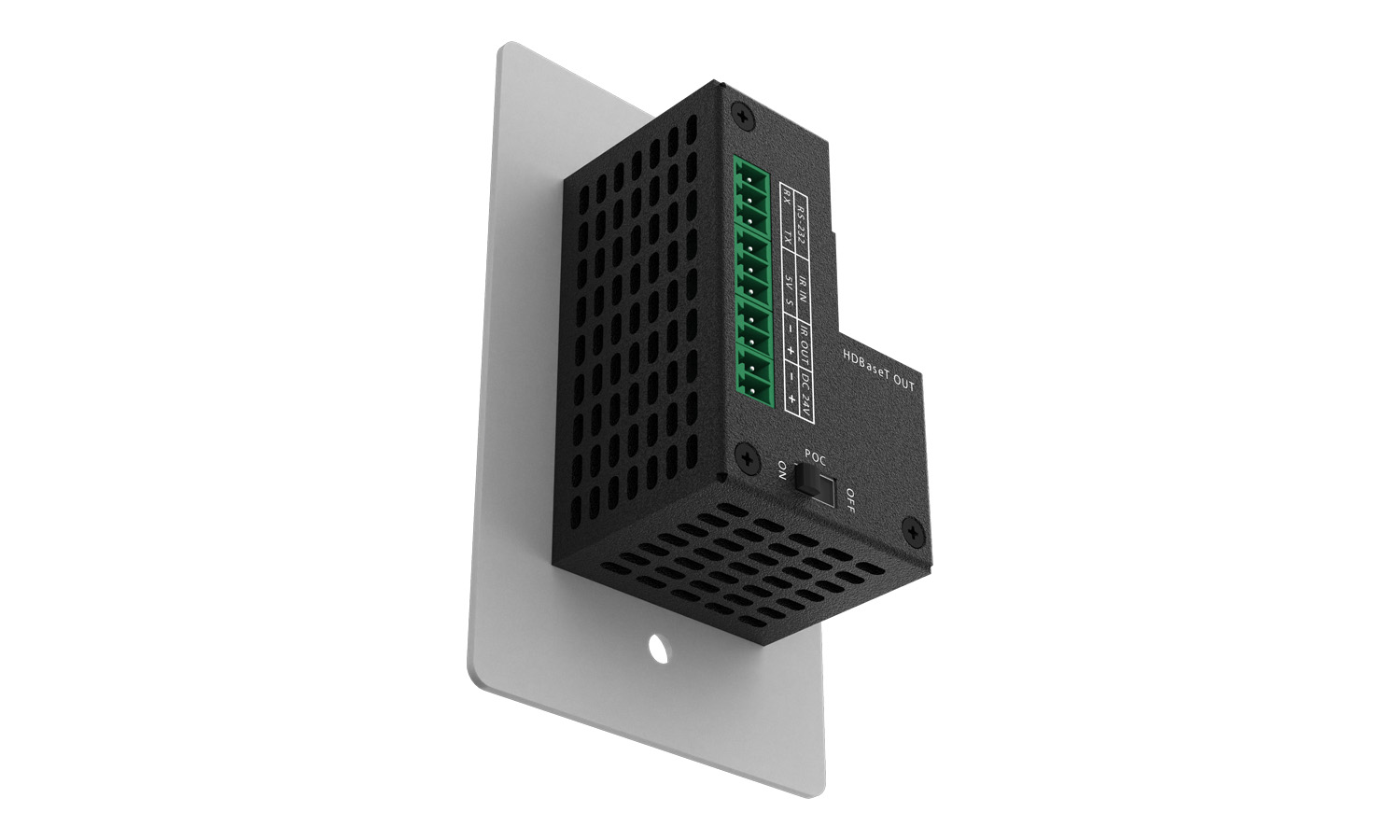

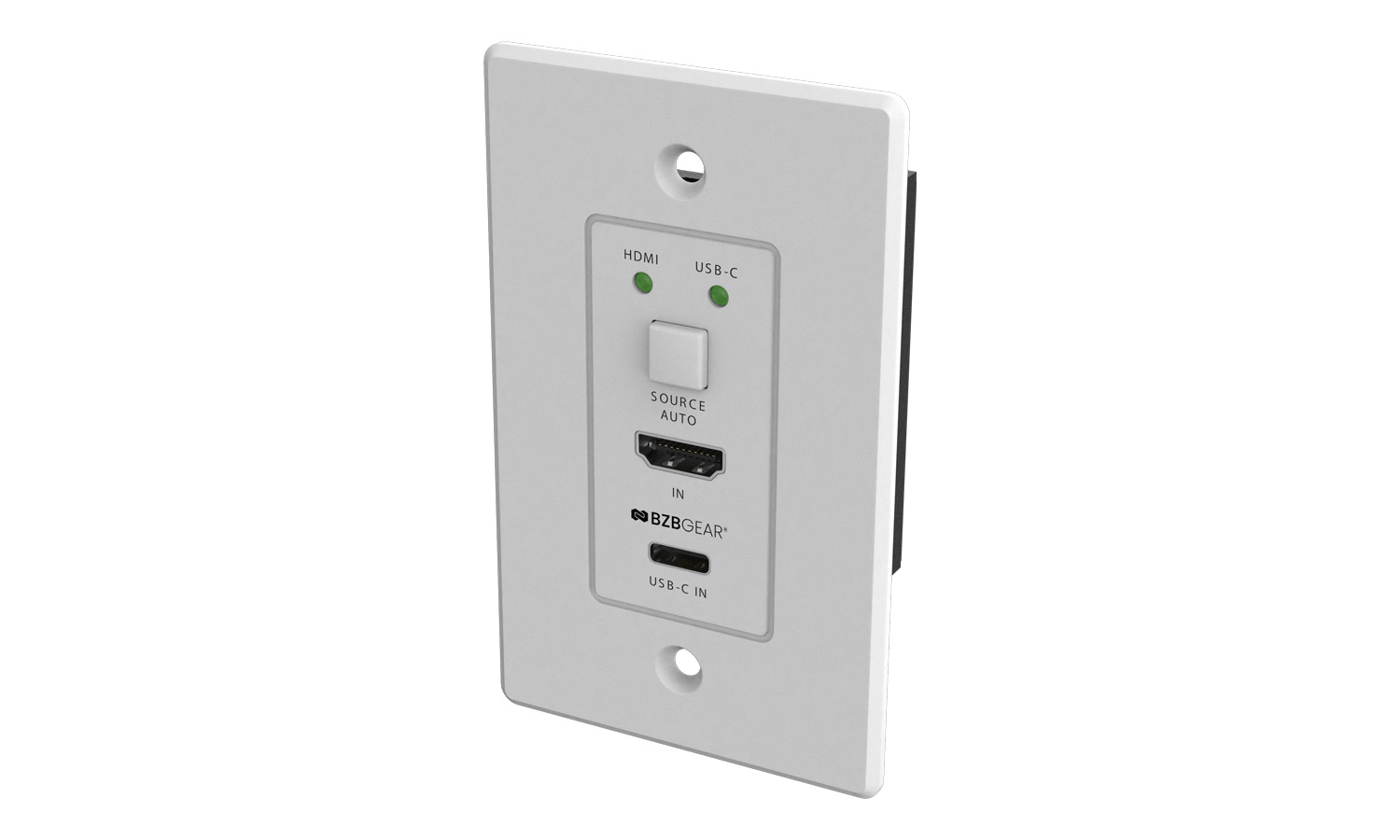

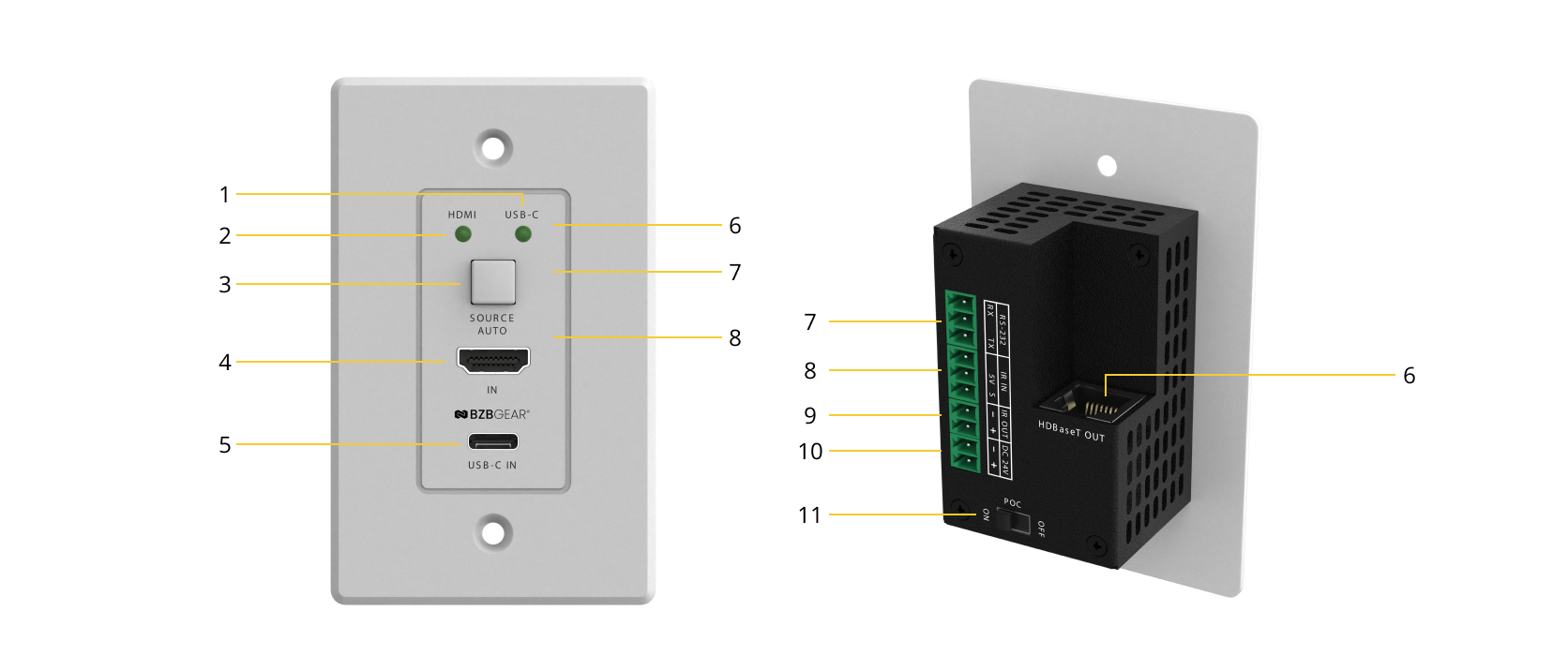

Transmitter
- USB-C LED: Indicates USB-C input is currently selected as the active source (green LED ON).
- HDMI LED: Indicates HDMI input is currently selected as the active source (green LED ON).
- SOURCE / AUTO Button & Indicator: Used to switch between HDMI and USB-C inputs manually. Long press (3 seconds) toggles Auto Switching mode. Blue indicator ON confirms Auto mode is active.
- HDMI IN: HDMI Type-A input port supporting video signals up to 4K@60Hz (4:4:4).
- USB-C IN: USB-C input port supporting video input up to 4K@60Hz (Alt Mode compatible sources).

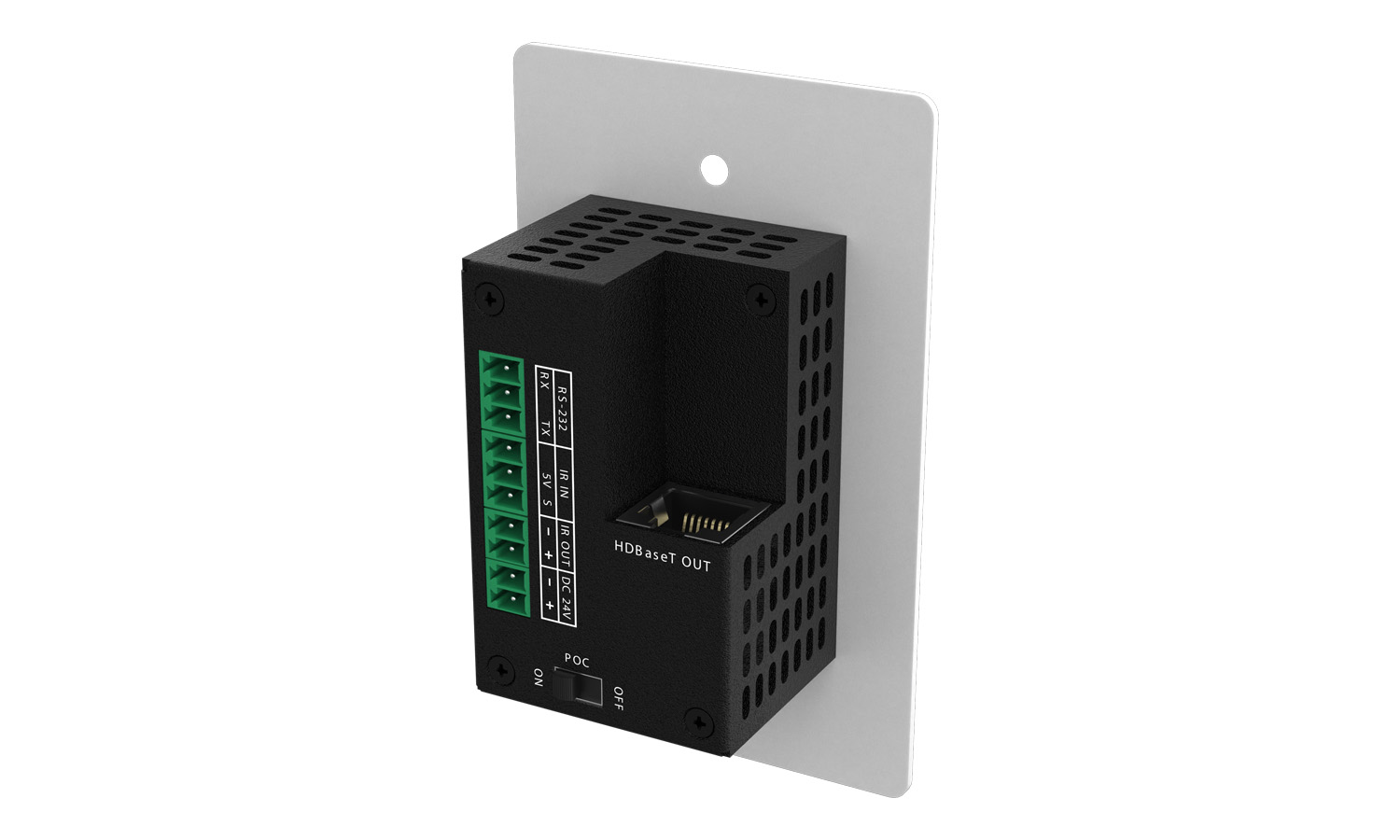

- HDBaseT OUT: RJ45 output port that connects to the receiver via CAT6/6A cable for AV extension.
- RS-232 Port: 3-pin Phoenix connector for RS-232 pass-through control signals between transmitter and receiver.
- IR IN: 3-pin Phoenix connector for receiving IR control signals from an external IR receiver.
- IR OUT: 2-pin Phoenix connector used to send IR control signals to source devices.
- DC 24V Power Input: Connects the 24V/1A power supply. Supports PoC operation so only one side requires power.
- PoC ON/OFF Switch: Enables or disables Power over Cable functionality. When OFF, local power must be supplied directly to the transmitter.

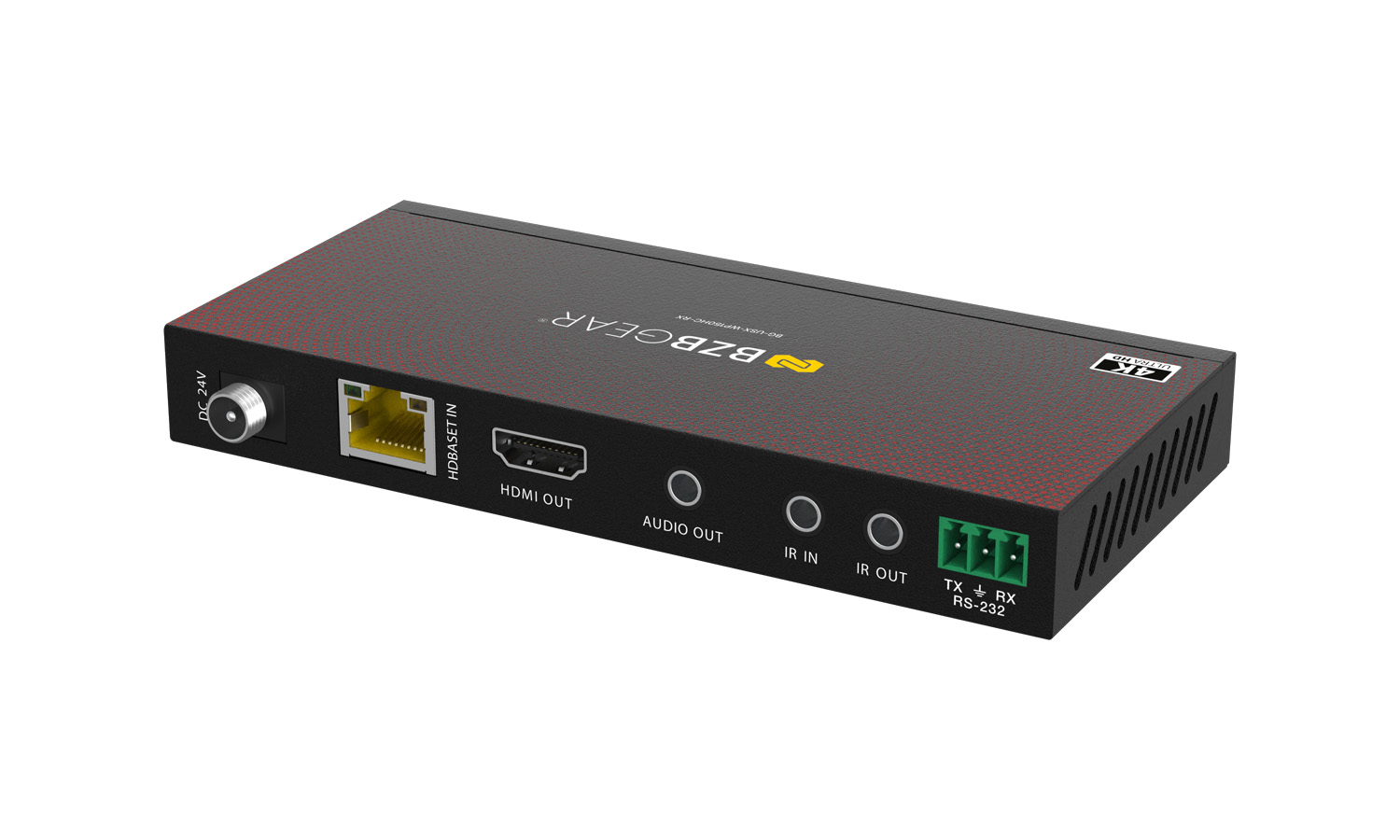

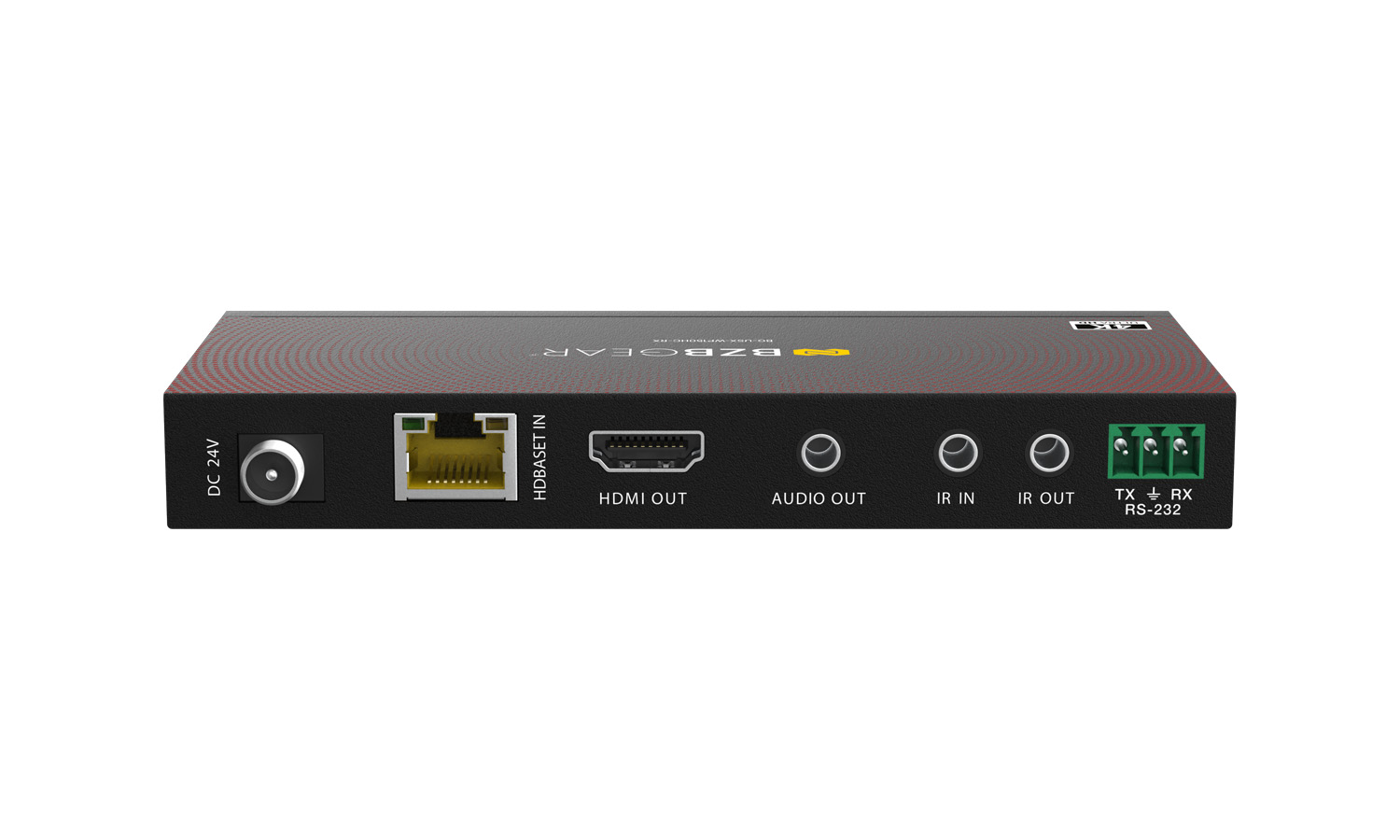

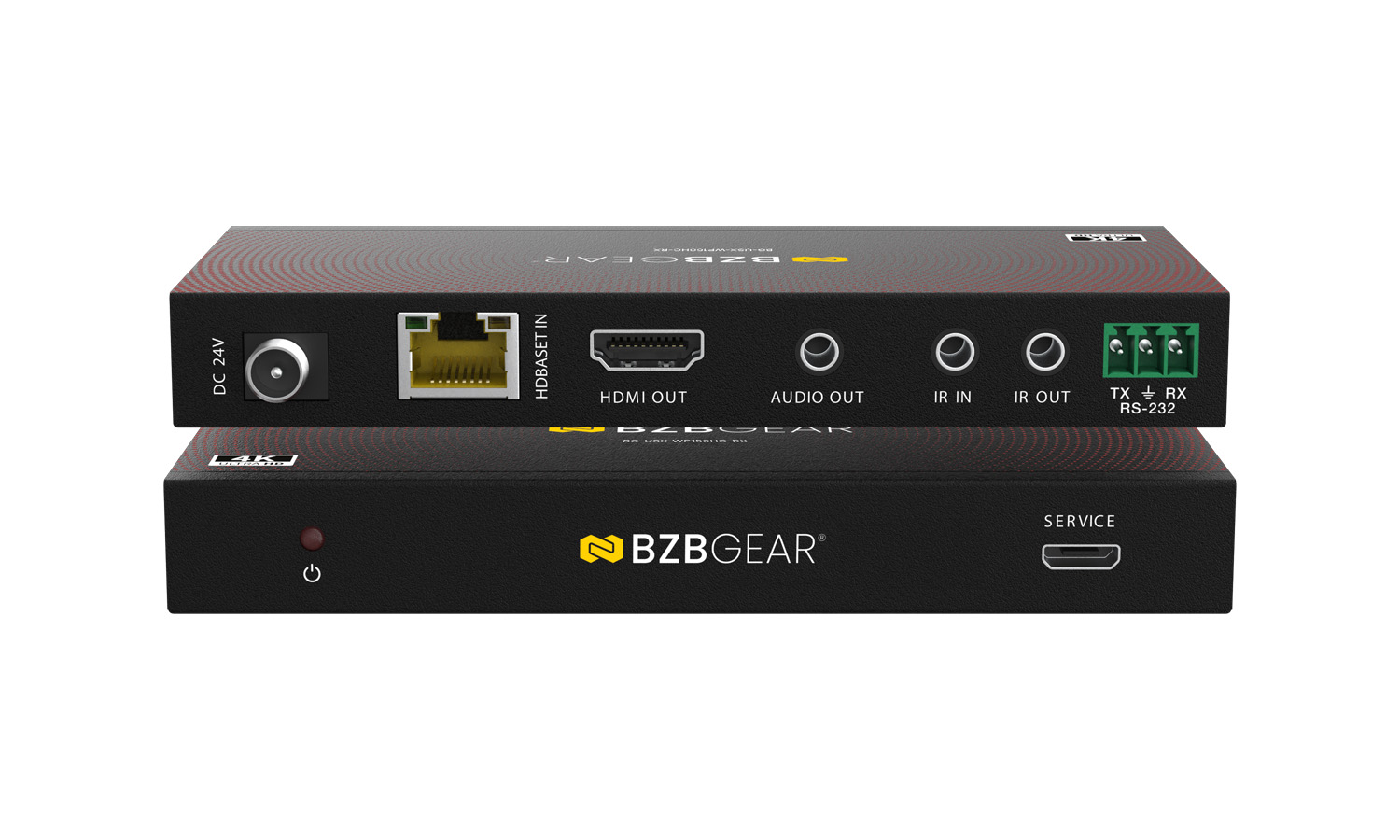

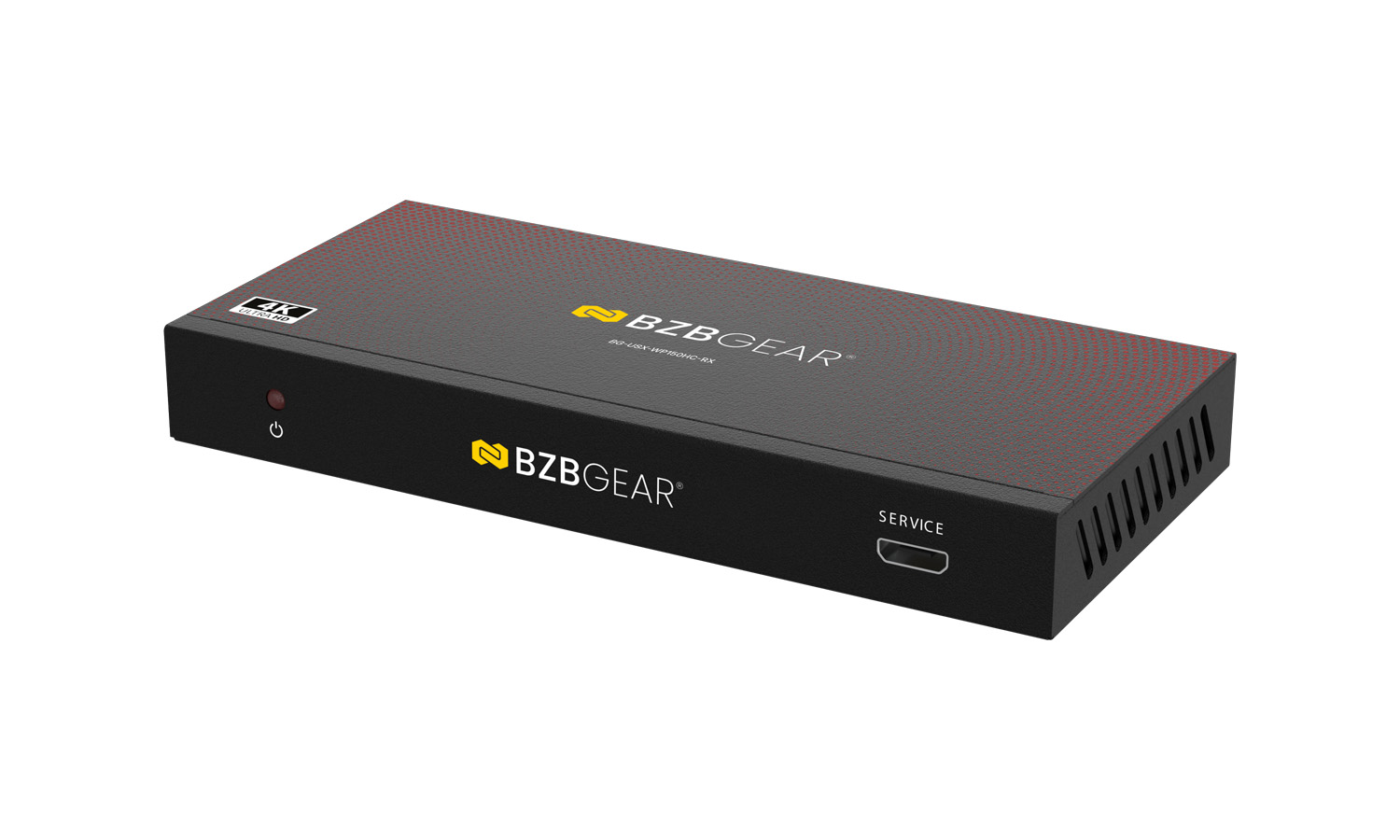

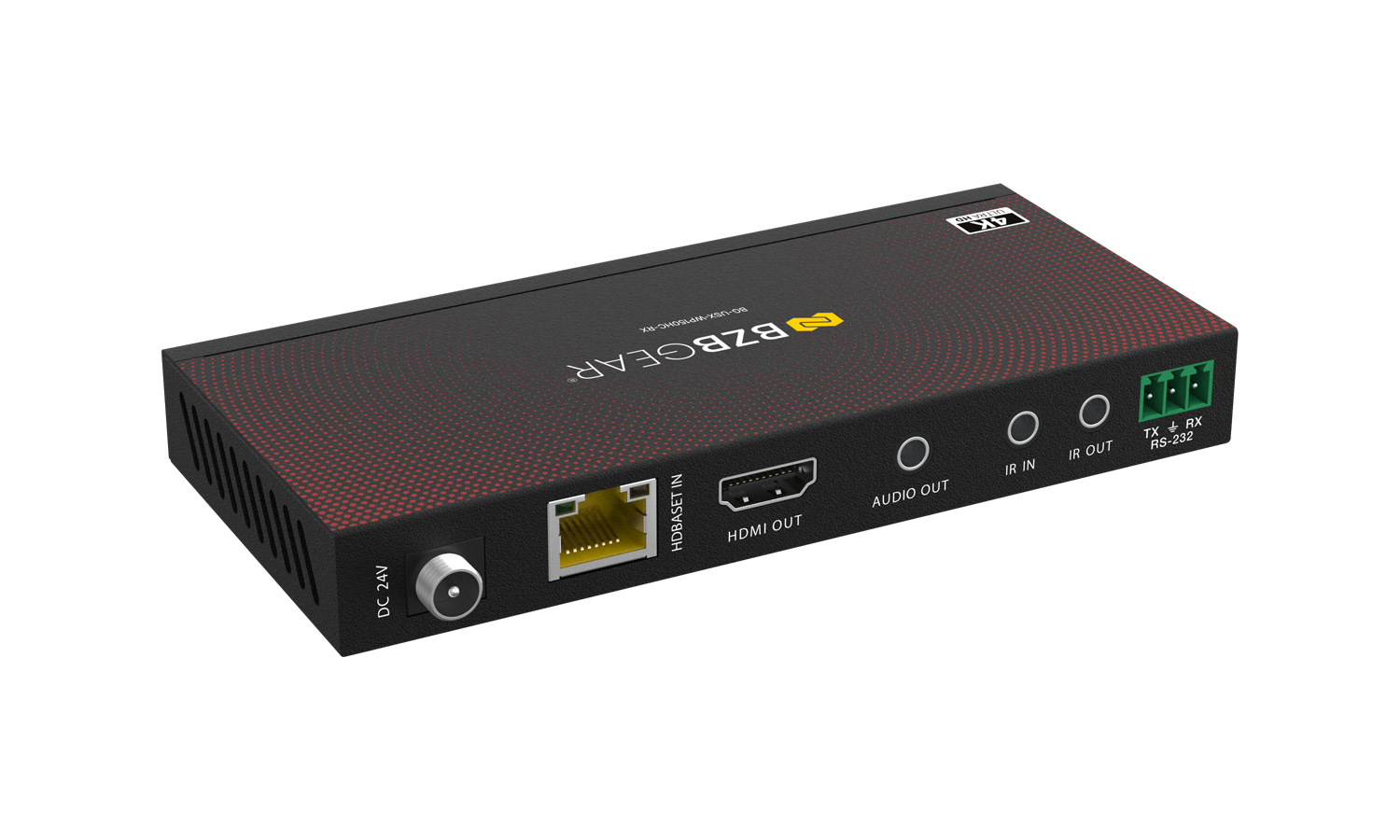

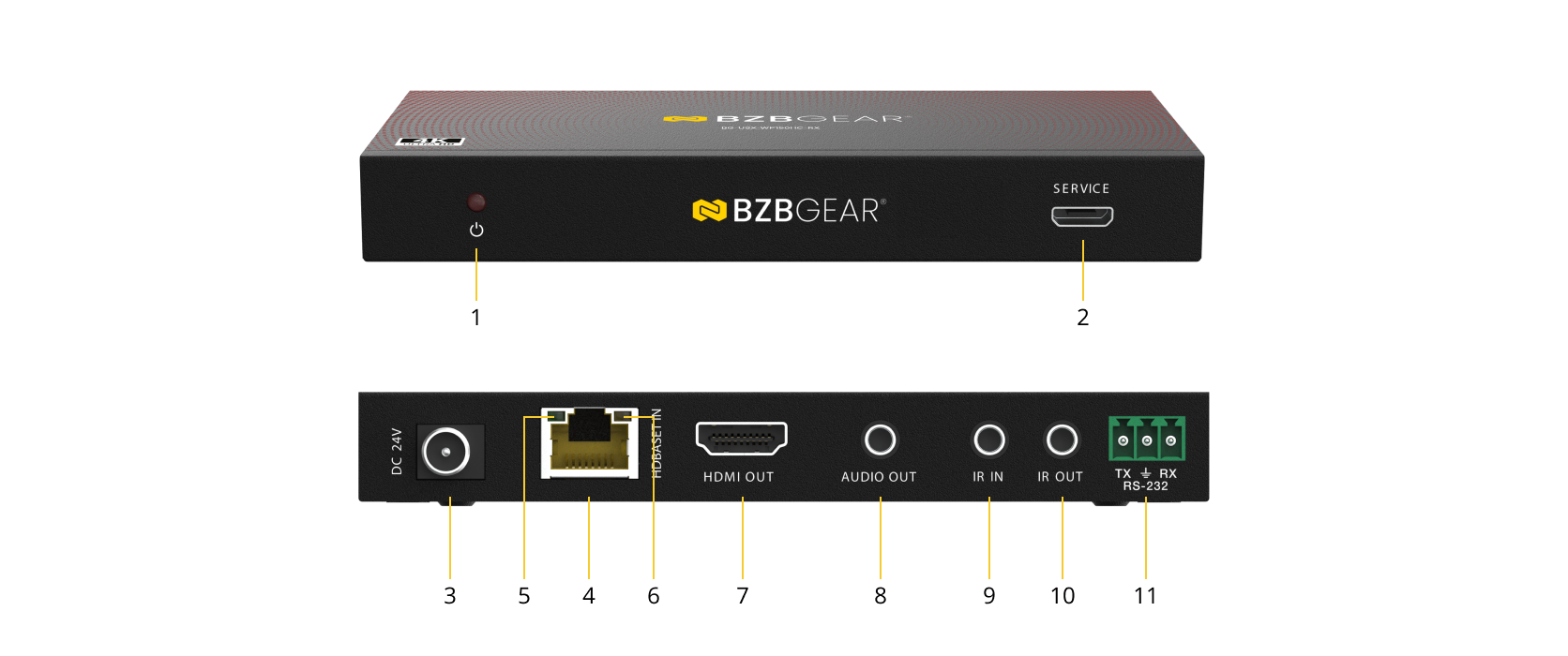

Receiver

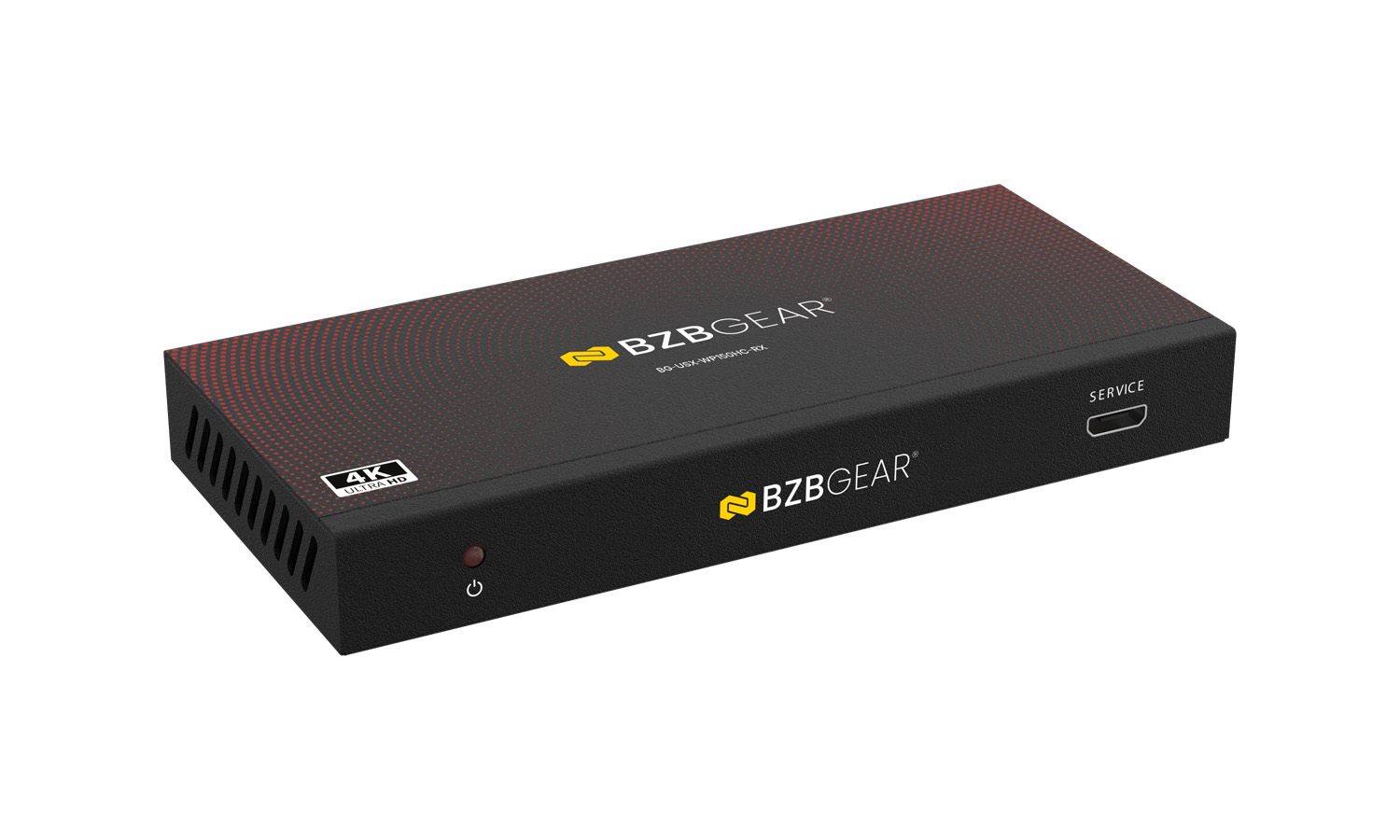

- Power LED: Red LED indicates the receiver is powered on.

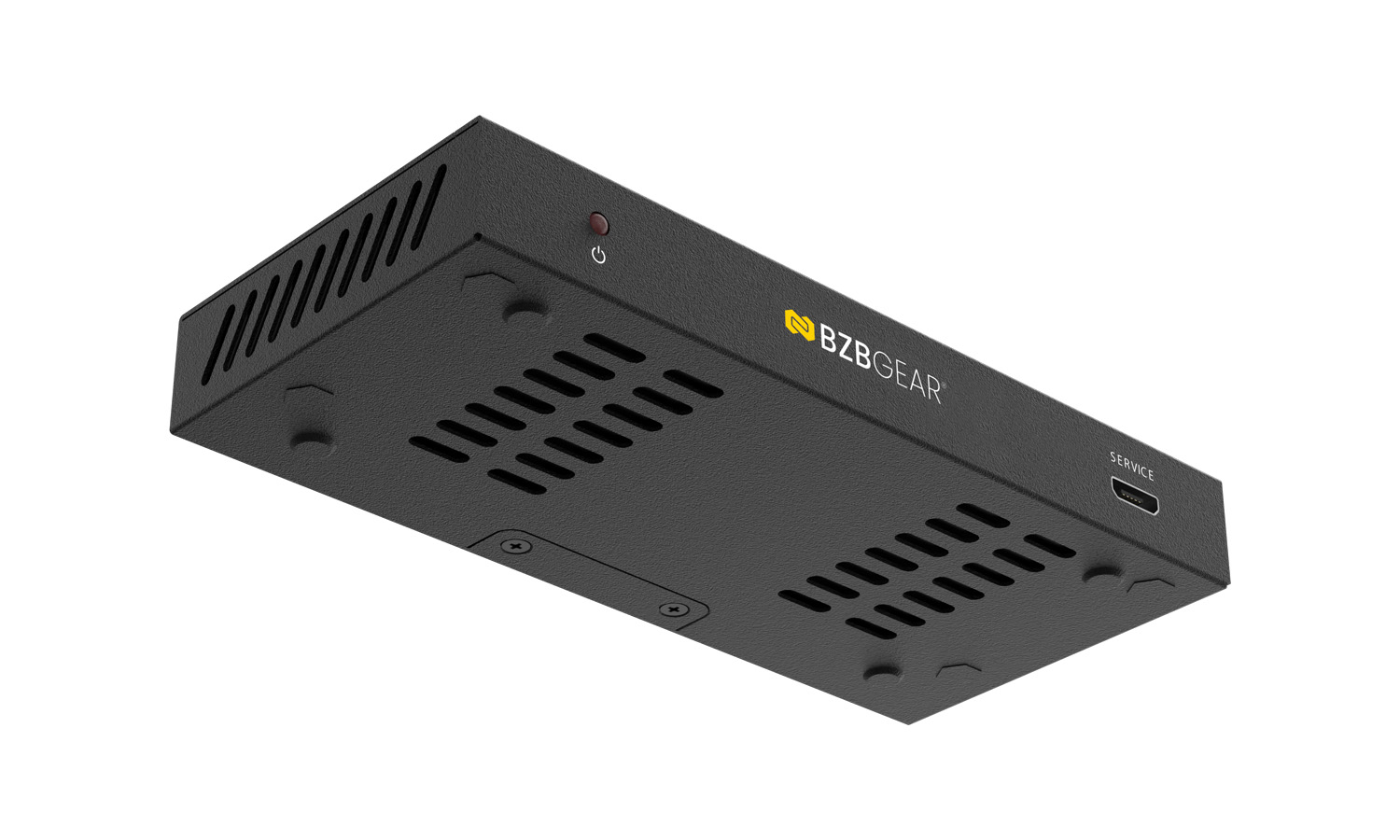

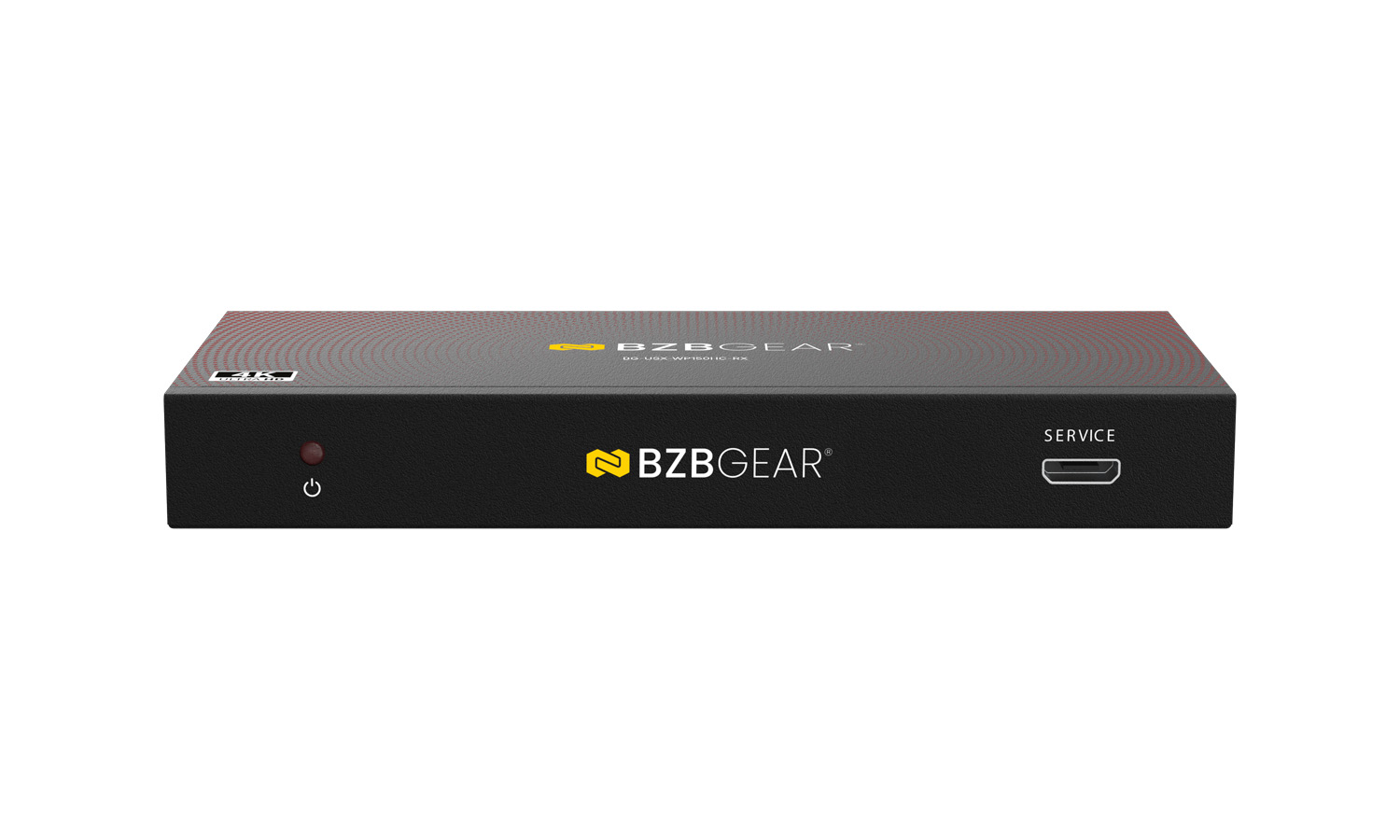

- SERVICE Port (Mini-USB): Used for firmware updates and service maintenance.
- DC 24V Power Input: Connects to the 24V/1A power supply. Required if PoC is not enabled.
- HDBaseT IN (RJ45): Receives AV, control, and power signals from the transmitter over CAT6/6A cable.
- Link Status LED:
● Solid ON: Stable connection between transmitter and receiver
● Flashing: Weak or unstable link
● OFF: No HDBaseT connection detected. - Video Signal LED:
● Solid ON: HDMI signal with HDCP detected
● Flashing: HDMI signal without HDCP
● OFF: No HDMI signal detected. - HDMI OUT: HDMI Type-A output port for connecting to display devices (supports up to 4K60).
- AUDIO OUT: 3.5mm stereo analog output for de-embedded audio from HDMI source.
- IR IN: 3.5mm jack for receiving IR signals from external IR receiver.
- IR OUT: 3.5mm jack for sending IR control signals to display devices.
- RS-232 Port: 3-pin Phoenix connector for serial control pass-through between transmitter and receiver.
