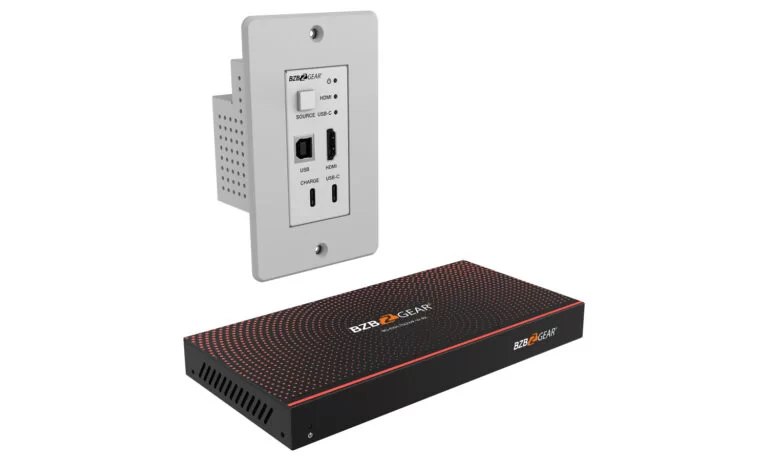

4K UHD 18Gbps HDBaseT HDMI/USB-C/KVM Wall Plate Transmitter & Receiver Kit up to 230ft
NEW
Configure the Perfect Solution
Get Started
Overview
Introducing the BG-EXH-70UWP-W 18Gbps HDBaseT 230ft Wall Plate Kit, an advanced solution for high-definition signal distribution and transmission. Featuring a USB-C/HDMI & KVM Function Wall Plate Transmitter and an HDBaseT to HDMI Receiver, this kit delivers unparalleled performance and versatility for professional AV installations.
Encased in a sleek US one-gang enclosure tailored for Decora-style wall plate openings, the transmitter serves as a 2x1 switcher and HDBaseT transmitter, supporting HDMI and USB-C inputs for seamless integration with a wide range of AV devices. With support for resolutions up to 4K@60Hz 4:4:4, this kit ensures exceptional visual fidelity and clarity. Moreover, the transmitter can be conveniently powered via Power Over Ethernet (POE) from the receiver or other HDBaseT-equipped devices, enhancing flexibility and ease of installation.
Transmitter Overview
The USB-C/HDMI & KVM Function Wall Plate Transmitter in the BG-EXH-70UWP-W kit embodies cutting-edge technology and versatility in signal transmission. Featuring HDMI and USB-C inputs, it offers compatibility with many modern AV devices, making it an ideal choice for diverse multimedia applications.
Enclosed within a sleek one-gang enclosure compatible with Decora-style wall plate openings, the transmitter allows for clean and stylish installations. With support for resolutions up to 4K@60Hz 4:4:4 and HDR10/HDR10+ formats, it delivers stunning visual performance and fidelity. Additionally, the transmitter offers USB 2.0 extension capabilities and a USB-C charging port, further enhancing its functionality and convenience in AV installations.
Receiver Overview
The HDBaseT to HDMI Receiver included in the BG-EXH-70UWP-W kit complements the transmitter's capabilities, ensuring seamless signal reception and distribution over extended distances. Designed for reliability and efficiency, the receiver efficiently captures signals from the transmitter via standard CAT6 cables, supporting resolutions up to 4K@60Hz for uncompromising visual clarity. Its compact yet robust design ensures durability and adaptability to various installation environments.
Equipped with HDMI output, analog audio output, and two USB ports for KVM function, the receiver offers versatile connectivity options and seamless integration with control systems. Additionally, the receiver features a firmware update port, ensuring future compatibility and enhancing the longevity of your AV infrastructure. Overall, the HDBaseT to HDMI Receiver delivers exceptional performance and reliability, making it an indispensable component of professional AV installations requiring high-definition signal distribution.
Features
-
Standards ComplianceCompliant with HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a (Adapter required for Display Port) -
Video ResolutionsCapable of displaying up to 4K@60Hz 4:4:4 -
Transmission DistanceExtends up to 230ft / 70m for 1080P or 131ft / 40m for 4K -
HDR SupportSupports HDR10 and HDR10+ -
Audio FormatsIncludes Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High-Resolution Audio, 5.1; PCM 2-8Ch -
Power Over EthernetSupports POE (Receiver to Transmitter)
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b, DisplayPort 1.2a (Adapter required for Display Port) |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDR | HDR10, HDR10+ |
| HDMI Audio Formats | Dolby Atmos,TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch |
| Transmission Distance | Max distance (1080p): 230ft / 70m over CAT6/6a/7 Max distance (4K): 131ft / 40m over CAT6/6a/7 |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x USB-C Outputs: 1x HDBaseT Out [RJ45, 8-pin female] 1x USB-C (only for charging) Control: 1x USB-B [Micro USB, Update port] |
| Receiver | Inputs: 1x HDMI IN [Type A, 19-pin female] 1x HDBaseT IN [RJ45, 8-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [Phoenix jack] Controls: 2x USB [USB A TYPE] 1x FW [Micro USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | White |
| Dimensions (W x D x H) |
Wall plate: 1.31in x 2.6in x 2.7in [33.3mm x 65.7mm x 68.7mm] Faceplate: 2.8in x 0.12in x 4.5in [69.9mm x 3mm x 114.3mm] Receiver: 7.9in x 3.9in x 0.91in [200mm x 98mm x 23mm] |
| Weight | Wall plate: 0.43 lbs [196g], Receiver: 1.1 lbs [511g] |
| Power Supply | POE (only from Receiver to Transmitter) |
| Power Consumption | Wall plate: 9W (Max), Receiver: 11W (Max) |
| OperatingTemperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Resources
Documents
PACKAGE CONTENTS
- 1x 18Gbps HDBaseT 70M with USB-C/HDMI & KVM Function Wall Plate Transmitter
- 1x HDbaseT to HDMI receiver
- 1x User Manual

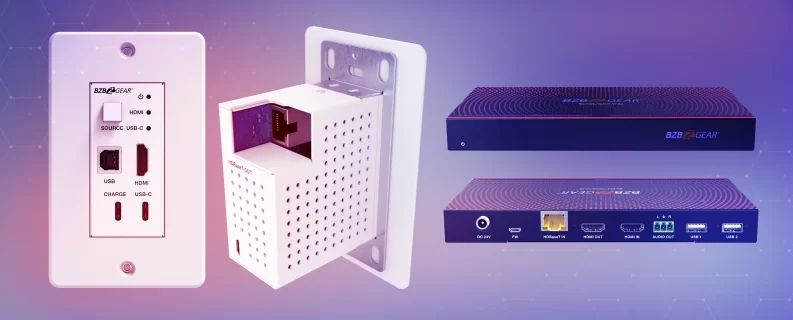

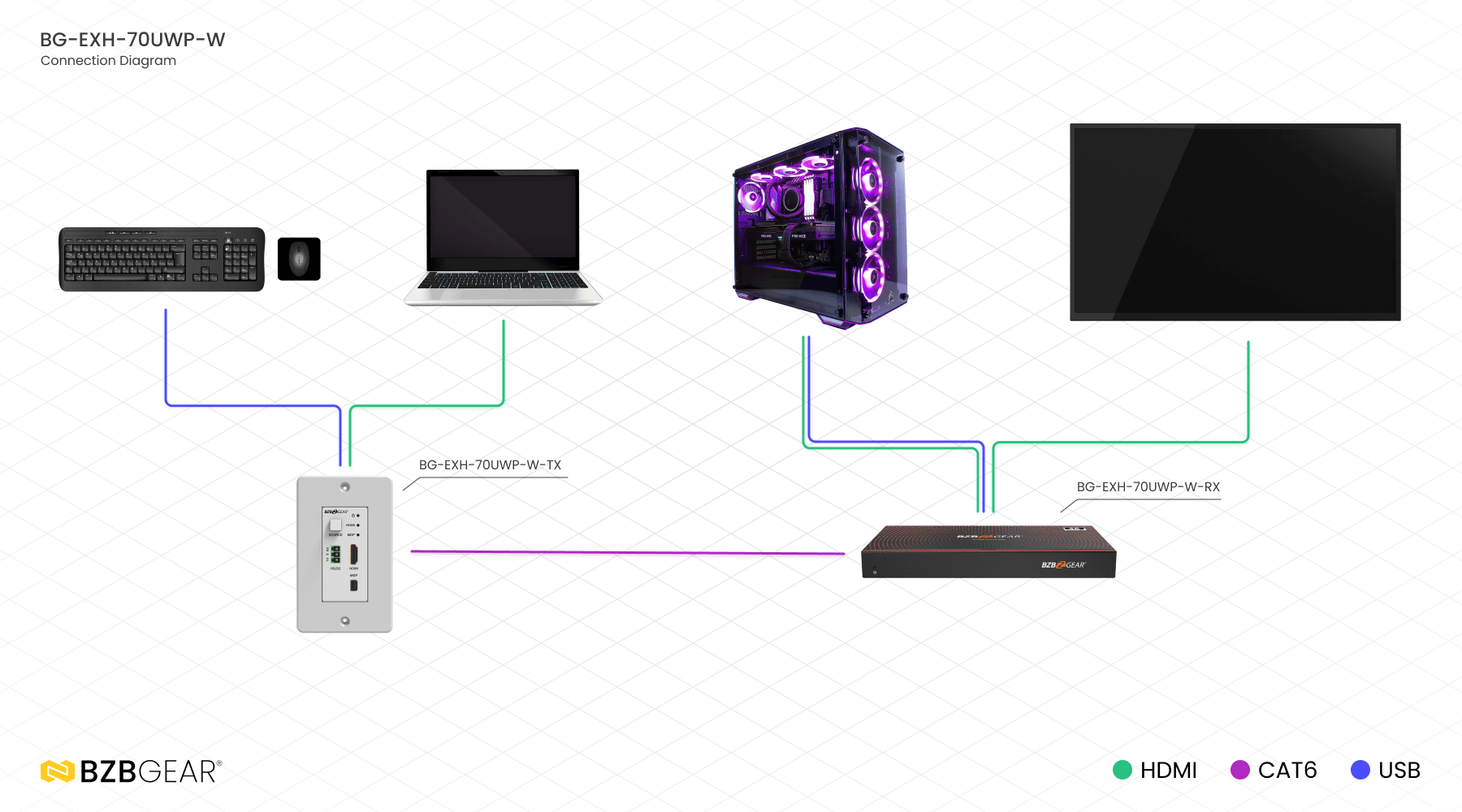

Interfaces
Transmitter
- Power LED: The power LED indicator will illuminate in green when the product is powered on, and red when the product is on standby.
- HDMI LED: When the HDMI input port is active and the HDMI signal is detected, the green LED will be on.
- USB-C LED: When the USB-C input port is active and USB-C signal is detected, the green LED will be on.
- HDMI port: HDMI input port, connect to HDMI source device.
- USB-C port: USB-C signal input port.
Charging port for devices with USB-C port. - CHARGE port: Connect this port to power supply, then the USB-C port will power the connected device.
- USB-B port: Connect to the computer’s USB port.
- SOURCE button: Used to switch HDMI / USB-C input signal.
- HDBaseT OUT: Connect to the HDBaseT IN port of Receiver with a CAT6/6a/7 cable.
- Micro-USB: Firmware update port.
Receiver
- Power LED: When the product is powered on, the red LED indicator will be on.
- DC 24V: DC 24V power supply port.
- FW: Firmware update port.
- HDBaseT IN: Connect to the HDBaseT OUT port of Transmitter with a CAT6/6a/7 cable.
- HDMI OUT: HDMI output port, connect to HDMI display device.
- HDMI IN: HDMI input port, connect to HDMI source device.
- AUDIO OUT: Analog audio output port.
- USB 1 port: USB port for KVM function.
- USB 2 port: USB port for KVM function.
