4K UHD 18Gbps HDMI Wall Plate Transmitter & Receiver Kit up to 230ft
NEW
Configure the Perfect Solution
Get Started
Overview

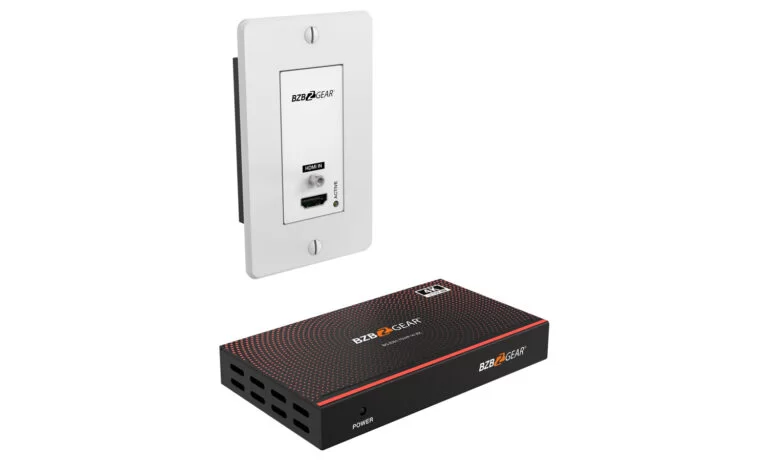

Introducing the BG-EXH-70WP-W HDBaseT Wall Plate Kit, featuring a sophisticated HDBaseT Wall-plate Transmitter and an HDBaseT to HDMI Receiver, designed to elevate your AV experience with seamless signal transmission and exceptional performance.
The transmitter boasts HDMI 2.0b compliance and HDCP 2.2 compatibility, ensuring seamless connectivity and support for high-definition content. With support for resolutions up to 4K2K@60Hz (4:4:4), 4K2K@30Hz, and 1080p@120Hz, it delivers stunning visual clarity and fidelity, making it perfect for a wide range of applications.
Transmitter Overview
The HDBaseT Wall-plate Transmitter in the BG-EXH-70WP-W kit represents the pinnacle of signal transmission technology, offering unparalleled performance and versatility. With HDMI input and HDBaseT output ports, it seamlessly integrates with your existing AV setup, extending video transmission distances of up to 230ft/70m for 1080p resolution and 130ft/40m for 4K resolution over a single CAT6/6a/7 cable.
Additionally, it features Power over Cable (PoC) functionality, eliminating the need for separate power sources and enhancing installation flexibility. Moreover, with support for two-way IR and RS-232 communication, it provides comprehensive control options for seamless integration into your AV system.
Receiver Overview
The HDBaseT to HDMI Receiver included in the BG-EXH-70WP-W kit complements the transmitter's capabilities, ensuring reliable signal reception and seamless integration into your AV setup. Featuring HDBaseT input and HDMI output ports, it effortlessly captures and delivers high-definition content to your display device.
Equipped with indicators for link and data signal status, it provides real-time feedback on connection status for hassle-free operation. With support for DC 24V power input and comprehensive control options including IR and RS-232 ports, it offers versatile connectivity and control options for seamless integration into your AV system. Overall, the receiver delivers exceptional performance and reliability, making it an indispensable component of your AV setup.
Features
-
Standards CompliantSupports HDMI 2.0b with a bandwidth of 18Gbps and complies with HDCP 2.2 standards -
High-Resolution SupportAccommodates resolutions up to 4K2K@60Hz (4:4:4), 4K2K@30Hz, and 1080p@120Hz -
Audio CapabilityCapable of transmitting up to 7.1 channels of HD audio -
Transmission TechnologyUtilizes HDBaseT™ technology over a single CAT 6/6a/7 cable, extending signals up to 230ft/70m -
Control FeaturesSupports two-way IR and RS-232 communication for enhanced control capabilities -
Power ManagementIncorporates POC (Power Over Cable) function, where either the transmitter (TX) or receiver (RX) is powered by a 24V1A power supply, reducing reliance on additional power sources. POC power consumption is less than 10W
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 1.4 and HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz |
| Color Space | RGB/YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit |
| HDMI Audio Formats | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Optical Audio Formats | LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH |
| ESD Protection | Human body model—±8kV (Air-gap discharge) & ±4kV(Contact discharge) |
| Connections | |
| Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x IR INPUT [Phoenix jack] 1x RS-232 [Phoenix jack] Outputs: 1x HDBaseT OUT [RJ45] 1x IR OUTPUT [Phoenix jack] 1x RS-232 [Phoenix jack] |
| Receiver | Input: 1x HDBaseT IN [RJ45, 8-pin female] Output: 1x HDMI OUT [Type A, 19-pin female] Controls: 1x IR in, 1x IR out, 1x RS-232 serial port |
| Mechanical | |
| Housing | Plastic-Front Panel, Metal-Rear Case |
| Color | White-Front Panel, Black-Rear Case |
| Dimensions (W x D x H) | Wall plate: 4.1in x 1.8in x 1.2in [103.5mm x 46mm x 30mm] Receiver: 4.6in x 2.6in x 0.71in [117mm x 66mm x 18mm] |
| Weight | Wall plate: 5.75 oz [163g], Receiver: 7.1 oz [201g] |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 9W (Max) |
| OperatingTemperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Resources
Documents
PACKAGE CONTENTS
- 1x 18Gbps HDMI Wall Plate Transmitter
- 1x HDBaseT to HDMI receiver
- 2x Phoenix connectors (3 pins)
- 2x Phoenix connectors (2 pins)
- 1x User Manual

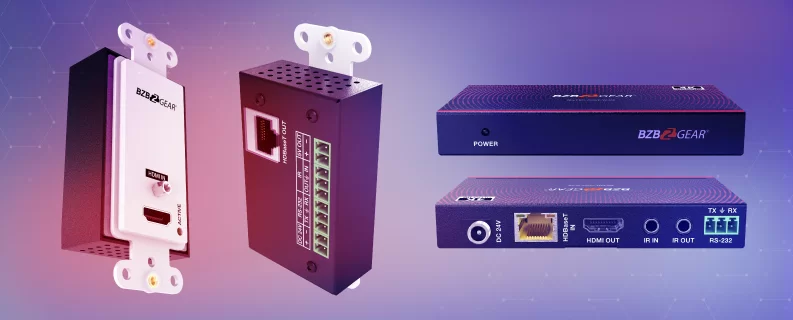

Interfaces
Transmitter
- HDMI IN port: HDMI signal input port, connected to HDMI source device, such as Blu-ray or PS4 player.
- ACTIVE LED: When there is signal input, the green LED lights on.

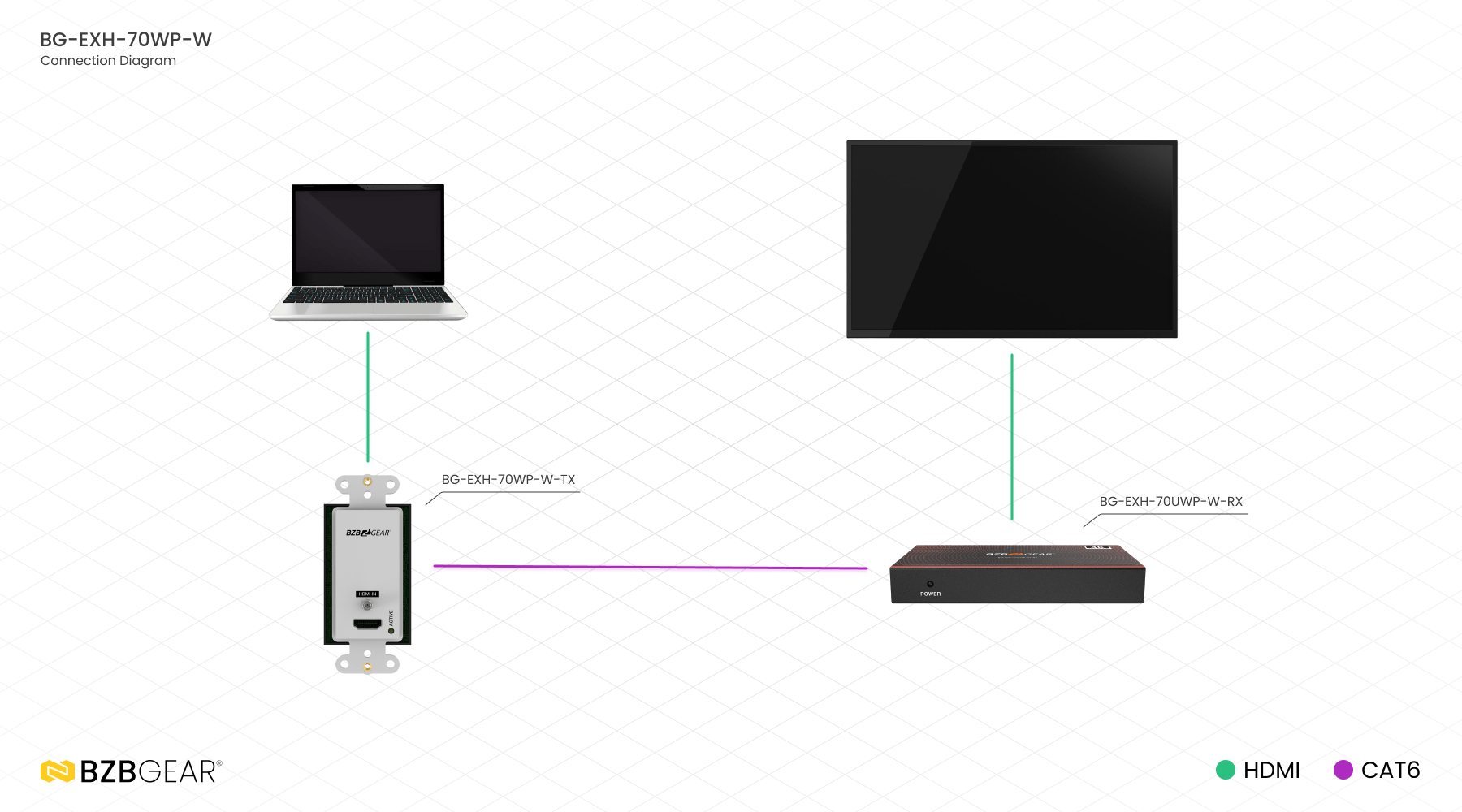

- DBaseT OUT: HDBaseT output port, connected to the HDBaseT IN port of Receiver with a CAT6/6a/7 cable.
- 5V OUT: Supply 5V power for external IR receiver.
- IR IN/OUT: Use the phoenix jack for connect IR input or output.
- RS-232: RS-232 serial port, connected to PC or control system for RS-232 control commands transmission.
- DC 24V: Use the phoenix jack for connect power supply.
Receiver
- POWER LED: When the product is powered on, the POWER LED will light on.
- DC 24V port: DC 24V power supply input port.
- HDBaseT IN port: HDBaseT input port, connected to the HDBaseT OUT port of Transmitter with a CAT6/6a/7 cable.
- Link Signal Indicator (Green):
Light on:Transmitter and Receiver are in good connection status.
Light flashing: Transmitter and Receiver are in poor connection status.
Light off: Transmitter and Receiver are not connected. - Data Signal Indicator (Yellow):
Light on: There is HDMI signal transmission with HDCP encryption.
Light flashing: There is HDMI signal transmission without HDCP encryption.
Light off: There is no HDMI signal transmission. - HDMI OUT port: HDMI signal output port, connected to HDMI display device, such as TV or monitor.
- IR IN: IR signal input port, connected with IR Receiver cable.
- IR OUT: IR signal output port, connected with IR Blaster cable.
- RS-232: RS-232 serial port, connected to PC or control system for RS-232 control commands transmission.
