8x8 4K UHD 18Gbps HDMI and HDBaseT Matrix Switch with Bi-directional IR/Advance EDID and Downscaling

ProGear
Control App Included!
Control App Included!
Click here to learn more about free BZBGEAR Control Applications
Configure the Perfect Solution
Get Started

Overview

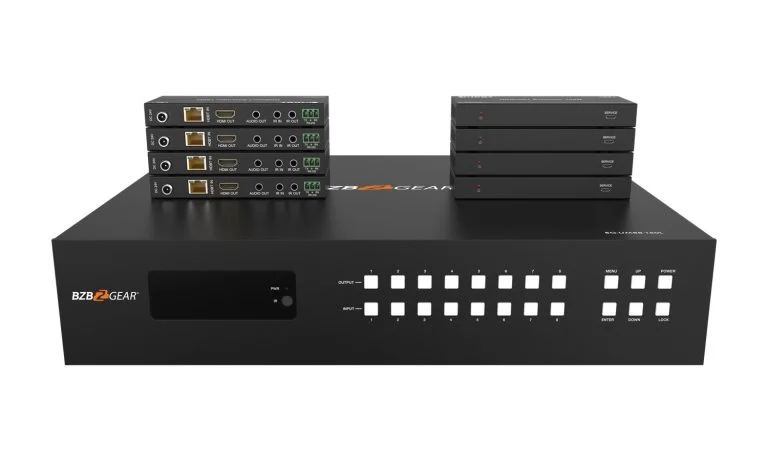

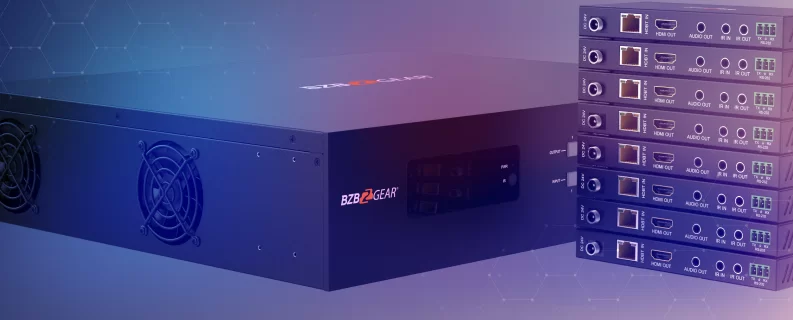

Introducing BG-UM88-150L-KIT HDMI Matrix Switcher and Extender - a powerful device that lets you easily connect up to eight HDMI sources to 16 displays! With eight HDMI outputs mirrored to four HDBaseT outputs, the extender allows you to transmit video signals over longer distances than a standard HDMI cable. For instance, with 1080p resolution, the signal can travel up to 492ft / 150m, and 394ft / 120m at 4K, giving you plenty of flexibility when it comes to your setup.

This matrix is packed with features that ensure an exceptional viewing experience. It supports a maximum resolution of 4K@60Hz (YUV 4:4:4) on all HDMI and HDBaseT ports and has a maximum bandwidth of 18Gbps, guaranteeing a pure signal transfer for maximum image quality. The device also utilizes HDMI 2.0b and HDCP 2.2 / HDCP 1.x compliant.

In addition to these features, this HDMI Matrix Switcher allows you to downscale video from 4K to 1080p if needed for each output port. It supports power over cable on all HDBaseT ports, eliminating the need for an external power supply at the HDBaseT receiver.

The device's HDMI audio pass-through capability enables you to handle high-quality sound up to 7.1 CH HD audio. With support for various audio codecs, including LPCM, Dolby TrueHD, and DTS-HD Master Audio, you can rest assured that your audio will be as crisp and clear as your video. You can even de-embed audio from the unit via analog and digital coax ports to use with external audio systems.

The BG-UM88-150L-KIT offers a range of control options to make your life easier. It can be controlled via buttons on the front panel, an IR remote, RS-232, LAN, web GUI, and our free BG-Switch-Control iOS/Android/PC/MAC application. The device also supports advanced EDID management and CEC control, ensuring seamless integration with your existing setup. Bi-directional IR matrix routing is also supported, making it simple to remote control the currently selected video source, as well as the displays from the source location. Say goodbye to messy cords and complicated setups, and hello to a powerful, versatile, and easy-to-use BG-UM88-150L-KIT!

Features

  • bi_badge-4k
    Stunning Image Quality
    Supports resolutions up to 4K@60Hz 4:4:4
  • material-symbols_shield-lock-outline
    HDCP 2.2
    High-Bandwidth Digital Content Protection Supported
  • Monitor
    8x8 Video Matrix
    View Any Source on Any Display
  • Wide-Angle 2
    HDBaseT
    Extend 4K signals up to 394 feet (120m)
  • fluent_zoom-fit-24-filled
    Multiple Control Options
    Front panel buttons, RS232, IR, CEC, IP, and Web GUI
  • HDR
    HDR
    Dolby Vision, HDR10+, and HLG support
  • 8 HDMI inputs, 8 HDMI & HDBaseT mirrored outputs
  • Support 4K->1080P Down Scaler for each output port
  • HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
  • Support IR matrix
  • Audio de-embedded is supported via analog and coax ports
  • 24V PoC on all HDBaseT ports
Software background image

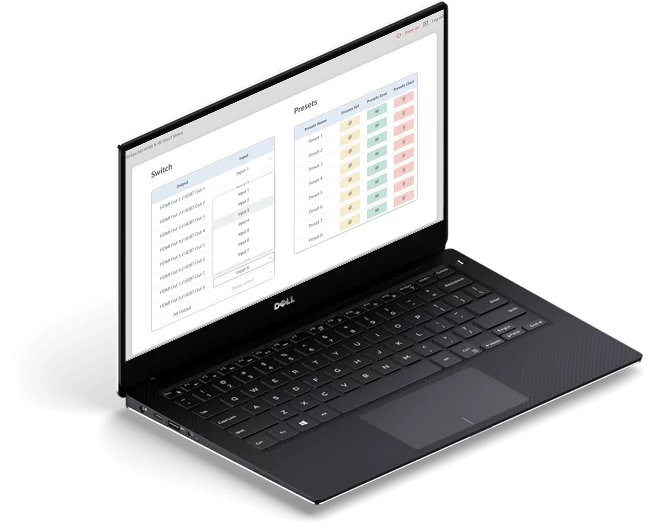

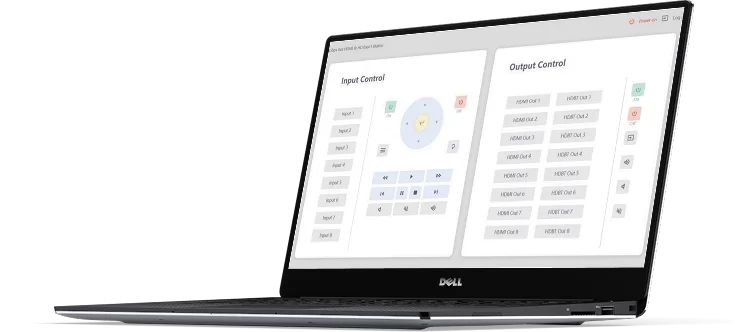

Effortlessly control and
manage your video system
with our user-friendly app!

Available on Windows, macOS, iOS, and Android

Videos

How to Use The NEW BZBGEAR Switcher Control App for AVoIP, Matrix, & Video Wall
How to Use The NEW BZBGEAR Switcher Control App for AVoIP, Matrix, & Video Wall
BZBGEAR Switcher Control App: Streamlined Matrix, Video Wall, Multiviewer & AVoIP Manager
BZBGEAR Switcher Control App: Streamlined Matrix, Video Wall, Multiviewer & AVoIP Manager
The Best Long-range HDBaseT & HDMI Matrix Switcher Kits In The Market
The Best Long-range HDBaseT & HDMI Matrix Switcher Kits In The Market
Long-Range 4K Matrix Switcher Ensures Distance & Clear Picture Quality | BG-UM88-150L-KIT
Long-Range 4K Matrix Switcher Ensures Distance & Clear Picture Quality | BG-UM88-150L-KIT
Our New 8x8 Matrix Switcher - BG-UM88-150L-KIT
Our New 8x8 Matrix Switcher - BG-UM88-150L-KIT

Tech Specifications

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 and HDCP 1.x
Video Bandwidth 18Gbps
Video Resolution Up to 4K2K@50/60Hz (4:4:4)
Color Space RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth 8-bit, 10-bit, 12-bit (1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
HDR HDR10, HDR10+, Dolby Vision, HLG
HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Coax Audio Formats PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog Balanced
Audio Formats
PCM 2.0CH
Vmax 2Vrms
SNR >90dB
THD+N Ratio <0.1%(V_max) 0.001%~0.01%(V_best)
Crosstalk >80dB
Frequency Response 20Hz~20kHz ±0.5dB
ESD Protection Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge)

Connection

Matrix Input:
8 x HDMI Type A [19-pin female]
Outputs:
8 x HDMI Type A [19-pin female]
8 x HDBaseT port [RJ45]
8 x Coaxial audio [3.5mm Stereo Mini-jack]
8 x balanced analog audio [5-pin Phoenix connector]
Controls:
9 x IR IN [3.5mm Stereo Mini-jack]
9 x IR OUT [3.5mm Stereo Mini-jack]
1 x TCP/IP [RJ45]
1 x RS-232 [D-Sub 9]
HDBaseT Receiver Input:
1 x HDBT IN [RJ45, 8-pin female]
Outputs:
1 x HDMI Type A [19-pin female]
1 x AUDIO OUT [3.5mm Stereo Mini-jack]
Controls:
1 x IR IN [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3-pin Phoenix connector]
1 x SERVICE [Mini-USB, Update port]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Matrix: 17.3” (W) x 14.7" (D) x 3.5" (H) [440mm (W) x 374mm (D) x 88.6mm (H)]
Receiver: 5.5" (W) x 2.6" (D) x 0.7" (H) [140mm (W) x 65mm (D) x 18mm (H)]
Weight Matrix: 14.4lbs [6.54Kg], Receiver: 0.34lbs [155g]
Power Supply AC 100 - 240V 50/60Hz
Power Consumption 125W (Max)
Operating Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity 20~90% RH (non-condensing)
Resolution / Distance 4K60 - Feet / Meters
CAT5e/6/7 492ft / 150M
Resolution / Cable length 4K60 - Feet / Meters 4K30 - Feet / Meters 1080P60 - Feet / Meters
HDMI IN / OUT 16ft / 5M 32ft / 10M 50ft / 15M
The use of “Premium High Speed HDMI” cable is highly recommended.

PACKAGE CONTENTS

  • 1 x 18Gbps 8x8 HDBaseT(150M) Matrix
  • 8 x HDBaseT Receiver
  • 1 x Matrix IR Remote
  • 1 x 100~240V AC 50/60Hz Power cable
  • 1 x RS-232 serial cable (1.5 meters, male to female head)
  • 8 x 3-pin Phoenix Connector & 8 x 5-pin Phoenix Connector
  • 9 x IR Blaster cable (1.5 meters)
  • 9 x IR Receiver cable (1.5 meters)
  • 18 x Mounting Ear (Matrix and Receiver)
  • 1 x User Manual

Interfaces

Interfaces image
  1. OLED screen: Display matrix switching status, input / output port, EDID, Baud rate, IP Address.
  2. Power LED: The LED will illuminate in green when the product is working normally, and red when the product is on standby.
  3. OUTPUT / INPUT buttons: Press an output button (1-8) first and then press an input button (1-8) to select the corresponding input source for the output port.
  4. MENU / ENTER / UP /DOWN: Use the menu to adjust EDID Settings, Baud rate settings, IP Address Check.
  5. POWER button: Press and hold the POWER button for 3 seconds to enter the standby mode, then press the button again to wake up the device.
  6. IR Window: IR receiver window, it only receives the IR remote signal from this product.
  7. LOCK button: Press the LOCK button to lock front panel buttons (Except the power button); Press the button again to unlock.
  8. IR IN (1-8 / ALL) ports: Connect to the IR receiver cable, the IR receive signal will emit to the “IR OUT” port of the HDBaseT Receiver.
  9. IR OUT (1-8 / ALL) ports: Connect to IR blaster cable, the IR emit signal is from the “IR IN” port of the HDBaseT Receiver.
  10. AUDIO OUT (1-8) ports: 8 groups of coaxial and balanced analog audio mirrored output ports. AUDIO OUT (1-8) follows the video output of OUTPUT (1-8) ports.
  11. CONTROL ports: TCP/IP: The link port for TCP/IP control. Connect to an active Ethernet link with an RJ45 cable.
    RS-232: Command control port. Connect to a PC or control system with a D-Sub 9-pin cable to control the Matrix.
  12. GND: Connect the housing to the ground.
  13. POWER input: Power port: Connect to 100~240V AC 50/60Hz power cable.
    Power switch: Press the switch to turn on/off the power.
  14. OUTPUT (1-8) ports: HDMI output ports, connect to HDMI display devices such as TVs or monitors with HDMI cables.
    HDBT mirrored output ports, connect to HDBaseT Receiver via CAT cable.
  15. INPUT (1-8) ports: HDMI input ports, connect to HDMI source device with an HDMI cable.
Interfaces image
  1. Power LED: Red LED will be on when the receiver is powered on.
  2. SERVICE port: Firmware update port.
  3. DC 24V: DC 24V/1A power supply input port.
    Note: The Matrix supports POC function.
  4. HDBT IN: RJ45 connector for connecting the HDBT OUTPUT port of Matrix with a CAT cable.
  5. Connection Signal Indicator lamp: Solid: Matrix and Receiver are in good connection status.
    Flashing: Matrix and Receiver are in poor connection status.
    Dark: Matrix and Receiver are not connected.
  6. Data Signal Indicator: Solid: HDMI signal with HDCP.
    Flashing: HDMI signal without HDCP.
    Dark: No HDMI signal.
  7. HDMI OUT: HDMI output port, connect to HDMI display device such as TV or monitor with HDMI cable.
  8. AUDIO OUT: Analog audio output port. The audio is extracted from the HDMI signal.
  9. IR IN: Connect to the IR receiver cable, the IR receive signal will emit to the “IR OUT” port of the Matrix.
  10. IR OUT: Connect to IR blaster cable, the IR emit signal is from the “IR IN” port of the Matrix.
  11. RS-232: Connect to a PC or control system with a 3-pin phoenix connector cable to transmit commands between the Matrix and the HDBaseT Receiver.
