1x10 4K UHD HDMI/USB-C Switcher and Video Wall Controller with Scaling/Rotation/Bezel Adjustment/RS-232 and Audio De-Embedding
and engineering support
Overview

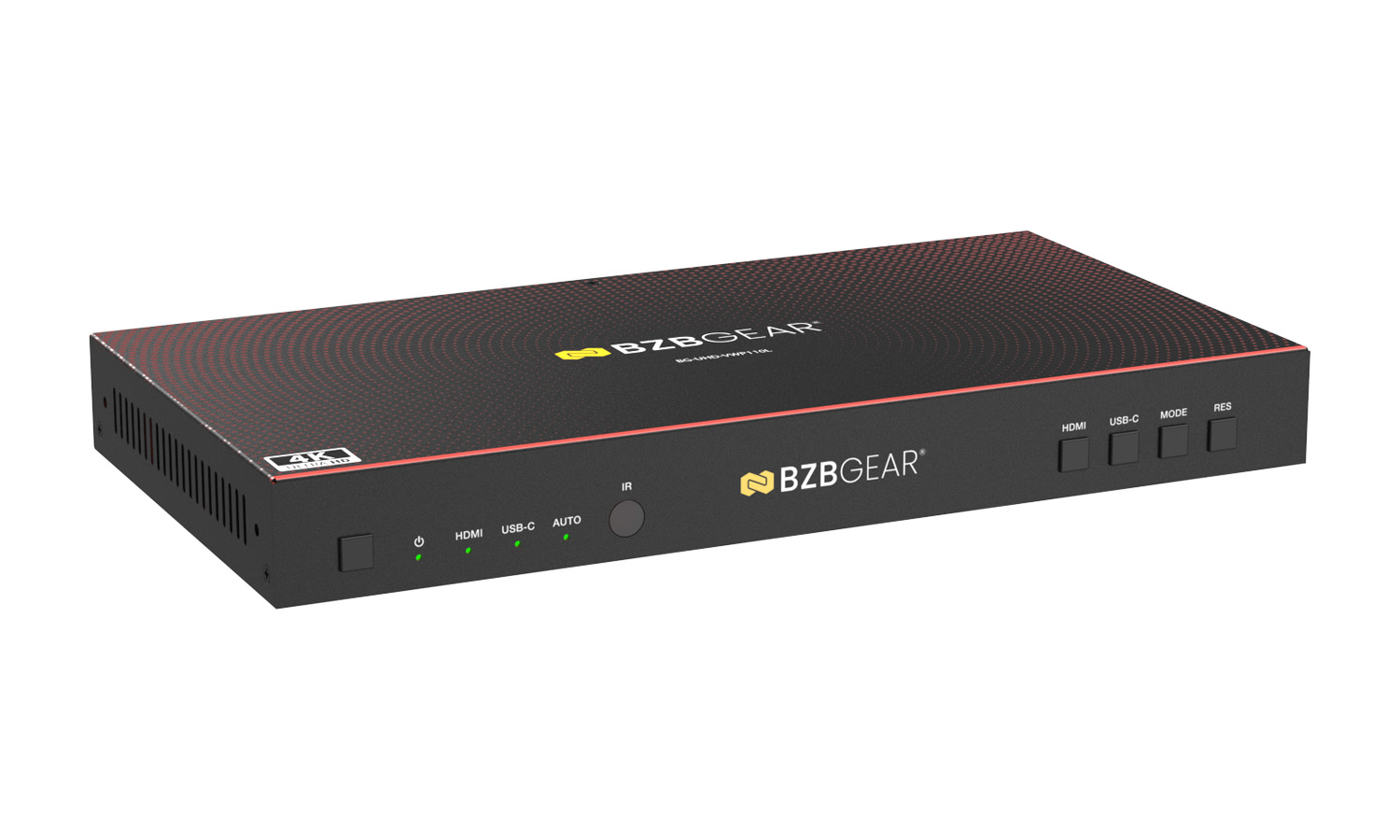

The BG-UHD-VWP110L is a professional 4K60 video wall controller designed to distribute a single HDMI or USB-C source across up to ten HDMI displays with exceptional image quality and flexible layout options. Supporting resolutions up to 4K@60Hz 4:4:4 with full 18Gbps bandwidth, HDMI 2.0b, and HDCP 2.2 compliance, it delivers reliable Ultra HD content for digital signage, command centers, retail environments, corporate spaces, and other professional AV applications.
Built for versatile video wall deployments, the BG-UHD-VWP110L supports multiple predefined wall configurations, image rotation, bezel compensation, advanced EDID management, and audio de-embedding. Combined with front-panel, IR, and RS-232 control, it provides a powerful yet easy-to-deploy solution for creating impressive multi-display video walls without requiring external software.
Features in Depth
The BG-UHD-VWP110L is engineered to simplify professional video wall installations while maintaining exceptional image quality. It accepts both HDMI and USB-C input sources at resolutions up to 4K@60Hz 4:4:4 and distributes the signal across ten HDMI outputs for large-scale display arrays. With support for the full 18Gbps HDMI 2.0b bandwidth and HDCP 2.2 compliance, the controller ensures compatibility with modern 4K sources while preserving protected content throughout the distribution path.
Designed for maximum installation flexibility, the controller supports 15 predefined video wall layouts, including common configurations such as 2x2, 3x3, 5x2, 4x1, 1x4, and additional custom arrangements ranging from 1x1 through 5x2. Individual output image rotation (0° or 180°) accommodates portrait and inverted display installations, while bezel compensation minimizes visible gaps between displays to create a more seamless viewing experience. Advanced EDID management further enhances compatibility between source devices and connected displays for reliable signal negotiation.
The BG-UHD-VWP110L integrates easily into professional AV systems through multiple control options including front-panel controls, the included IR remote, and RS-232 serial commands for third-party automation systems. Optical (S/PDIF) and analog stereo audio de-embedding allow integration with external audio systems without additional hardware. Built for continuous operation with robust signal integrity and ESD protection, the BG-UHD-VWP110L is an ideal solution for digital signage, corporate lobbies, retail displays, control rooms, hospitality venues, museums, and educational facilities.
Features
-
![bi_badge-4k]()
4K60 Video WallSupports 4K@60Hz 4:4:4 video with full 18Gbps bandwidth for outstanding Ultra HD image quality -
![bi_hdmi]()
1x10 HDMI DistributionRoutes a single HDMI or USB-C source to ten HDMI outputs for professional multi-display video wall installations -
![video-wall2-icon]()
Flexible Video WallsSupports 15 predefined video wall configurations, including 2x2, 3x3, 5x2, 4x1, and more to accommodate a variety of display arrangements -
![bi_display]()
Professional Display OptimizationFeatures bezel compensation, per-output image rotation, and advanced EDID management for seamless installation and reliable performance -
![Four Control Modes]()
Multiple Control InterfacesSupports front-panel operation, IR remote control, and RS-232 serial commands for standalone or integrated system control -
![Audio Formats]()
Audio De-EmbeddingExtracts audio through both optical (S/PDIF) and analog stereo outputs for connection to external sound systems
- HDMI 2.0b and HDCP 2.2 compliant for compatibility with protected 4K content
- Dual HDMI and USB-C inputs provide flexible source connectivity
- Supports resolutions up to 4K@60Hz 4:4:4 with full color fidelity
- Individual output image rotation supports 0° and 180° orientations
- Advanced EDID management improves compatibility between sources and displays
- Plug-and-play operation with no software or driver installation required
- Designed for reliable 24/7 operation in professional AV environments
- Robust ESD protection enhances long-term system reliability
- Includes IR remote and external IR receiver for convenient operation
- Rack and wall mounting hardware included for flexible installation

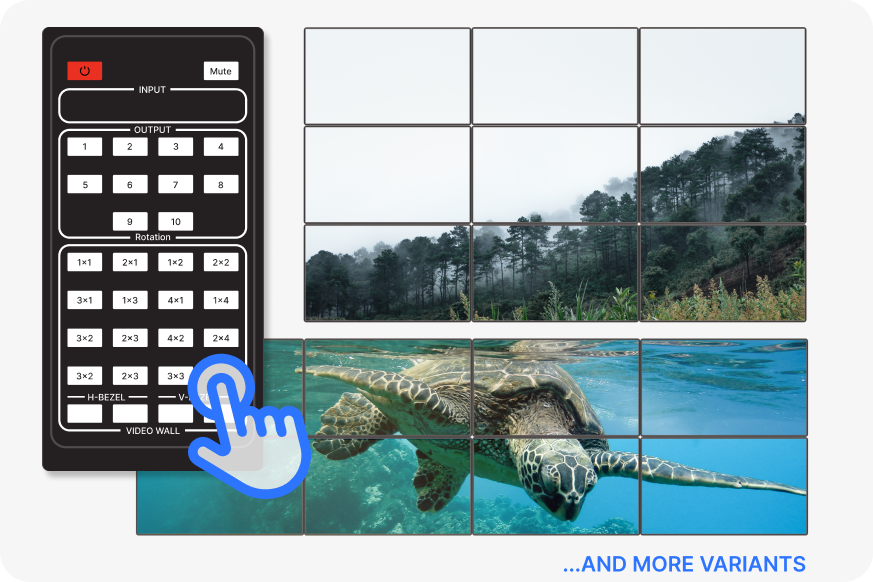

Conveniently control power, input selection, video wall layouts, and audio settings from anywhere in the room - no need to access the front panel.
Supports 15 splicing layouts including 1x2, 1x3, 1x4, 2x2, 2x5, 3x3, 4x1, 5x2, and more for flexible display designs.

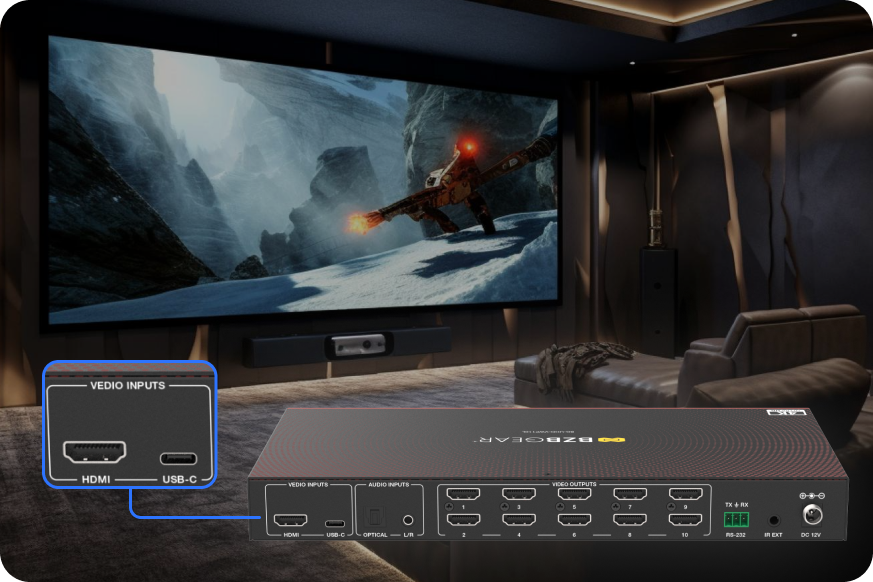

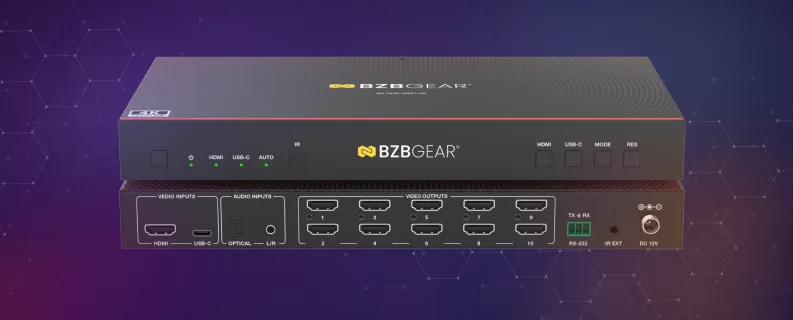

Connect HDMI or USB-C sources in up to 4K@60Hz 4:4:4, with optical (S/PDIF) and analog L/R audio outputs for seamless integration with external sound systems.
Go above and beyond standard HDMI video and audio processing.
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| DP Compliance | DisplayPort 1.4 Alt Mode (USB-C) |
| Video Bandwidth | 18Gbps |
| Input Resolution | Up to 4K@60Hz (3840x2160 / 4096x2160), plus legacy formats |
| Output Resolution | 720p, 1080p, 4K30, 1024x768 |
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Color Depth | 8 / 10 / 12-bit |
| Audio Formats (HDMI/USB-C) | LPCM 2.0/5.1, Dolby Digital/Plus/EX, DTS formats |
| Optical Audio Formats | Dolby Digital/Plus, DTS 5.1, PCM 2.0 |
| L/R Audio Format | PCM 2.0 |
| Connections | |
| HDMI Input | 1x HDMI Type-A |
| USB-C Input | 1x USB-C (DP Alt Mode) |
| HDMI Outputs | 10x HDMI Type-A (Video Wall Outputs) |
| Optical Audio Output | 1x S/PDIF |
| Analog Audio Output | 1x 3.5mm L/R stereo |
| RS-232 Control | 1x 3-pin Phoenix connector |
| IR Extension | 1x 3.5mm IR EXT port |
| Power Input | DC 12V/1A locking connector |
| Mechanical | |
| Housing | Metal enclosure |
| Dimensions (WxDxH) | 11in x 5.6in x 1.2in [270mm x 141mm x 30mm] |
| Weight | 2.1 lbs [935g] |
| Power Consumption | 9.5W max |
| Operating Temperature | 32°F to 104°F / 0°C to 40°C |
| Storage Temperature | -4°F to 140°F / -20°C to 60°C |
| Operating Humidity | 20% - 80% RH non-condensing |
| Storage Humidity | 10% - 90% RH non-condensing |
| RECOMMENDED HDMI CABLE | |
| Input Cable Length (4K60) | Up to 5m / 16ft |
| Input Cable Length (1080p) | Up to 10m / 33ft |
| Cable Type | Premium High Speed HDMI cable recommended |
| Installation Note | Short, high-quality HDMI cables recommended for stable 4K60 performance |
Resources
PACKAGE CONTENTS
- 1x BG-UHD-VWP110L 4K60 1x10 Video Wall Controller
- 1x 12V/1A Locking Power Supply with Multi-national Conversion Plug
- 1x IR Remote Control
- 1x IR Receiver Cable (1.5m)
- 1x 3-pin 3.5mm Phoenix Connector (Male)
- 4x Machine Screws
- 2x Mounting Ears (Rack/Wall Mount Brackets)
- 1x User Manual

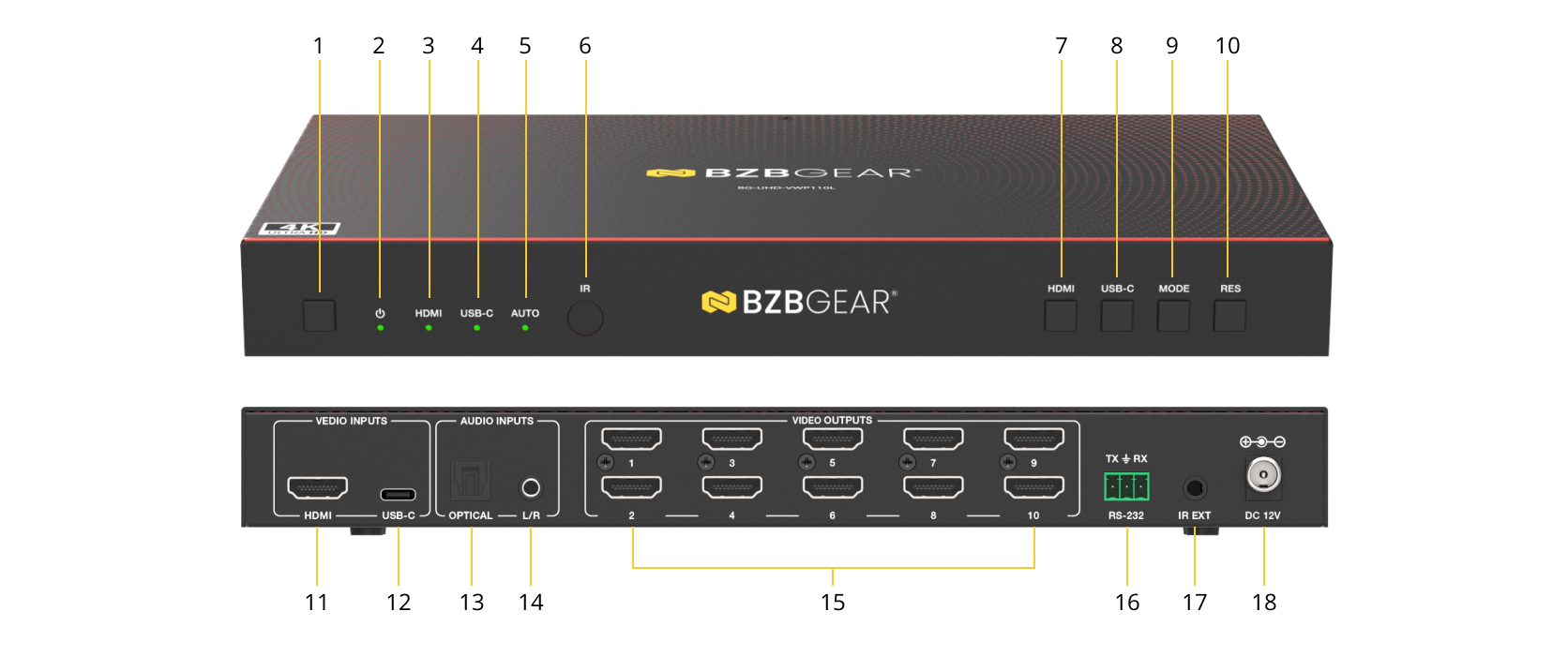

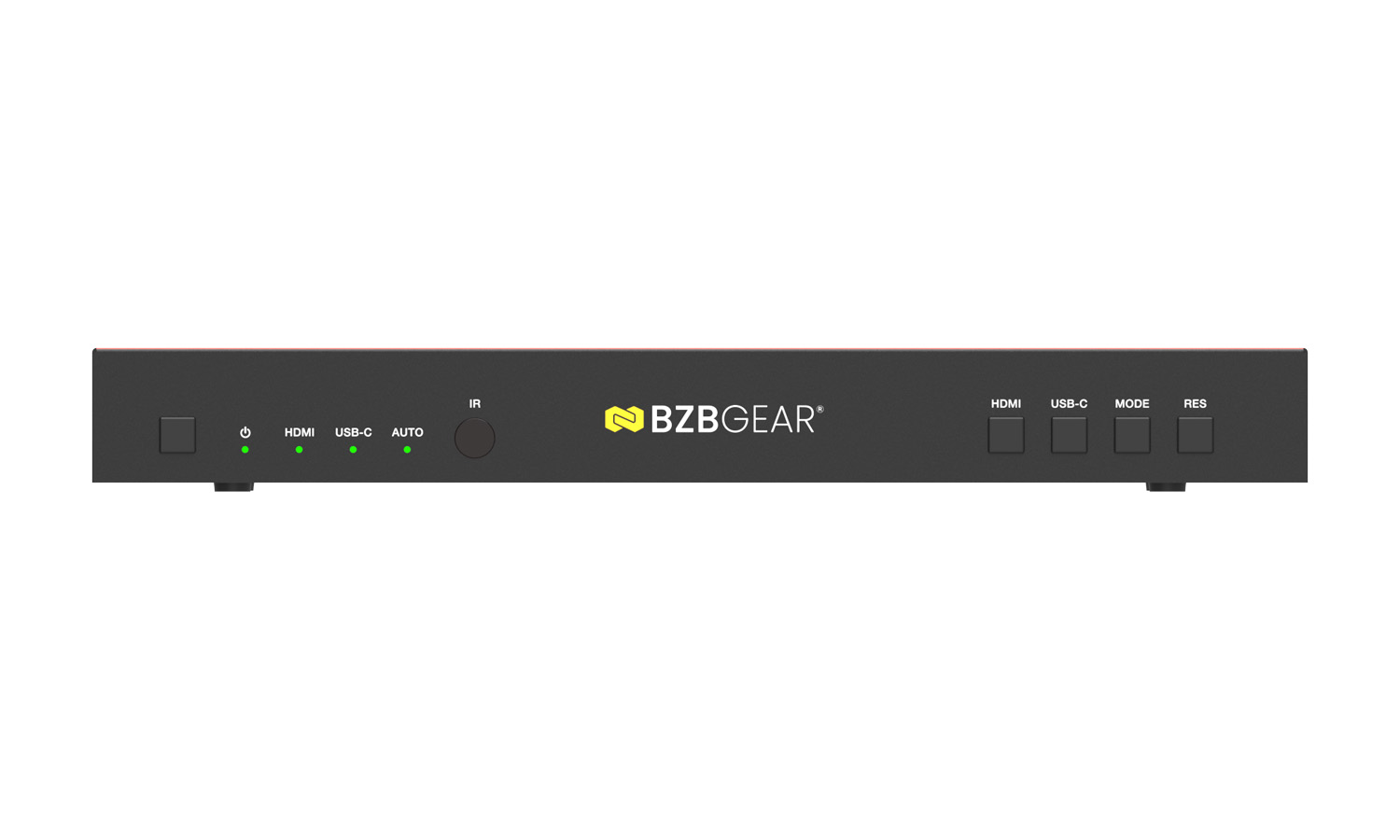

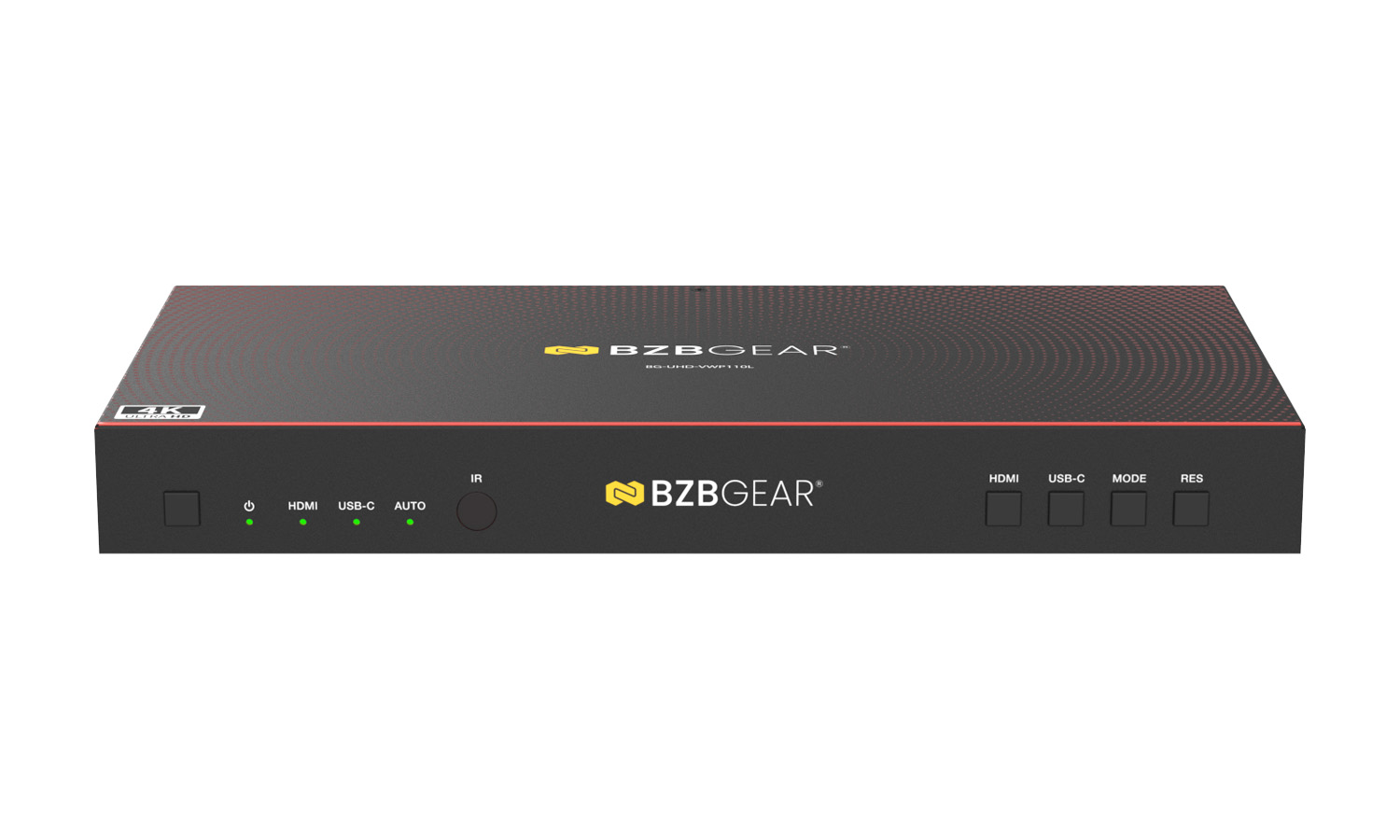

Interfaces
- Power Button: Press to power on the unit; long press (2–3 seconds) to enter standby mode.
- Power LED: Indicates power status (green = operating, red = standby).
- HDMI LED Indicator: Illuminates green when HDMI input is selected.
- USB-C LED Indicator: Illuminates green when USB-C input is selected.
- AUTO LED Indicator: Illuminates green when auto switching is enabled.
- IR Window: Receives IR signals from the remote control.
- HDMI Input Select Button: Selects HDMI as the active input source.
- USB-C Input Select Button: Selects USB-C as the active input source.
- MODE Button: Cycles through available video wall splicing modes.
- RES Button: Cycles output resolution settings (720p, 1080p, 4K, XGA) for all HDMI outputs.

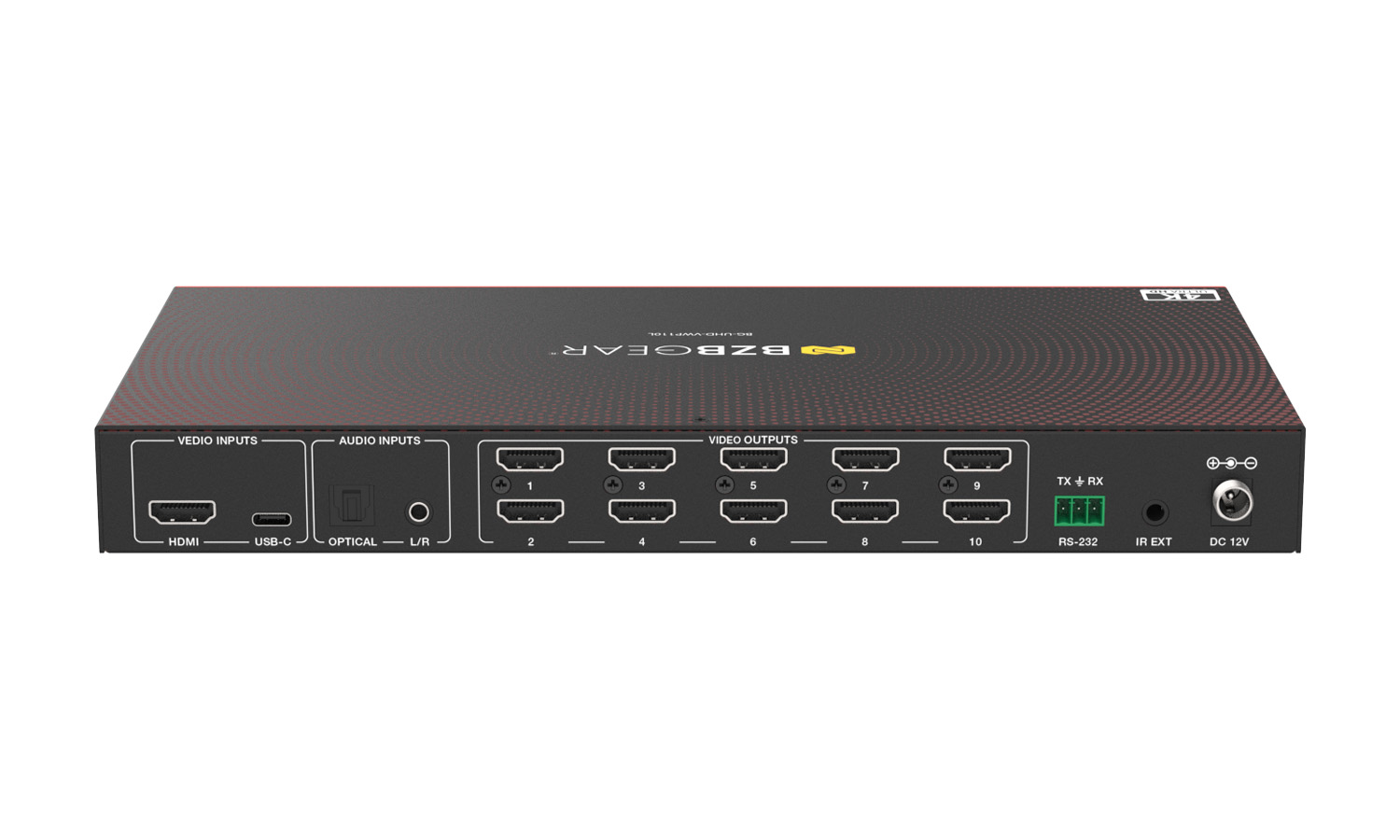

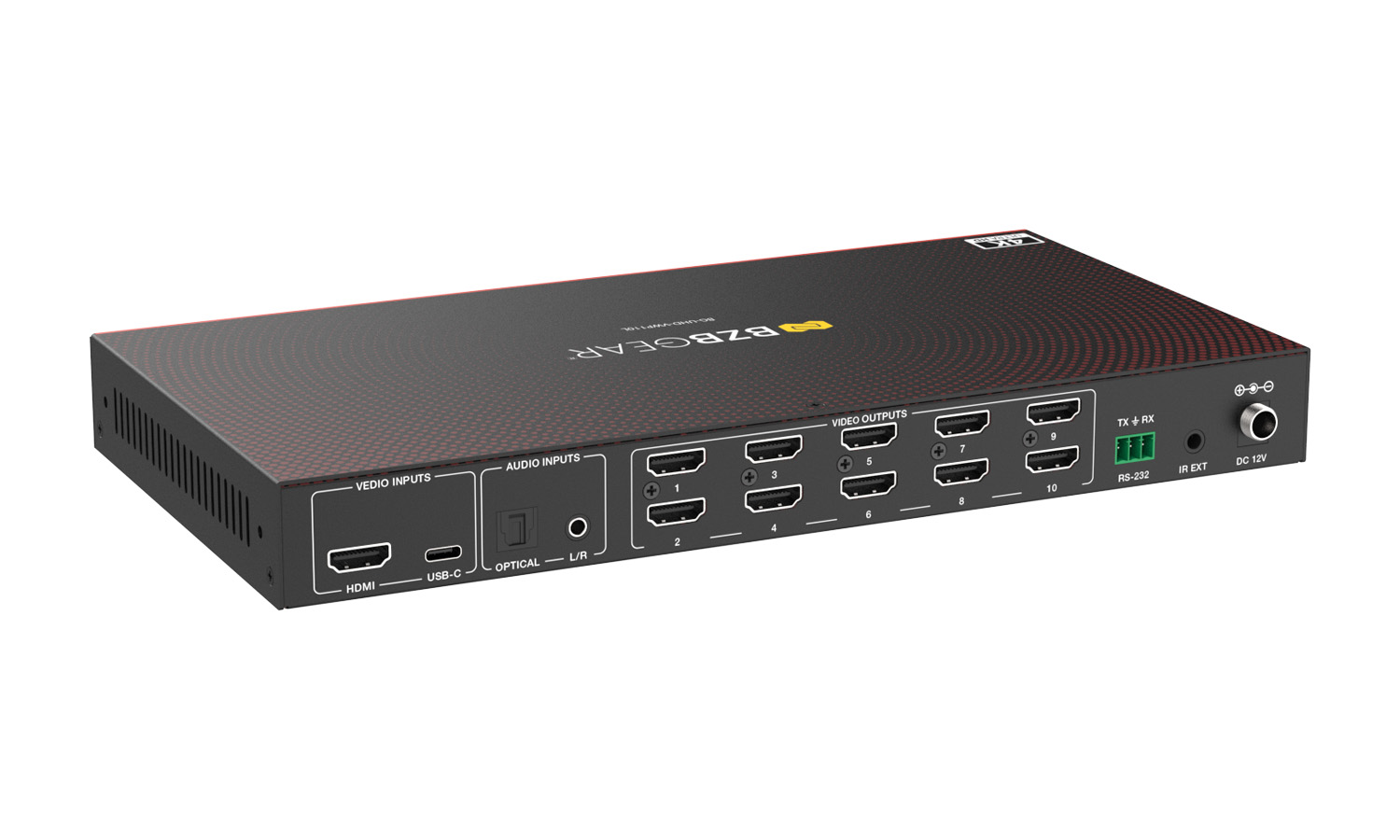

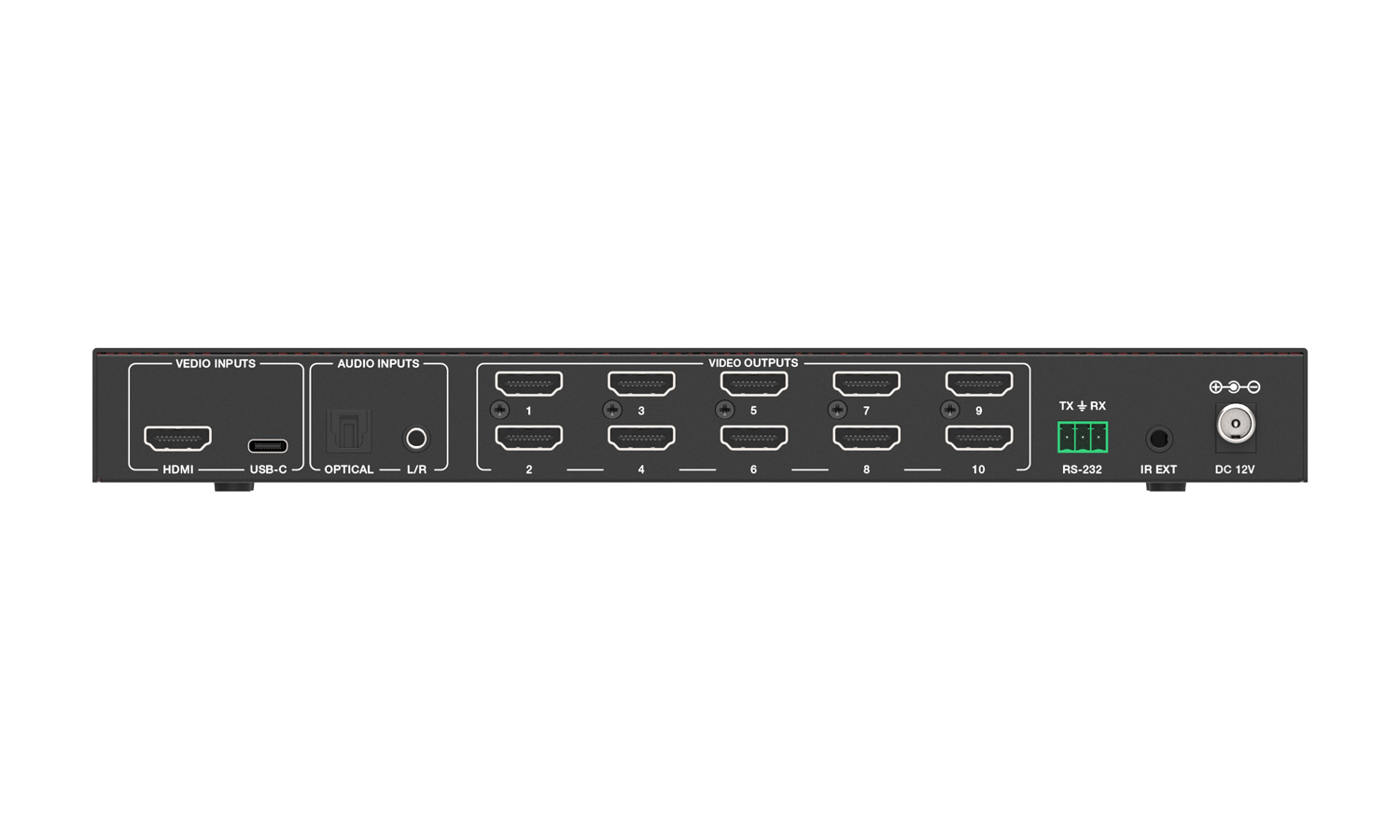

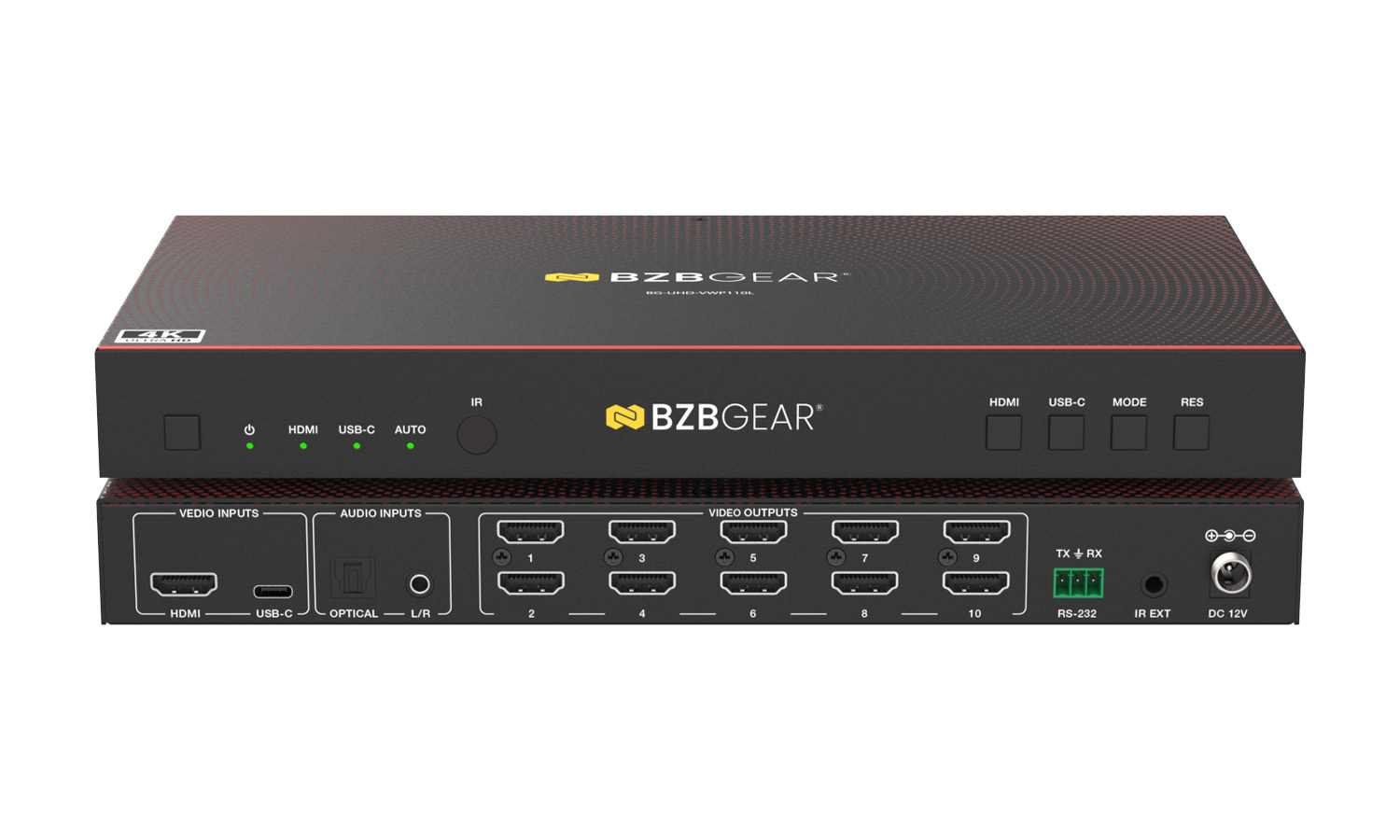

- HDMI INPUT: Connects HDMI source devices such as media players, PCs, or set-top boxes.
- USB-C INPUT: Connects USB-C source devices supporting DP Alt Mode.
- OPTICAL AUDIO OUT: S/PDIF digital audio output for external audio systems or amplifiers.
- L/R AUDIO OUT: Analog stereo audio output (3.5mm) for external speakers or audio devices.
- VIDEO WALL OUT (1–10): Ten HDMI outputs for connection to displays in a video wall configuration.
- RS-232 Port: 3-pin Phoenix connector for serial control or firmware/command integration.
- IR EXT Port: External IR receiver connection for extended or concealed installations.
- DC 12V Power Input: Connects to included 12V/1A locking power adapter.
