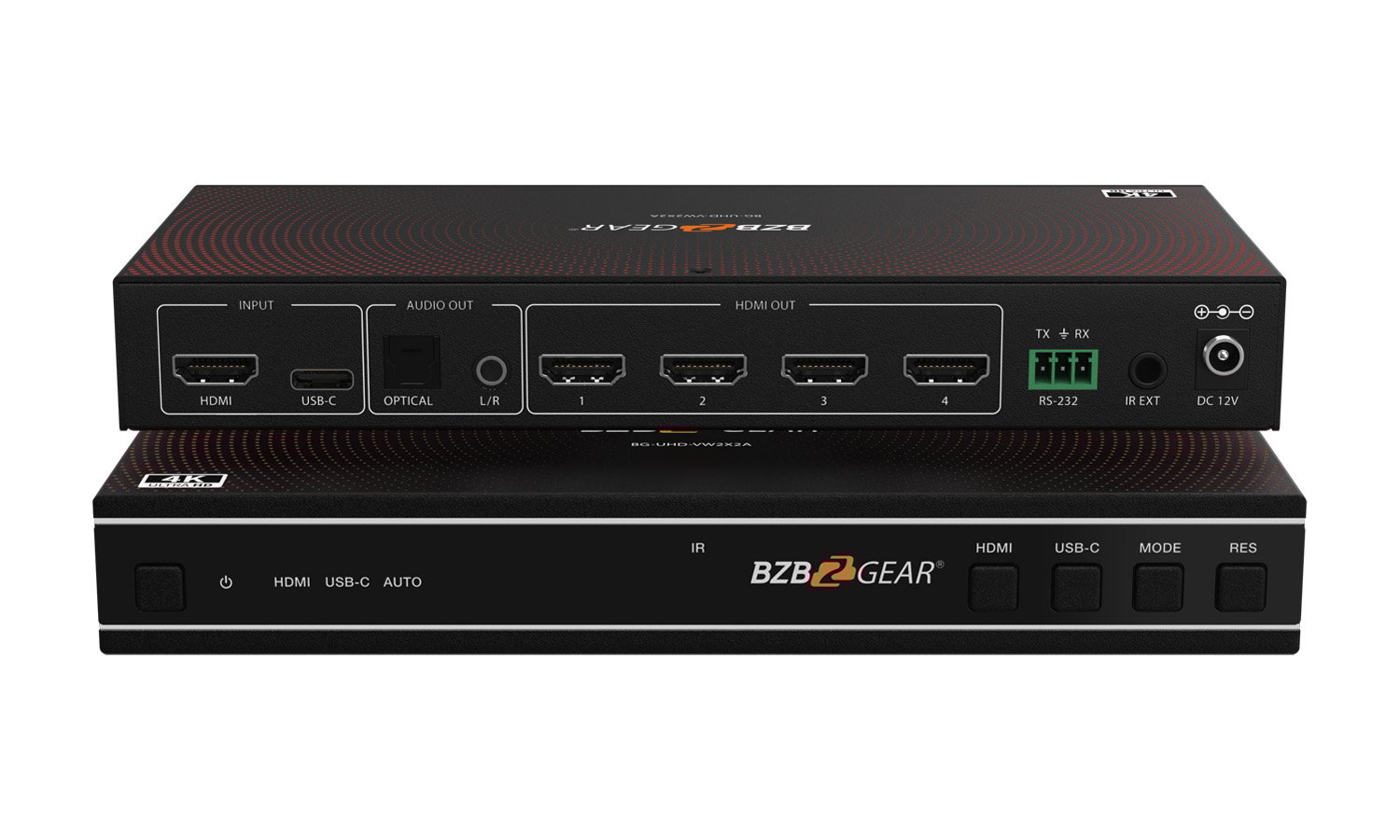

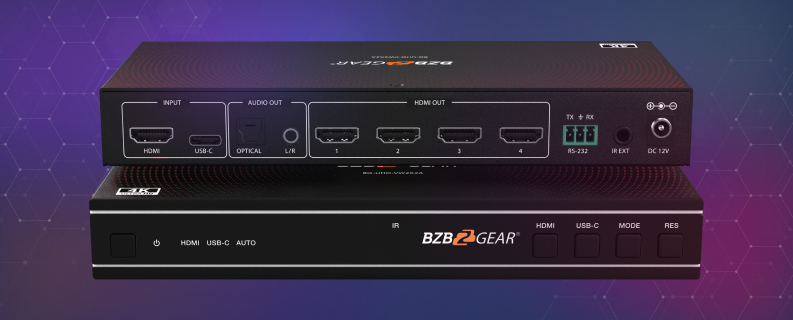

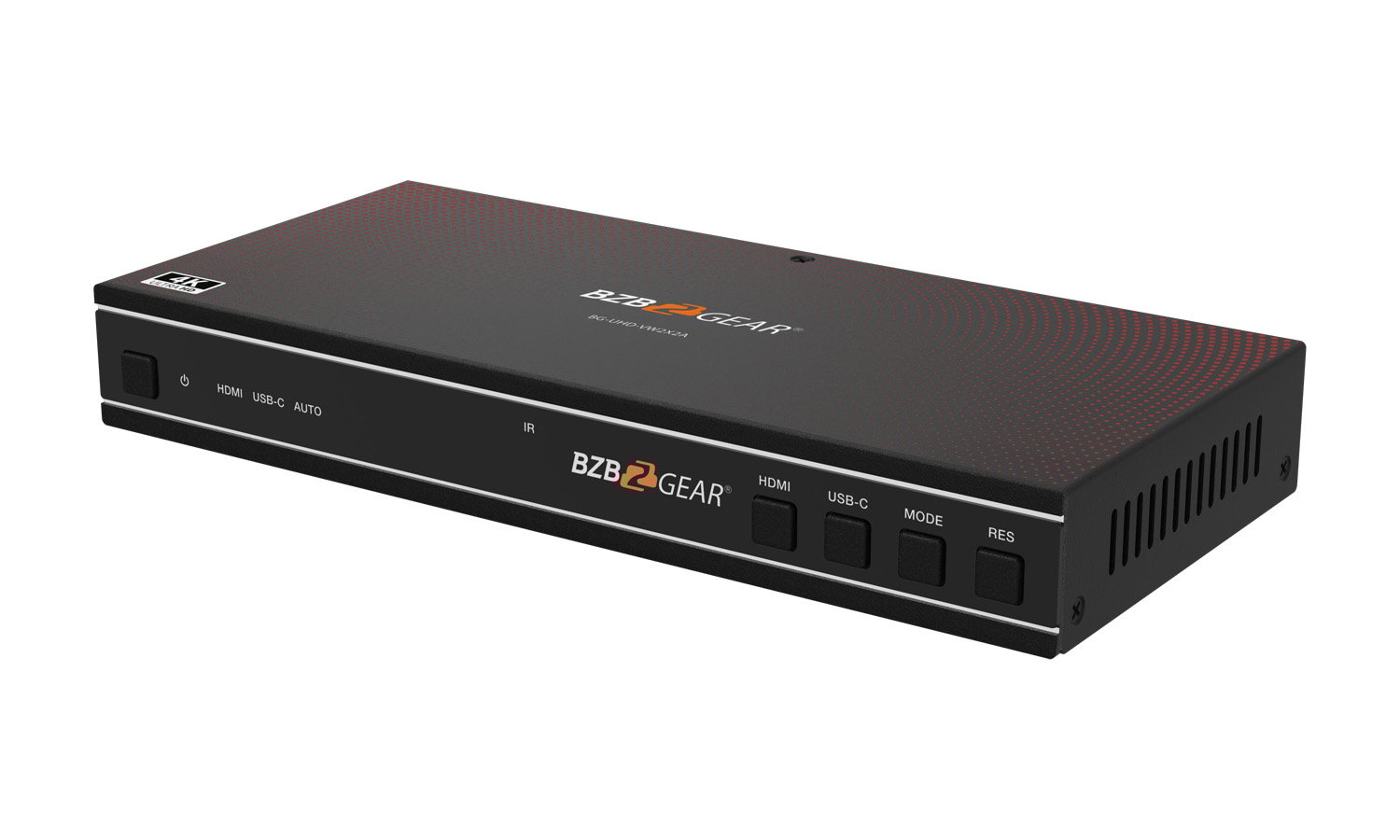

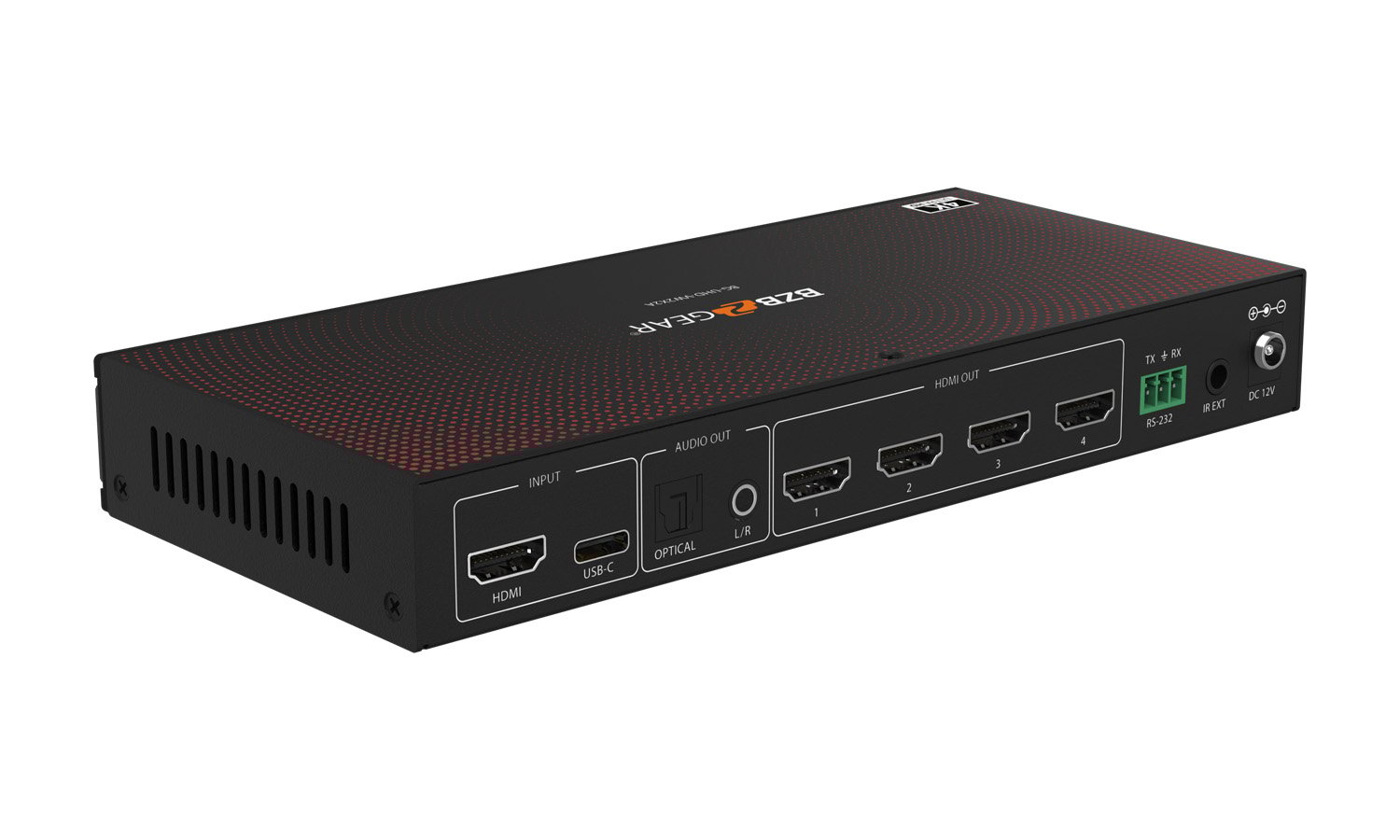

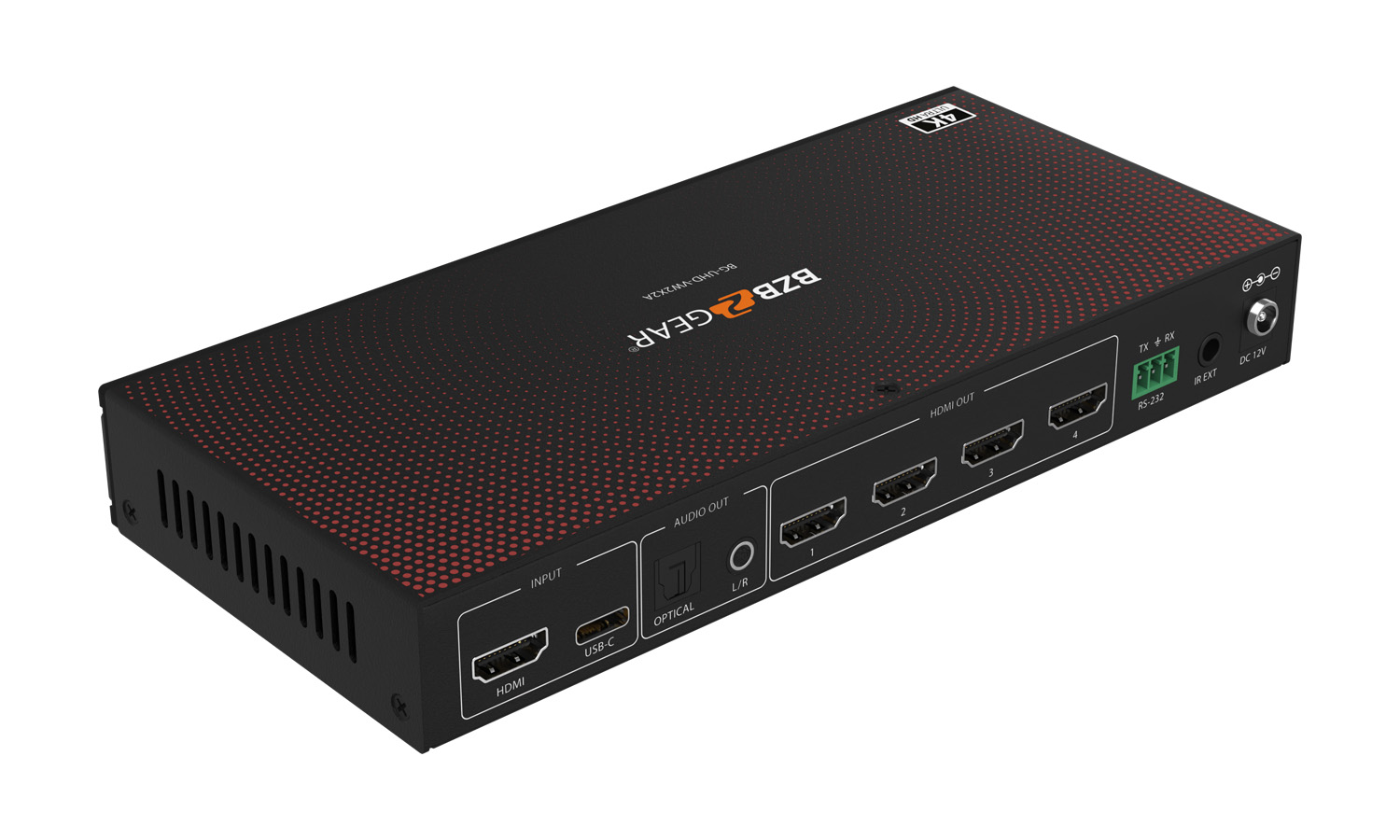

2x2 4K UHD HDMI/USB-C Switcher and Video Wall Controller with Audio De-embedding

Name: 2x2 4K UHD HDMI/USB-C Switcher and Video Wall Controller with Audio De-embedding
Brand: Bzbgear
SKU: BG-UHD-VW2X2A
Price: 899.00 USD
Availability: InStock

EssentialGear

NEW

U.S.-based Company

Complimentary design services<br> and engineering support

Complimentary design services
and engineering support

3 year warranty

Click here to learn more about BZBGEAR Fundamentals

Configure the Perfect Solution

Get Started

Overview Specifications Interfaces Resources Package contents

Overview

OVERVIEW

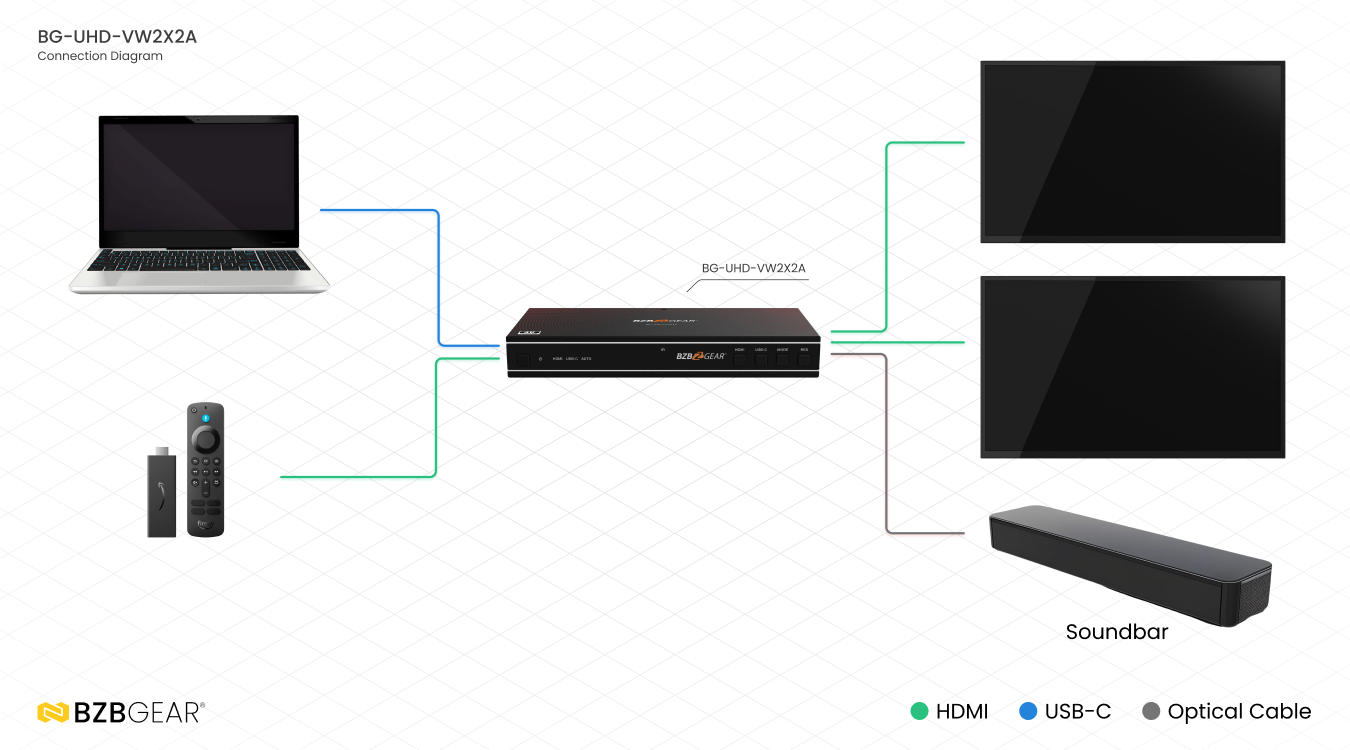

The BG-UHD-VW2x2A 18Gbps 1x4 Video Wall Controller is a versatile and powerful solution for creating stunning video wall displays. Designed to capture, convert, route, and distribute all-format signals to video walls with true digital signal transmission, this controller supports HDMI and USB-C inputs with resolutions up to 4K@60Hz 4:4:4, and provides four HDMI outputs. It supports multiple video wall modes and includes optical audio and L/R analog audio de-embedding outputs. Operation is simple and convenient via front panel buttons, an IR remote, and RS-232 commands.

Features

Video Standard Compliant

Ensures compatibility with the latest high-definition video standards, including HDMI 2.0, HDCP 2.2, and DP 1.2a
High-Resolution Support

Accepts HDMI and USB-C inputs with resolutions up to 4K@60Hz 4:4:4 for crystal-clear image quality
Audio De-Embedding

Supports optical audio and L/R analog audio de-embedding outputs for enhanced audio flexibility
Plug and Play

Easy setup with no drivers or installation settings required, making it a hassle-free solution for any video wall application
Multiple Video Wall Modes

Supports 8 video wall splicing modes including 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4, and 2x2 configurations
Flexible Control Options

Operate the controller via front panel buttons, an IR remote, and RS-232 commands for ultimate convenience

Image Rotation: Offers 180° image rotation for easy ceiling installations
Bezel Adjustment: Includes bezel adjustment features for seamless splicing edge alignment
Advanced EDID Management: Ensures optimal display settings and compatibility with various sources

Tech Specifications

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	Input: up to 4K@60Hz 4:4:4 Output: 720P60Hz, 1080P60Hz, 4K30Hz, 1024x768P60Hz
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12 bit
IR Level	5Vp-p
IR Frequency	38KHz
Audio Formats	HDMI IN/OUT: LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24 L/R OUT: PCM 2.0 SPDIF(OPTICAL): Dolby Digital/plus, DTS 5.1, PCM 2.0
Audio Latency	No Latency
Video Latency	No Latency
ESD Protection	Human body model – ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Input ports	1 x HDMI INPUT [Type A, 19-pin female] 1 x USB-C INPUT [Type C, 24-pin female]
Output ports	4 x HDMI OUTPUT [Type A, 19-pin female] 1 x OPTICAL AUDIO OUT [S/PDIF] 1 x L/R AUDIO OUT [RCA]
Control ports	1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm, Stereo Mini-jack]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions (W x D x H)	8.7in x 3.9in x 1.2in [220mm x 100mm x 30mm]
Weight	1.3 lbs [590g]
Power Supply	Input: AC 100-240V 50/60Hz, Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption	5.5W (Max)
Operating Temperature	32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature	-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity	20 - 90% RH (no-condensing)
Video Resolution	4K60	4K24	1080P60
HDMI Cable Length (HDMI IN / OUT)	8m/26ft	10m/32ft	15m/49ft
The use of “Premium High Speed HDMI” cable is highly recommended.

Resources

Documents

Download Manual

PACKAGE CONTENTS

1 x 18Gbps 1x4 Video Wall Controller
1 x 12V/1A Locking Power Supply
1 x Power Adapter
1 x IR Remote
1 x 5V IR Receiver Cable (1.5m)
1 x 3pin-3.81mm Phoenix Connector (male)
4 x Machine Screw (KM3*4)
2 x Mounting Ear
1 x User Manual

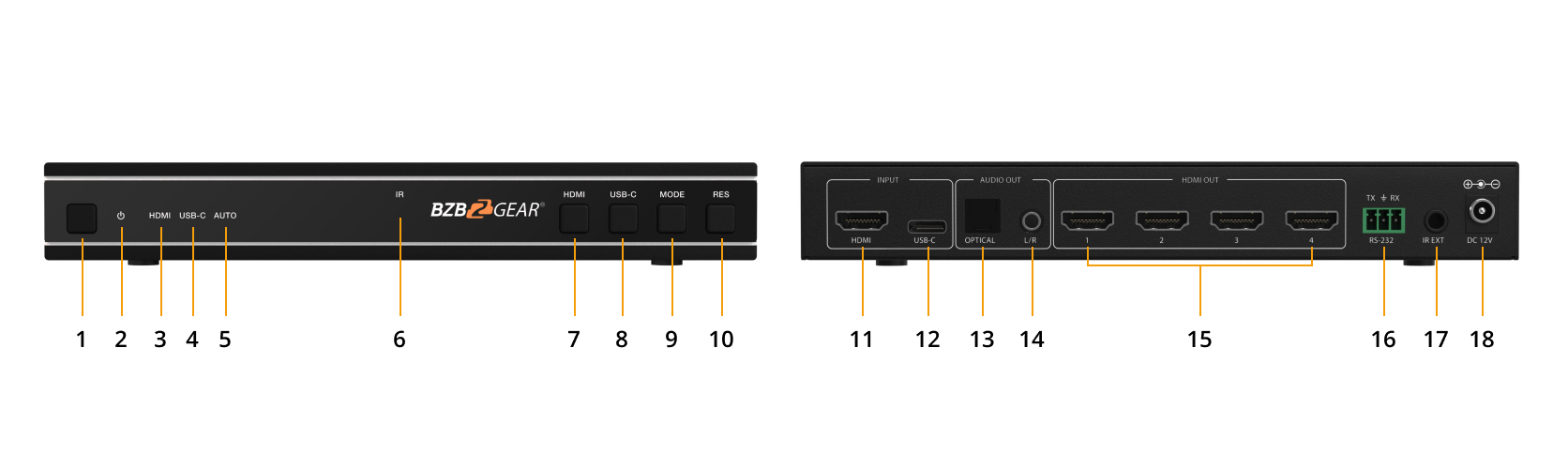

Interfaces

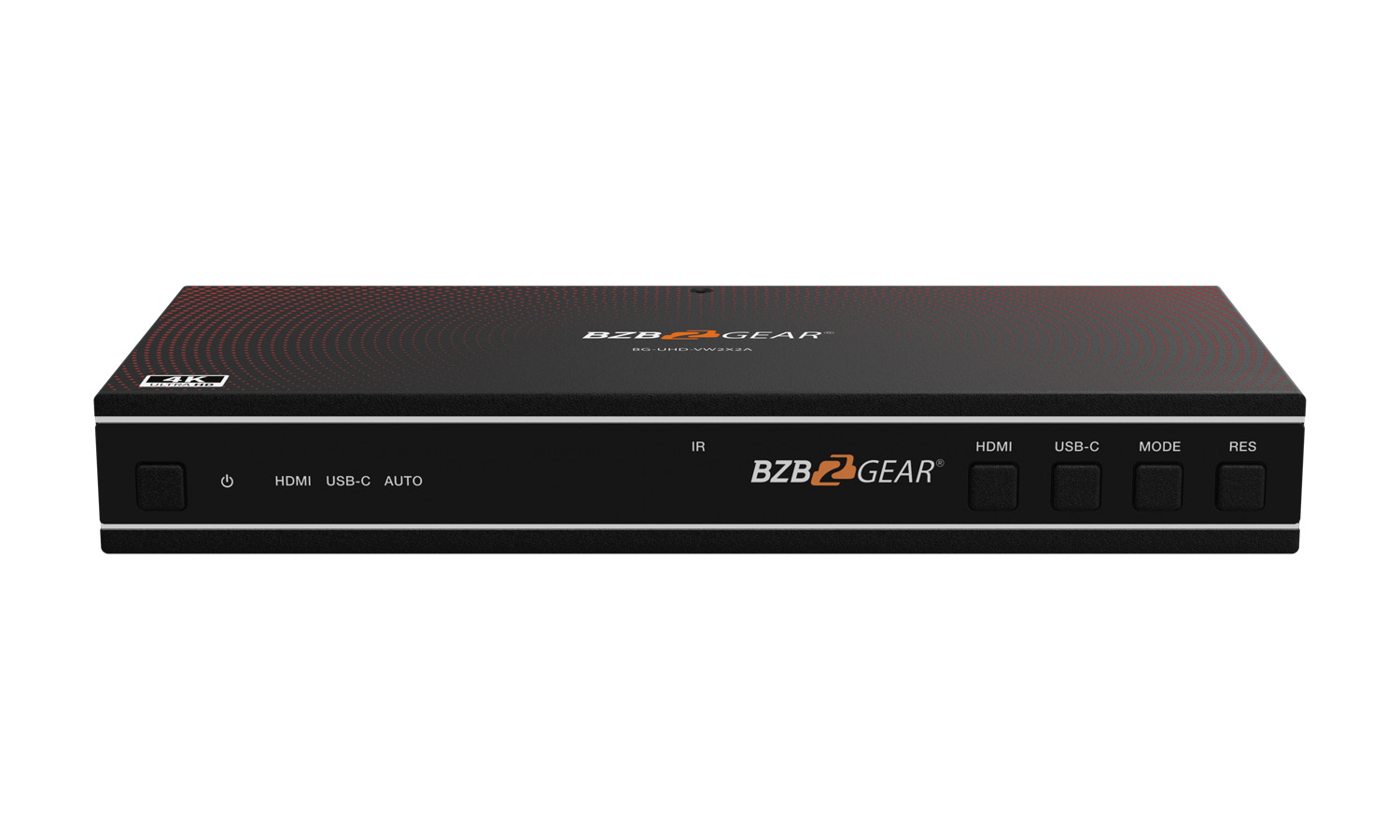

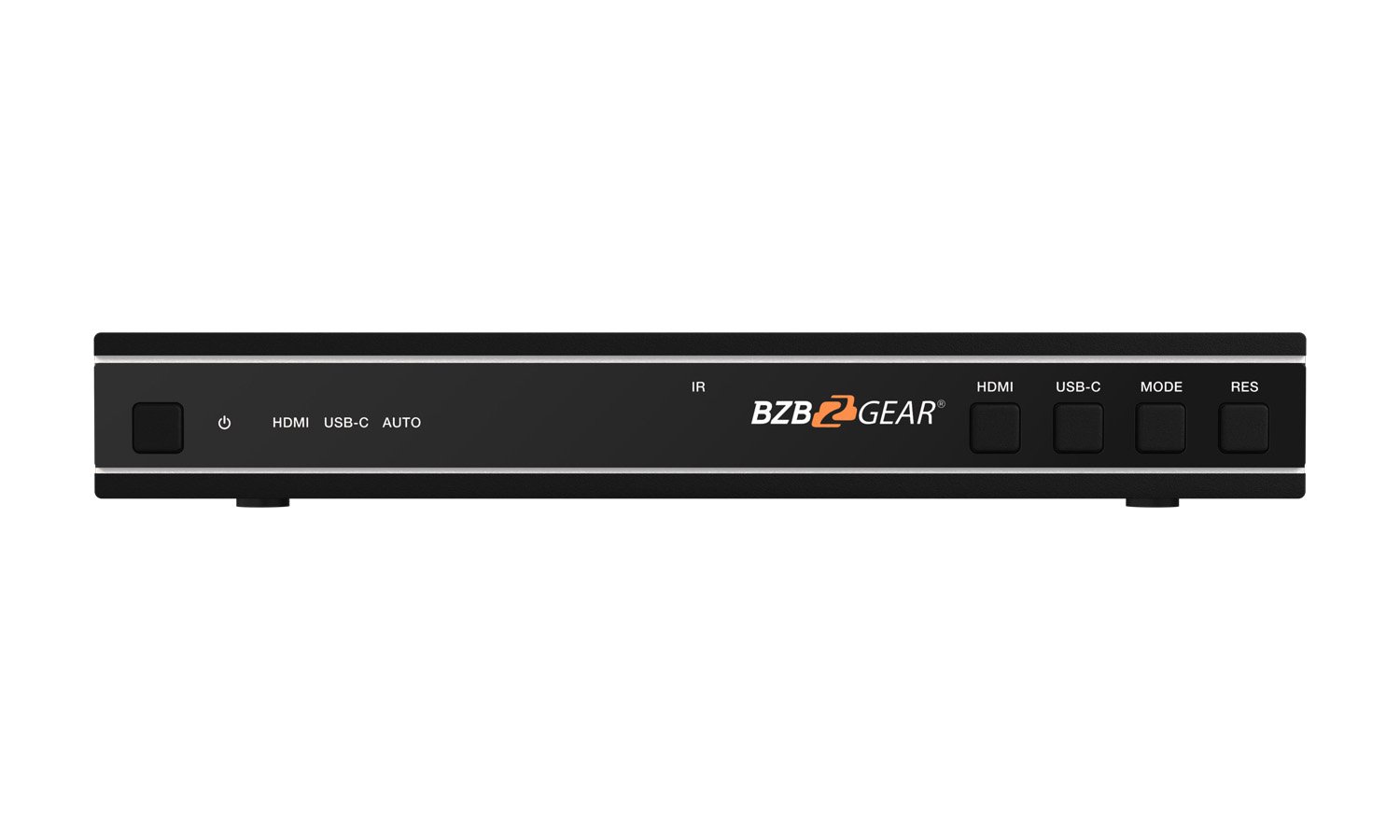

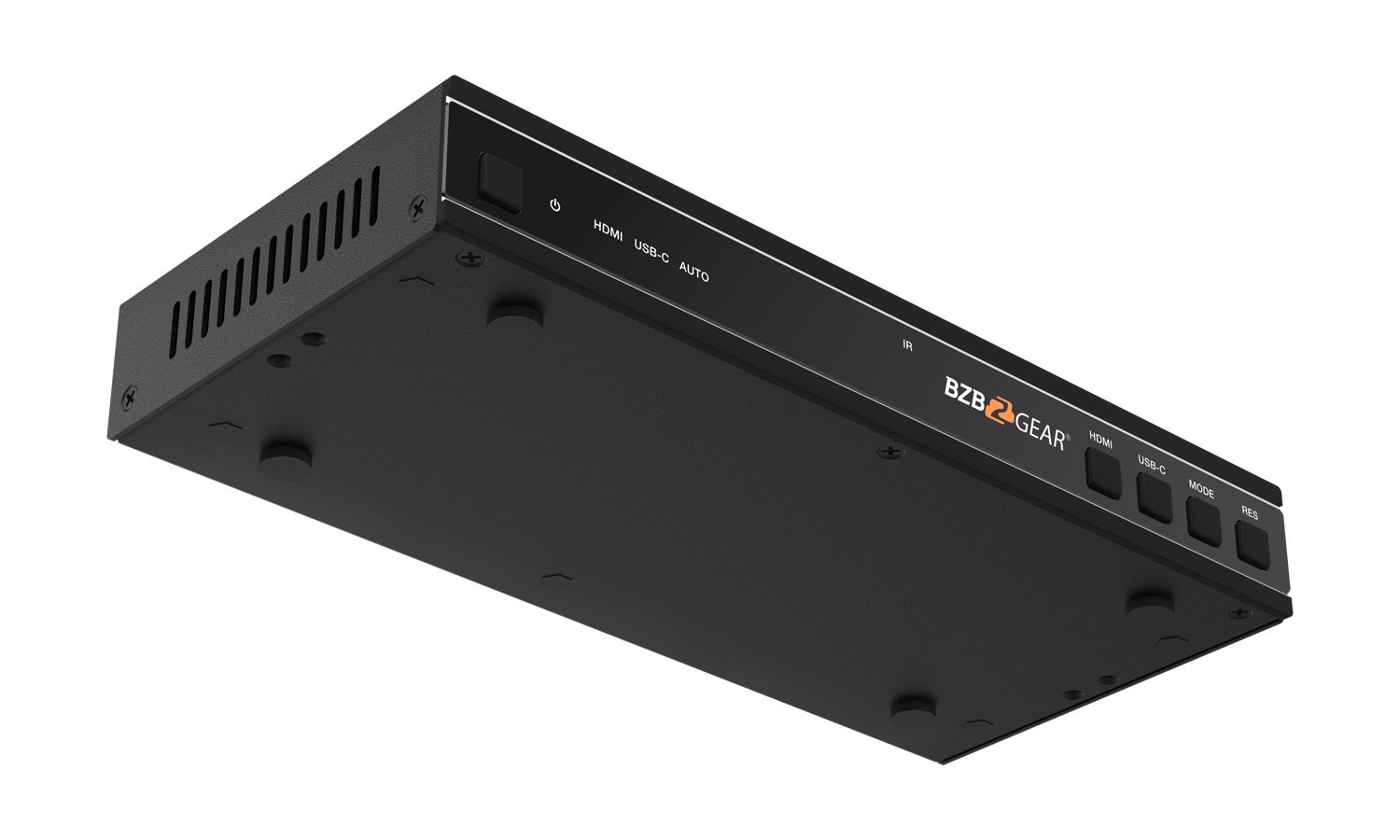

Power Button: Press to power on from shutdown/standby status.
Press for 2-3 seconds while powered on to enter standby status.
Power LED: Illuminates green when the product is operating normally.
Illuminates red when the product is in standby.
HDMI LED: Illuminates green when the HDMI input is selected.
USB-C LED: Illuminates green when the USB-C input is selected.
AUTO LED: Illuminates green when auto-switching is enabled.
IR Window: Receives IR signals.
HDMI Button: Press to select the HDMI input channel.
USB-C Button: Press to select the USB-C input channel.
MODE Button: Press to cycle through the 8 splicing modes.
RES Button: Press to cycle through the resolutions of the four HDMI outputs.

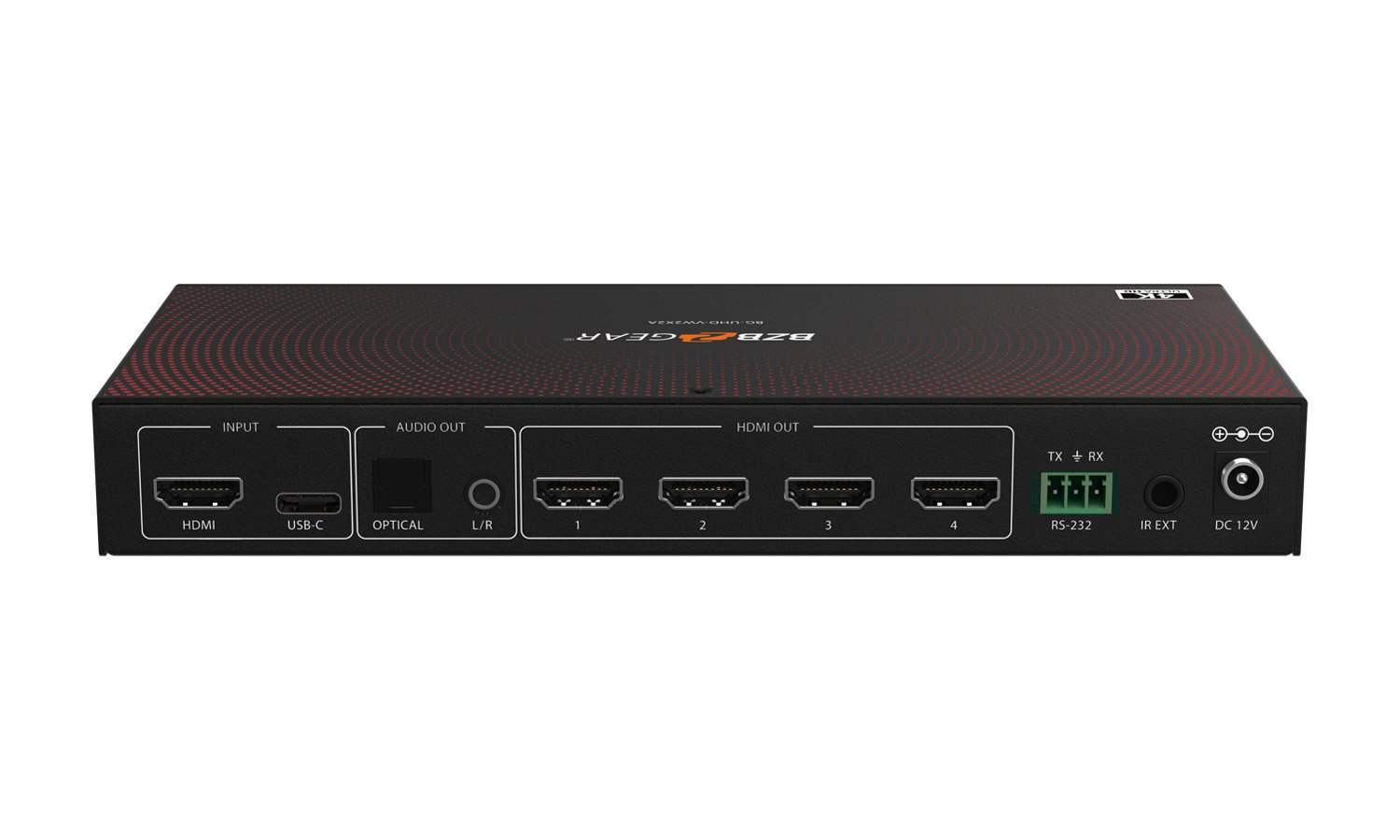

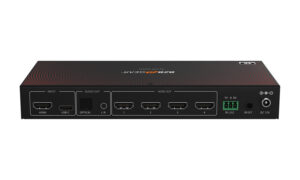

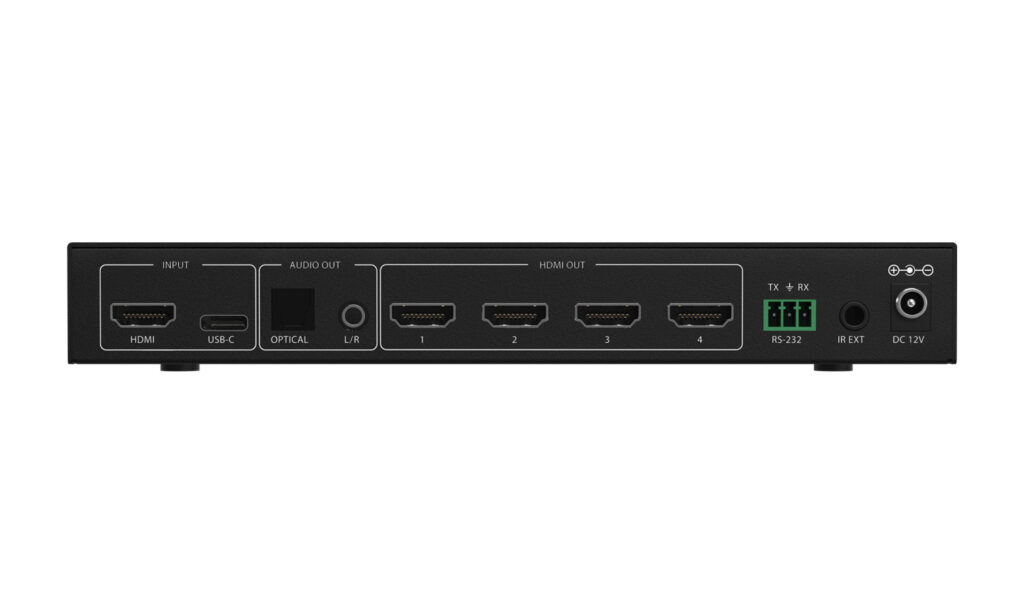

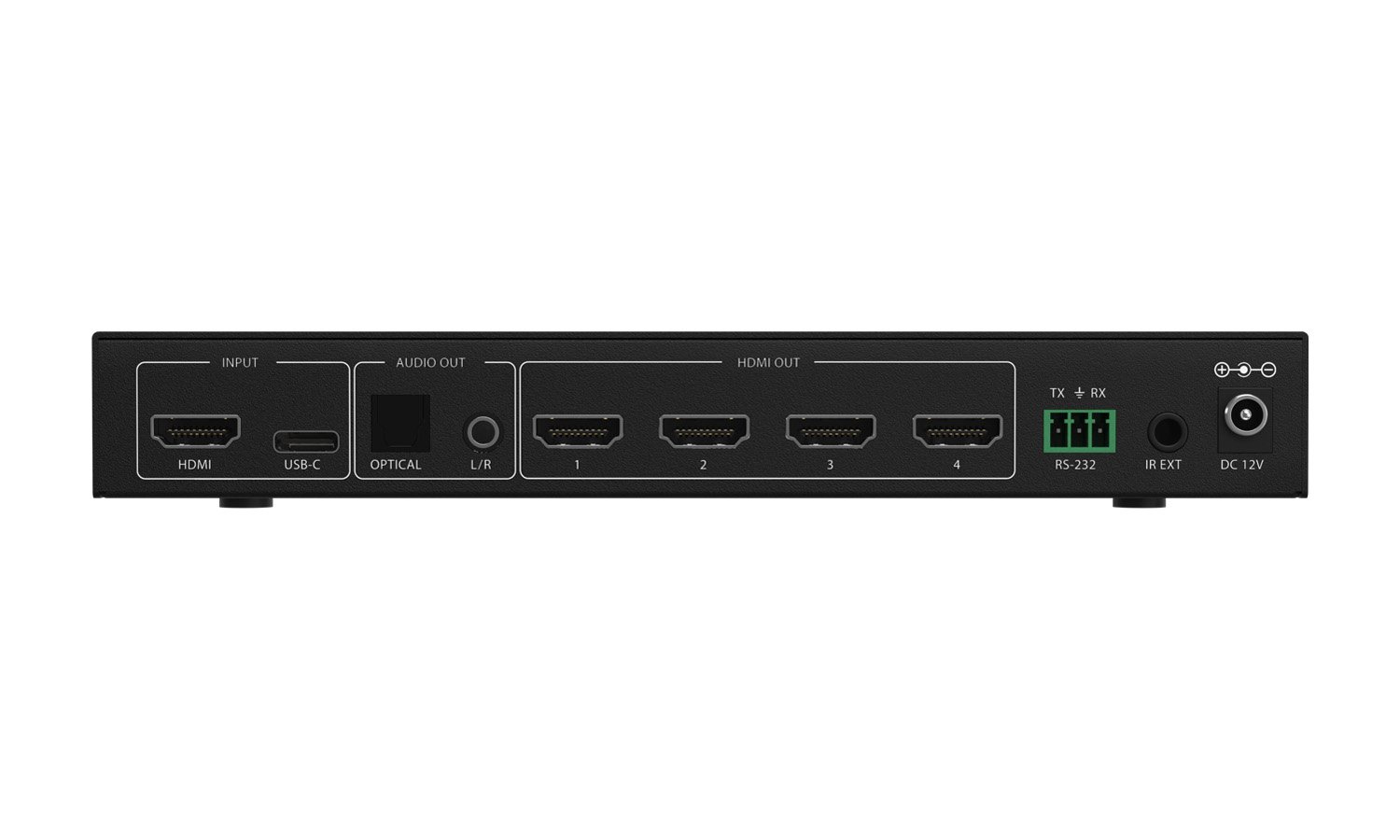

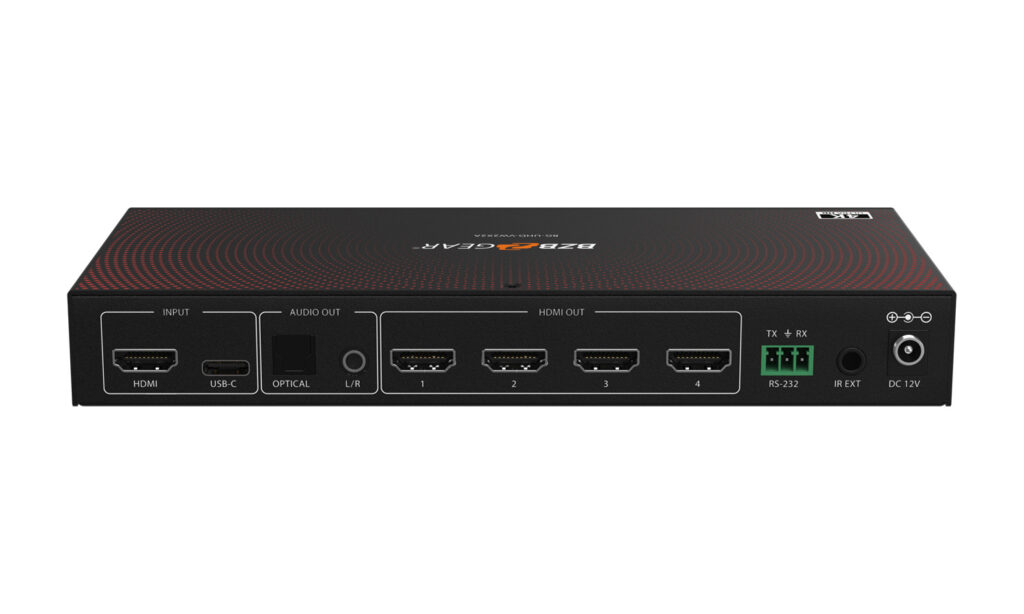

HDMI INPUT: HDMI signal input port, connected to an HDMI source device.
USB-C INPUT: USB-C signal input port, connected to a USB-C source device.
OPTICAL AUDIO OUT: Optical audio output port, connected to an audio output device such as an audio amplifier.
L/R AUDIO OUT: Analog audio output port, connected to an audio output device such as a speaker.
VIDEO WALL OUT (HDMI1~4): HDMI signal output ports, connected to TVs.
RS-232: 3-pin Phoenix connector, connected to a PC or control system for serial port upgrades or RS-232 command control.
IR EXT: IR signal receiving port, connected to a 38KHz IR receiver cable. Use when the IR signal receiving window is blocked or the unit is installed in a closed area out of the infrared line of sight. The IR receiver cable can be inserted into the "IR EXT" port to receive IR remote signals.
DC 12V: Connect to a 12V/1A power adapter.
