Overview

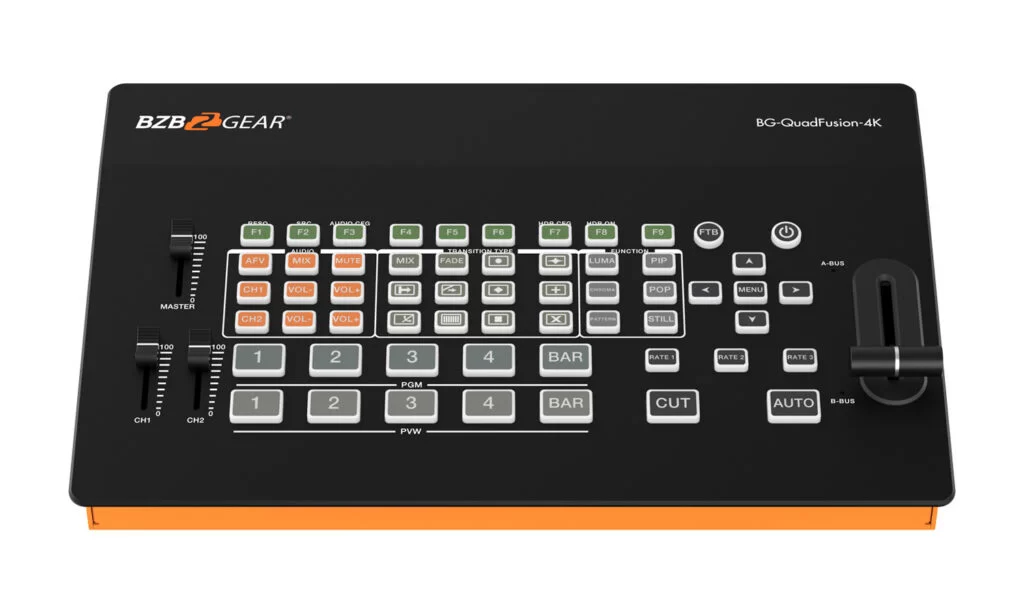

Introducing the BG-QuadFusion-4K: A Feature Packed 4K UHD 4-CH Video Production Switcher. The BG-QuadFusion-4K is a versatile video production switcher designed for professional broadcast and TV stations. This switcher offers comprehensive control options, including keyboard-based special effects and transitions, and intuitive menu display functions. It supports up to 4-CH HDMI/DP (DisplayPort) inputs 4K60 signals, making it ideal for a wide range of live broadcasting applications, including sports events, concerts, and studio recordings.
Audio and Visual Excellence
This video production switcher boasts an impressive array of features, including HDMI and DP decoders, support for various input resolutions, built-in format conversion, audio processing, video streaming capabilities, and more. It provides 4 video input channels and 4 HDMI video output channels, along with 2 analog audio input and output channels. Additionally, it supports DCB control, tally output, H.26x encoding for video streaming, and remote upgrade capability.
The BG-QuadFusion-4K is built for both studio and on-location use, making it suitable for live performances, course recordings, and studio guidance. Its advanced functions include multi-format video input, audio embedding, audio mixing, an SD card slot, USB 3.0 streaming, keying effects, RS422 control, and more, all accessible through user-friendly operation.
The switcher allows control of up to 4 cameras and is particularly well-suited for large-scale events like sports broadcasts and concerts. Its robust construction, featuring metal aluminum alloy, ensures durability, while its ultra-thin design facilitates transportation and maintenance
In terms of special effects, this switcher offers a range of transition options, including MIX, FADE, and various wipes. It also supports picture-in-picture (PIP) and picture-out-picture (POP) effects. Chroma key and luma key functionalities enable easy overlay of graphics and subtitles.
The switcher's menu settings are straightforward to navigate, offering language options, fan control, and system reset capabilities. With its comprehensive features and user-friendly interface, the BG-QuadFusion-4K is an essential tool for professional video production.
Features
-
HDMI Encoder & DP DecoderEffortlessly manage multiple video sources -
Special EffectsUnlock creative potential with built-in effects -
Control OptionsConvenient RJ45 remote, backlit buttons, and knobs for precise adjustments -
Immersive Audio2-CH MIC inputs, LINE OUT for rich soundscapes -
4K SupportPresent content in stunning, clear 4K resolution -
Durable MobilityHigh-strength aluminum alloy for lasting, portable use
Enhanced Audio Control
Achieve high-quality audio with 3.5mm stereo line output, input, and dual microphone inputs for immersive audio embedding.
Effortless Software Control and Network Accessibility
Connect via RJ45 LAN port for software control and access; enable remote management for seamless control from anywhere.
Streamlined Live Streaming
Utilize Stream USB 3.0 for a hassle-free 1080p60 USB 3.0 PGM output/capture in live streaming setups.

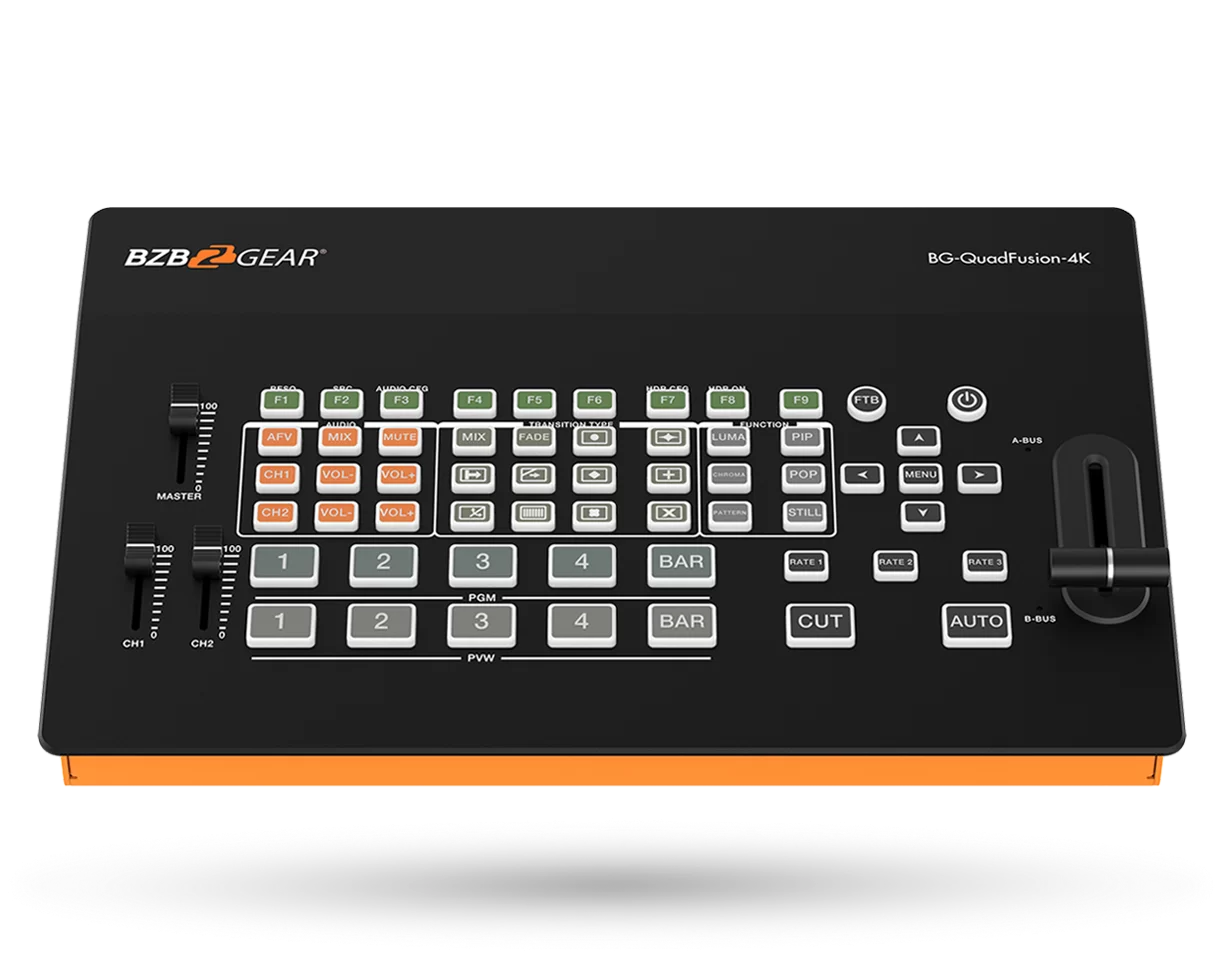

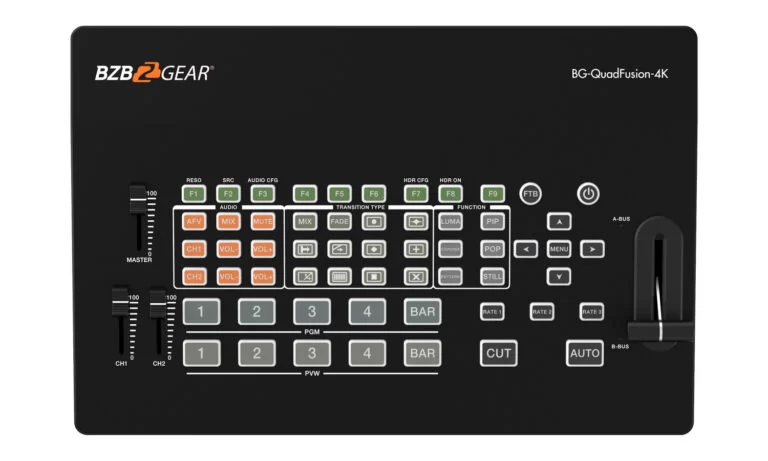

User-Friendly Interface
Navigate easily with an intuitive button layout on the BG-QuadFusion-4K, featuring backlit buttons for improved visibility in low-light conditions.
Multiview Monitoring and Settings Management
Experience enhanced monitoring with HDMI multiview output displaying up to four inputs and device menu, simplifying settings management.
Videos
Tech Specifications
| SKU | BG-QuadFusion-4K | |
| Video Signal Input | Input signal | HDMI / DP video signal |
| Code rate | 270Mbps ~ 18Gbps | |
| Connector | Standard | |
| Signal amplitude | 800mV±10% (HDMI/DP) | |
| Impedance | 100Ω (HDMI), 100Ω (DP) | |
| Balance | Adaptive | |
| DVD input | 480i/576i, 480p/576p, 720p, 1080i, 1080p, 2160p | |
| HDMI/DP input support | 3840x2160, 1920x1080, 1680x1050, 1600x900, 1440x1050, 1366x768, 1360x768, 1280x102, 1280x960, 1280x800, 1280x768, 1280x720, 1280x600, 1152x864, 1024x768, 800x600 |
|
| Video Signal Output | Output signal | HDMI video output |
| Code rate | 6Gbps ~ 18Gbps | |
| Connector | Standard | |
| Return Loss | >15dB 5MHz~3GHz | |
| Signal amplitude | 800mV±10%(HDMI/DP) | |
| Impedance | 100Ω (HDMI), 100Ω (DP) | |
| DC offset | 0V±0.5V | |
| Clock recovery | Support | |
| General Parameters | Power supply | 12V |
| Power rate | <35W | |
| Size | 11.2in x 6.9in x 2.4in [284mm x 175mm x 60mm] | |
| Control panel | Support on-site production, integration of a variety of buttons | |
| Operating temperature | 32°F ~ 122°F / 0°C ~ 50°C, No condensation | |
| Storage temperature | -4°F ~ 167°F / -20°C ~ 75°C | |
| Working humidity | 20% ~ 70%RH | |
| Storage humidity | 0% ~ 90%RH, No condensation | |
PACKAGE CONTENTS
- 1 x BG-QuadFusion-4K
- 1 x Power Adapter (12V DC)
- 1 x User Manual
- 1 x 3ft USB 3.0 Type-B to Type-A Cable

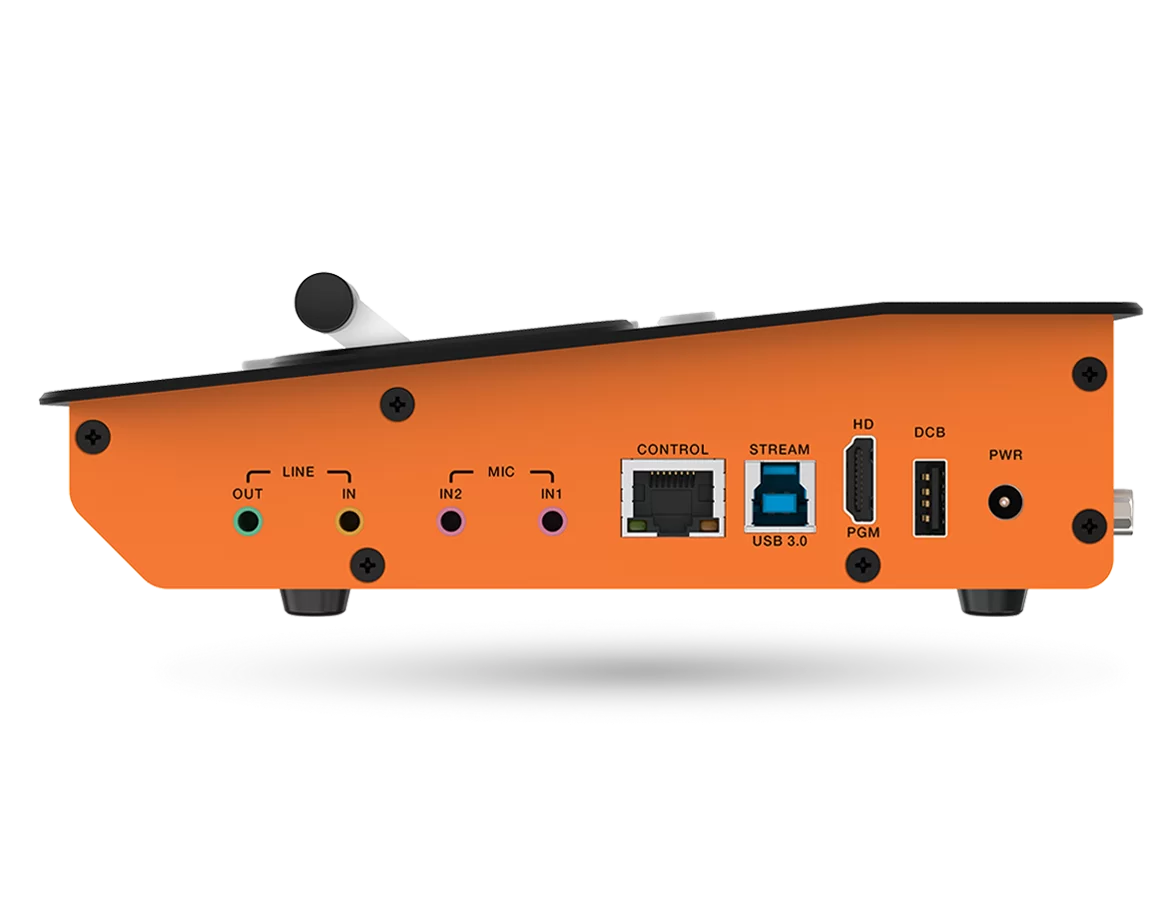

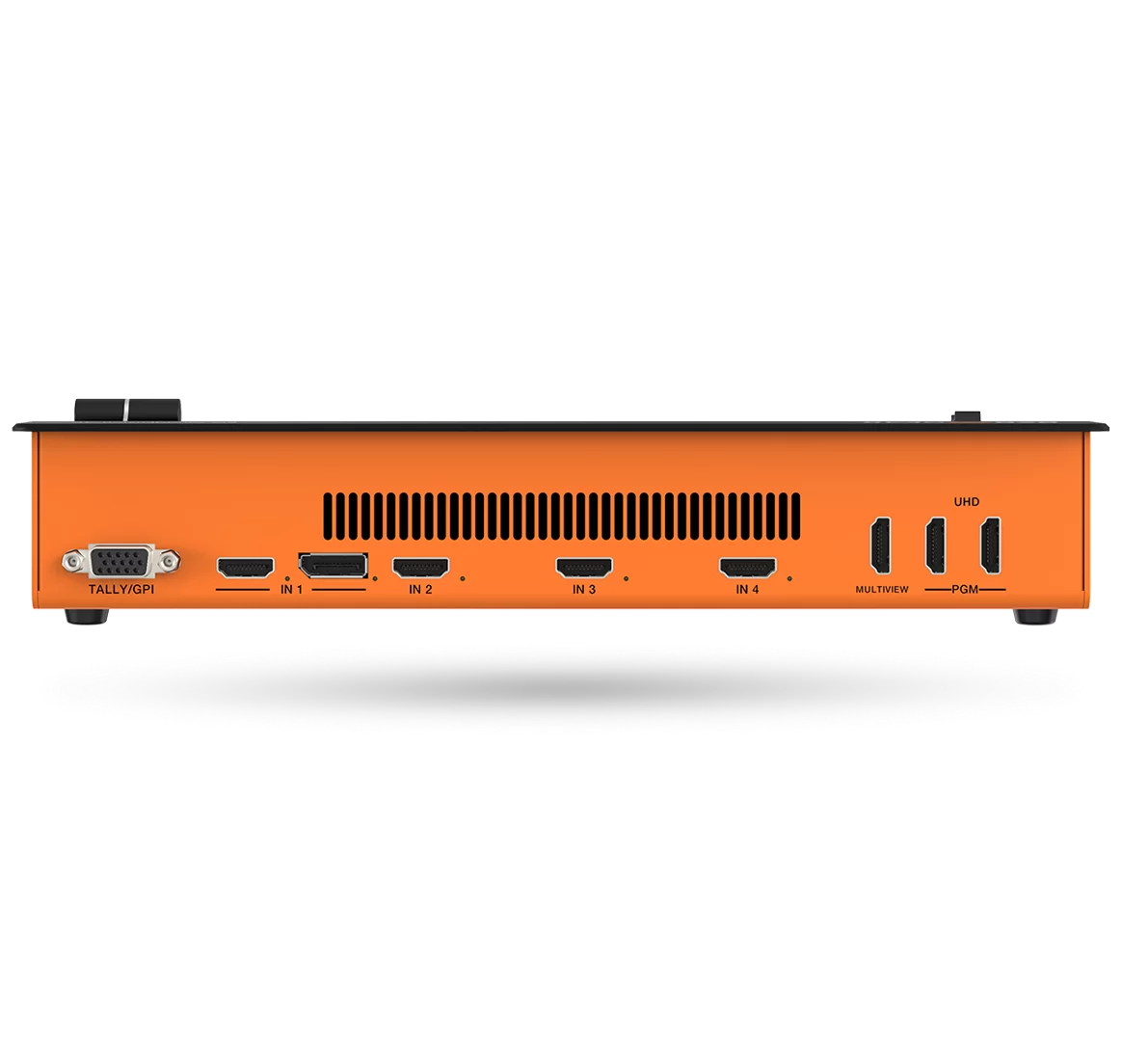

Interfaces
- Line Out: 3.5mm stereo line level output for audio extraction.
- Line In: 3.5mm stereo line level input for audio embedding.
- MIC Inputs 1/2: 2x 3.5mm stereo mini microphone inputs for audio embedding.
- Control: RJ45 LAN connection for software control and network access.
- Stream USB 3.0: 1080p60 USB 3.0 PGM output / capture.
- HD PGM: 1x HDMI program output capable of downscaling to 1080p60.
- DCB: External control for keyboard, wireless tally, or device cascade.
- PWR: DC 12v power supply.
- Tally/GPI: Connect to a director tally light/GPI control system.
- HDMI/DP Input 1: Selectable HDMI or alternate DisplayPort input connections capable of 4K60.
- HDMI 2-4: 3x HDMI input connections capable of 4K60 inputs.
- Multiview: HDMI multiview output capable of displaying 4 connected inputs and device menu.
- PGM: 2x HDMI program outputs capable of 4K60.
