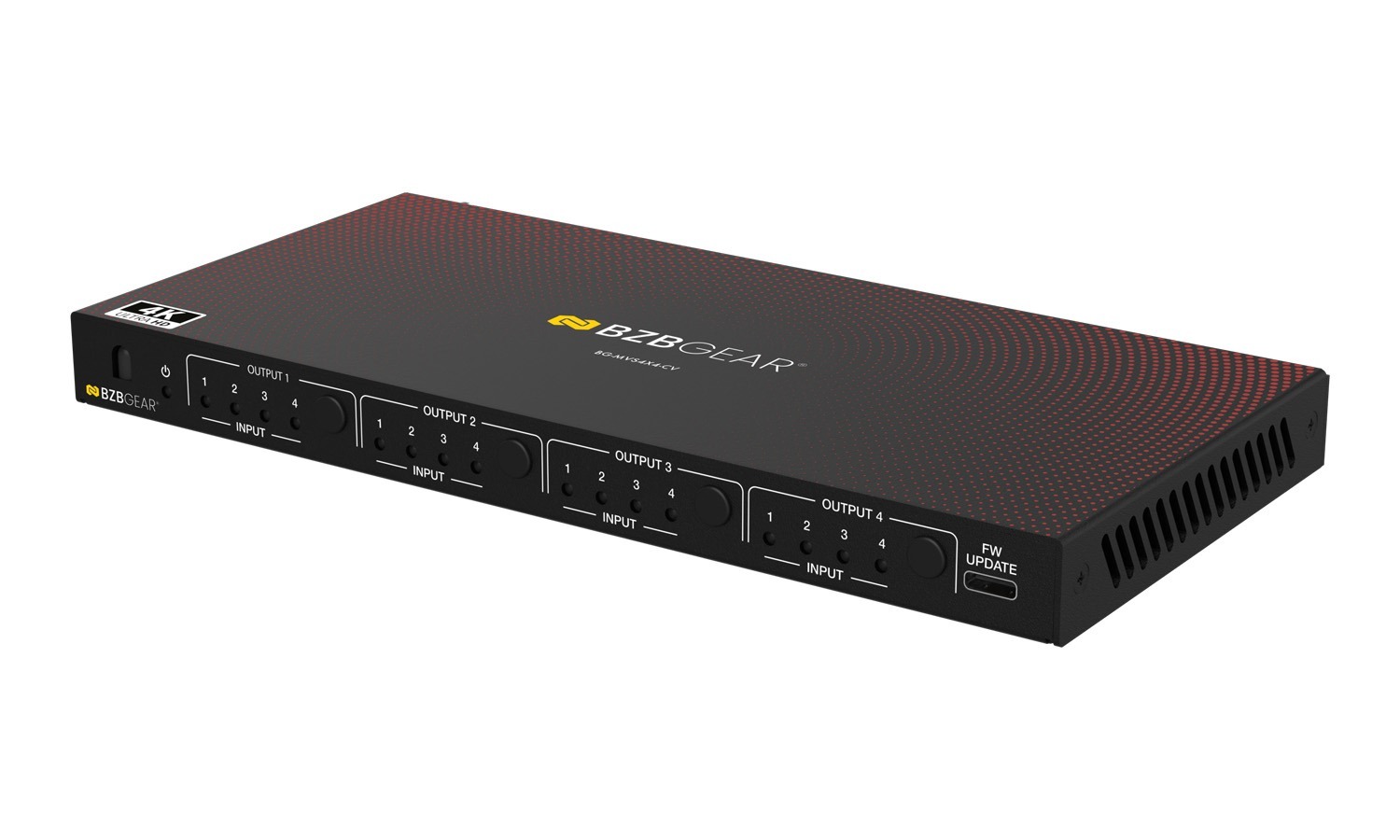

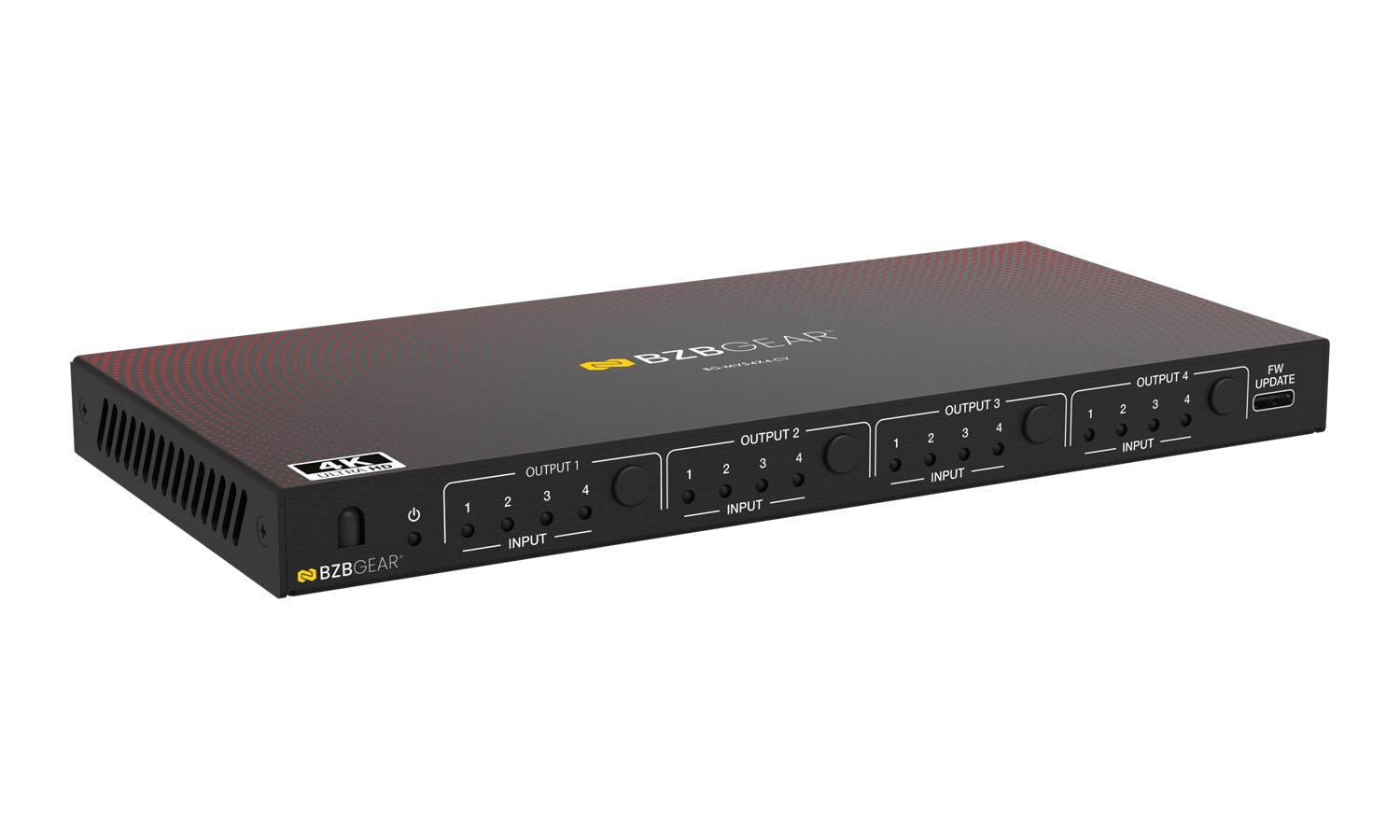

4x4 4K UHD HDMI Seamless Matrix Switcher and Video Wall Processor with Scaler/IR/Audio/RS-232
and engineering support
Overview

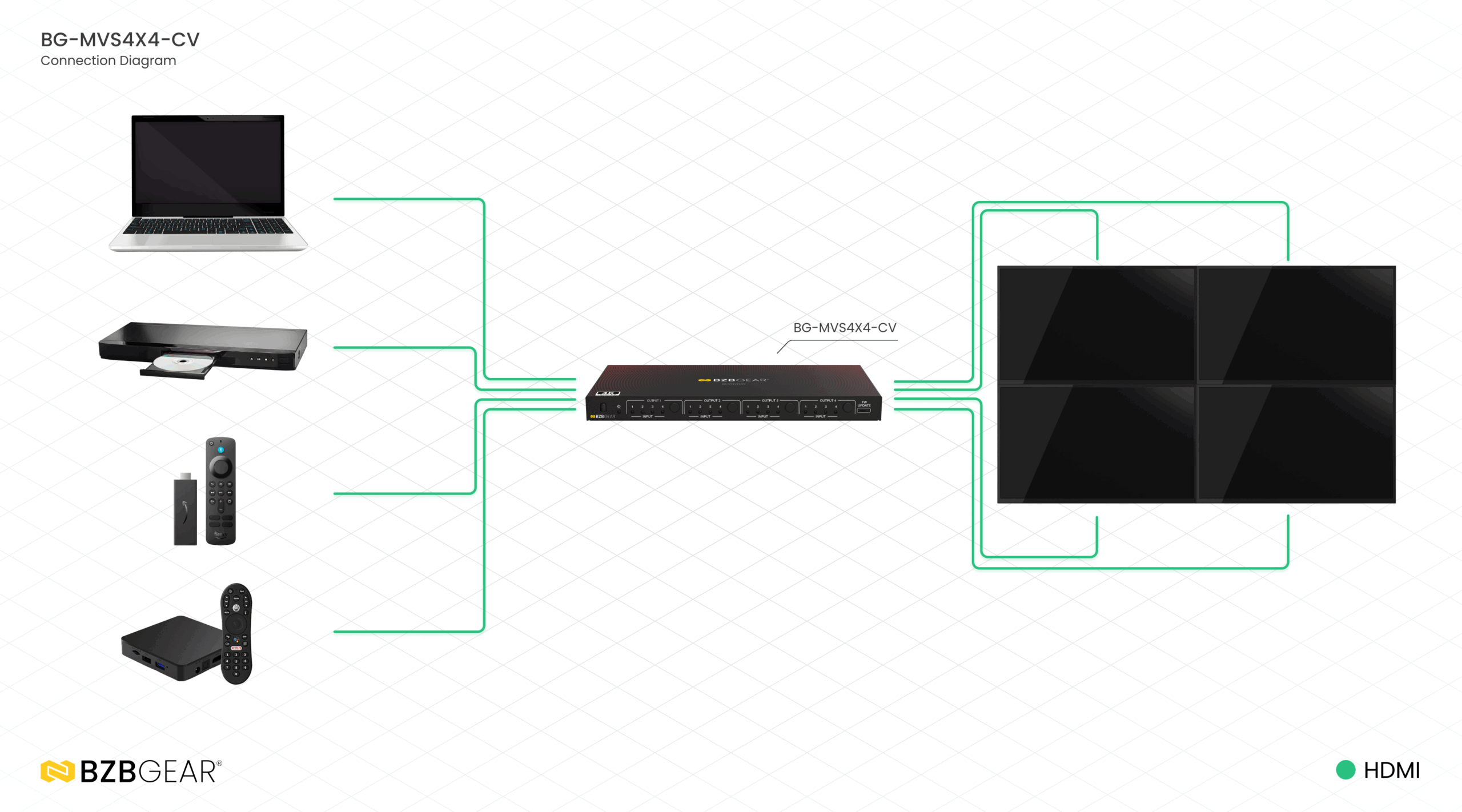

The BG-MVS4X4-CV is a versatile 4x4 seamless HDMI matrix switcher that doubles as a powerful video wall processor, offering flexible video routing and advanced display configurations. In matrix switcher mode, any of the four HDMI inputs can be routed to any of the four HDMI outputs with zero switching delay or image loss. In video wall mode, the unit can split a single HDMI source across 2 to 4 screens, supporting configurations such as 2×2, 4×1, or 1×4 to create an engaging large-format display.
Engineered for high-performance AV applications, the BG-MVS4X4-CV supports input resolutions up to 4K@30Hz and features seamless switching technology for smooth transitions. HDMI output resolutions can be upscaled or downscaled to 720p, 1080p, 1920×1200, or 4K@30Hz, ensuring compatibility with a wide range of display devices. Audio support includes LPCM, Dolby Digital, Dolby Digital Plus, and DTS formats.
Control is simple and flexible via front panel buttons, IR remote, or RS-232 commands. With HDCP 1.4 compliance, 10.2Gbps video bandwidth, and a compact design for easy installation, this multifunctional switcher is ideal for video conferencing, digital signage, live events, classrooms, and control rooms.
Features
-
![Compact Design]()
Flexible Output ScalingOutput resolutions can be upscaled or downscaled to 1080p, 720p, 1920x1200, or 4K@30Hz -
![bi_images]()
4x4 Matrix ModeSeamless switching of any input to any output -
![2 Operational Modes]()
Video Wall ModeSupports configurations such as 2x2, 4x1, 1x4, and more -
![fluent_dual-screen-span-20-regular]()
Seamless SwitchingInstant transitions with no delay or image loss -
![Audio Formats]()
Audio Format SupportCompatible with LPCM, Dolby Digital (DD), Dolby Digital Plus (DD+), and DTS -
![Control Options]()

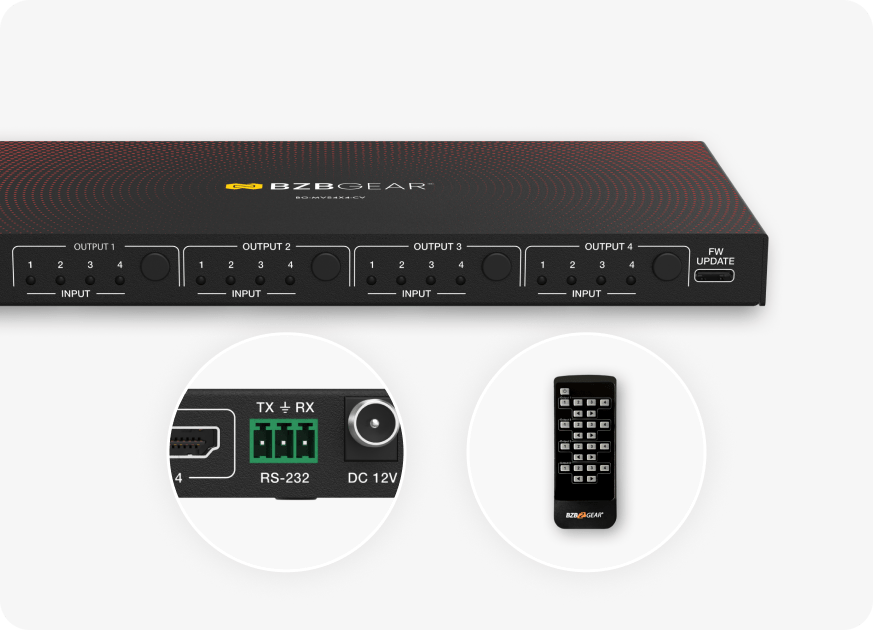

Versatile Control OptionsManage via front panel buttons, IR remote, or RS-232 commands
- HDCP Compliance: Fully compliant with HDCP 1.4 for secure content transmission
- High Bandwidth Support: Handles video bandwidth up to 10.2Gbps
- Advanced Video Wall Features: Includes image mirroring for flexible display setups
- Input Resolution: Supports HDMI input resolutions up to 4K@30Hz
- Compact Form Factor: Space-saving design for easy integration into any AV environment
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 1.4b |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 10.2Gbps |
| Input Video Resolution | Up to 4K2K@30Hz |
| Output Video Resolution | 4096x2160p30Hz, 3840x2160p30Hz, 1920x1200p60Hz, 1920x1080p60Hz, 1920x1080p50Hz, 1600x1200p60Hz, 1600x900p60Hz, 1440x900p60Hz, 1360x768p60Hz, 1280x1024p60Hz, 1280x720p60Hz, 1280x720p50Hz, 1024x768p60Hz |
| Color Depth | 8/10/12-bit |
| Color Space | RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| IR Level | 5Vp-p |
| IR Frequency | Fixed frequency 38KHz |
| HDMI Audio Formats | LPCM 2.0, LPCM 5.1, Dolby 2.0, Dolby 5.1, Dolby Digital Plus, DTS 2.0, DTS 5.1 |
| Transmission Distance | 4K30: 5m/16ft (HDMI cable) 1080P 4:4:4: 10m/33ft (HDMI cable) |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input | 4x INPUT [HDMI Type A, 19-pin female] |
| Output | 4x OUTPUT [HDMI Type A, 19-pin female] |
| Control | 1x RS-232 [3pin-3.5mm phoenix connector] 1x SERVICE [USB Type C, 24-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (WxDxH) | 8.7in x 4.1in x 0.75in [220mm x 105mm x 19mm] |
| Weight | 1.1 lbs [508g] |
| Power Supply | Input: AC 100 - 240V 50/60Hz, Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 3.6W (Max) |
| Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 20%~80% (relative humidity, non-condensing) |
| Storage Humidity | 10%~90% (relative humidity, non-condensing) |
Resources
PACKAGE CONTENTS
- 1x 4K 4x4 HDMI Seamless Matrix Switcher and Video Wall Processor
- 1x Matrix IR Remote
- 1x 3pin-3.5mm Phoenix Connector (male)
- 2x Mounting Ear
- 4x Machine Screw (KM3*4)
- 1x 12V/1A Locking Power Adapter
- 1x User Manual

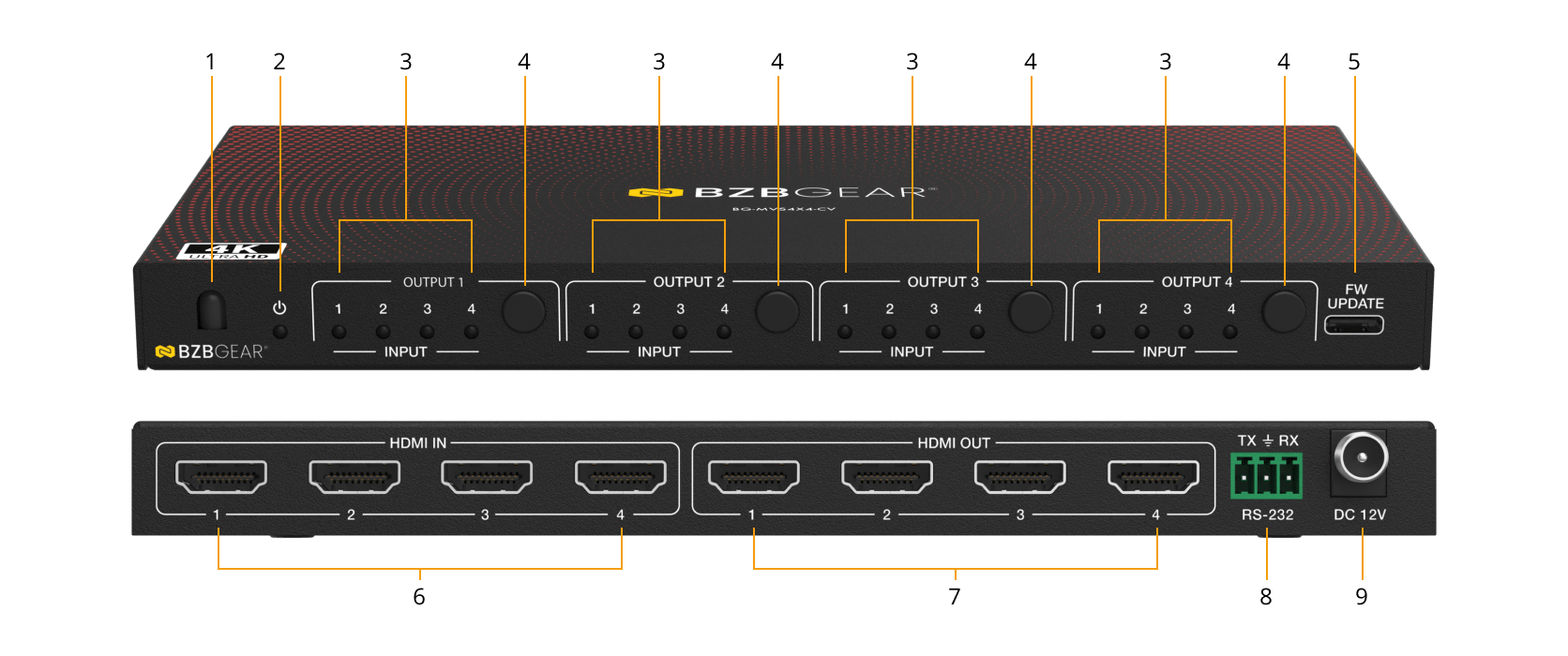

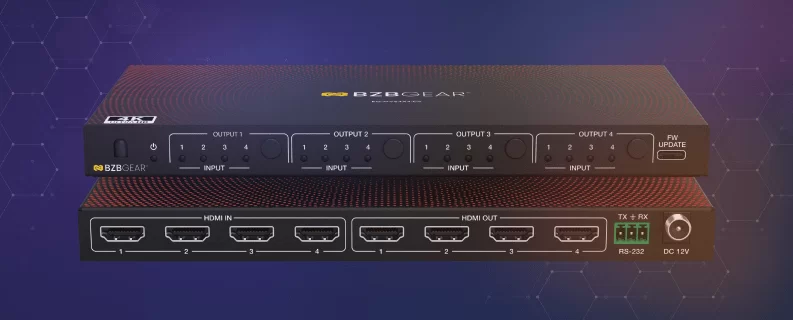

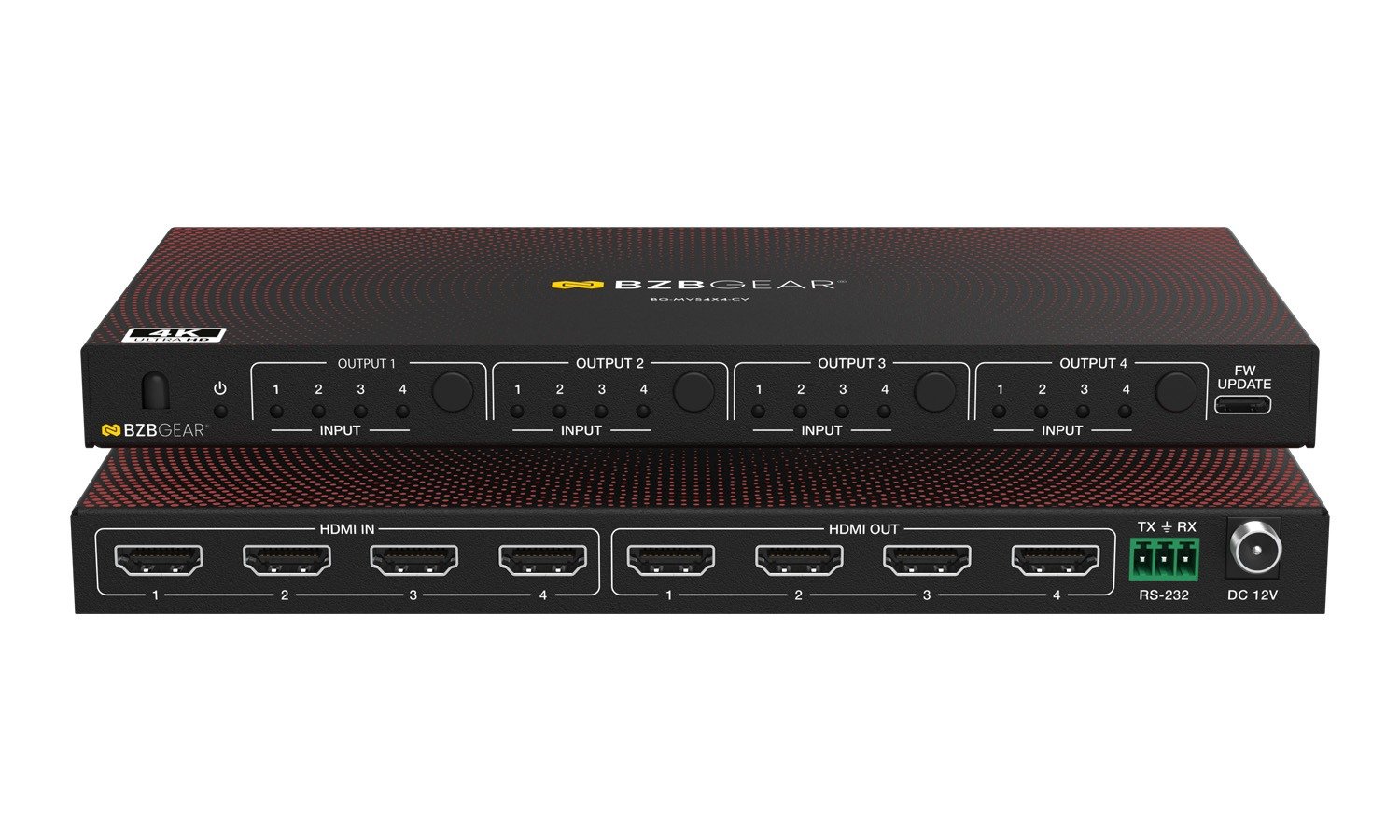

Interfaces

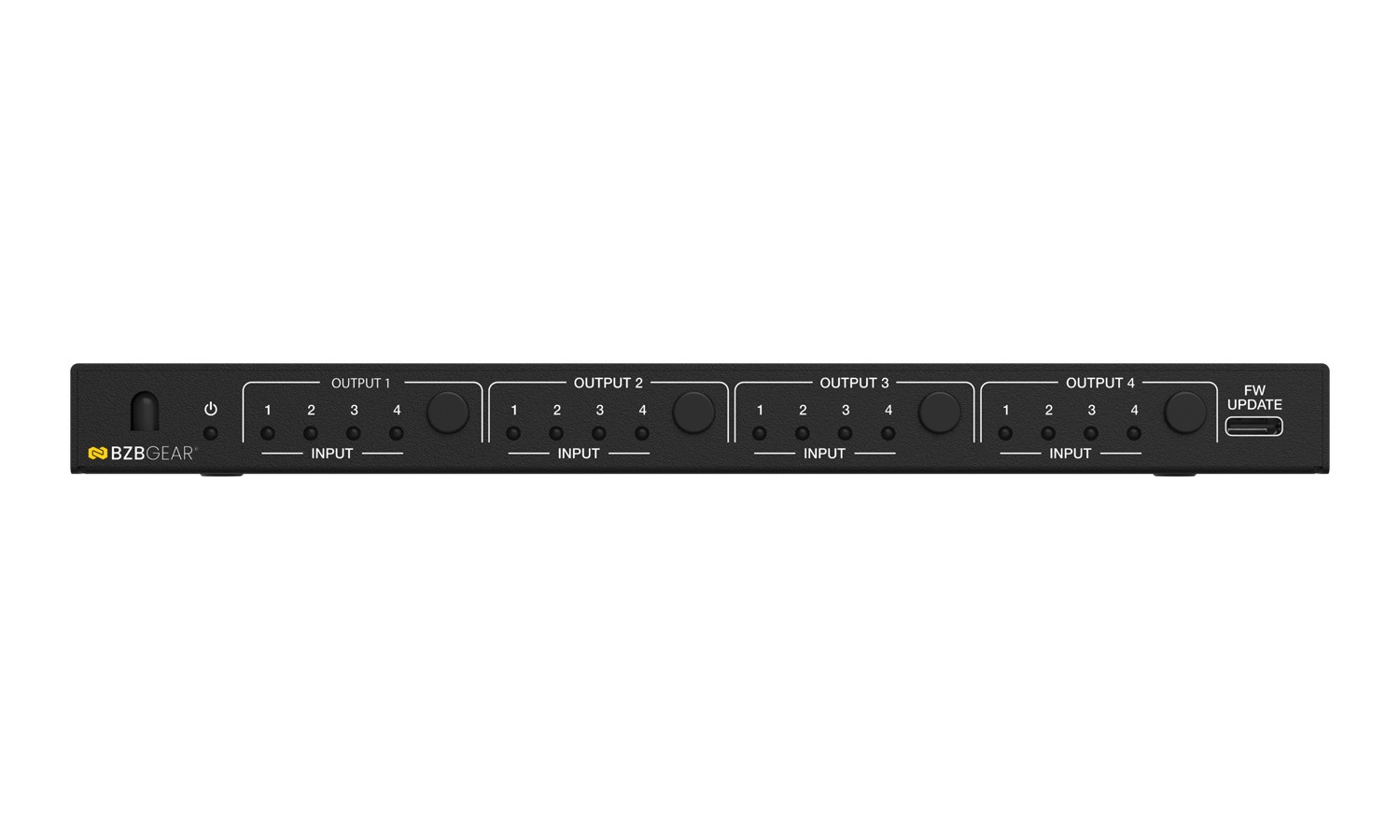

- IR window: IR signal receiving window, it only receives the IR remote signal from this product.
- Power LED: The LED will light in green when the product is working, and red when the product is on standby.
- Signal source LEDs: Signal source indicators for the OUT 1 - 4 output ports. When IN 1/2/3/4 port is selected as the signal input channel, the corresponding LED will light in green.
- Input source switching buttons: Input source switching buttons for the OUT 1 - 4 output ports. Press the button to circularly switch the signal input channel.
- SERVICE port: Firmware upgrade port.

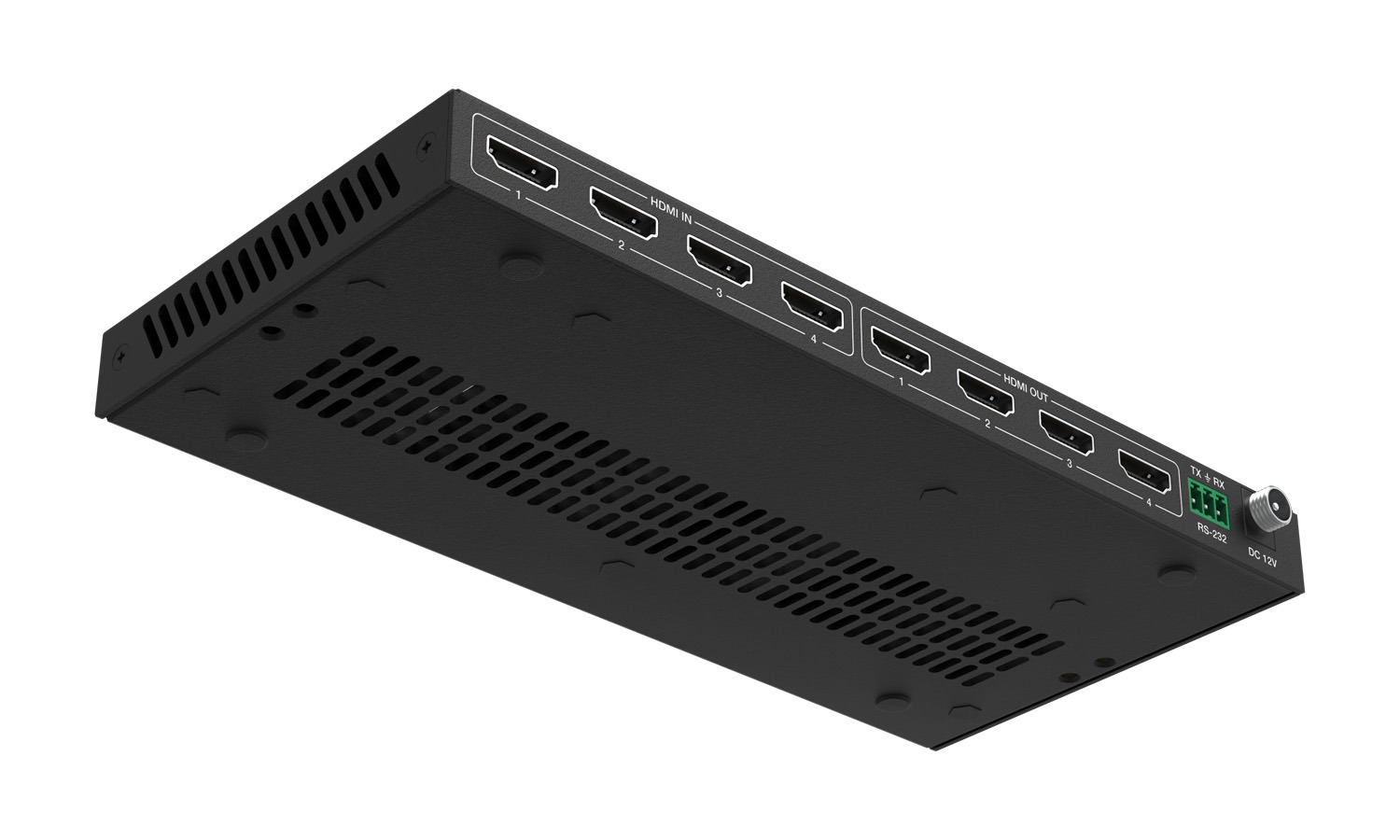

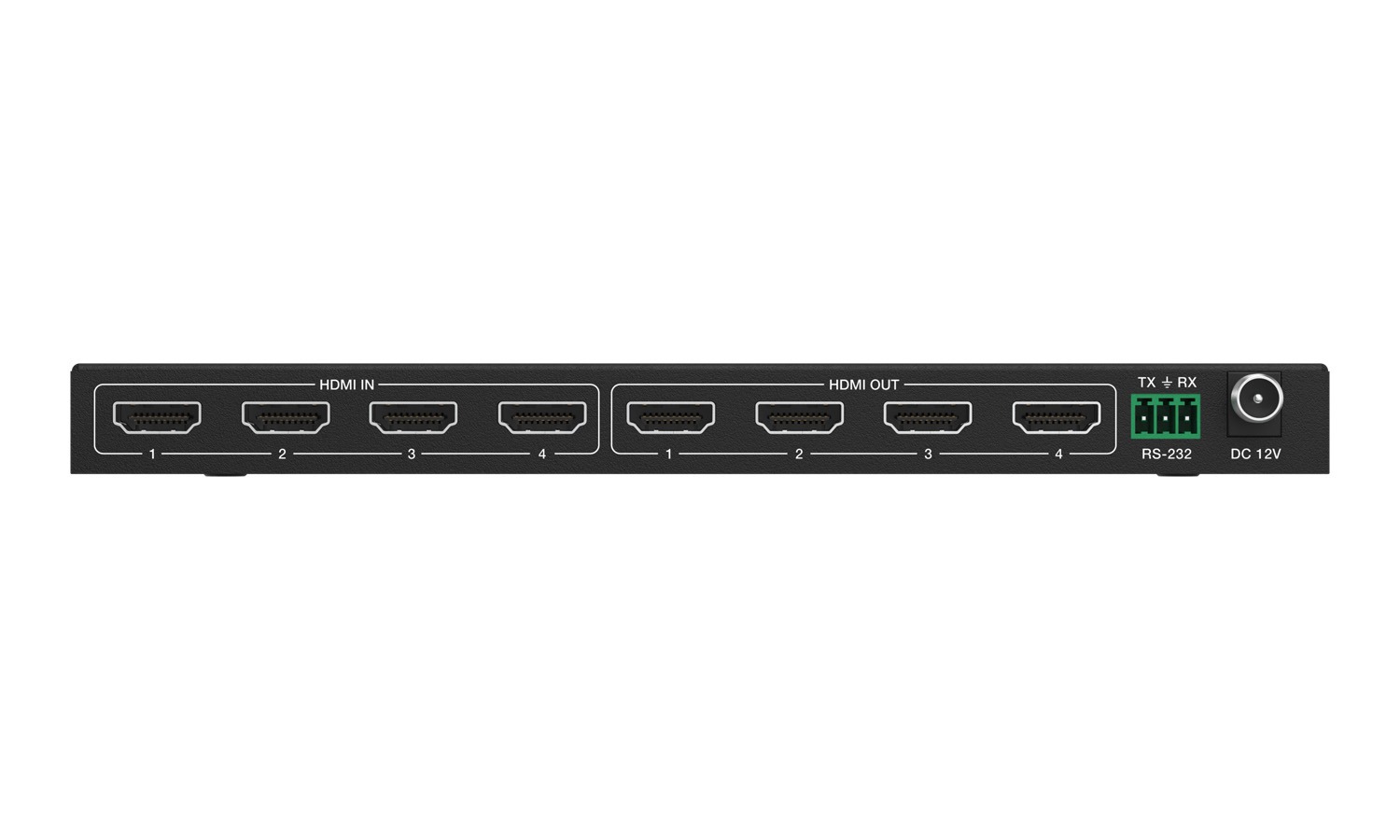

- IN 1 - 4: HDMI signal input port, connected to HDMI signal source device.
- OUT 1 - 4: HDMI signal output port, connected to HDMI display device.
- RS-232: RS-232 serial port, connected to a PC or control system for firmware upgrade or RS-232 commands control.
- DC 12V: DC 12V/1A power input port.
