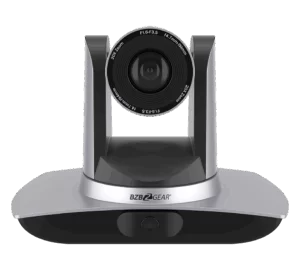

PTZ 12X/20X Zoom 1080P FHD with SDI Auto Trackable Live Streaming Camera
Discontinued
Configure the Perfect Solution
Get Started
Tech Specifications
Tracking camera, lens parameters | |
Image sensor | 1/2.8" high quality CMOS sensor |
Effective pixels | 2,070,000 16:9 |
Video signal | 1080p@60/50/30/25/59.94/29.97, 1080i@60/50/59.94, 720p@60/50/30/25 /59.94/29.97 |
Lens optics zoom | 20X optical zoom f=4.7~94mm |
Visual angle | 2.9° (narrow angle) ~ 55.4° (wide angle) |
Aperture coefficient | F1.6 ~ F3.5 |
Digital zoom | 10X |
Minimum illumination | 0.5Lux (F1.8, AGC ON) |
Digital noise reduction | 2D & 3D digital noise reduction |
White balance | Manual/auto/one-key white balance /3000K/4000K/5000K/6500K |
Focus | Auto/manual |
Aperture | Auto/manual |
Electronic shutter | Auto/manual |
Backlight compensation | On/off |
Wide dynamic | Off/dynamic grade adjustment |
Video regulation | Brightness, hue, saturation, contrast ratio, sharpness, Gamma |
Signal to noise ratio | >55dB |
Panoramic lens | |
Image sensor | 1/2.8" high quality CMOS sensor |
Effective pixels | 2,100,000 |
Lens | Manual focus |
Output port | Network port, 3G-SDI |
Field angle (D/H/V) | 112°/82°/57.6° |
Input/output port and support protocol | |
Video port | SDI |
Network port | 100M internet access (10/100BASE-TX) 5GWiFi (optional), support network VISCA control protocol |
Network protocol | RTSP, RTMP, ONVIF, GB/T28181 |
Compression image code stream | Dual stream output |
Video compression format | H.265, H.264 |
Control signal port | RS-232/485 |
Control protocol | VISCA/Pelco-D/Pelco-P; Baud rate: 115,200/9,600/4,800/2,400bps |
Audio input port | Dual track 3.5mm linear input |
Audio compression format | AAC, MP3, PCM |
Power port | HEC3800 power socket (DC12V) |
Holder parameters | |
Horizontal rotation | -170°~+170° |
Vertical rotation | -30°~+90° |
Horizontal control speed | 0.1 ~ 100°/s |
Vertical control speed | 0.1 ~ 45°/s |
Preset speed | Horizontal: 100°/s, vertical: 45°/s |
Preset quantity | User can set 255 presets at most (10 pcs of mobile control) |
Other parameters | |
Power adapter | Input AC110V-AC220V output DC12V/2.5A |
Input voltage | DC12V±10% |
Input current | 1.5A (maximum) |
Power consumption | 18W (maximum) |
Storage temperature | 14° ~ 140°F / -10°C ~ +60°C |
Storage humidity | 20%~95% |
Operating temperature | 14° ~ 122°F / -10°C~+50°C |
Operating humidity | 20%~80% |
Dimension (WxHxD) | 10in x 5.7in x 6.9in [254mm x 144mm x 174mm] |
Weight (approx.) | 3.3 lbs [1.50kg] |
Operating environment | Indoor only |
Remote maintenance (network port) | Remote upgrade, restart and reset |
Resources
PACKAGE CONTENTS
- 1x Camera
- 1x 12V/1.5A Power supply
- 1x RS232 control line
- 1x Remote control
- 1x User Manual
Interfaces
![Interfaces image](https://bzbgear.com/wp-content/uploads/BG-LVUPTZ-SD.png)
- LAN (Cam-2): Connect Camera-2 to a network switch via category cable to control (TCP/IP or webGUI) and stream.
- HD-SDI (CAM2): Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) over SDI cabling to view close-up lens.
- HD-SDI (CAM1): Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) over SDI cabling to view (panorama lens.
- RS-232: Connect RS-232 to control the camera with a joystick controller or control software.
- A-In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
- LAN (Cam-1): Connect Camera-1 to a network switch via category cable to control (TCP/IP or webGUI) and stream.
- Power: Connect supplied 12V power adapter.
