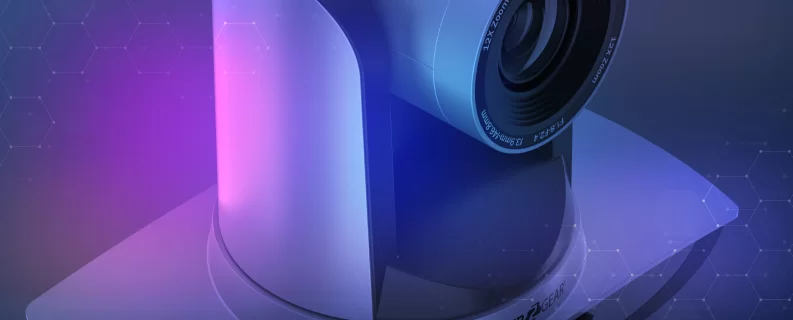

PTZ 12X/20X Zoom 1080P FHD with SDI Auto Trackable Live Streaming Camera
Click here to learn more about BZBGEAR Fundamentals
Discontinued
Configure the Perfect Solution
Get Started
Tech Specifications
Tracking camera, lens parameters | |
Image sensor | 1/2.8" high quality CMOS sensor |
Effective pixels | 2,070,000 16:9 |
Video signal | 1080p@60/50/30/25/59.94/29.97, 1080i@60/50/59.94, 720p@60/50/30/25 /59.94/29.97 |
Lens optics zoom | 20X optical zoom f=4.7~94mm |
Visual angle | 2.9° (narrow angle) ~ 55.4° (wide angle) |
Aperture coefficient | F1.6 ~ F3.5 |
Digital zoom | 10X |
Minimum illumination | 0.5Lux (F1.8, AGC ON) |
Digital noise reduction | 2D & 3D digital noise reduction |
White balance | Manual/auto/one-key white balance /3000K/4000K/5000K/6500K |
Focus | Auto/manual |
Aperture | Auto/manual |
Electronic shutter | Auto/manual |
Backlight compensation | On/off |
Wide dynamic | Off/dynamic grade adjustment |
Video regulation | Brightness, hue, saturation, contrast ratio, sharpness, Gamma |
Signal to noise ratio | >55dB |
Panoramic lens | |
Image sensor | 1/2.8" high quality CMOS sensor |
Effective pixels | 2,100,000 |
Lens | Manual focus |
Output port | Network port, 3G-SDI |
Field angle (D/H/V) | 112°/82°/57.6° |
Input/output port and support protocol | |
Video port | SDI |
Network port | 100M internet access (10/100BASE-TX) 5GWiFi (optional), support network VISCA control protocol |
Network protocol | RTSP, RTMP, ONVIF, GB/T28181 |
Compression image code stream | Dual stream output |
Video compression format | H.265, H.264 |
Control signal port | RS-232/485 |
Control protocol | VISCA/Pelco-D/Pelco-P; Baud rate: 115,200/9,600/4,800/2,400bps |
Audio input port | Dual track 3.5mm linear input |
Audio compression format | AAC, MP3, PCM |
Power port | HEC3800 power socket (DC12V) |
Holder parameters | |
Horizontal rotation | -170°~+170° |
Vertical rotation | -30°~+90° |
Horizontal control speed | 0.1 ~ 100°/s |
Vertical control speed | 0.1 ~ 45°/s |
Preset speed | Horizontal: 100°/s, vertical: 45°/s |
Preset quantity | User can set 255 presets at most (10 pcs of mobile control) |
Other parameters | |
Power adapter | Input AC110V-AC220V output DC12V/2.5A |
Input voltage | DC12V±10% |
Input current | 1.5A (maximum) |
Power consumption | 18W (maximum) |
Storage temperature | 14° ~ 140°F / -10°C ~ +60°C |
Storage humidity | 20%~95% |
Operating temperature | 14° ~ 122°F / -10°C~+50°C |
Operating humidity | 20%~80% |
Dimension (WxHxD) | 10in x 5.7in x 6.9in [254mm x 144mm x 174mm] |
Weight (approx.) | 3.3 lbs [1.50kg] |
Operating environment | Indoor only |
Remote maintenance (network port) | Remote upgrade, restart and reset |
Resources
PACKAGE CONTENTS
- 1x Camera
- 1x 12V/1.5A Power supply
- 1x RS232 control line
- 1x Remote control
- 1x User Manual
Interfaces
- LAN (Cam-2): Connect Camera-2 to a network switch via category cable to control (TCP/IP or webGUI) and stream.
- HD-SDI (CAM2): Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) over SDI cabling to view close-up lens.
- HD-SDI (CAM1): Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) over SDI cabling to view (panorama lens.
- RS-232: Connect RS-232 to control the camera with a joystick controller or control software.
- A-In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
- LAN (Cam-1): Connect Camera-1 to a network switch via category cable to control (TCP/IP or webGUI) and stream.
- Power: Connect supplied 12V power adapter.
