Overview
The BG-IPGEAR-XTREME-W HDMI 2.1 Over IP Multicast Wall Plate System is a high-performance AV transmission solution designed to extend Ultra-HD 4K@120Hz 4:4:4 video and high-fidelity audio over long distances via standard Cat.5e cable. Supporting distances of up to 100 meters (330 feet) over copper, this system ensures uncompressed, high-quality transmission from HDMI sources such as Apple TV, PlayStation, Xbox, PCs, and other HDMI-enabled devices to remote displays.
With support for USB-C (Alt Mode DP 1.4), HDMI, and DisplayPort input, the BG-IPGEAR-XTREME-W is ideal for professional AV installations in corporate environments, digital signage, healthcare, gaming, and education sectors. The unit features bi-directional IR pass-through, USB 3.1 for UVC devices, and seamless video switching, making it a robust choice for interactive and multi-display setups.

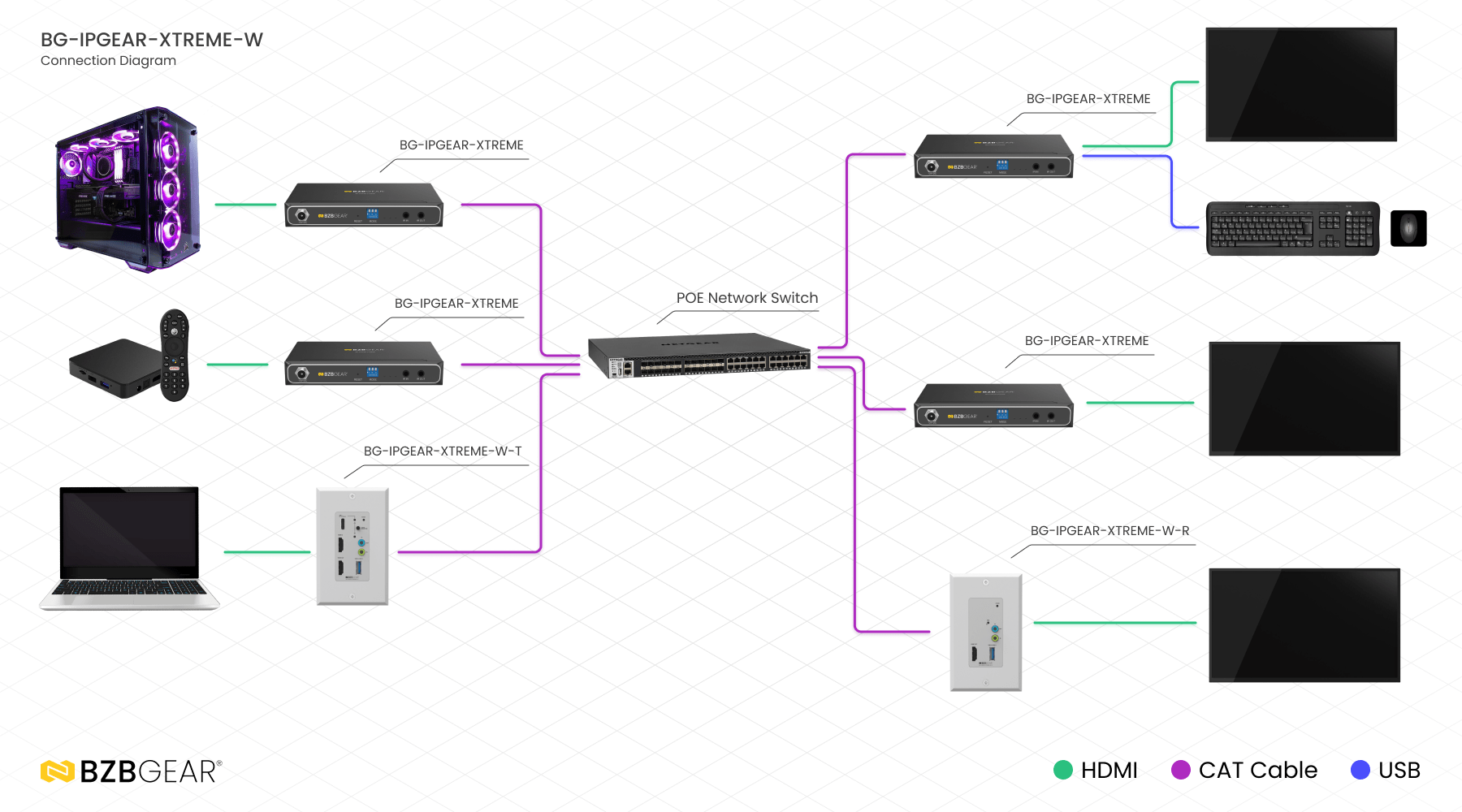

By utilizing a 1 Gigabit Ethernet network switch with IGMP Snooping support, this system enables flexible video distribution in point-to-point, point-to-multipoint, and multicast configurations. Additionally, the built-in 802.1Q VLAN functionality allows for remote control of multiple devices, ensuring an efficient and scalable deployment.
Features
-
![bi_hdmi]()
HDMI 2.1 & HDCP 2.3Delivers 4K@120Hz 4:4:4 with up to 40Gbps (FRL 5), HDR, VRR, ALLM, and eARC/ARC for premium video and audio -
![Long-Range | LONG RANGE KVM | LONG RANGE USB | EXTREME RANGE | BUFFERED AND RE-CLOCKED OUTPUTS | ANALOG STEREO RANGE | EXTENDED RANGE]()
Extended TransmissionTransmits uncompressed video and 7.1-channel audio up to 100m (330ft) over Cat.5e with zero degradation and auto equalization -
![HDMI]()

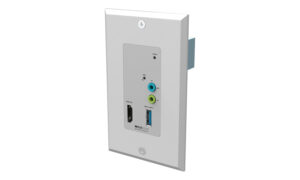

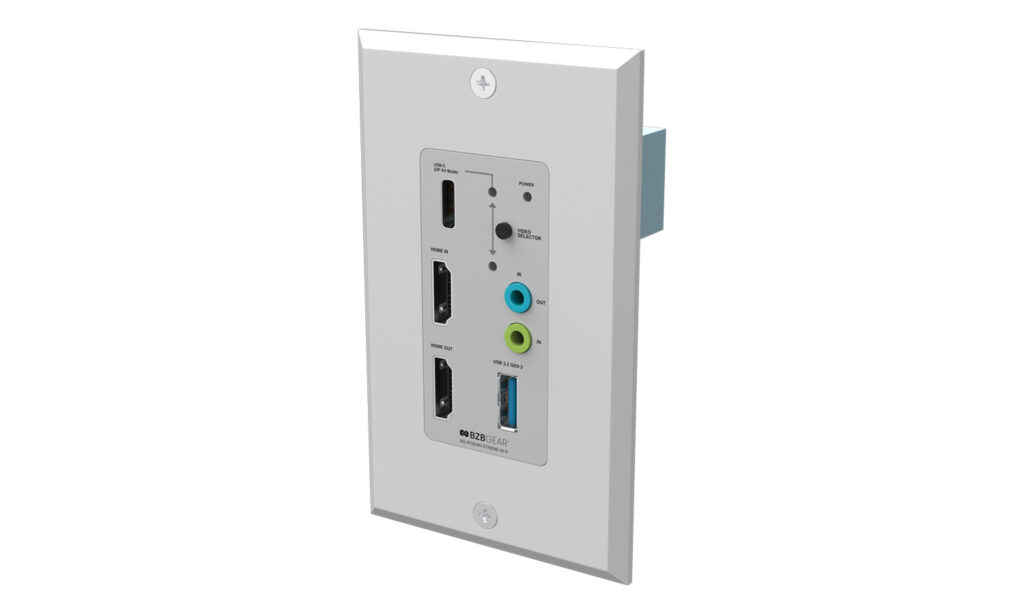

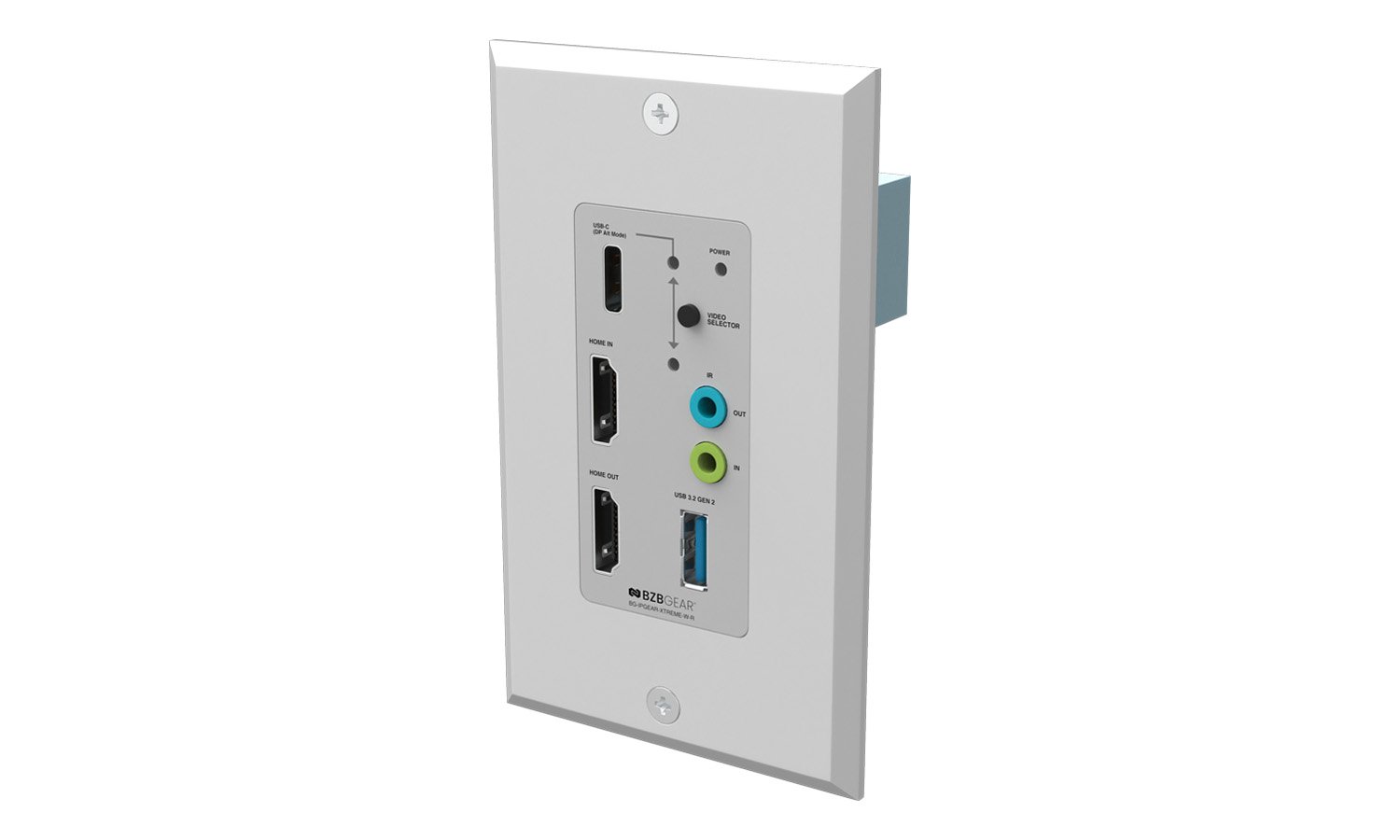

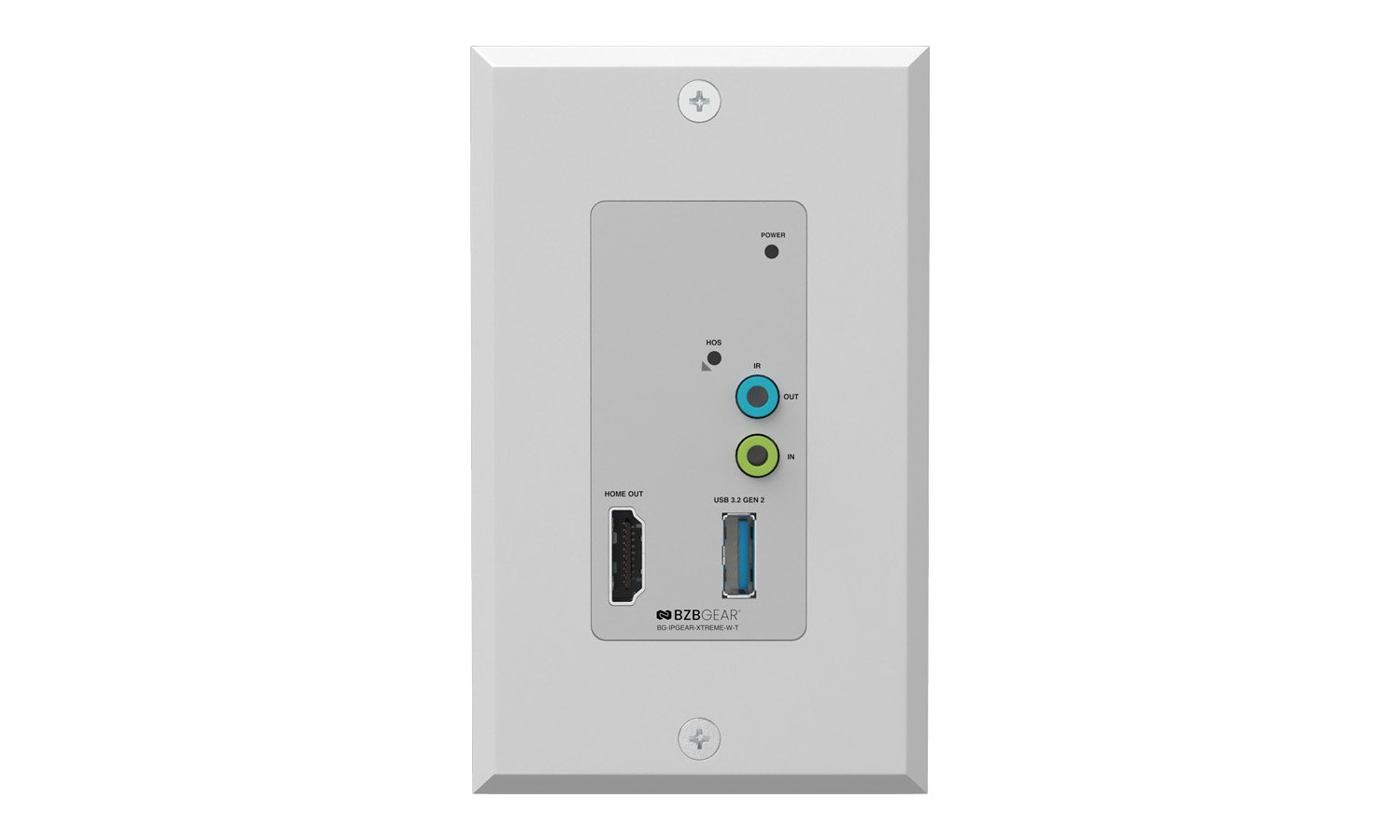

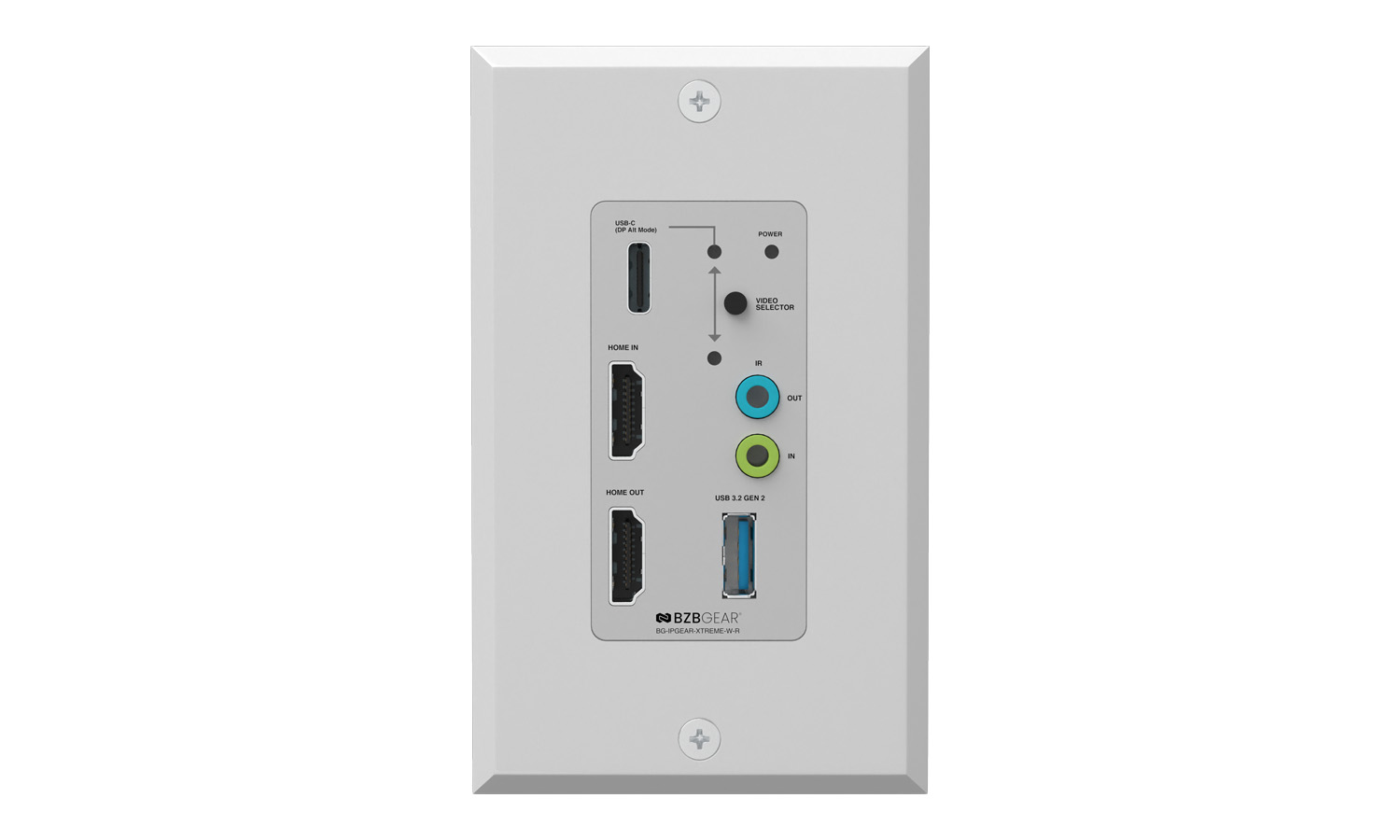

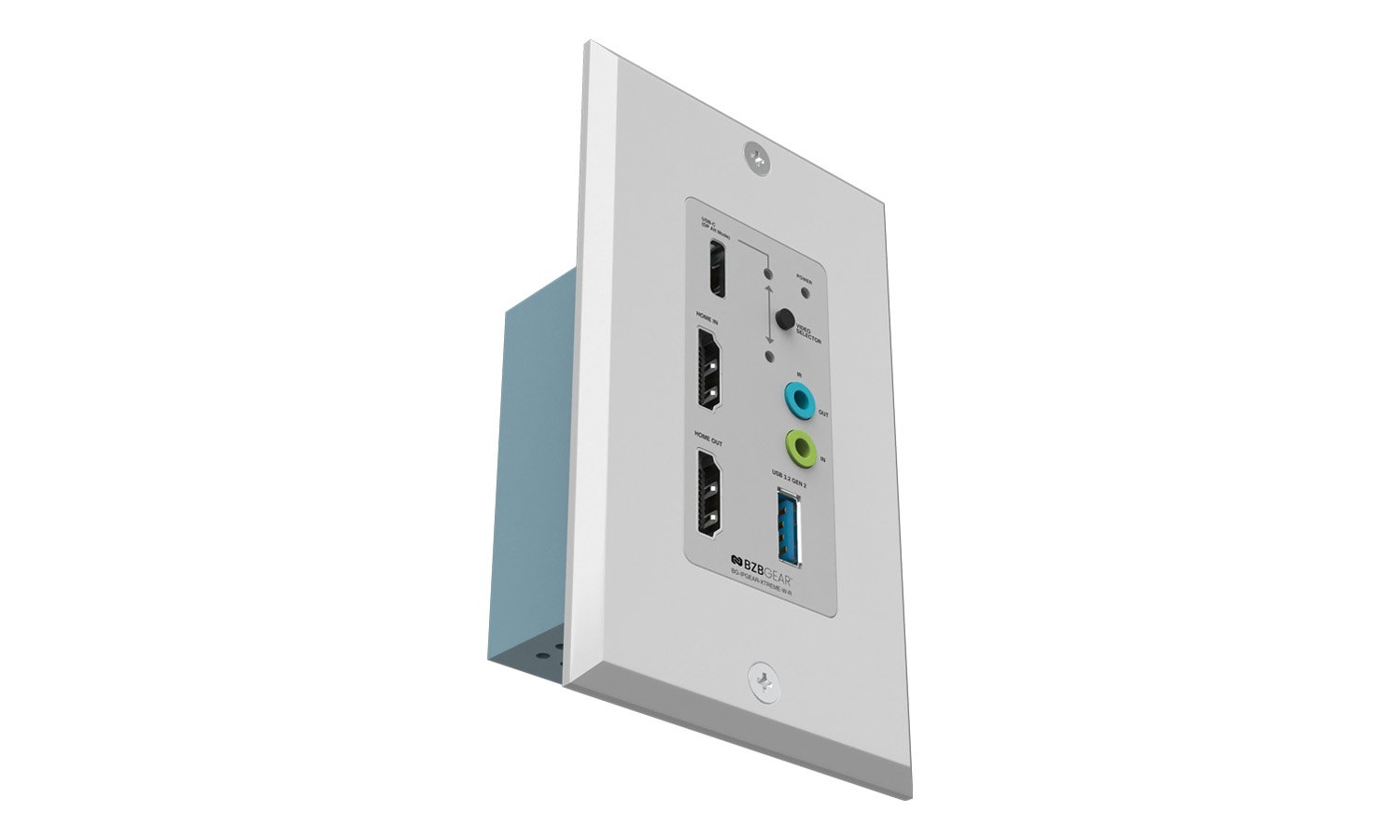

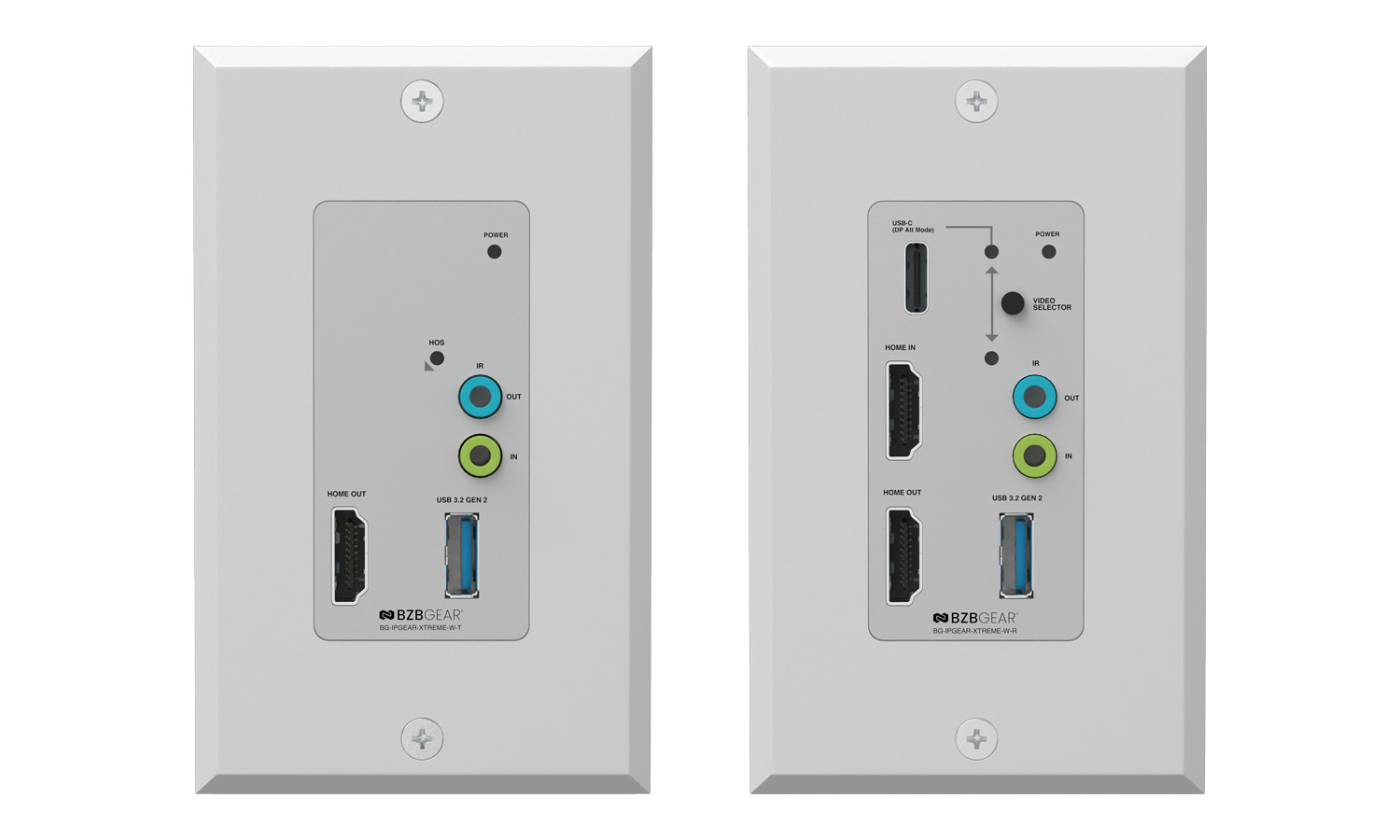

Flexible ConnectivityFeatures HDMI, USB-C (DP 1.4 Alt Mode), 3.5mm audio, RJ-45 Ethernet, and USB 3.1 Gen1/Gen2 for peripherals and UVC webcams -
![Compact Design]()
Advanced Video ProcessingSupports ultra-low latency switching, PiP, PbP, PoP (Chroma Key), and custom scaling for optimized display performance -
![Four Control Modes]()
Network & Control IntegrationEnables IGMP Snooping, 802.1Q VLAN, bi-directional IR, RS-232, CEC bypass, EDID management, and software updates -
![COMPACT DESIGN]()

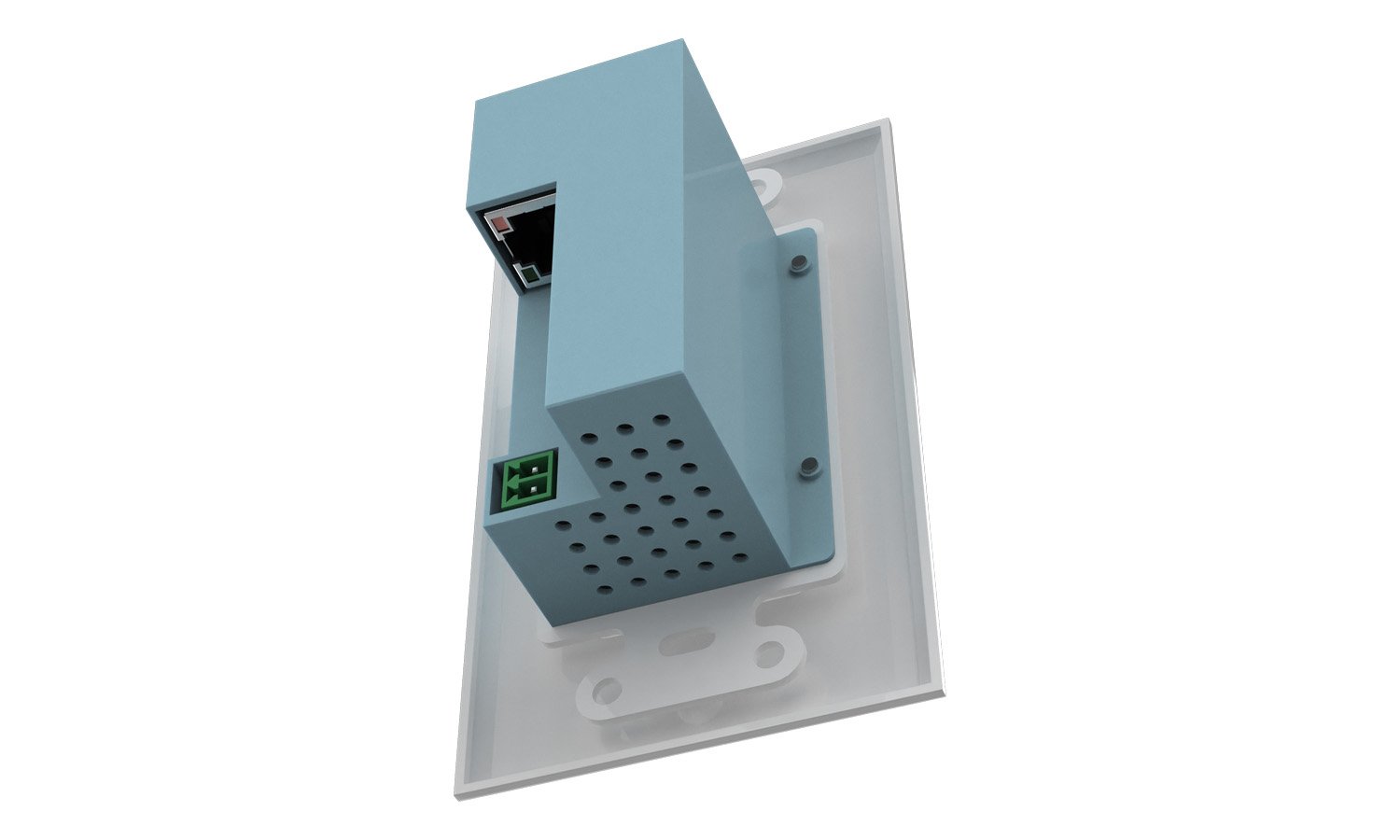

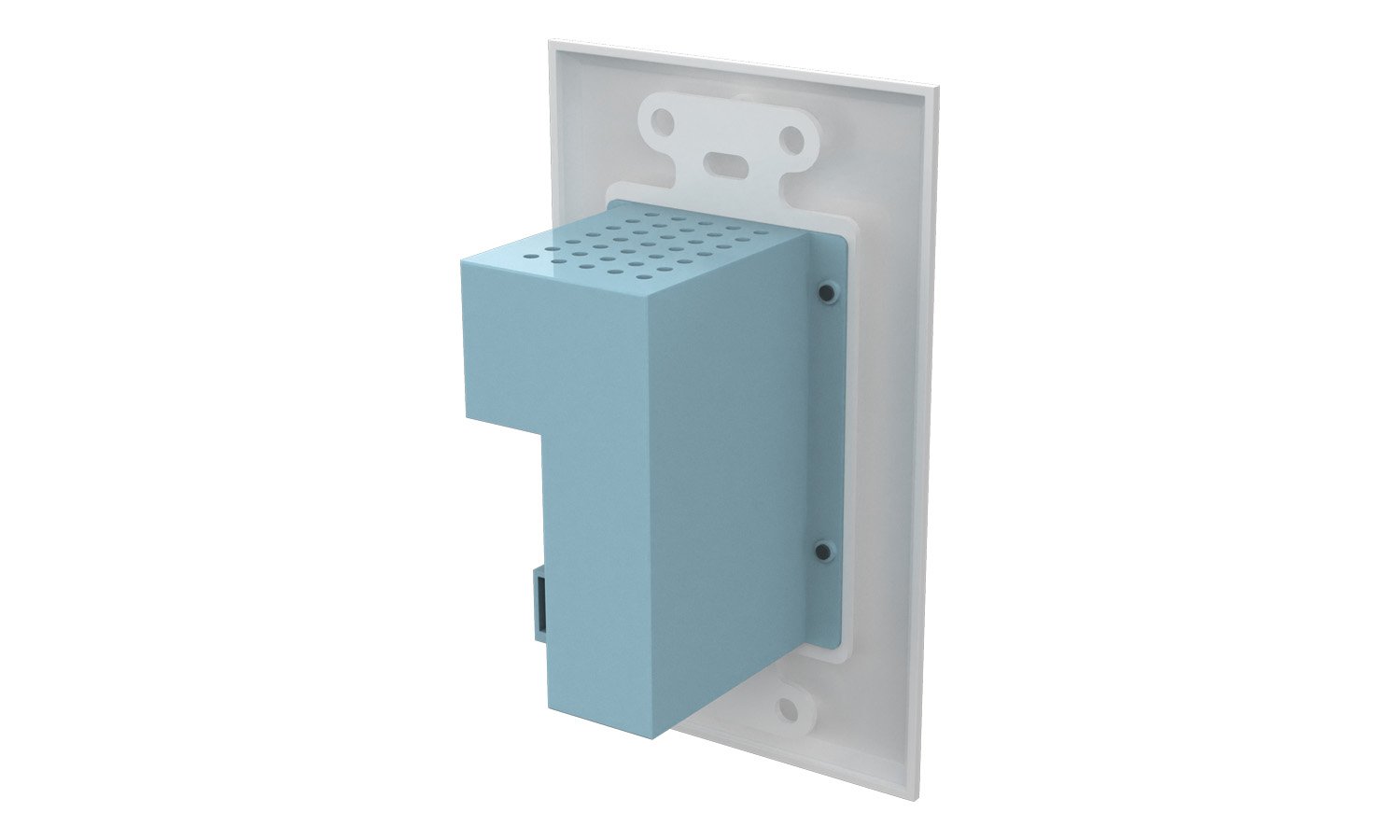

Reliable BuildCompact metal enclosure with wall-mount support and ESD protection
