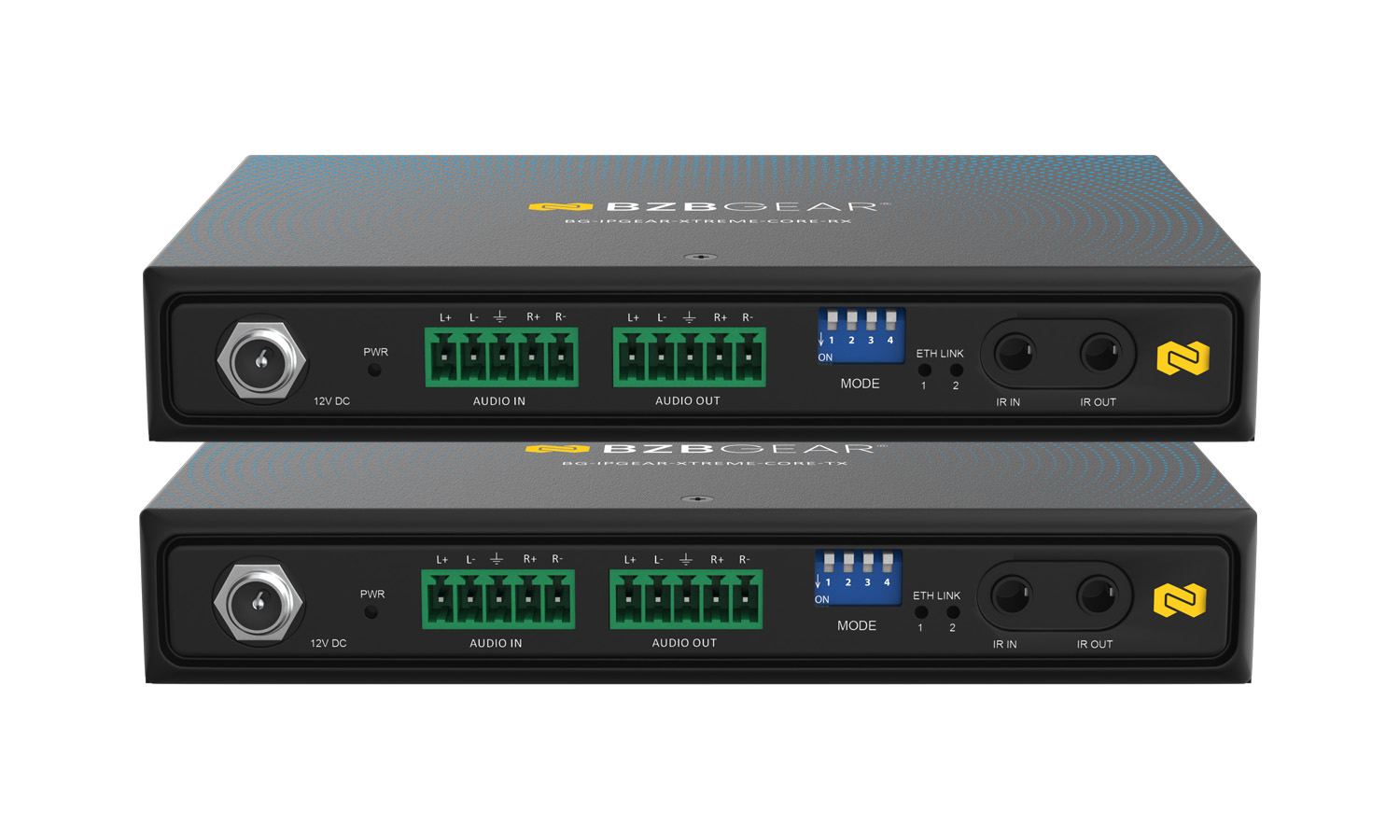

4K120 UHD HDMI 2.1 Extender with IR/eARC/ARC/PoC/RS-232/Ethernet/USB/KVM/Balanced Audio up to 330ft
Overview
The BG-IPGEAR-XTREME-CORE is a next-generation HDMI 2.1 over IP multicast distribution system designed to deliver uncompromised Ultra-HD performance across scalable AV networks. Supporting up to 4K@120Hz 4:4:4 with ultra-low latency, it enables pristine video, high-bit-rate audio, and advanced gaming features to be transmitted up to 100 meters (330 ft) over standard Cat5e cabling. This makes it an ideal backbone for high-performance AV environments where quality, responsiveness, and flexibility are critical.
Built for both point-to-point and fully managed multicast deployments, the BG-IPGEAR-XTREME-CORE integrates seamlessly into 1GbE networks with IGMP snooping support. With bi-directional IR, RS-232, Ethernet pass-through, and USB 3.1 extension, it delivers complete signal and control transport over a single network infrastructure, perfect for professional AV, enterprise, healthcare, esports, and high-end residential applications.
Features in Depth
At its core, the BG-IPGEAR-XTREME-CORE leverages HDMI 2.1 and HDCP 2.3 compliance to support full-bandwidth signals up to FRL 6 (48Gbps). This allows the system to transmit uncompressed 4K@120Hz 4:4:4 video, ensuring pixel-perfect image fidelity with no chroma subsampling or visual artifacts. Ultra-low latency of less than one frame makes the system suitable for real-time applications such as interactive gaming, live production, and simulation environments.
The system supports multiple distribution modes, including point-to-point, point-to-many, and multicast, enabling scalable video routing across an IP network. When paired with a managed 1GbE switch supporting IGMP snooping and VLANs, users can efficiently route and control multiple transmitters and receivers without unnecessary bandwidth flooding. Proprietary multi-encode and decode technology ensures stable, synchronized delivery across all endpoints.
Beyond video, the BG-IPGEAR-XTREME-CORE delivers full-bandwidth audio support, including 7.1-channel uncompressed HDMI audio, Dolby TrueHD, DTS-HD Master Audio, and ARC/eARC functionality. Advanced EDID management and HDCP/CEC bypass ensure compatibility with a wide range of modern source devices and displays, reducing setup complexity in mixed-device environments.
Control and data extension are fully integrated into the platform. Bi-directional IR (20–60kHz) and full-duplex RS-232 allow seamless remote device control, while USB 3.1 Gen 1 and Gen 2 (USB-C) support extends high-speed peripherals between endpoints. A dedicated Ethernet pass-through port enables network or internet access in point-to-point configurations, consolidating AV, control, and data transport into a single, efficient solution.
Features
-
![bi_hdmi]()
HDMI 2.1 over IP MulticastDistributes full-bandwidth HDMI 2.1 signals over standard 1GbE networks with multicast support -
![4K]()
4K@120Hz 4:4:4 PerformanceDelivers Ultra-HD video with no compression artifacts or chroma loss -
![img10-1]()
Ultra-Low LatencyLess than one frame of latency for real-time, interactive applications -
![Four-Control-Modes]()
Advanced Control IntegrationSupports bi-directional IR, RS-232, Ethernet, and USB 3.1 extension -
![mdi_check-network-outline]()
Scalable Network ArchitectureSupports point-to-point, point-to-many, and multicast configurations -
![Audio Support]()
High-Bit-Rate Audio SupportPasses uncompressed 7.1ch audio, Dolby TrueHD, DTS-HD MA, and eARC/ARC
- HDCP 2.3 Compliance: Ensures compatibility with protected content sources
- VRR & ALLM Support: Optimized for next-gen gaming and low-latency video playback
- 100m Extension over Cat5e: Long-distance transmission without proprietary cabling
- Integrated 1Gb Ethernet Interface: Supports AV distribution over managed IP networks
- USB 3.1 Gen 1 & Gen 2 (USB-C): High-speed peripheral extension between TX and RX
- EDID Management: Simplifies system integration and display compatibility
- HDCP & CEC Bypass: Improves interoperability with complex AV systems
- Full-Duplex RS-232 (up to 115,200 bps): Reliable serial control for professional devices
- Metal Enclosure with Wall-Mounting: Durable, installation-ready design
- Web-Based Configuration & Firmware Updates: Simplified system setup and maintenance
Effortlessly control and
manage your video system
with our user-friendly app!
Tech Specifications
| Technical Specifications | |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Maximum Video Bandwidth | Up to 48Gbps (FRL 6) |
| Maximum Resolution | Up to 4K@120Hz 4:4:4 |
| Transmission Distance | Up to 100 m (330 ft) over Cat5e |
| Network Interface (AV) | Integrated 1GbE (RJ-45) |
| Network Requirements | Managed 1GbE switch with IGMP Snooping (for multicast) |
| Distribution Modes | Point-to-Point, Point-to-Many, Multicast |
| Video Latency | < 1 frame |
| Video Processing | Proprietary multi-encode / decode |
| Audio Formats | Uncompressed 7.1ch HDMI, Dolby TrueHD, DTS-HD Master Audio |
| ARC / eARC Support | Yes |
| VRR / ALLM Support | Yes |
| EDID Management | Supported |
| HDCP / CEC Bypass | Supported |
| IR Pass-Through | Bi-directional (20 kHz – 60 kHz) |
| RS-232 Control | Full-duplex, up to 115,200 bps |
| Connectivity | |
| USB Support | USB Connector Type: USB-C USB Standards: USB 3.1 Gen 1 & USB 3.1 Gen 2 |
| Ethernet Pass-Through | 10/100 Mbps (Point-to-Point mode only) |
| Audio Connectivity | Balanced Audio Level: 3.975 Vrms / 12 dBV (600Ω) Audio Connector: 5-pin terminal block (Balanced In / Out) |
| HDMI Connector | Type-A (19-pin female) |
| USB Connector | USB Type-A, USB Type-C |
| RS-232 Connector | 3-pin terminal block |
| IR Connector | 3.5 mm (IR Blaster / IR Receiver) |
| Mechanical Specifications | |
| Housing | Metal enclosure |
| Mounting | Wall-mountable |
| Power Supply | 12V DC, PoC |
| Operating Temperature | 32°F to 104°F / 0°C to 40°C |
| Storage Temperature | -4°F to 140°F / -20°C to 60°C |
| Operating Humidity | 20% to 90% RH (non-condensing) |
| ESD Protection | ±15kV (air), ±8kV (contact) |
| PCB Construction | 4-layer board, impedance controlled |
Resources
PACKAGE CONTENTS
- 1x BG-IPGEAR-XTREME-CORE Transmitter (TX)
- 1x BG-IPGEAR-XTREME-CORE Receiver (RX)
- 2x 12V / 1A DC Power Adapter (US Plug)
- 1x IR 3.5 mm TX Cable (150 cm)
- 1x IR 3.5 mm RX Cable (150 cm)
- 2x 3-Pin Terminal Block (3.5 mm, 90°)
- 4x Bottom-mount Brackets (Elevated Type)
- 8x M3 × 4 mm Black Screws
- 4x M4 × 20 mm Flat Head Screws
- 1x User Manual

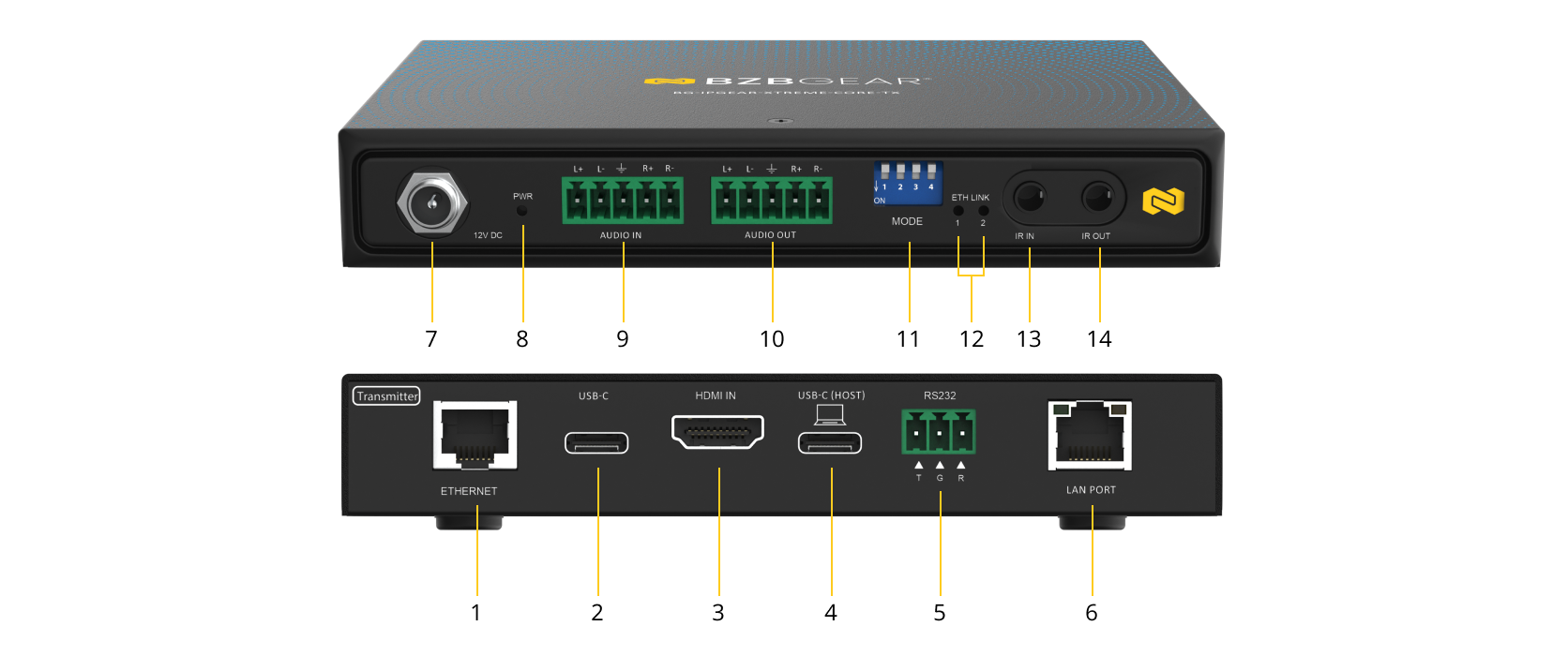

Interfaces

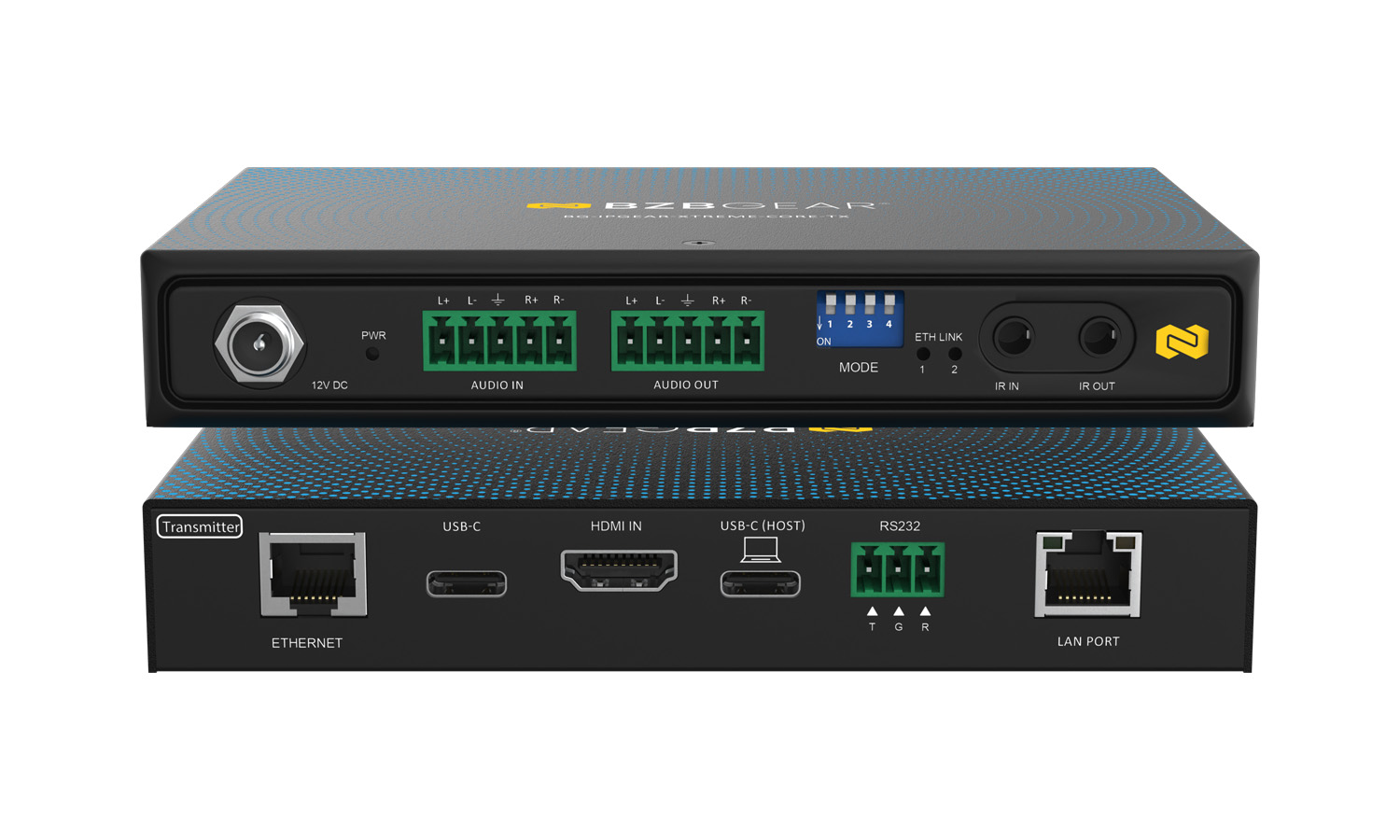

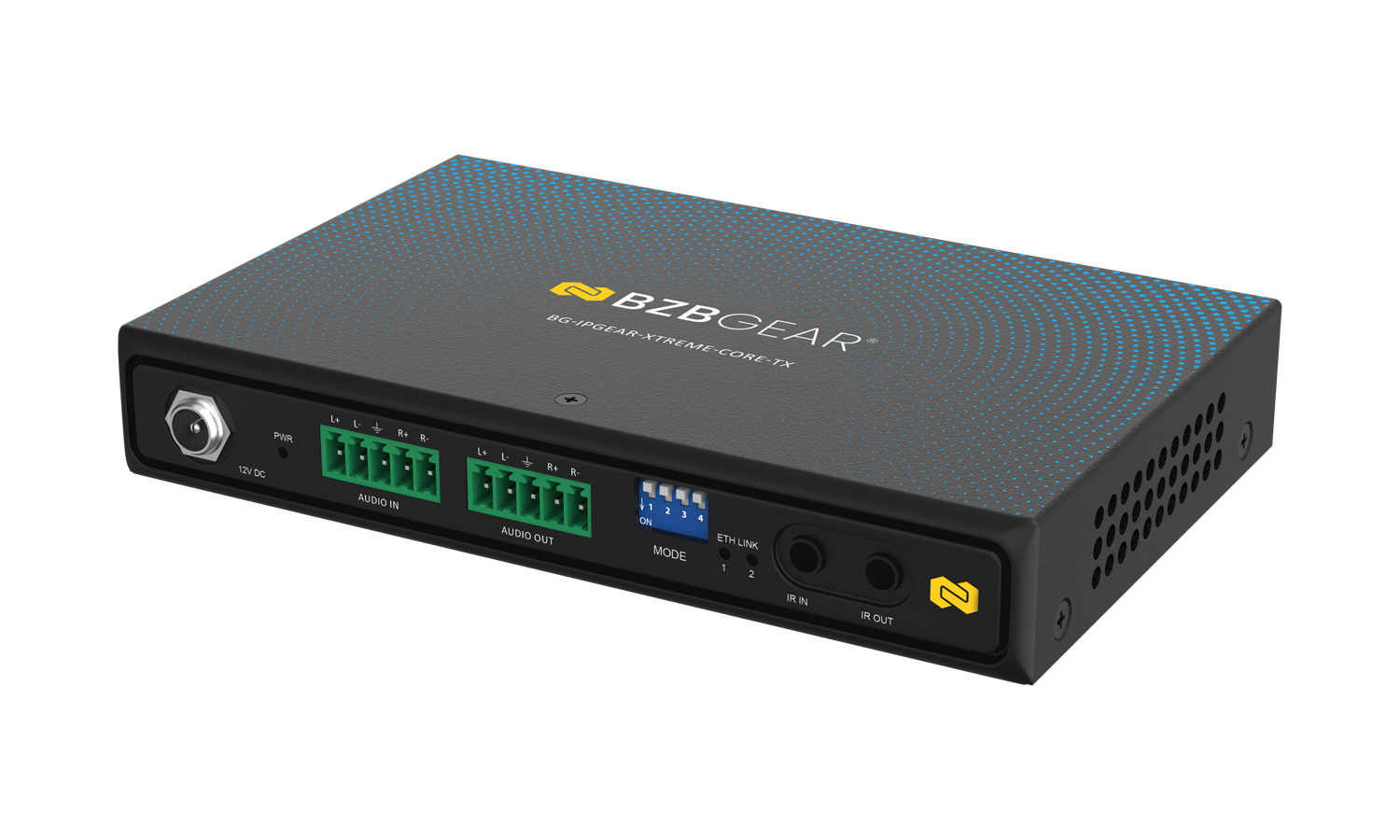

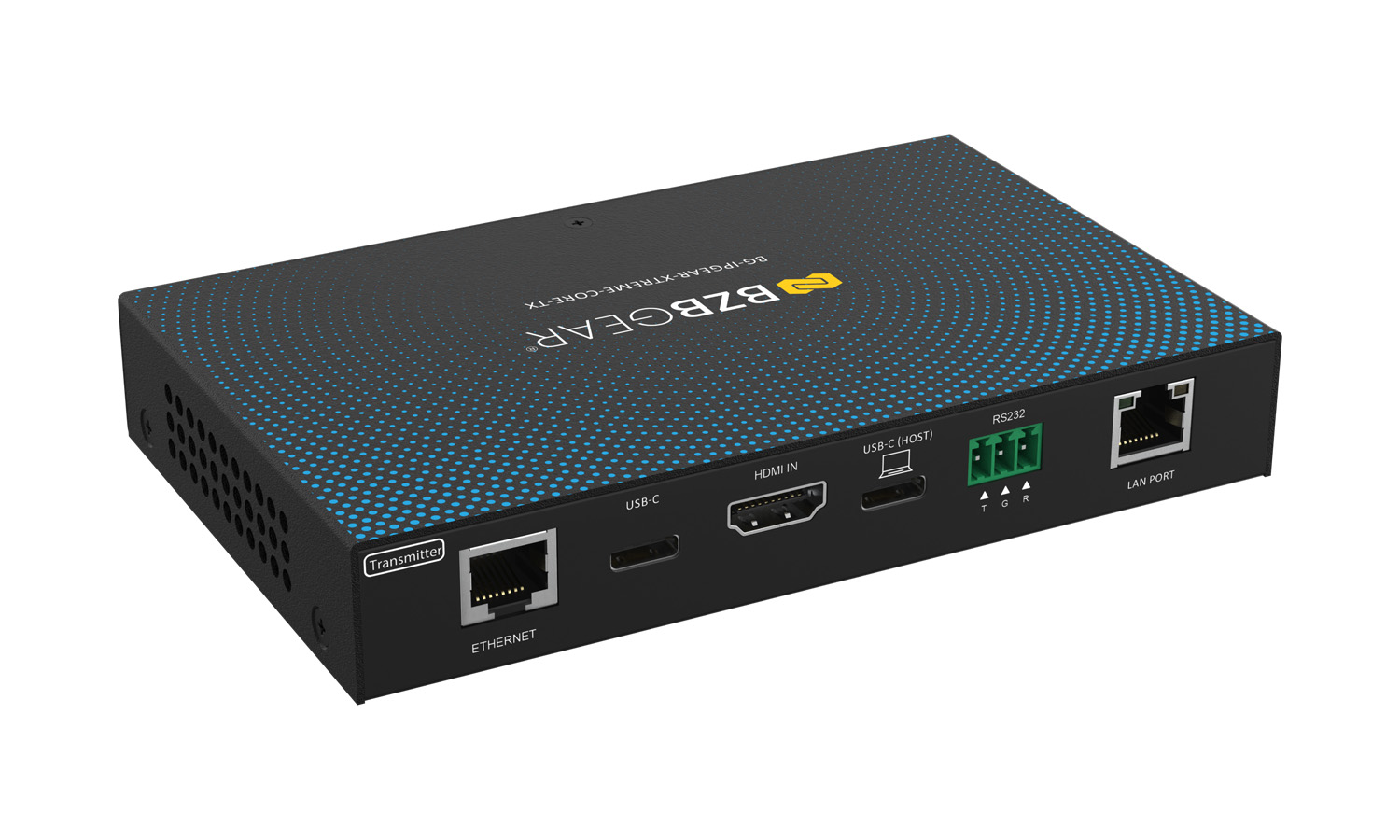

Transmitter
- 1G Ethernet (PoC / AV OUT): Connect a Cat5e or higher cable to link the transmitter to the receiver directly or to a managed 1GbE network switch for IP-based AV distribution. Supports Power over Cable (PoC).
- USB 3.1 Gen 1 (USB-C): Connect USB peripheral devices for extension to the receiving unit.
- HDMI IN: Connect an HDMI source device such as a PC, media player, or gaming console.
- USB 3.1 Gen 2 (USB-C): Connect to a host PC for high-speed USB extension.
- RS-232 Terminal Block: 3-pin terminal block for serial control. Pin order (left to right): TX / RX / GND.
- Ethernet Pass-Through (10/100 LAN): Provides Ethernet pass-through for network or internet access at the remote endpoint (supported in point-to-point mode only).
- 12V DC Power Input: Interlocking power jack for connection to the supplied 12V DC power adapter.
- Power LED Indicator: Illuminates when the transmitter is powered on.
- Audio IN (Balanced, 5-Pin Terminal Block): Balanced analog audio input for external audio sources.
- Audio OUT (Balanced, 5-Pin Terminal Block): Balanced analog audio output for routing audio to external equipment.
- DIP Switch: Used for system configuration, including Ethernet pass-through and firmware update mode selection.
- LAN Status LED: Indicates Ethernet link status and activity.
- IR Receiver Port (3.5 mm): Connect the IR receiver to capture infrared control signals from a remote control.
- IR Blaster Port (3.5 mm): Connect the IR blaster to transmit infrared control signals to the source device.

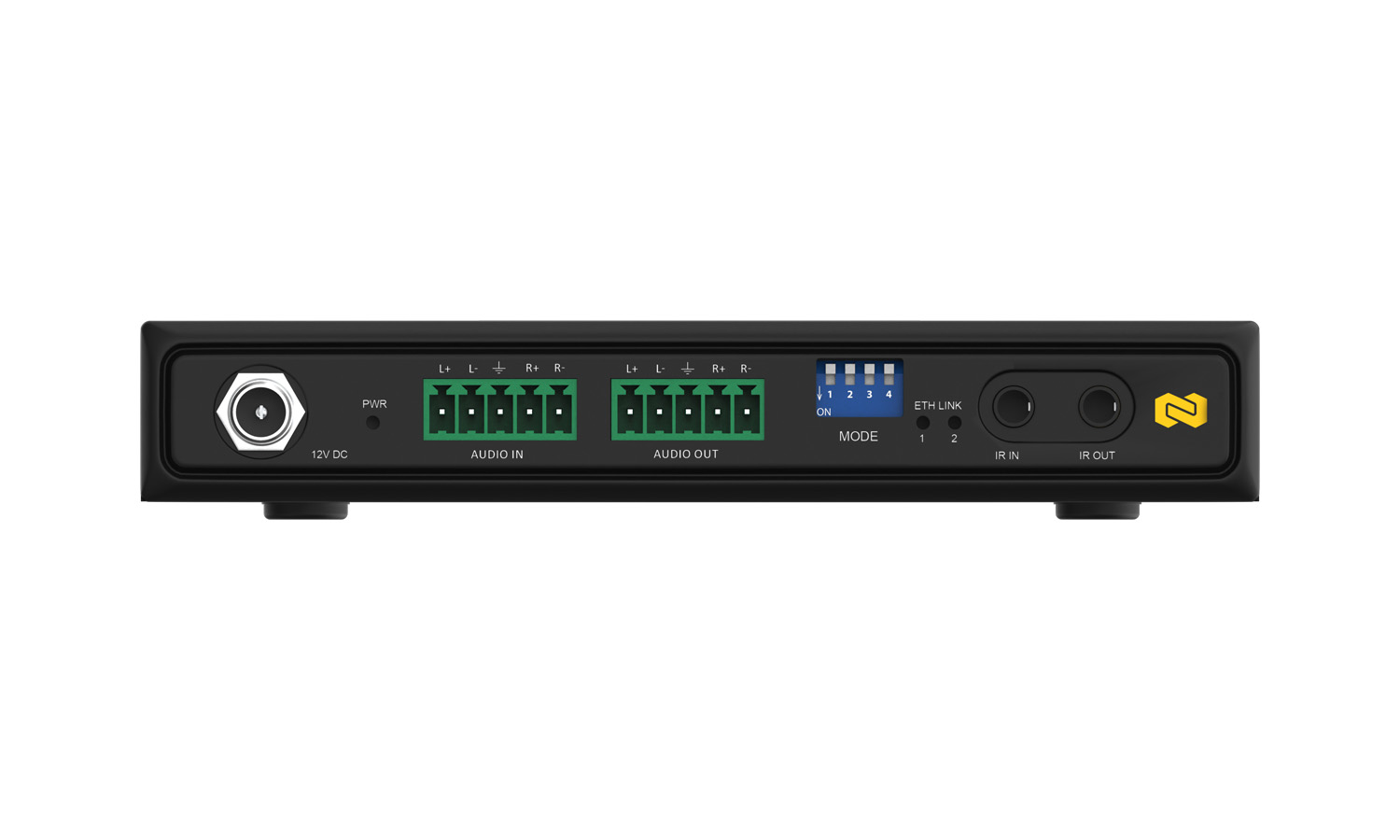

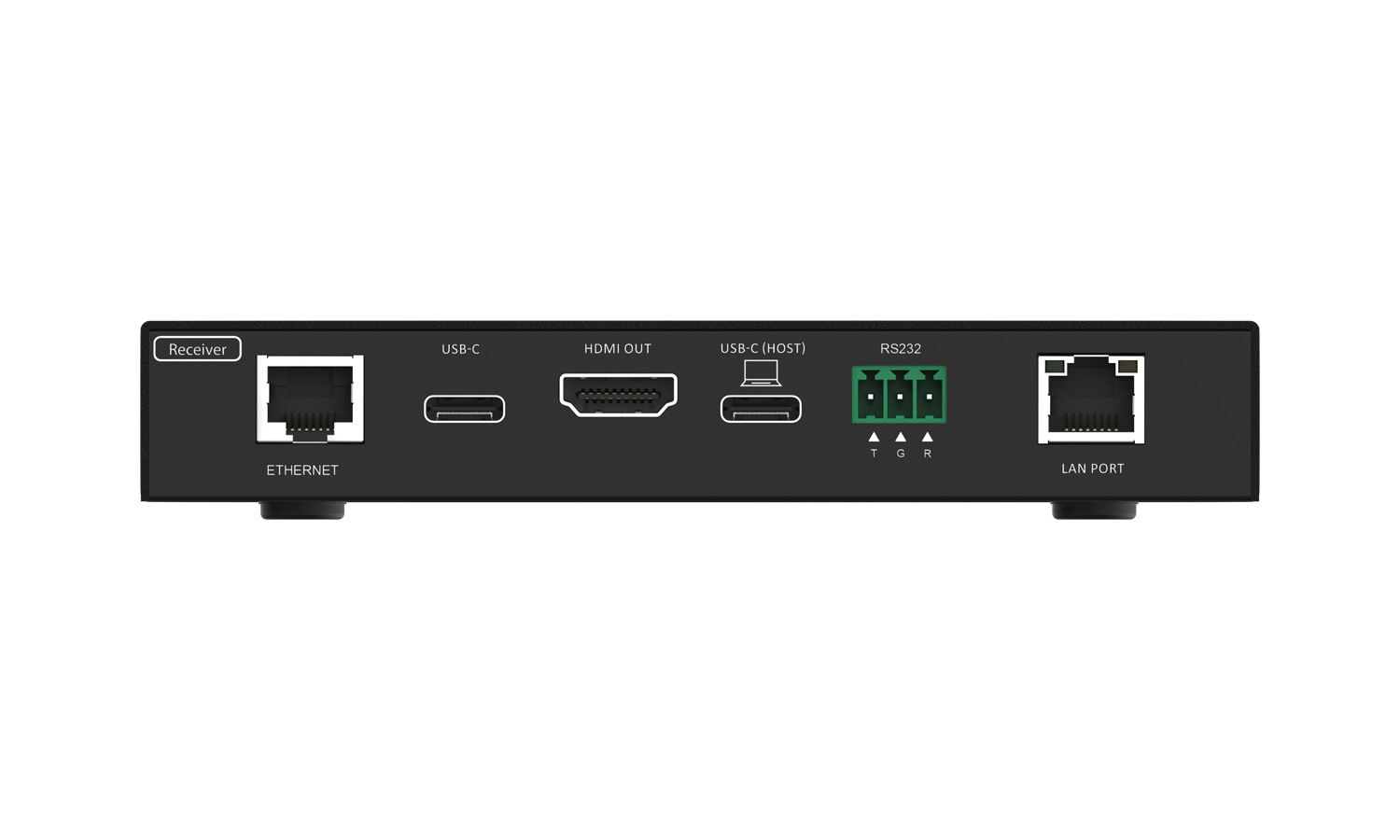

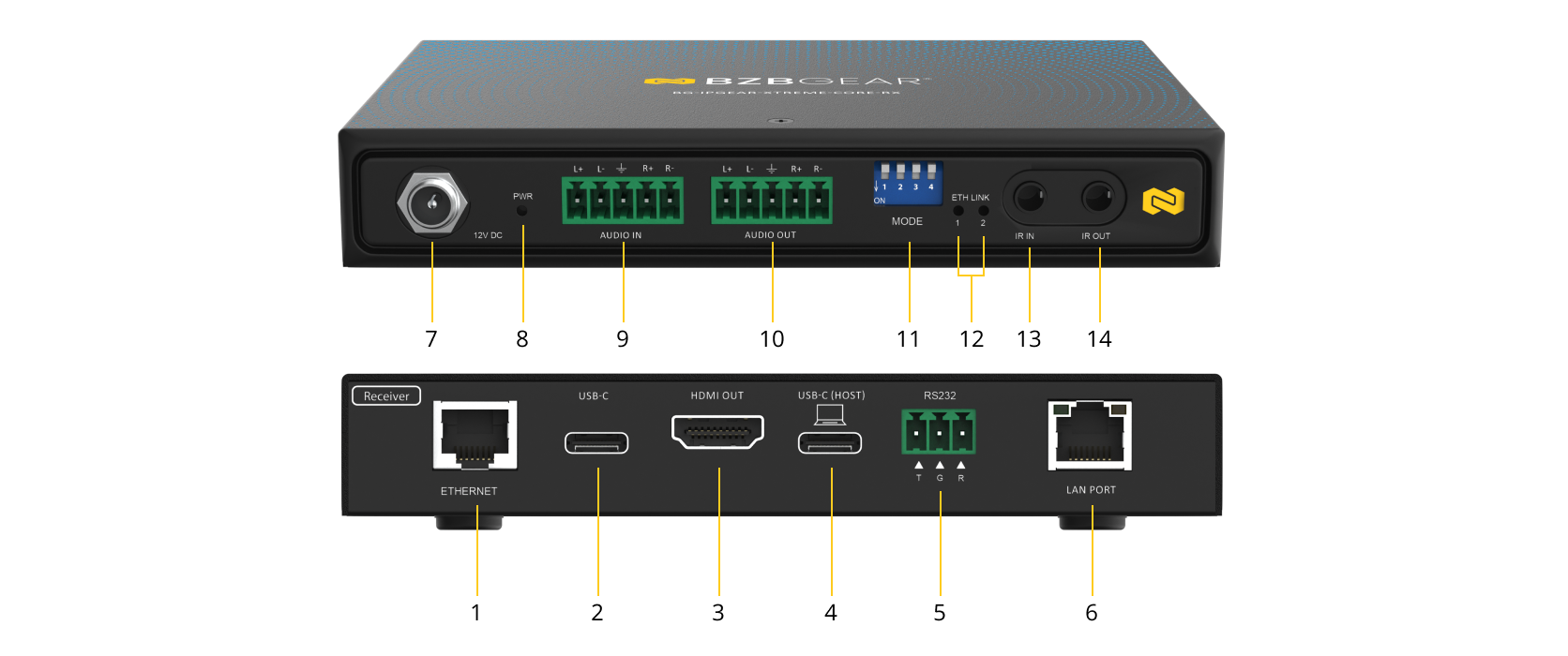

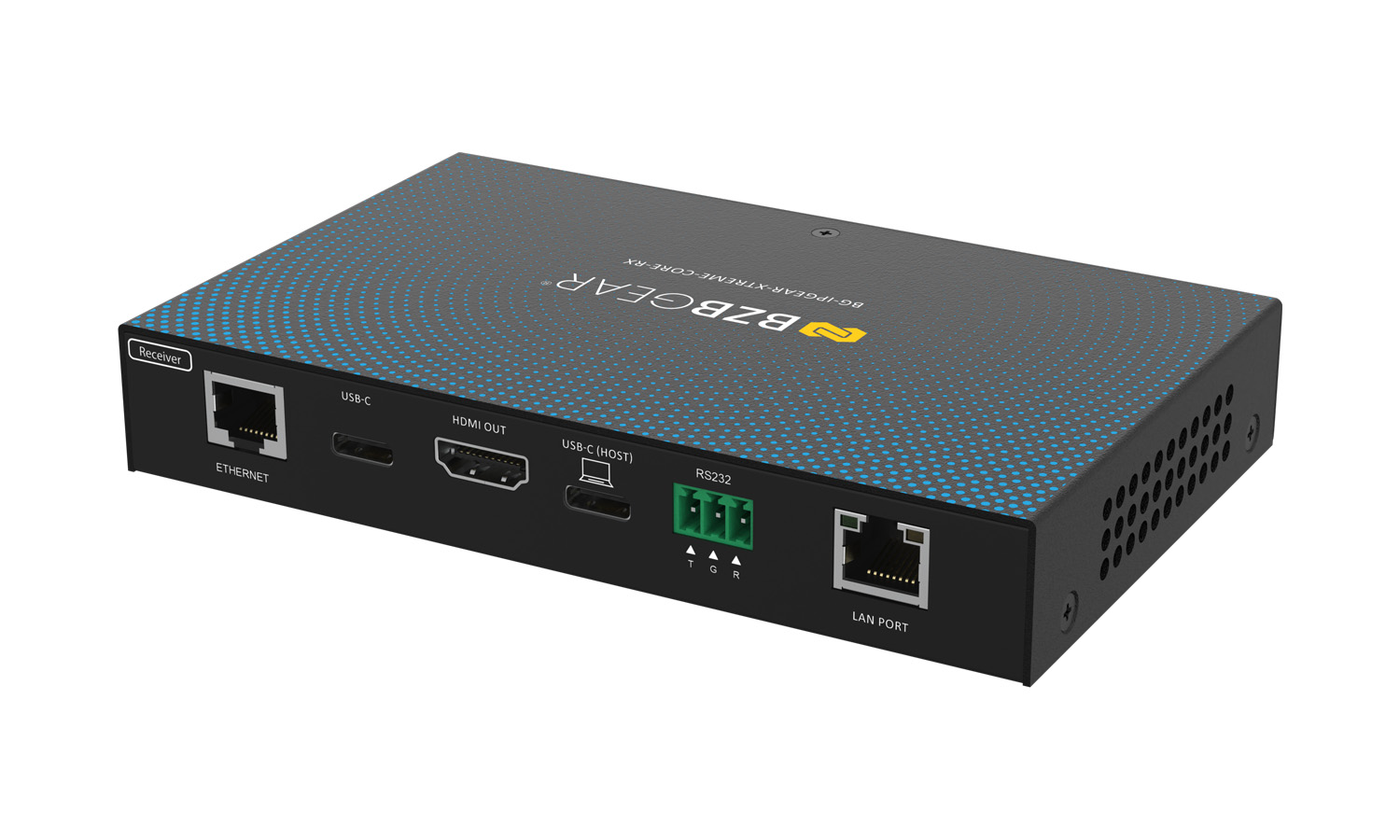

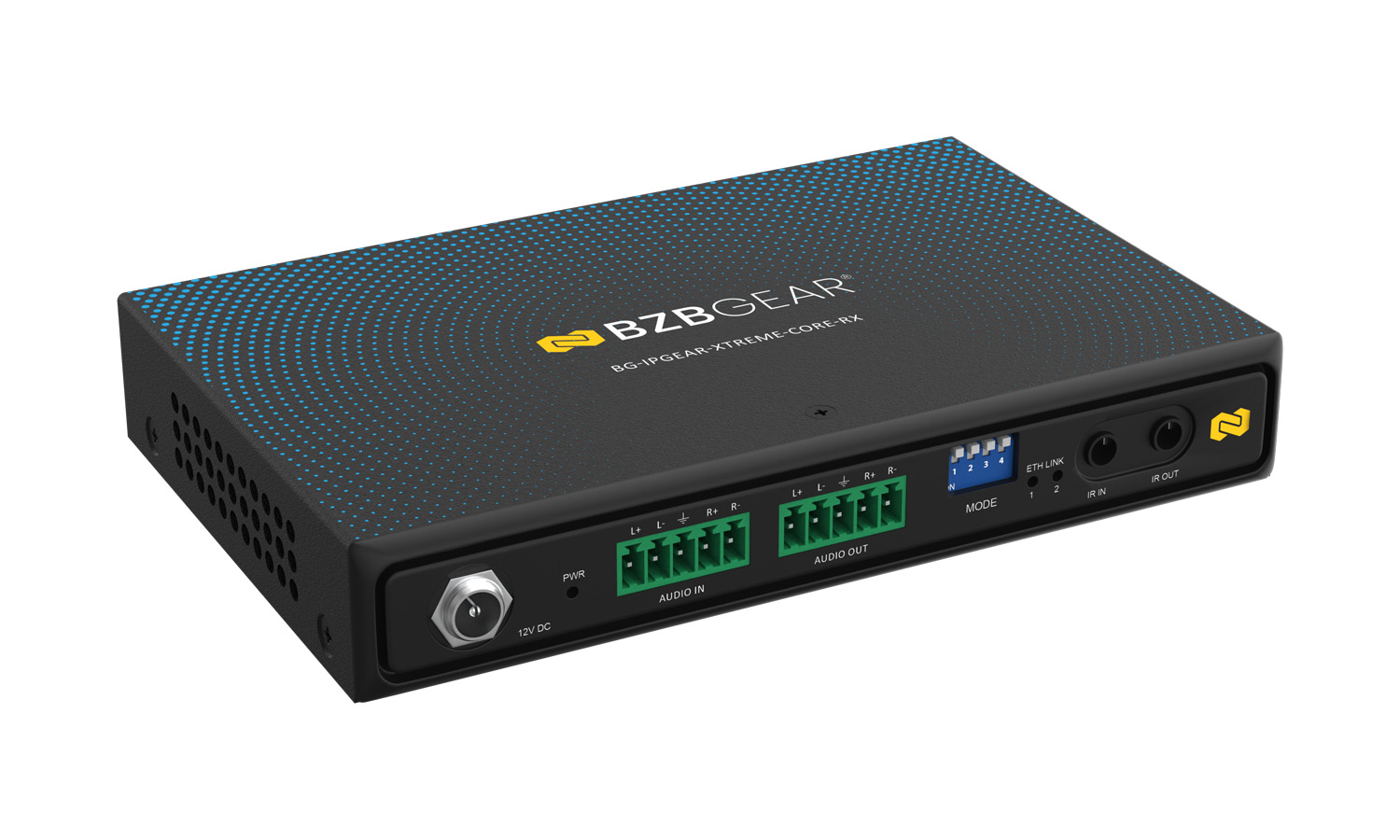

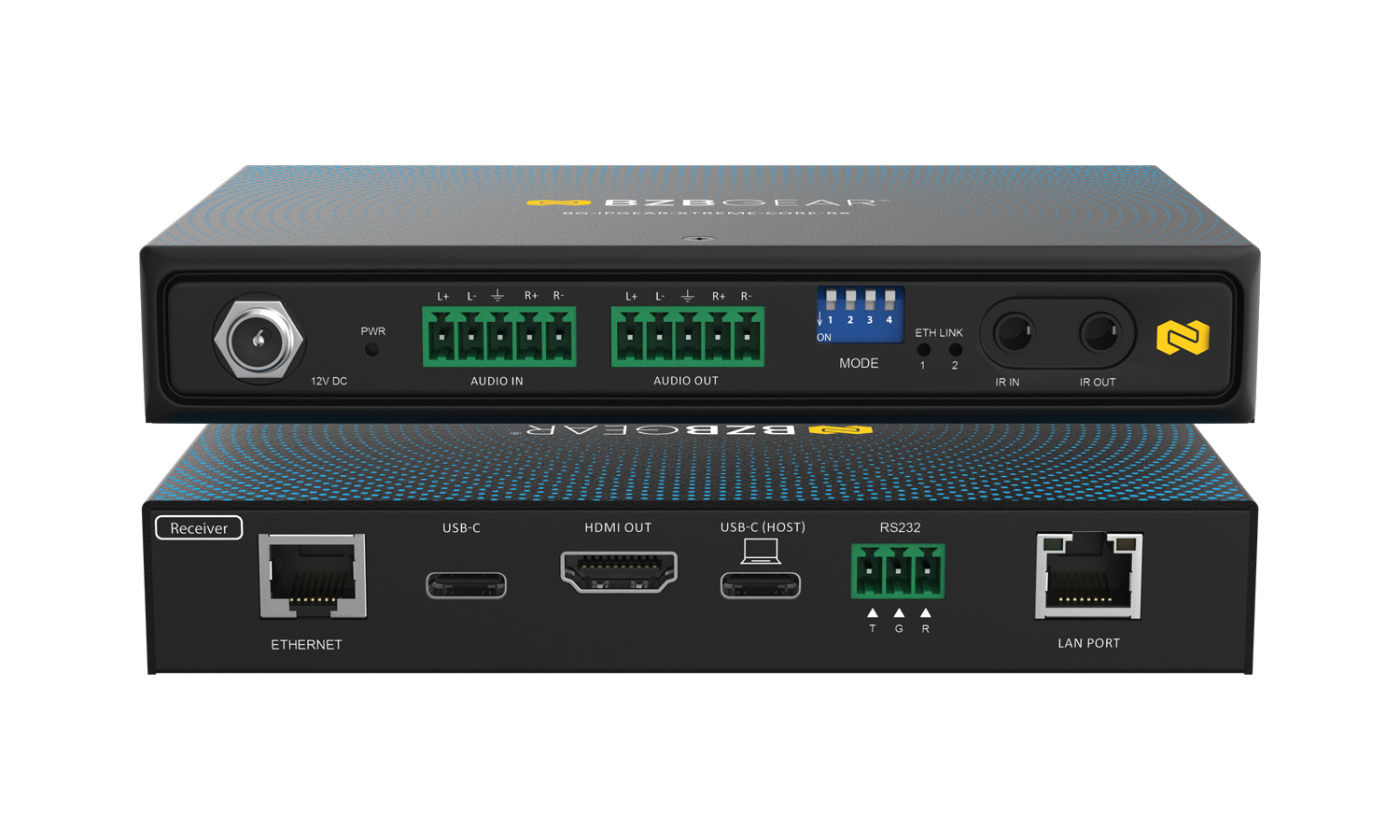

Receiver
- 1G Ethernet (PoC / AV IN): Connect a Cat5e or higher cable from the transmitter or a managed 1GbE network switch. Supports Power over Cable (PoC).
- USB 3.1 Gen 1 (USB-C): Connect USB peripheral devices for extension from the transmitting unit.
- HDMI OUT: Connect to an HDMI display such as a monitor, TV, or projector.
- USB 3.1 Gen 2 (USB-C): Connect to a host PC for high-speed USB extension.
- RS-232 Terminal Block: 3-pin terminal block for serial control. Pin order (left to right): TX / RX / GND.
- Ethernet Pass-Through (10/100 LAN): Provides Ethernet pass-through for network or internet access at the receiver (supported in point-to-point mode only).
- 12V DC Power Input: Interlocking power jack for connection to the supplied 12V DC power adapter.
- Power LED Indicator: Illuminates when the receiver is powered on.
- Audio IN (Balanced, 5-Pin Terminal Block): Balanced analog audio input for external audio sources.
- Audio OUT (Balanced, 5-Pin Terminal Block): Balanced analog audio output for connection to powered speakers, mixers, or amplifiers.
- DIP Switch: Used for system configuration, including Ethernet pass-through and firmware update mode selection.
- LAN Status LED: Indicates Ethernet link status and activity.
- IR Receiver Port (3.5 mm): Connect the IR receiver to receive infrared control signals from the display-side location.
- IR Blaster Port (3.5 mm): Connect the IR blaster to transmit infrared control signals to the display or controlled device.
